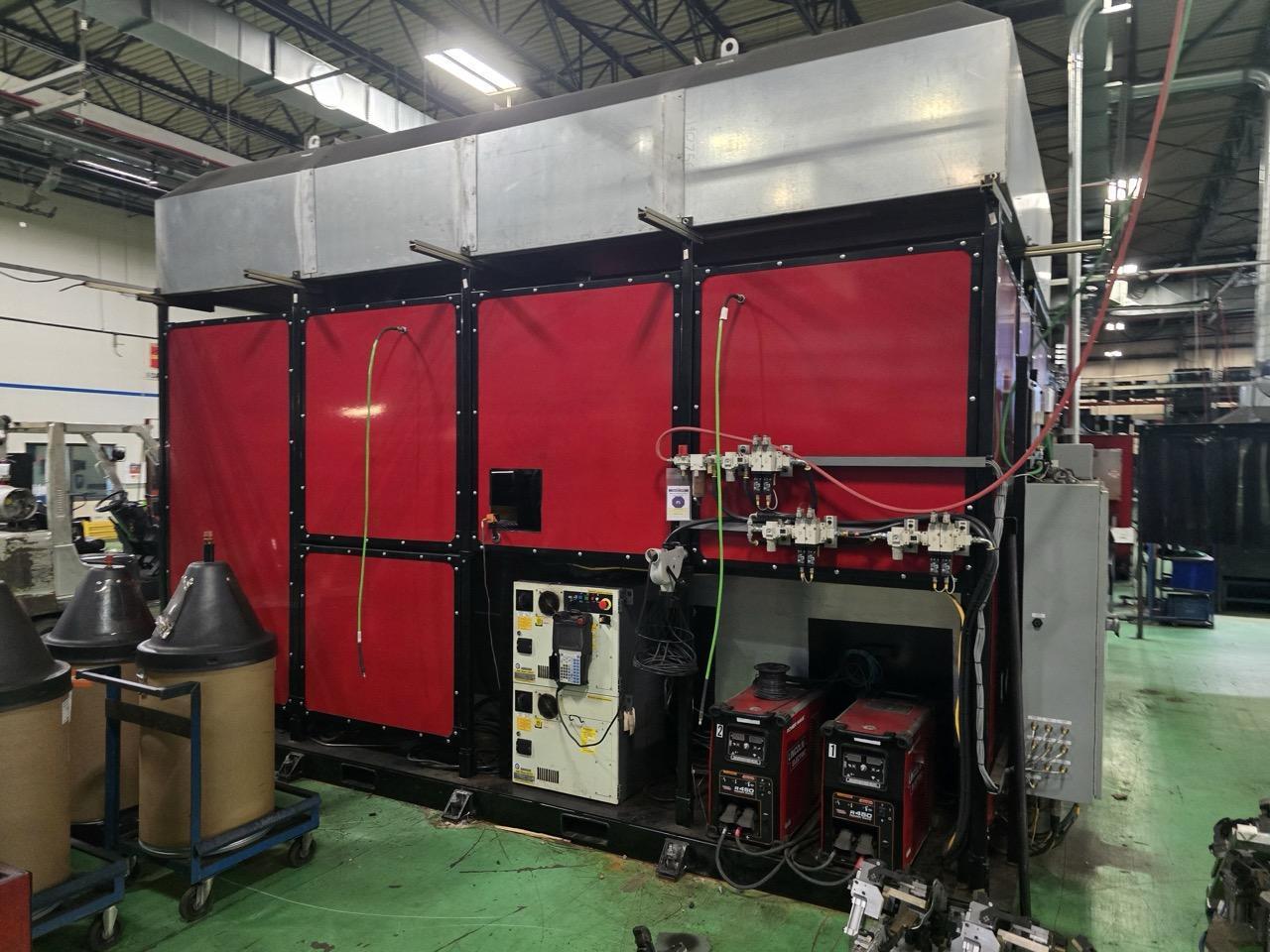

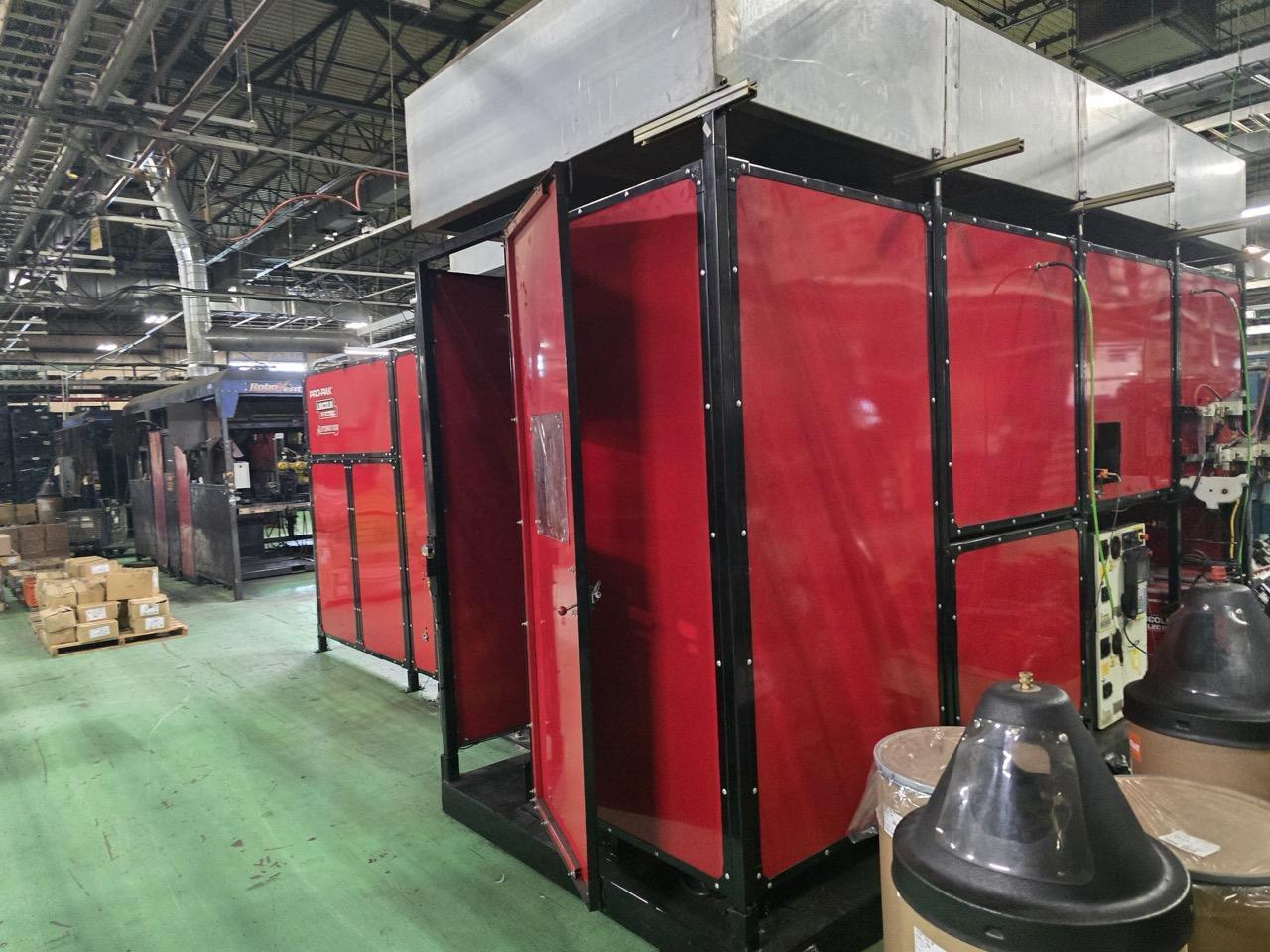

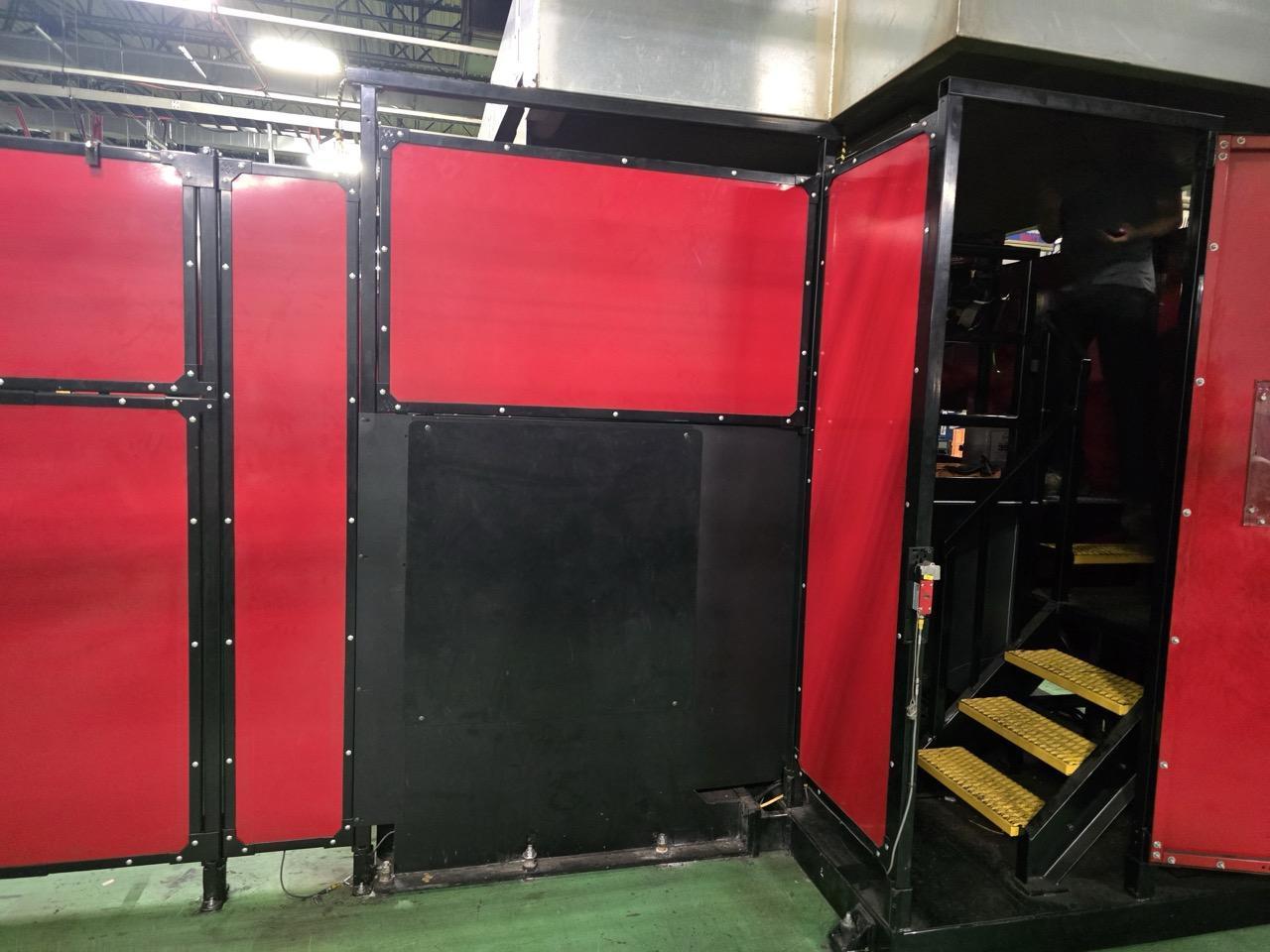

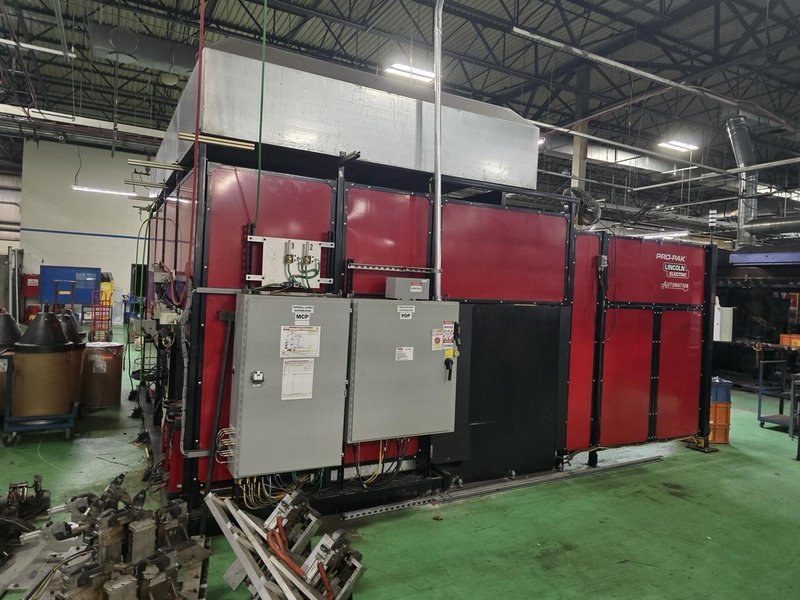

Lincoln Electric Pro-Pak FW Ferris Wheel Robotic Welding System, 2024 – FANUC Robot Cell, 3,306-Lb Payload

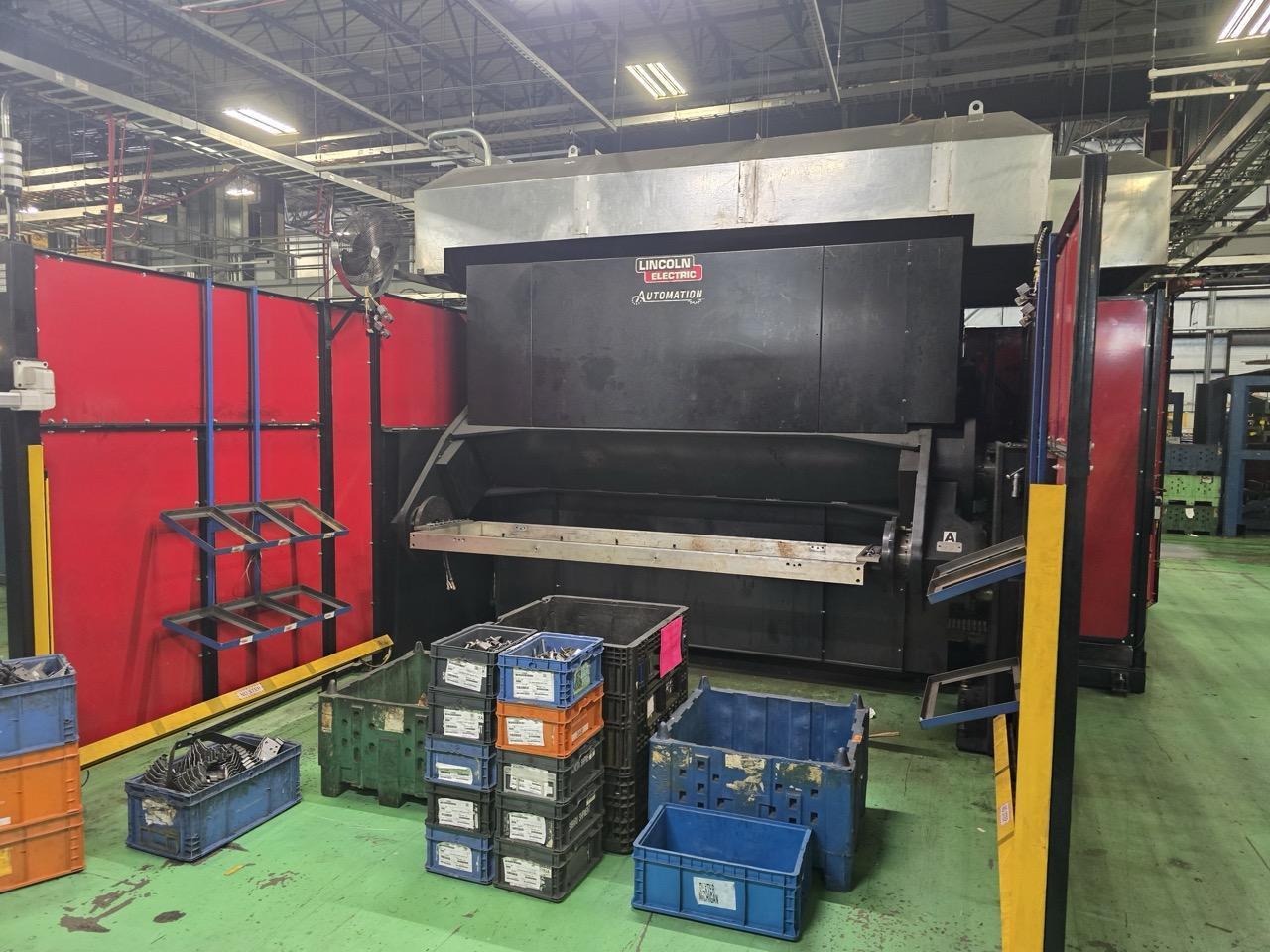

2024 Lincoln Electric Pro-Pak FW high-production robotic arc welding cell featuring a servo-driven ferris-wheel positioner, FANUC robotic welding technology, Power Wave R450 welding power source, and dual work zones designed for continuous loading and welding of large, heavy fabrications.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer Lincoln Electric Automation Model Pro-Pak FW Year 2024 System Type Ferris-wheel robotic arc welding cell Welding Process Robotic GMAW/MIG arc welding Work-Zone Design Two-sided ferris-wheel indexing positioner Positioner Rotation 180° indexing Maximum Payload 3,306 lb. / 1,500 kg per axis Maximum Tool Diameter 49.2 in. / 1,250 mm Available Tool-Bed Lengths 2.0, 2.5 or 3.0 meters Primary Axis 180° Sweep Time Approximately 3.5 seconds Satellite Axis 180° Sweep Time Approximately 2.5 seconds Sweep Diameter Approximately 2.69 meters / 106 in. Robot Configuration Single, dual, triple or four-robot capability, depending on configuration Robotic Arm FANUC robotic welding arm with controller Welding Power Source Lincoln Electric Power Wave R450 Wire Feeder Lincoln Electric AutoDrive 4R100 Welding Torch Magnum PRO Robotic 550 welding gun

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
