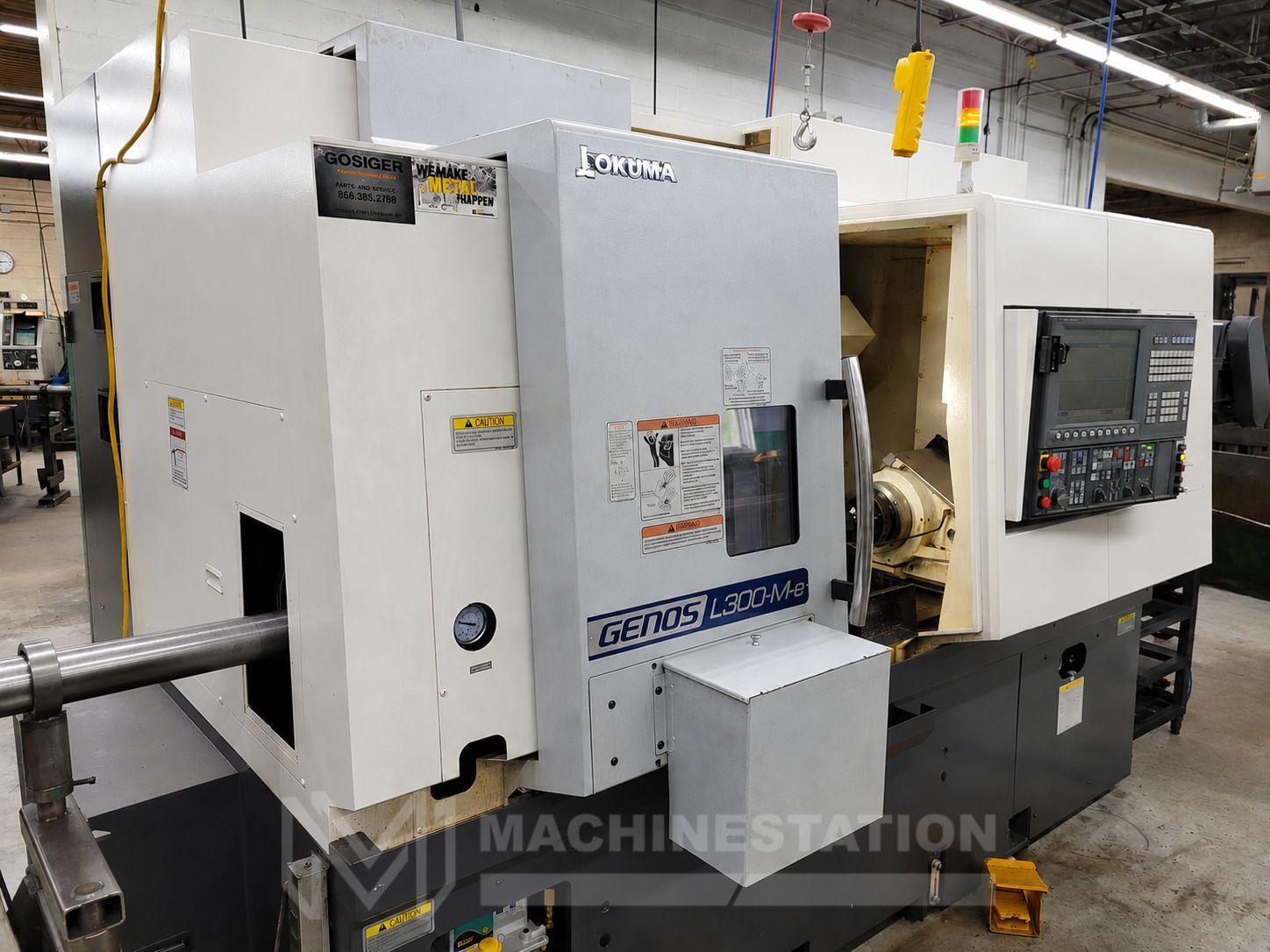

Okuma Genos Genos L300-MYW-e CNC Turning Center – 2018 Sub Spindle, C & Y Axis Lathe

Brand
OKUMA
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Okuma Genos Genos L300-MYW-e
Stock #
115137
Year
2018
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Okuma
Model: Genos L300-MYW-e
Year: 2018 (Sold & Installed in 2019)
Condition: Used – Excellent
Equipped With:
Okuma OSP-P300LA-e One-Touch IGF CNC Control
Bar Feeder
10″ 3-Jaw Kitagawa Chuck & 22J Dead Length Collet Chuck For Main Spindle
6″ 3-Jaw Kitagawa Chuck & 3J Dead Length Collet Chuck For Sub Spindle
Servo Controlled Full C Axis On Both Spindles
Sub Spindle
12-Station Live Tool Turret
Y Axis On Turret
Tool Presetter
Parts Catcher
Rigid Tapping
USB Drives
Coolant System
Chip Conveyor
Foot Switches
(3) Axial Tool Holders & (3) Radial Live Tool Holders
Capacity:
Max Turning Diameter: 11.81″
Max Turning Length: 17.72″
Swing Over Bed: 20.47″
Swing Over Saddle: 10.24″
Max Bar Capacity: 2.54″
Travels:
X Axis Travel: 9.25″
Z Axis Travel: 17.72″
Y Axis Travel: 3.94″ (±1.97″)
W Axis Travel (Sub Spindle): 20.47″
C Axis Rotation: 360º (0.001º)
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 984 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse W Axis: 984 IPM
Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.15″
Spindle Speed: 3,000 RPM
Spindle Motor Power: 20 HP
Sub Spindle:
Spindle Nose: ø140 Flat
Spindle Bore: 2.09″
Spindle Speed: 6,000 RPM
Spindle Motor Power: 10 HP
Turret:
Capacity: 12 Stations
OD Tool Size: 1″ × 1″
ID Tool Size: 1.25″
Index Time: 0.3 sec/index
Live Tool Speed: 4,500 RPM
Live Tool Motor: 7.5 HP
General:
Power Requirement: 22.8 kVA / 220V / 3-Phase
Machine Dimensions: 119″ × 85″ × 87″
Weight: 13,640 lbs
