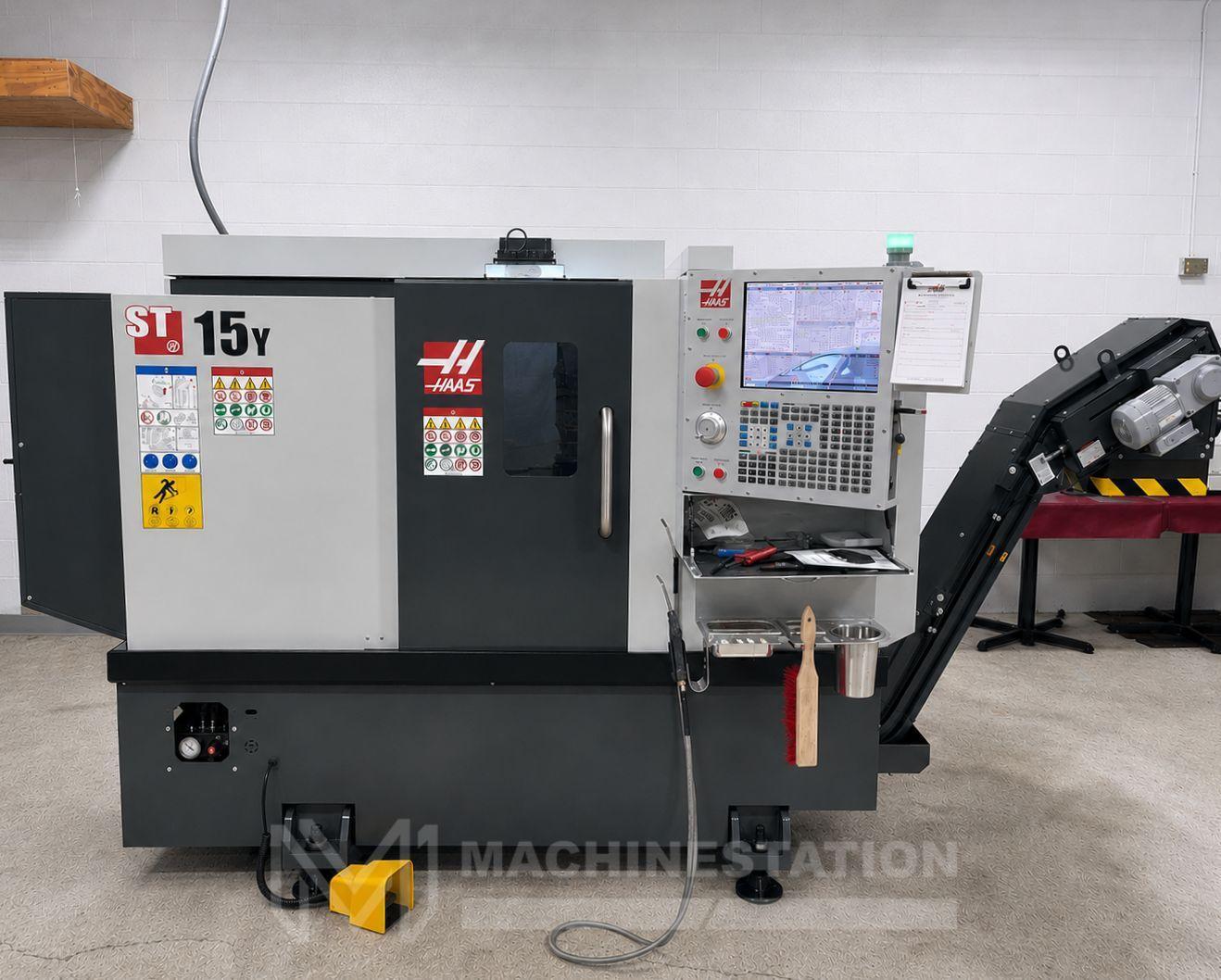

Haas ST-15Y CNC Lathe – 2024 Y-Axis, Live Tooling, Only 4 Cutting Hours

Brand
HAAS
Category
Lathes & Turning Machines
Type
Turning Centers
Model
ST-15Y
Stock #
115138
Year
2024
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Haas
Model: ST-15Y
Year: 2024
Condition: Used – Excellent
Equipped With:

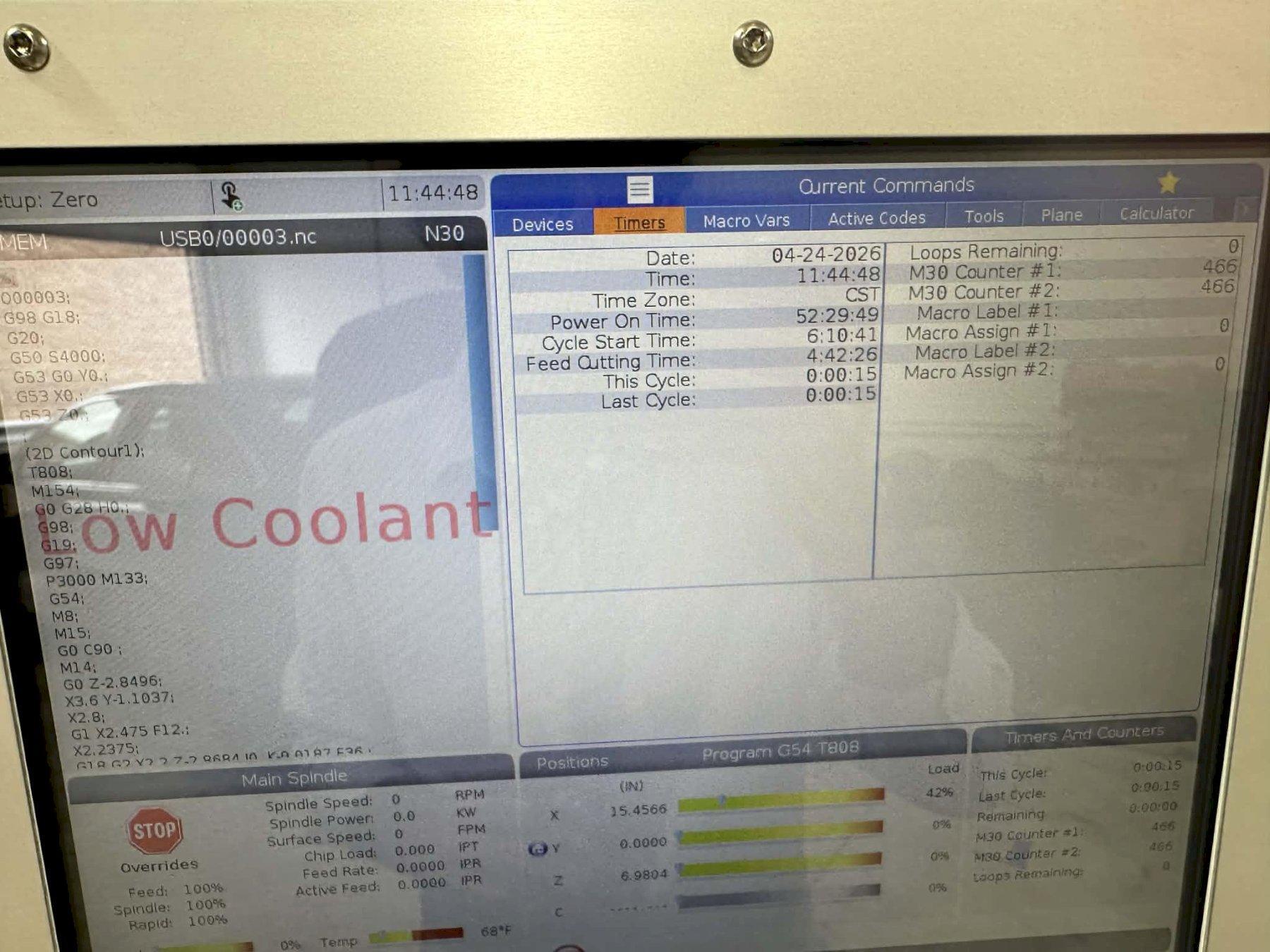

Haas CNC Control
8″ 3-Jaw Chuck on Spindle
Servo Controlled C Axis Spindle

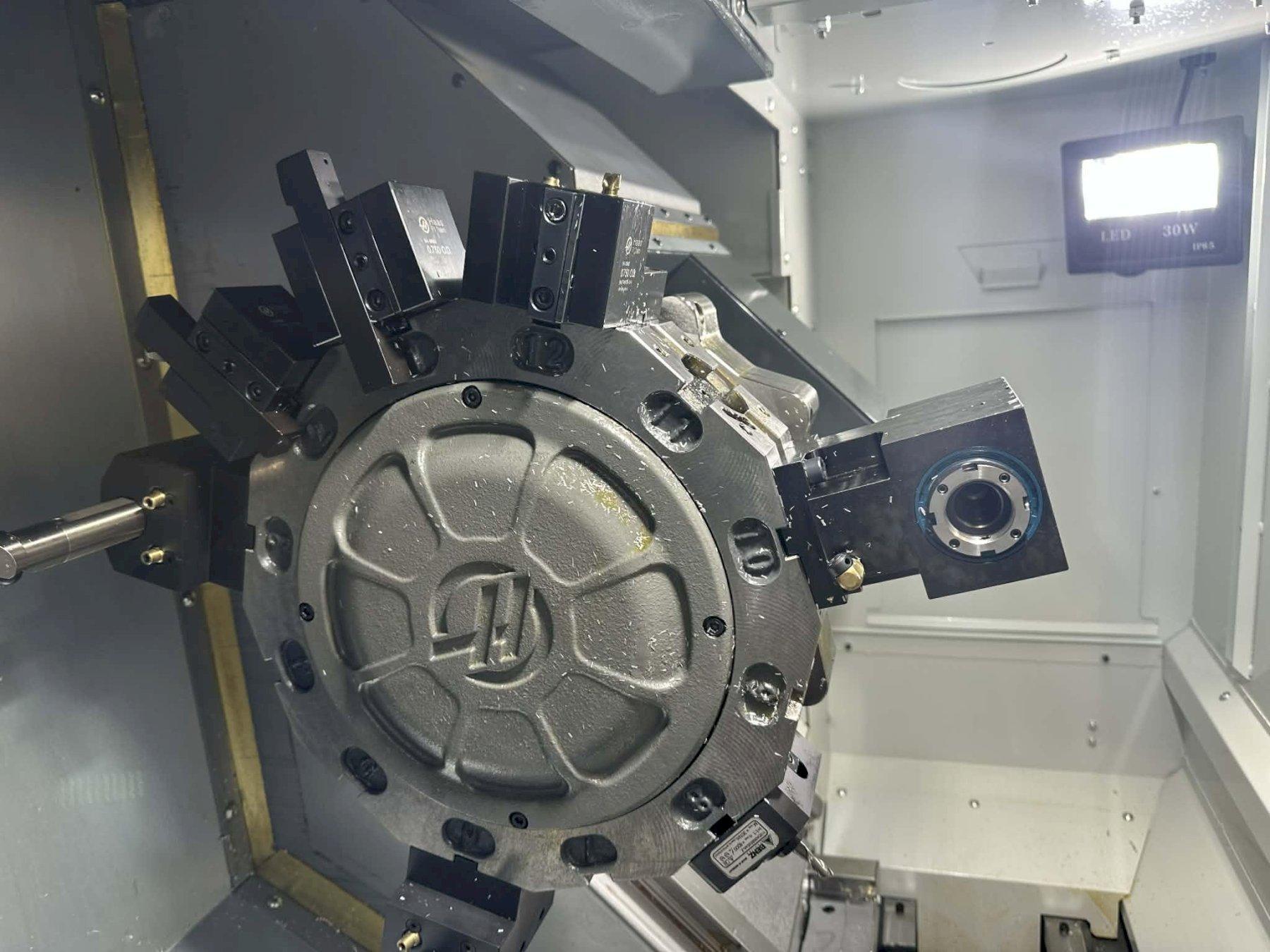

12 Station BMT-45 Live Tool Turret
Y Axis on Turret
Automatic Tool Presetter (Upgraded $6,195 value Included) – Set Tool Length Offsets Quickly

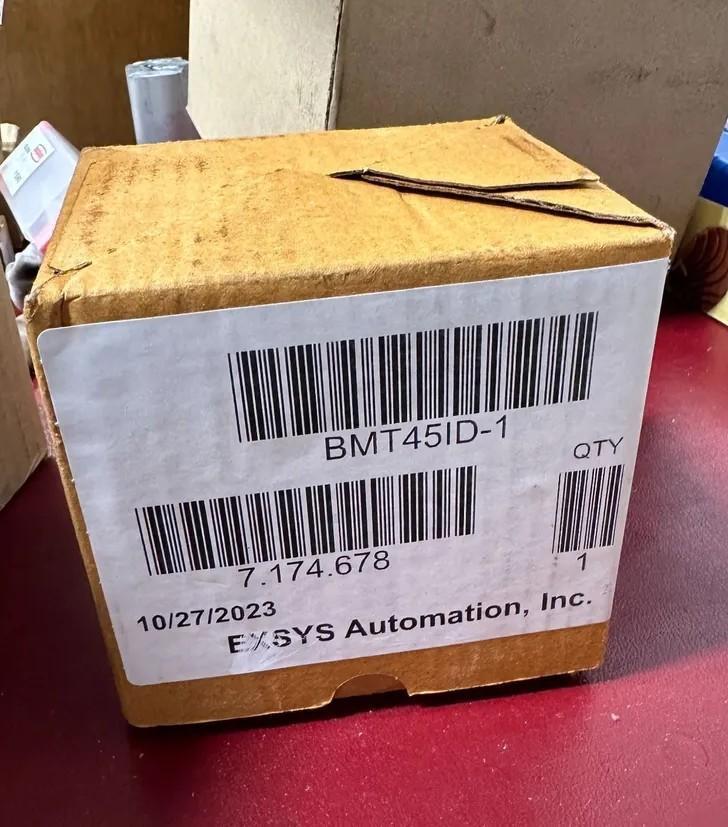

BMT-45 Driven Toolholder Kit
BMT-45 Standard Toolholder Kit
Visual Part Programming System
User Definable Macros
Early Power-Failure Detection Module
Rigid Tapping
Spindle Orientation
Haas Connect: Remote Monitoring
Media Display
1GB Max Memory
Ethernet Interface
WiFi Connection For Haas Control
Inch Measurement Units
Coolant System

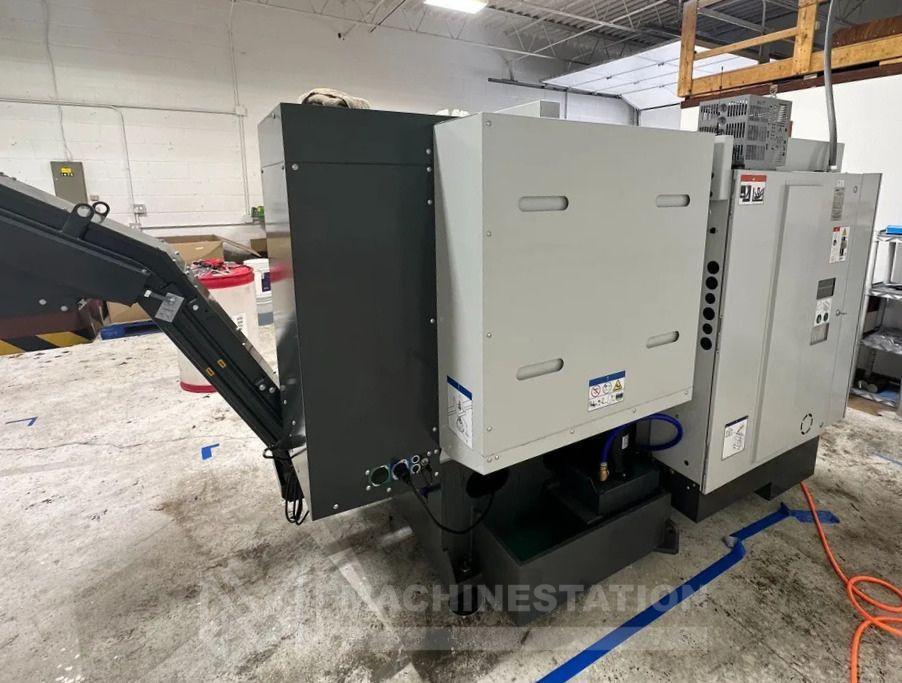

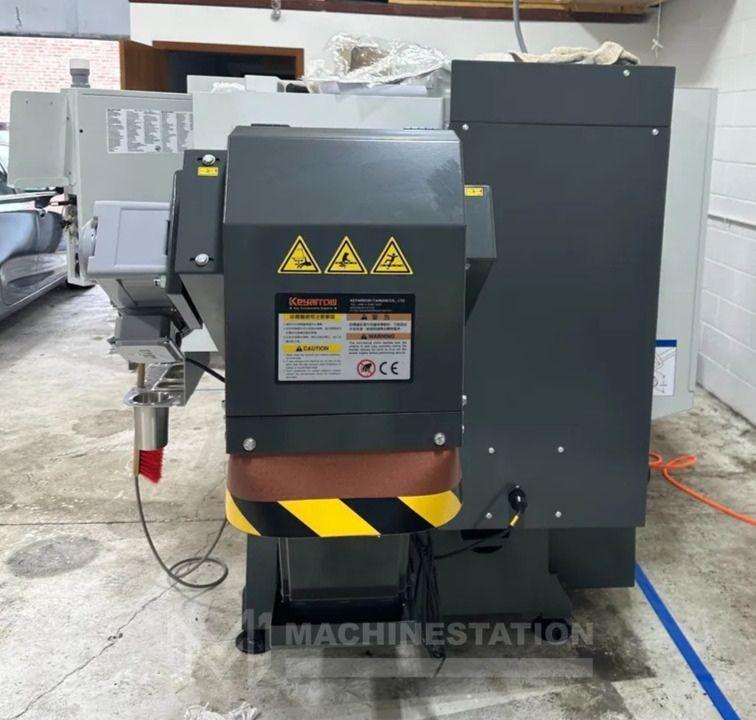

Belt Type Chip Conveyor (Upgraded $6,195 value Included) – High-volume chip removal for increased productivity
Foot Switch
Capacity:
Max Turning Diameter : 11.0″
Max Swing Over Bed : 16.5″
Max Turning Length: 16.0″
Max Bar Capacity : 2.5″
Travels:
X Axis Travel : 7.88″
Y Axis Travel : ± 2.0″
Z Axis Travel : 16.00″
C Axis : 0.001 Degree
Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 1200 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 4000 RPM
Spindle Motor: 20 HP
Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4000 RPM
Turret Type: BMT-45
General:
Air Requirement: 4 scfm @ 100 psi
Machine Dimensions: 126″ x 70.0″ x 81.0″ High
Machine Weight:7,900 lbs Approx.
