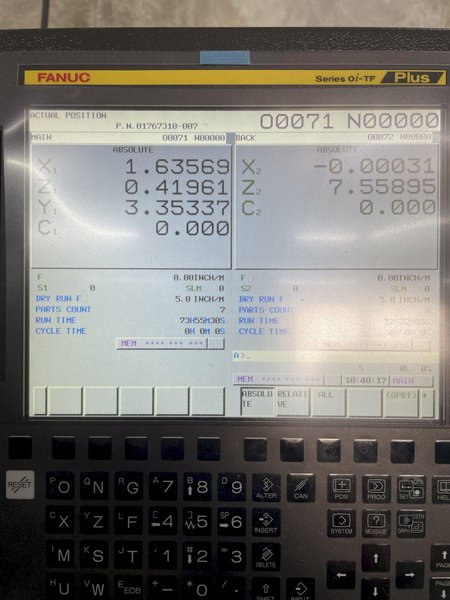

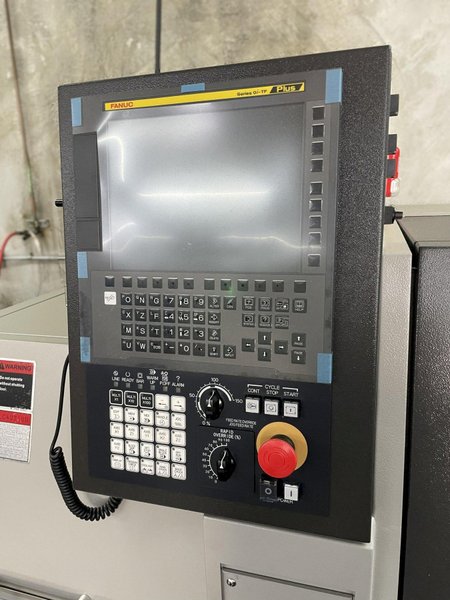

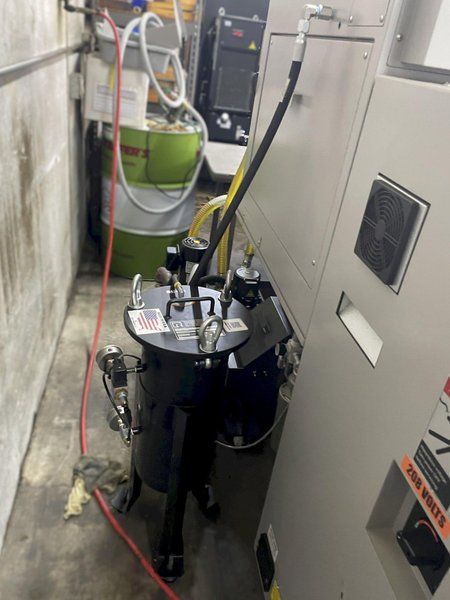

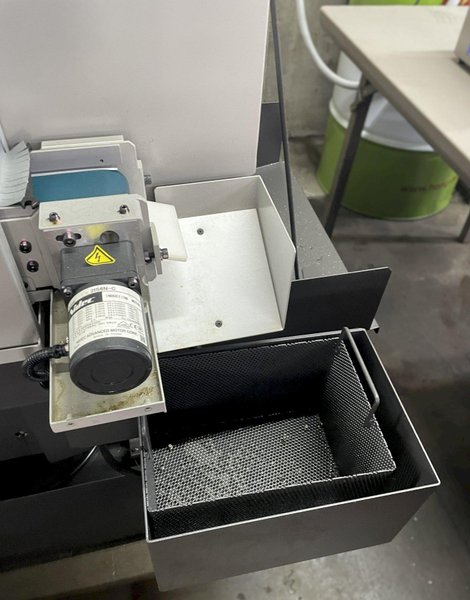

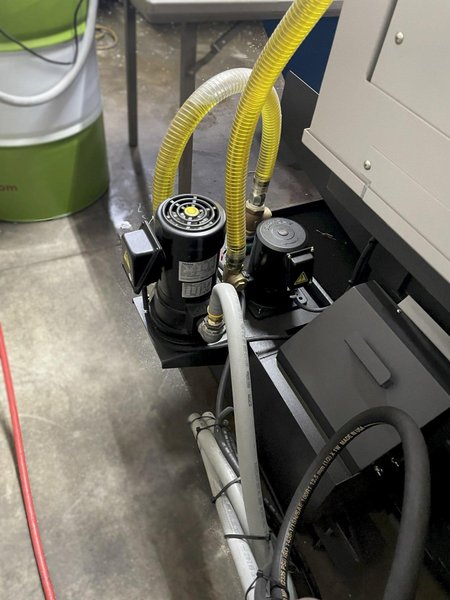

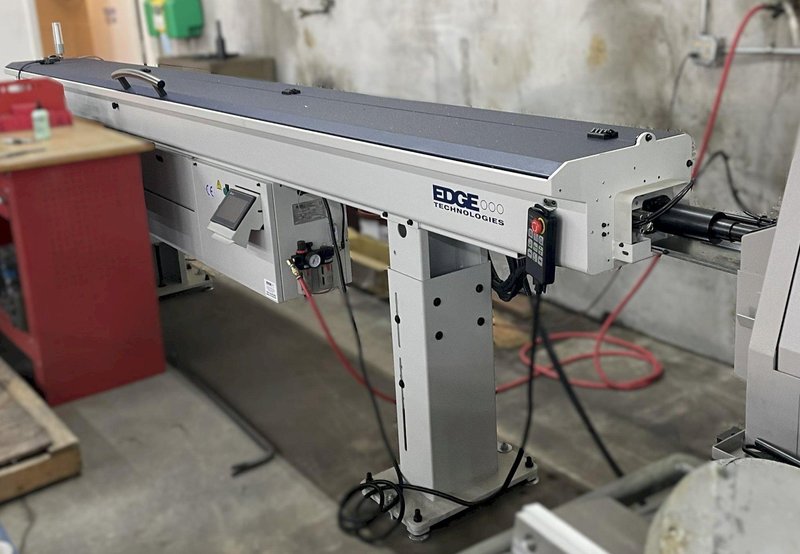

Tsugami Model B0205-VR w/ Fanuc 0i-TF, Fire Trace (5 Lbs), B0-WORK-KIT MKIII (Work Conveyor), Thru Sub Coolant w Pump, Abile Programming Software, Edge Scout 320 Barfeed, Two Channel Sets , ONLY 73 RUN HOURS

Tsugami Model B0205-VR w/ Fanuc 0i-TF, Fire Trace (5 Lbs), B0-WORK-KIT MKIII (Work Conveyor), Thru Sub Coolant w Pump, Abile Programming Software, Edge Scout 320 Barfeed, Two Channel Sets , ONLY 73 RUN HOURS

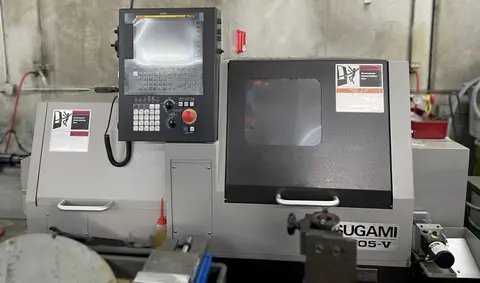

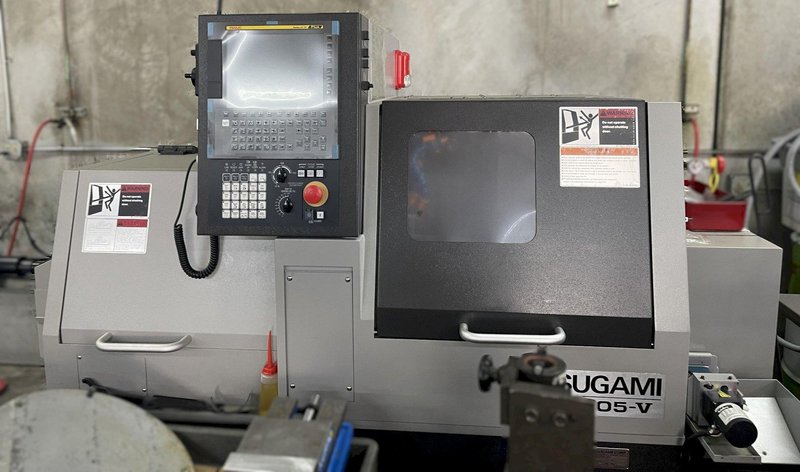

Name: Tsugami Model B0205-VR w/ Fanuc 0i-TF, Fire Trace (5 Lbs), B0-WORK-KIT MKIII (Work Conveyor), Thru Sub Coolant w Pump, Abile Programming Software, Edge Scout 320 Barfeed, Two Channel Sets , ONLY 73 RUN HOURS
Brand: TSUGAMI
SKU: 7122
Availability: InStock

Brand

TSUGAMI

Location

California

REQUEST FINANCING

Specifications
Files & Videos

Dimensions	69" x 41.5" x 67" (width x depth x height)
Weight	3968 pounds
Maximum Machining Diameter	.787"
Maximum Headstock Stroke	6.69" (Guide Bushing)
Maximum Headstock Stroke	1.771" (Chucker)
Maximum Main Spindle Speed	10,000 rpm
Live Tool Spindle Speed	8,000 rpm
No. Tool Positions	21
Sub Spindle Maximum Machining Diameter	.787"
Sub Spindle Front Ejection Maximum Length	3.15"
Sub Spindle Speed	12,000 rpm
Max Tool Spindle Slotting Cutting Diameter	1.18"
Rapid Traverse Rate	36M/min
System Input Power	13.0 KVA
Compressed Air Requirement	60 psi
Coolant Tank Capacity	47 Gal.
Main Spindle Motor	7.5 hp
Sub Spindle Motor	5.0 hp
Axes Motors	.67 hp
Live Tool Motor	1.34 hp
Tsugami Model B0205-VR w/ Fanuc 0i-TF, Fire Trace 5 LBS, Work Conveyor, Thru Sub Coolant w Pump, Abile Programming Software Short Terms and Conditions of Sale (Please contact us for complete Terms and Conditions): Unless otherwise posted, all items are sold AS-IS, WHERE-IS With All Faults. All specifications and locations are subject to change without notice. All items are subject to availability and prior sale. ACT Machinery 2424 Cypress Way, Fullerton, Ca 92831 Financing Available / Se Habla Español Before buying, let us know if you need shipping quotes
