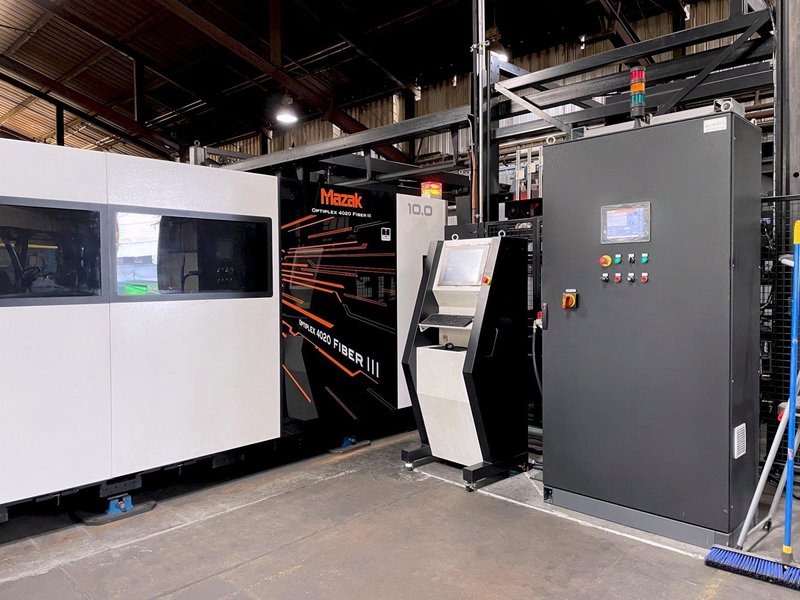

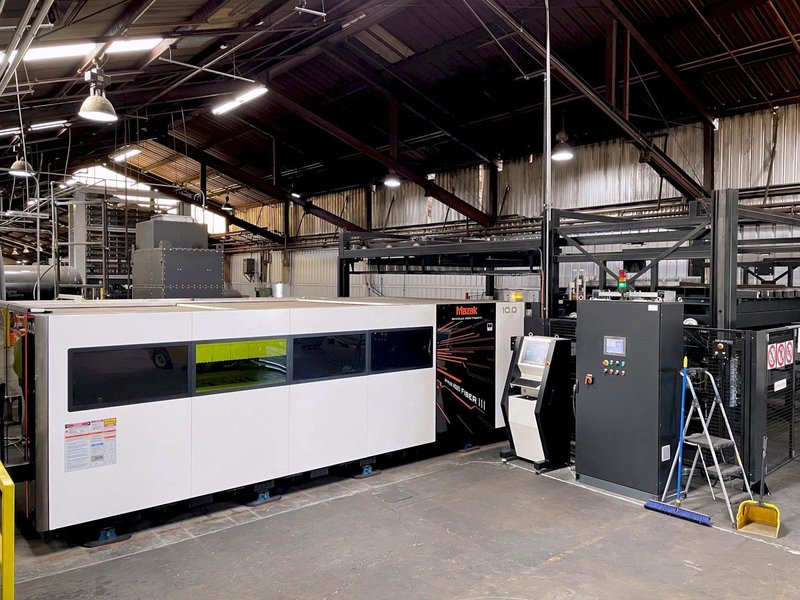

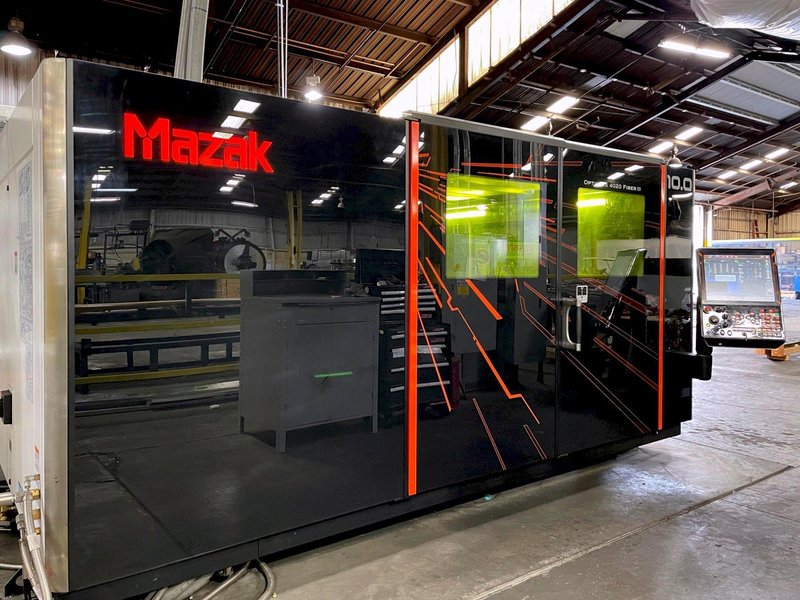

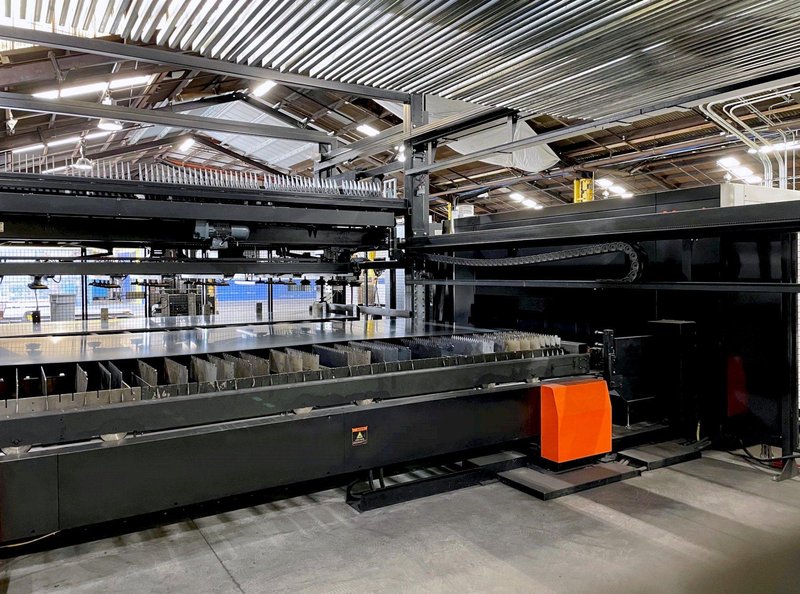

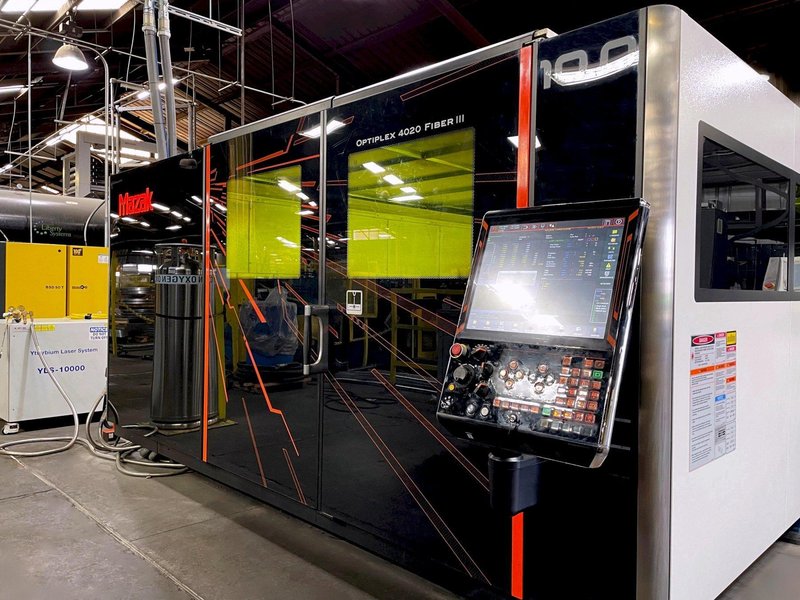

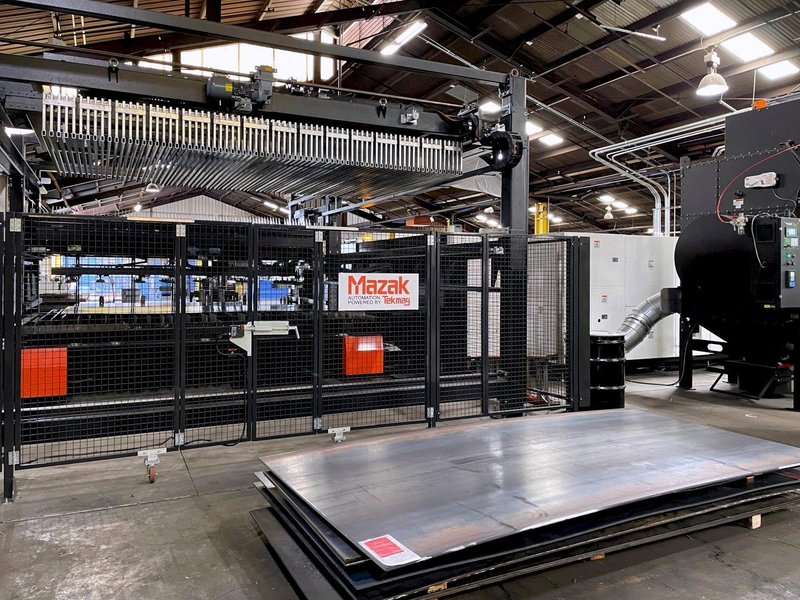

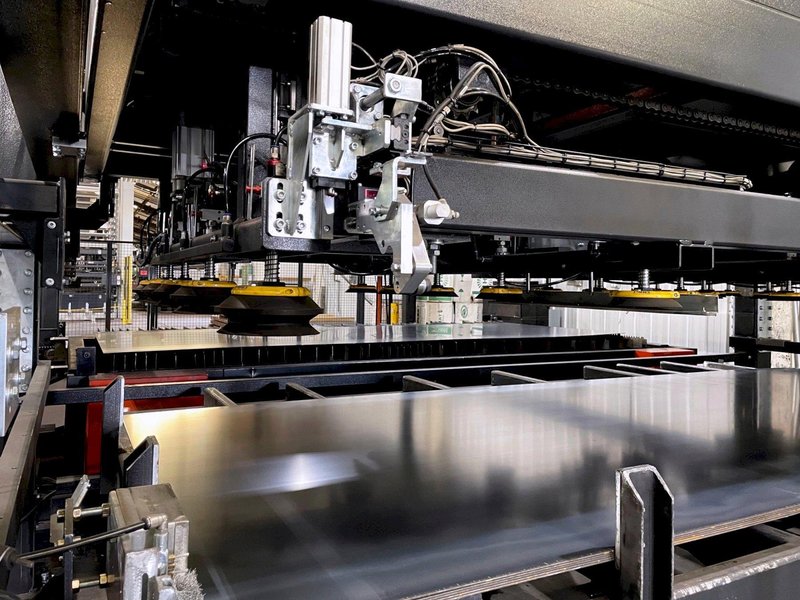

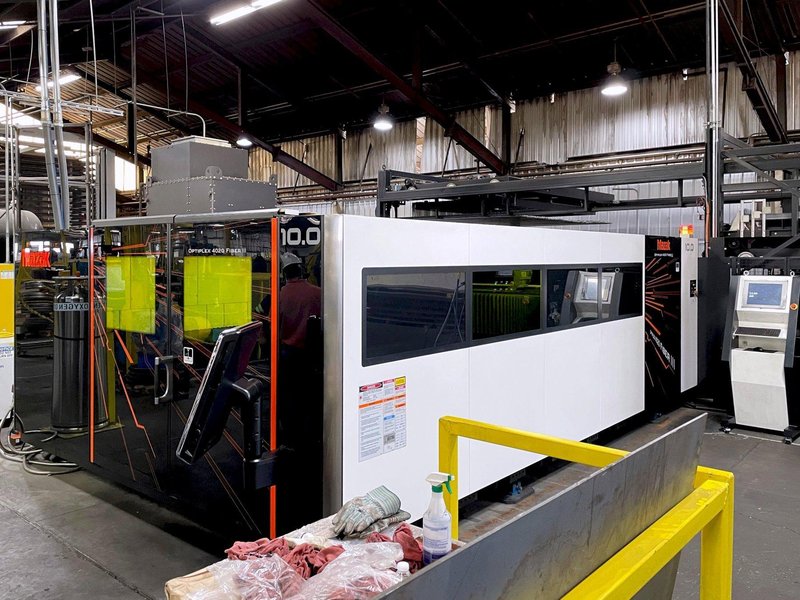

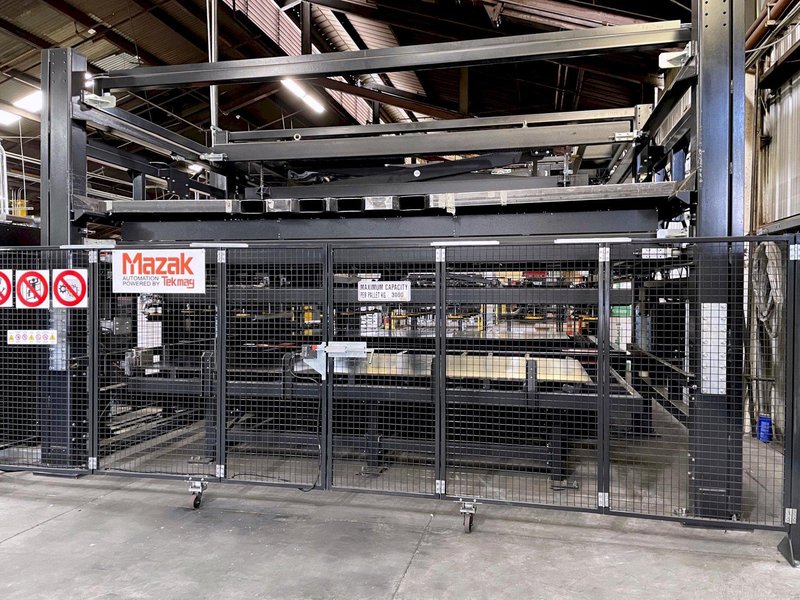

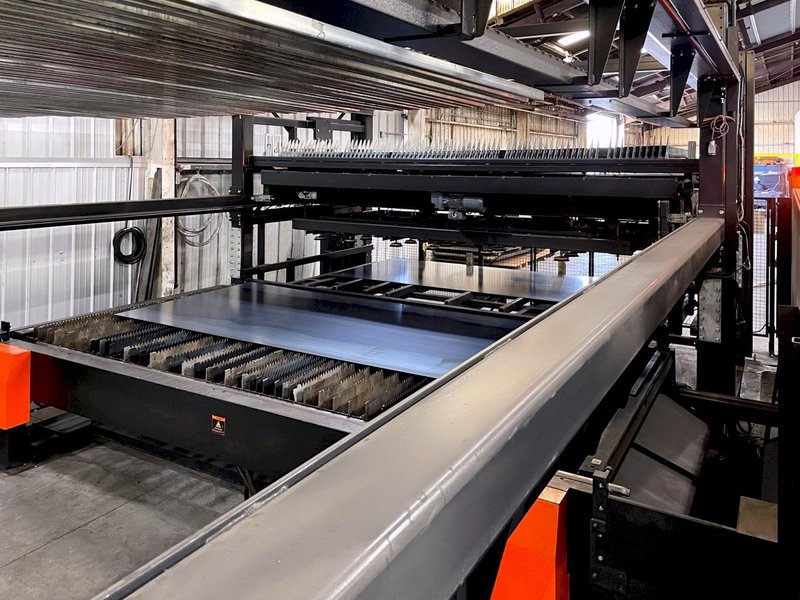

Mazak Optiplex 4020 Fiber III (2019) w/MCS 4020 Load/Unload
Brand
Category
Type
Model
Optiplex 4020 Fiber III
Stock #
100255
Year
2019
Condition
Like New
Location
Not specified
| Control | Preview G |
| Laser Type | Fiber |
| Power Source | IPG YDS 10,000 Generator |
| Max Power Output | 10,000 Watts |

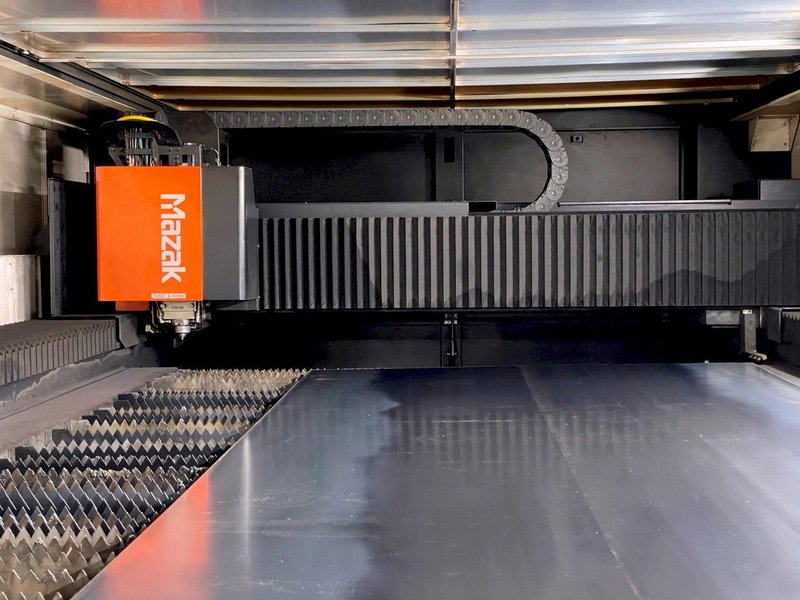

| Machine Structure | Flying Optics |
| Max Workpiece Dimensions | 78.74" x 157.48" |
| Max Workpiece Weight | 4,233 Lbs |
| Travels X Axis | 160.43" |
| Travels Y Axis | 81.10" |
| Travels Z Axis | 4.33" |
| Motion Drive System X, Y | Rack & Pinion Drive |
| Motion Drive System Z | Ball Screw Drive |
| Number of Control Axes | 3 |
| Rapid Travel Speed X, Y Axis | 4,724 IPM |
| Pos. Accuracy X, Y Axis | 0.002"/19.68" |
| Pos. Accuracy Z Axis | 0.0004"/3.94" |
| Repeatable Accuracy X, Y Axis | 0.0012" |
| Max Material Thickness Mild Steel | 1.00” |
| Max Material Thickness Stainless Steel | 1.25” |
| Max Material Thickness Aluminum | 1.25” |
| Total Electrical Requirement | 105 kVA |
| Machine Unit Weight | 47,233 Lbs. |
|

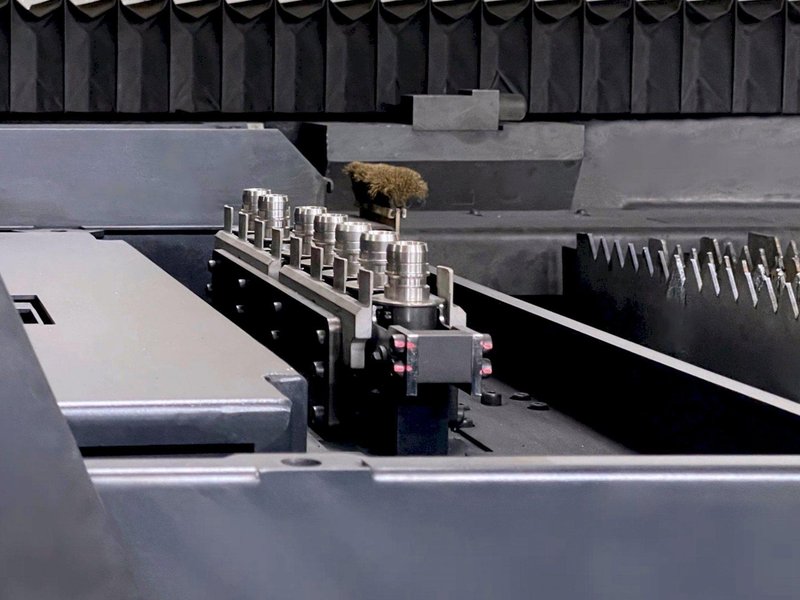

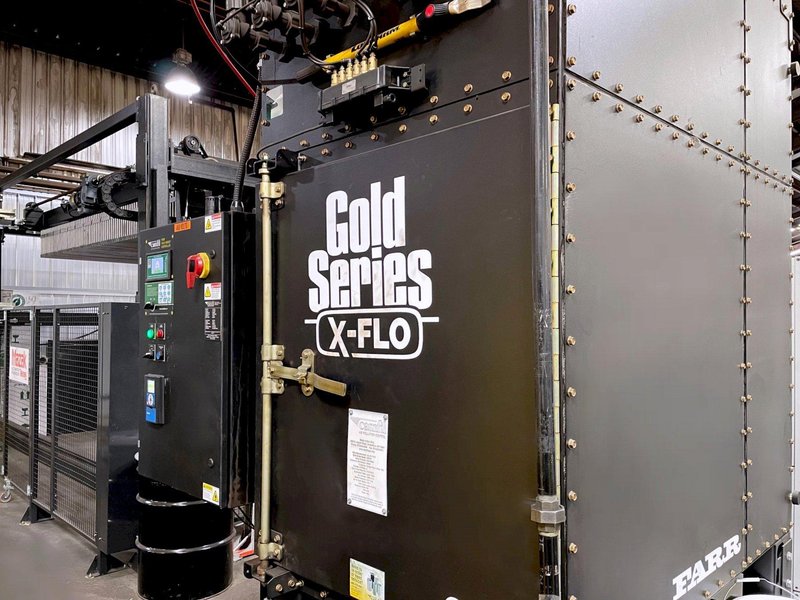

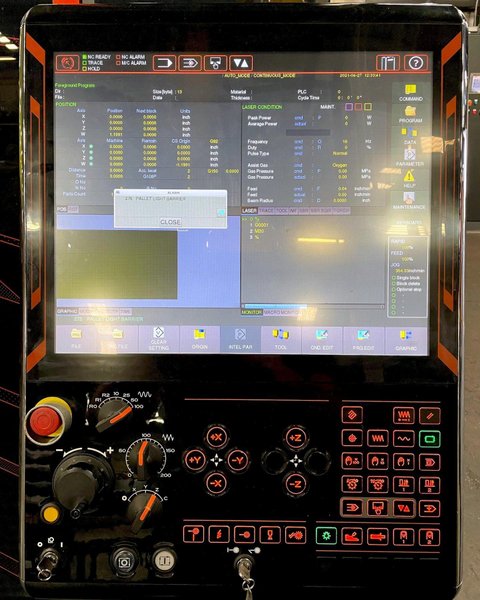

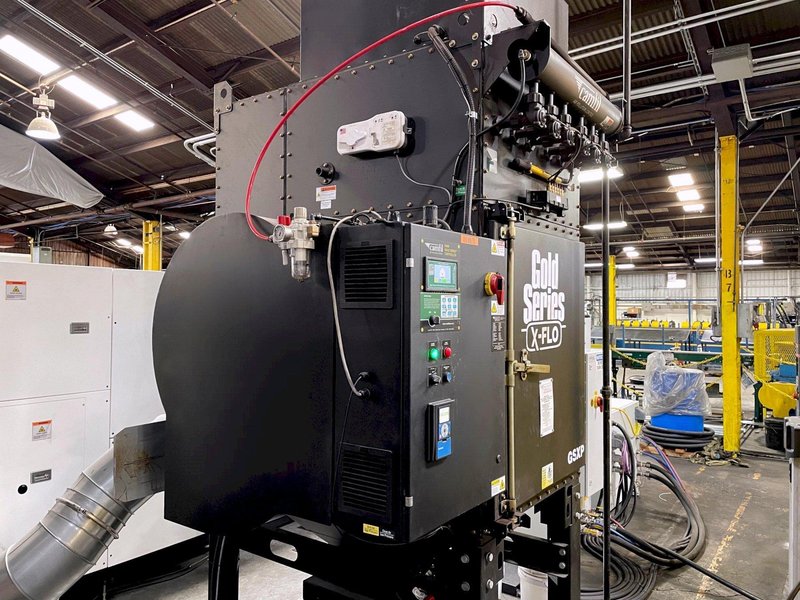

Equipped With: 19” SXGA Color TFT Touch Screen IPG YDS 10,000 Generator & Fiber Optic Delivery System Auto Nozzle Changer Auto Nozzle Cleaning Auto Focus Positioning Beam Diameter Control Auto Profiler Calibration Lens Monitoring Camfil Gold Series X-Flow Dust Collector |
|
