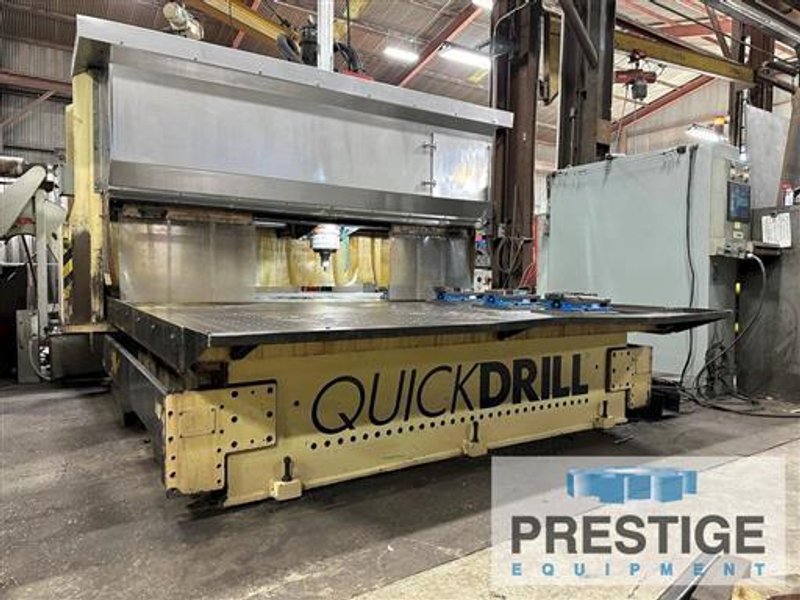

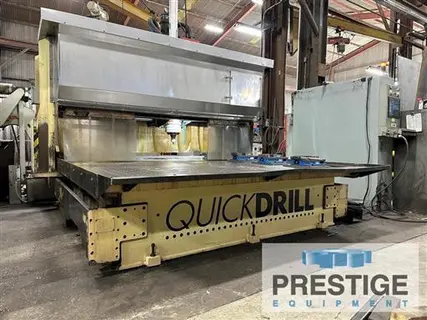

Machining Centers Vertical Bridge Type CNC
Brand
Category
Model
969620
Stock #
44859
Year
2005
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

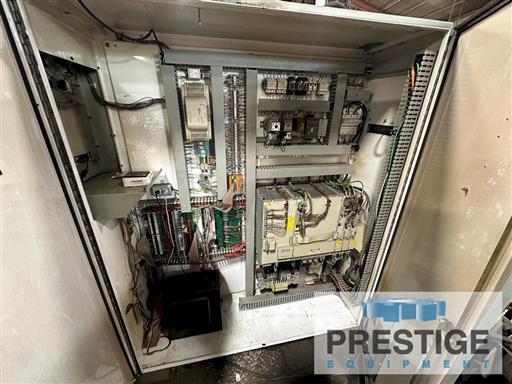

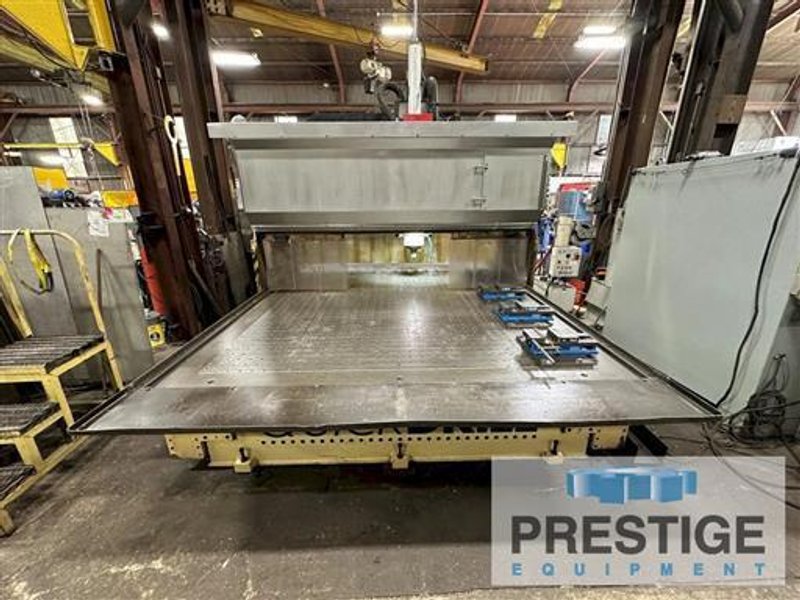

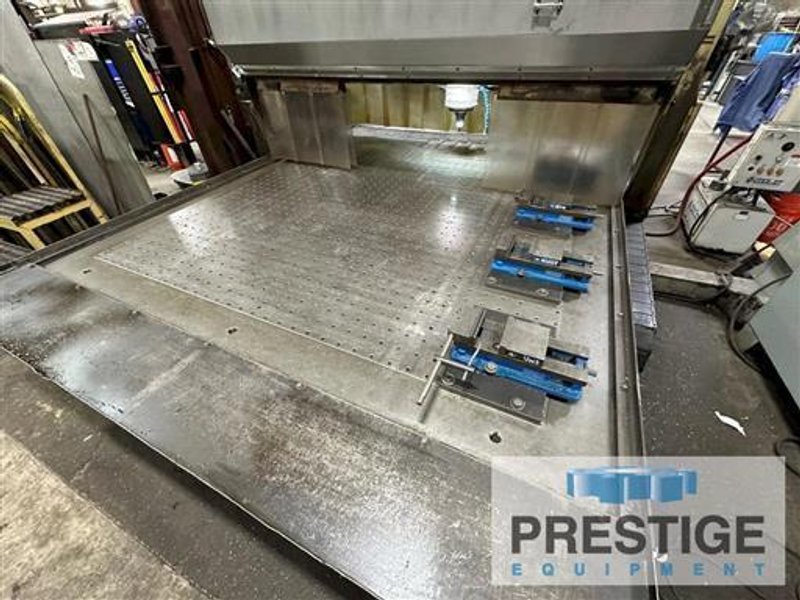

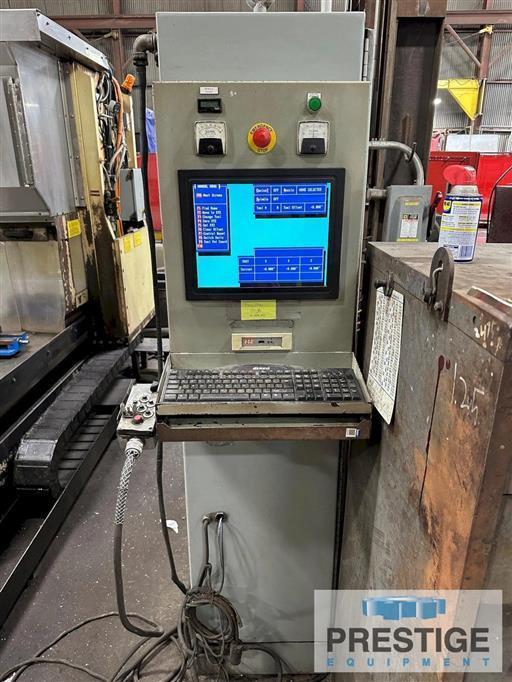

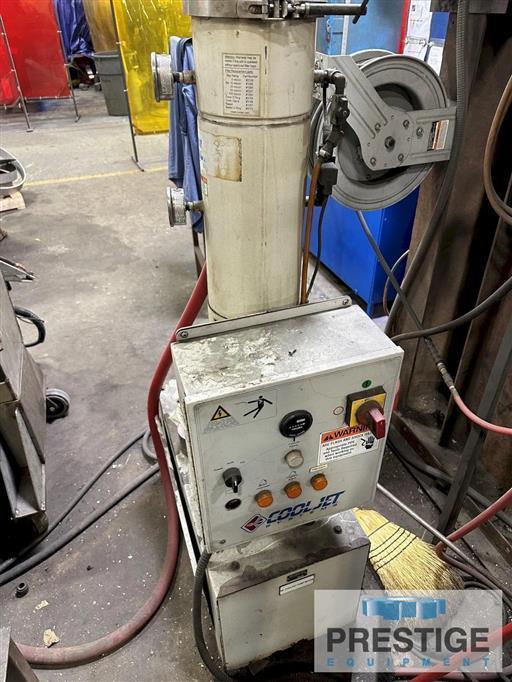

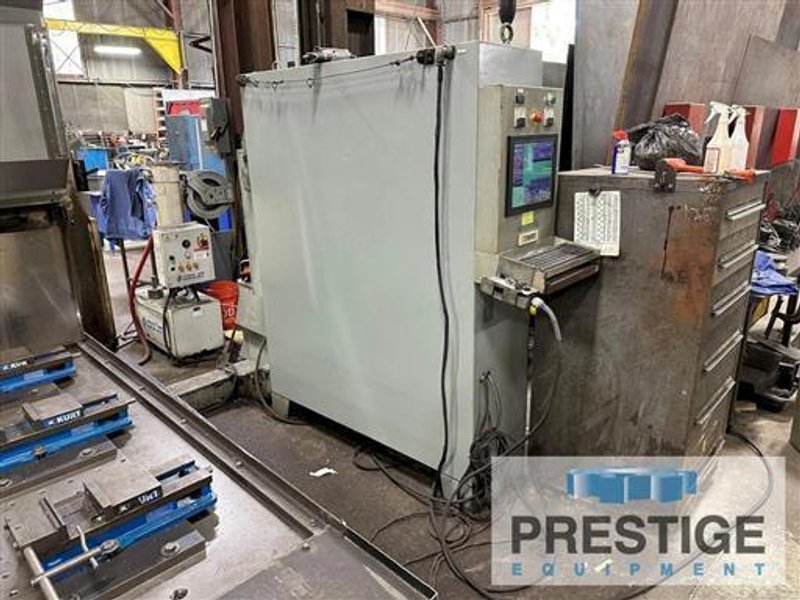

X-Axis Gantry Travel.................. 96" 96" Y-Axis Milling Head Travel 96" Z-Axis Programmable Spindle Travel 20" Max. Distance Spindle to Table Top.... 36" 36" Table Size 96" x 96" Distance Between Uprights 112"" Rapid Traverse 180 IPM Spindle Drive 35 HP Spindle Speeds 3,000 RPM Approximate Dimensions 198" x 155" x 136" Approximate Weight 40,000 Lbs. Equipped With: Siemens CNC Control USB Load Feature Upgrade Arc Circle Macros Tapping Macros 1000 PSI Thru Spindle Coolant Handheld Pendant NOTE: Inspect in Plant Under Power |
