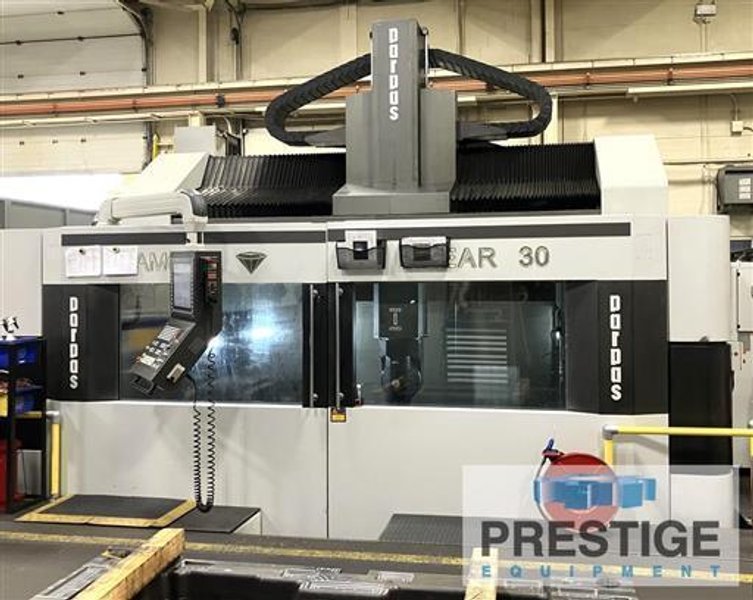

Machining Centers Vertical Bridge Type CNC

Brand
PARPAS
Category
Machining Centers
Type
Gantry Machining Centers (incld. Bridge & Double Column)
Model
Diamond Linear 30 5-Axis
Stock #
44811
Year
2017
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Specifications:
Gantry Travel, X-Axis 118.11”
Head Travel, Y-Axis 102.36”
Ram Stroke, Z-Axis 55.11"
C-Axis, Ram Rotation .001 Degrees
C-Axis, Ram Range +/- 370 Degree
A-Axis, Head Sweep +/- 110 Degrees

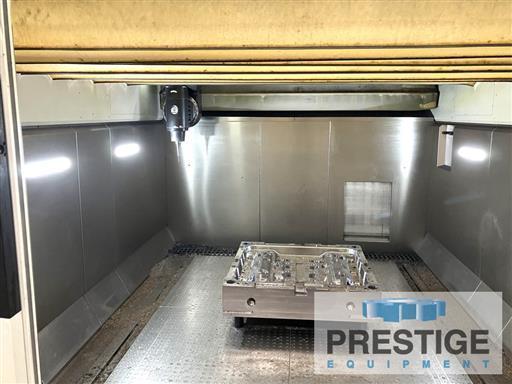

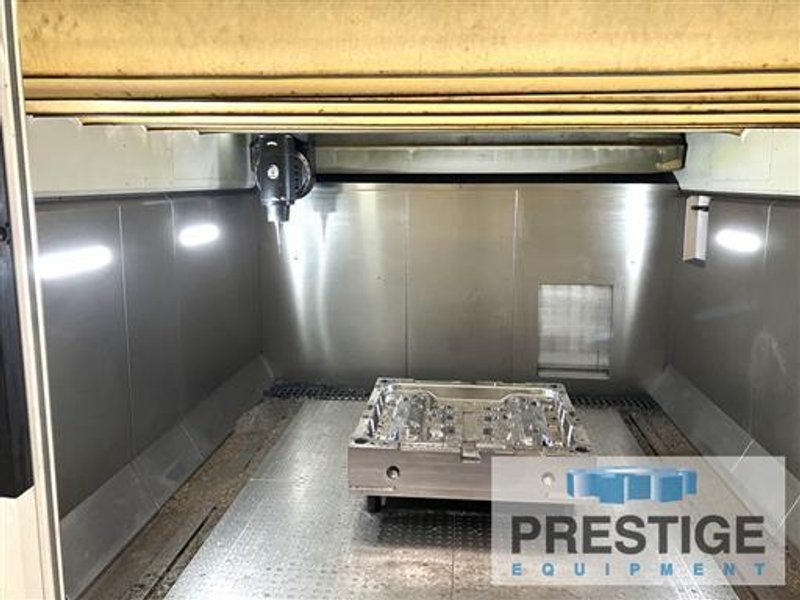

Work Table 122.04" x 110.23"
Spindle Speeds 20,000 RPM
Spindle taper HSK-63-A
Spindle Motor 52 HP
Approximate Footprint 296.4" x 259.84"
Approximate Height 226.9"



Equipped With:
Heidenhain TNC 640 CNC Control
120 Station Automatic Tool Changer

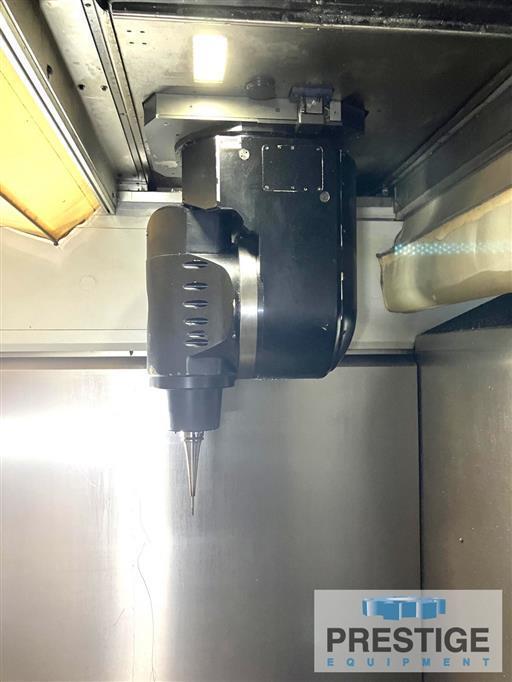

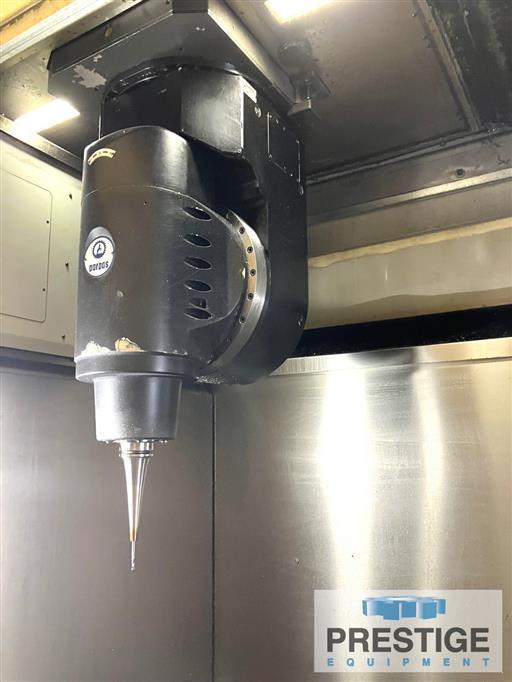

5-Axis Continuous Orthogonal Head
High Pressure Coolant Through Spindle 50 Bar
Air Through Spindle
Blum Laser Tool Pick Up
M&H Radio Frequency Probe
Losma Brand Paper Coolant Filter System
Dual Chip Conveyors
