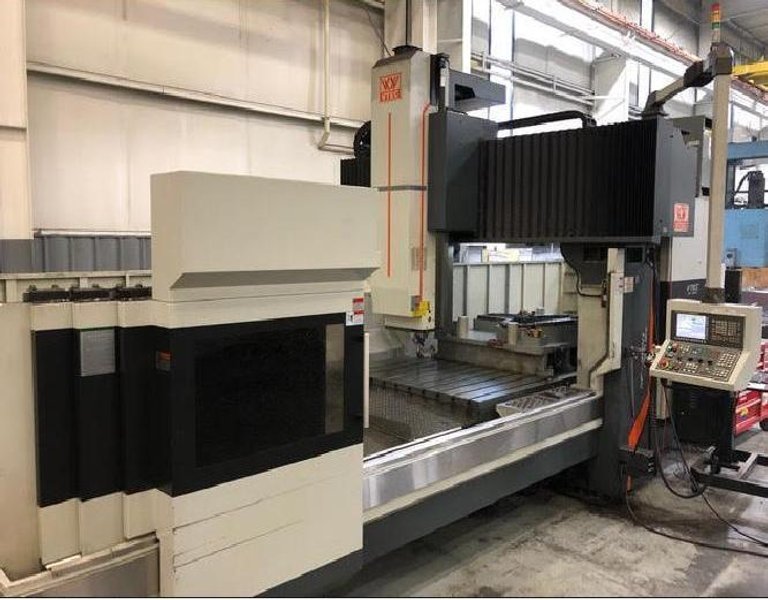

Used 2014 Vision Wide V-Tec SF-3120 CNC Bridge Type Vertical Machining Center For Sale

Used 2014 Vision Wide V-Tec SF-3120 CNC Bridge Type Vertical Machining Center For Sale

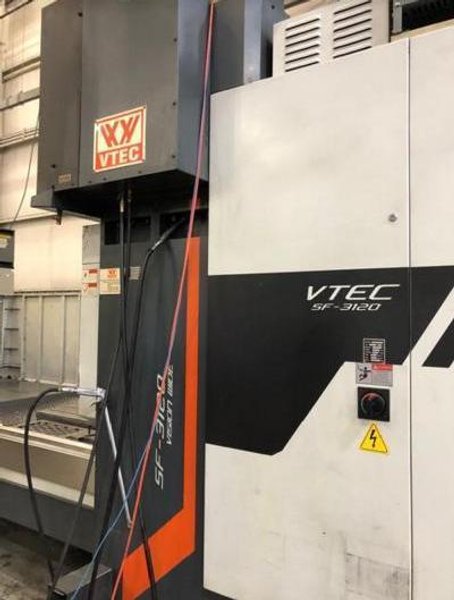

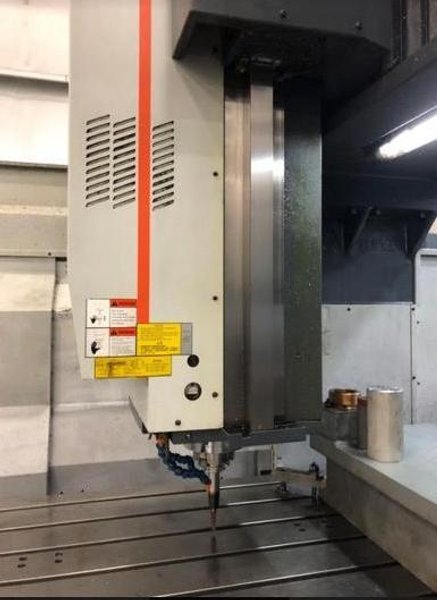

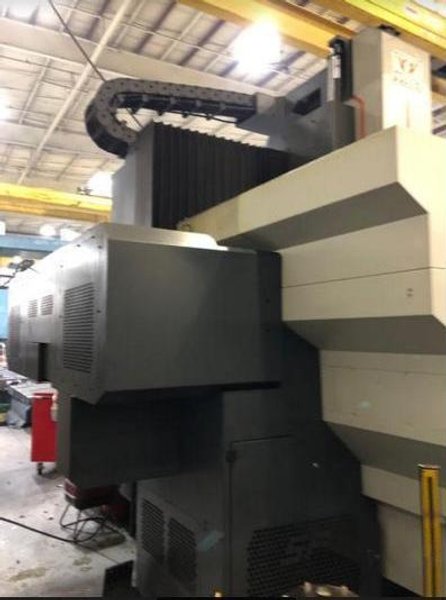

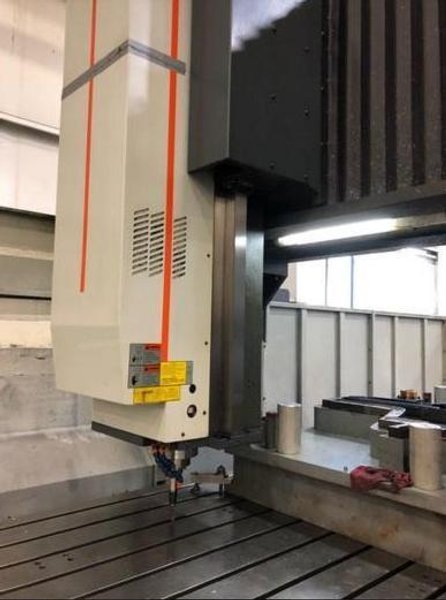

Name: Used 2014 Vision Wide V-Tec SF-3120 CNC Bridge Type Vertical Machining Center For Sale
Brand: VISION WIDE
SKU: MC5081
Availability: InStock

Brand

VISION WIDE

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

CNC Control	yes

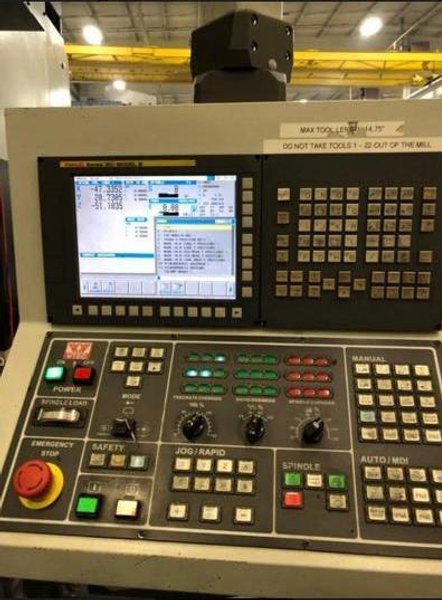

Type Of CNC Control	Fanuc
Table Size	118" x 71"
Max Table Load	22046 pounds
Spindle Face To Table Top (Max Dimension)	45"
Max Distance Between Columns	83"
X-Axis Travel	125 inches
Y-Axis Travel	80 inches
Z-Axis Travel	39 inches
Spindle Taper	CAT 50
Spindle Speed	6,000 rpm
Spindle Motor (HP)	25 hp
Tool Changer Capacity	40 Stations
Weight	65500 pounds
- Fanuc CNC Control - Coolant Thru Spindle - AICC Nano High Speed Machining - (2) Speed Geared Head - Chip Conveyor - Chip Augers - Box Ways on Z axis - Linear Guides on X & Y The Visionwide VTEC SF-3120 is a vertical bridge-type CNC machining center designed for high-precision, high-speed milling of complex parts. It combines a robust bridge structure with advanced CNC controls and tooling for demanding applications.
