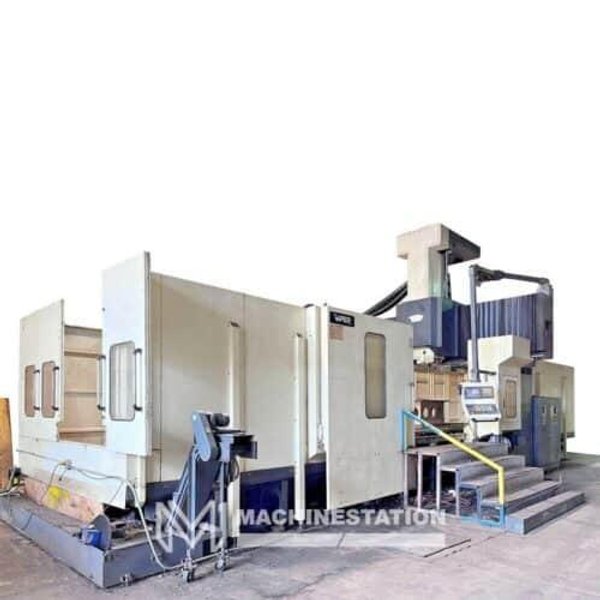

Kao Ming KMC-632M CNC Vertical Bridge Mill

Kao Ming KMC-632M CNC Vertical Bridge Mill

Name: Kao Ming KMC-632M CNC Vertical Bridge Mill
Brand: UNKNOWN
SKU: 2368
Availability: InStock

Brand

UNKNOWN

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Kao Ming
Model:	KMC-632M
Year:	2012
Condition:	Used – Excellent

Kao Ming KMC-632M Equipped With:
Fanuc 18iMB CNC Control
236.22″ X 102.36″ Table
4th Axis Ready
30 Station Side Mount Tool Changer
CAT-50 Spindle Taper
35 HP high torque spindle motor
4400 RPM Spindle
Rigid Tapping
All side Guardians Comes with Machine
Aluminum Fixture Plate Mounted on Table
PCMCIA Card Slot
RS-232 Port
Spindle Orientation
Coolant System
Auto Lubrication System
Screw Type Chip Conveyor
Chip Conveyor

Travels:
X-Axis: 245.27″
Y-Axis: 151.57″
Z-Axis: 43.30″
Distance Between Columns: 125.98″

Table:
Length: 236.22″
Width: 102.36″
Max Weight on Table: 33,069 lbs

Spindle:
Taper Size: 50
Speed Range: 4400 RPM
Spindle Power: 35 HP

Automatic Tool Changer:
50 Taper
Capacity: 30
Max Tool Weight: 44 lbs
Max Tool Length: 13.77″
Max Tool Dia.: 7.87″

General:
Air Required: 100 psi 4 scfm
Power: 205-235v / 66FLA / 3-Phase 61 Kva
Overall Shipping Dimensions: 600″ x 324″ x 216″ High
Hydraulic Unit Chip Conveyor Chiller unit Extra.
Weight: 176370 lbs.
