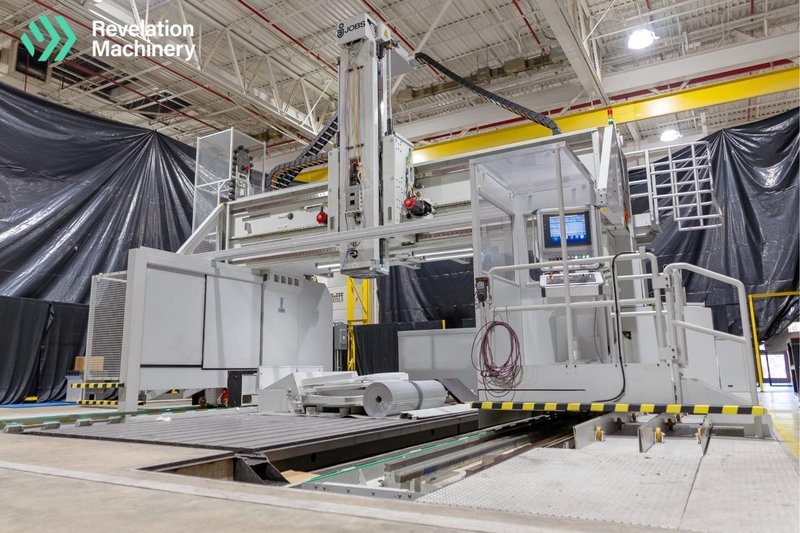

JOBS Ever5 5-Axis Gantry Mill, 2021 – 26′ x 13′ x 5′ Travel, 5x Spindle Heads, Warranty, Installed

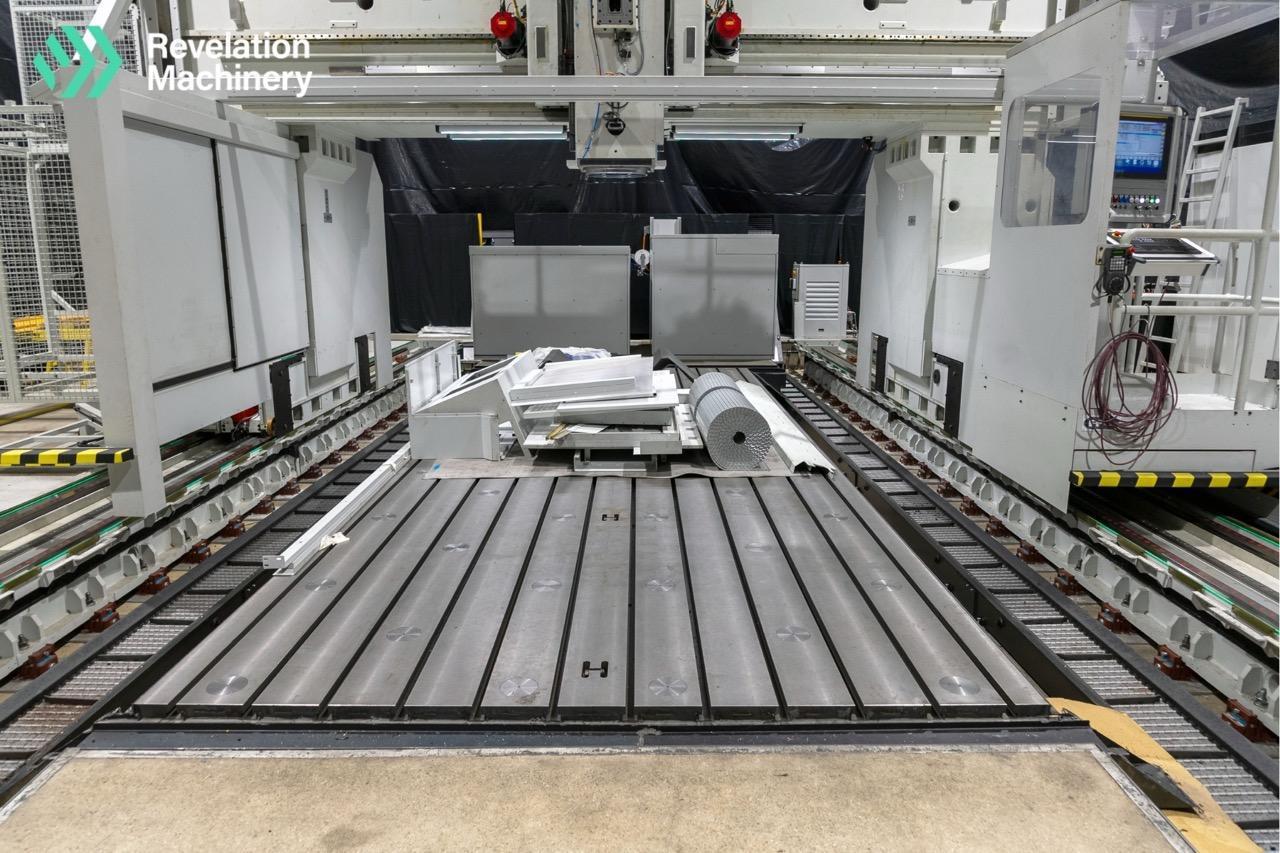

Table Size: 314″ x 118″ (8,000 x 3,000 mm) Table Depth: 9.8″ (250 mm) Max Table Weight: 11,023 lbs (5,000 kg) X-Axis Travel: 314.96″ (8,000 mm) Y-Axis Travel: 157.48″ (4,000 mm) Z-Axis Travel: 59.06″ (1,500 mm) X/Y/Z Travel Speed: 1,259 IPM A-Axis: 220° (+/- 110°) C-Axis: 400° (+/- 200°)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A-Axis Rotation Speed: 60°/sec (10 RPM) A-Axis Accuracy: +/- 0.002° A-Axis Repeatability: +/- 0.001° C-Axis Rotation Speed: 60°/sec (10 RPM) C-Axis Accuracy: +/- 0.002° C-Axis Repeatability: +/- 0.001°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 20 – 15,000 RPM Max Torque: 2,581 lbft Continuous (10,325 lbft with Hydraulic Clamping) Automatic Tool Changer: 80 Positions Tool Taper (All Heads): HSK-A100 Max Tool Weight: 55 lbs Max Tool Length: 13.8″ Automatic Head Changer: 5 Head Positions

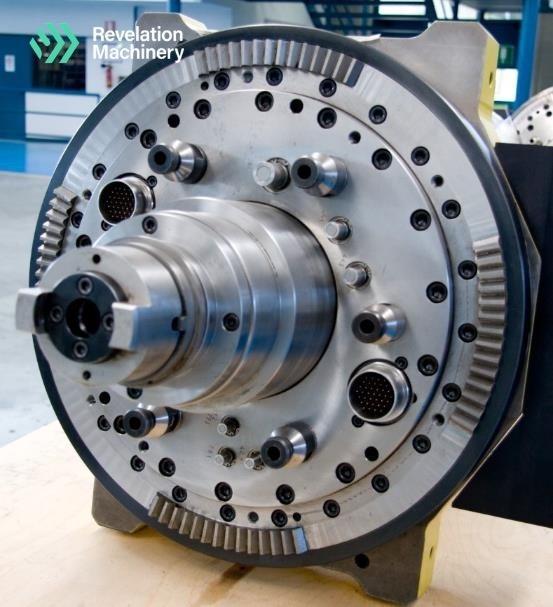

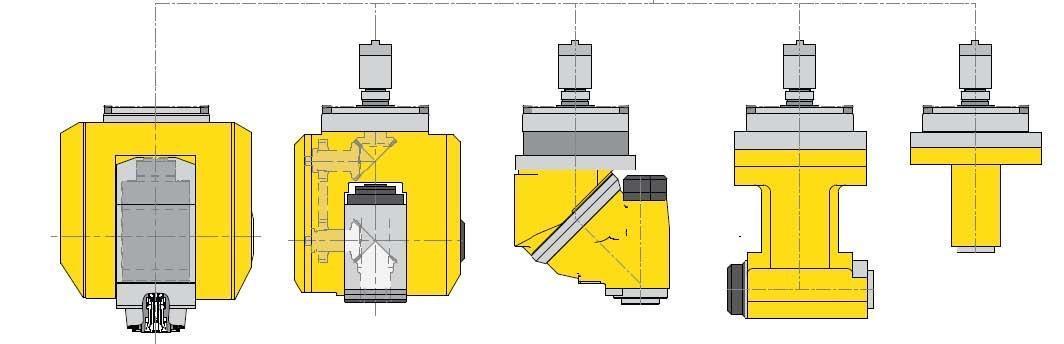

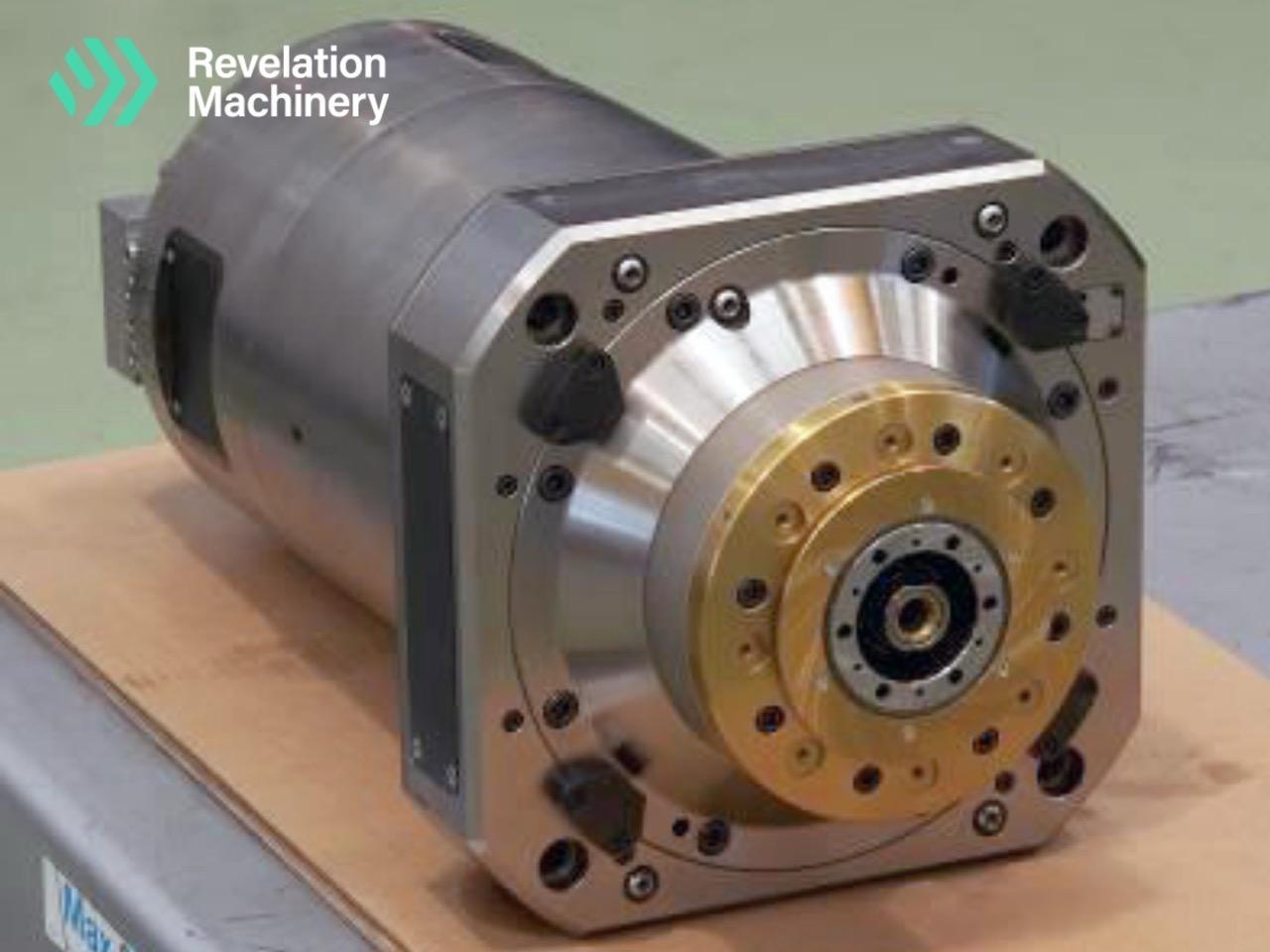

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,5 Spindle Heads Included: * Continuous 5-Axis T3K Head- 15,000 RPM Fischer Spindle; A-Axis: 215° (-120/+95°); 885 lbft Continuous (3,687 lbft with Hydraulic Clamp); Heidenhain RON 285

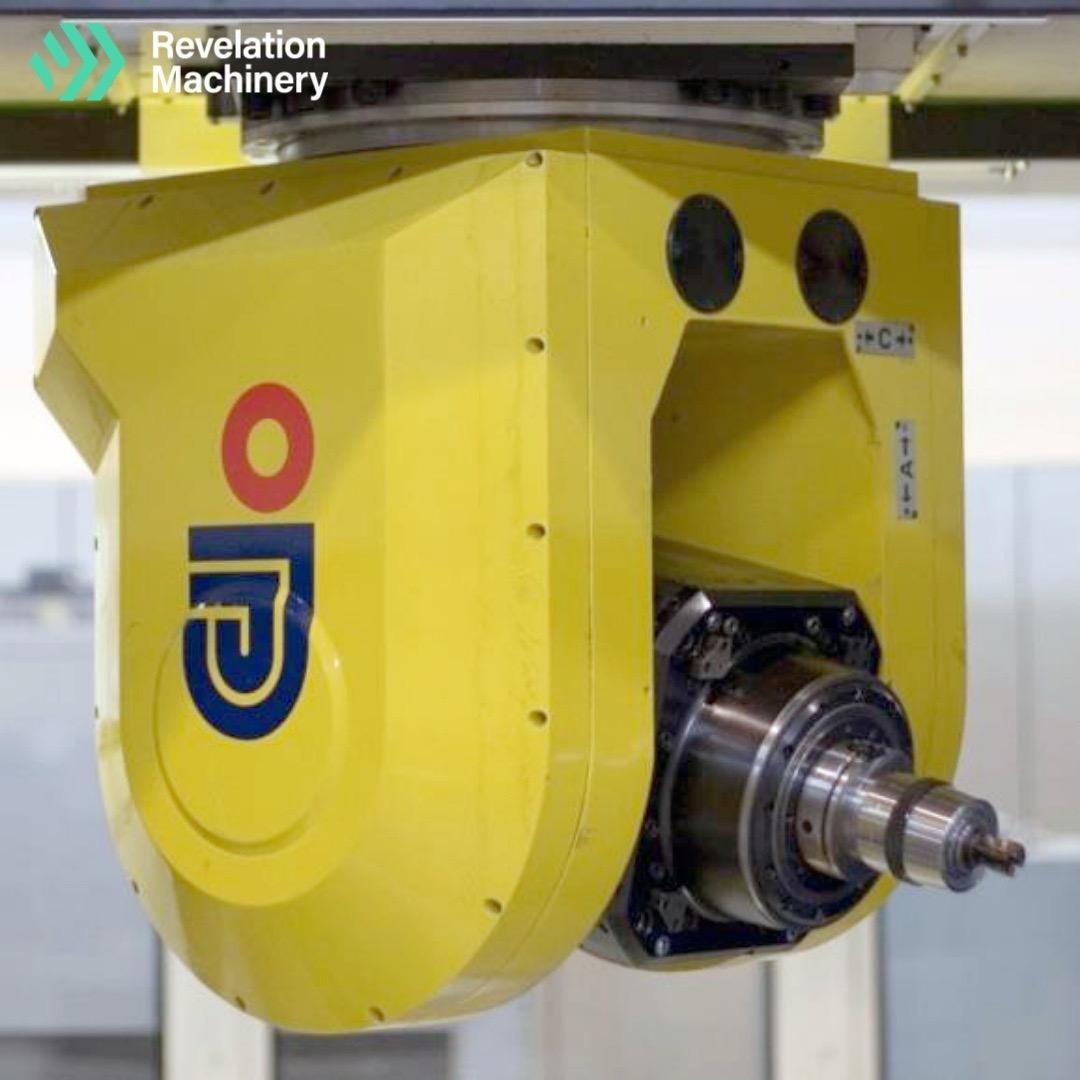

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* T35C Geared Fork Head- 5,000 RPM; A-Axis: 220° (+/-110°); 3,319 lbft with Hydraulic Clamp; Direct Encoder

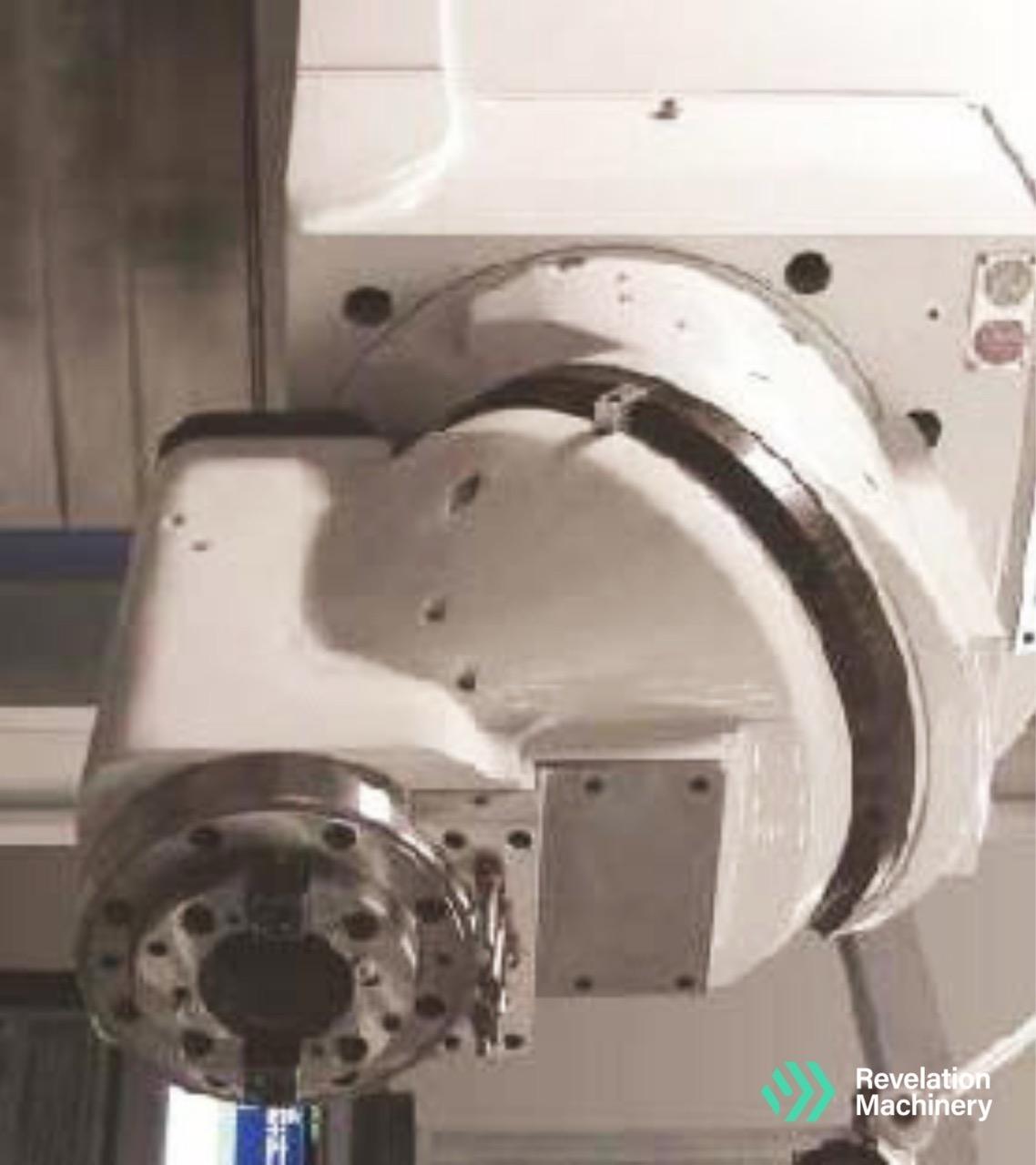

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Universal TUNI 45° Head- 5,000 RPM; Indexing: 0.02°; 8,113 lbft with Hydraulic Clamp; Encoder on Motor; Accuracy: +/-0.0008°

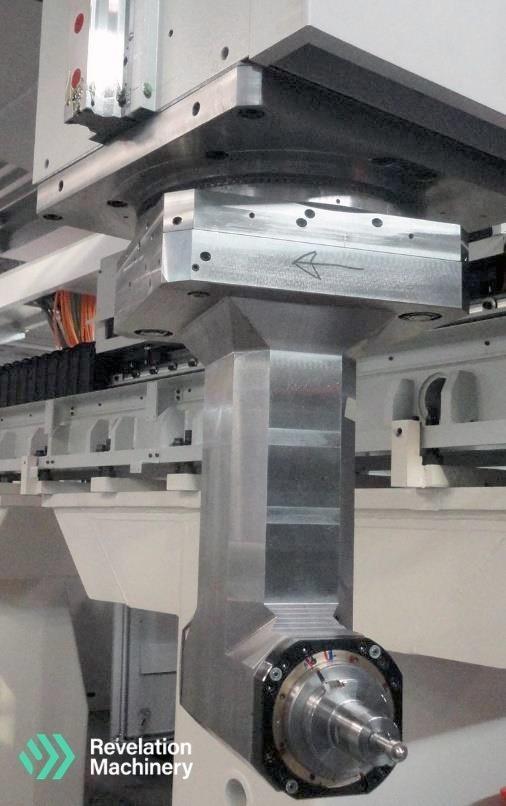

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* 90° Right Angle Power Head- 5,000 RPM; Through Tool Coolant

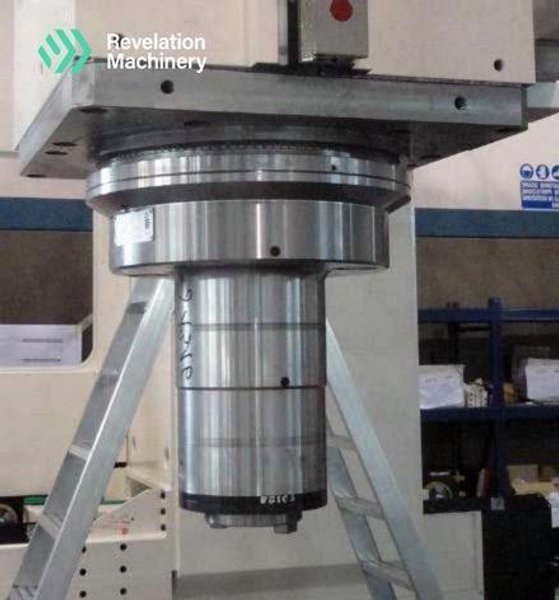

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,* Straight Power T3A Head- 5,000 RPM; Through Tool Coolant

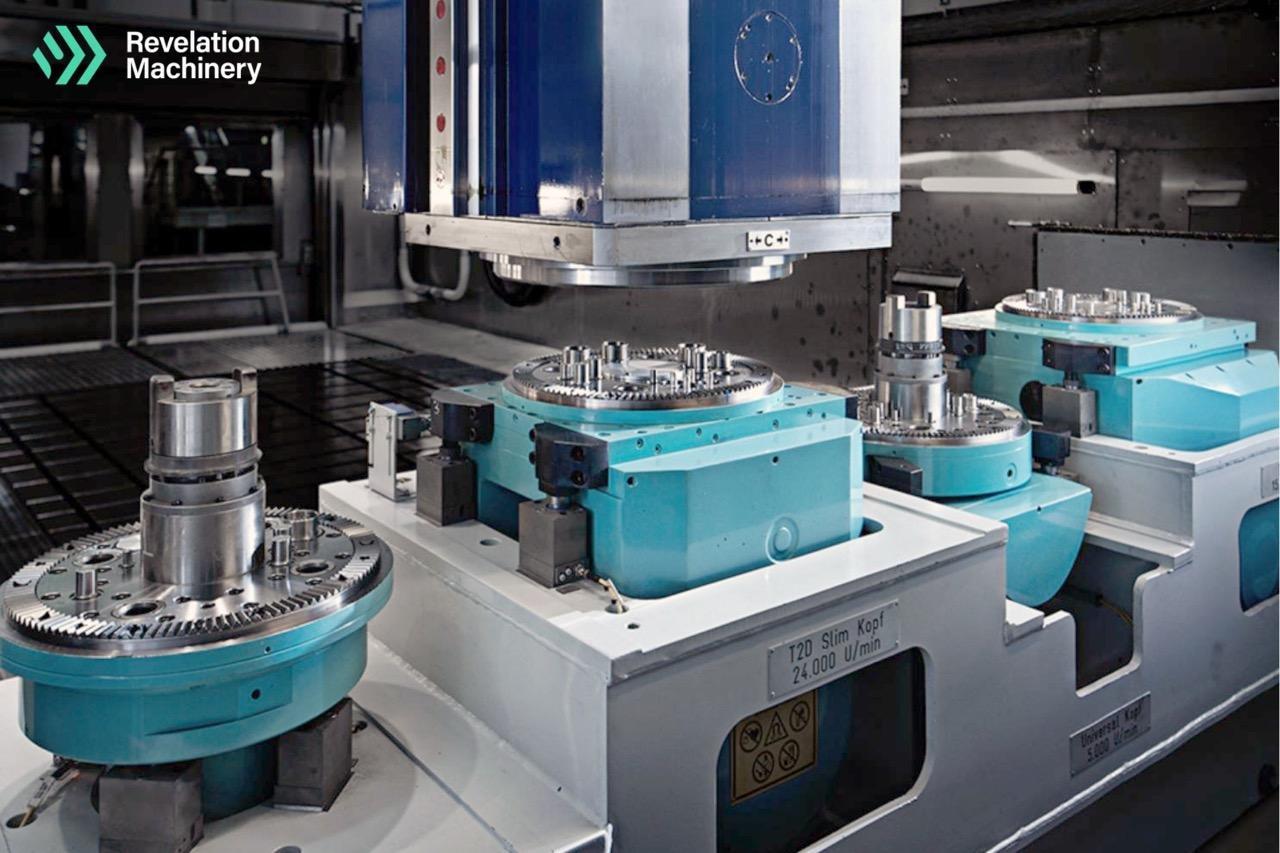

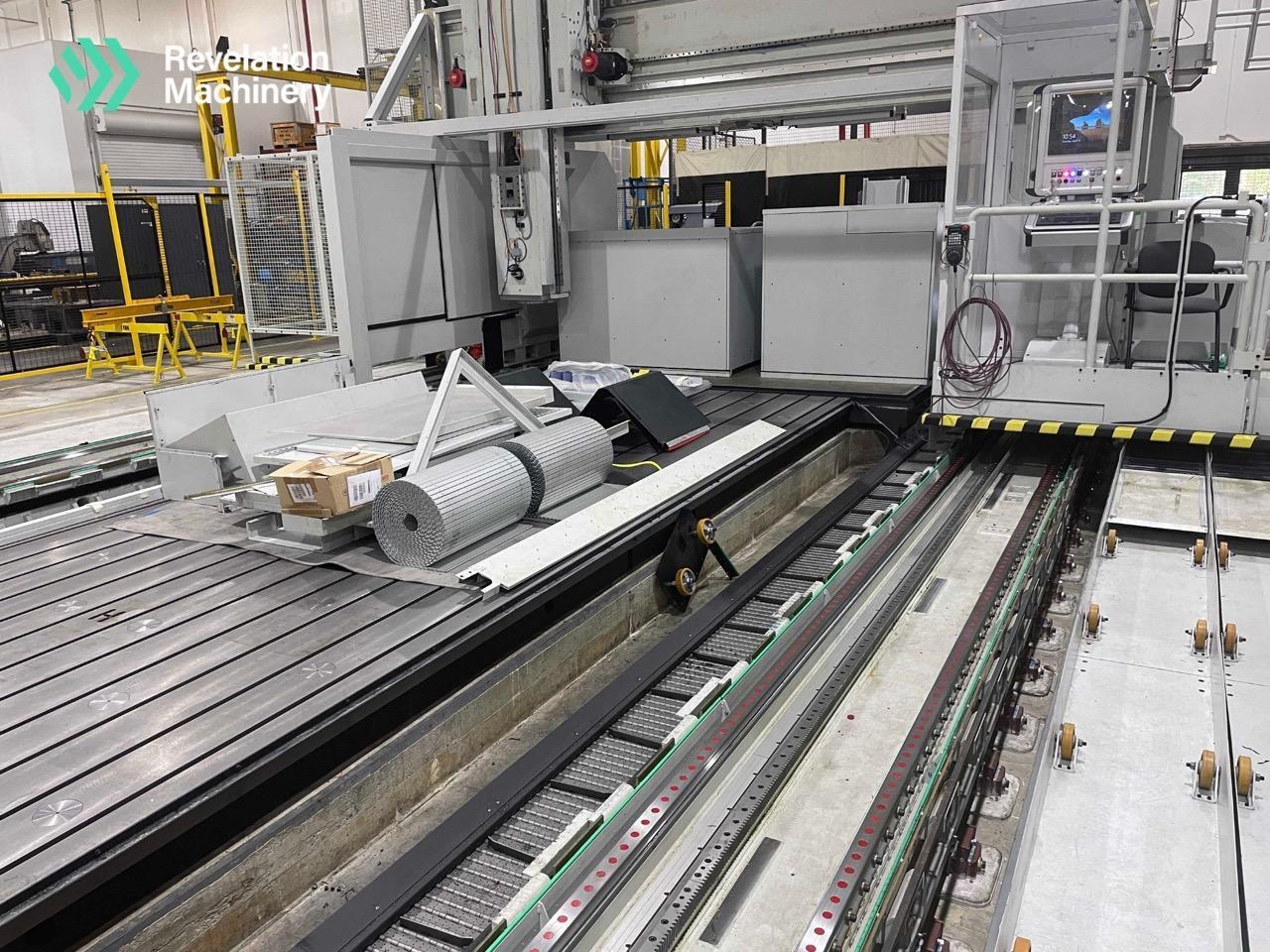

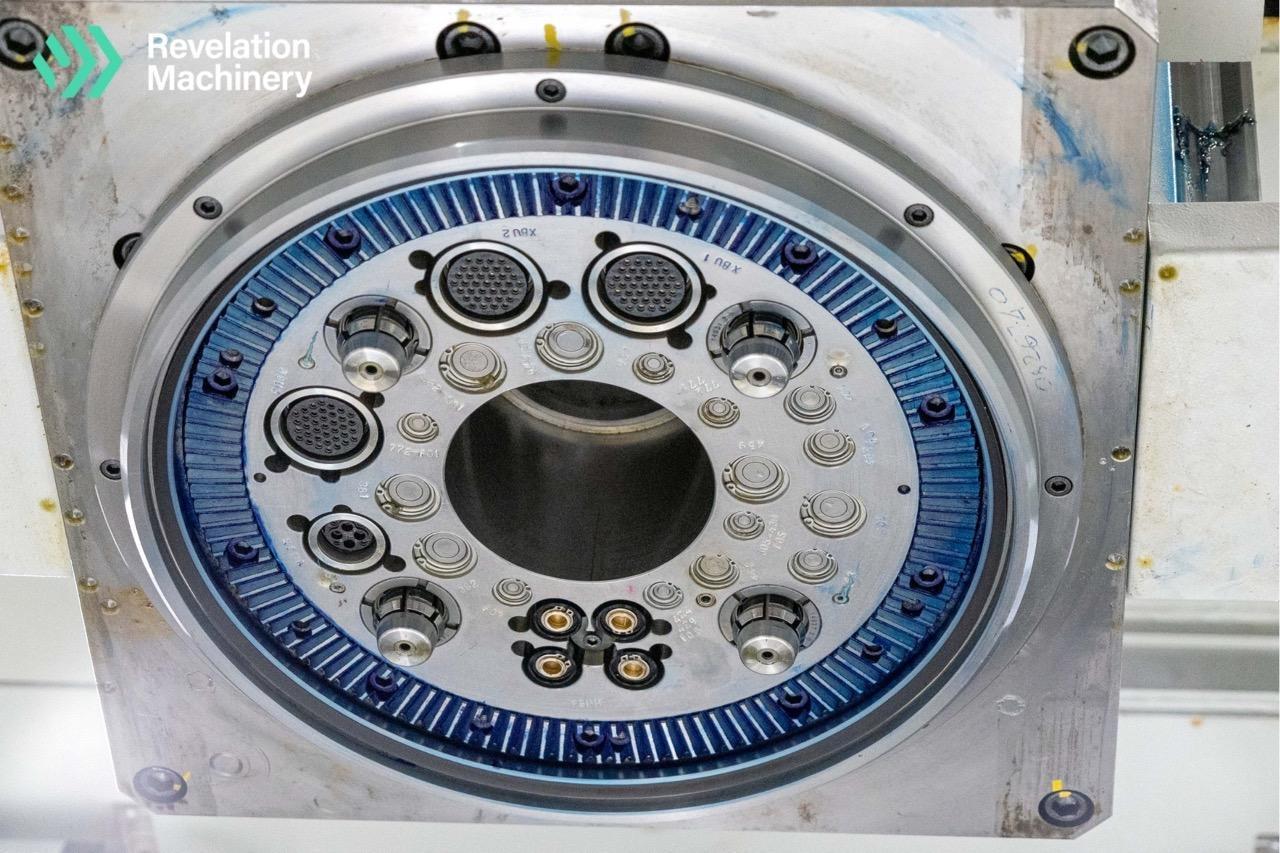

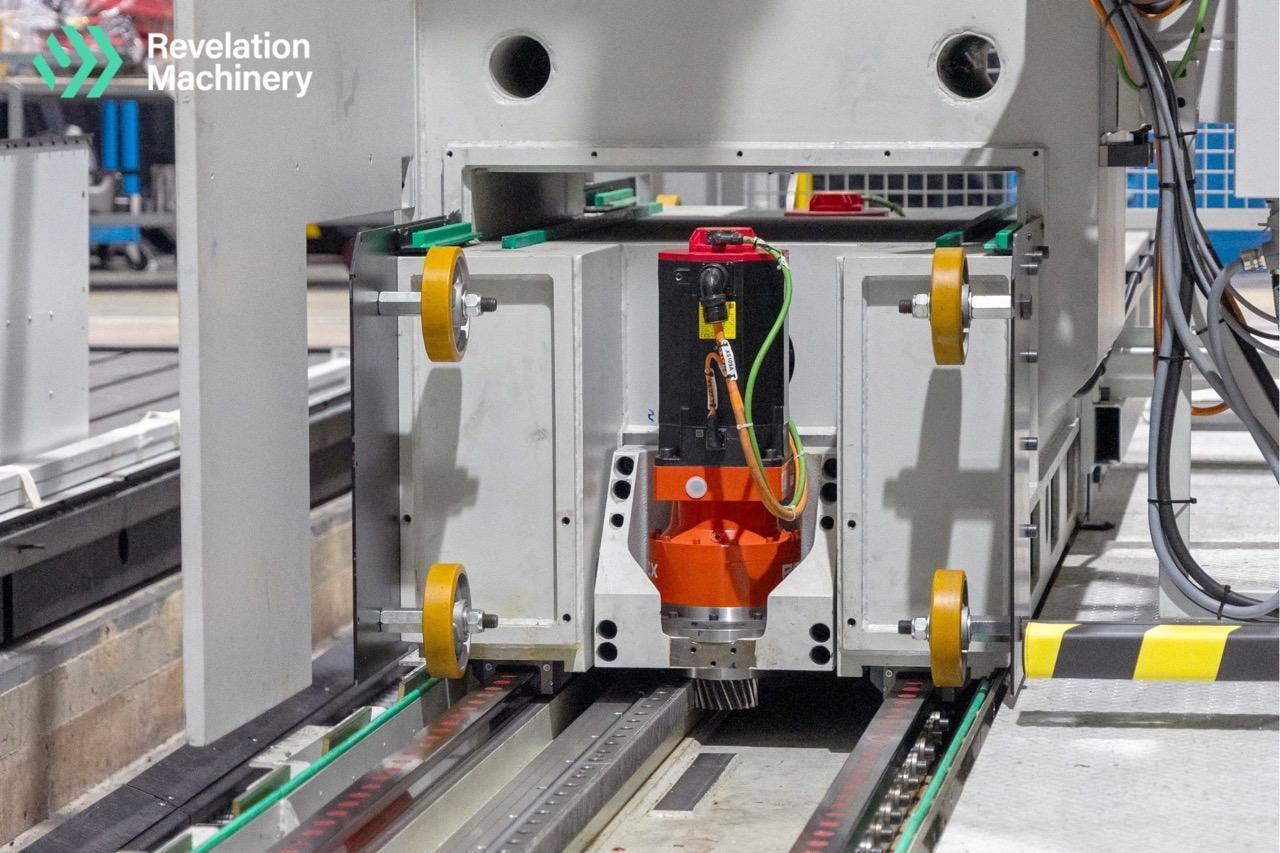

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Fanuc 31i-B5 CNC Control iHMI 19″ Display Dual Speed Gearbox Through Tool Coolant- 725 PSI Coolant Nozzles- 124 PSI Coolant Tank- 528 Gallon Paper Filtration 2x Belt-Type Chip Conveyors Heidenhain Linear Scale X/Y/Z Axes Renishaw RMP60 Touch Probe Blum Laser Tool Measuring System 2x High Definition Cameras & Joystick Surveillance System & Monitor Operator Platform Independent Cooling Units 80 Position Automatic Tool Changer 5 Position Translating Automatic Head Changer- Jobs BUSS System 5x Interchangeable Heads (HSK-A100)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,1 Year Warranty & Installation Included. Shipping Not Included.

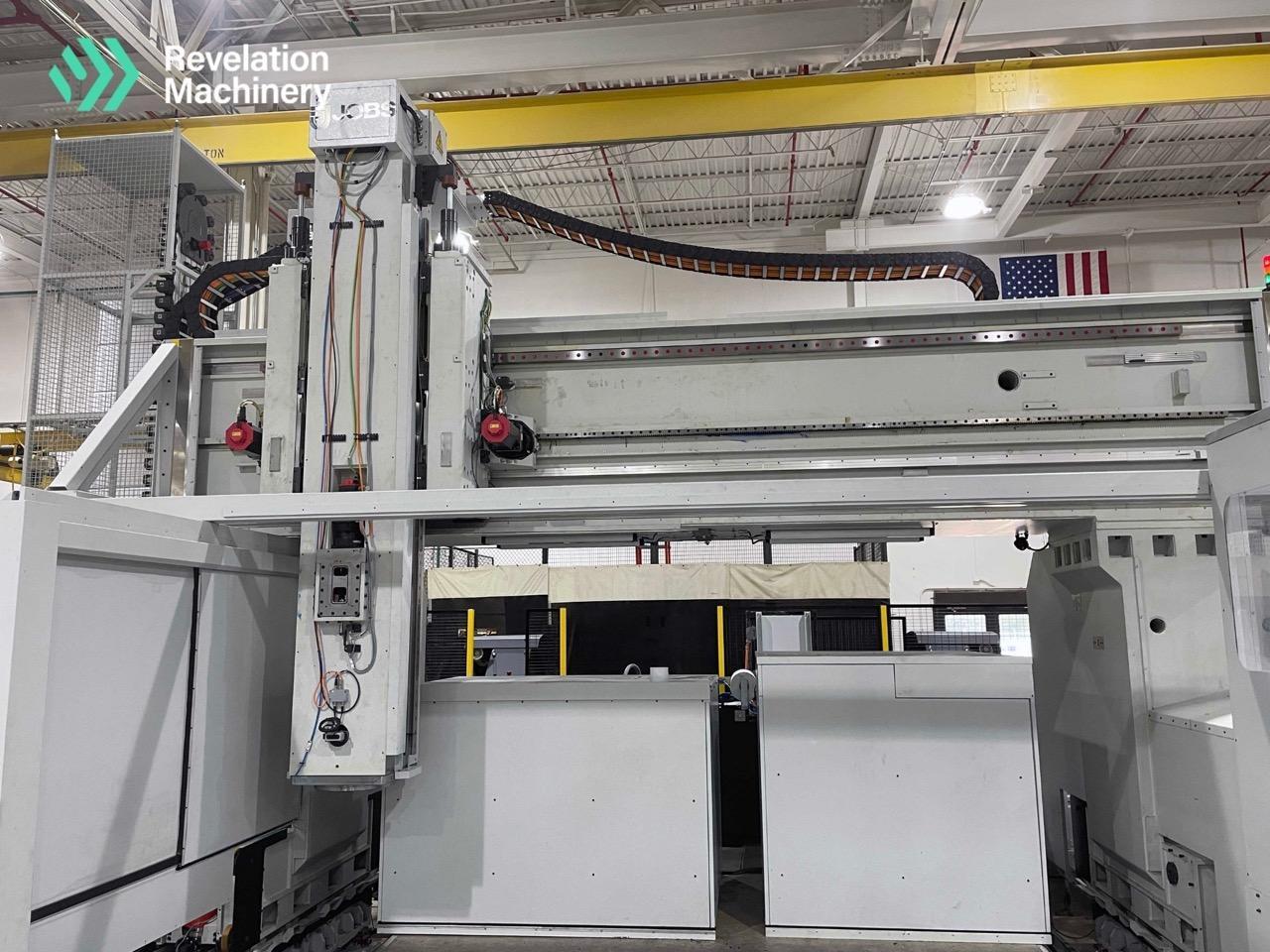

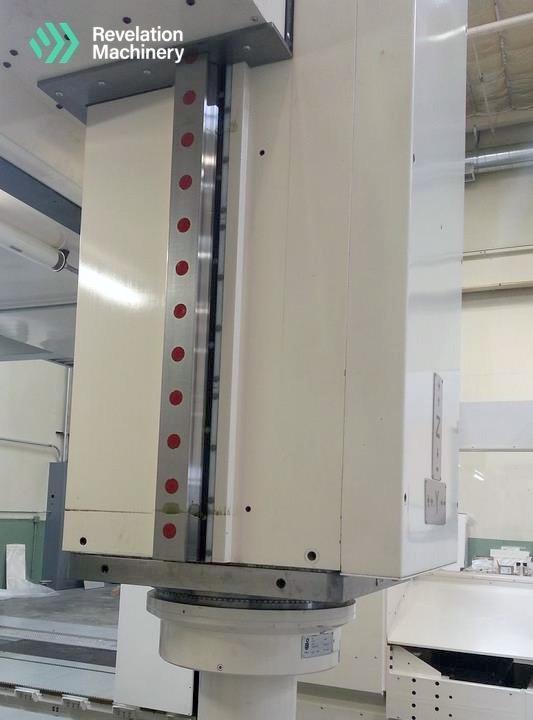

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Large-format 5-axis aerospace-class gantry mill equipped with Fanuc 31i-B5 CNC control with continuous simultaneous 5-axis machining capability. Heavy-duty bridge/gantry construction. Automatic tool changer and automatic head changing system with multi-head spindle configuration for roughing and high-speed finishing. Includes high-speed spindle and heavy-duty geared milling head configurations in BUSS-style interchangeable head system. Designed for large-part precision machining and high material removal rates. Features high-rigidity gantry design, advanced contouring and 5-axis interpolation with precision linear axis motion systems. Industrial production-grade CNC platform ideal for large-part machining, precision 5-axis milling, tooling and mold applications, and structural machining in high-performance production environments. Chip conveyor and coolant system.
