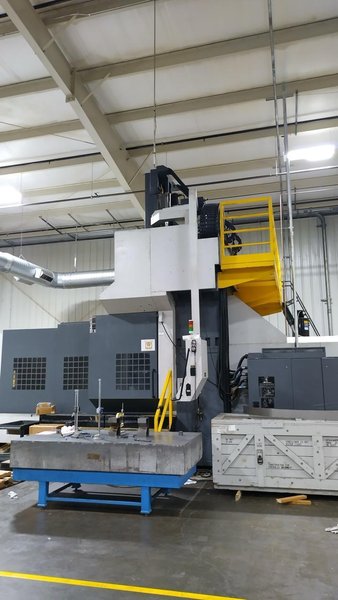

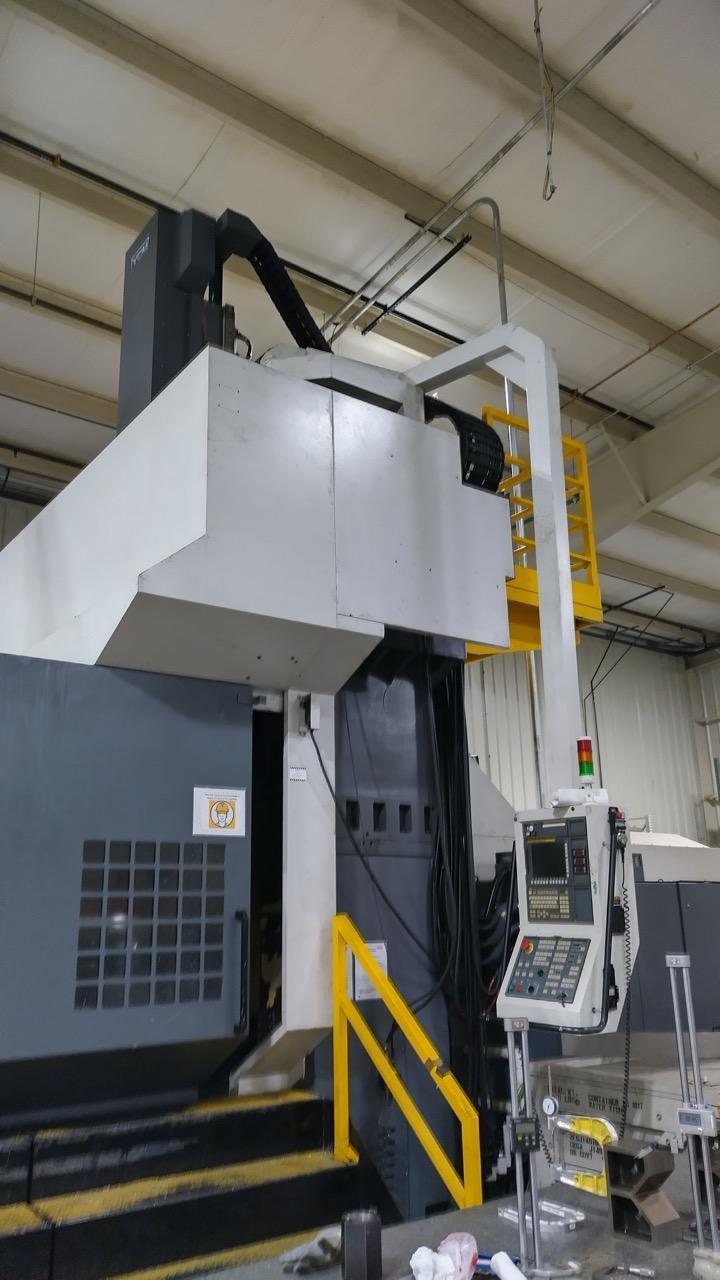

YCM DCV-4030B-5AX 5-axis Bridge Mill, 2014
Brand
Category
Model
DCV-4030B-5AX 5 Axis
Stock #
785358
Year
2014
Condition
Not specified
Location
Not specified
|
Travels
X-Axis: 160″
Y-Axis: 137.8″
Z-Axis: 40″
C-Axis: ±360º continuous rotation
B-Axis Swivel Tilt: ±110º
Distance Between Columns: 122″
Distance Between Spindle Nose and Table: 0.79″-50.79″
Table Size: 161.42″ x 94.49″
No. T-slot x Size x Pitch: 11″ x 1.1″ x 7.87″
Max Load on Table: 44,092 lbs
Taper: HSK A100
Speed: 10,000 rpm
Motor: 60 HP

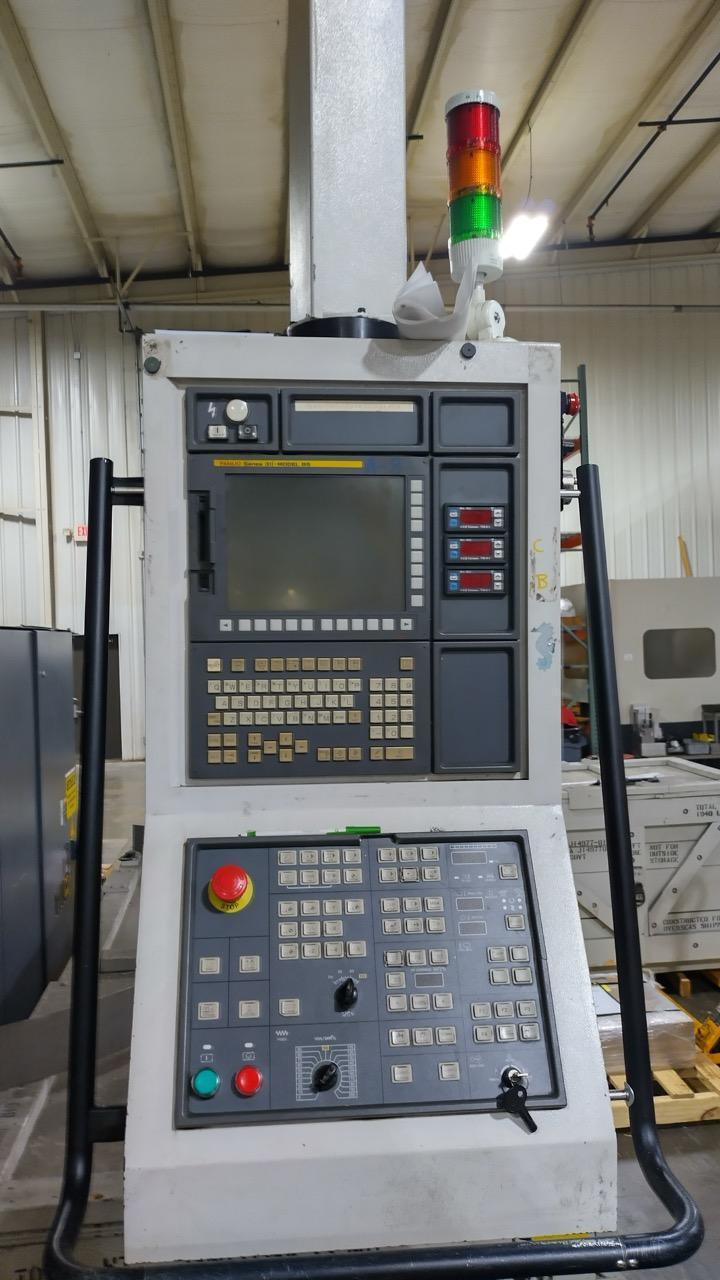

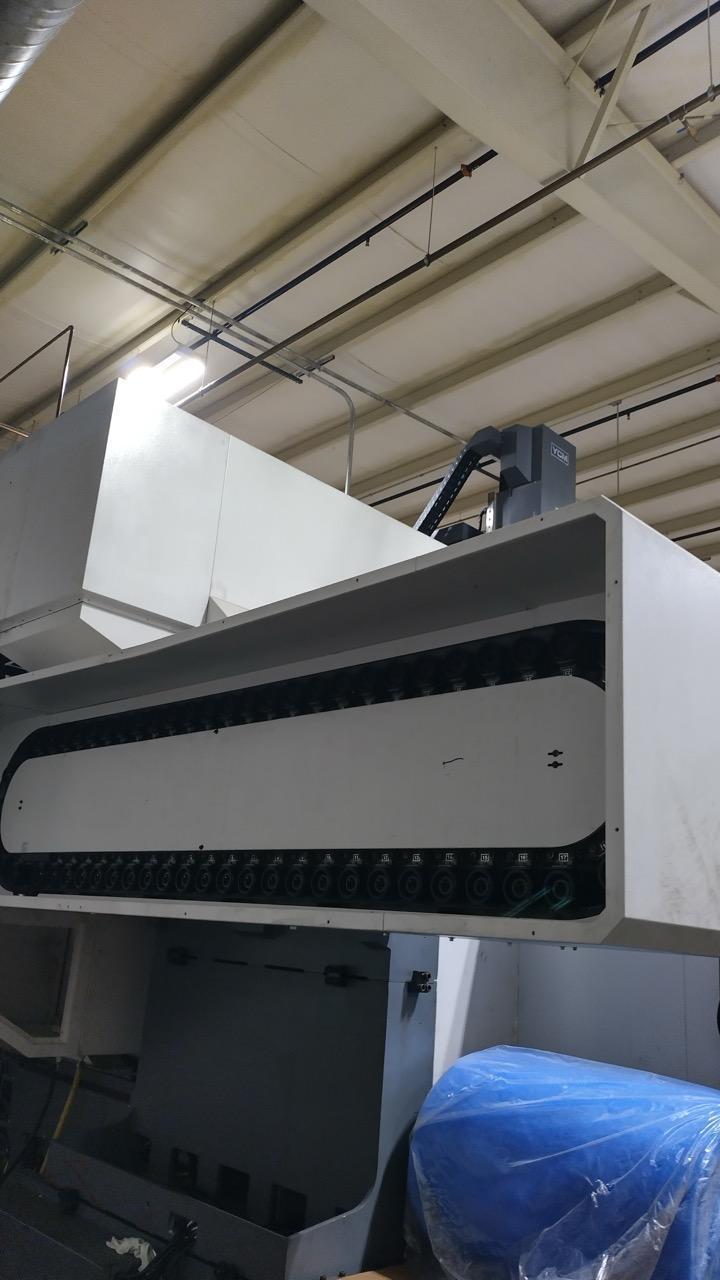

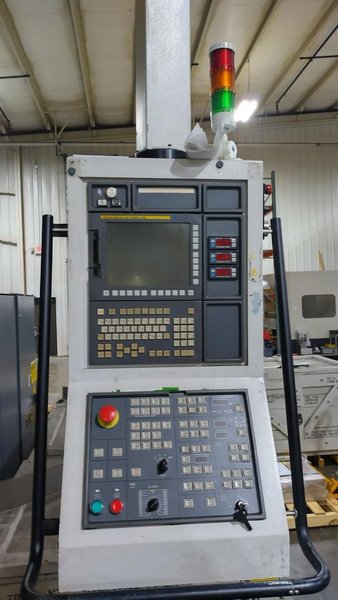

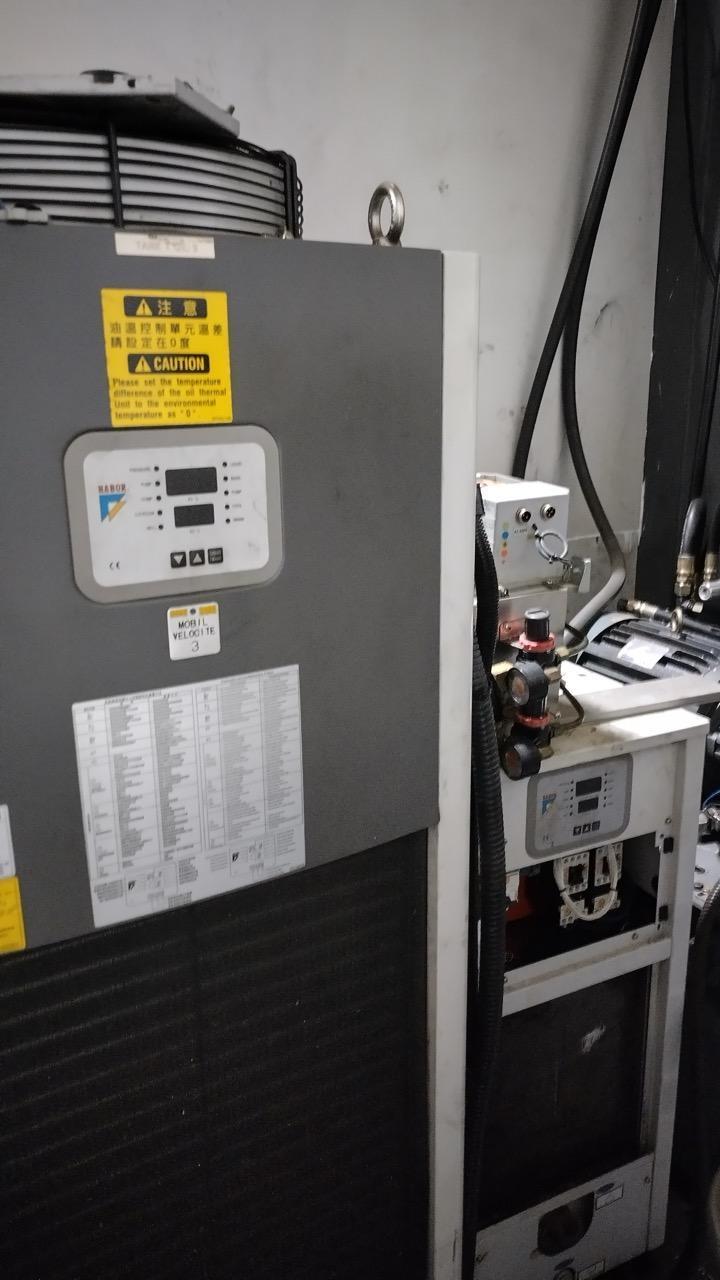

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Fanuc 31i-CM-B5 Control ATC with 40 Tool Capacity Rigid Tapping Manual Pulse Generator Leveling Bolts and Plates Dual Augers Lift Chip Conveyor Glass Scales Spindle Chiller All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
