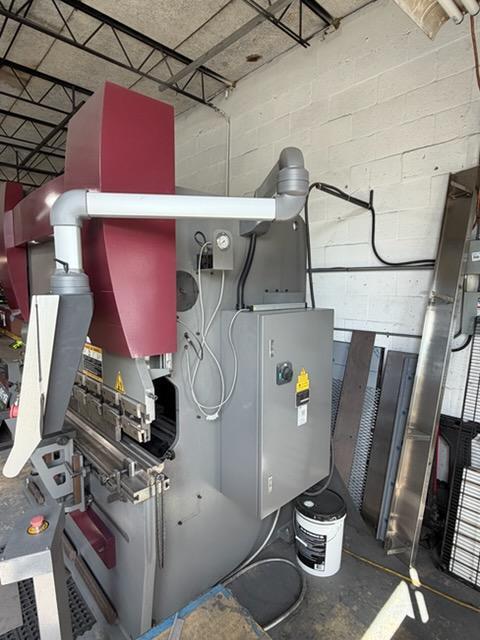

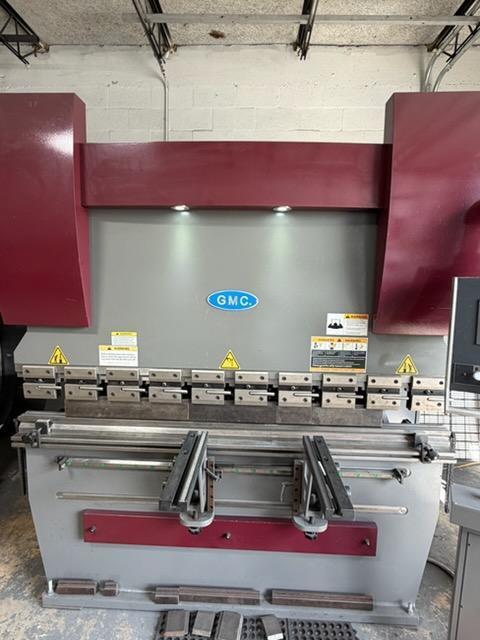

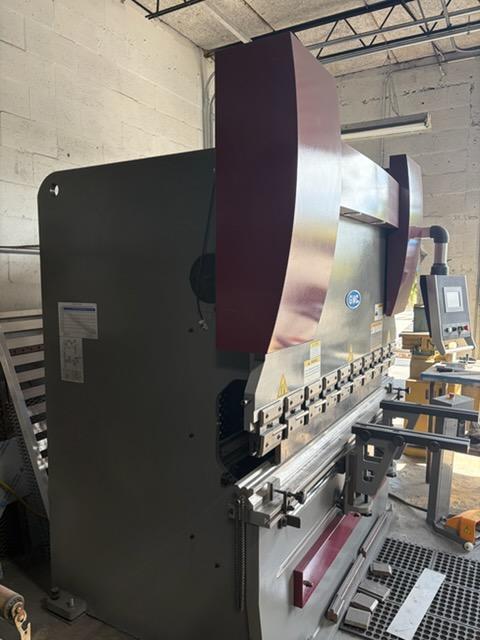

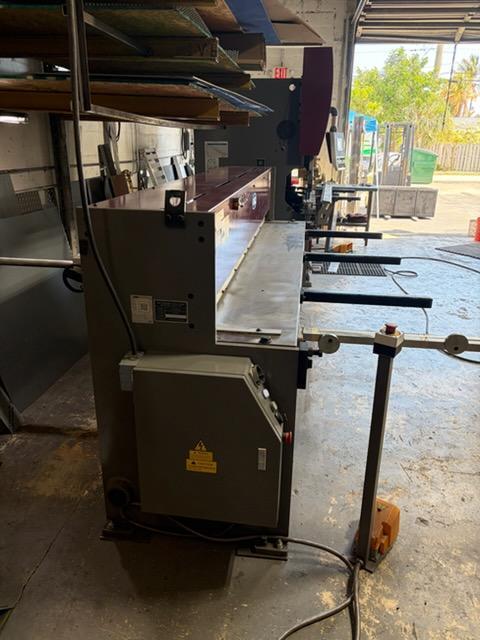

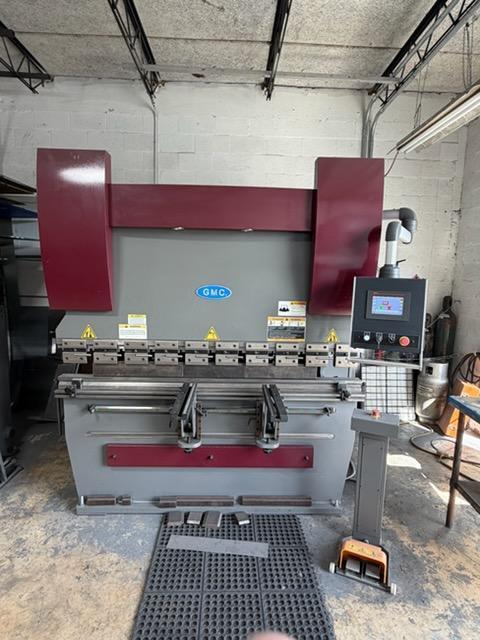

70 Ton x 6′ GMC HPB-7006 Hydraulic Press Brake, 2022 – ESA CNC Control, Back Gauge

2022 capacity and 6′ bending length. Equipped with CNC controls, back gauge, and safety light curtains, this unit is designed for precision forming with high repeatability and reliable hydraulic performance. Ideal for fabrication shops and general metal forming applications.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Type: Hydraulic Press Brake Capacity: 70 Ton Bending Length: 80″ (6’8″) Distance Between Uprights: 63″ Stroke: 6″ Throat Depth: 10″ Back Gauge Distance: 24″ Back Gauge Repeatability: .0039″ Y-Axis Repeatability: .0039″ Main Motor: 7.5 HP Hydraulic Oil Capacity: 52 Gallon Machine Weight: 8,650 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

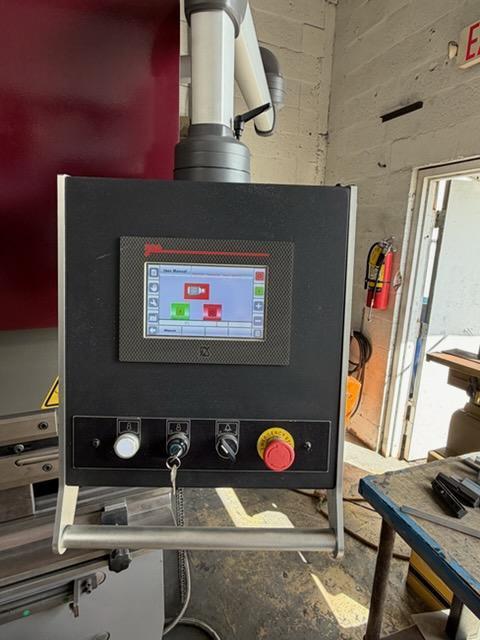

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ESA Model 625 2 Axis CNC Controller (2) 24″ Front Support Arms Quick Release Quick Release Segmented American Style Tooling Punch Holder Full Length Vee Die Light Curtain Safety System Back Gauge System Hydraulic Crowning Foot Pedal Control With E-Stop Side And Rear Safety Guarding

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
