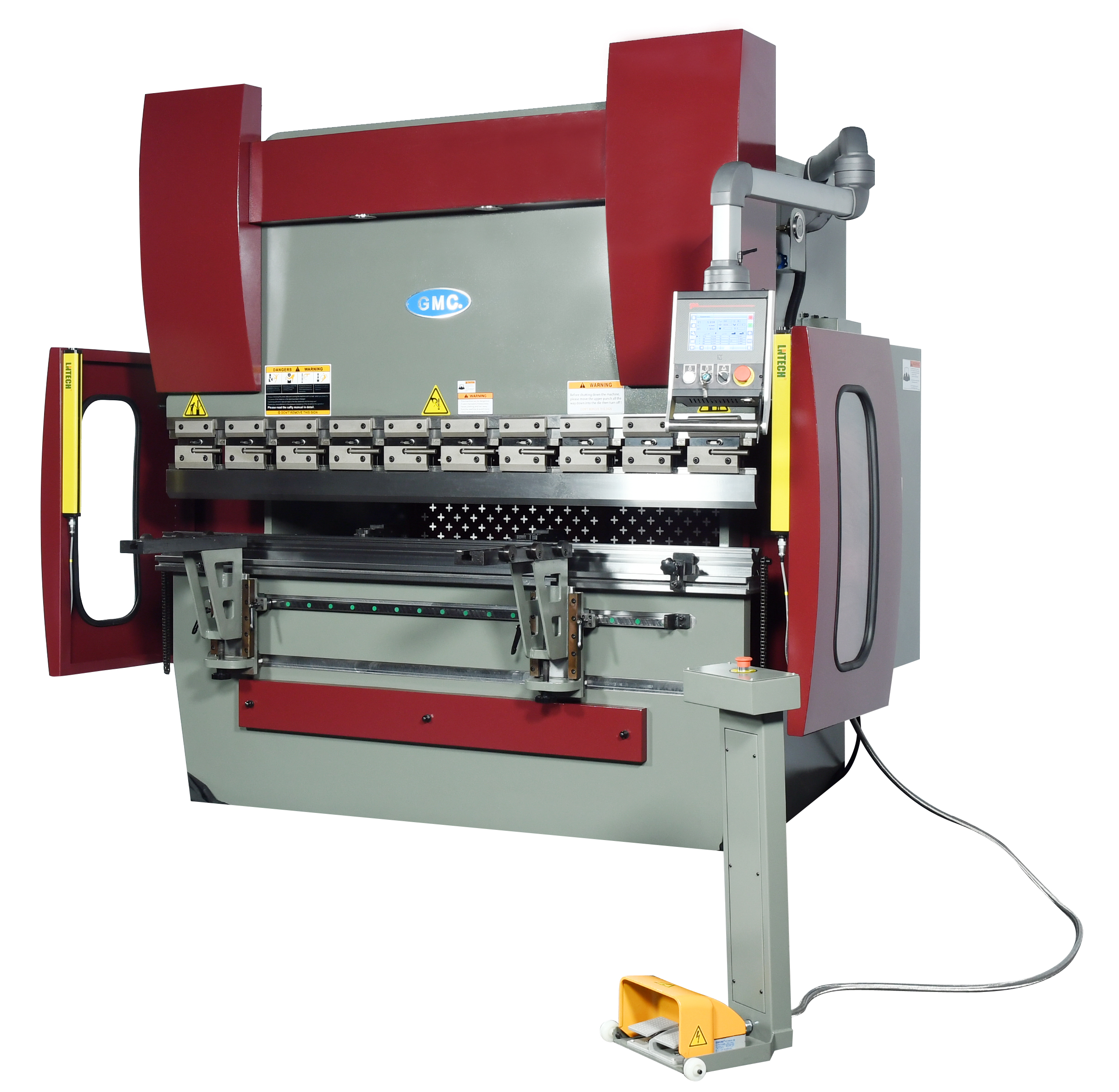

HPB-7006CNC, 70-Ton 6’ CNC Press Brake with 2-Axis ESA S625 CNC Controller

HPB-7006CNC, 70-Ton 6’ CNC Press Brake with 2-Axis ESA S625 CNC Controller

Name: HPB-7006CNC, 70-Ton 6’ CNC Press Brake with 2-Axis ESA S625 CNC Controller
Brand: GMC
SKU: HPB-7006CNC
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

ISO 9001 certified
Meet OSHA and CE safety standard

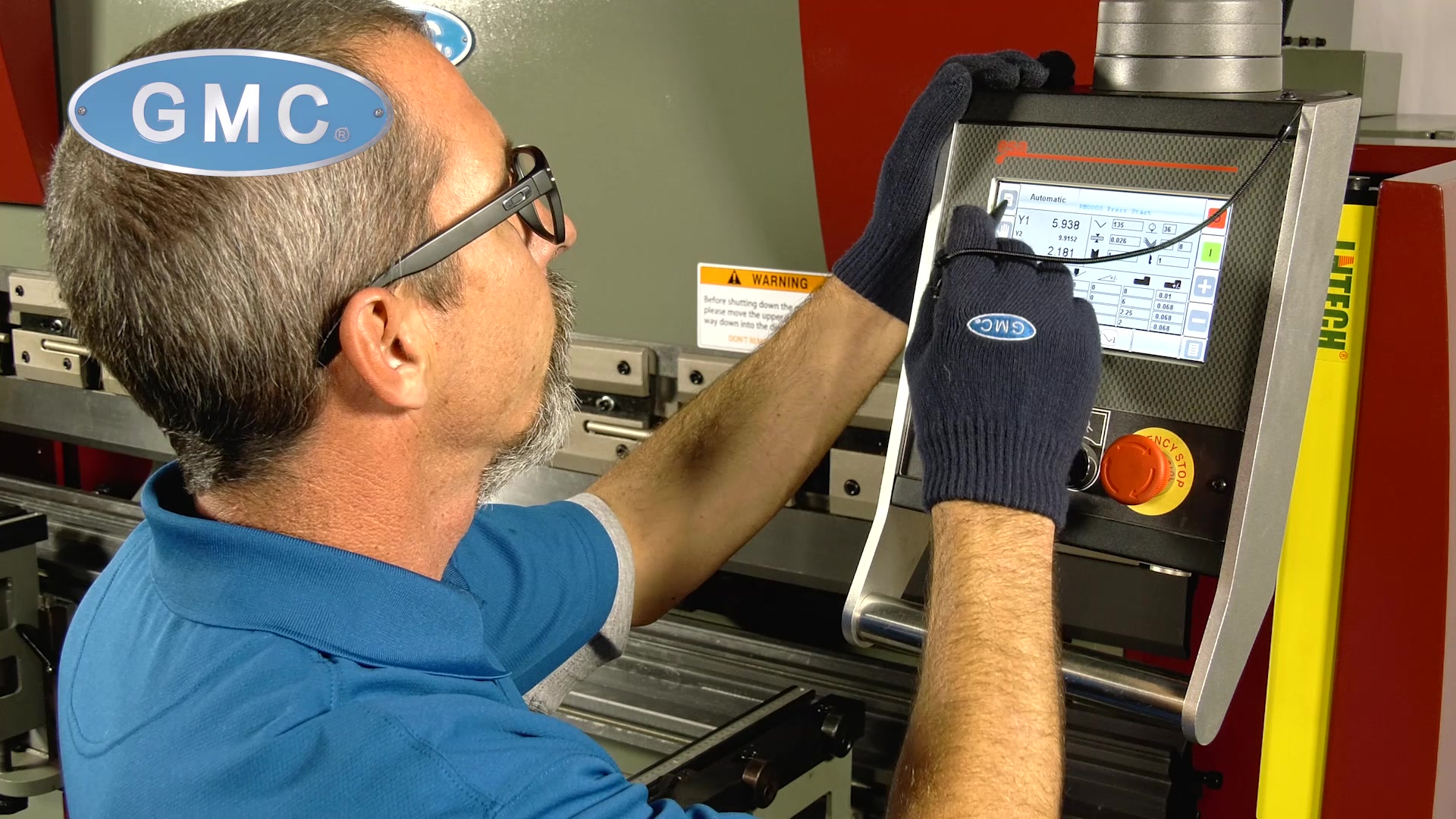

ESA (Italy) Model 625, 2 Axis CNC Controller
Die library, offline programming, stores thousands of programs
Programmable Angle/ Angle Correct
Germany Rexroth hydraulic system
Yaskawa Servo motor and Drives
Schneider electrical components
Hydraulic crowning
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with handle and E-stop switch
Safety 24V low voltage & overload protection
One year industrial warranty for parts

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Maximum Pressure	70 Tons
Bending Lenght Capacity	80" (6'8")
Distance Between Uprights (housing)	63"
Ram Stroke Travel Cylinder Travel Adjustment (max)	6" 3 1/8"
Table Width	6"
Distance Between Table and Ram Max Stacked Tooling Height	15 1/4" 8-1/2"
Throat Depth	10"
Back Gauge Distance	24"
Back Gauge Repeatability	.0039"
Y-Axis Repeatability	.0039"
Approach speed, inch / second Working speed, inch / second Return speed, inch / second	3.14” 0.35” 2.36”
Main motor: Servo motor for back gauge: Servo motor for bending angle setting	7-1/2 HP, 3 Phase 30 AMP Prewired: 220VAC (+/- 10%) 1 HP, 3 Phase 220VAC (+/- 10%) 1/2HP, 3 Phase 220VAC (+/- 10%)
Hydraulic oil tank capacity: Recommended Oil:	52 Gal. Hydraulic Oil Shell #68HD
Machine weight: Machine size, L x W x H: Shipping Dimensions:	8,650 LBS 103" x 63" x 87” 109"x66"x98"

No files or videos to display
