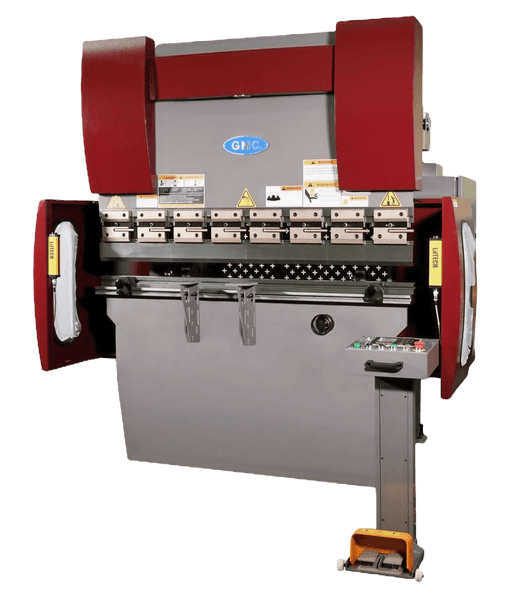

Name: 33-Ton 5’ CNC Press Brake – Small Hydraulic Press Brake
Brand: GMC
SKU: HPB-3305CNC
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

ISO 9001 certified
Meet OSHA and CE safety standard

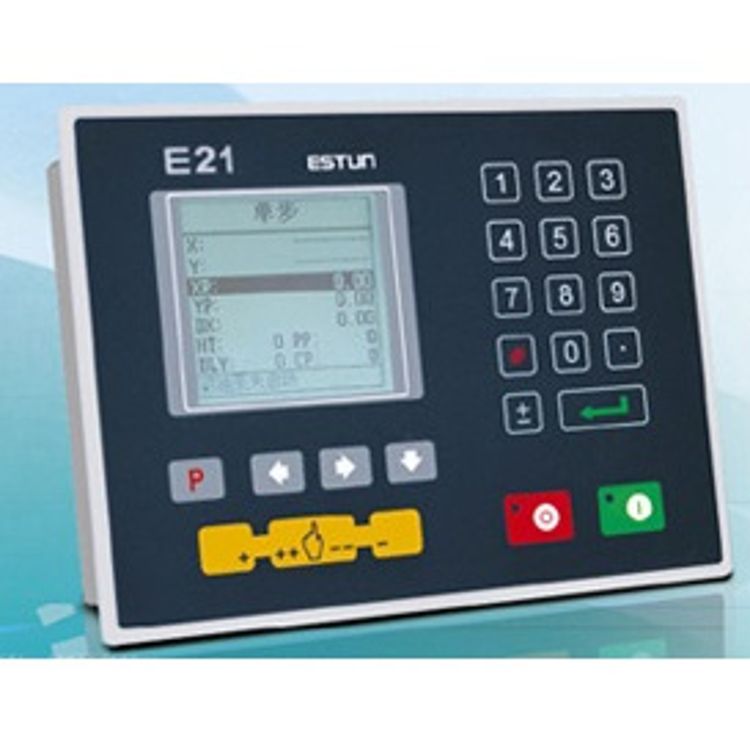

Easy-to-use programmable Estun E21 control
Easy programming, stores 40 programs
Estun E21 control keep a pice count for large production run
Japan Yaskawa drive
Precision ball screws for 24” back gauge
Germany Rexroth hydraulic system
Schneider electrical components
All steel construction for maximum rigidity
Hydraulic logic system centrally located and quiet
Safety type foot pedal with E21 screen, control panel and E-stop switch
Safety 24V low voltage & overload protection

One year industrial warranty for parts

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Maximum Pressure	33 Tons
Bending Lenght Capacity	63" (5'3")
Distance Between Uprights (housing)	51"
Ram Stroke Travel Cylinder Travel Adjustment (max)	4" 2"
Table Width	6"
Distance Between Table and Ram	13-1/4"
Throat Depth	8"
Back Gauge Distance	21"
Back Gauge Repeatability	.008"
Y-Axis Repeatability	.008"
Approach speed, inch / second Working speed, inch / second Return speed, inch / second	3.5” 0.39” 2.75”
Main motor: Motor for back gauge: Motor for bending angle setting:	5-1/2 HP, 3 Phase 25 AMP Prewired: 220VAC (+/- 10%) 1 HP, 3 Phase 220VAC (+/- 10%) 1/2HP, 3 Phase 220VAC, (+/- 10%)
Hydraulic oil tank capacity: Recommended Oil:	20 Gal. Hydraulic Oil Shell #68HD
Machine weight: Machine size, L x W x H: Shipping dimensions:	5,350 LBS 91"x56"x87” 91"x56"x87"
