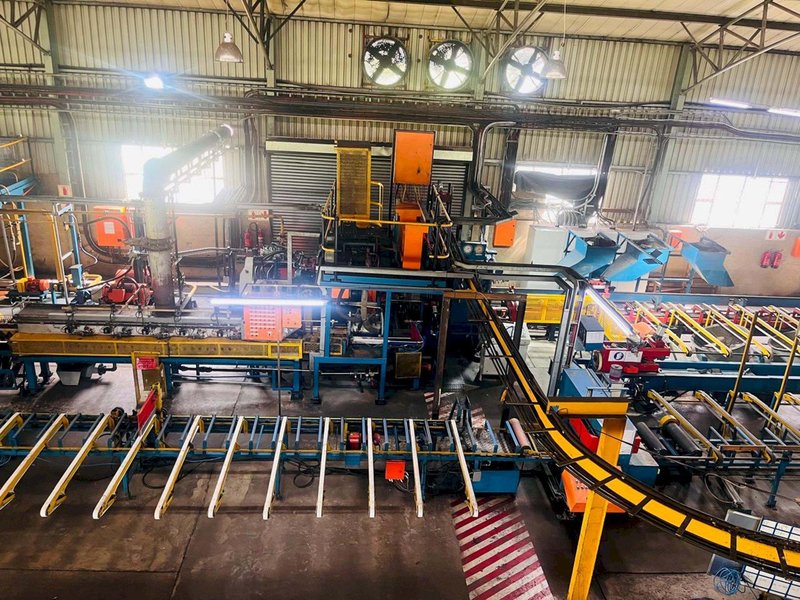

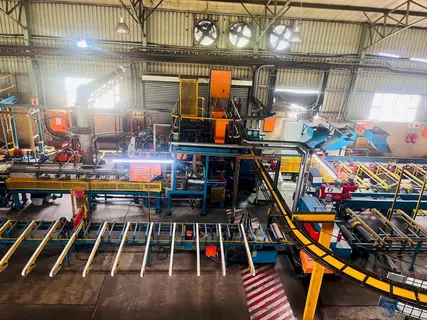

850 Ton Aluminum Extrusion Press (14648)

850 TON ALUMINUM EXTRUSION PRESS
Stock # 14648

Extrusion Press Tonnage:.........850 Tons
Container Diameter:..............136mm
Diameter of Main Cylinder:.......610mm
Diameter of Small Cylinder:......160mm
Platten Exit Diameter:...........163mm
Maximum Pressure of Press(Bar):..310 Bar
Marks of Billets:................6063/6060
Runout Table Length
   Conveyor Length:..............37800mm

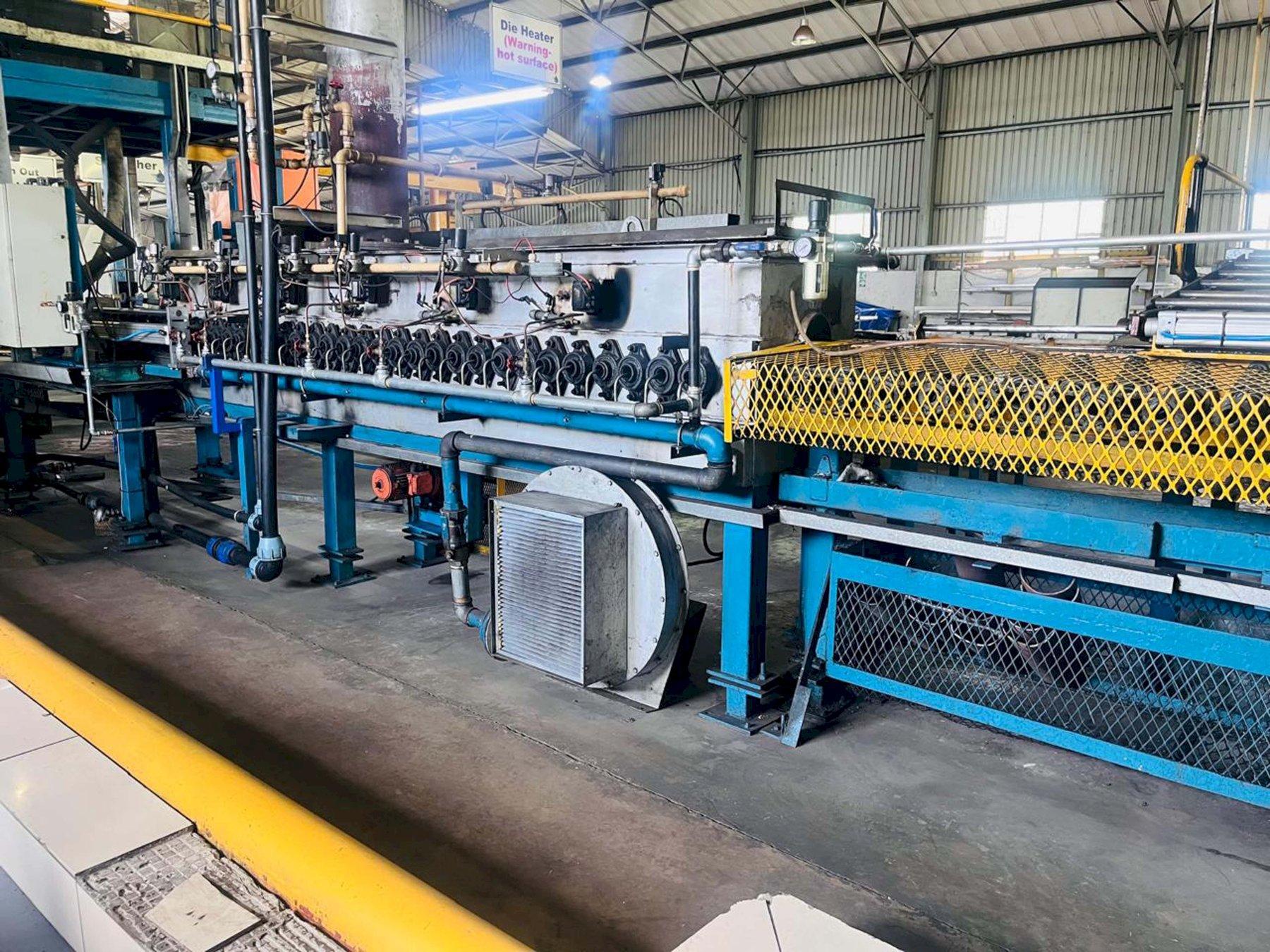

Billet Heating:..................Combination of LPG Gas
                                 & Induction Heating
Type of Puller:..................Single Puller With Fingers,
                                 That Runs On A Guide Rail, Directly
                                 Above The Runout Table, Chain Driven

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**SPECIFICATIONS ARE SUBJECT TO VERIFICATION**
