COE Press Coil Feed Line 20,000 Lbs. x 54" Wide

Name: COE Press Coil Feed Line 20,000 Lbs. x 54" Wide
Brand: COE
SKU: 5593
Availability: InStock

Brand

COE

Ohio

Coil Weight Capacity:	20000 pounds
Stock Width Capacity	54 inches
Max Stock Thickness Capacity At Full Width	.060 inches

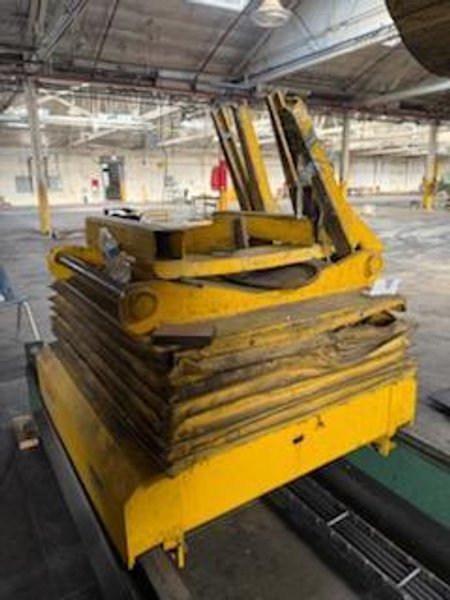

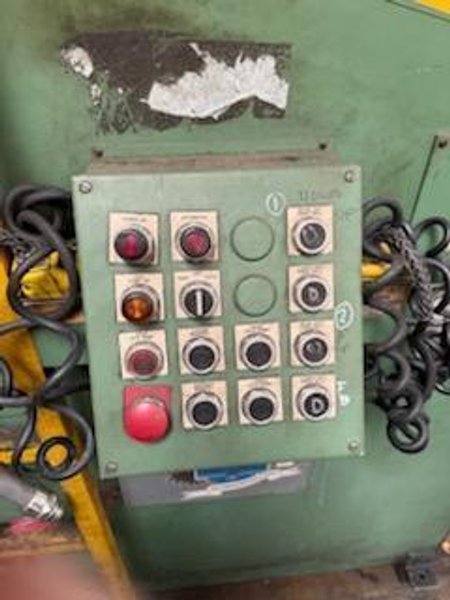

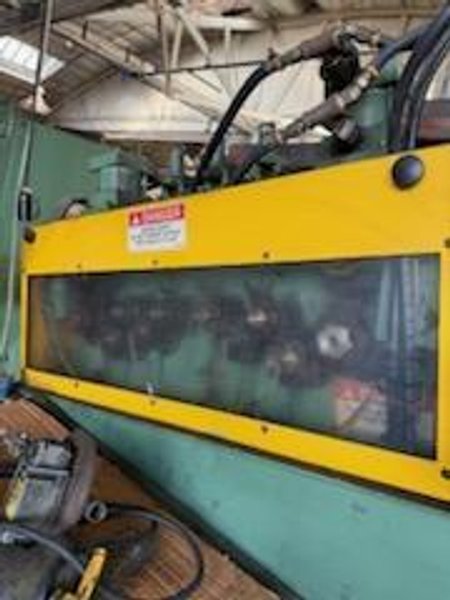

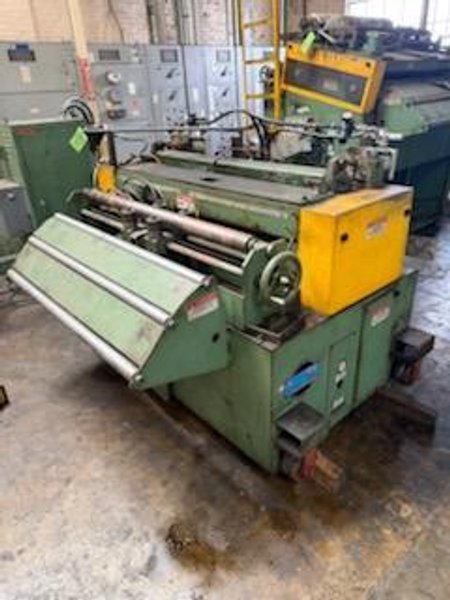

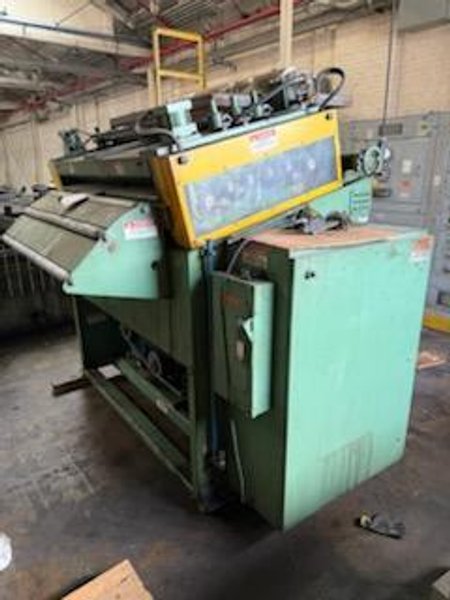

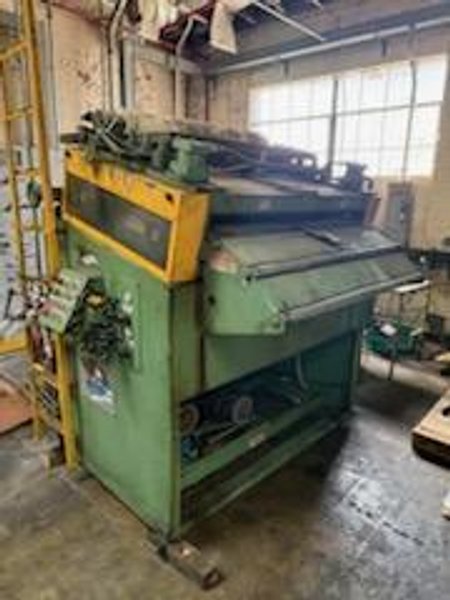

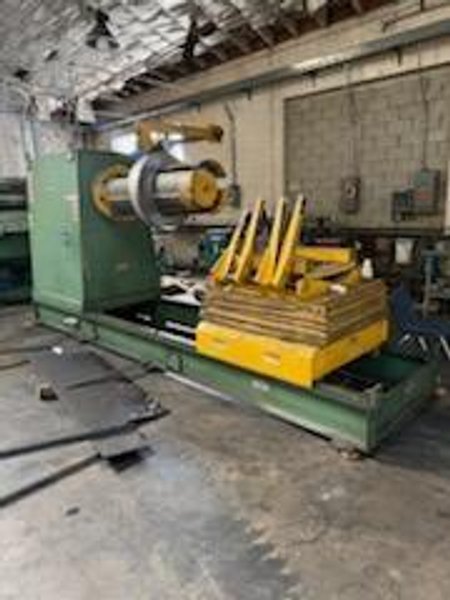

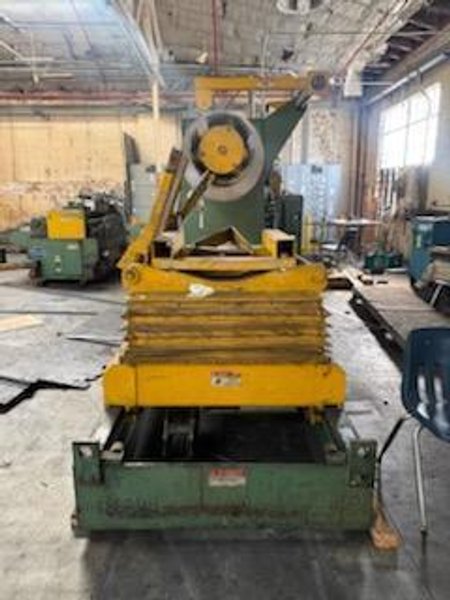

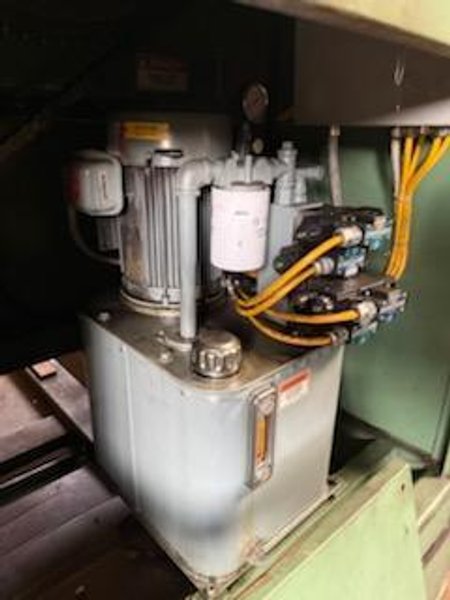

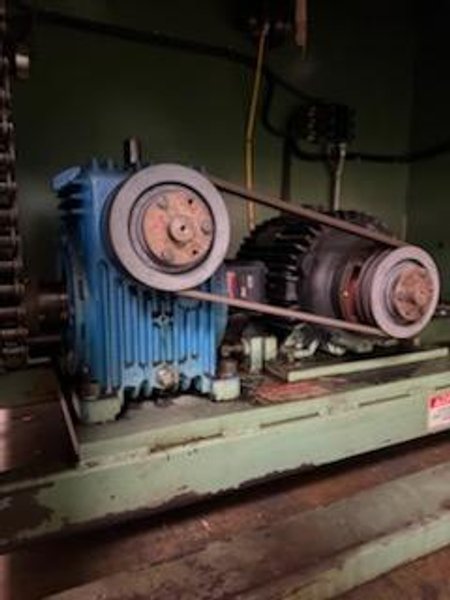

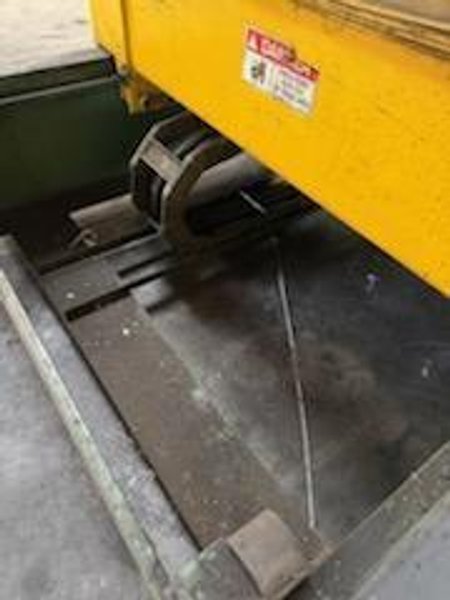

COE Press Servo Roll Feed Model No. CPRF-454 / Serial No. 20804-1 Four inch diameter upper and lower feed rolls Piloting upper feed roll Cabinet base mounted Controls AC Servo drive and controls upgrade / retrofit - consult sales for pricing COE Press Powered Coil Straightener Model No. CPPS-300-54 / Serial No. 20804-2 Three inch diameter straightening rolls Individual upper roll adjustments Back up straightening roll supports Entry and exit pinch rolls with air operated adjustments Exit cascade loop support rollers Operator's controls Jog for stock threading Variable speed drive Automatic cycle COE Press Coil Reel Uncoiler Model No. CPR-PO-200-54 / Serial No. 20804-3 Three leaf mandrel with hydraulic expansion Coil hold down arm Air brake mounted on main spindle (adjustable tensioning) Jog forward and reverse threading drive Self contained hydraulic system Traveling Coil Load Car Powered lift and travel Adjustable narrow coil supports MORE PHOTOS AND INFO AVAILABLE UPON REQUEST
