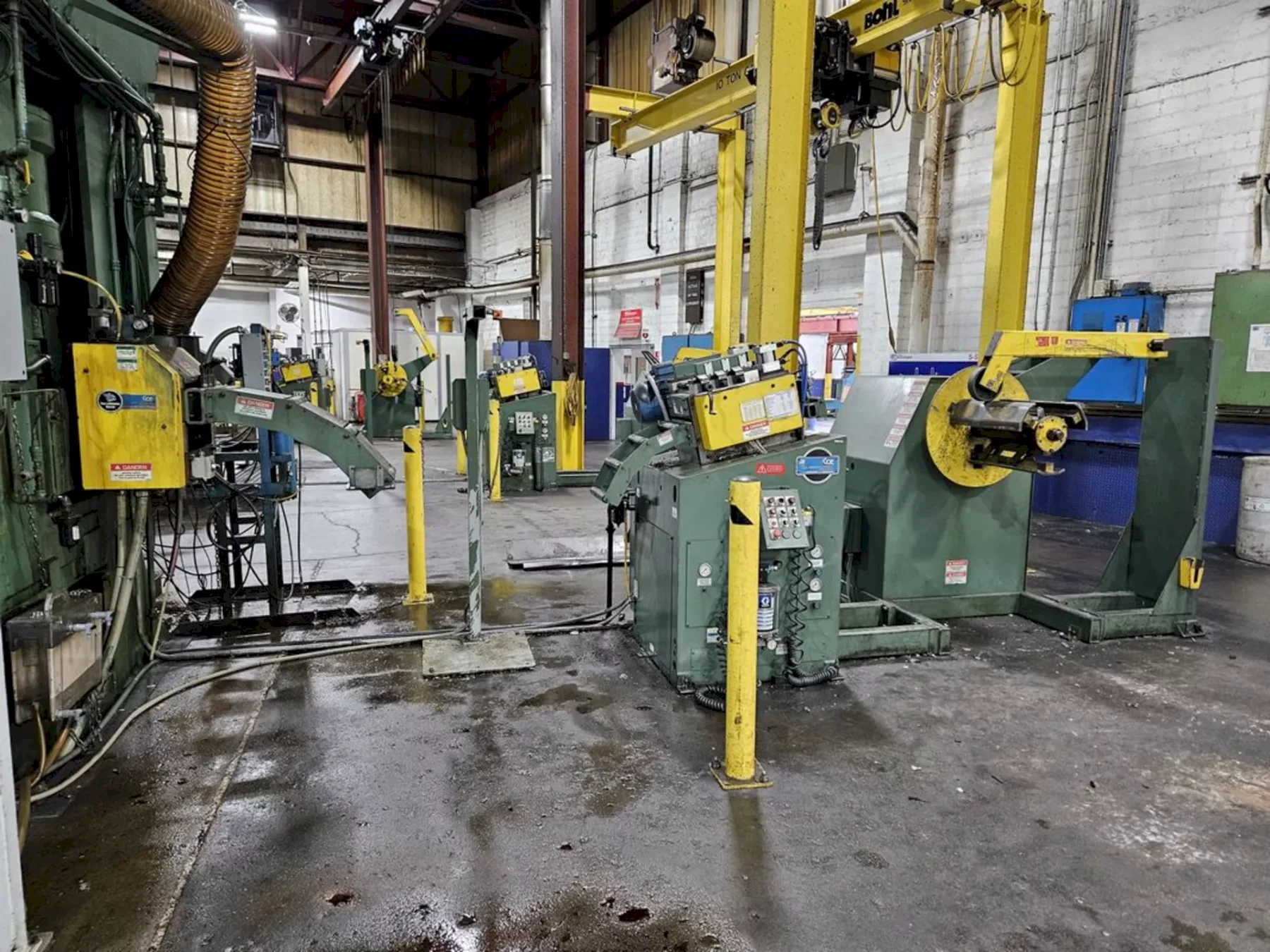

COE PRESS Coil Feed Line 8,000 Lbs. x 12" Wide
Brand
Category
Type
Model
CPRF-S312 / CPPS-250-12 / CPR-PO-8012
Stock #
5600
Year
Not specified
Condition
Used
Location
Ohio
| Coil Weight Capacity: | 8000 pounds |
| Stock Width Capacity | 12 inches |
| Max Stock Thickness Capacity At Full Width | 0.1867 inches |
|

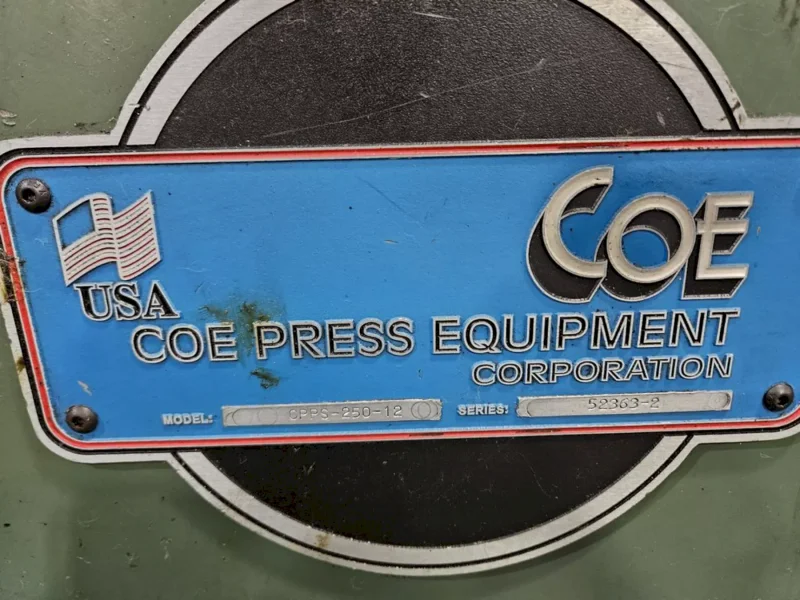

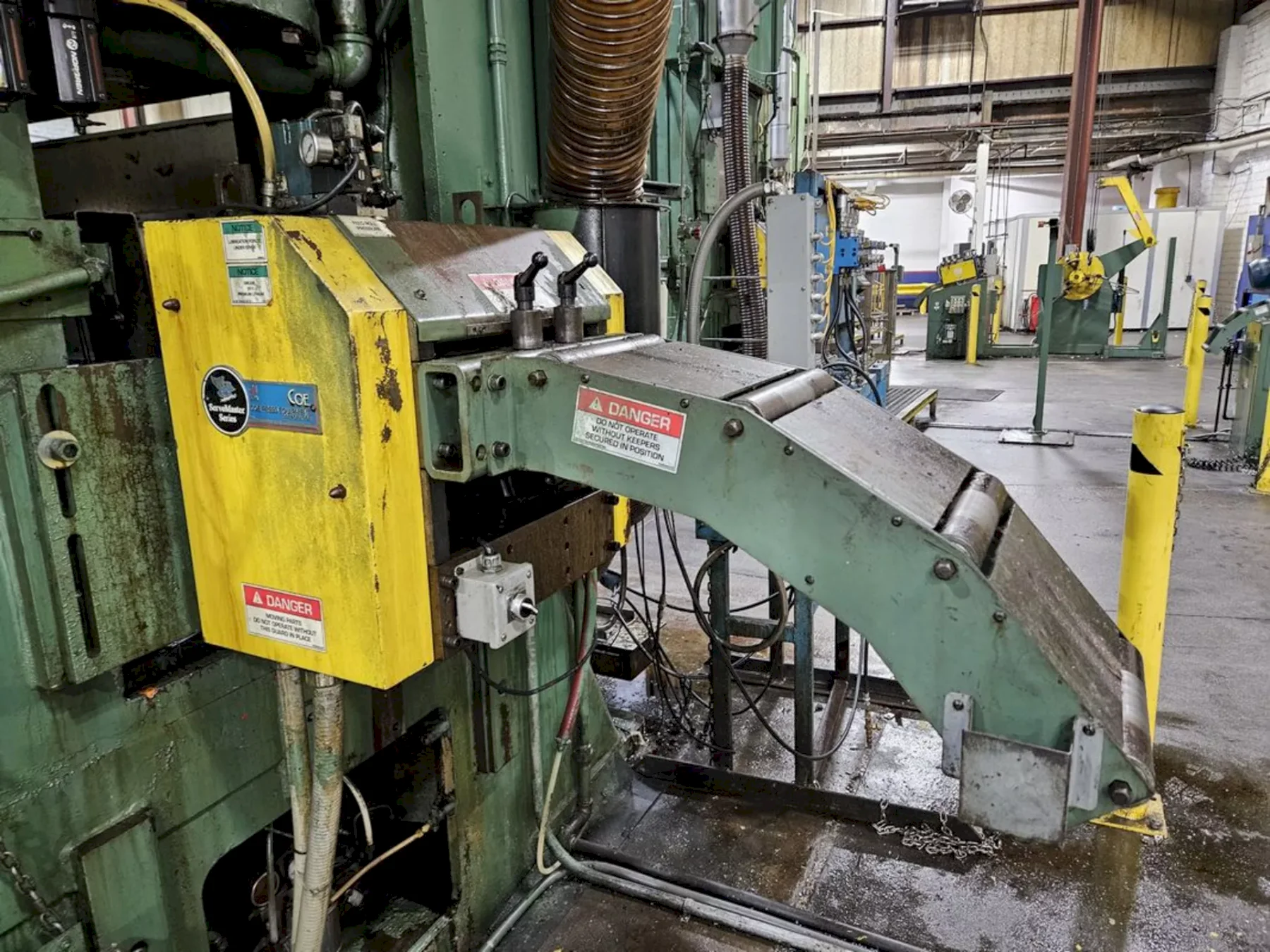

COE PRESS Servo Roll Feed Model No. CPRF-S312 / Serial No. 52363-1

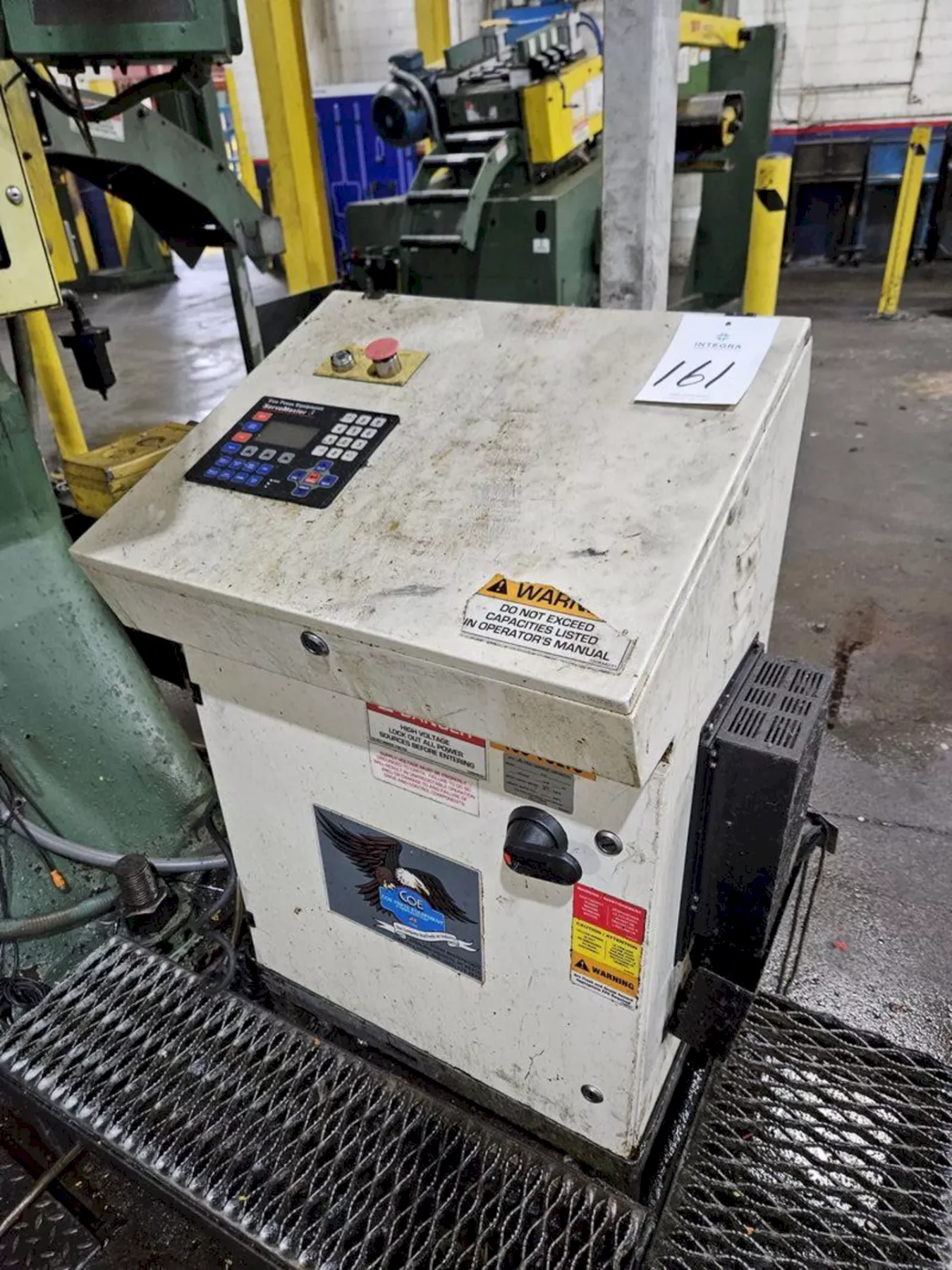

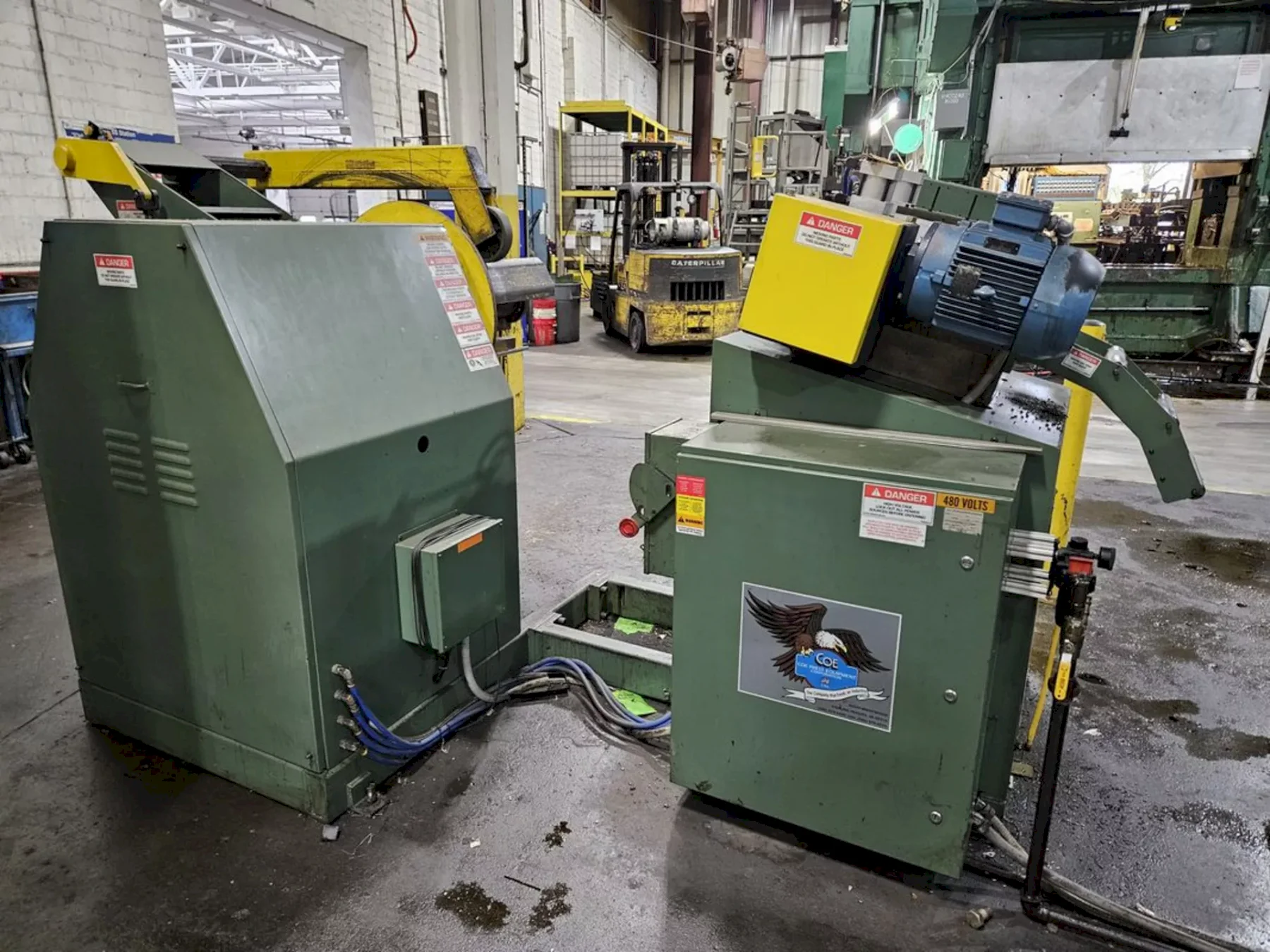

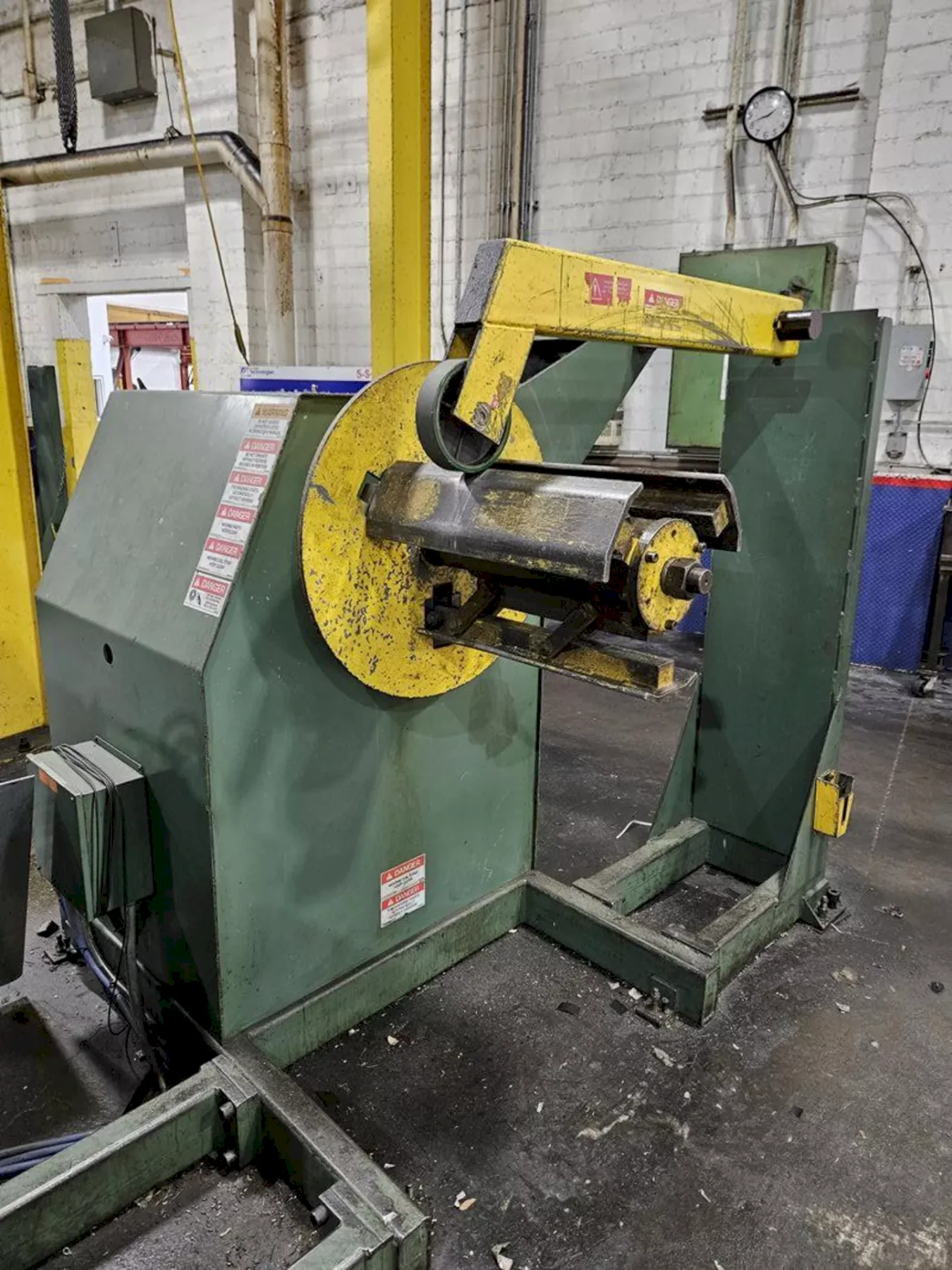

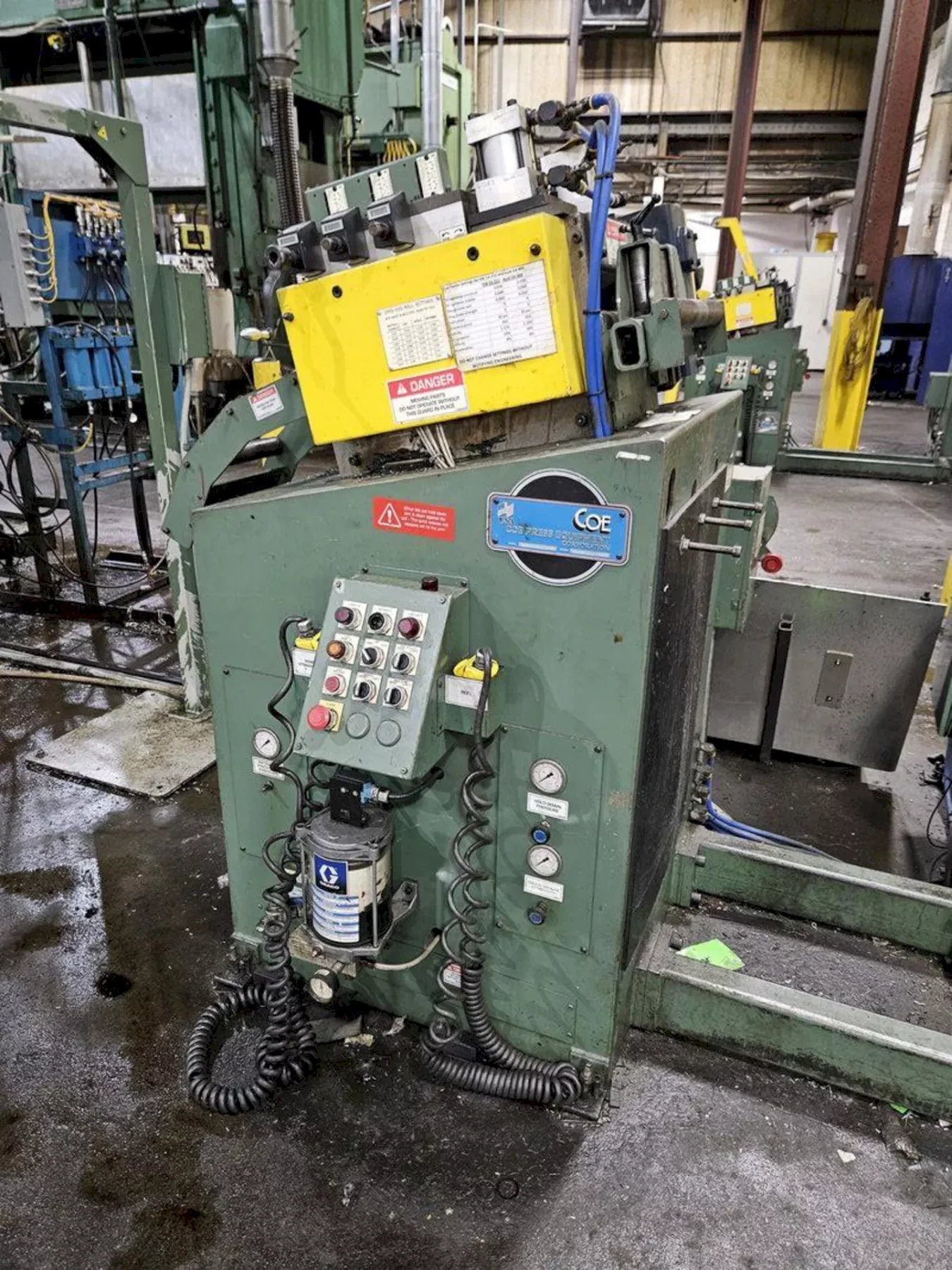

Three inch diameter feed rolls Piloting upper roll Adjustable edge guides Press mounted AC Servo Controls COE PRESS Powered Coil Straightener Model No. CPPS-PO-250-12 / Serial No. 52363-1 Entry pinch rolls with air operated adjustment Seven Straightening rolls x 2.50" diameter Individual upper roll adjustment with position readouts Adjustable stock width edge guides Automatic lubrication system AC VF Drive and control system Operator's control station Jog forward and reverse Auto / Run cycle with loop control COE PRESS Coil Reel Uncoiler Model No. CPR-PO-8012 Three leaf mandrel with hydraulic expansion Coil hold down arm Air Brake with adjustable tensioning Self contained hydraulics |
|
