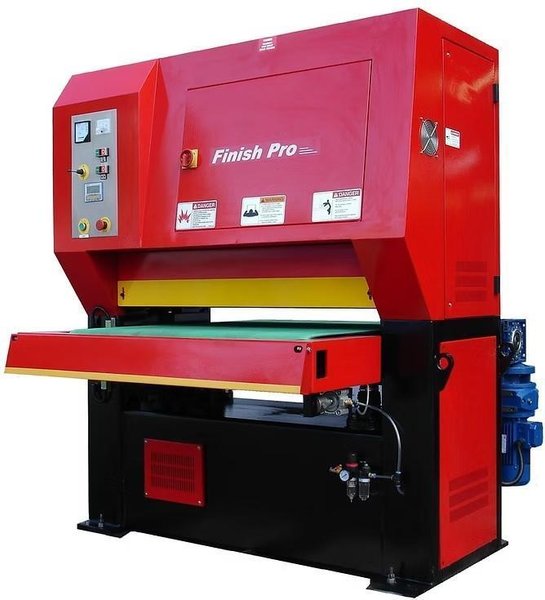

GMC MODEL FP-4075 HEAVY DUTY BELT SANDER

Name: GMC MODEL FP-4075 HEAVY DUTY BELT SANDER
Brand: GMC
SKU: 30274
Availability: InStock

Brand

GMC

California

GMC MODEL FP-4075 HEAVY DUTY BELT SANDER

Abrasive belt size: 40” x 75”
Motorized Table Lift with computer display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches

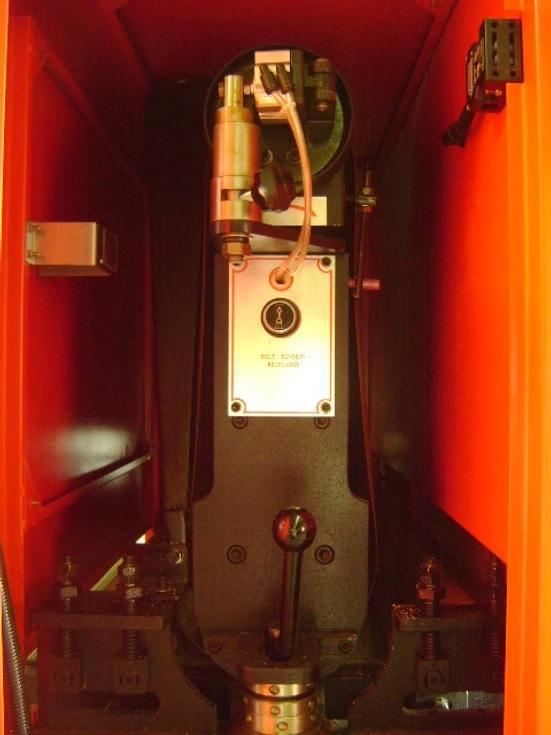

Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to Re-adjust the tracking system when running extremely out of parallel belts

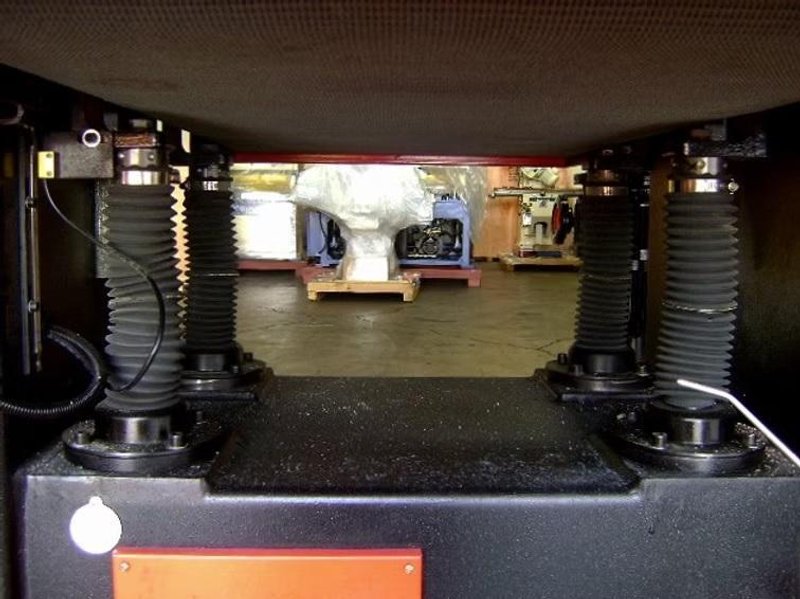

4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device

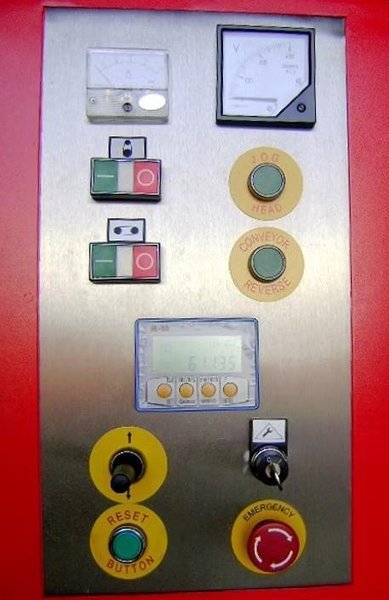

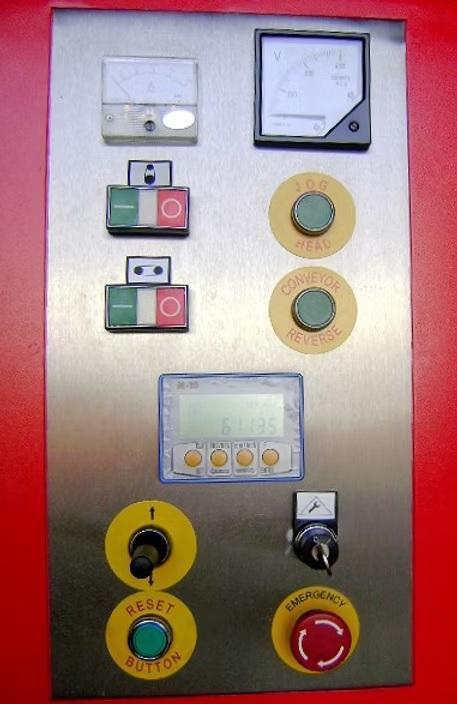

Table Height Digital Readout
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose

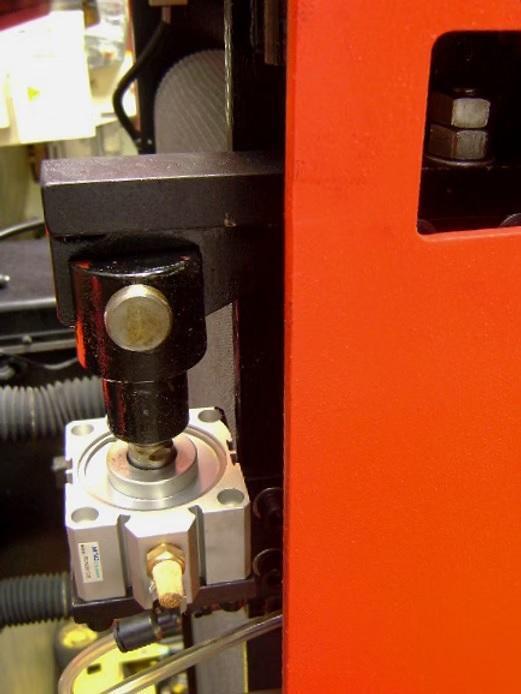

Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V, 3-Phase
One year Industrial Warranty for parts

Max. Part Width	40"
Abrasive Belt Size	40" x 75"
Contact Roller Size	8" Dia.
Passline Height	31" - 37"
Max. Thickness Capacity Min. workpiece length Max. workpiece weight	6 1/8" Min 8”, need a fixture for smaller parts 375 LBS
Conveyor Drive Speeds	8 - 40 FPM
Infeed Conveyor Length	20"
Dust Colector Capacity	1,800 CFM
Main Motor	15 HP 3 Phase Prewired: 220VAC/60AMPS Optional: 440VAC/30AMPS
Conveyor Motor	1.5 HP 3 Phase Prewired: 230VAC Optional: 460VAC
Table Lifting Motor	1 HP 3 Phase Prewired: 230VAC Optional: 460VAC
Net Weight, Approx. Shipping Weight:	4,650 LBS 4,859 LBS
Machine Dimensions: (LxWxH) Shipping Dimensions:	76" x 88" x 81" 73" x 67" x 86"
