NEW 25" x 60" GMC MODEL FP-2560 WIDE BELT SANDING MACHINE

NEW 25" x 60" GMC MODEL FP-2560 WIDE BELT SANDING MACHINE

Name: NEW 25" x 60" GMC MODEL FP-2560 WIDE BELT SANDING MACHINE
Brand: GMC
SKU: 19163
Availability: InStock

Brand

GMC

Location

Not specified

Specifications
Files & Videos

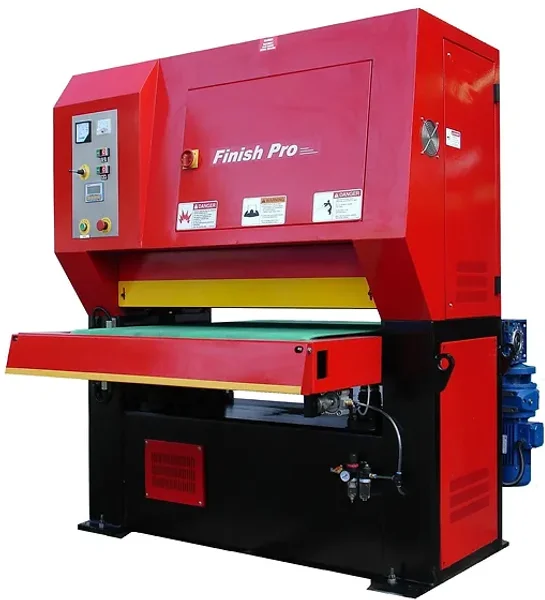

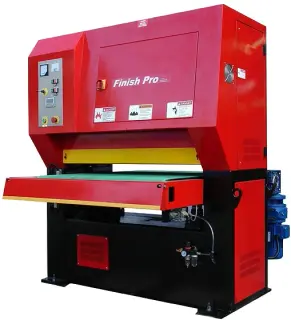

NEW 25" x 60" GMC MODEL FP-2560 WIDE BELT SANDING MACHINE

Motorized Table Lift, with digital readout
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to Re-adjust the tracking system when running extremely out of parallel belts

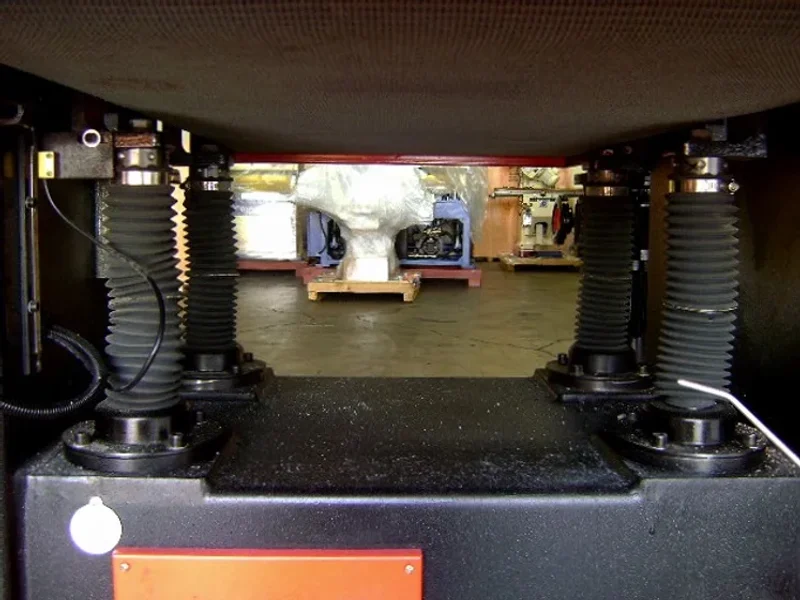

4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Table Height Digital Readout

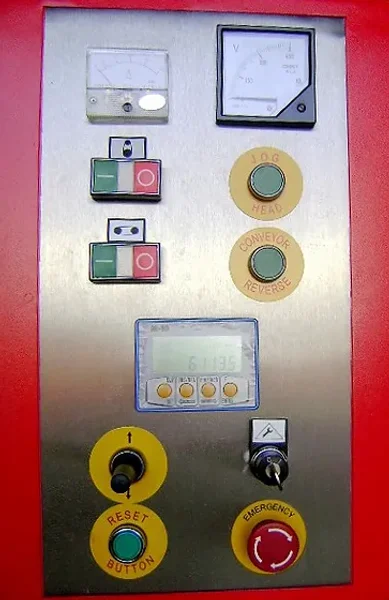

Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose

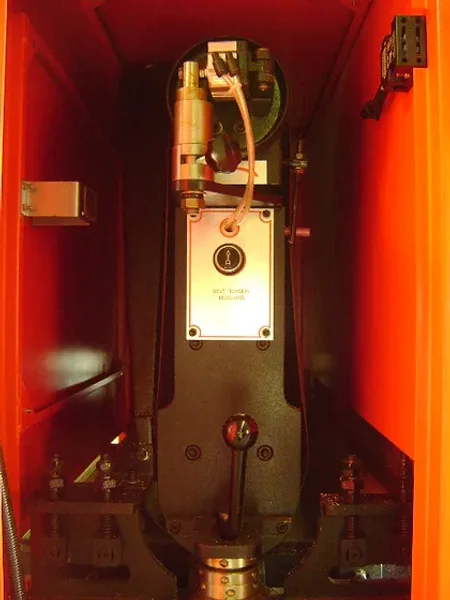

Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 80 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230, 3-Phase
One year Industrial Warranty for parts
We strongly recommend to use good dust collector for our Finish Pro, otherwise, the warranty will be void

Prices are for 208-230 VOLTS
Total amps 45 @ 230/3/60
COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI

CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used.

OPTIONAL EQUIPMENT

Wet Dust Collector #WDC-2100, 5 HP, 2,100CFM (it is demo wet collector, all stainless steel)	$8,900.00
Heavy Duty Ducting Package # HDDP-2560	$950.00
Service Engineer for Start-Up and On-site Training for # ST (plus travel expenses)	CALL US
Shipping + Delivery	FREE

Max. Part Width	24"
Abrasive Belt Size	25" x 60"
Contact Roller Size	8" Dia.
Passline Height	31" - 37"
Max. Thickness Capacity Min. workpiece length Max. workpiece weight	6 1/8" Min 8”, need a fixture for smaller parts 375LBS
Conveyor Drive Speeds	8 - 40 FPM
Infeed Conveyor Length	20"
Dust Colector Capacity	1,100 CFM
Main Motor	10 HP 3 Phase 45A Prewired: 230VAC Optional: 440VAC (25A)
Conveyor Motor	1HP, 230V, 3PH
Table Lifting Motor	1HP, 230V, 3PH
Net Weight, Approx.	2,950 LBS
Machine Dimensions LxWxH Shipping Dimensions:	55" x 63" x 69" 68" x 52" x 78"
