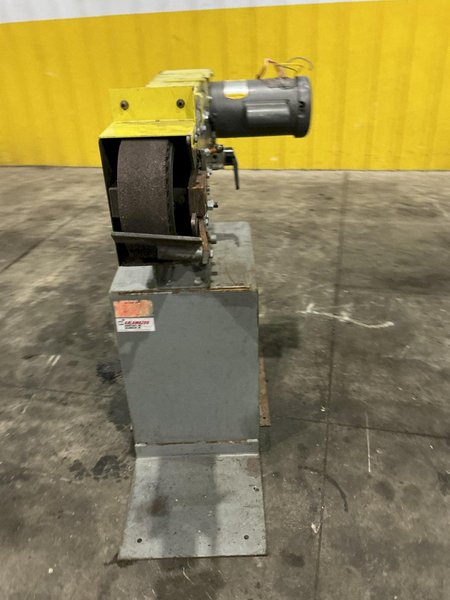

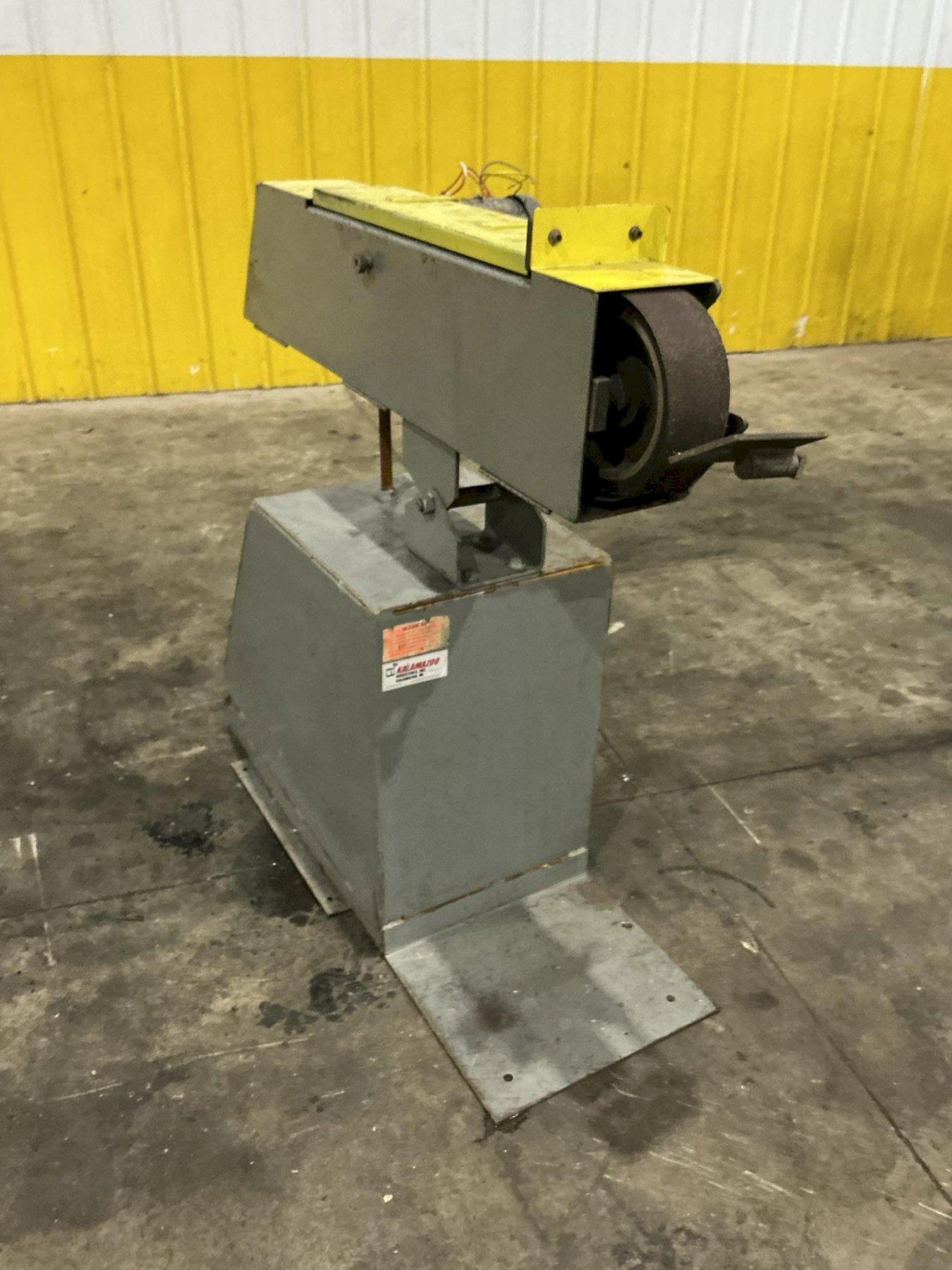

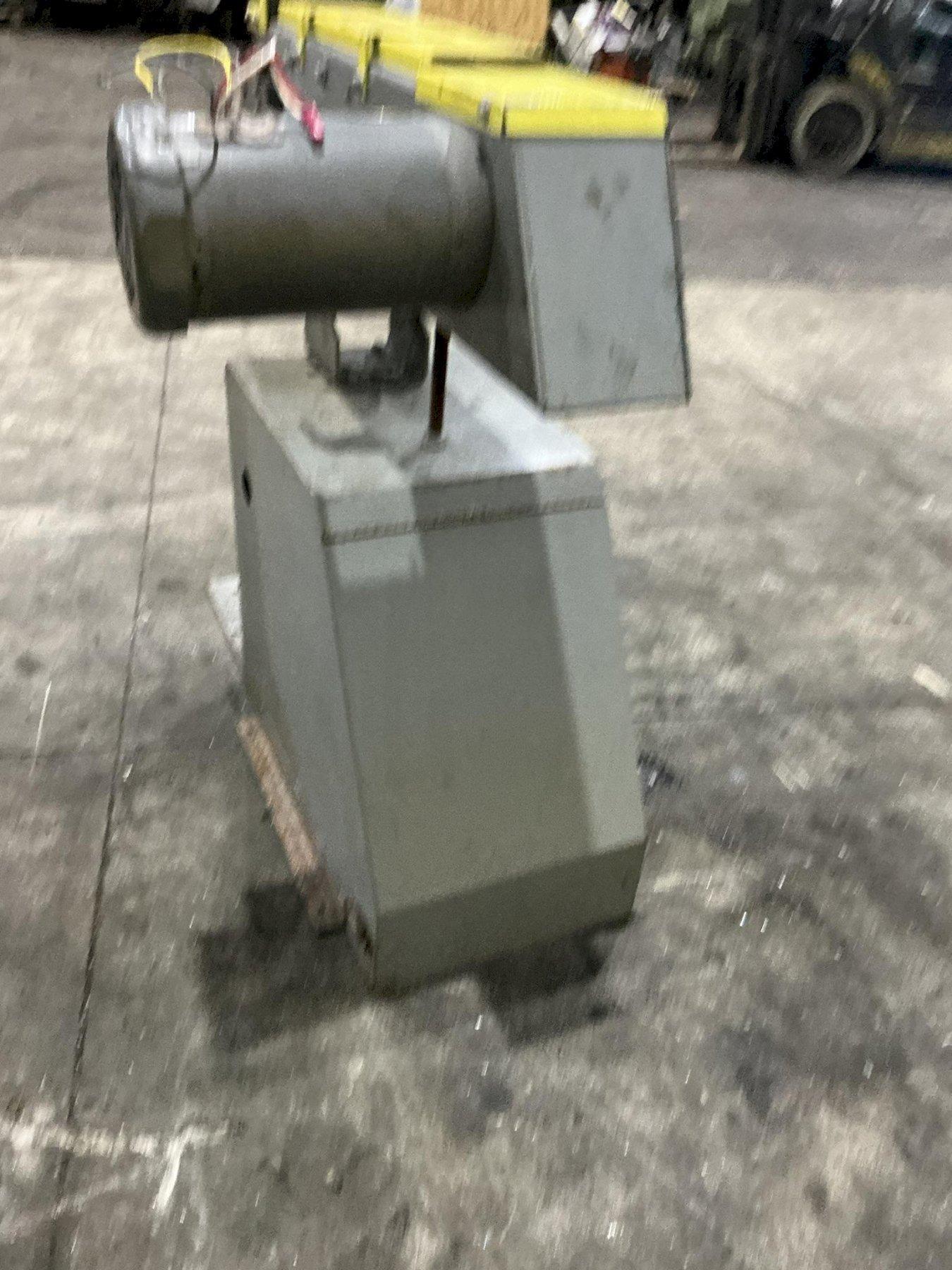

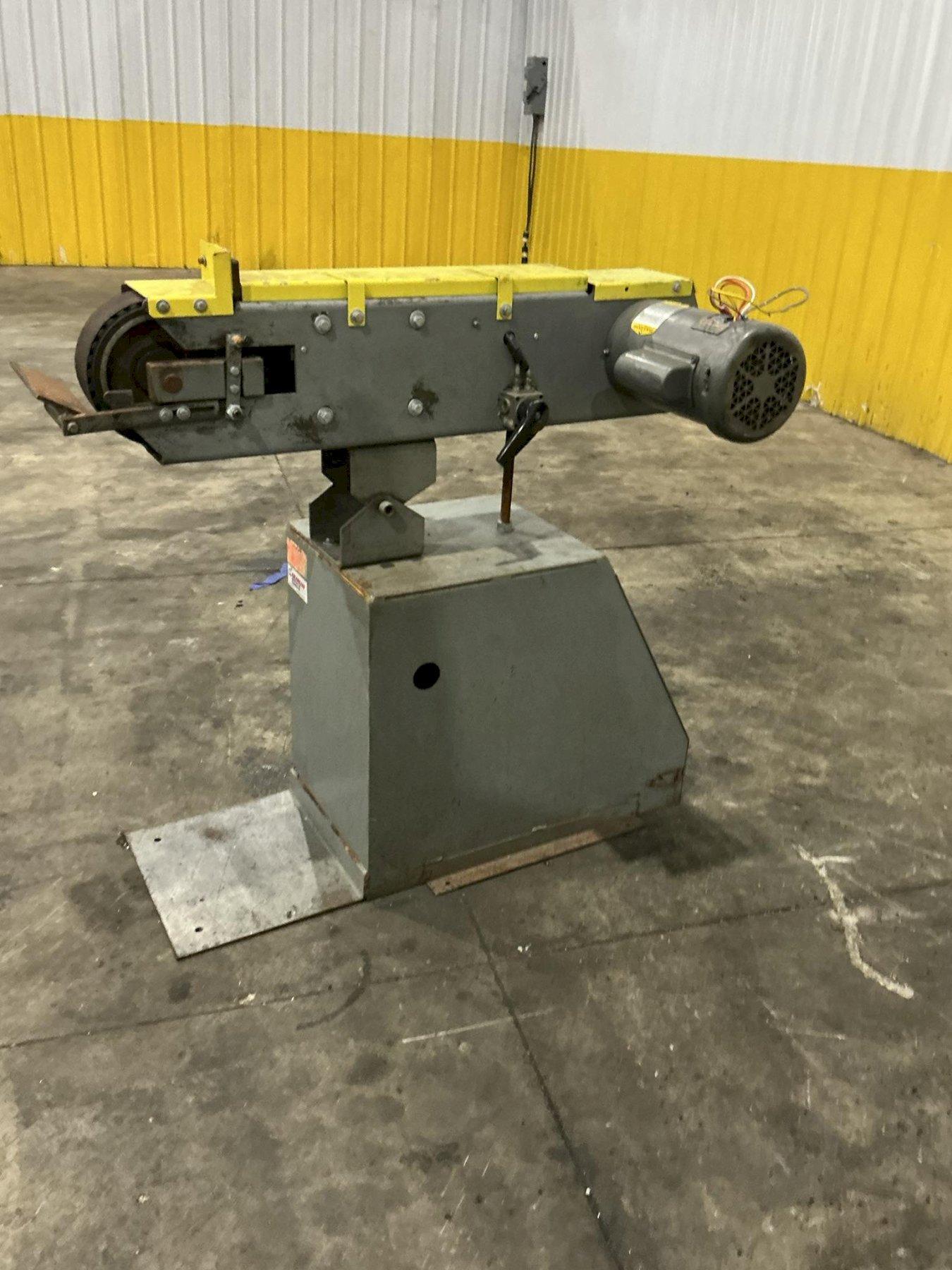

2 HP KALAMAZOO BELT GRINDER : YOBRO #26523

With a 2HP motor and a belt speed of 6900 fpm, the KS390V 3 x 90 belt grinder with vacuum is made for fast and cool metalworking production. The grinder head tilts for metal grinding efficiency and material adaptability. Other grinder features include a belt guard and a hinged access door with quick-release locks on the grinder’s side for fast belt changes.

Designed to Do the Following

• Bevel
• Deburr
• Squaring up ends
• Rounding corners
• Flatwork
• Contouring
• Heavy metalworking
• Aggressive grinding
• Sharpening
• Production grinding

Features

• Direct drive.
• Spring belt tension.
• Quick release belt tension release lever.
• Easy belt tracking.
• Material stop.
• Removable steel platen guard.
• Adjustable steel work table.
• Adjustable belt grinder head.

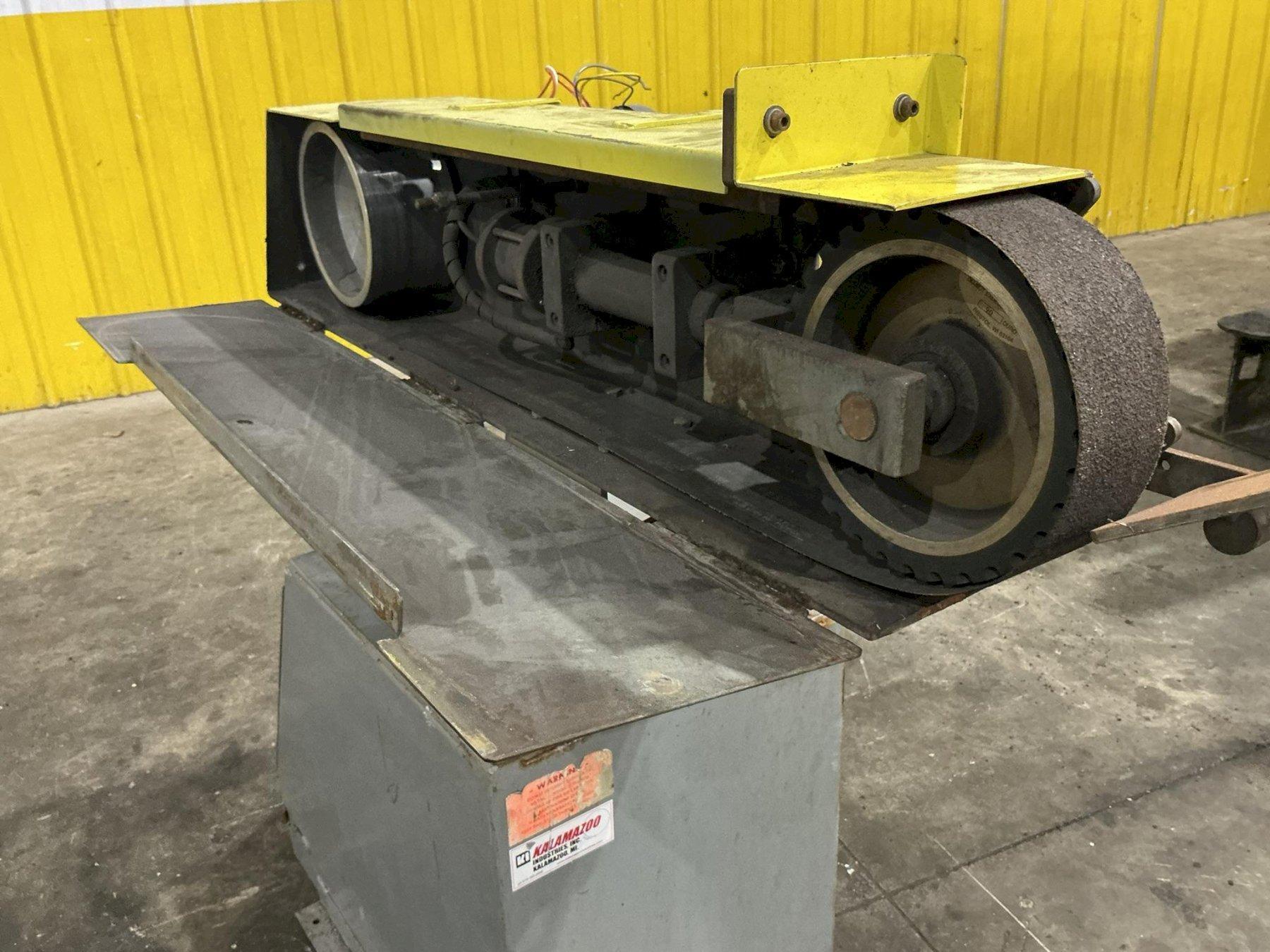

• Hinged door on grinder head for quick belt and change.
• Multi-position horizontal through vertical.
• Steel base with built-in vacuum system.
• Replaceable filter.
• On/off switch.

Specifications

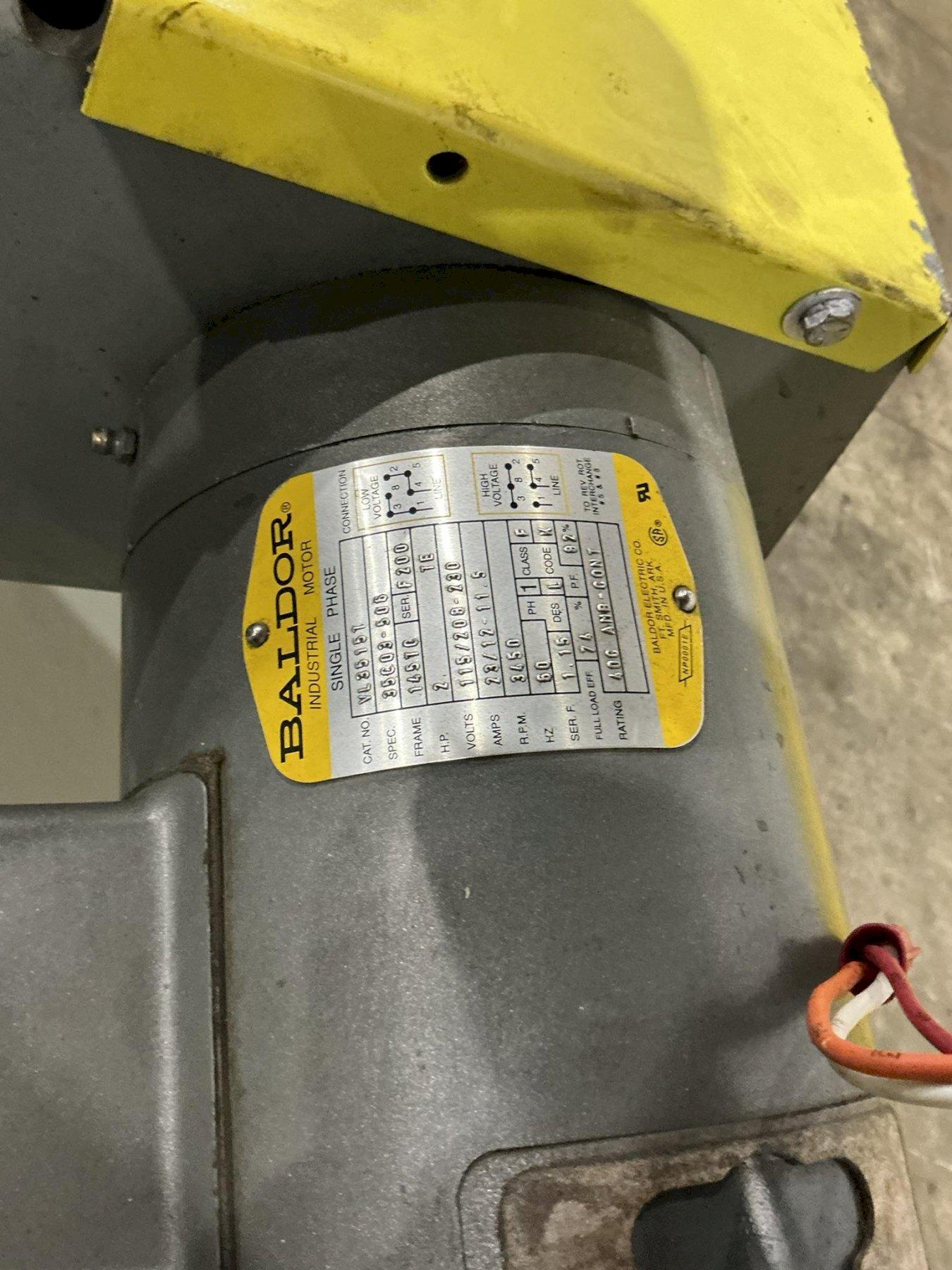

• Motor: 2 HP- 1PH 230V
• 1PH amps: 11.5 amps
• 24-1/2″ long steel reversible and replaceable platen
• Replaceable contact wheel specifications: 8″ OD x 3″ serrated 70 duro with sealed ball bearings.
• Belt size: 3″ x 90″. All belt types can be used.
• Belt speed: 7200 SFPM
• Machine shipping dimensions: L 48″ x W 57″ x H 52″
• Machine shipping weight: 500 lbs.
