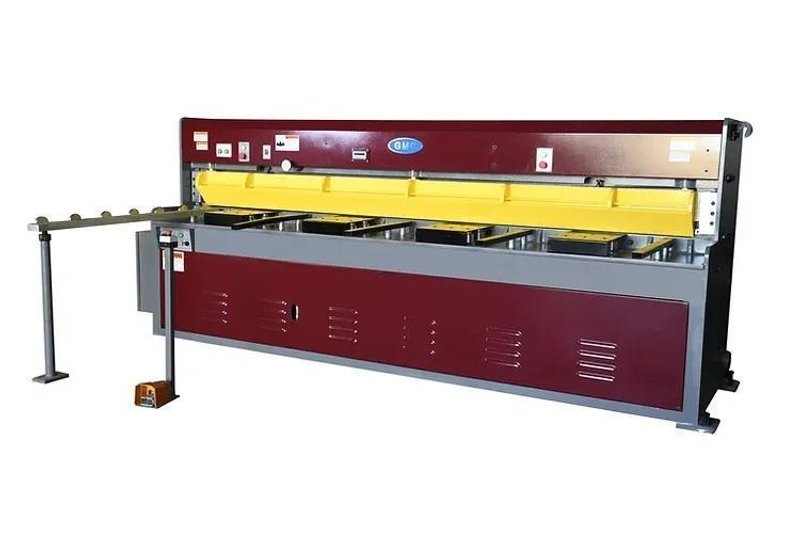

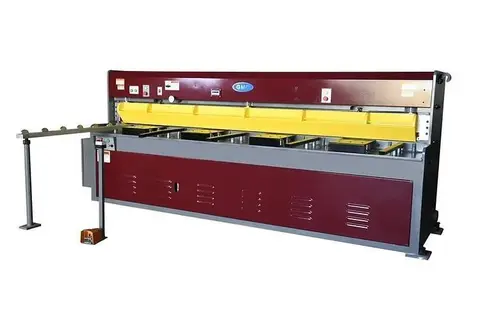

NEW 10' X 10GA GMC MODEL HS-1010M HYDRAULIC SHEAR

Name: NEW 10' X 10GA GMC MODEL HS-1010M HYDRAULIC SHEAR
Brand: GMC
SKU: 30273
Availability: InStock

Brand

GMC

California

NEW 10' X 10GA GMC MODEL HS-1010M HYDRAULIC SHEAR

ISO 9001 certified
Taiwan machines
HS-1010M comes with 24” manual back gauge, one side handwheel operate )
adjustment 0.004” , inch/mm digital display
Quick Change Blade Gap Adjustment (BGA), with gap dial
Shadow line for accurate straight cutting
60” squaring arm with inlaid inch/metric dual scale
CE standard “OMERO” electric control system
Meet OSHA safety standard code
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts

Cutting capacity: Mild steel Stainless steel soft alumnium min. thickness	10’ x 10 Ga. 10’ x 14 Ga. 10'x 1/4" 24 Ga
Blade length	10' 1" = 121"
Strokes per minute	10-15

Worktable height	34 1/2"
Front support arm	24"
Back gauge	24" Manual B.G.
Blade rake angle	2 degree
Oil tank cap.	26 Gal
Main Motor	7 1/2 HP 3 Phase Prewired: 220V/35A Optional: 440V/20A
Machine weight	8,850 LBS
Machine dimensions	178" x 67" x 65"
