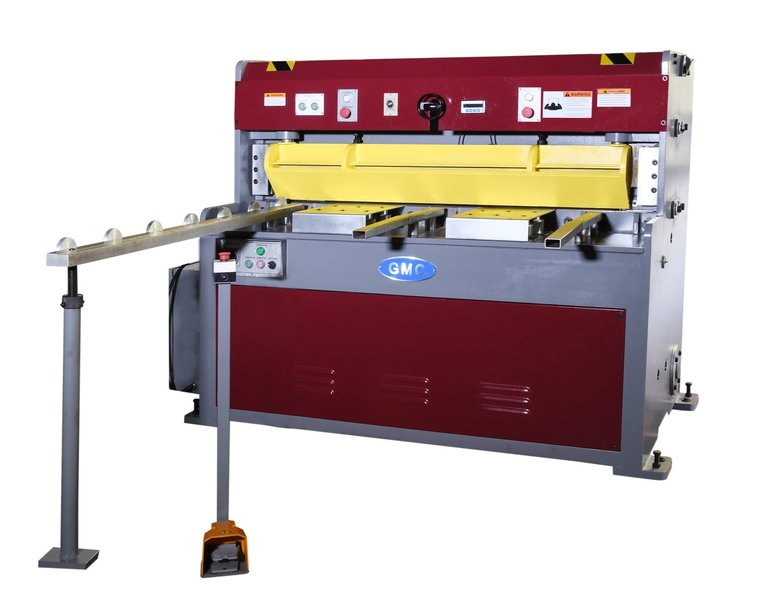

HS-0425E, 4' x 1/4" Hydraulic Metal Shear - Electric Backgauge

Experience enhanced metal cutting capabilities with the HS-0425E Hydraulic Shear by GMC Machine Tools. This ISO 9001 certified machine boasts a range of advanced features for precision and efficiency:

• ISO 9001 certified
• Taiwan machines
• 24” SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
• Quick Change Blade Gap Adjustment (BGA), with gap dial
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Shadow line for accurate straight cutting
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts

With its advanced features and robust construction, the HS-0425E Hydraulic Shear delivers precise, efficient, and safe metal cutting operations, making it an ideal choice for various industrial applications.

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

 This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
