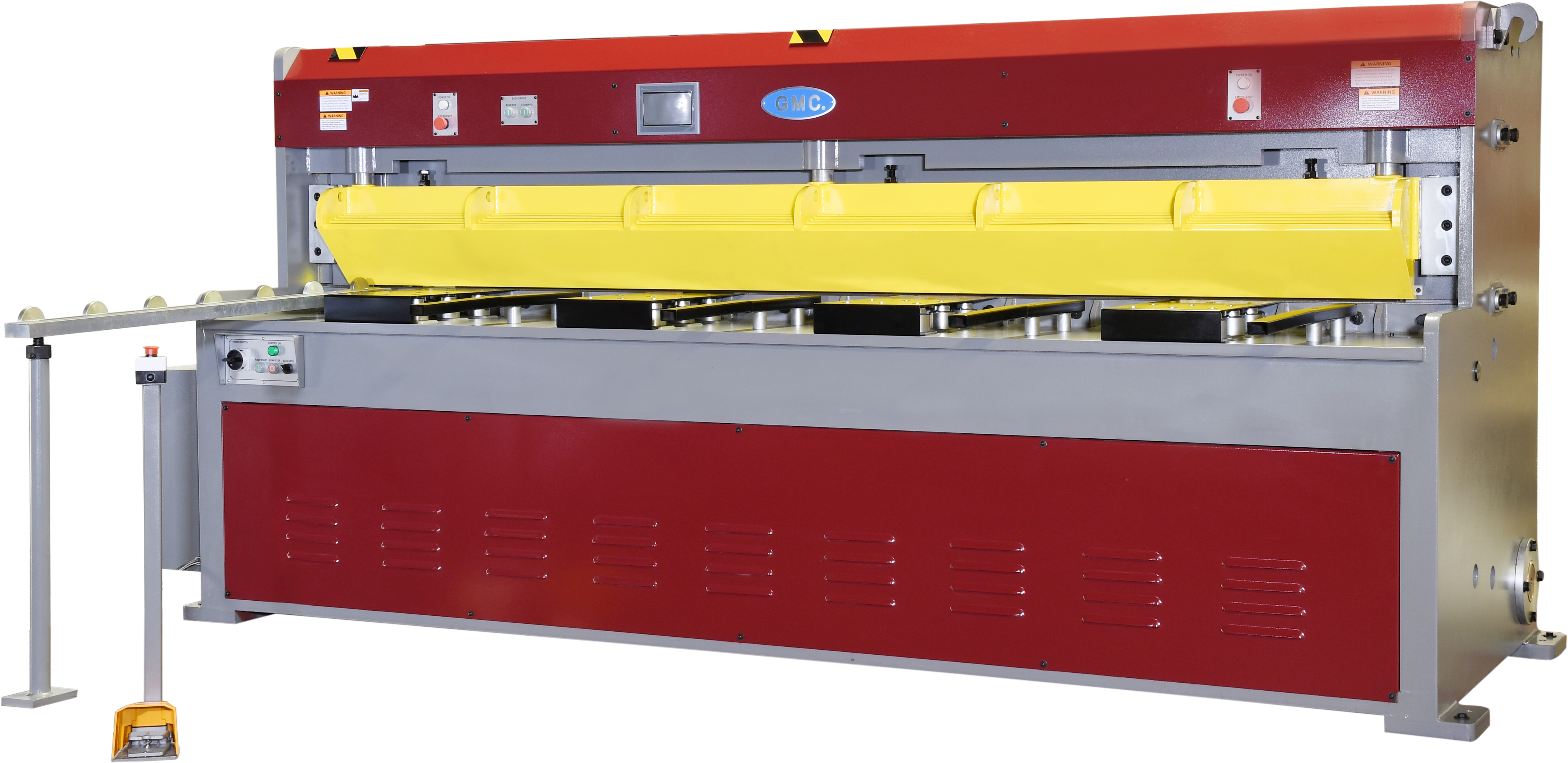

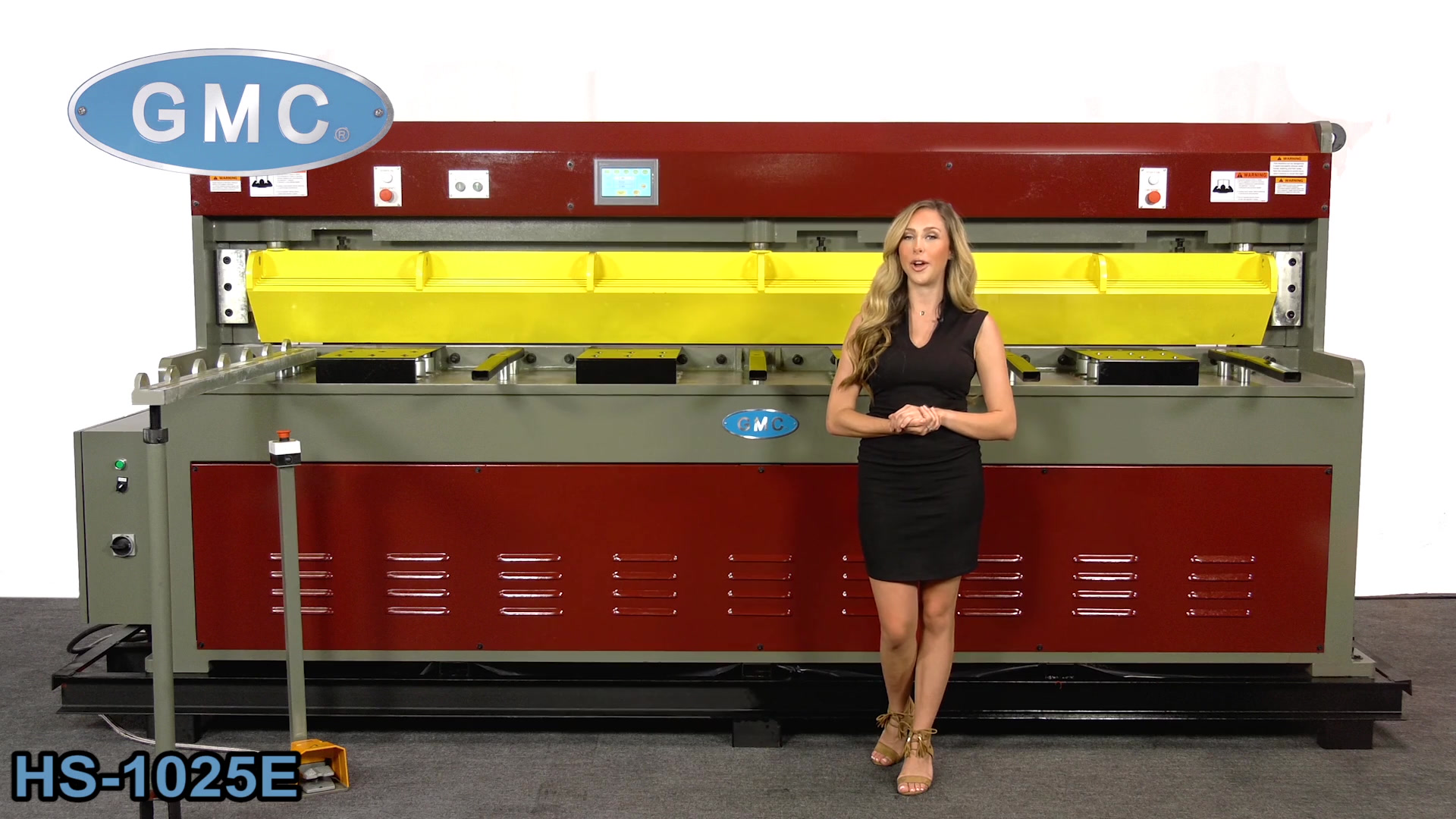

HS-1025E, 10' x 1/4" Hydraulic Metal Shear

ISO 9001 certified Taiwan machines comes with go-to NC power back gauge with touch screen Quick Change Blade Gap Adjustment (BGA), with gap dial CE standard “OMERO” electric control system Meet OSHA safety standard code Shadow line for accurate straight cutting Adjustable cutting length and stroke Ball transfer plates on worktable for easy loading workpiece Well balanced and sturdy all steel machine frame GermanMade Hydraulic logic system centrally located and quiet Hydraulic hold-downs with anti-mar neoprene Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade Full length viewable safety finger guard to protect operator from cutting hazard Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal Hydraulic, electrical overload protection Compact operator control panel All motors are overload protected & low voltage control system Jog or continuous auto cycle cutting operation modes One year industrial warranty for parts Specifications 36” go to NC back gauge w/ touch screen 1 each 60” squaring arm with inlaid inch/metric dual scale Quick change blade gap adjustment (BGA) with gap dial Shadow line for accurate straight cutting Material support and drop back chuter Upper and bottom blade set with 2-edge on bottom & 2-edge on upper 4 each 24” front support arms Hydraulic hold-downs with anti-mar neoprene Full length viewable finger guard Removable safety foot pedal For more complete information: https://www.gmcmachinetools.com/catalog
