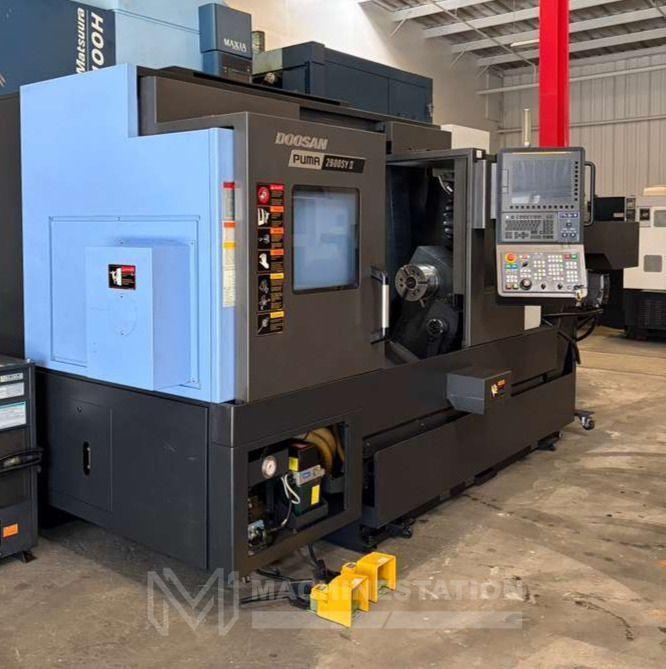

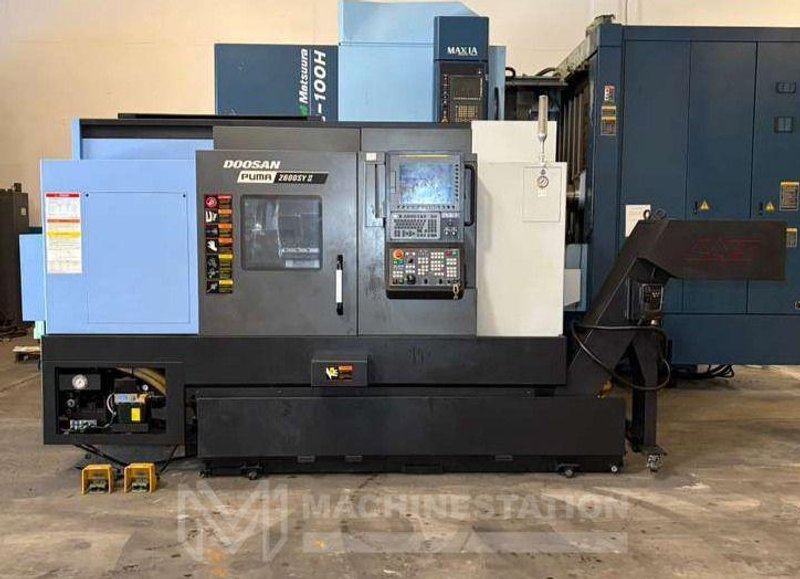

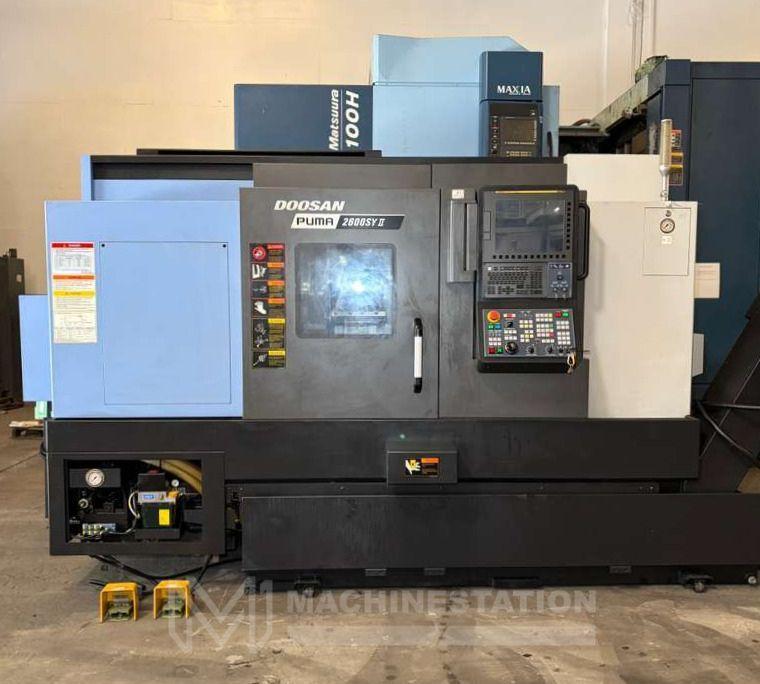

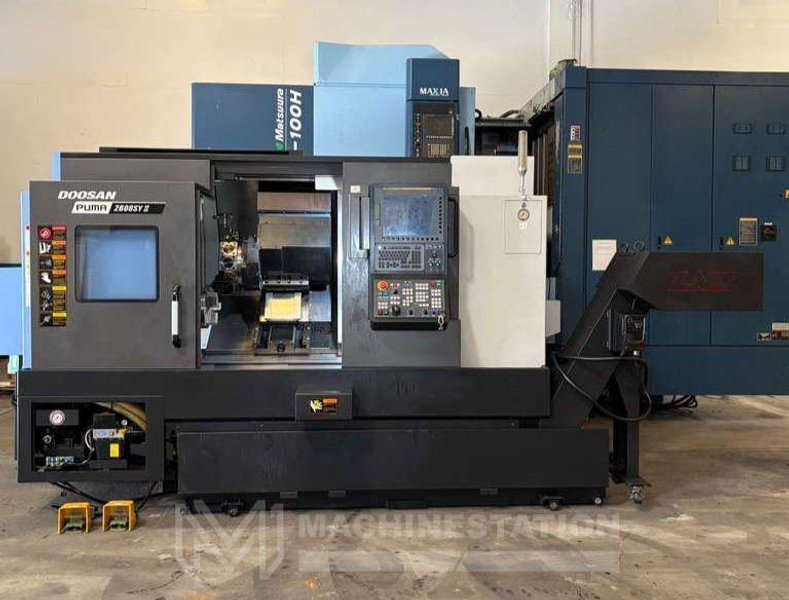

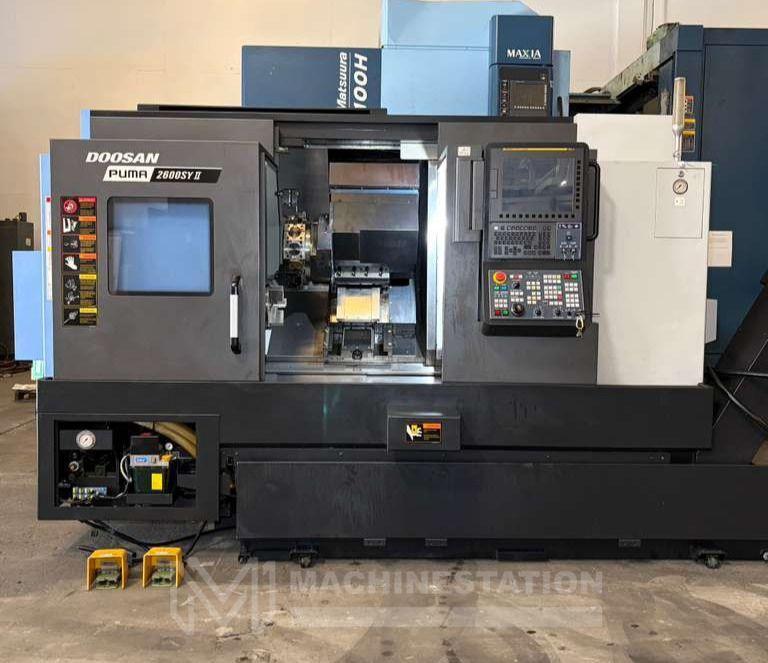

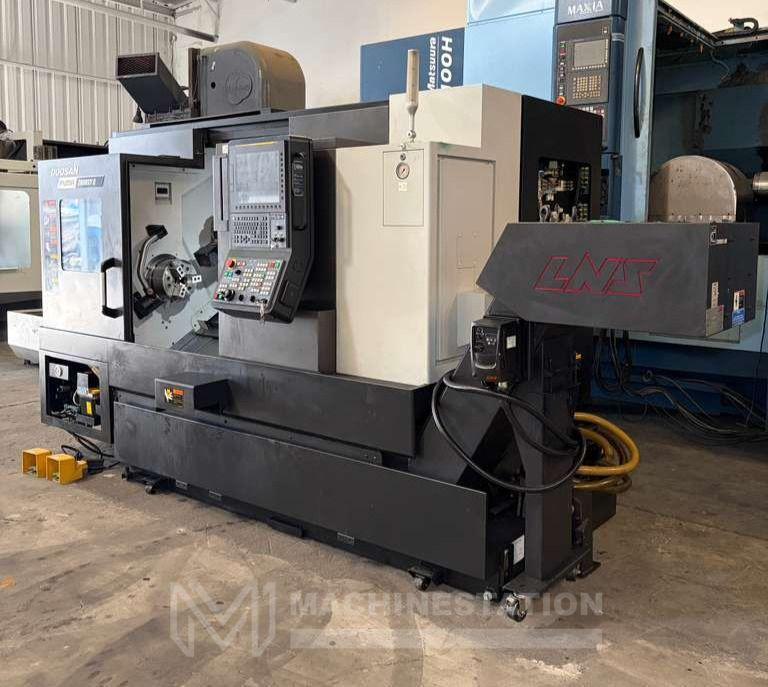

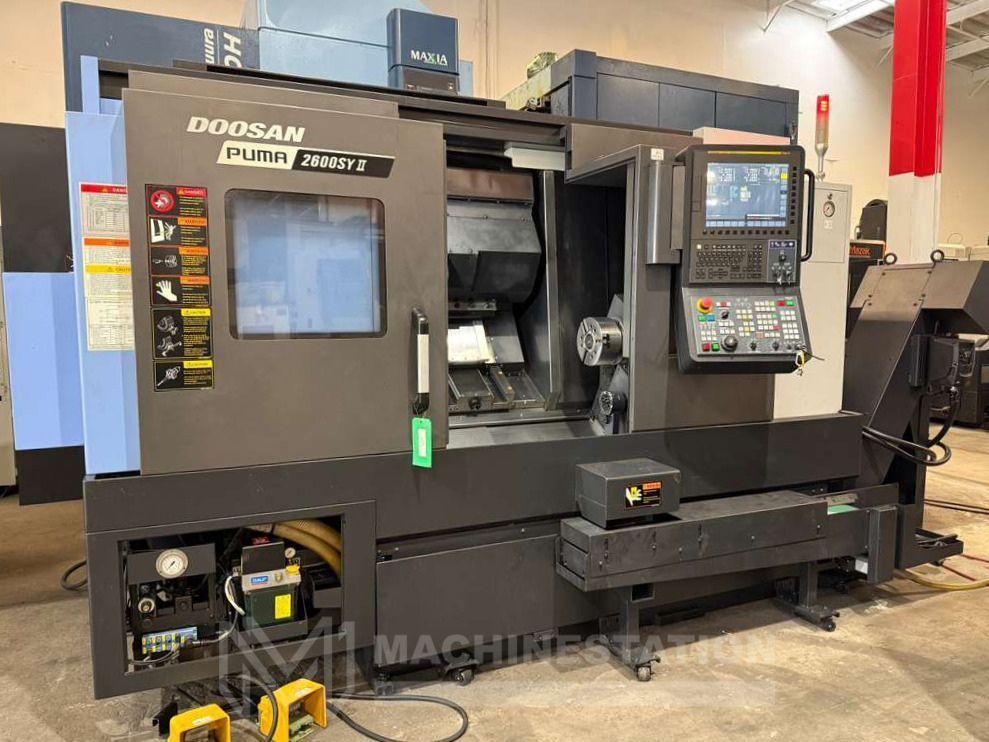

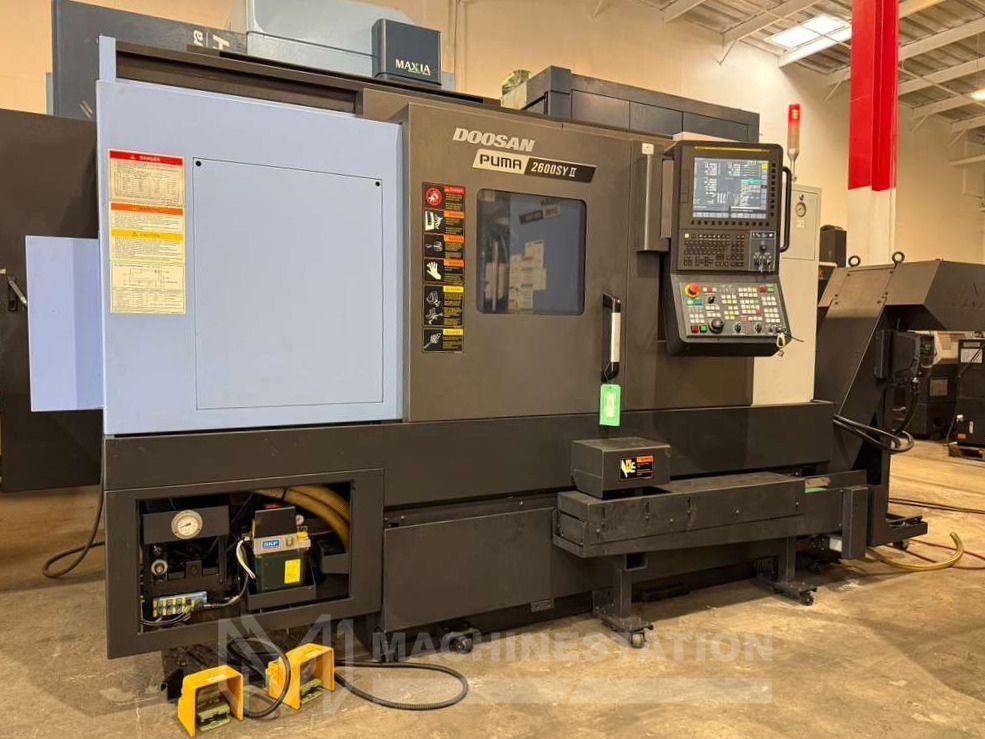

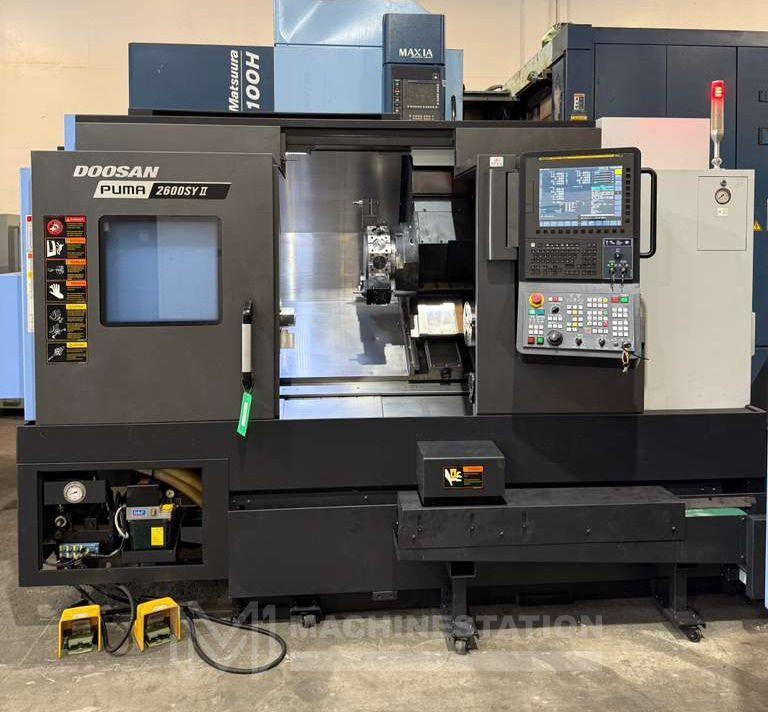

Doosan Puma 2600SYII CNC Lathe – 2021 C Axis Live Tooling, Sub Spindle, Y Axis

Brand
Not specified
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Puma 2600SYII
Stock #
113607
Year
2021
Condition
Not specified

Location

California
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Doosan
Model: Puma 2600SYII
Year: 2021
Condition: Used – Excellent
Equipped With:

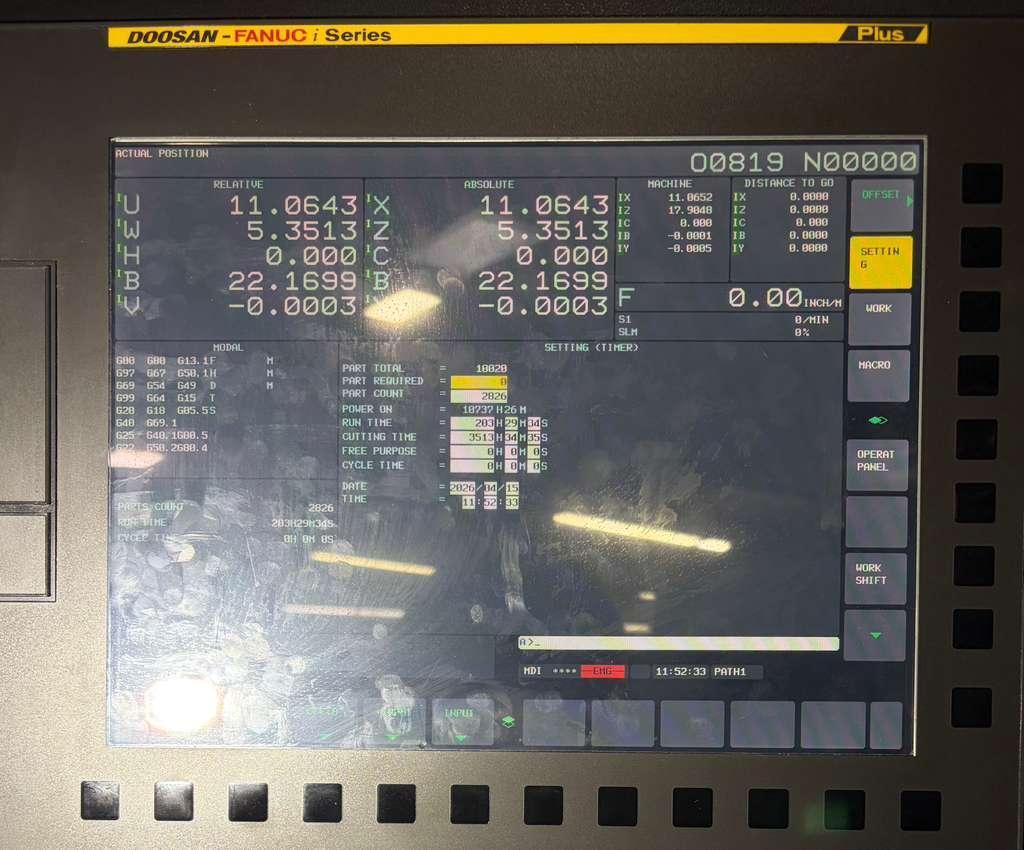

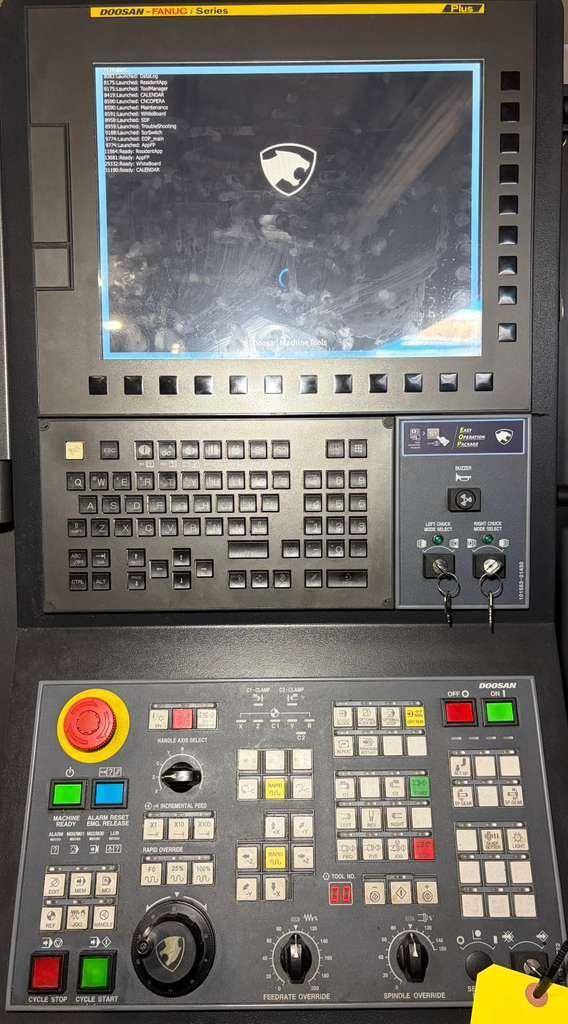

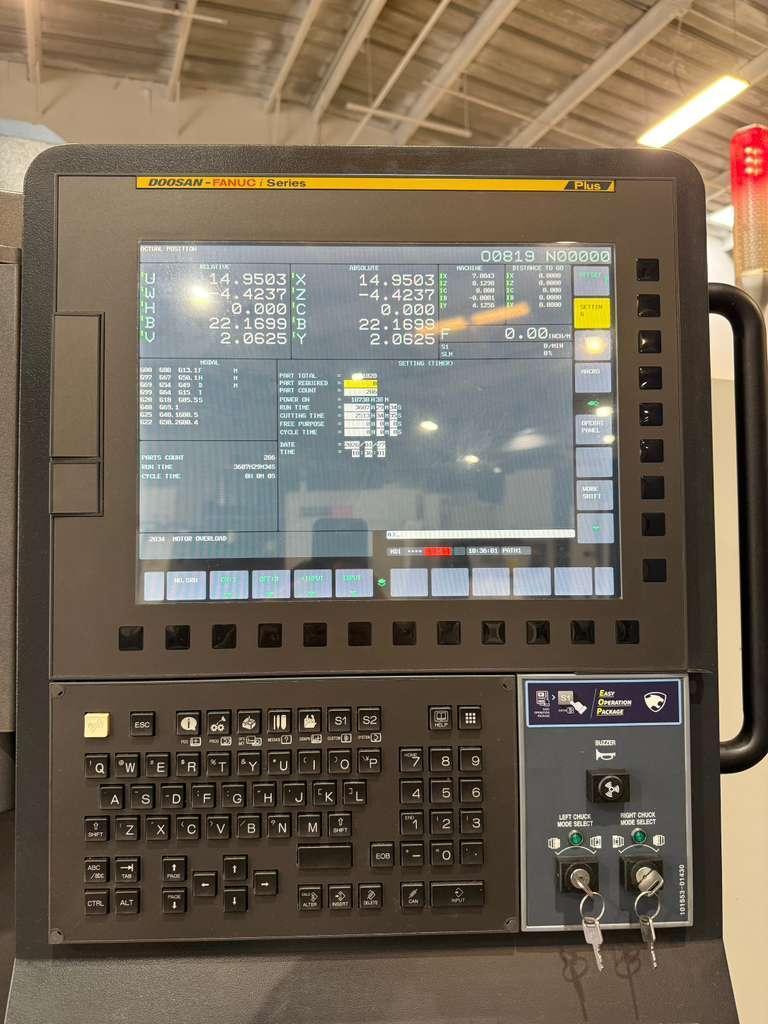

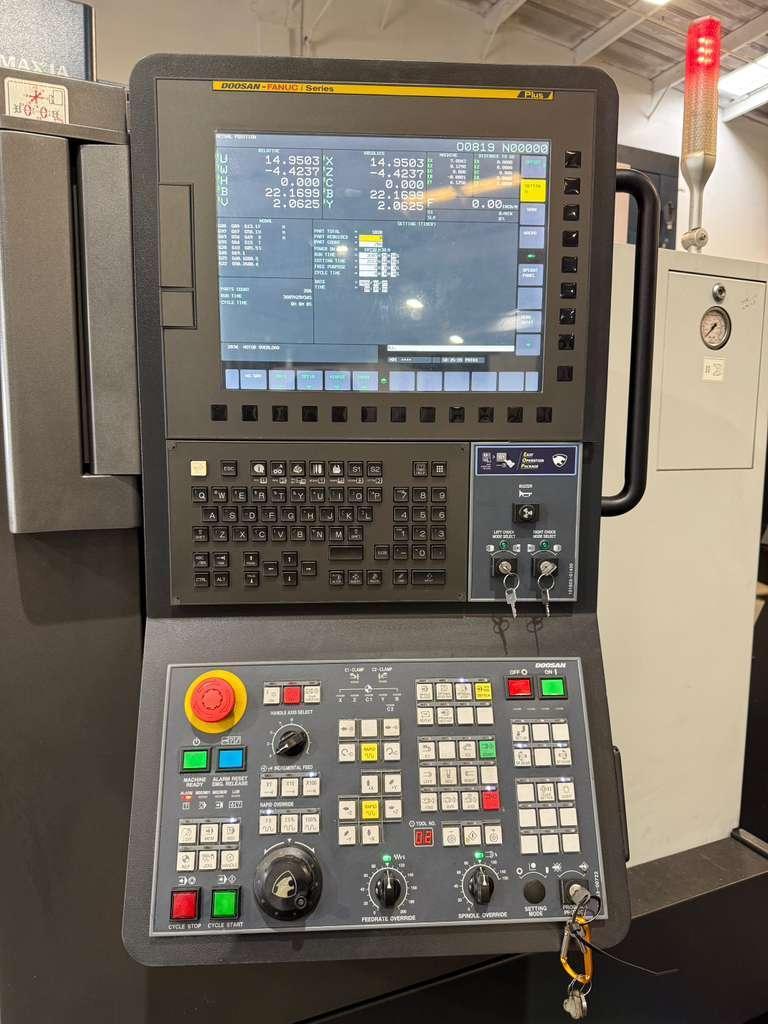

Doosan-Fanuc i-Plus Series CNC Control

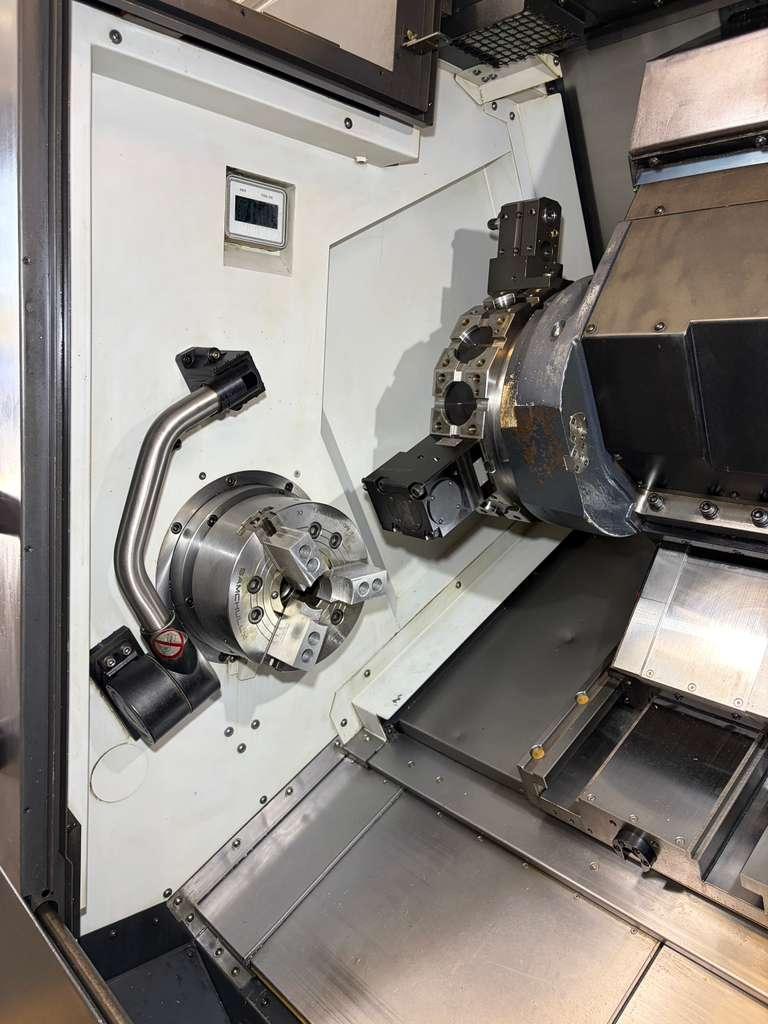

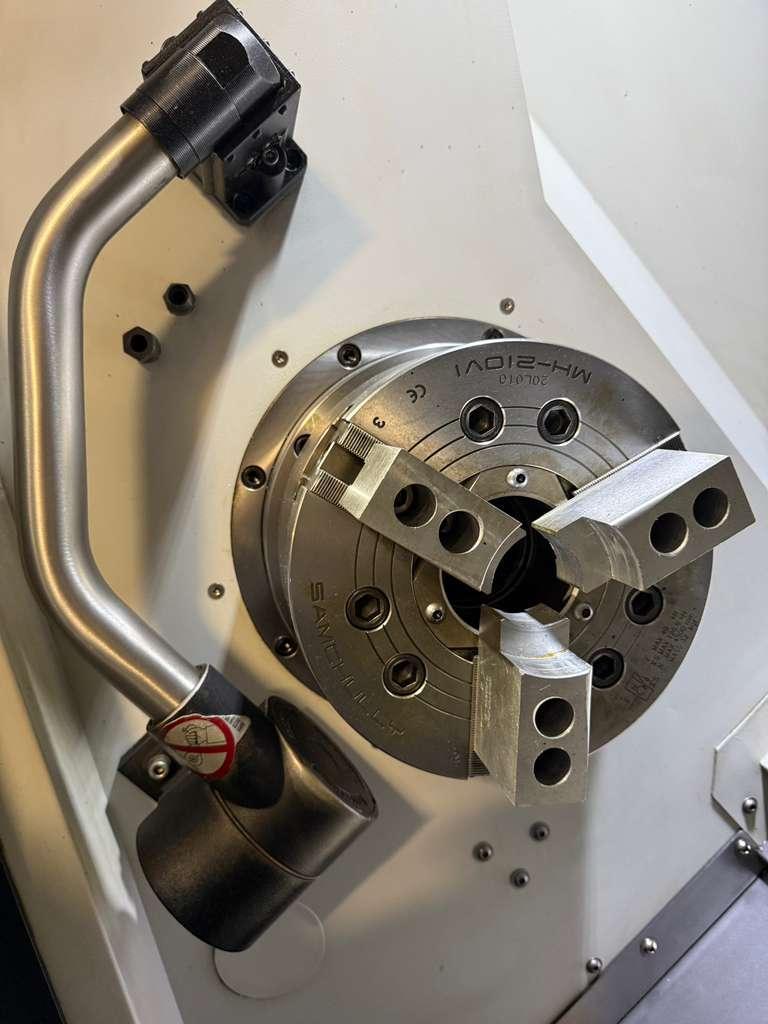

10″ 3-Jaw Chuck on Main Spindle

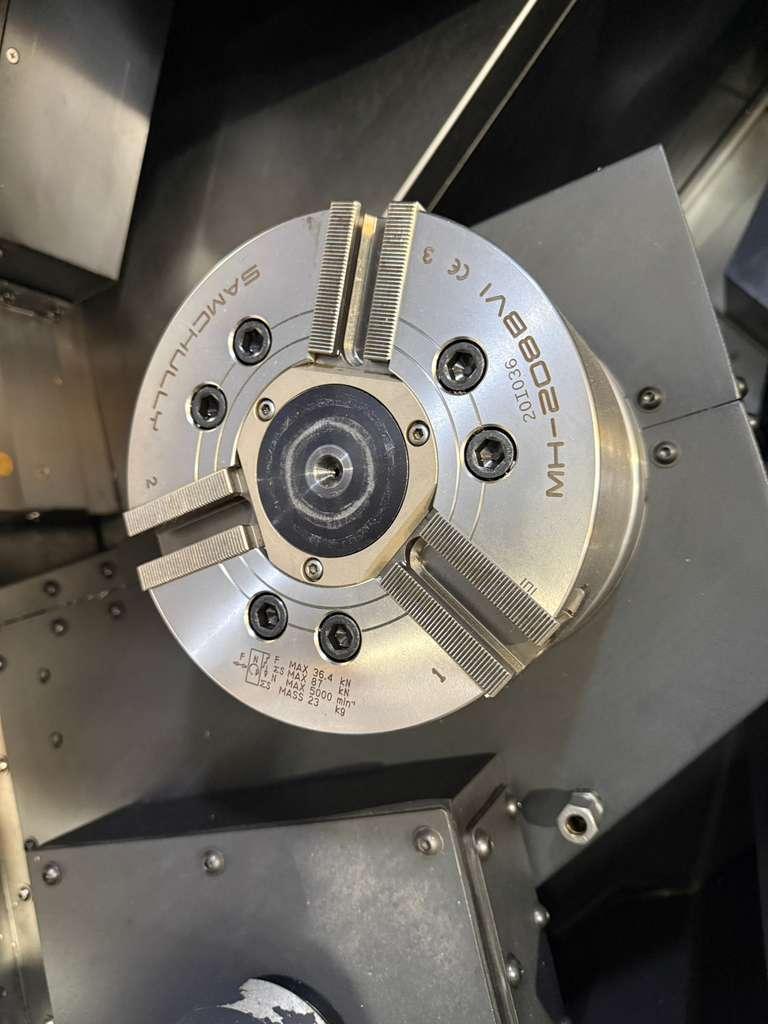

8″ 3-Jaw Chuck on Sub Spindle

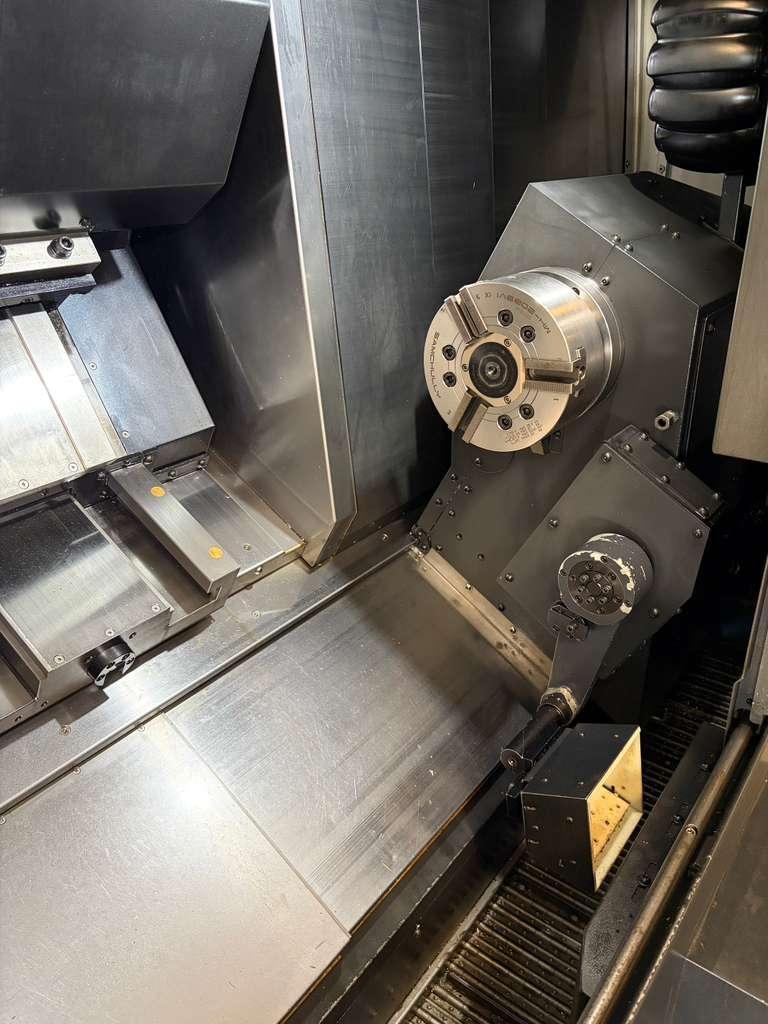

Sub Spindle
Servo Controlled Full C-Axis on Both Spindles

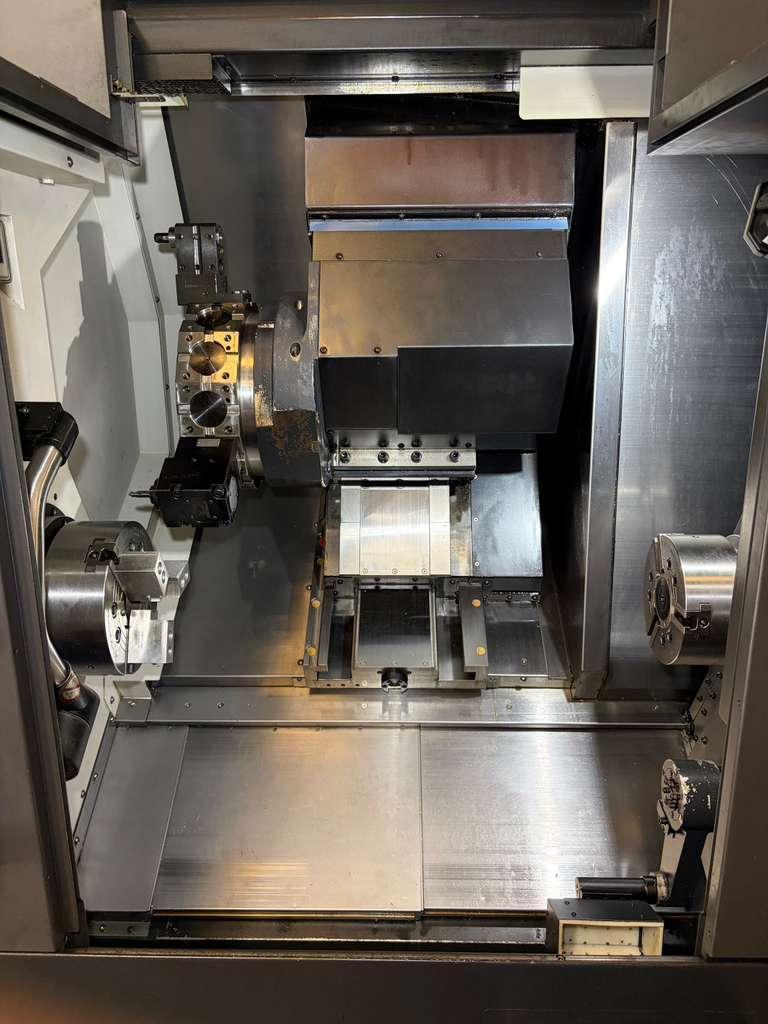

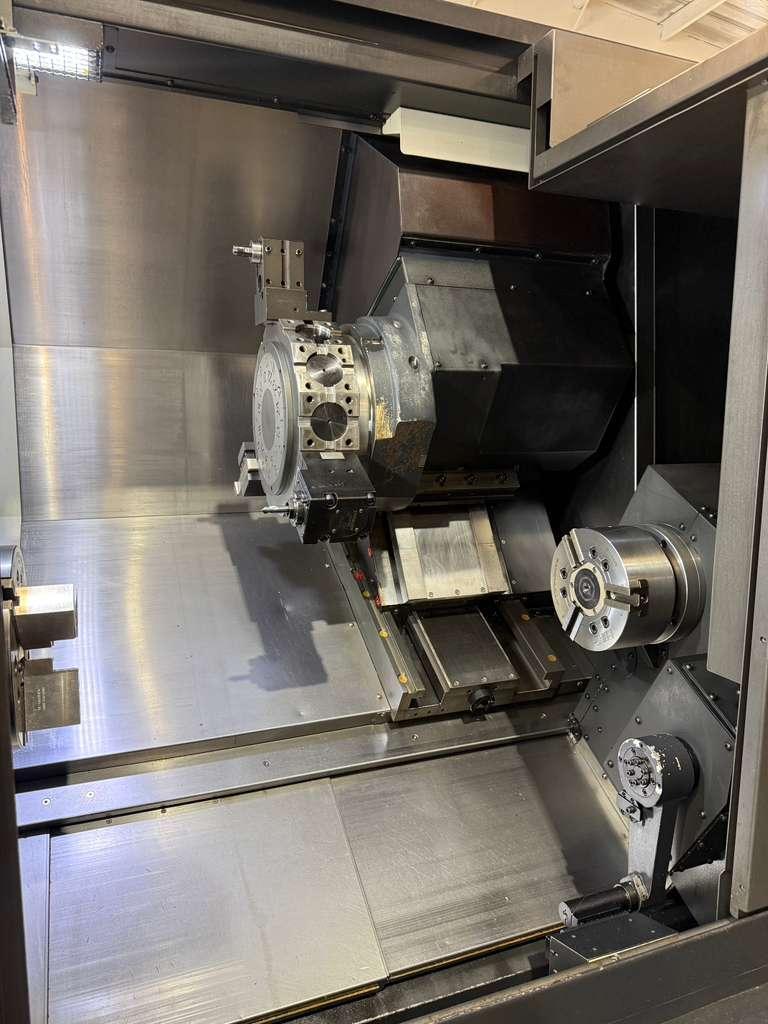

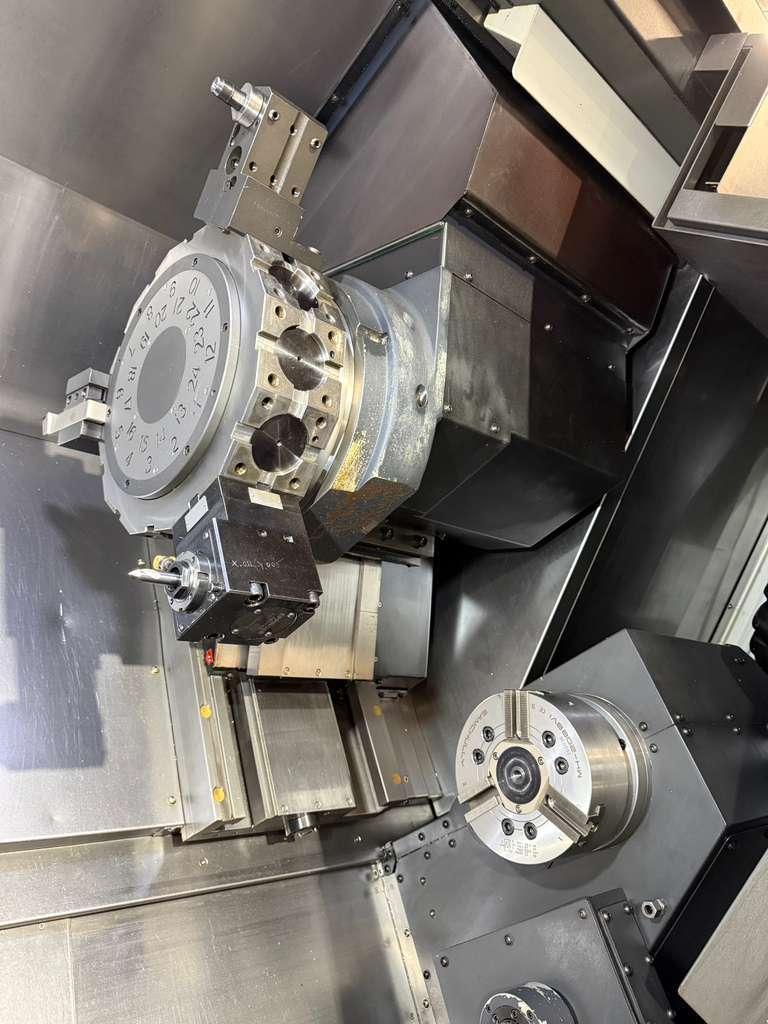

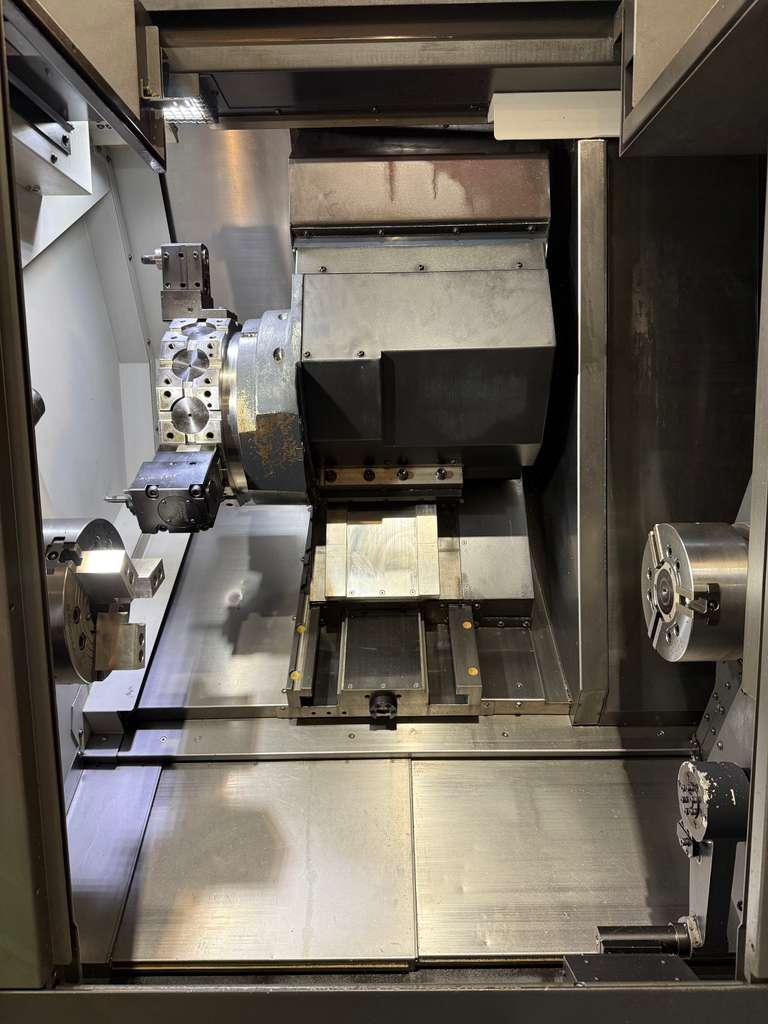

12-Station (24 Positions) Live Tool Turret
Y Axis Capable
Tool Presetter
Parts Catcher
Parts Conveyor

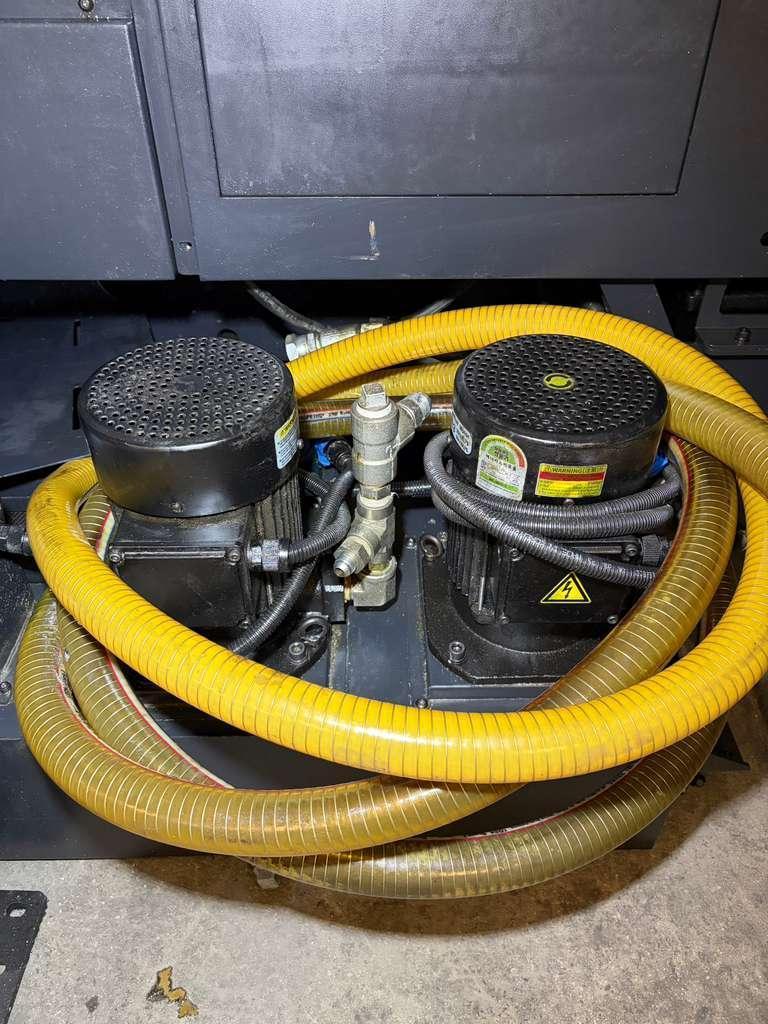

MP Systems VR8 High Pressure Coolant System
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck

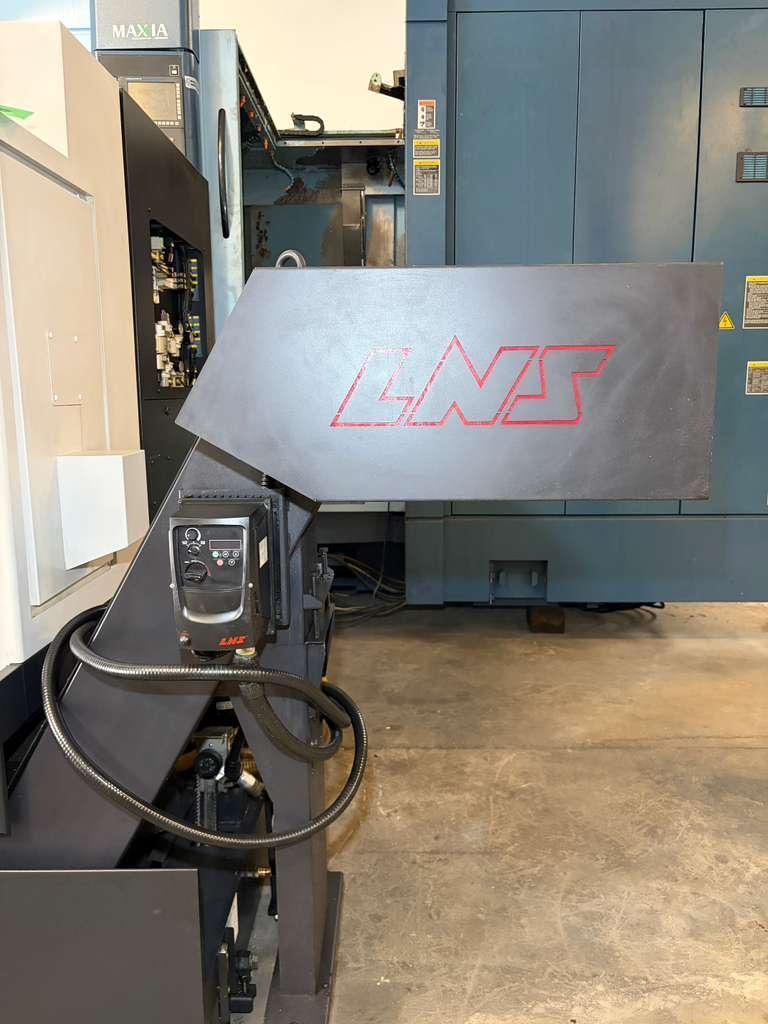

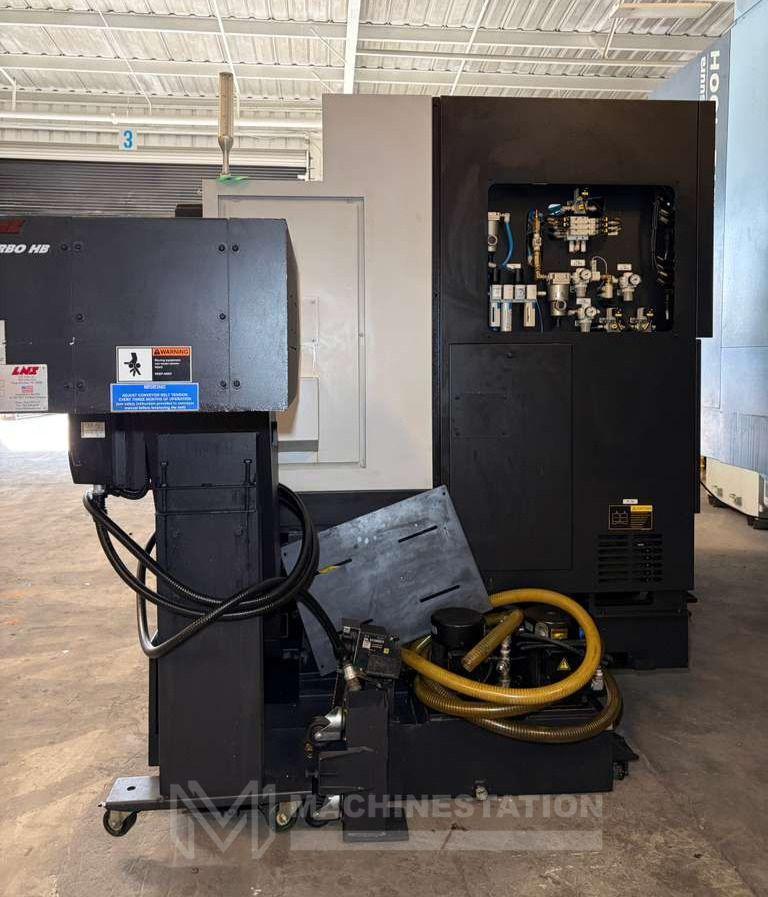

LNS Chip Conveyor
Note: Tool holders are not Included with the machine
Capacity:
Max Turning Diameter: 14.80″
Max Turning Length: 29.90″
Swing Over Bed: 30.70″
Swing over the Saddle: 24.80″
Max Bar Capacity: 3.20″
Travels:
X Axis Travel: 10.20″
Z Axis Travel: 32.70″
Y Axis Travel: 4.10″ (+ 2.10″ – 2.10″)
B Axis Travel: 32.70″ (Sub Spindle)
C Axis: 360° (0.001°) Both Spindle
Feedrate:
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Rapid Traverse B Axis: 1181 IPM
Rapid Traverse C Axis: 200 RPM
Spindle:
Main Spindle Nose: A2-8
Main Spindle Bore: 3.60″
Main Spindle Bar Capacity: 3.20″
Main Spindle Speed: 4,000 RPM
Main Spindle Power: 20 HP
Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 2.40″
Sub Spindle Bar Capacity: 1.96″
Sub Spindle Speed: 6,000 RPM
Sub Spindle Power: 20 HP
Turret:
Capacity: 12 Stations (24 Positions)
Turret Index Time: 0.15 Second
Live Tool Speed: 5,000 RPM
Live Tool Spindle Power: 10 HP
Tool Holders Type: BMT-65
General:
Power Source:  220v / 3-Phase / 60 Hz/ 57.08 kva
Overall Dimensions: 142″ x 75″ x 85″ High Approx.
Weight: 14,220 lbs Approx.
