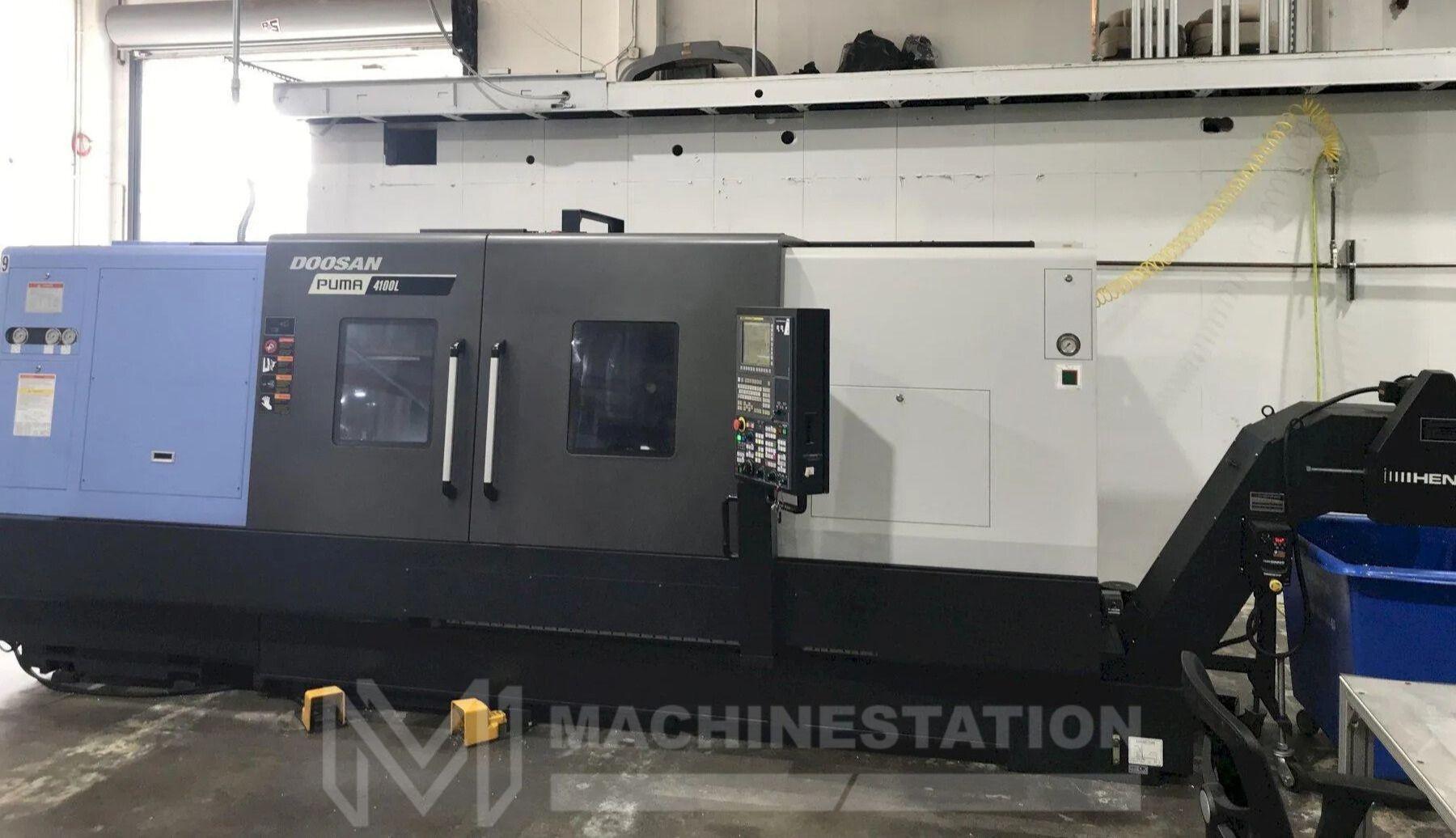

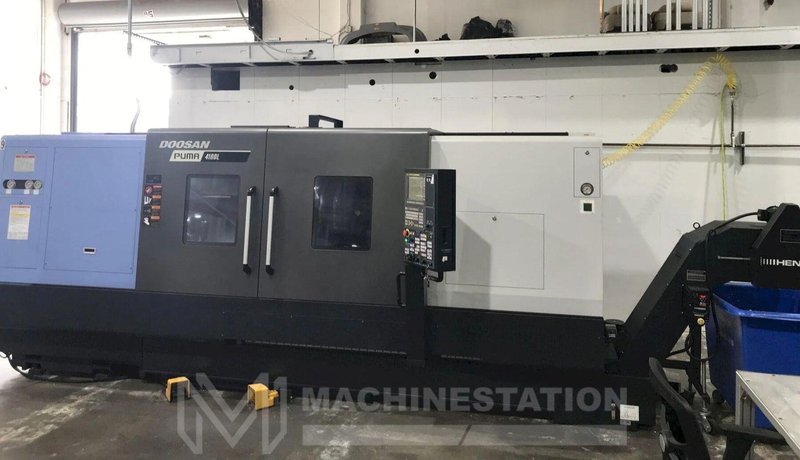

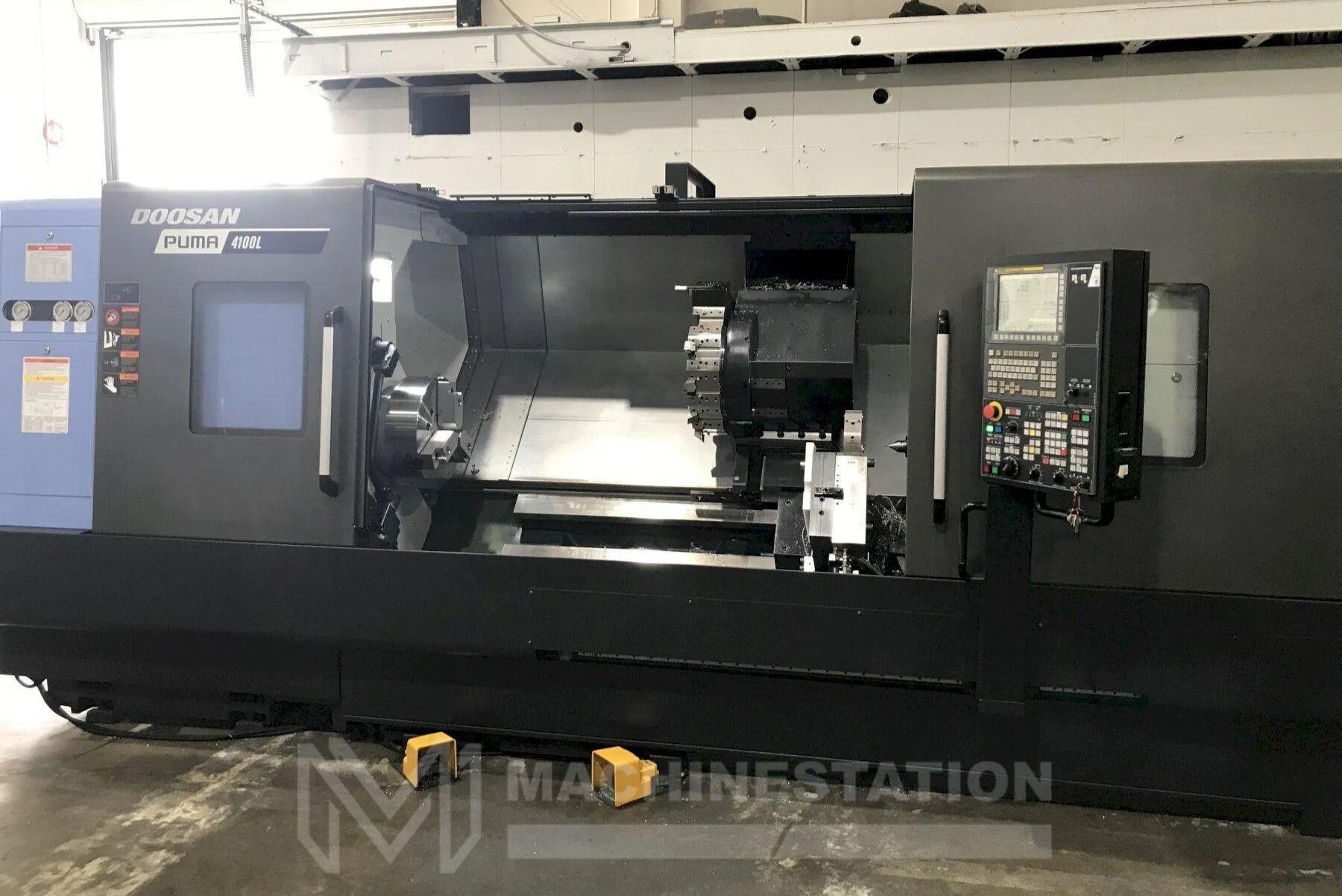

Doosan Puma 4100LB CNC Turning Center – 2017 15″ Chuck, Long Bed, Steady Rest Lathe

Brand
DOOSAN
Category
Lathes & Turning Machines
Type
Turning Centers
Model
Doosan Puma 4100LB
Stock #
115130
Year
2017
Condition
Not specified

Location

Not specified
REQUEST FINANCING

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make: Doosan
Model: Puma 4100LB
Year: 2017
Condition: Used – Good
Equipped With:

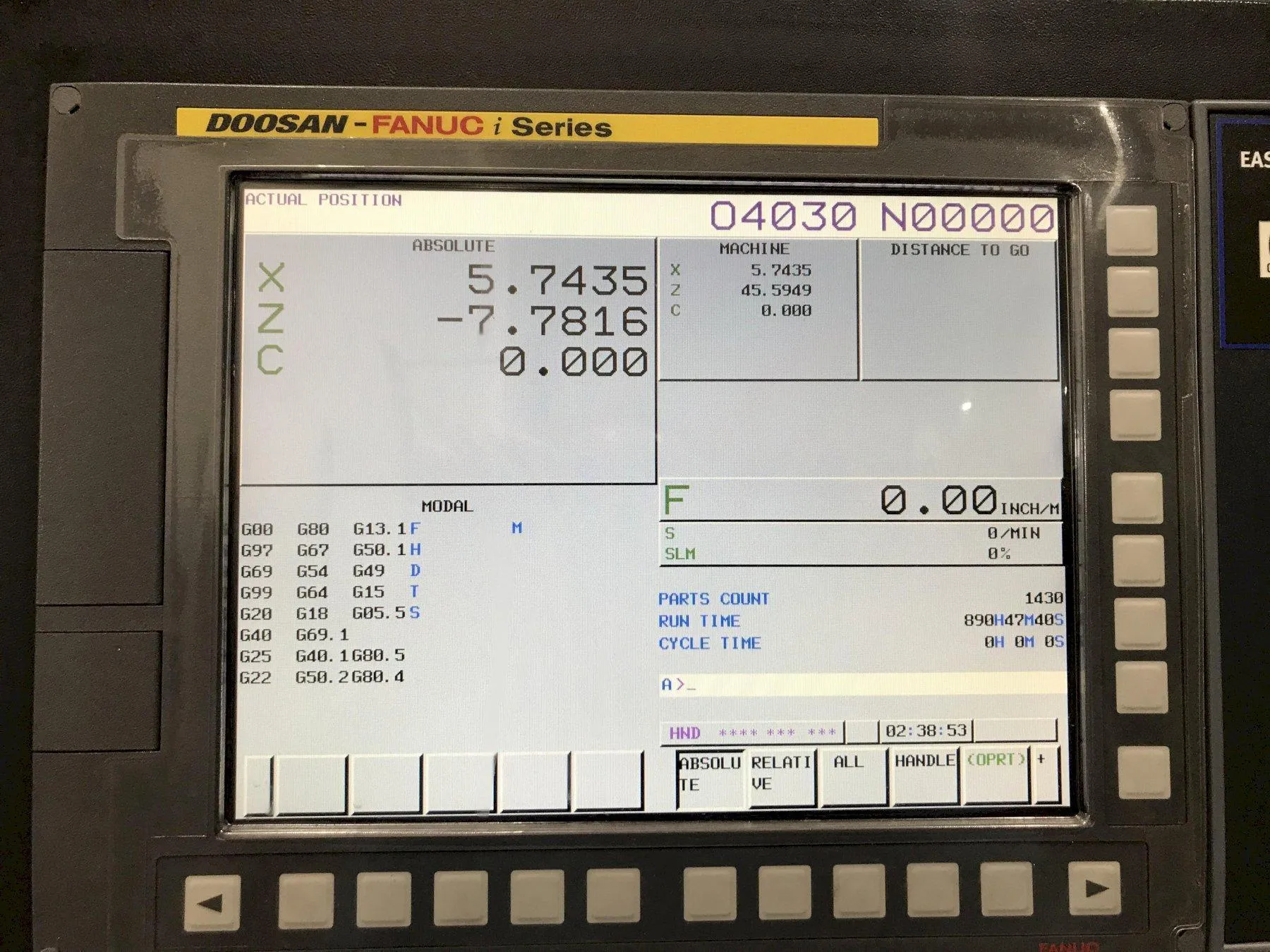

Doosan Fanuc i-Series CNC Control
Long Bed Box Way Construction
15″ 3-Jaw Samchully Hydraulic Chuck
5.2″ Big Bore, A2-11 Spindle
50 HP High Torque Spindle

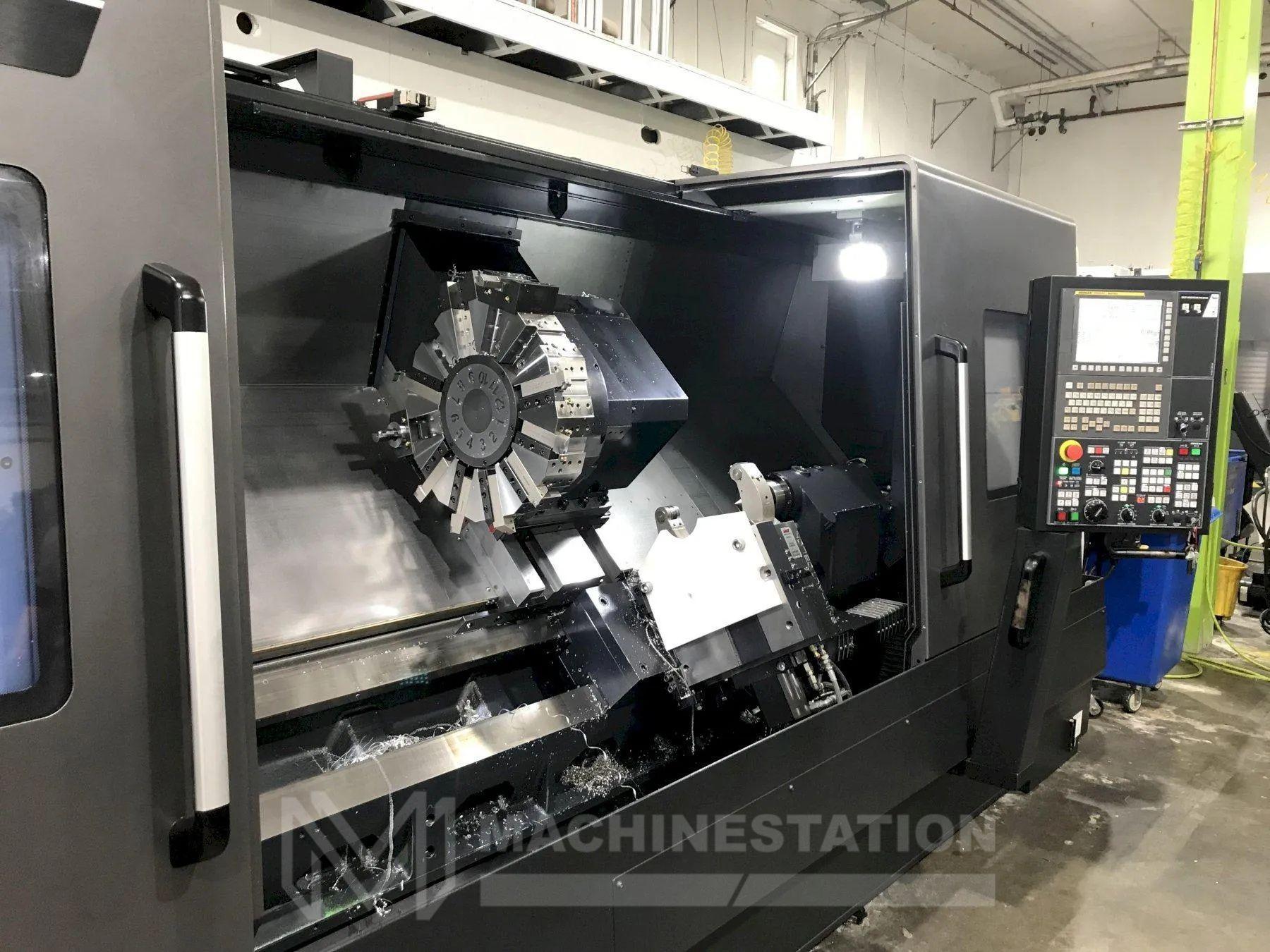

12 Station Automatic Turret

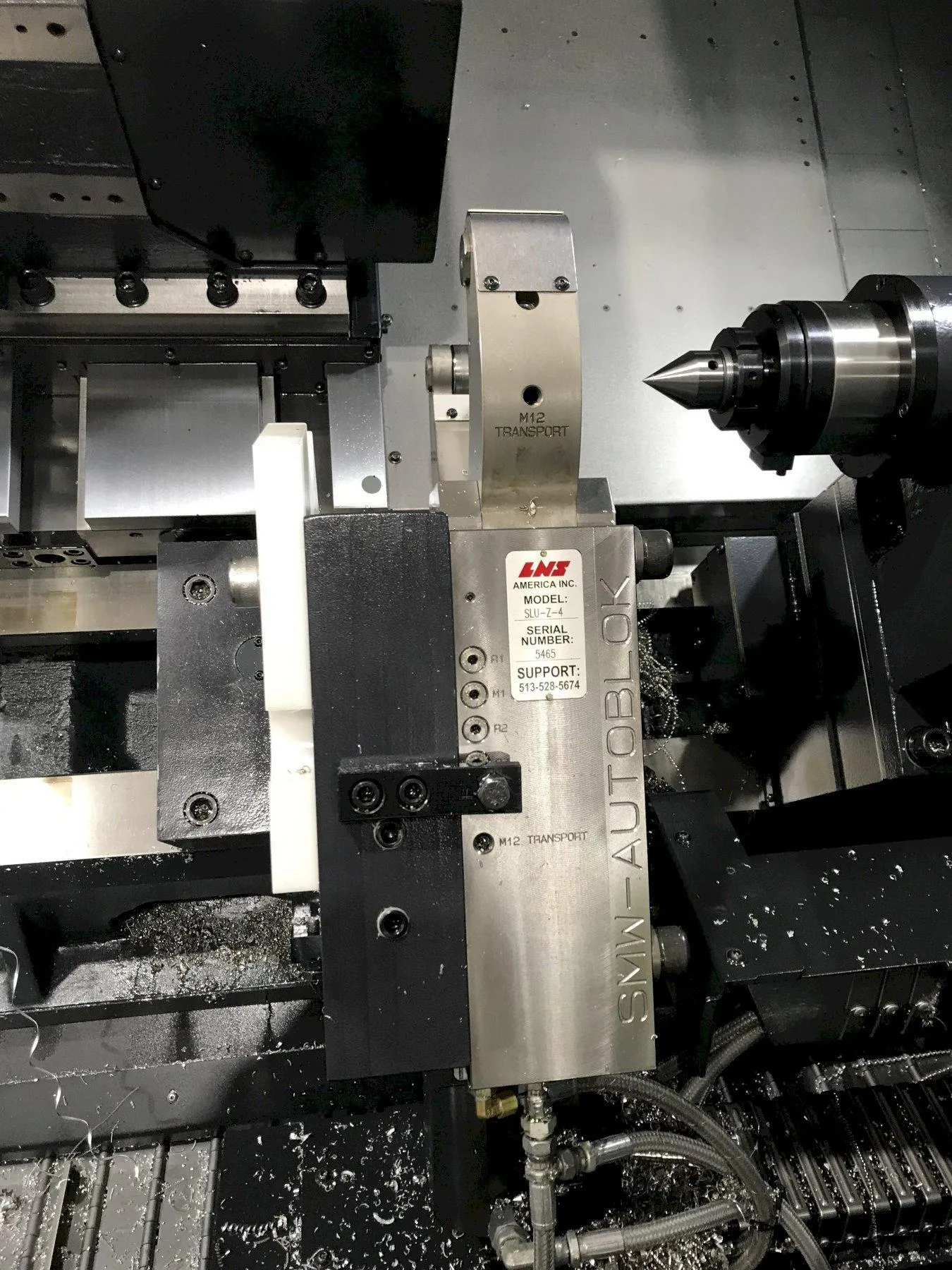

LNS Programmable Hydrualic Steady Rest
Automatic Tool Presetter
Tailstock
Rigid Tapping
Coolant System
Chip Conveyor
Capacity:
Max Turning Diameter: 21.7″
Max Turning Length: 82.4″
Swing Over Bed: 31.1″
Max Bar Capacity: 4.6″
Travel:
X Axis Travel: 13.9″
Z Axis Travel: 84.8″
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 787 IPM
Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.2″
Spindle Speed: 2000 RPM
Spindle Motor: 50 HP
Turret:
Capacity: 12 Station
Turret Index Time: 0.25 Second
OD Tool Size: 1.3″ x 1.3″
Max Boring Bar Size: 2.4″
Tailstock:
Tailstock Taper: MT-6
Tailstock Quill Dia.: 4.7″
Tailstock Quill Travel: 4.7″
General:
Power: 220V / 3-Phase / 60 Hz
Overall Dimensions: 227″ x 90″ x 90″ High Approx.
Weight: 25,130 lbs. Approx.
