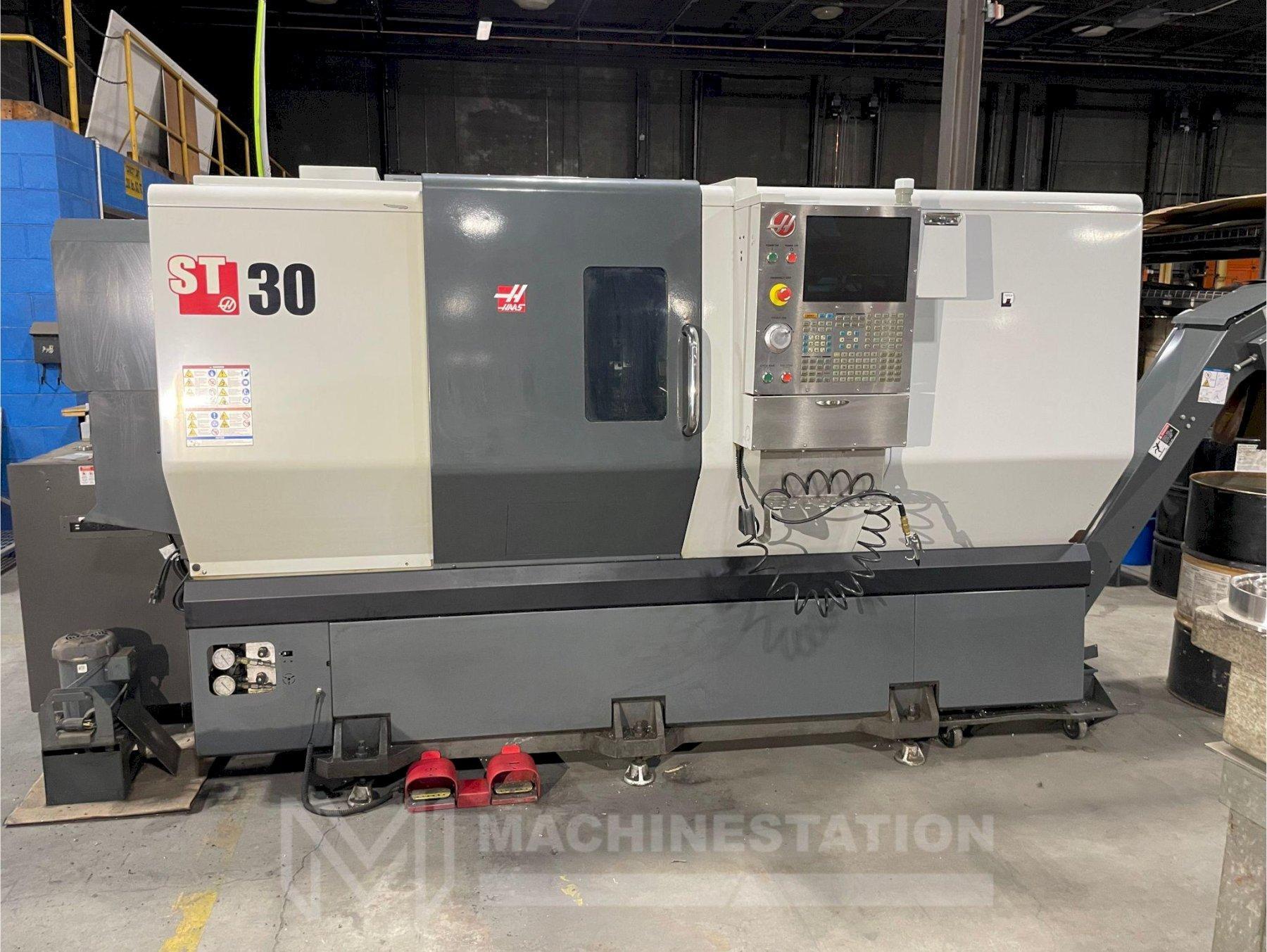

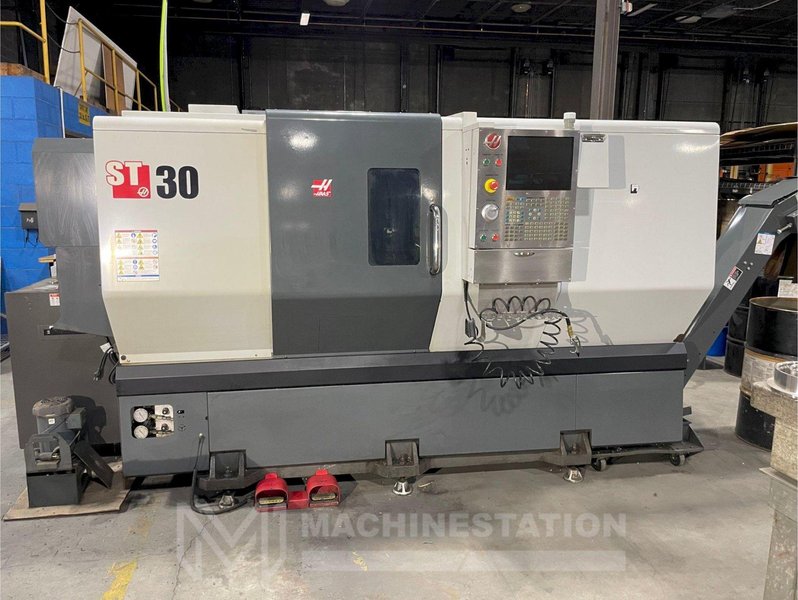

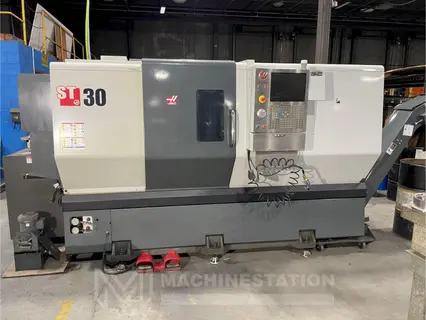

Haas ST-30 CNC Turning Center – Lathe

Name: Haas ST-30 CNC Turning Center – Lathe
Brand: HAAS
SKU: 115136
Availability: InStock

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Haas
Model:	ST-30
Year:	2014
Condition:	Used – Good

Equipped With:

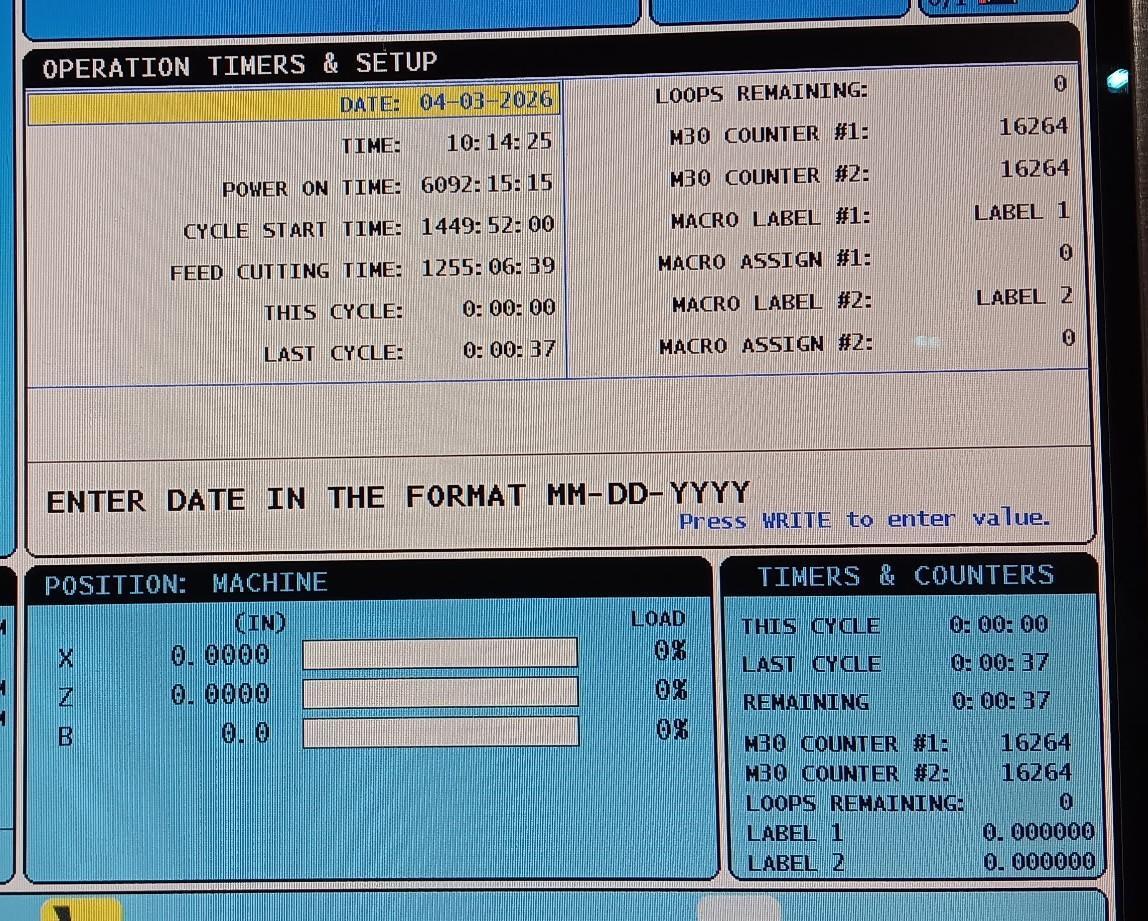

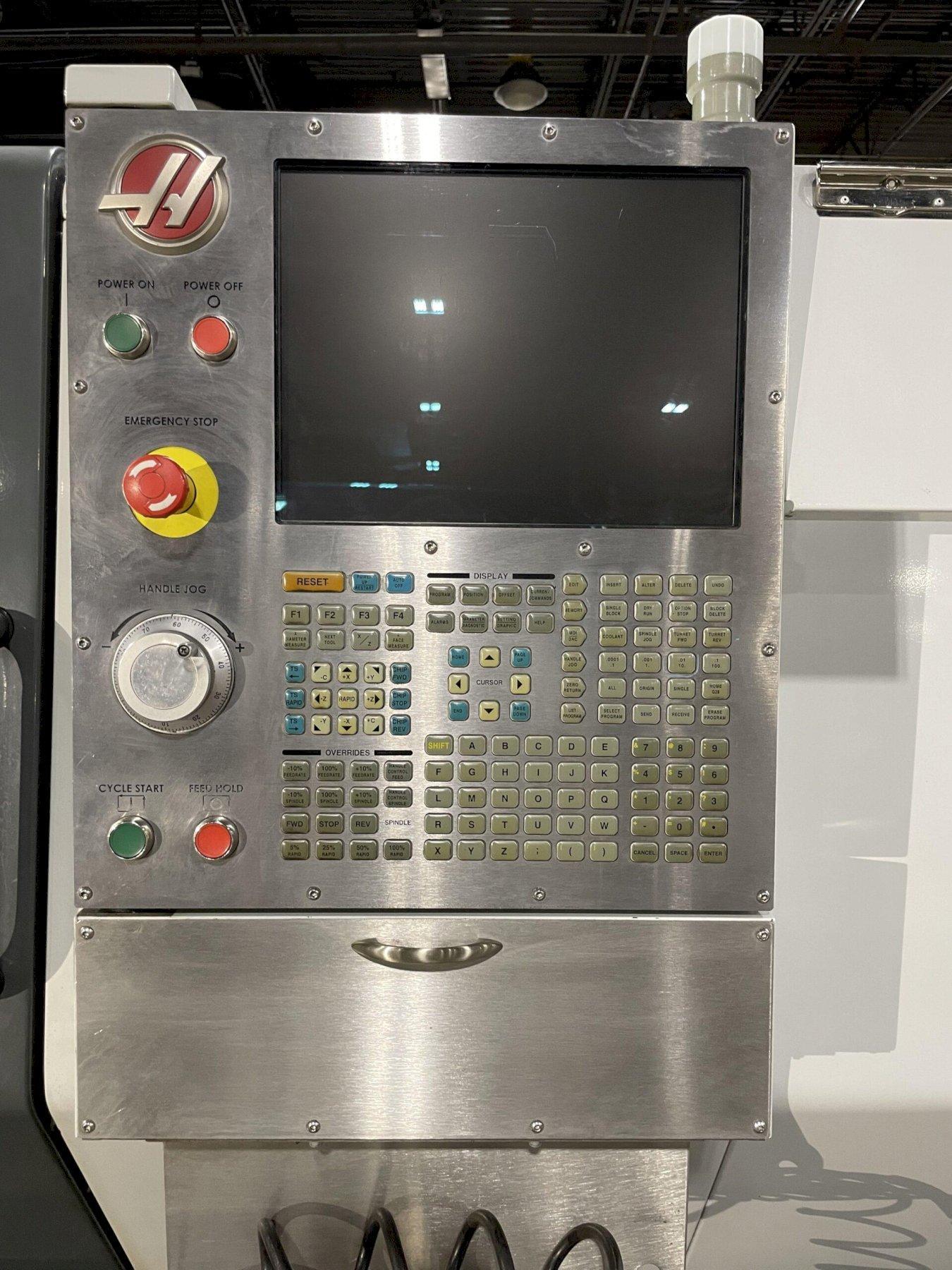

Haas CNC Control
12 Station Automatic Turret
A2-6 Spindle, 3200 RPM Spindle
3.5″ Spindle Bore
Rigid Tapping
Programmable Hydraulic Tailstock (Upgraded $10,495 value Included) – Provides additional support for long workpieces
Coolant System

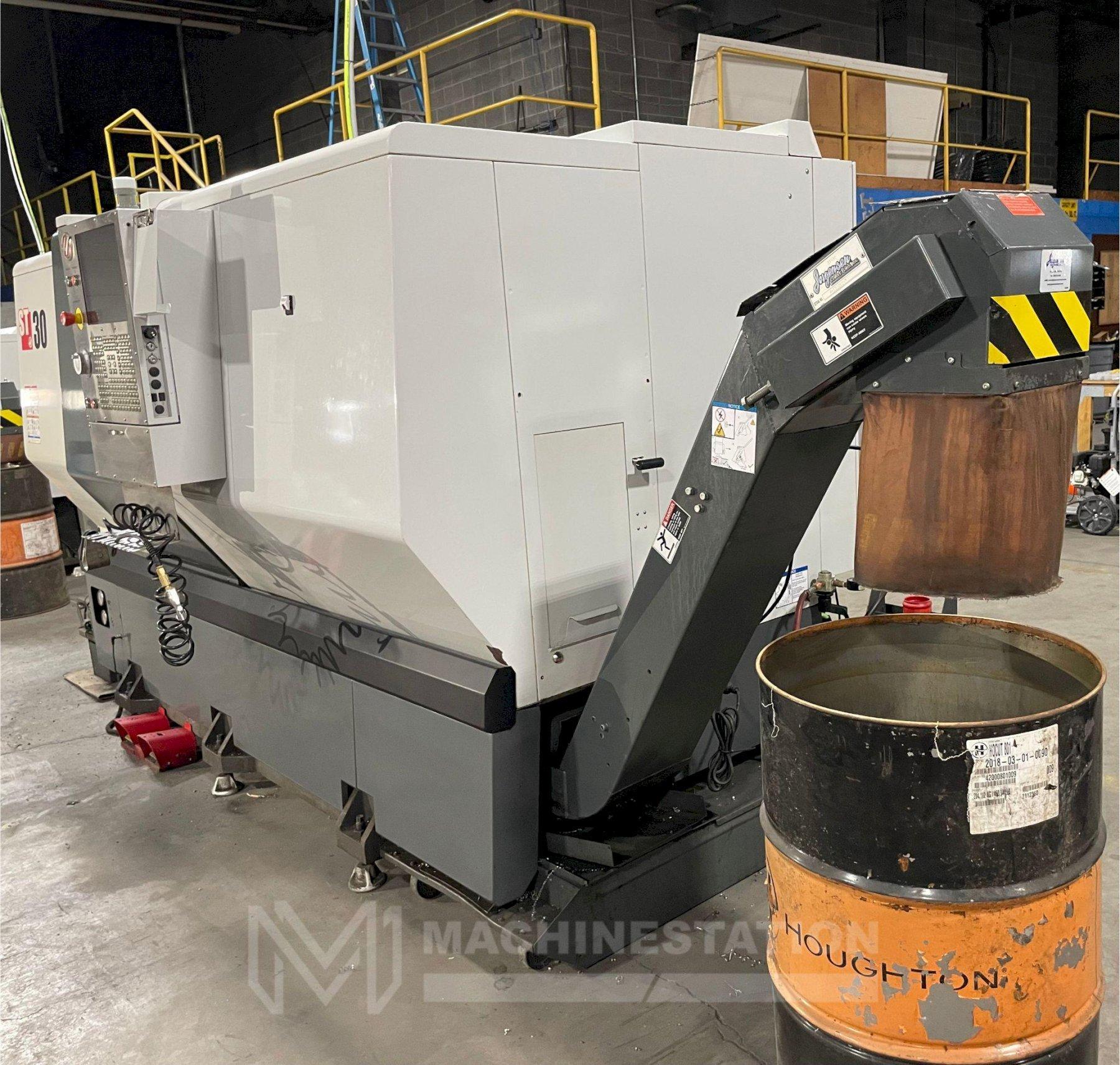

Belt Type Chip Conveyor (Upgraded $5,295 value Included) – For Efficient Chip Removal
Automatic Lubrication system
Foot Switches

Capacity:
Max Turning Diameter : 15.0″
Max Swing Over Bed : 21.0″
Max Turning Length: 32.5″
Max Bar Capacity : 3.0″
Distance Between Centers : 32.5″

Travels:
X Axis Travel : 9.4″
Z Axis Travel : 32.5″

Feedrate:
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 3.5″
Spindle Speed: 3200 RPM
Spindle Motor: 30 HP

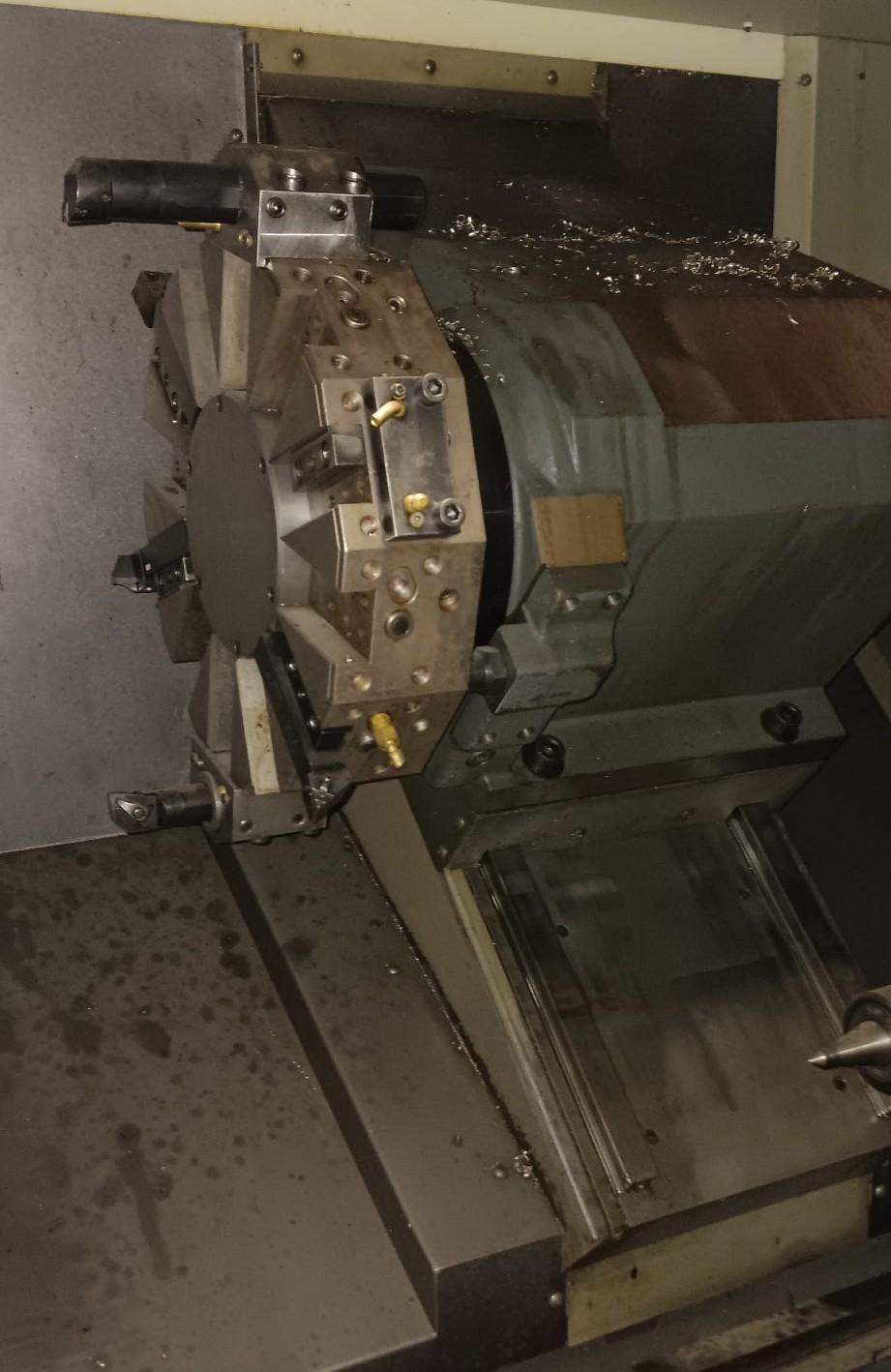

Turret:
Turret Capacity: 12 Stations
Turret Type: Bolt-On Tool Turret

Tailstock:
Tailstock Taper: MT-4
Tailstock Type: Programmable

General:
Air Required: 100 psi 4 scfm

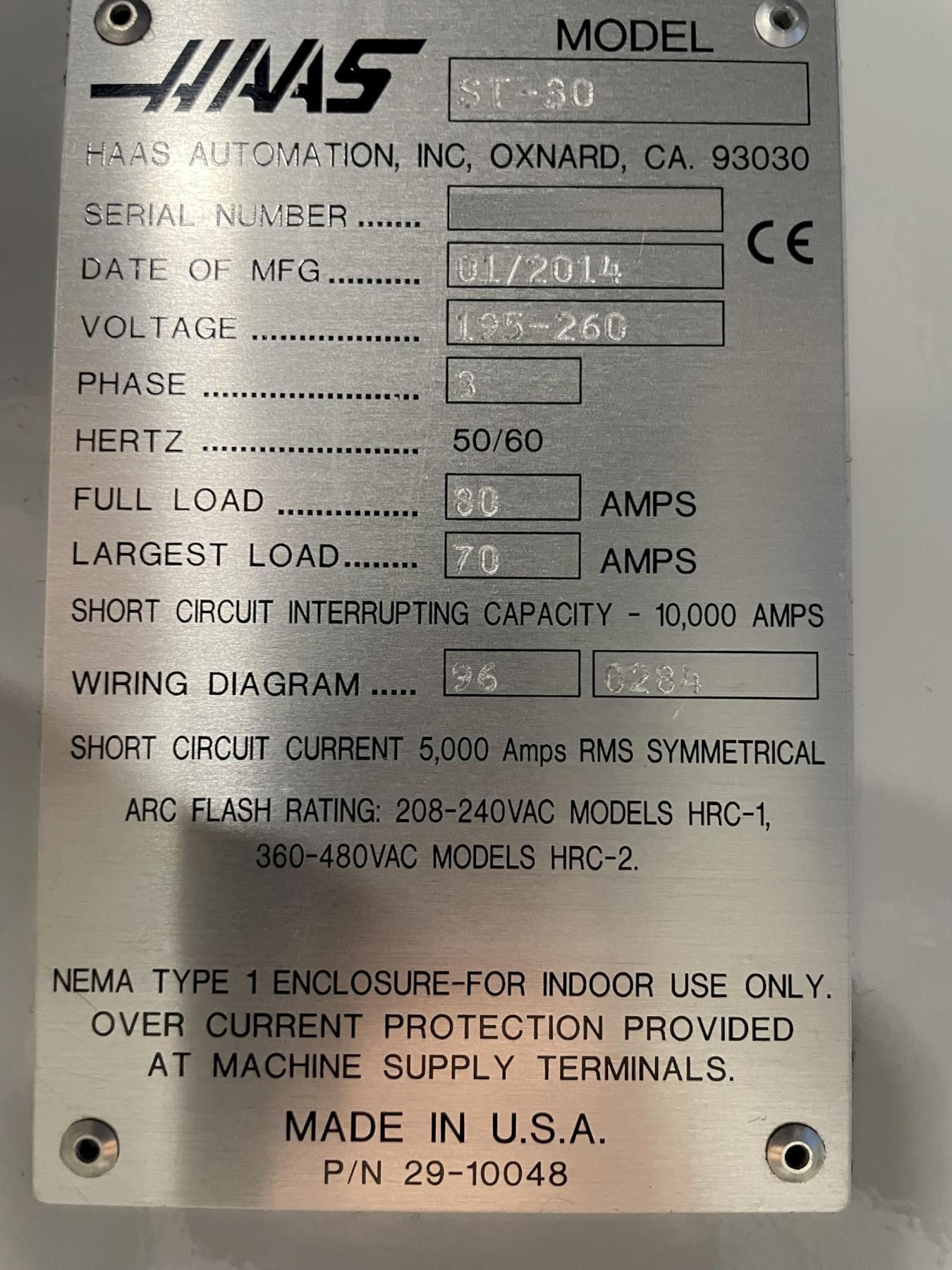

Power Source: AC 220v / 3-Phase / 60 Hz
Machine Dimensions: 170″ x 90″ x 98″ High Approx.
Machine Weight: 10,900 lbs Approx.
