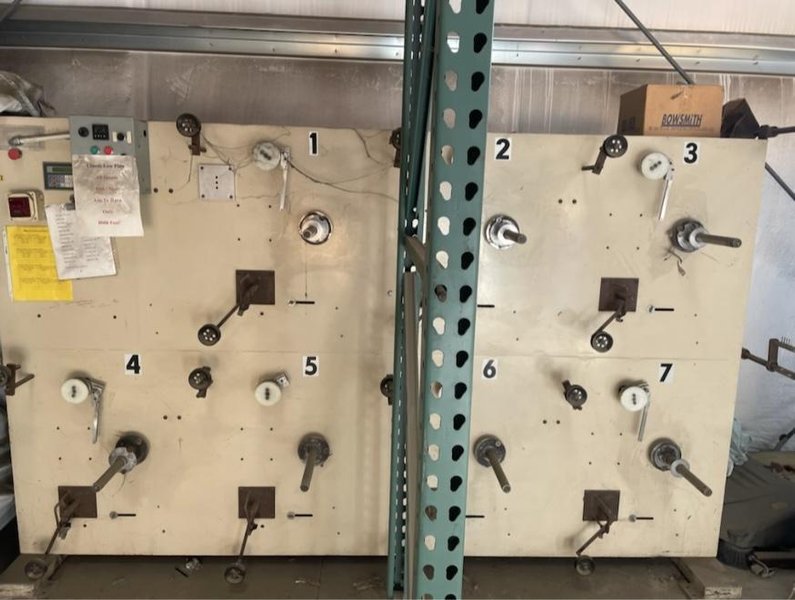

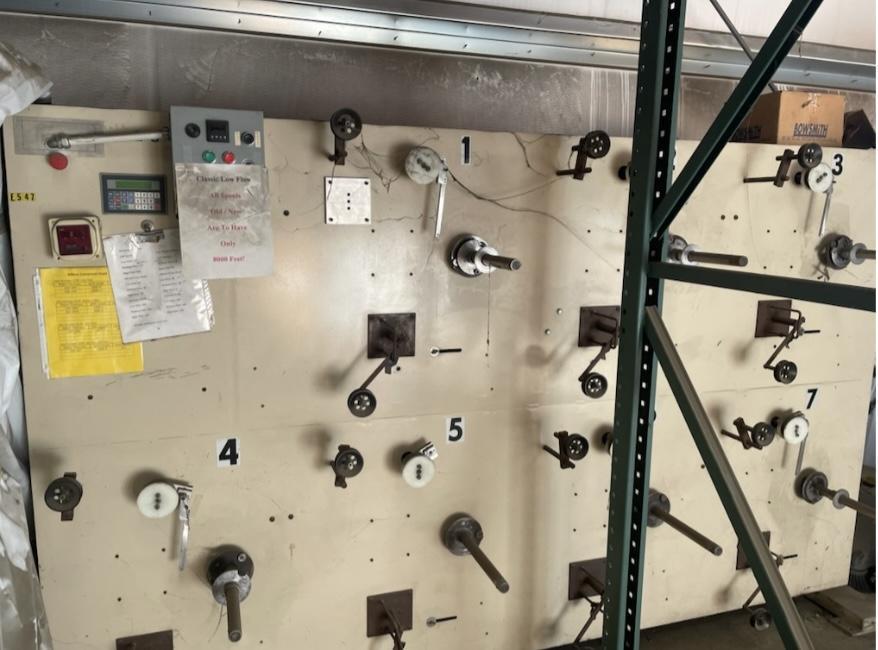

R&S Machinery & Design 7-Station Winder
Brand
Category
Model
7 Station Winder
Stock #
227769
Year
1900
Condition
Not specified
Location
Not specified
|
– 7-Position Spooler (7 Individual, 1/2 HP DC Motors)
– Double Deck Construction
– 12” Traverse
– 16” OD Spool Flange, 8” Barrel OD
– 1-1/4” Shaft
– Speed of 80 FPM (Maximum)
– Adjustable Tension
– Gang Driven Traverse (Step Motor) Linked to an Encoder Mounted on Spindle Shaft to Slow Traverse Speed as Package Gets Larger
– Dancer Control System
– Maple Systems Operator Interface to Change Traverse Length, Speed, and Reversal Angle (Accel/Decel)
– Approximately 14,500 Production Hours
All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
