Closed Local Loop Biodiesel Production System

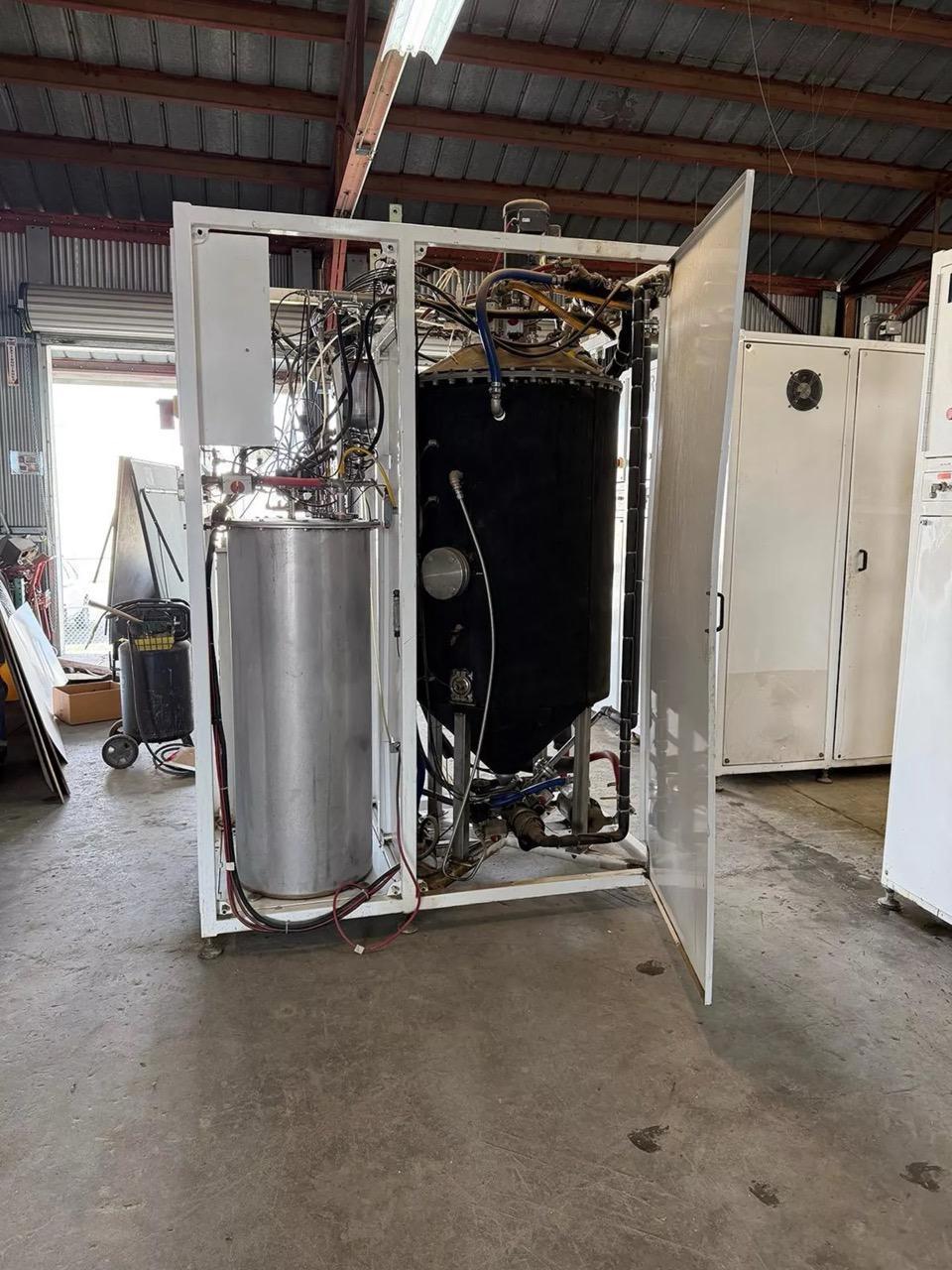

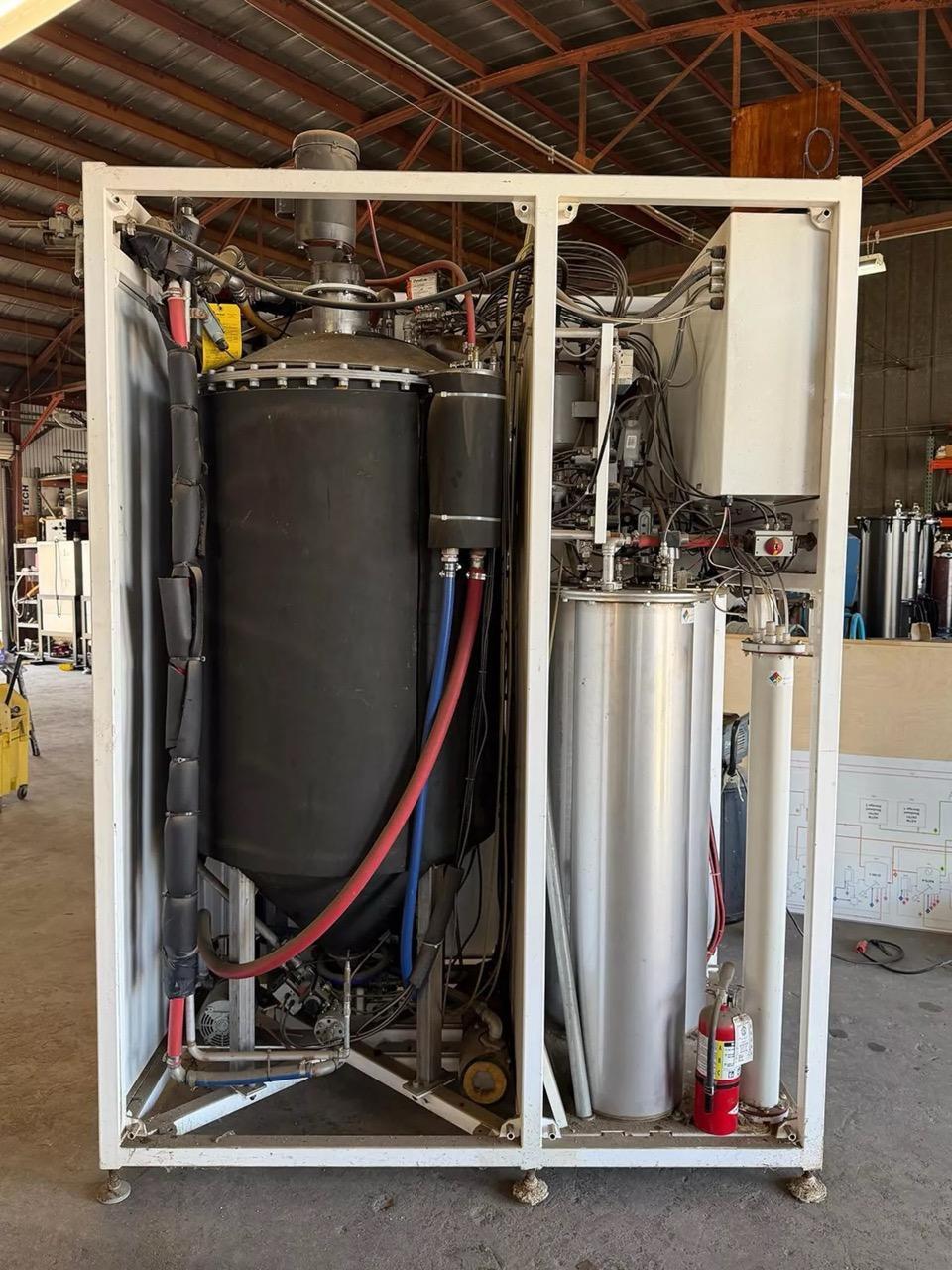

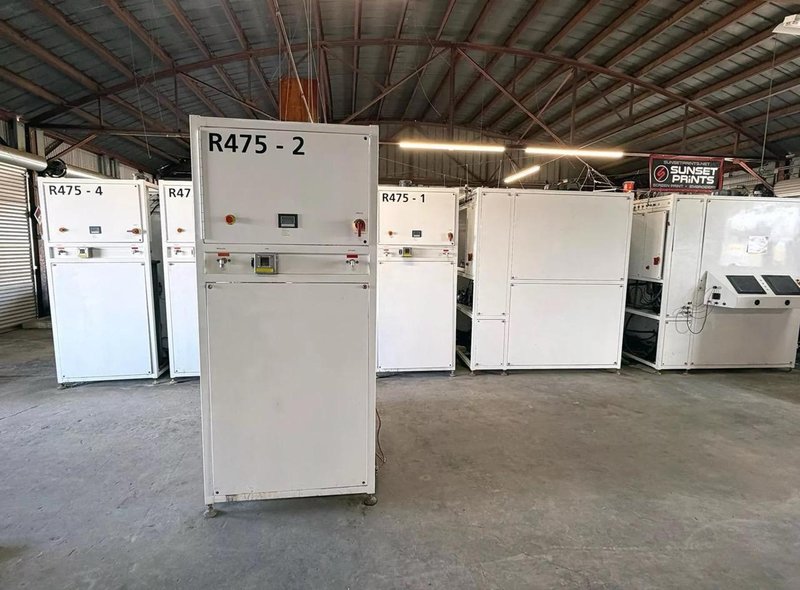

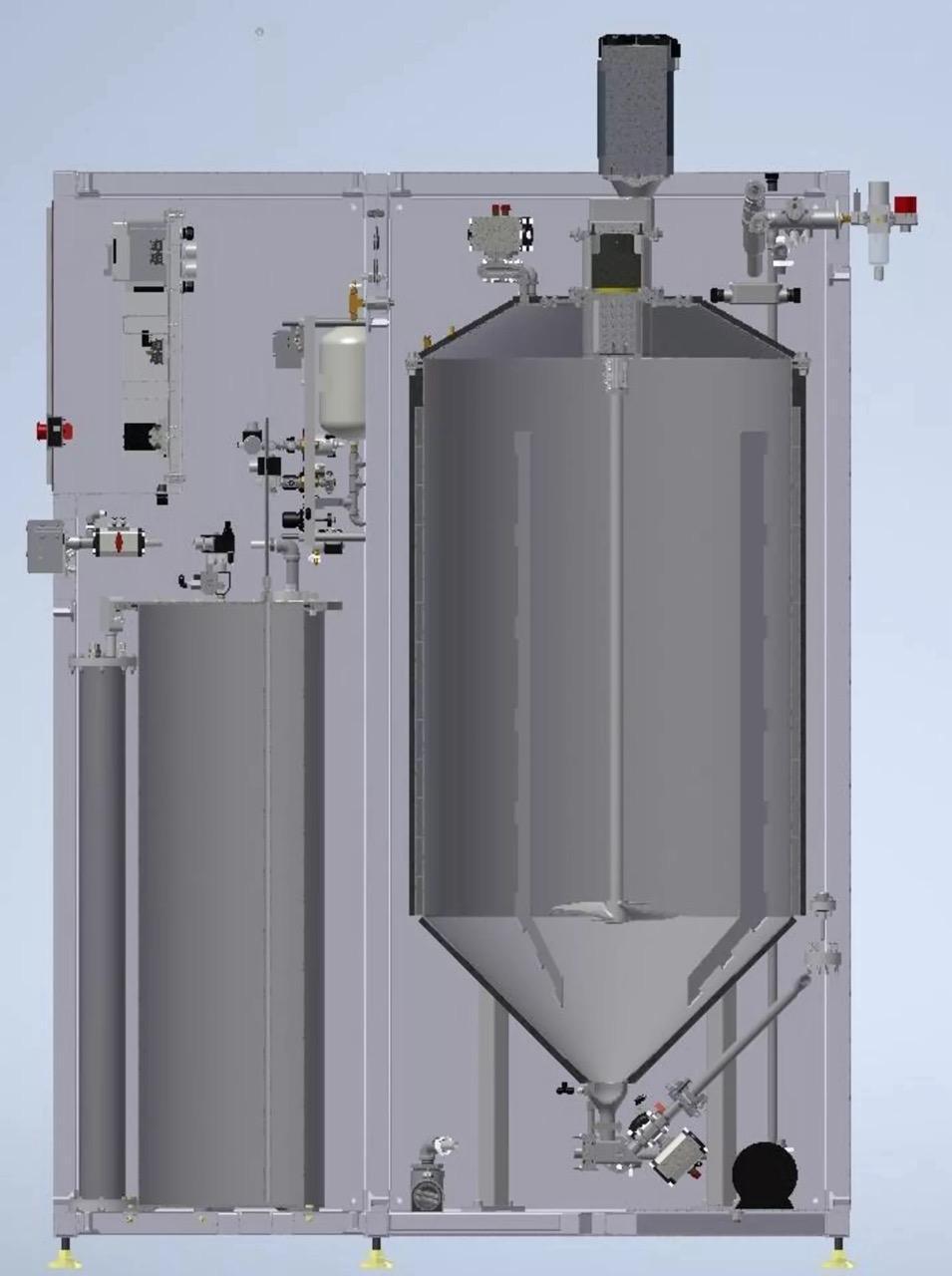

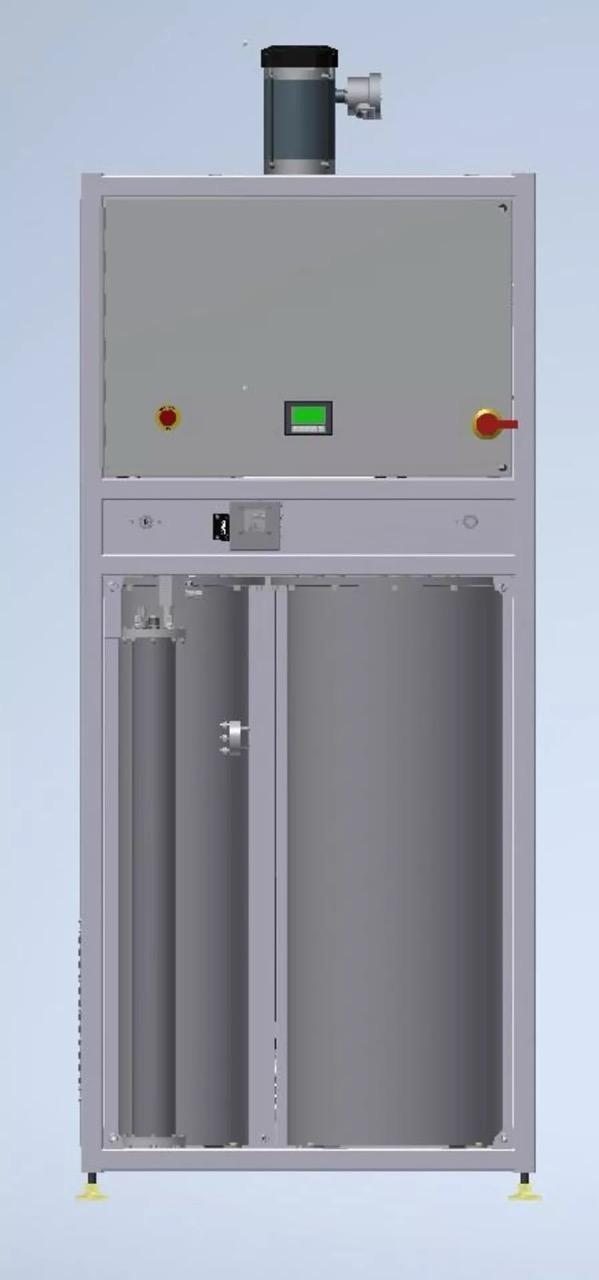

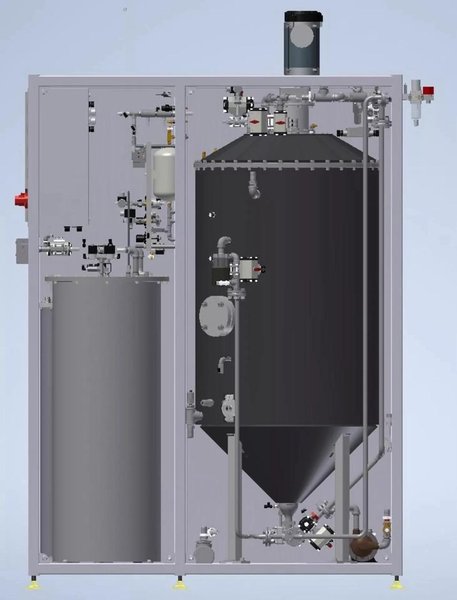

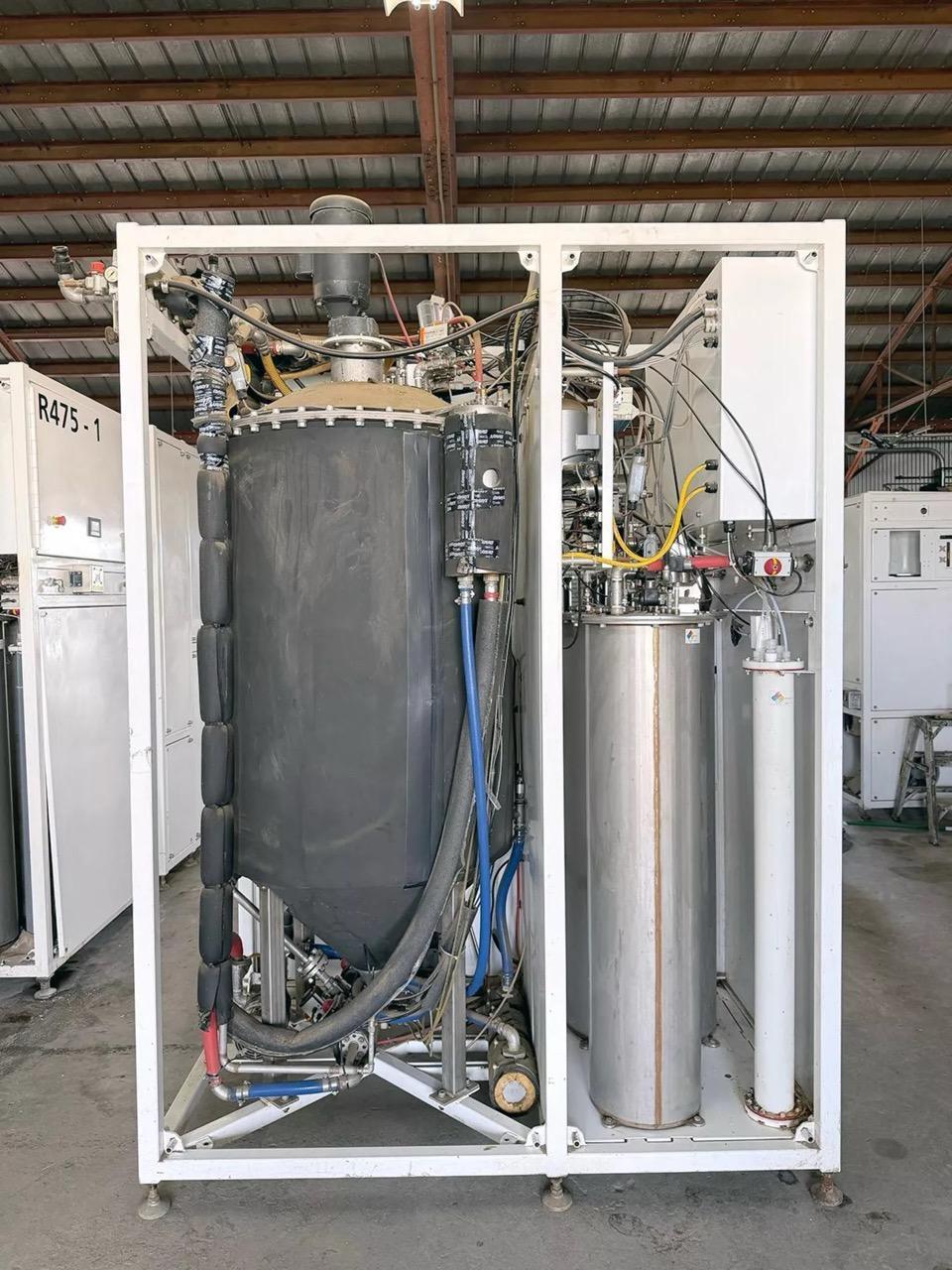

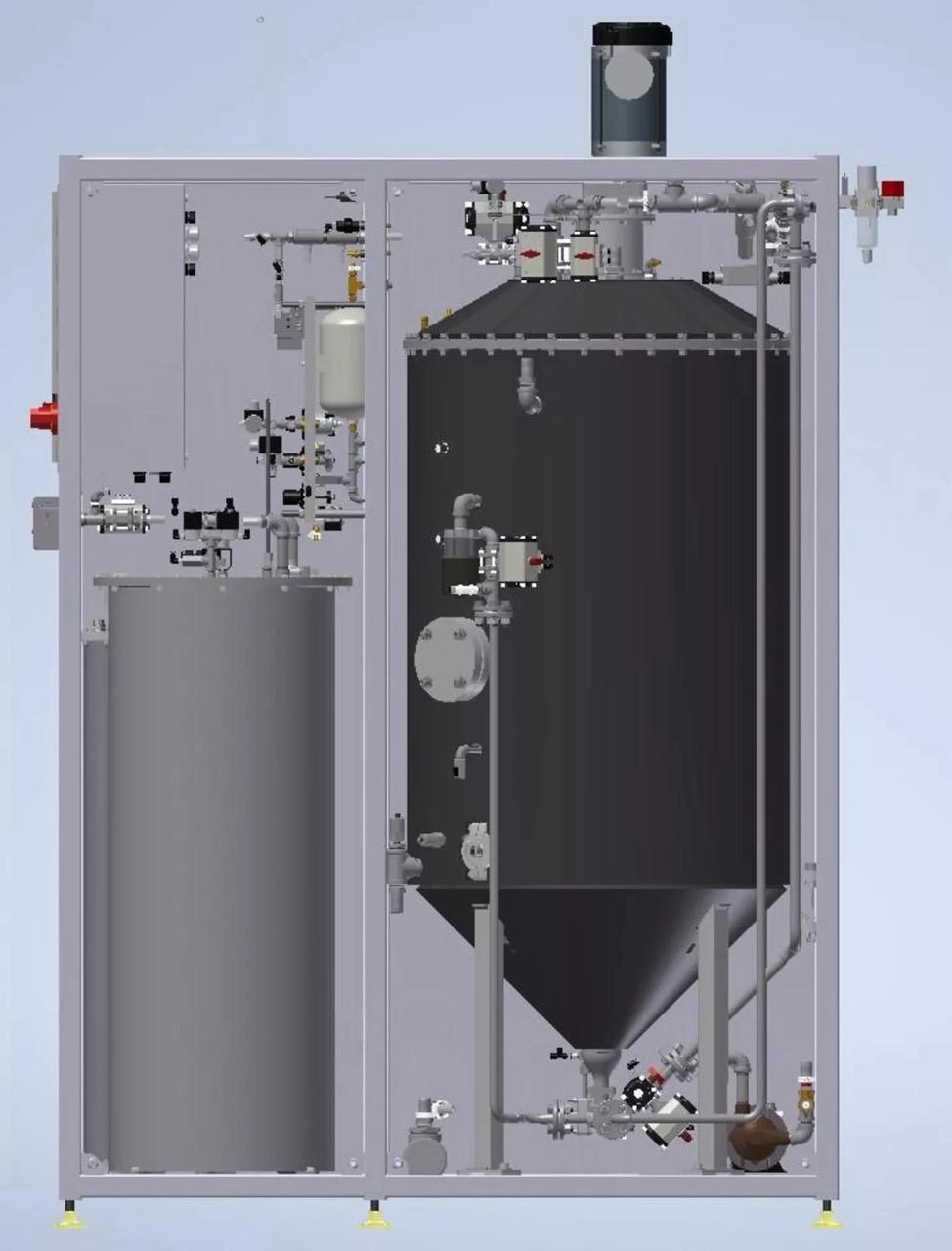

This system consists of four R475 automated biodiesel reactors, each featuring a 125-gallon capacity.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,These units are designed to perform a two-step process—esterification followed by transesterification—while efficiently removing glycerol and transferring the biodiesel for downstream cleaning.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,The system is rated for a production capacity of 1,000 gallons per day, which can be increased to 2,000 gallons with a double shift.

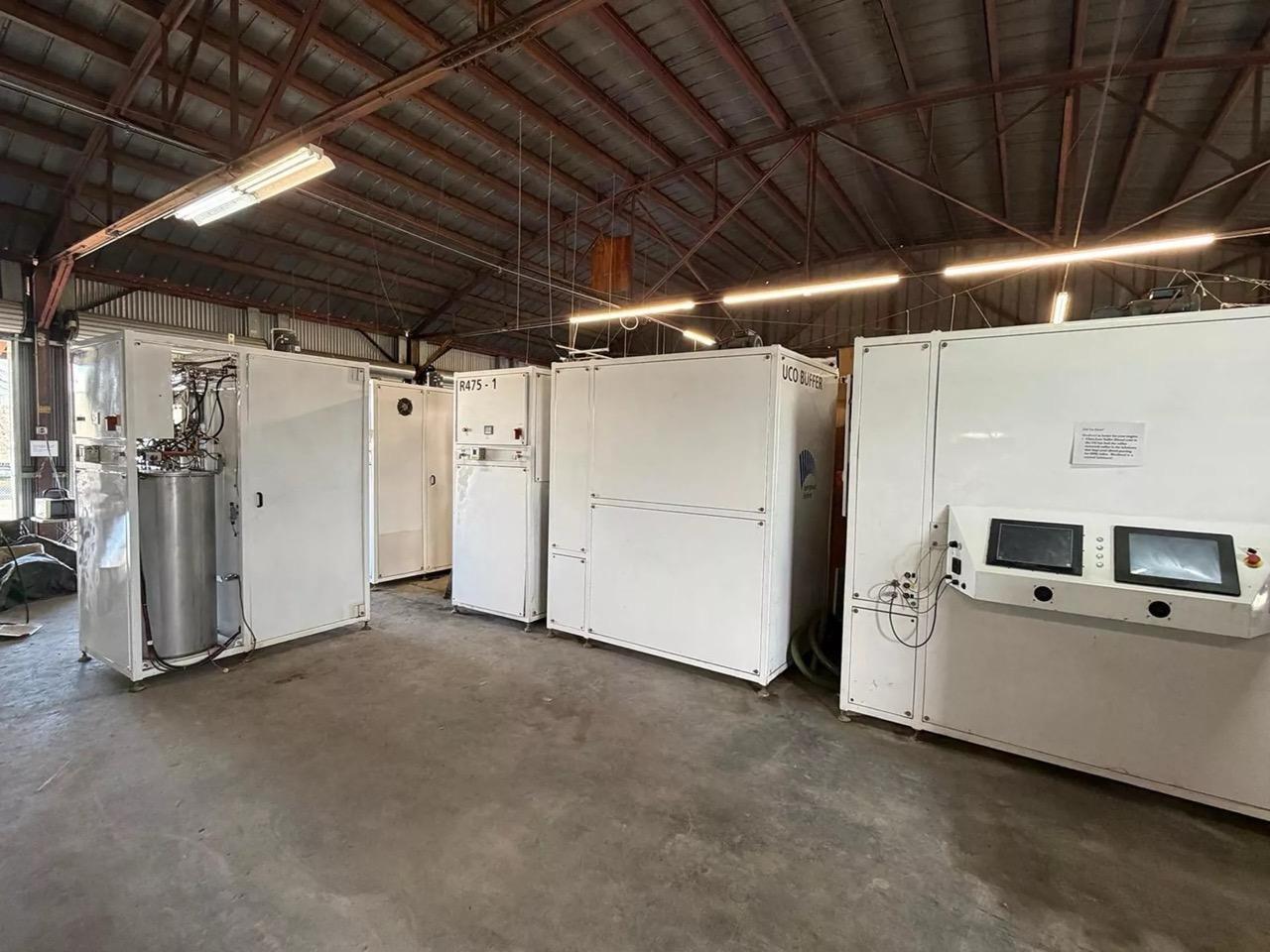

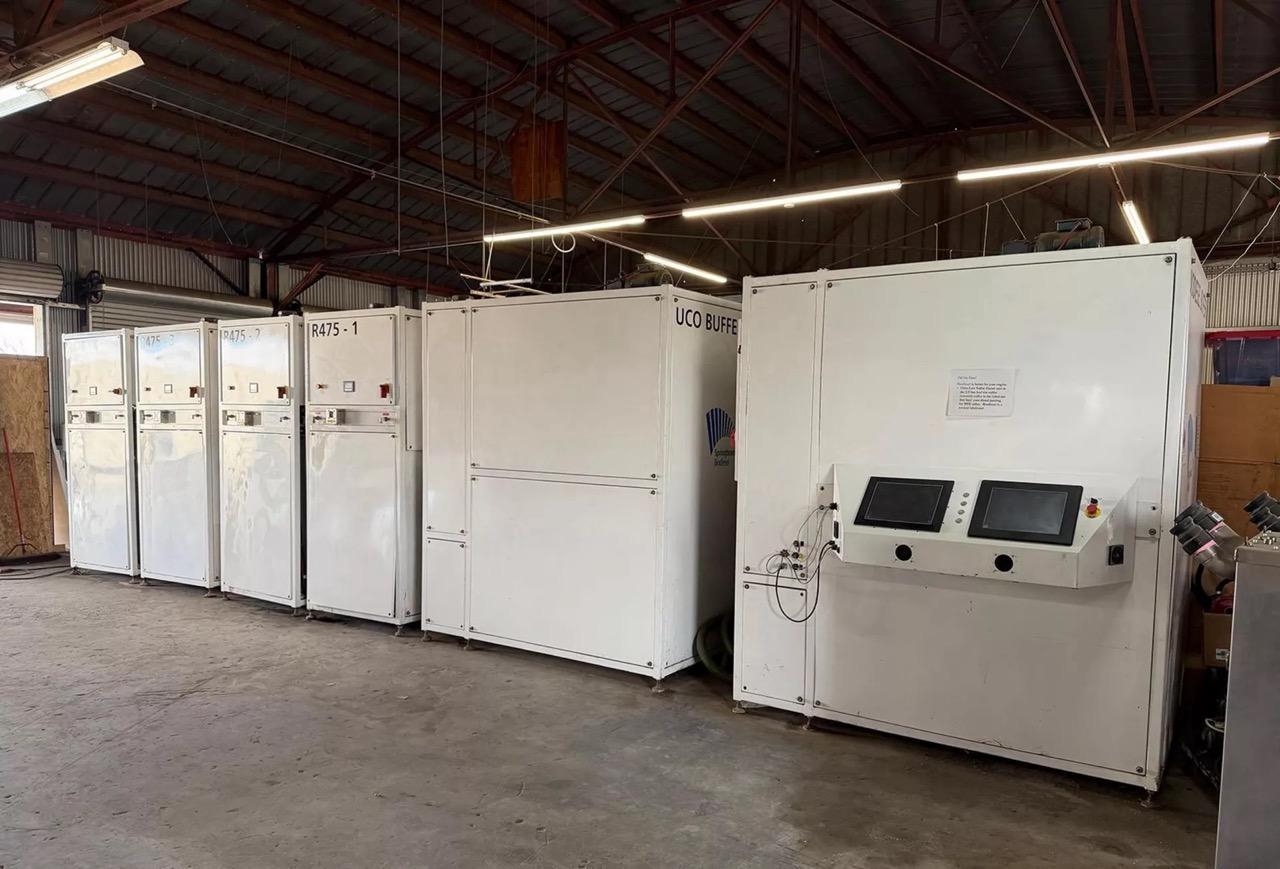

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Additionally, the setup includes two buffer tanks: one dedicated to holding and heating used cooking oil before processing, and another for holding raw reacted biodiesel from the R475 units.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,A more detailed description and system narrative are available upon request.
