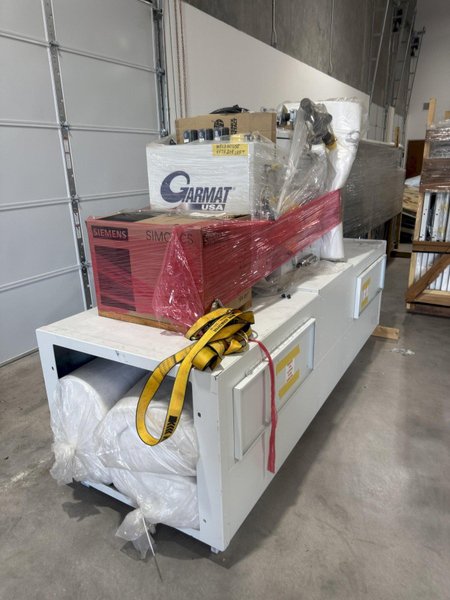

31 Foot Chinook II Downdraft Spray Booth, 2023 – New in Crates

Interior Dimensions: 26′ 9-/1/4″ L x 13 1- 1/2″ W x 8′ 10-1/2″ H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Exterior Dimensions: 27 2-1/4” L x 13 6 -5/8” W x 10’10” H

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Light Fixtures:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,15 LED light fixtures / 60 LED light tubes Horizontal orientation for optimal illumination All interior accessible for ease of maintenance Exhaust Configuration:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Unlike competing brand of semi downdraft spray booths, the Garmat design pulls the air to the base of the towers, where it is exhausted inside the tower chamber through bag filters Bag filter design provides 54% more useable surface area than competing brands Easy access – no grates to remove Pitless booth, exhausts through the base of the towers Operations and Controls:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Space saving design features a mechanical built into the roof Exhaust: 7.5 HP High Efficiency Motors Dual Inlet Reverse Incline Fan featuring Airfoil Blades Supply: 7.5 HP High Efficiency Motors with Forward Incline Fans 1.0 MBTU Direct fired heater with fast temperature rise, features Aluminum and Stainless Steel Burner construction ETL Listed PLC Control Panel which sequences spray and bake mode temperatures settings Recycle on Bake

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,4’4” extension

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
