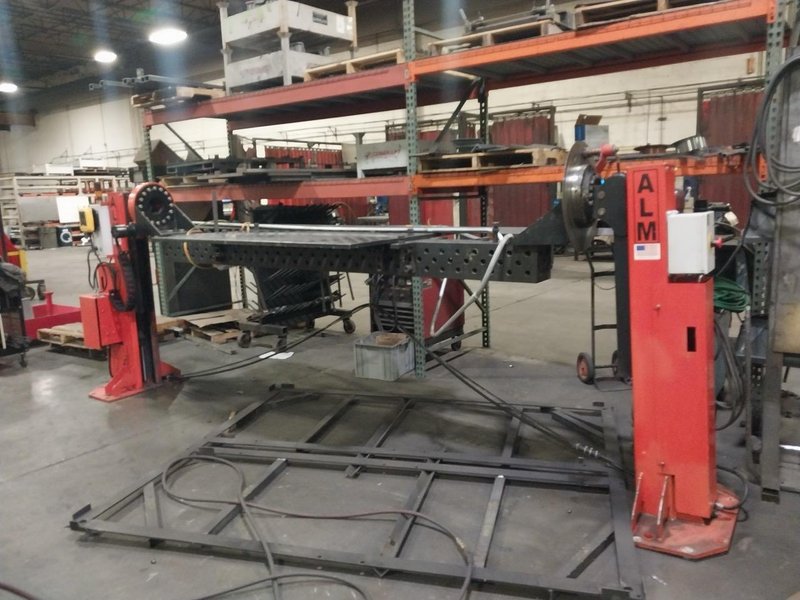

ALM ML2P Welding Positioner, 2008 – 5,000 LB Capacity, Headstock/Tailstock

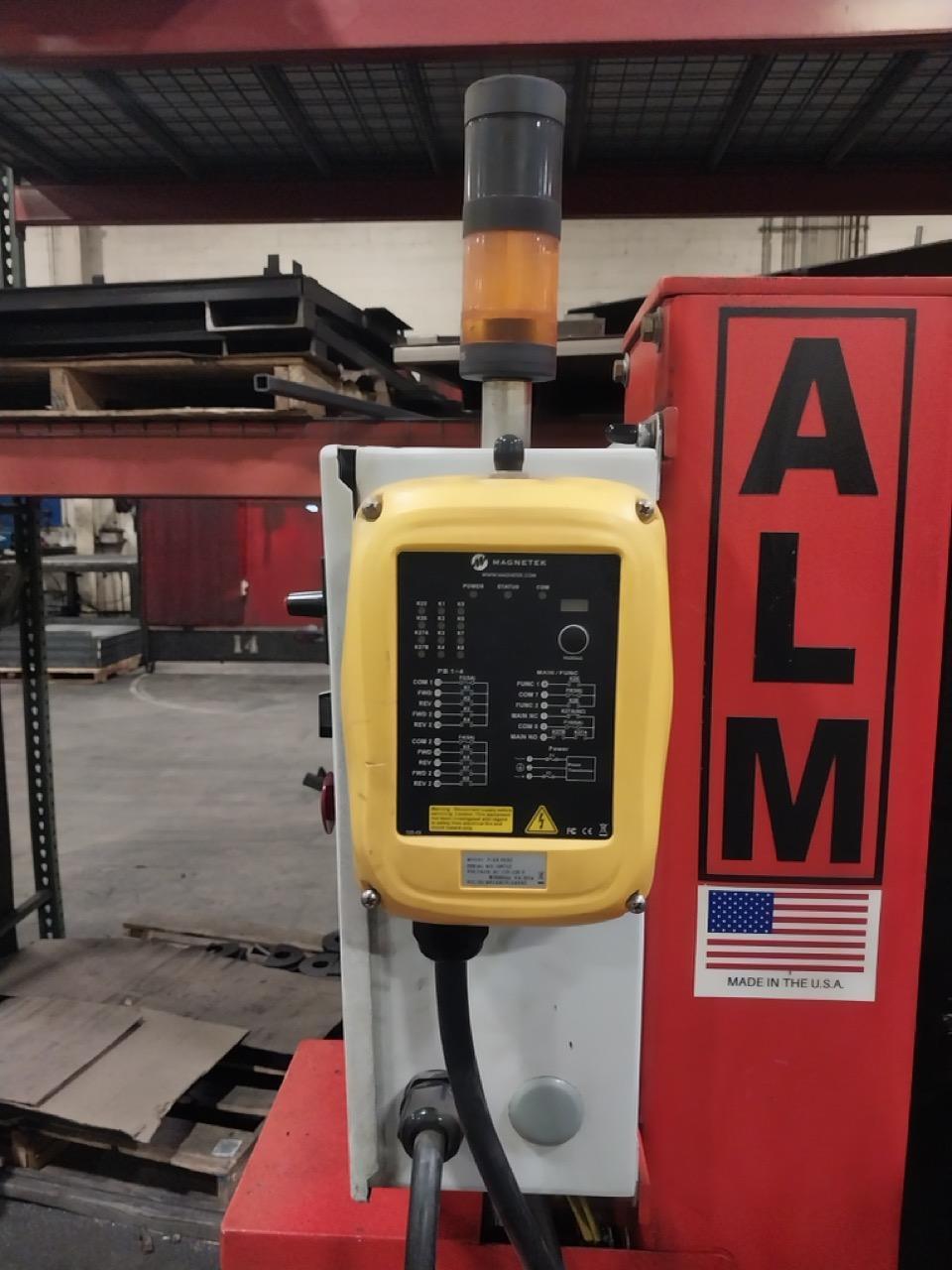

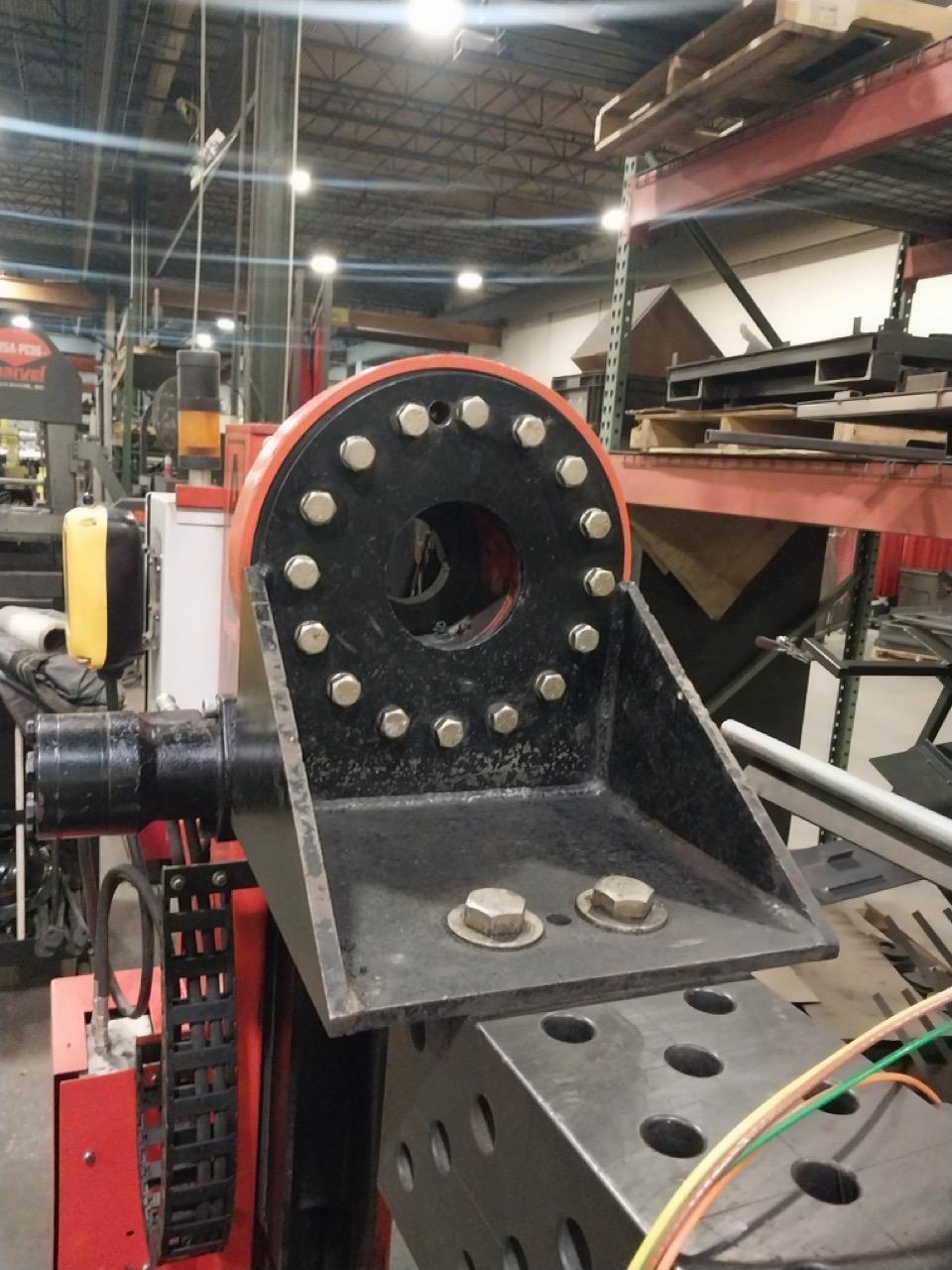

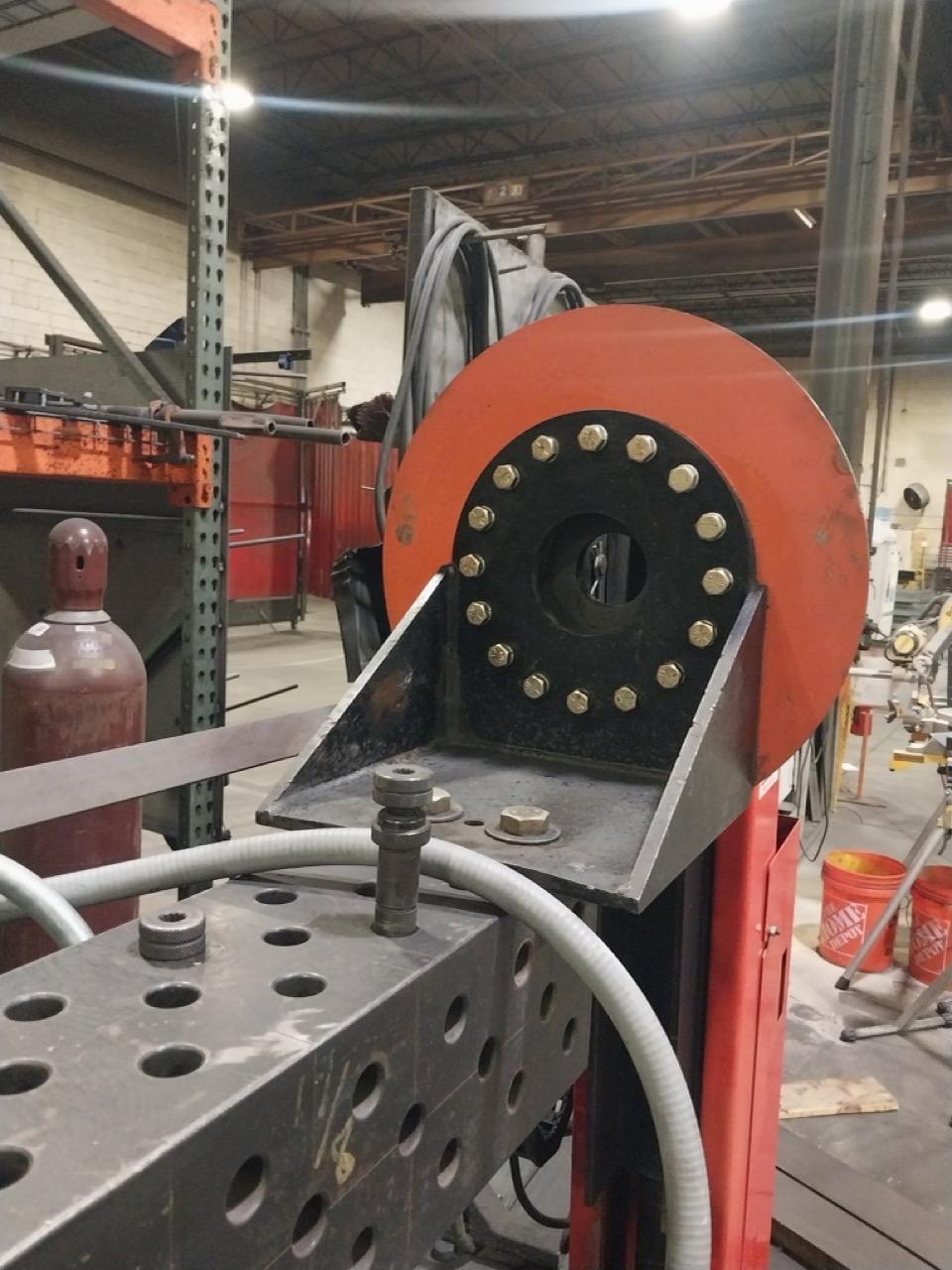

Configuration: MHL2P Fixed Headstock / Fixed Tailstock Control: Pendant controlled Safety: Solenoid-controlled safety pawls Vertical travel: 24″ – starting centerline height 36″ Rotator: 9″ powered rotator, 42,000 in-lbs rotational torque Rotation: 360° CW or CCW at 1.0 RPM Mounting: Selectable fixed or pivot mounting face Electrical: 480 V, three-phase Ground: 400 amp rotary ground Custom addition: 118″ × 8″ backbone (803 lbs) Mounting brackets: Fixture table with cart

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,New remote control Owner’s manuals (system operation, maintenance, troubleshooting, installation, final assembly drawings)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
