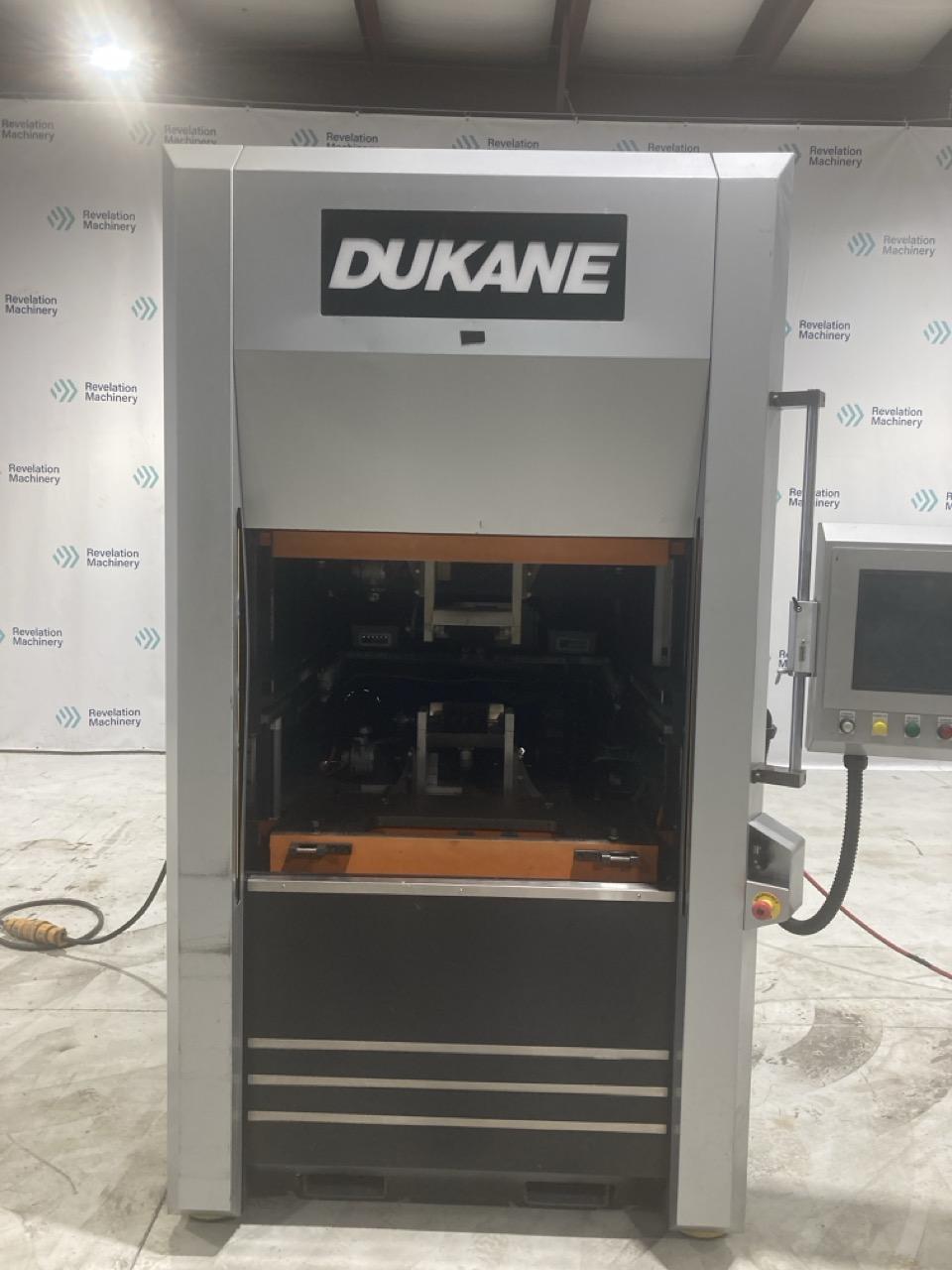

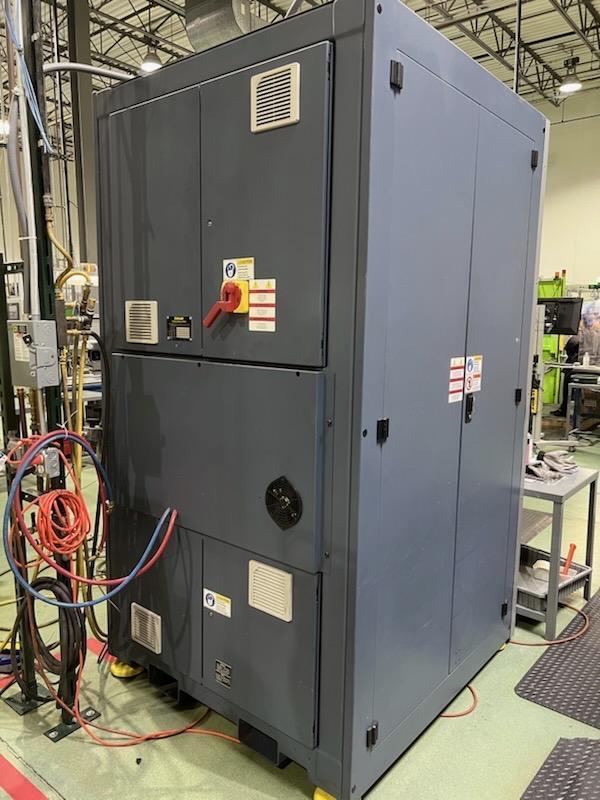

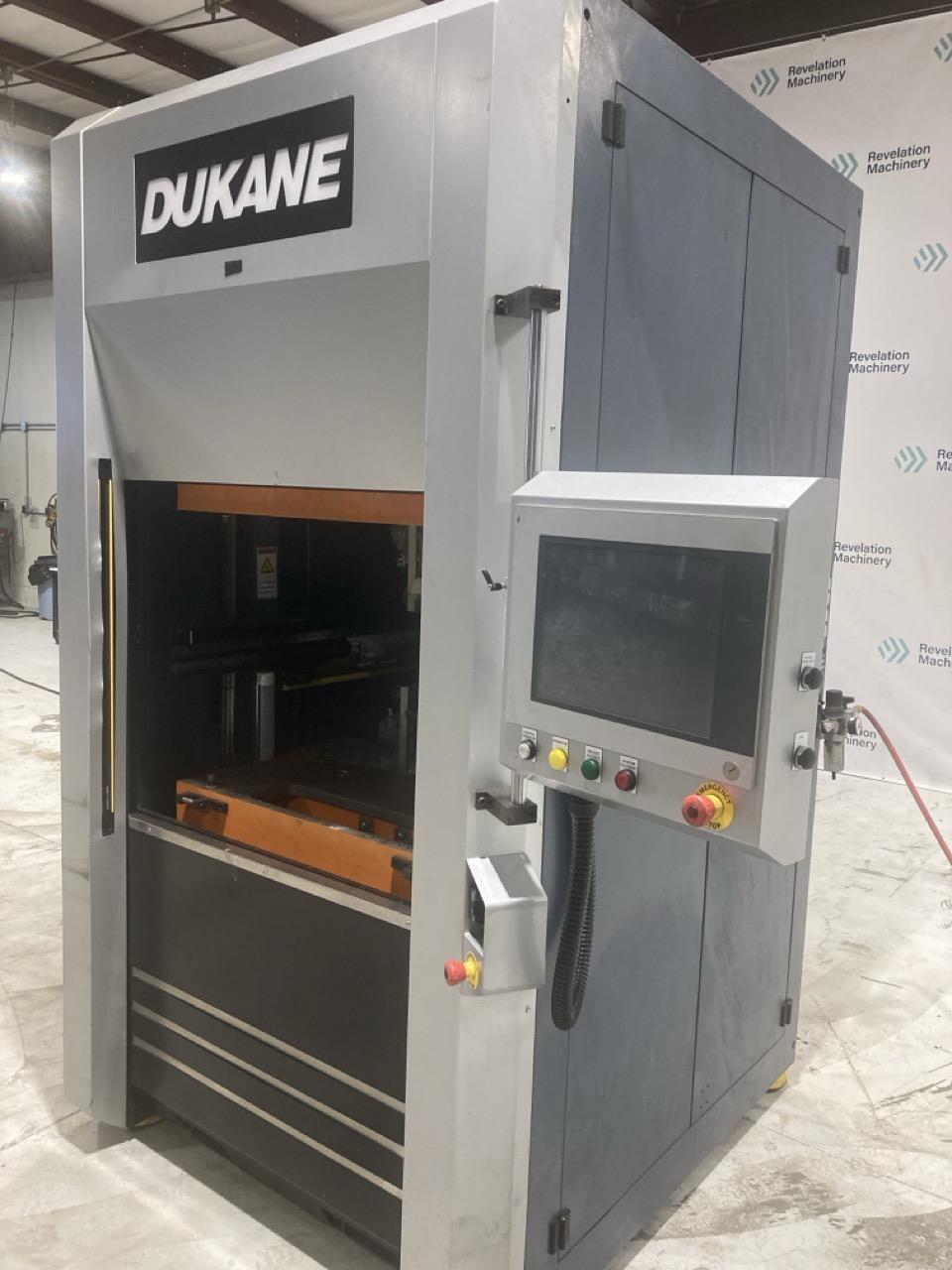

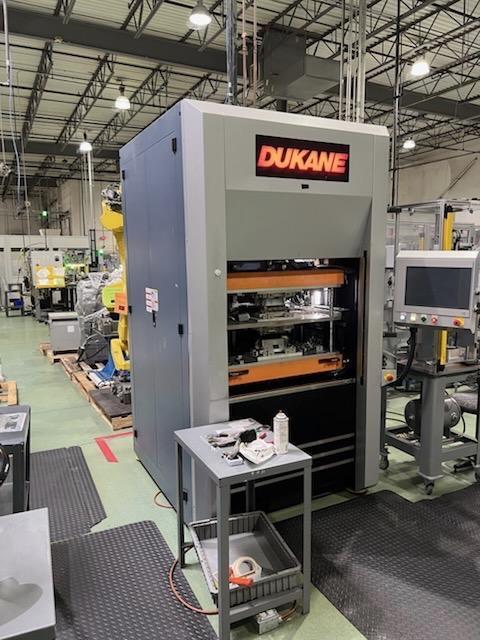

Dukane TH3 HHPW1432S Thermal Hybrid Welding System, 2021 – Hot Plate, Hot Gas & Infrared Plastic Welder

2021 Dukane TH3 HHPW1432S thermal hybrid welding system designed for precision plastic assembly, offering fast changeover between hot plate, hot gas, and infrared welding processes for flexible thermoplastic production.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Manufacturer: Dukane Model: TH3 Configuration / ID: HHPW1432S Year: 2021 Machine Type: Thermal Hybrid Plastic Welding System Welding Processes: Hot Plate, Hot Gas, Infrared Primary Application: Precision welding of thermoplastic components Platform Advantage: One system configurable for three welding methods with quick changeover between tools and components Tooling / Setup Features: Auto-Teach and Automatic Tool ID for recipe recall and reduced setup time Motion / Control: Servo-controlled upper tool, lower tool, and heater platen for precision and repeatability Heater / Process Control: 12-zone heater phase-angle IR or hot plate control; unique software with phase angle control and PID loop control Heater Capacity: Up to 24 kW Available Platen Sizes on TH3 Platform: 12″ x 12″ up to 20″ x 40″, with custom sizes available from the manufacturer Loading Access: Front, back, and side loading of parts Infrared Process Notes: Custom contoured quartz short-wave emitters for wider part variability Hot Plate Process Notes: Supports multi-plane and contoured parts with multiple temperature zones for melt control Hot Gas Process Notes: Particle-free / oxidation-free welding approach intended for strong weld quality and reduced stress on parts

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
