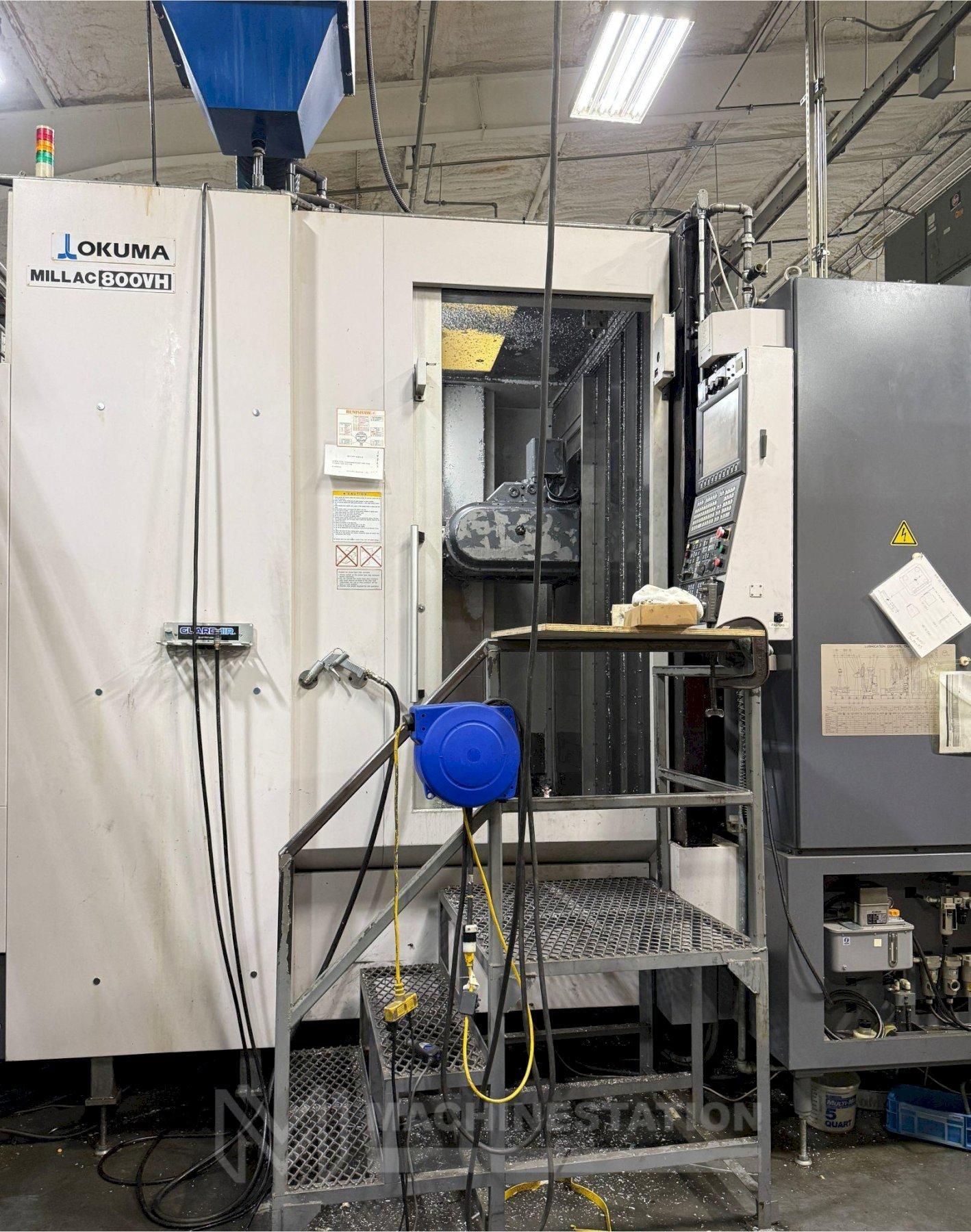

Name: Okuma Millac 800VH 5 Axis CNC Universal Machining Center – Pallet Changer Mill
Brand: OKUMA
SKU: 112923
Availability: PreOrder

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Okuma
Model:	Millac 800VH
Year:	2008
Condition:	Used – Good

Features:

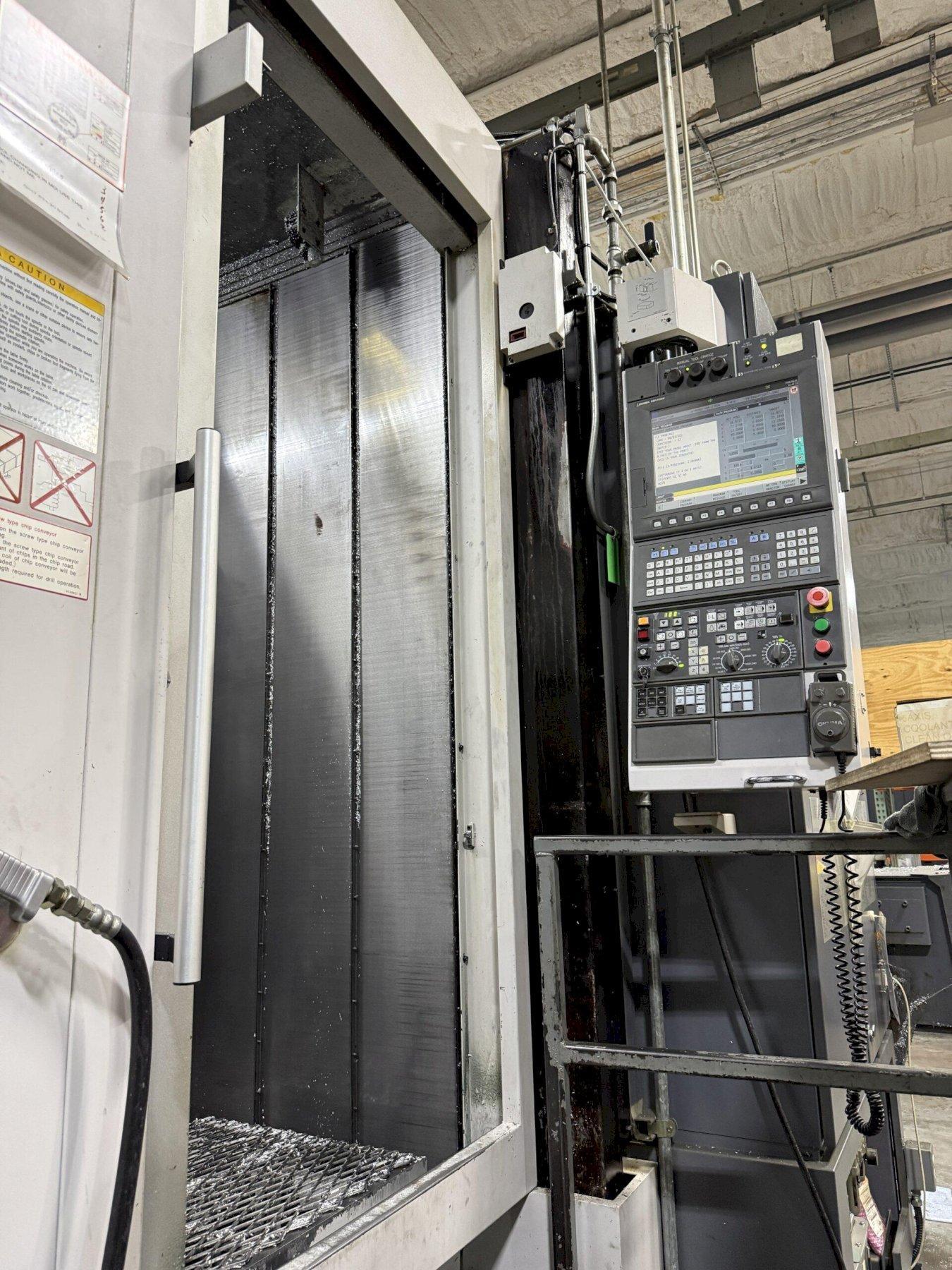

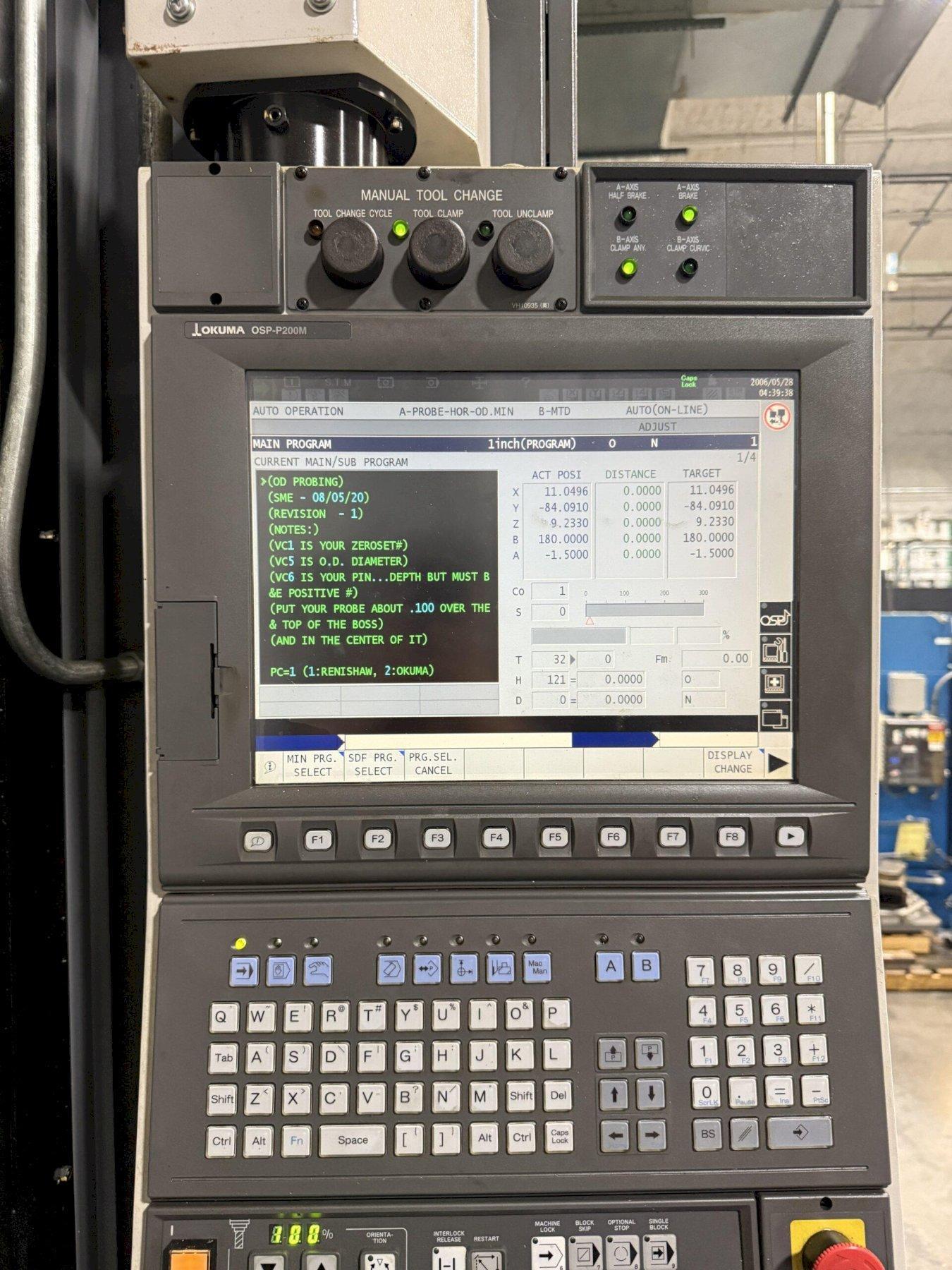

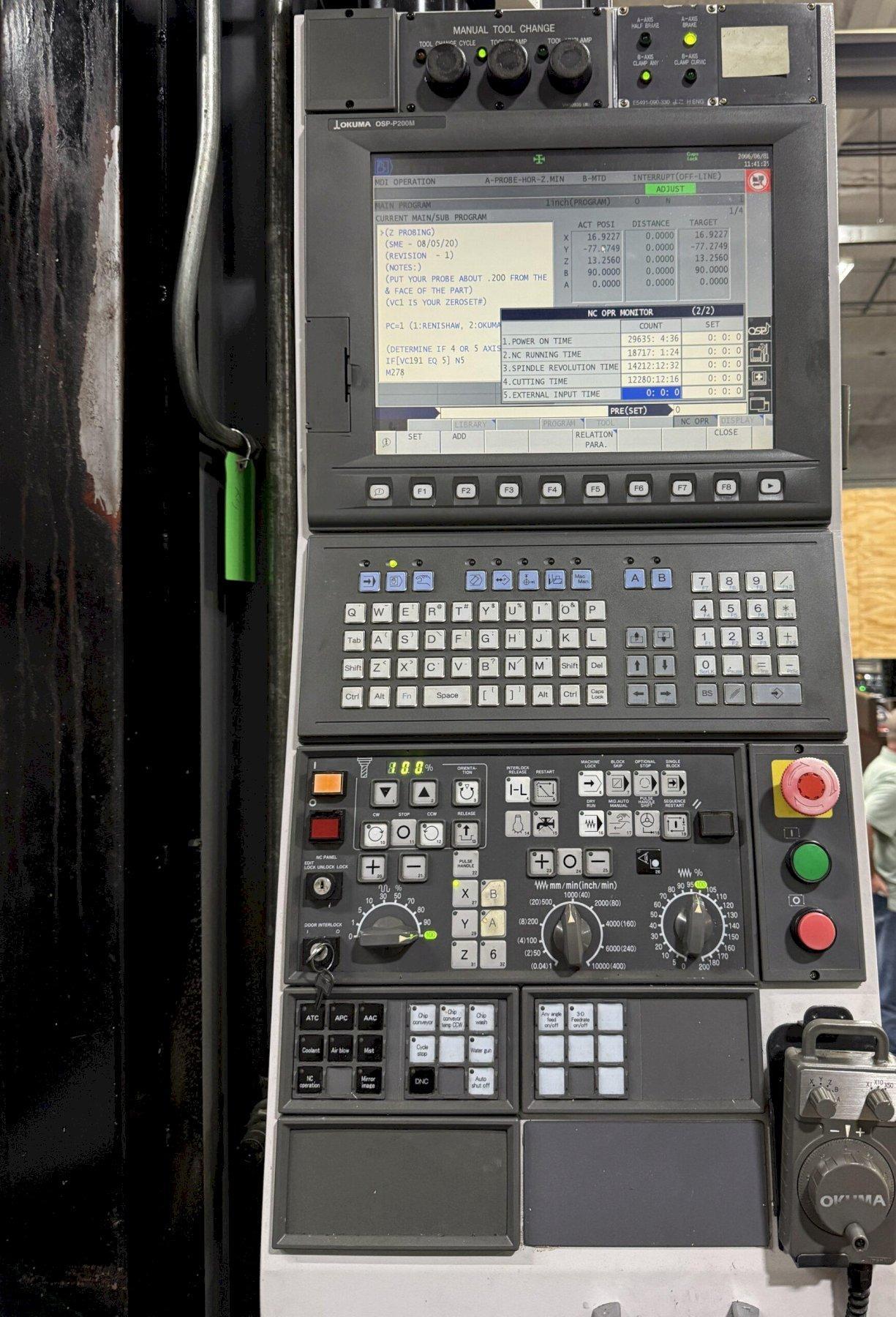

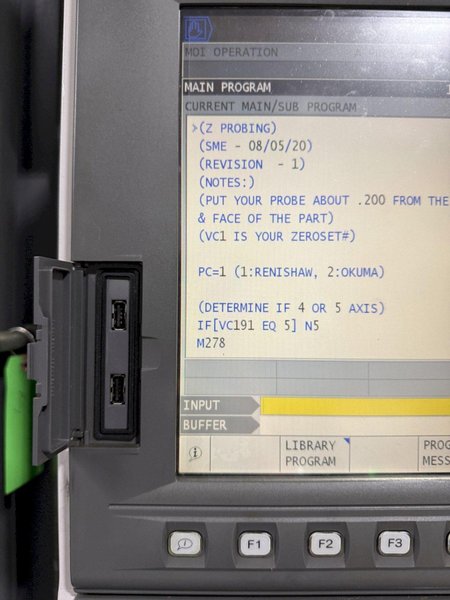

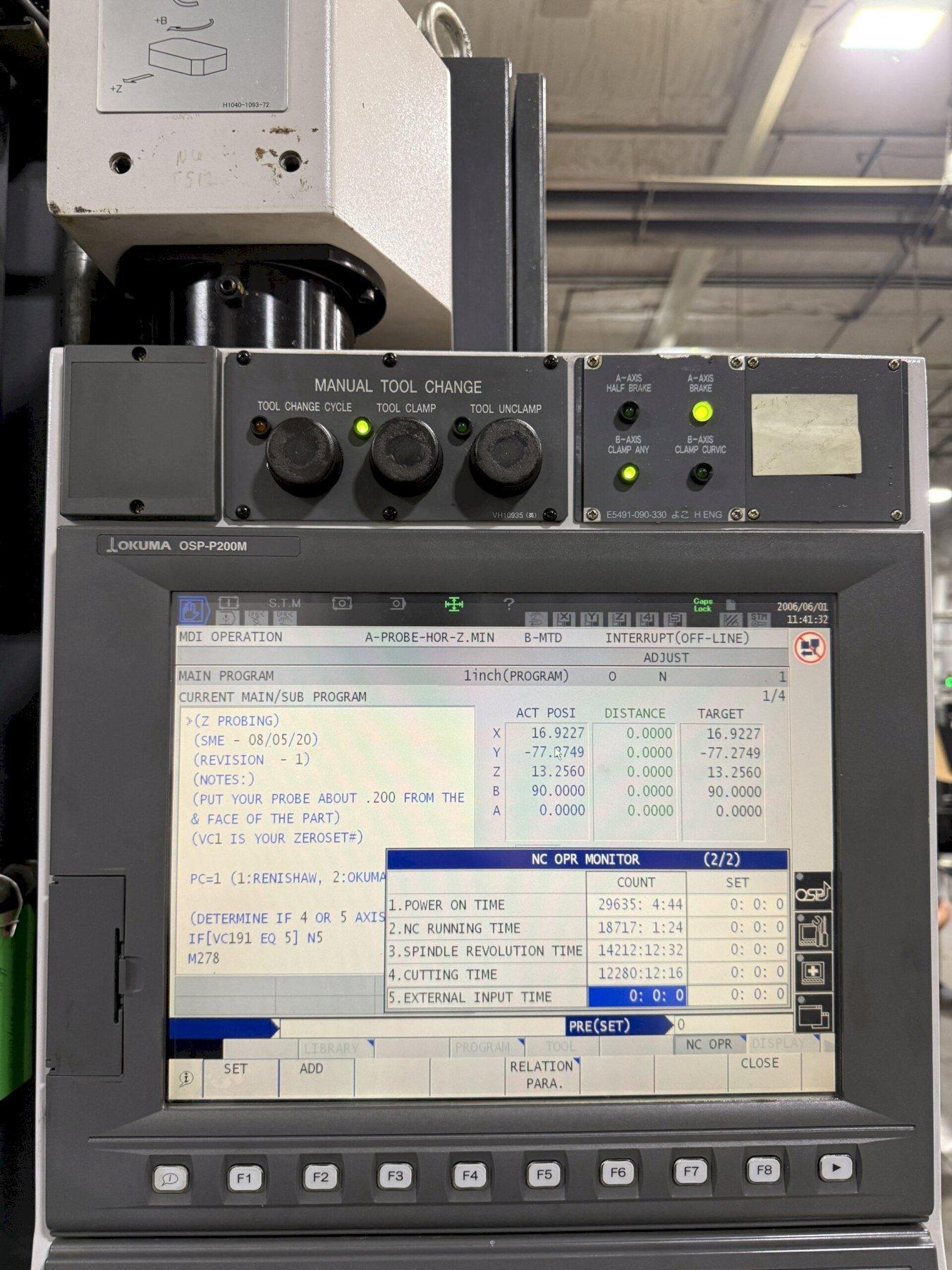

Okuma OSP-P200M CNC Control
Simultaneous 5-Axis Machining
Heavy-Duty Box Way Construction

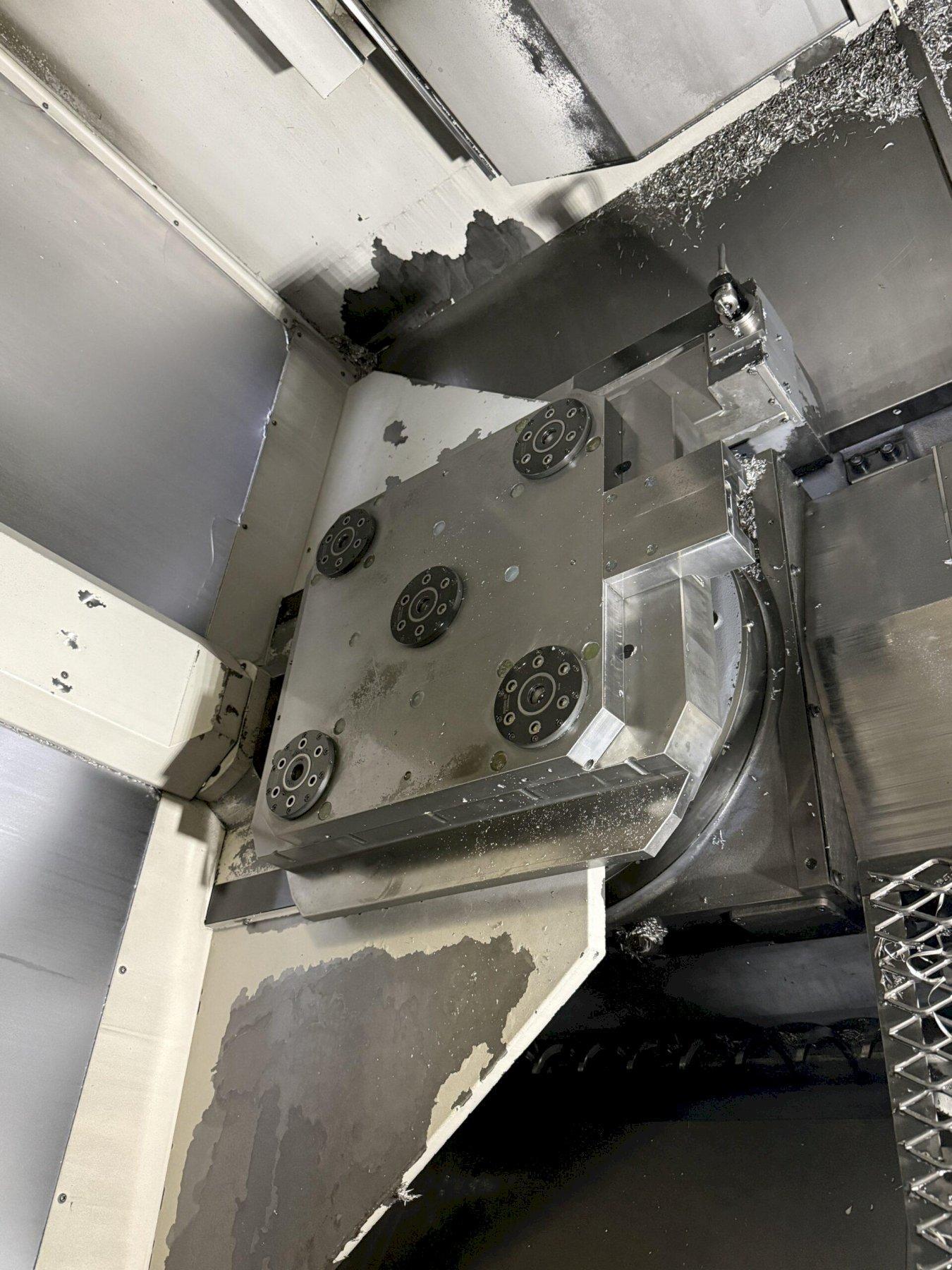

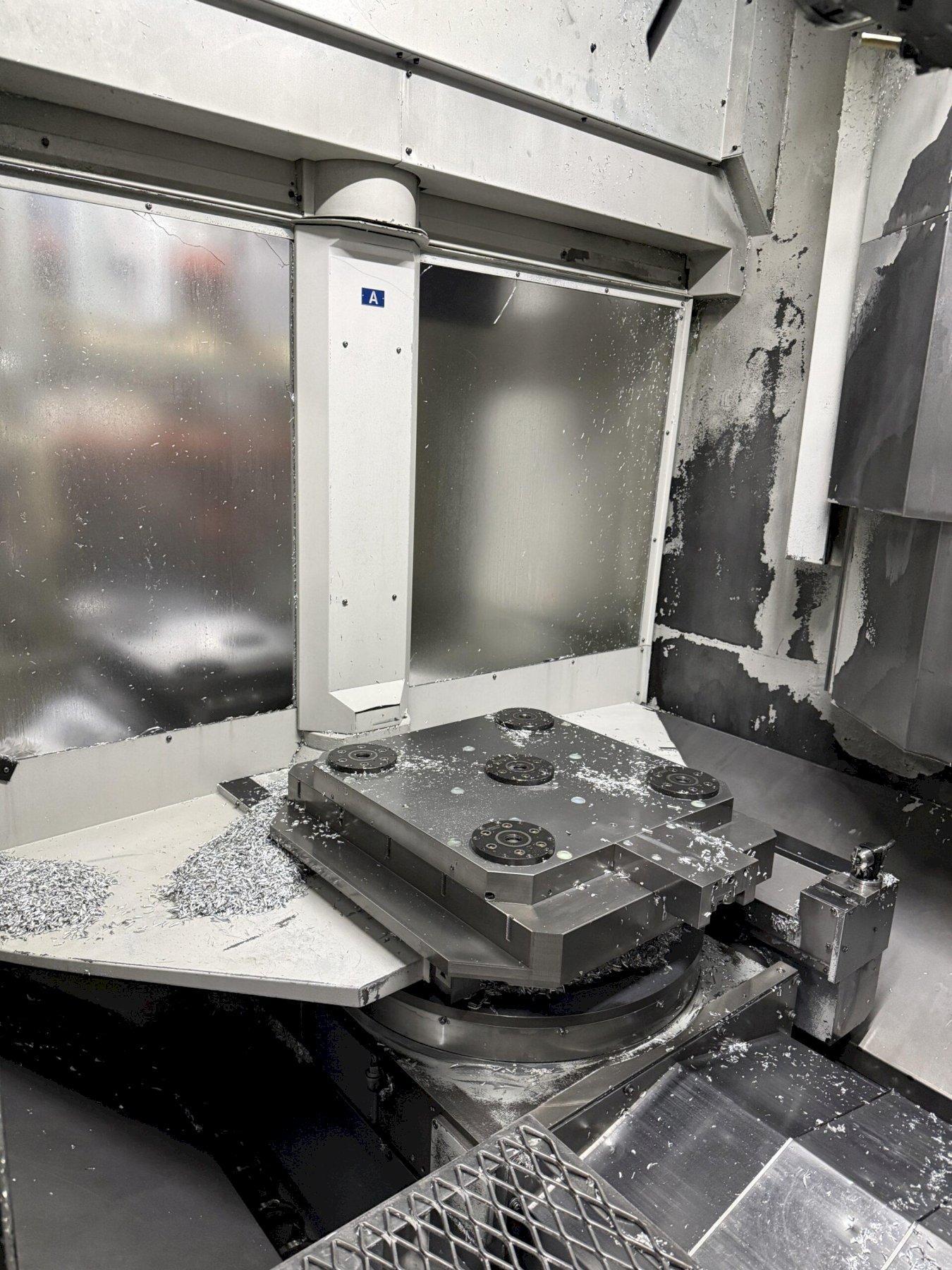

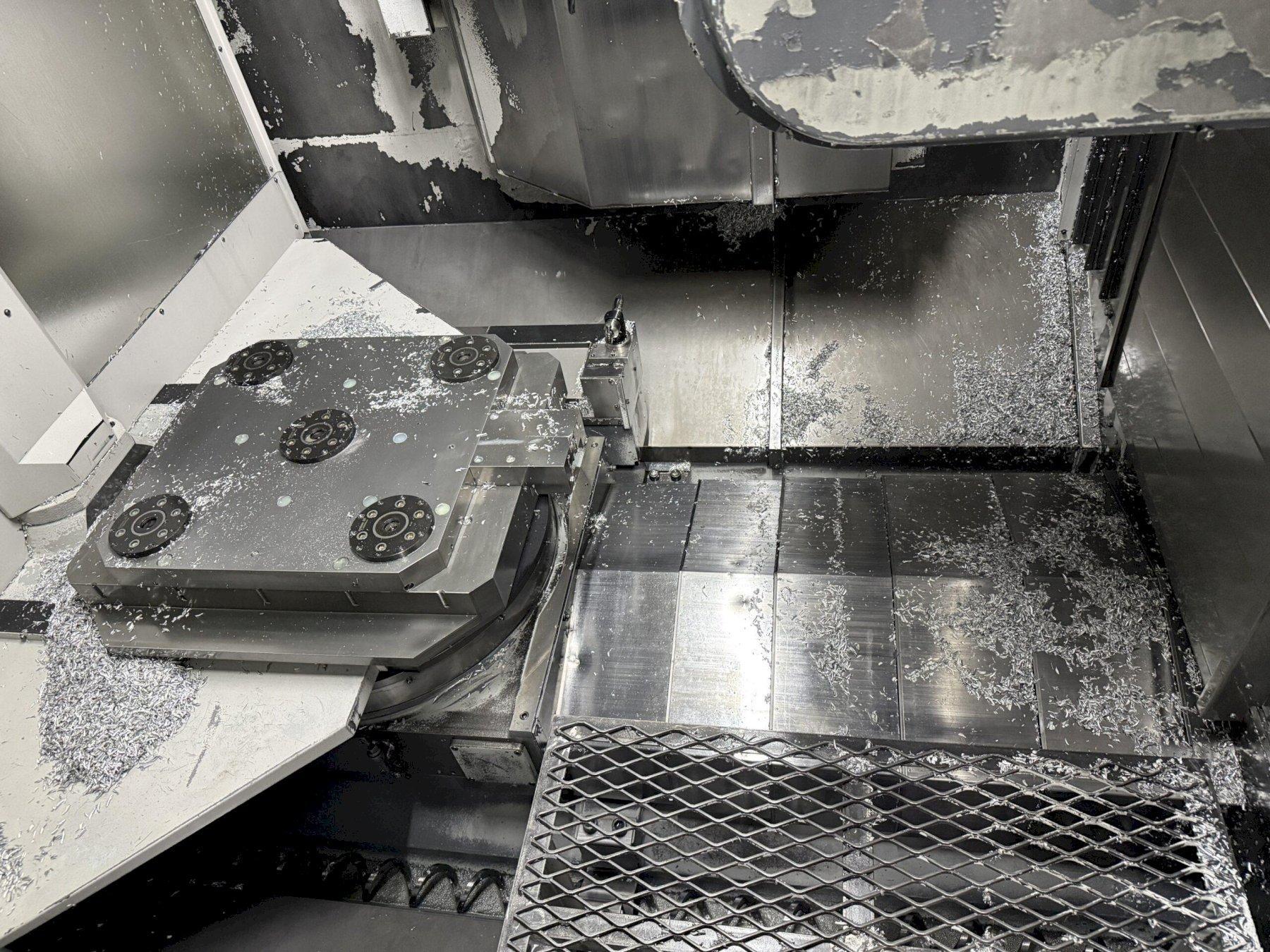

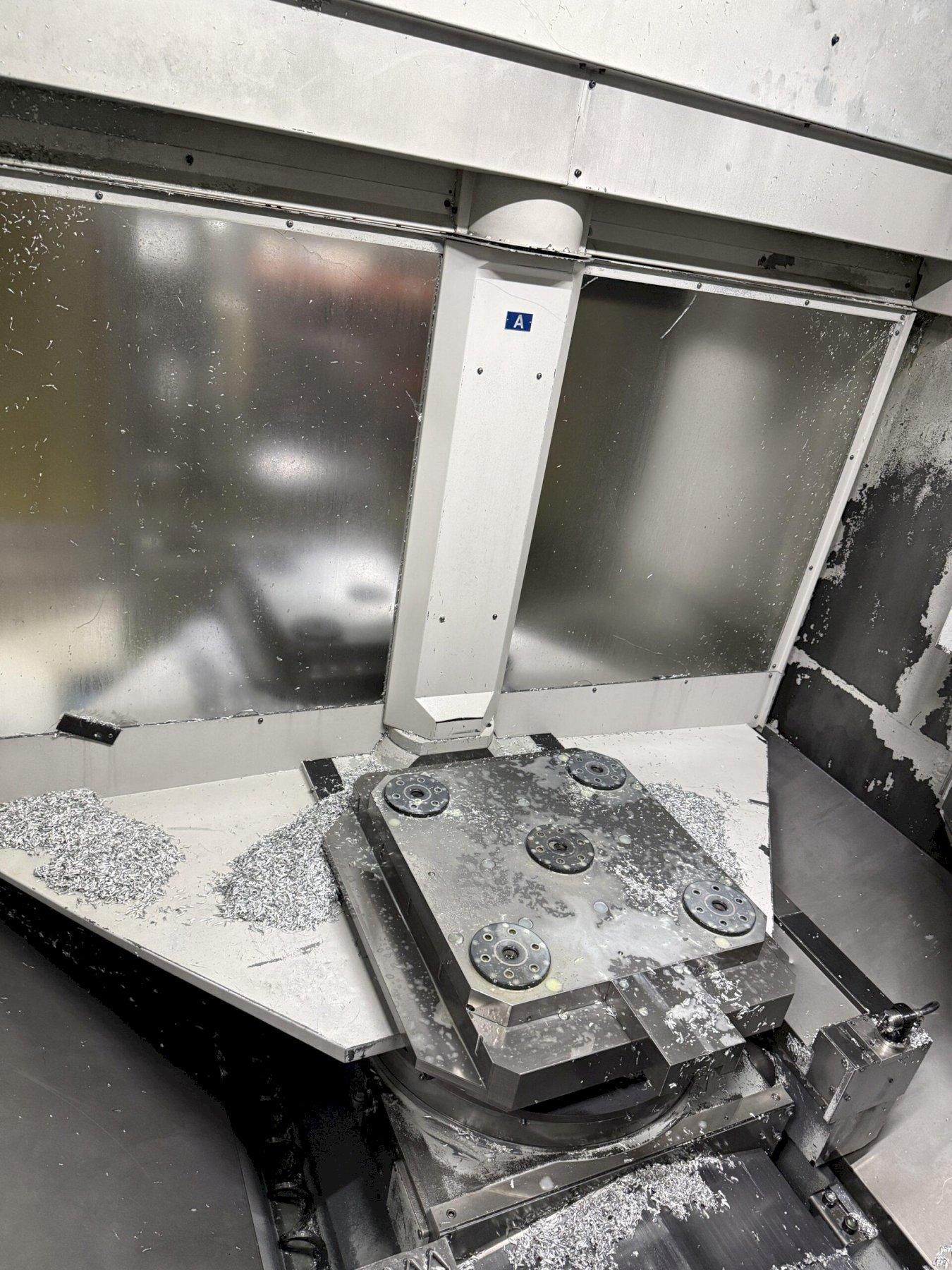

31.49″ × 31.49″ Rotary Pallet
Automatic 2-Pallet Changer

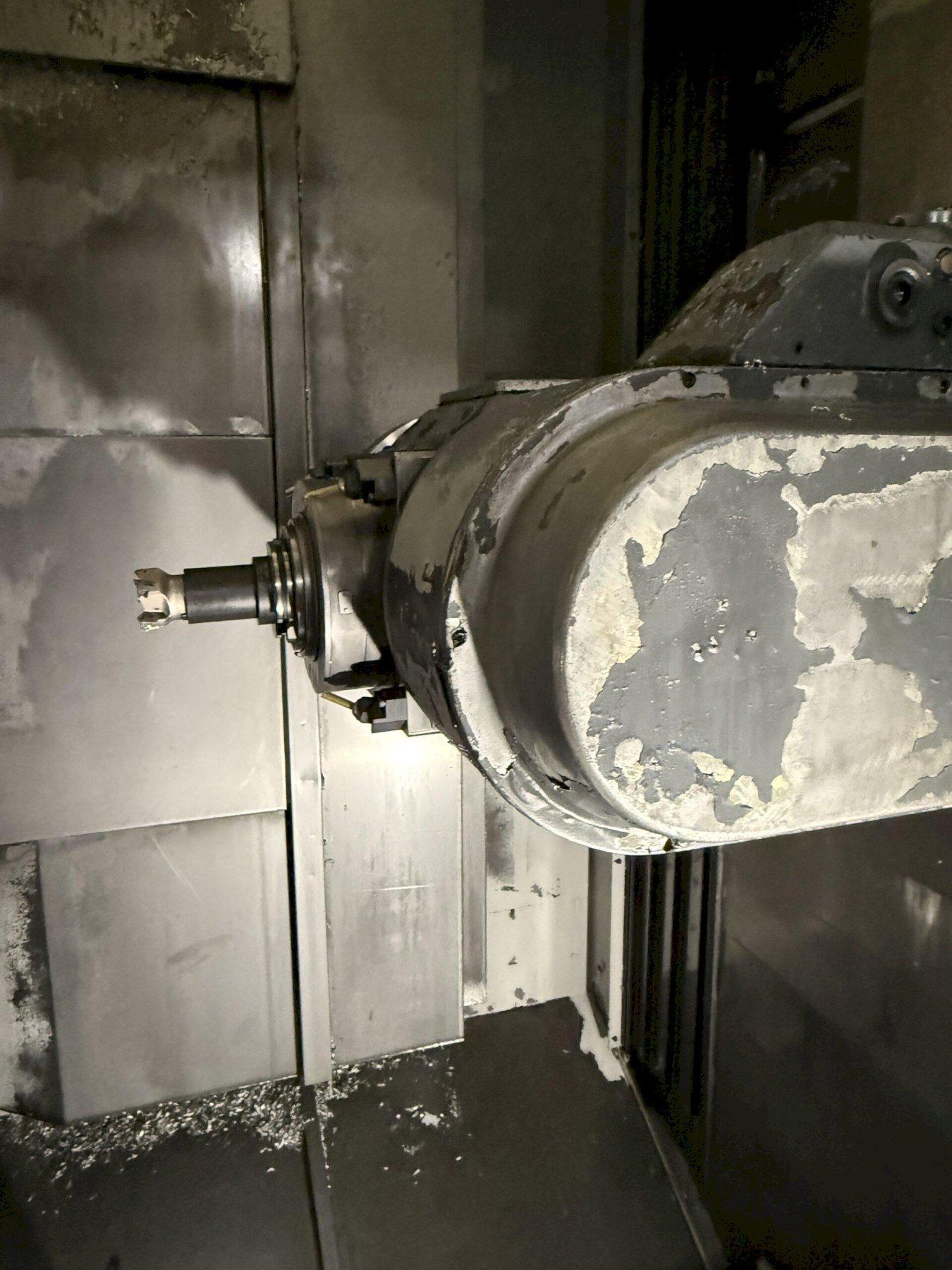

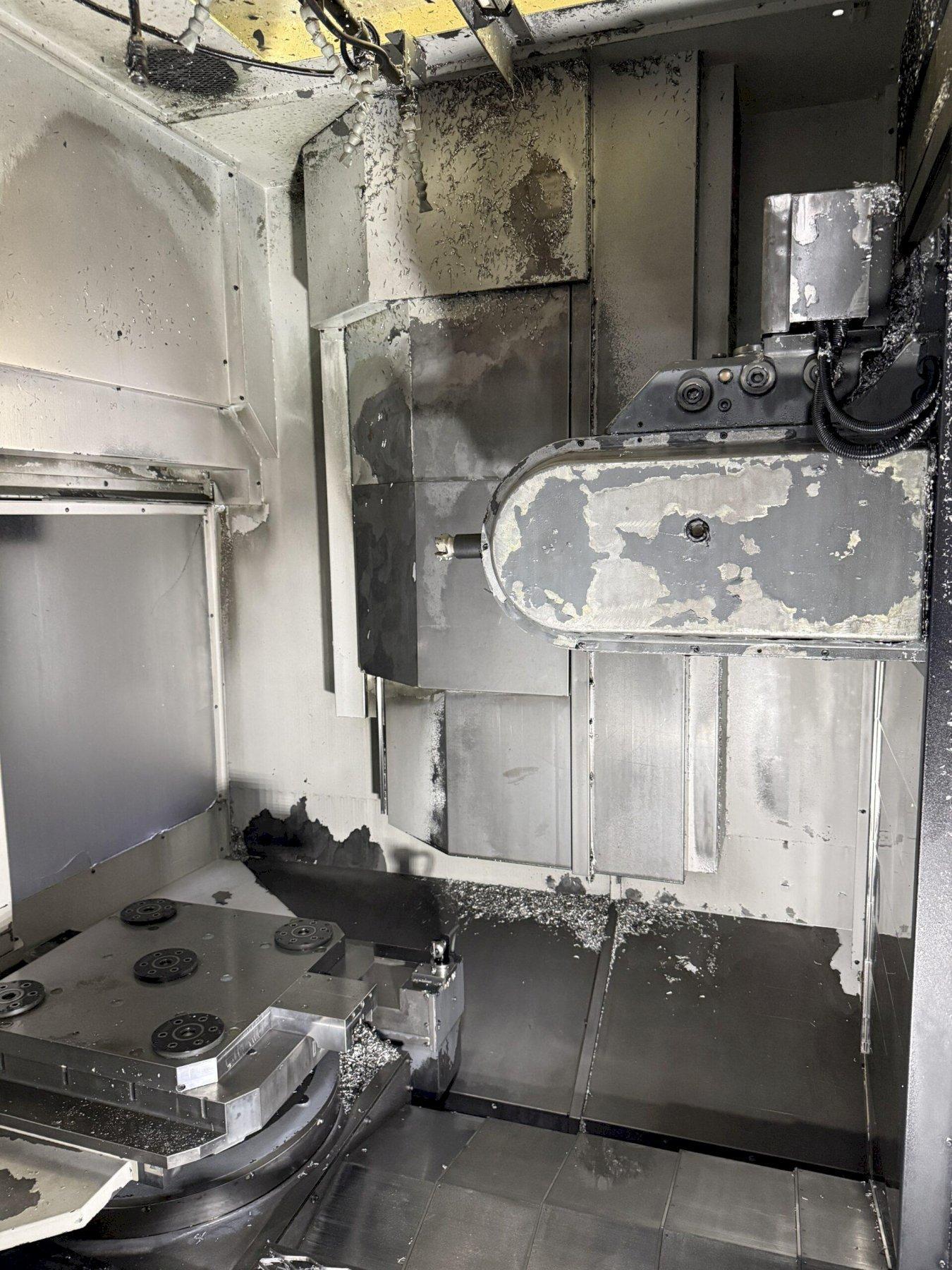

Swivel Spindle Head (A-Axis)
Full Rotary Table (C-Axis)
10,000 RPM Spindle
CAT-50 Taper Spindle
80 Station Automatic Tool Changer
Renishaw Probing System (Probe Included)
Tool Presetter
Through-Spindle Coolant Ready – 1000 psi (High Pressure Coolant Pump Needed)
Spindle Chiller Unit
65 KVA Transformer
Mist Collector
Coolant Filtration System
Chip Conveyor
Note: Machine was connected with centralized high pressure through spindle cooling systems, so machine is capable of 1000 psi. Would require a separate unit.
Note: Fixtures and chuck on the pallet are not included With the Machine

Travels:
X-Axis Travel: 40.16″
Y-Axis Travel: 40.16″
Z-Axis Travel: 40.16″
A-Axis Swivel Range: –100° to +150°
C-Axis Rotation: 360°
Rapid Traverse (X/Y/Z): 1,181 Inches Per Minute
Cutting Feedrate (X/Y/Z): 472 Inches Per Minute

Table:
Table Size (Pallet): 31.49″ × 31.49″
Maximum Table Load: 2,200 lbs
Maximum Workpiece Diameter: 48.43″
Indexing: 0.001°
Number of Pallets: 2

Spindle:
Spindle Speed: 10,000 RPM
Spindle Taper: CAT-50
Spindle Motor Power: 30 HP
A-Axis Swivel Range: –100° to +150°
C-Axis Rotation Range: 360°

Automatic Tool Changer:
Tool Capacity: 80 Tools
Max Tool Diameter (Adjacent Tools): 4.92″
Max Tool Diameter (No Adjacent Tools): 7.87″
Max Tool Length: 15.74″
Max Tool Weight: 44 lbs
Tool-to-Tool Time: 4.5 Seconds
