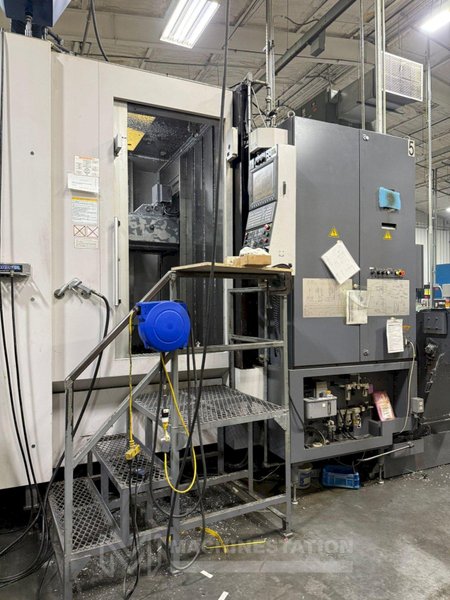

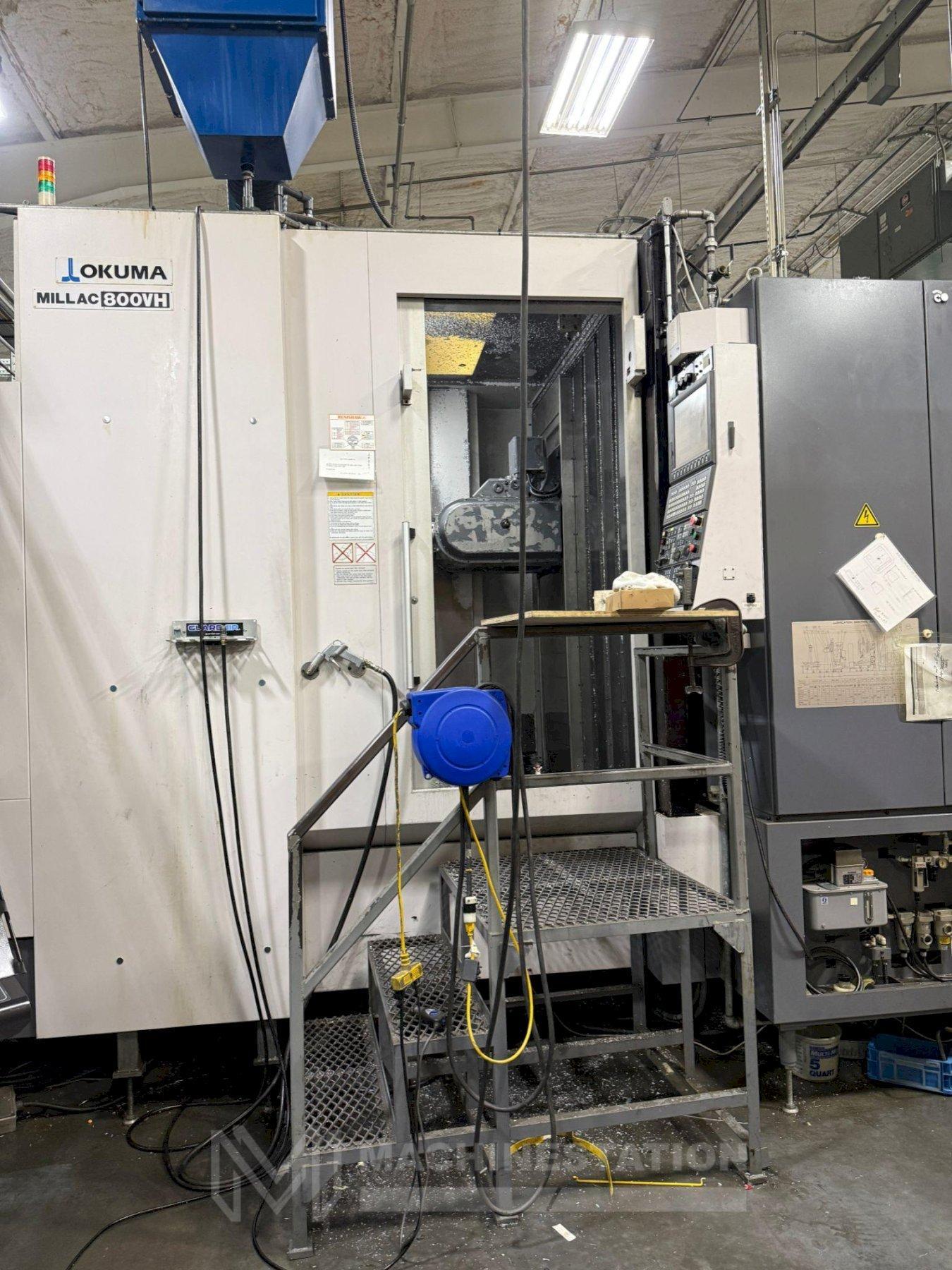

Okuma Millac 800VH 5 Axis CNC Universal Machining Center – Pallet Changer Mill

Okuma Millac 800VH 5 Axis CNC Universal Machining Center – Pallet Changer Mill

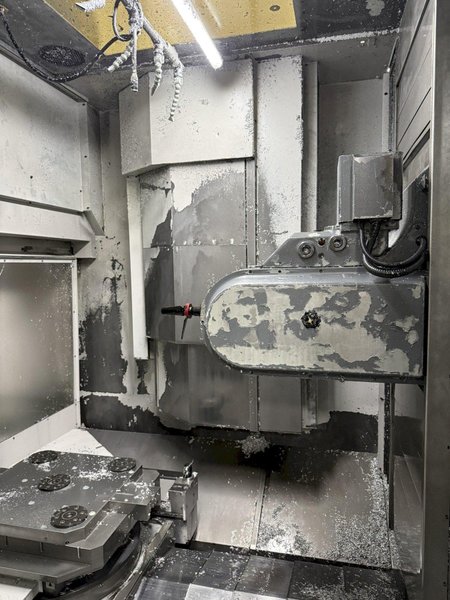

Name: Okuma Millac 800VH 5 Axis CNC Universal Machining Center – Pallet Changer Mill
Brand: OKUMA
SKU: 112924
Availability: PreOrder

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	Millac 800VH
Year:	2007
Condition:	Used – Good

Features:

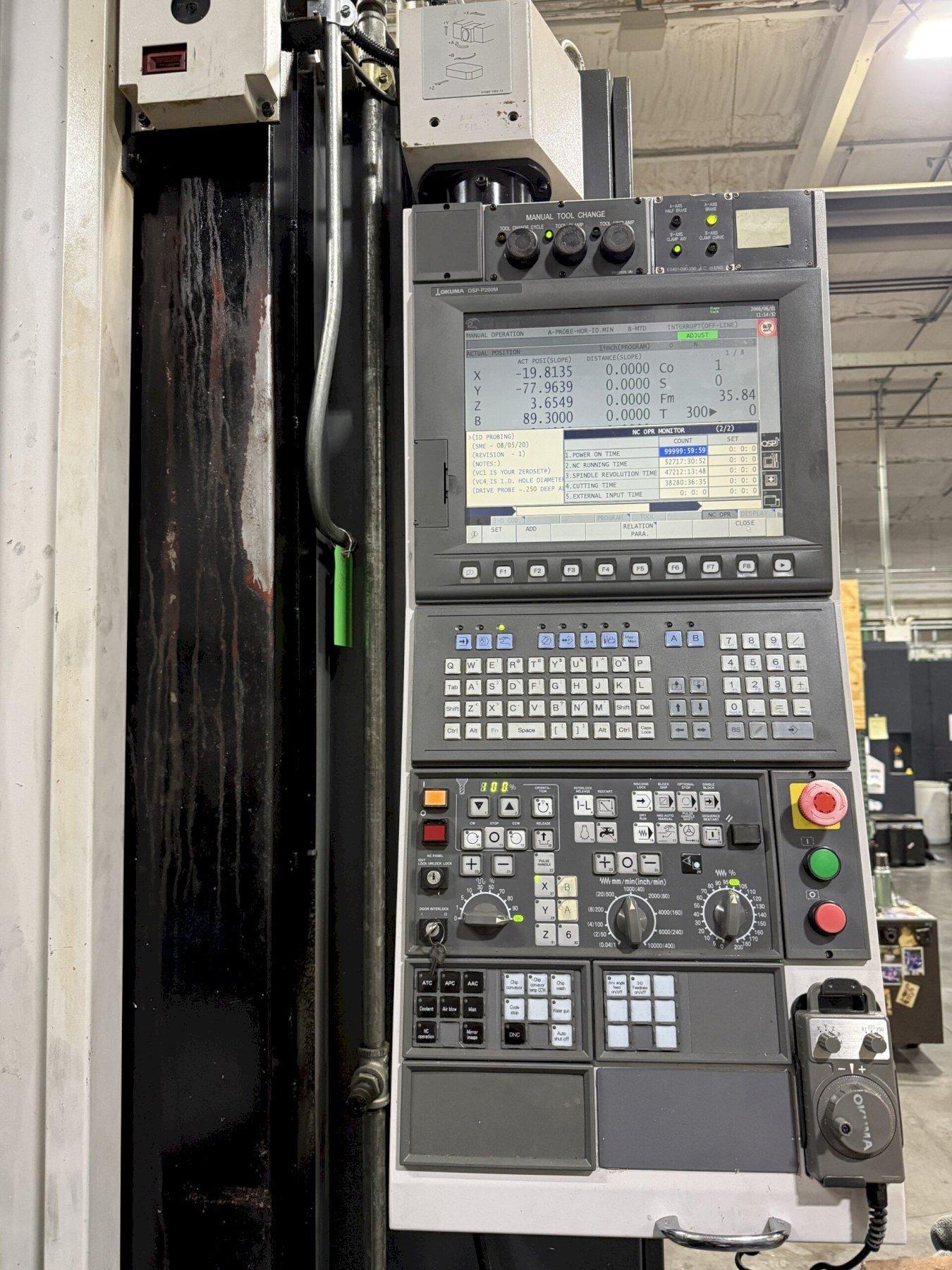

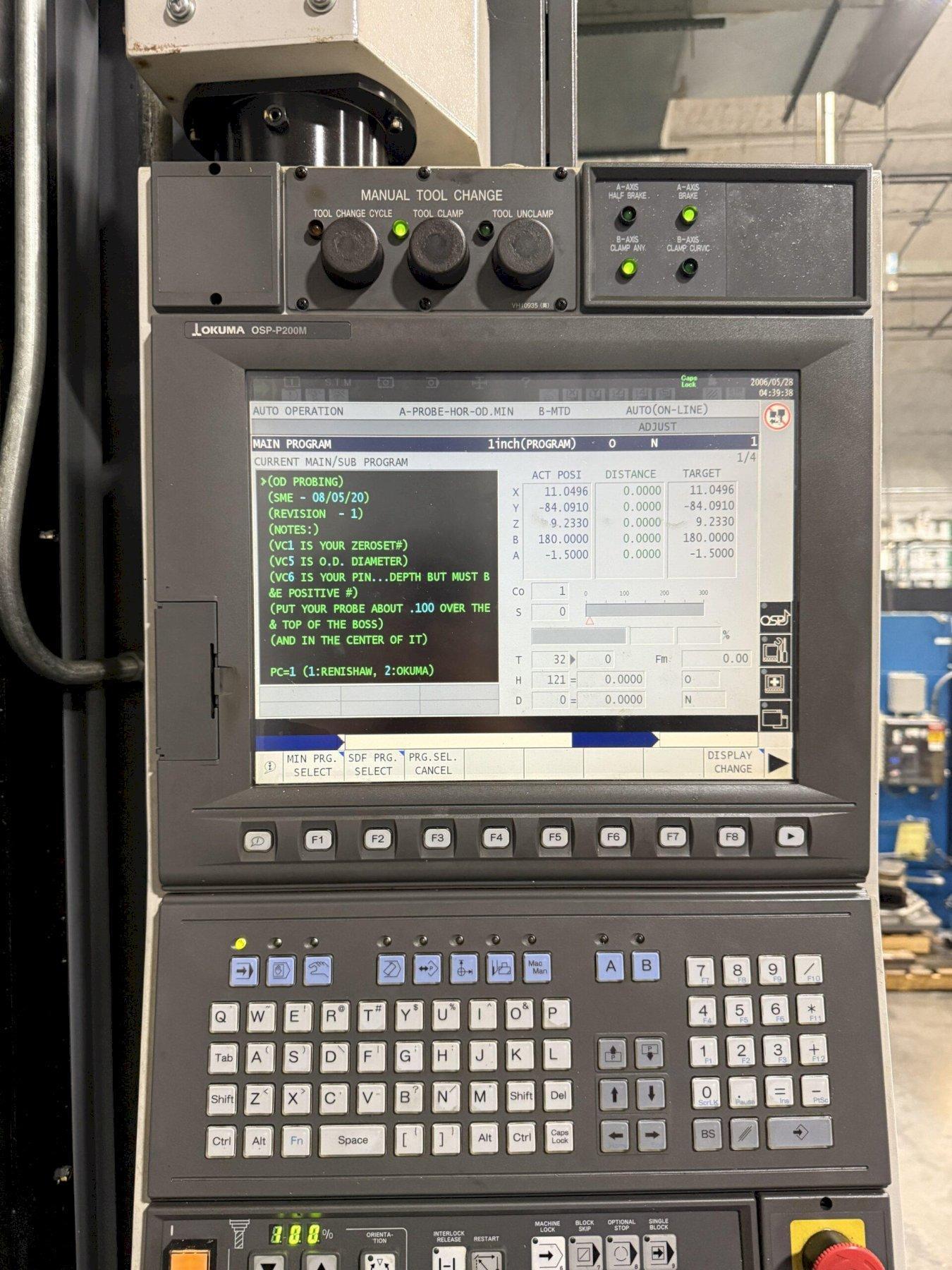

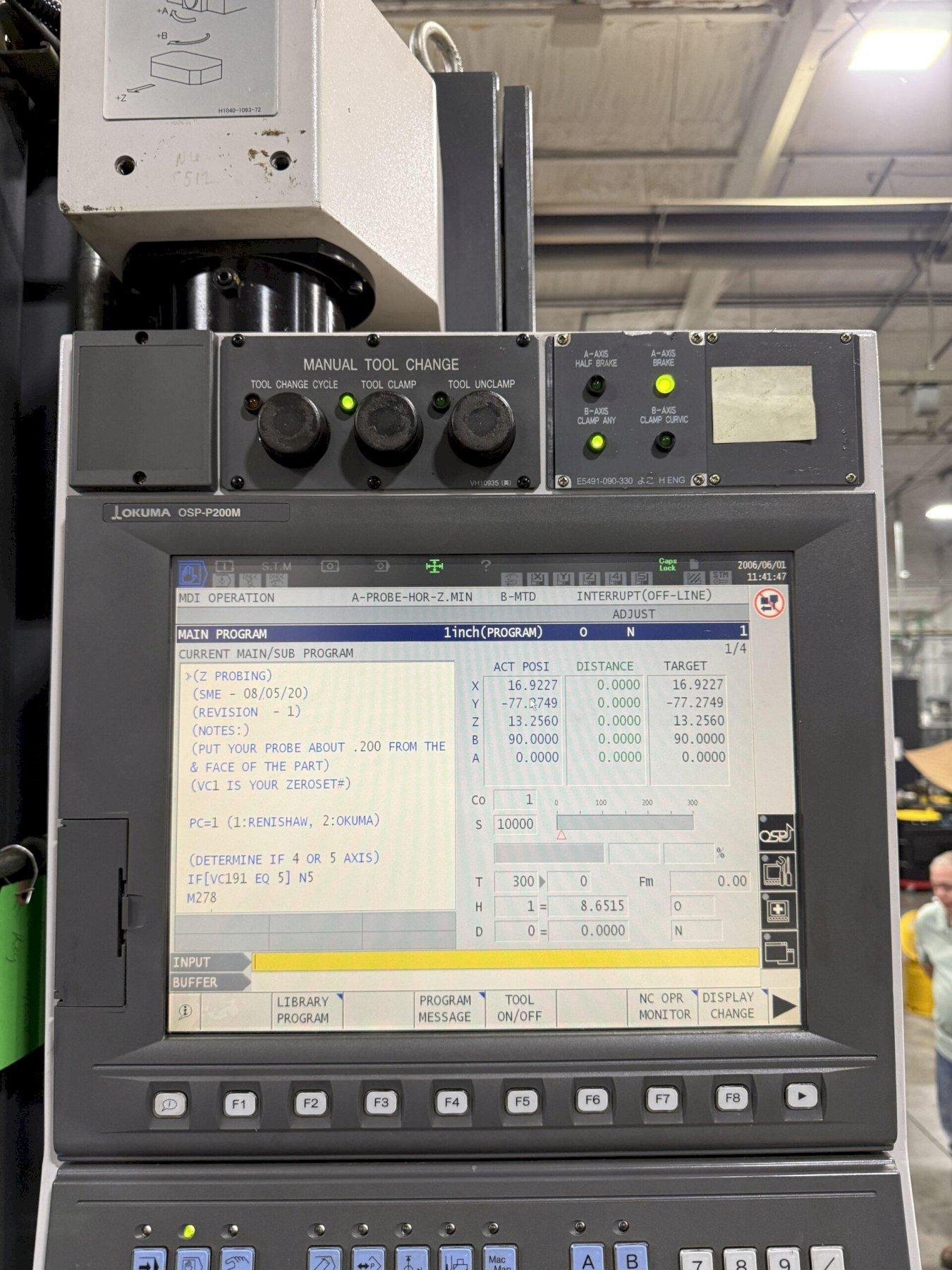

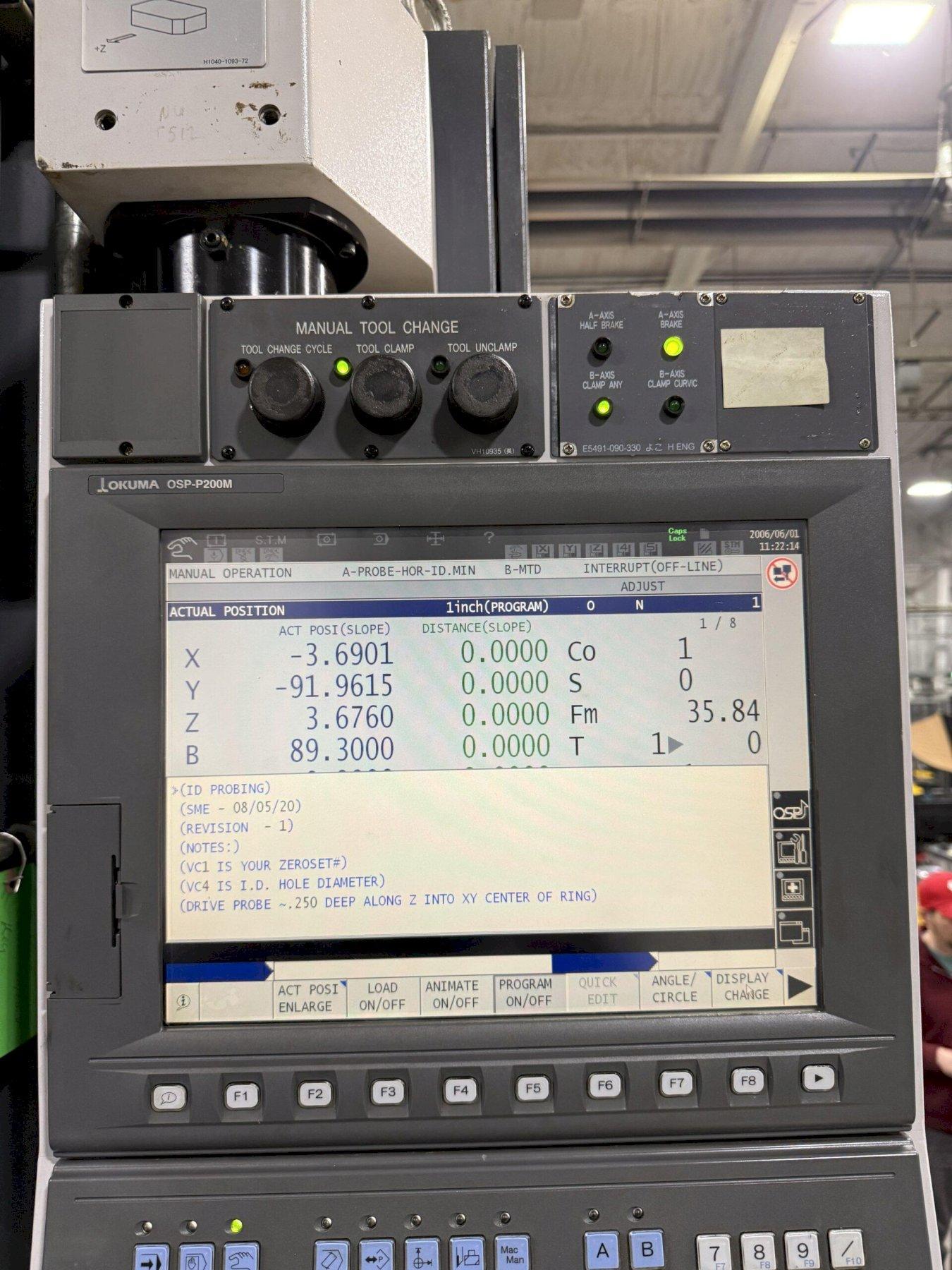

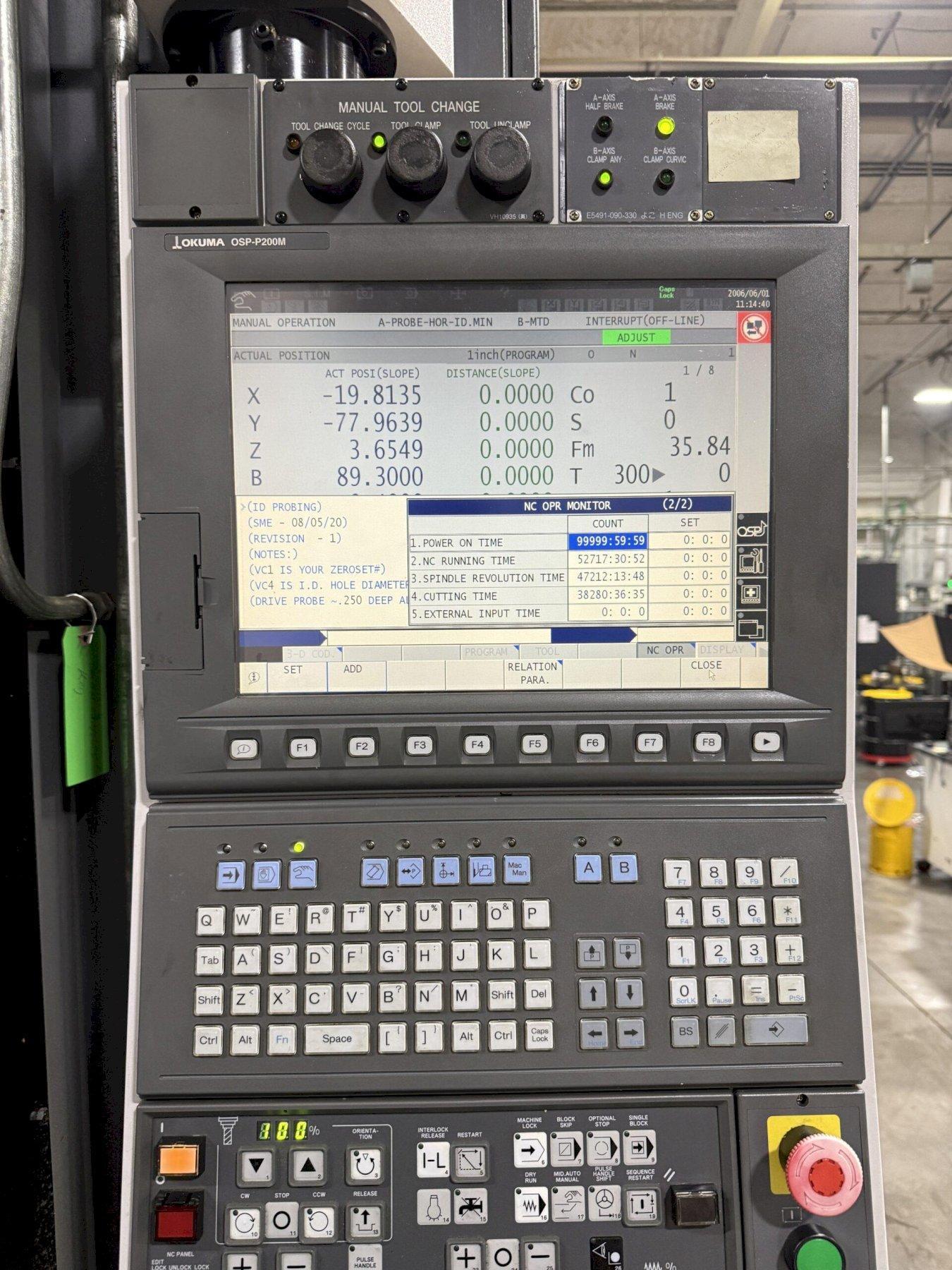

Okuma OSP-P200M CNC Control
Simultaneous 5-Axis Machining
Heavy-Duty Box Way Construction

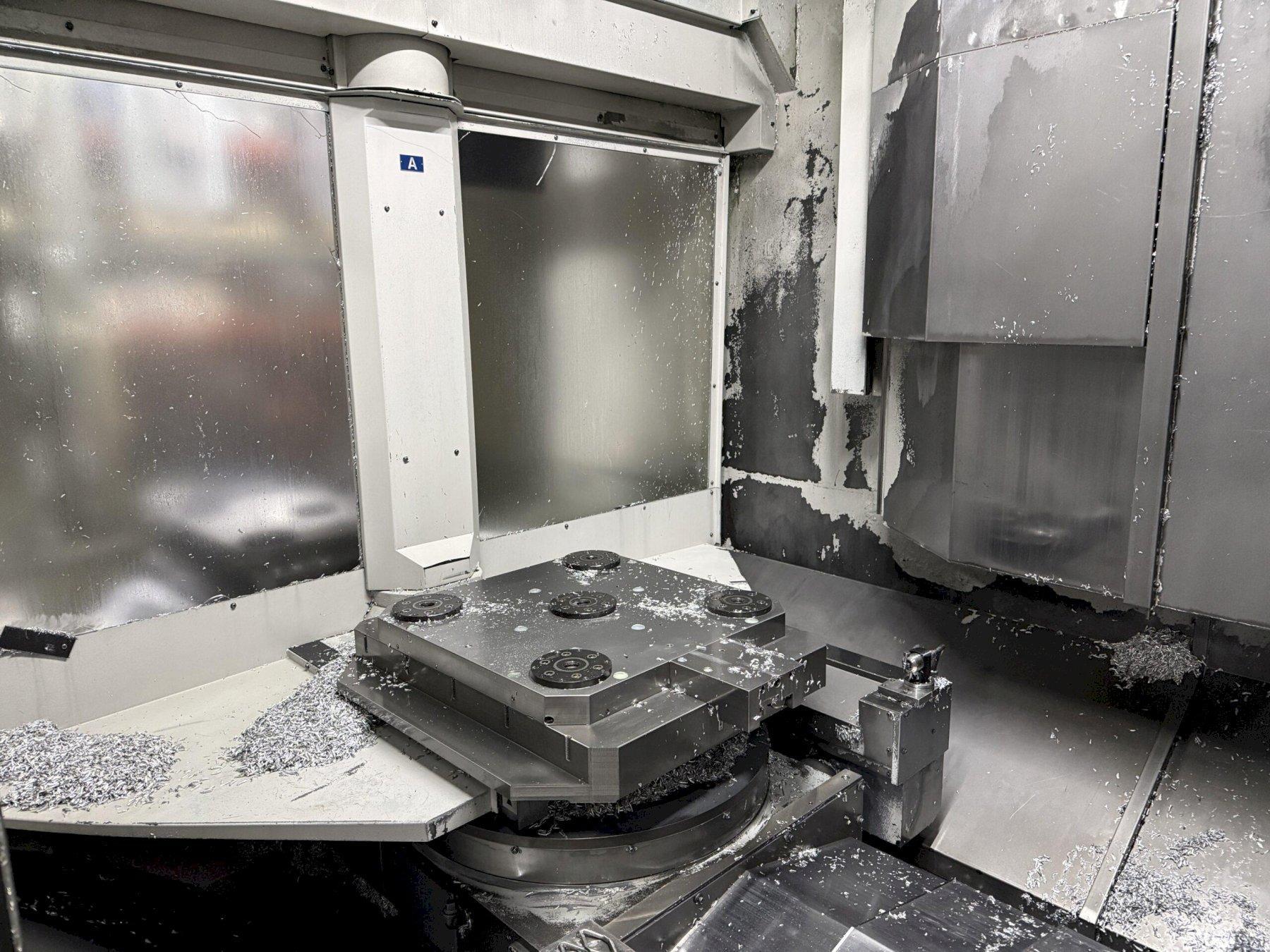

31.49″ × 31.49″ Rotary Pallet

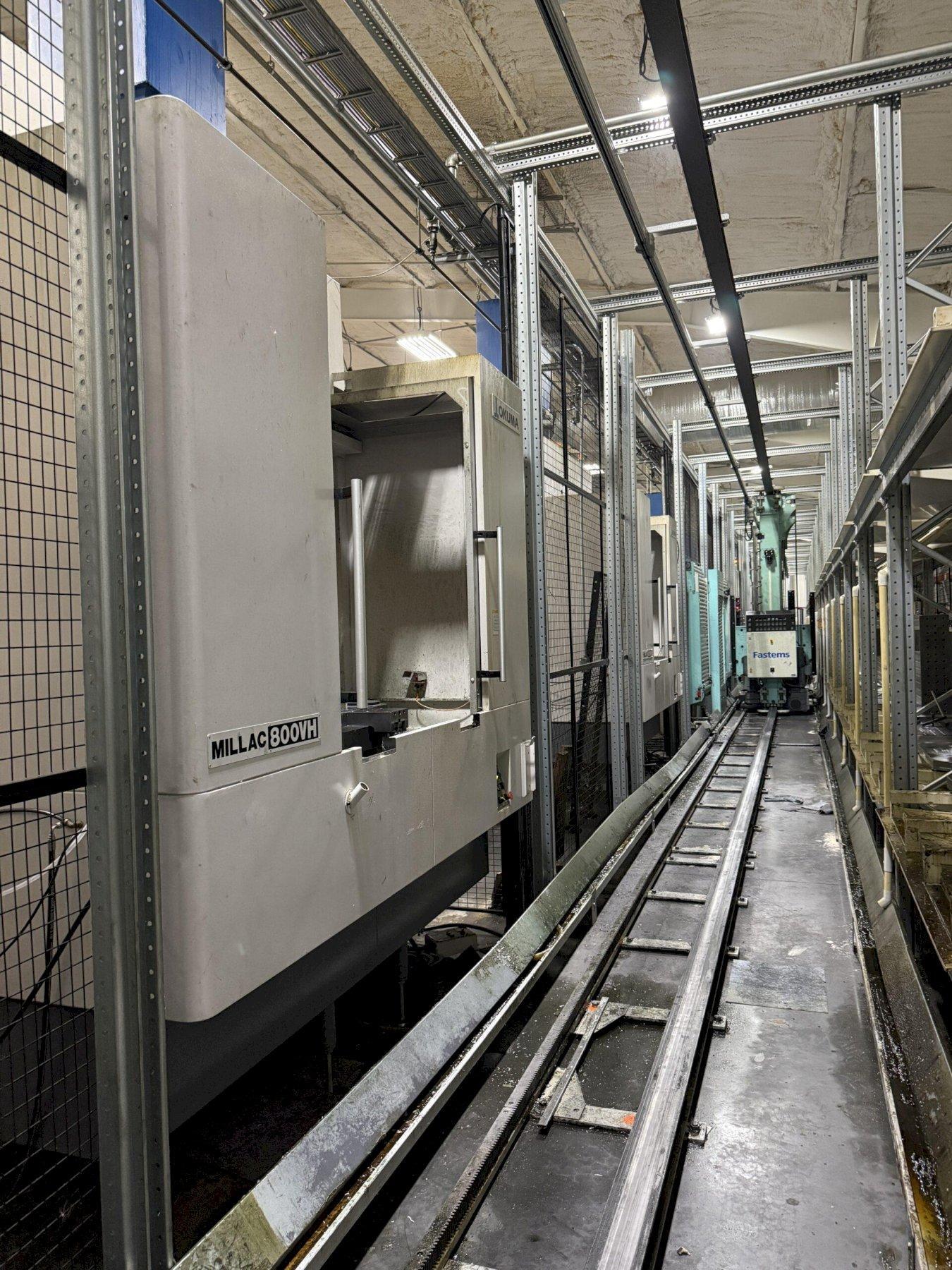

Automatic 2-Pallet Changer

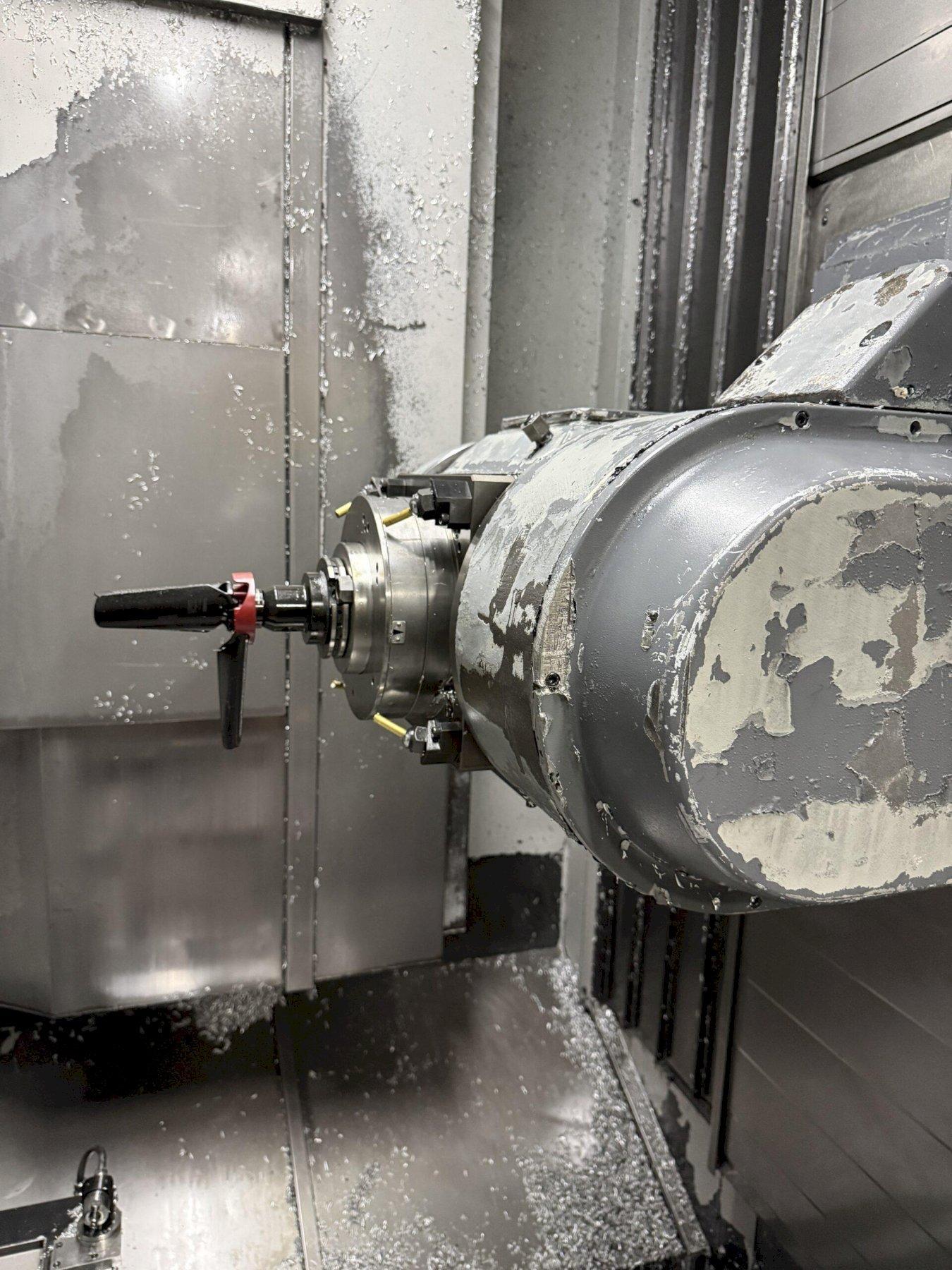

Swivel Spindle Head (A-Axis)
Full Rotary Table (C-Axis)
10,000 RPM Spindle
CAT-50 Taper Spindle

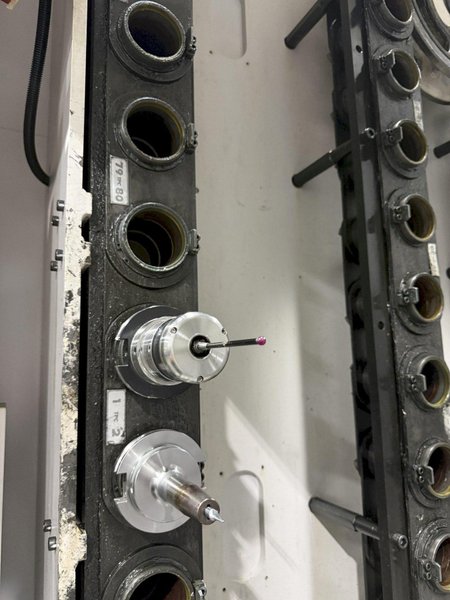

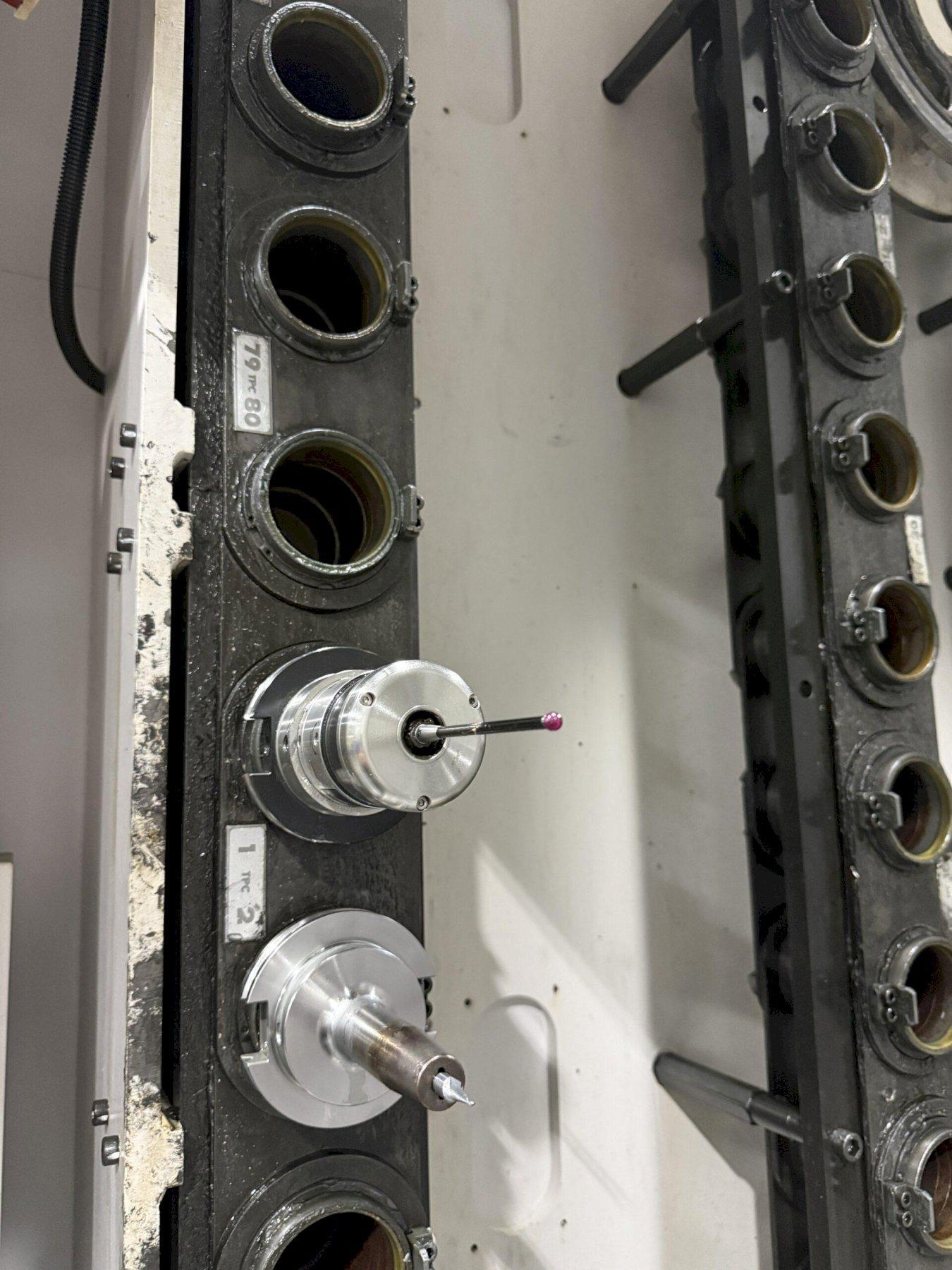

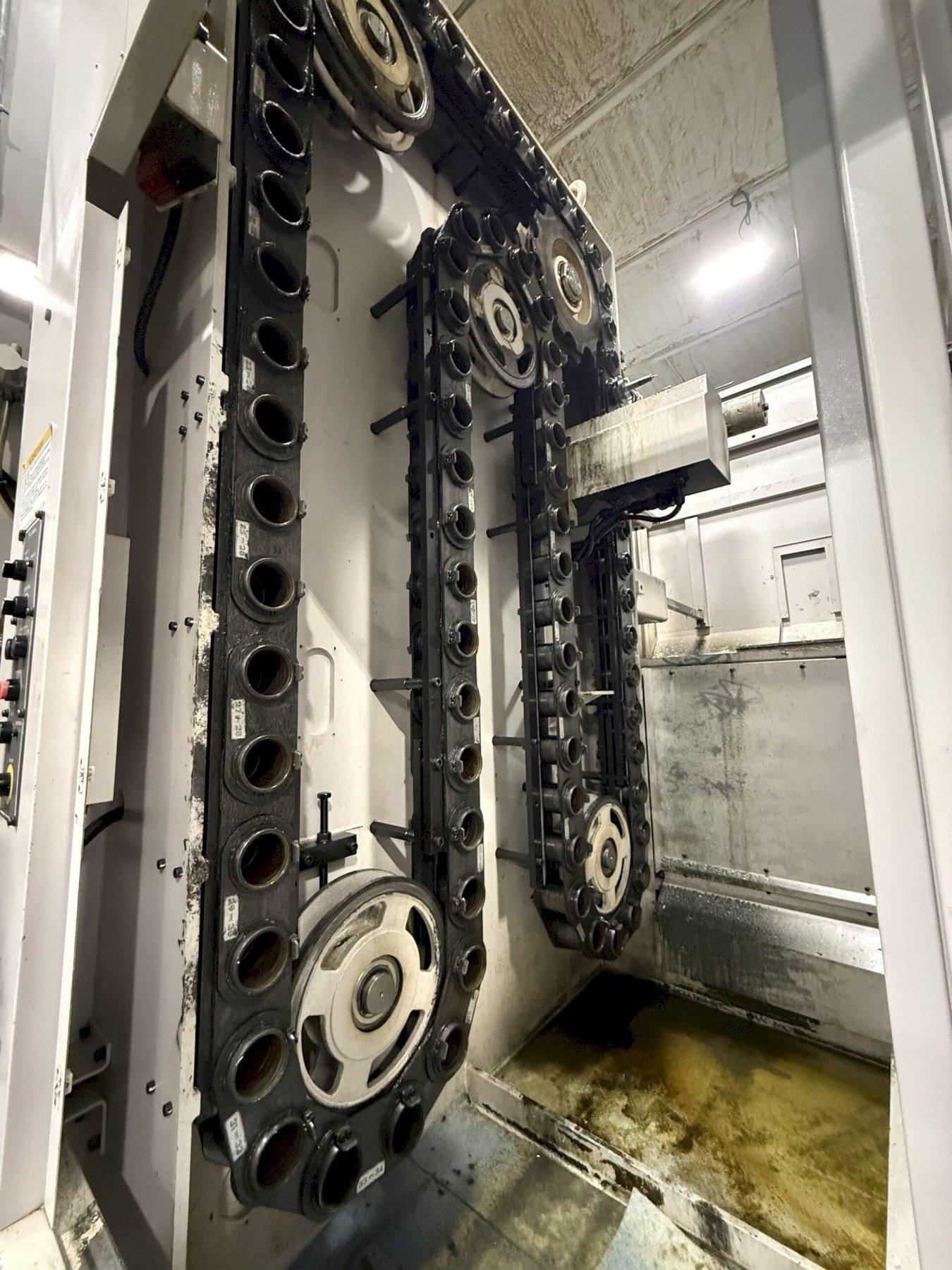

80 Station Automatic Tool Changer

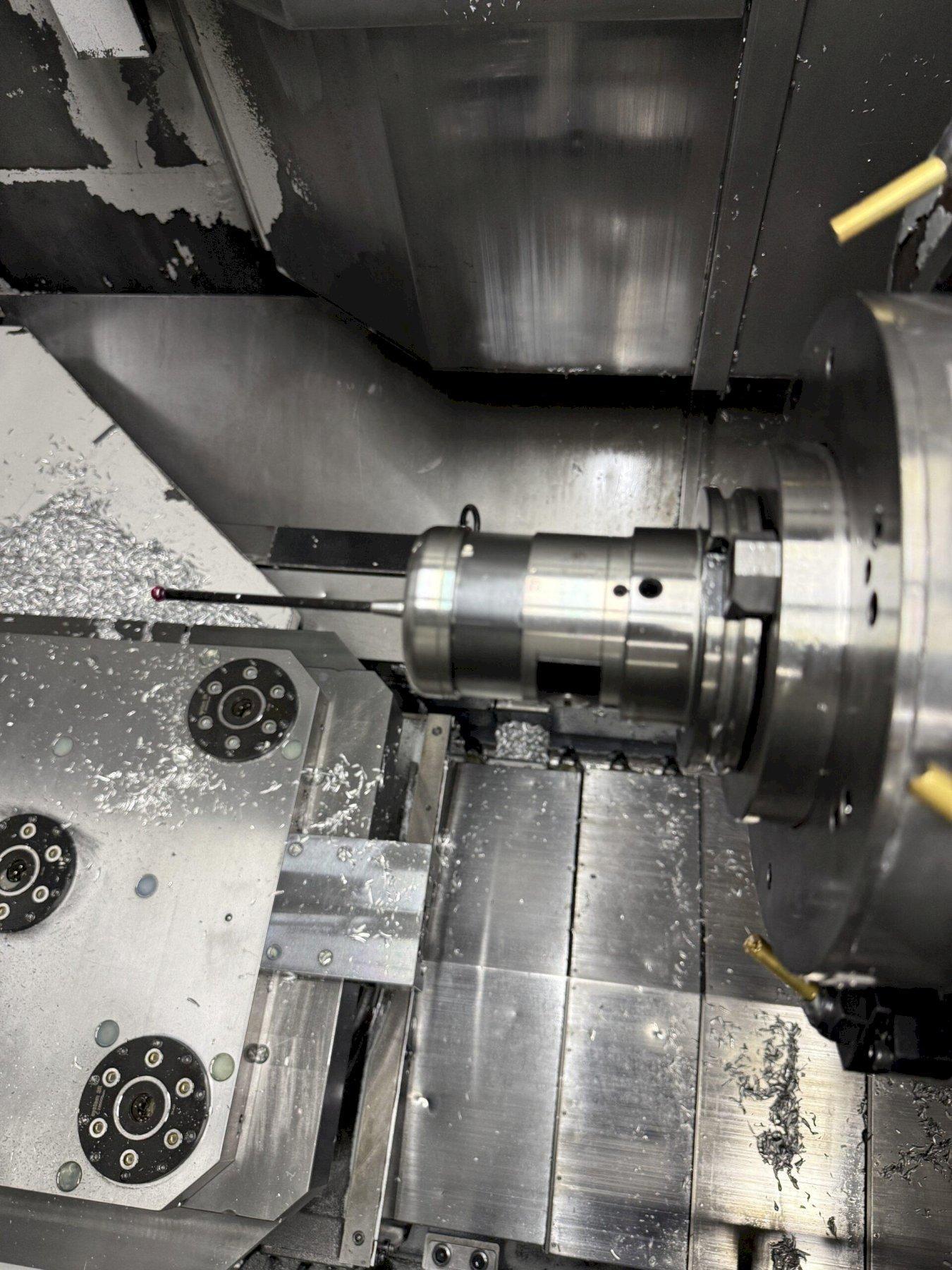

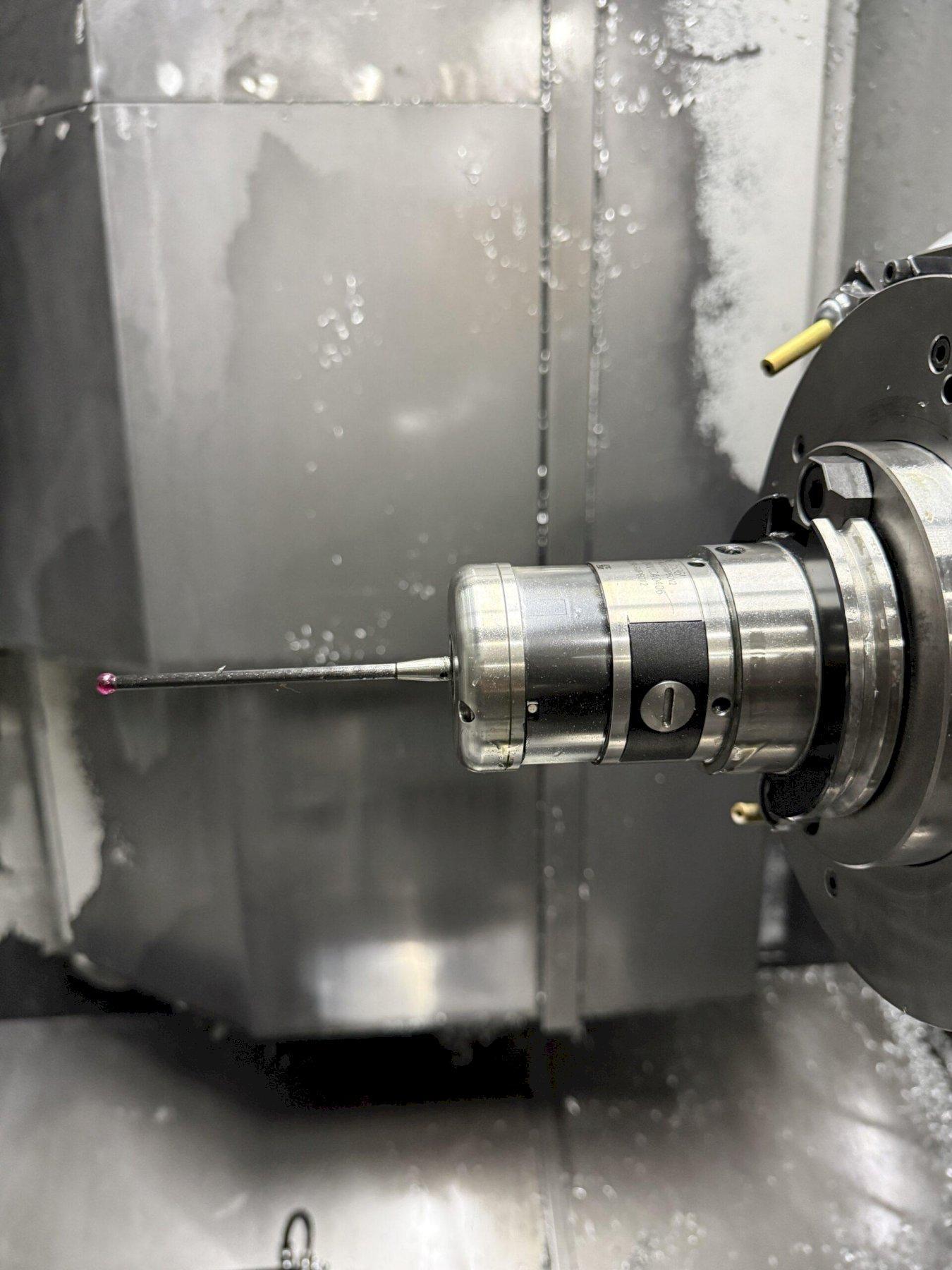

Renishaw Probing System (Probe Included)
Tool Presetter
Through-Spindle Coolant Ready – 1000 psi (High Pressure Coolant Pump Needed)

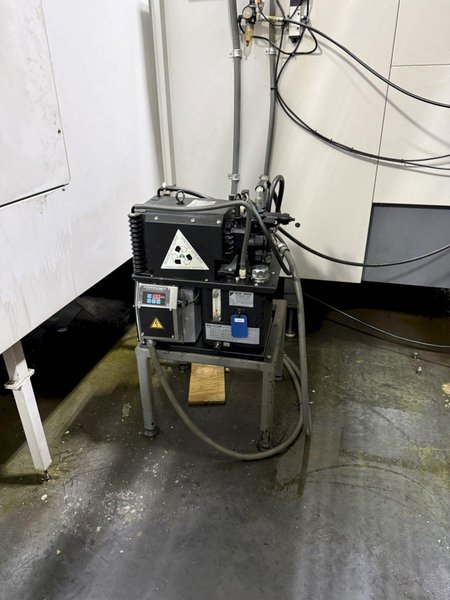

Spindle Chiller Unit
65 KVA Transformer

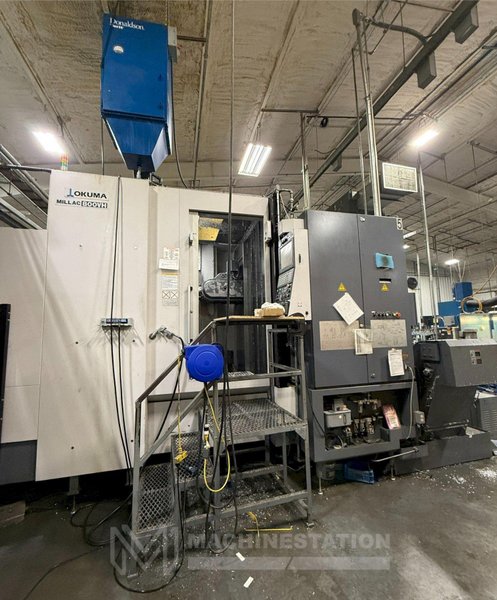

Mist Collector

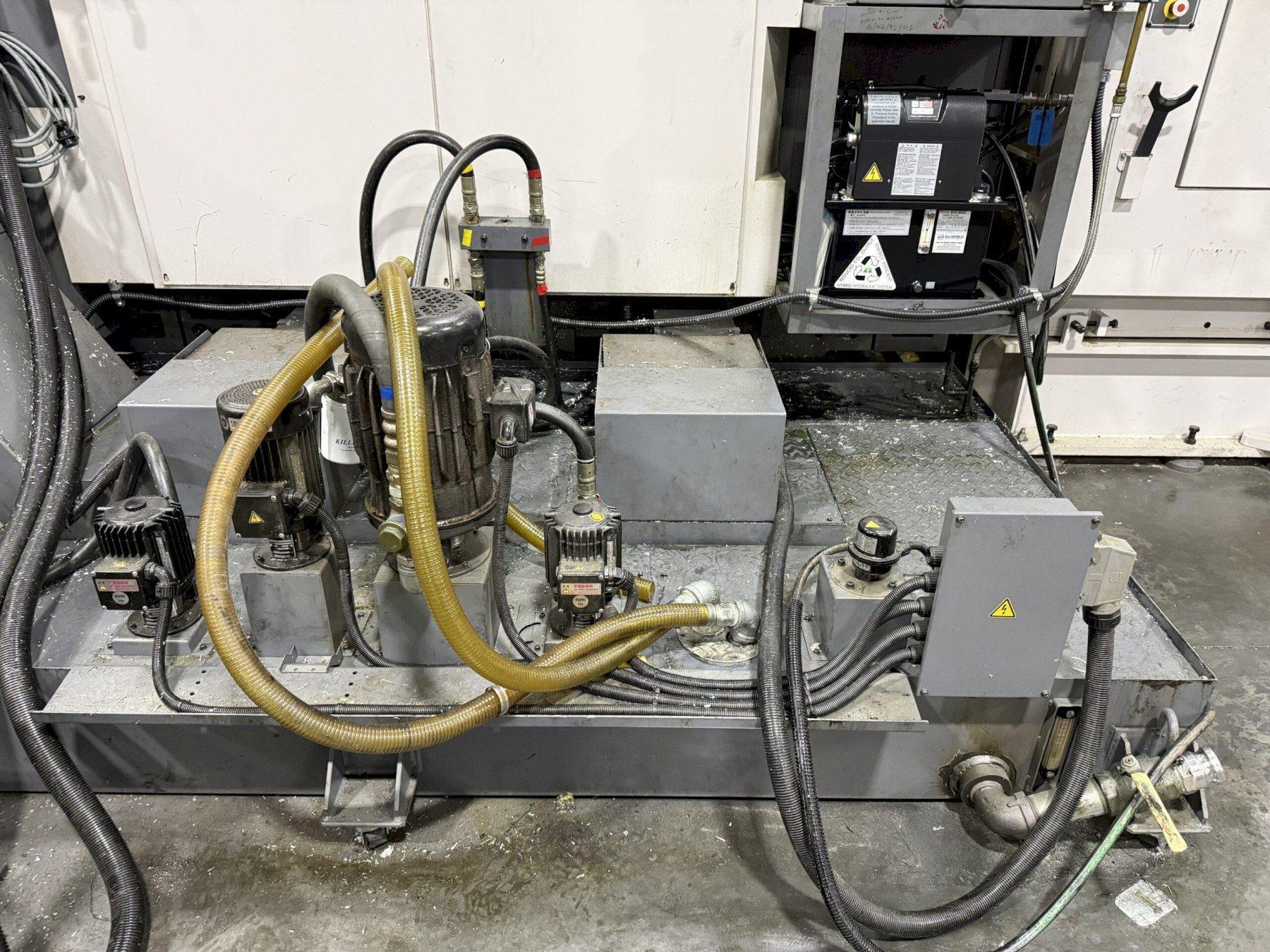

Coolant Filtration System
Chip Conveyor
Note: Machine was connected with centralized high pressure through spindle cooling systems, so machine is capable of 1000 psi. Would require a separate unit.
Note: Fixtures and chuck on the pallet are not included With the Machine

Travels:
X-Axis Travel: 40.16″
Y-Axis Travel: 40.16″
Z-Axis Travel: 40.16″
A-Axis Swivel Range: –100° to +150°
C-Axis Rotation: 360°
Rapid Traverse (X/Y/Z): 1,181 Inches Per Minute
Cutting Feedrate (X/Y/Z): 472 Inches Per Minute

Table:
Table Size (Pallet): 31.49″ × 31.49″
Maximum Table Load: 2,200 lbs
Maximum Workpiece Diameter: 48.43″
Indexing: 0.001°
Number of Pallets: 2

Spindle:
Spindle Speed: 10,000 RPM
Spindle Taper: CAT-50
Spindle Motor Power: 30 HP
A-Axis Swivel Range: –100° to +150°
C-Axis Rotation Range: 360°

Automatic Tool Changer:
Tool Capacity: 80 Tools
Max Tool Diameter (Adjacent Tools): 4.92″
Max Tool Diameter (No Adjacent Tools): 7.87″
Max Tool Length: 15.74″
Max Tool Weight: 44 lbs
Tool-to-Tool Time: 4.5 Seconds
