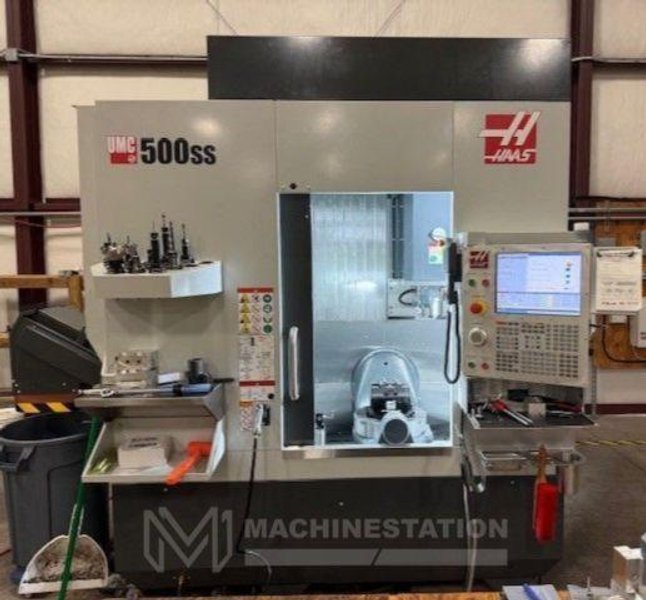

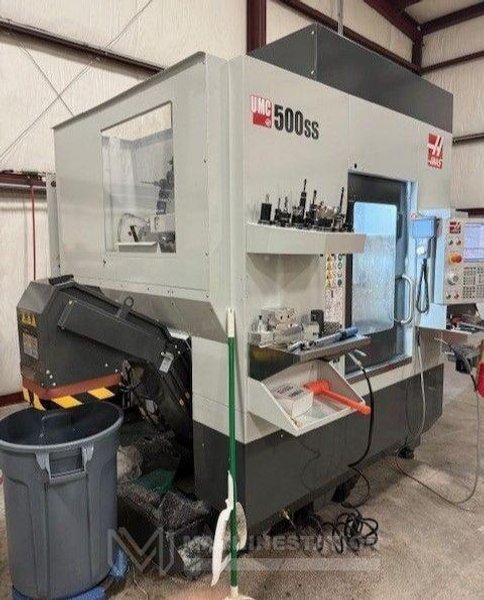

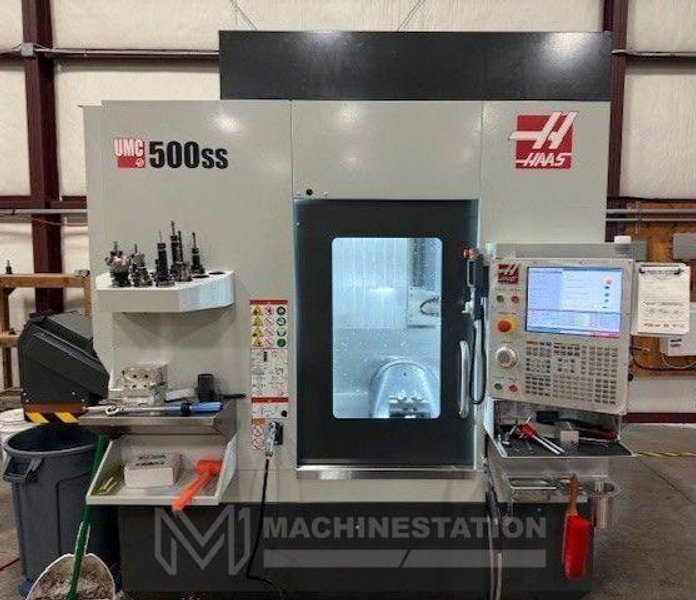

Name: Haas UMC-500SS 5 Axis CNC Universal Machining Center – 2023 Mill
Brand: HAAS
SKU: 115132
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Haas
Model:	UMC-500SS
Year:	2023
Condition:	Used – Excellent

Features:

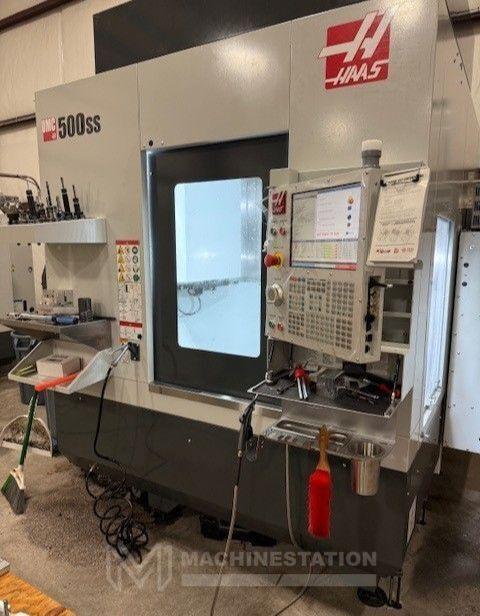

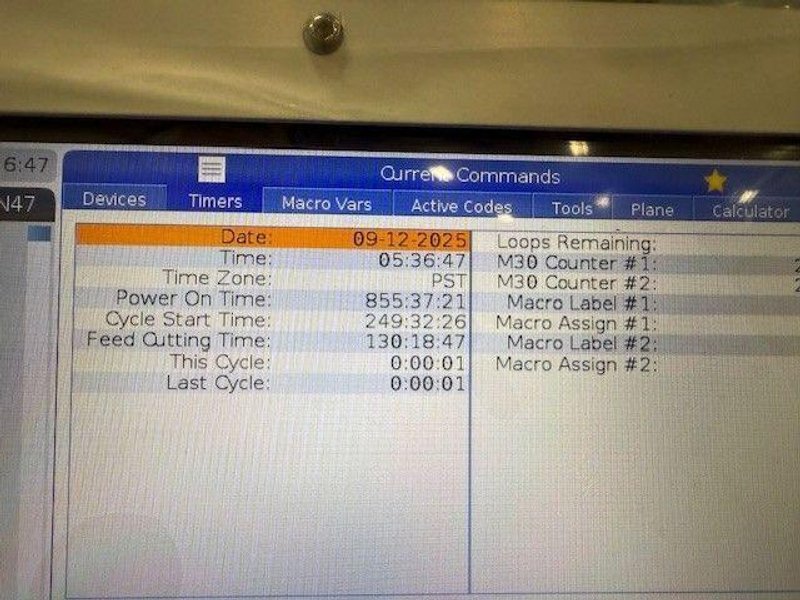

Haas CNC Control
Haas Trunnion Table
12,000 RPM High Speed Spindle
30 Station Super Speed Automatic Tool Changer
High Speed Machining
Through Spindle Coolant – 300 psi (Upgraded $7,495 value Included)
Renishaw Probing System (Probe Needed)

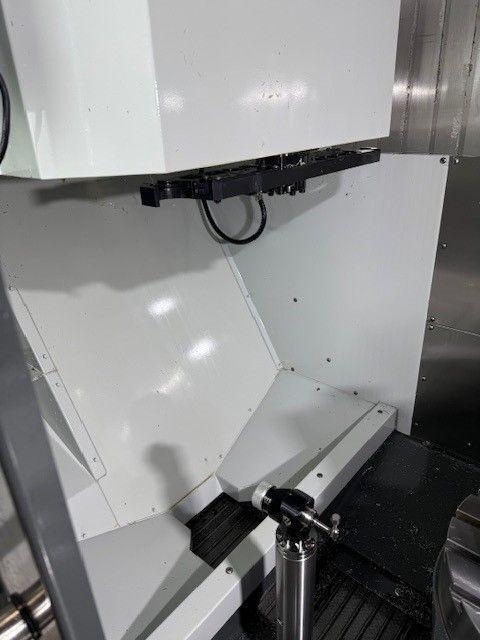

Tool Presetter
30 HP High Torque Spindle
Wireless Networking
Large Remote Jog Handle
Spindle Orientation
Rigid Tapping
Programmable Coolant Nozzle (Upgraded $2,595 value Included)
Coolant System
Telescopic Way Covers
Belt-Type Chip Conveyor (Upgraded $8,395 value Included)

Travels:
X-Axis: 24″
Y Axis: 16″
Z Axis: 16″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″

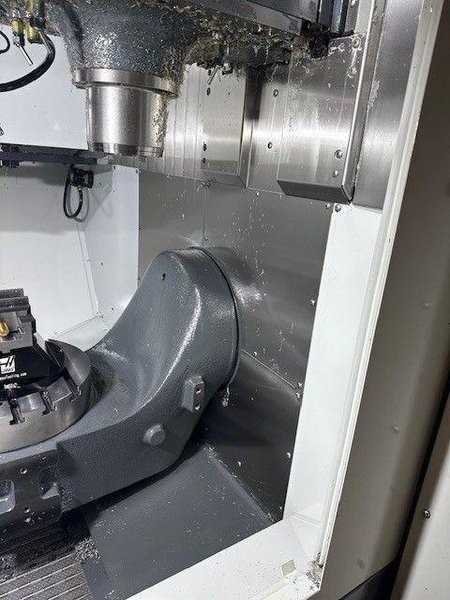

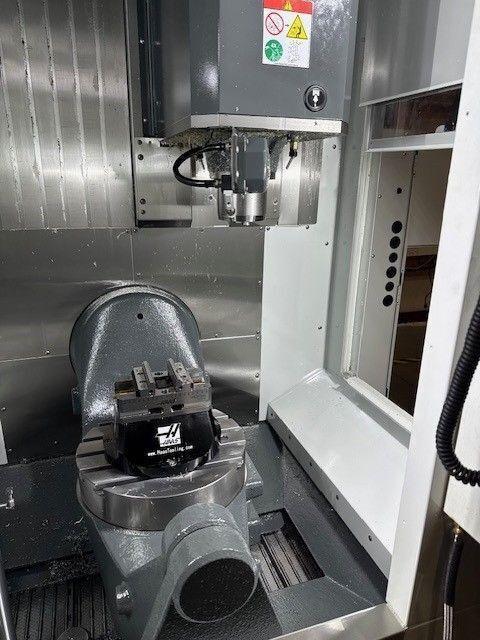

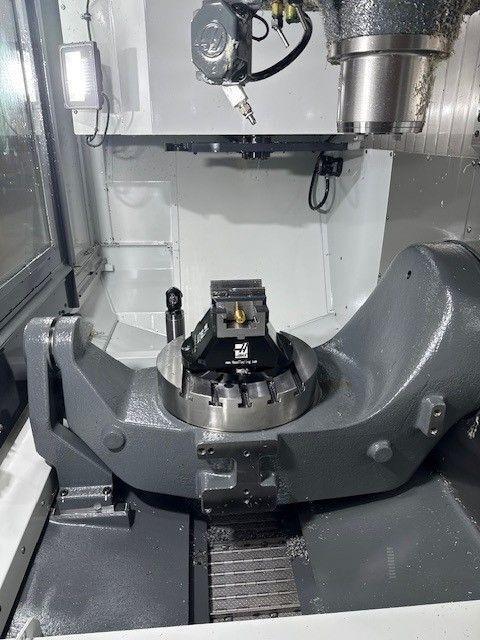

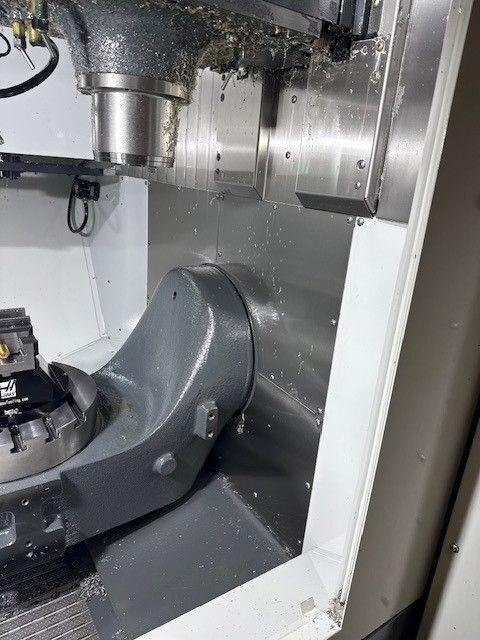

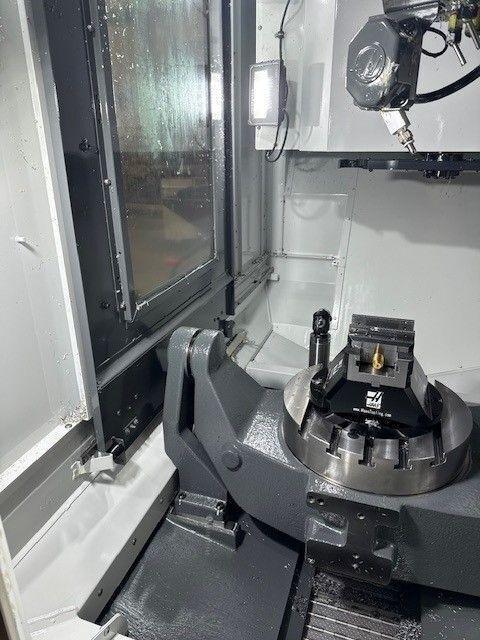

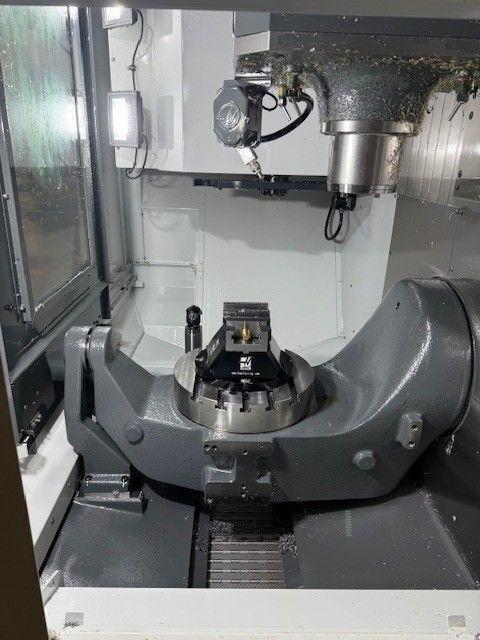

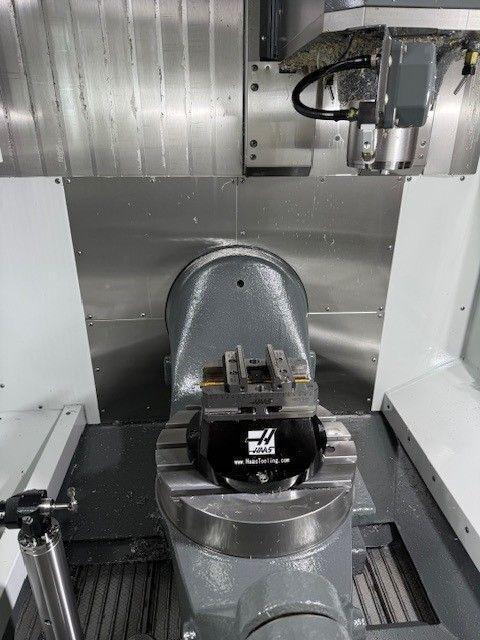

Trunnion Table:
Platter Diameter: 15.70″
Max Weight on Platter: 500 lbs
T-Slot Width: 0.625″ to 0.630″
Number of Std T-Slots: 5

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 1.8 Seconds
