24" x 0.250" x 7,500# C R P Cut To Length Line

YEAR: 2016

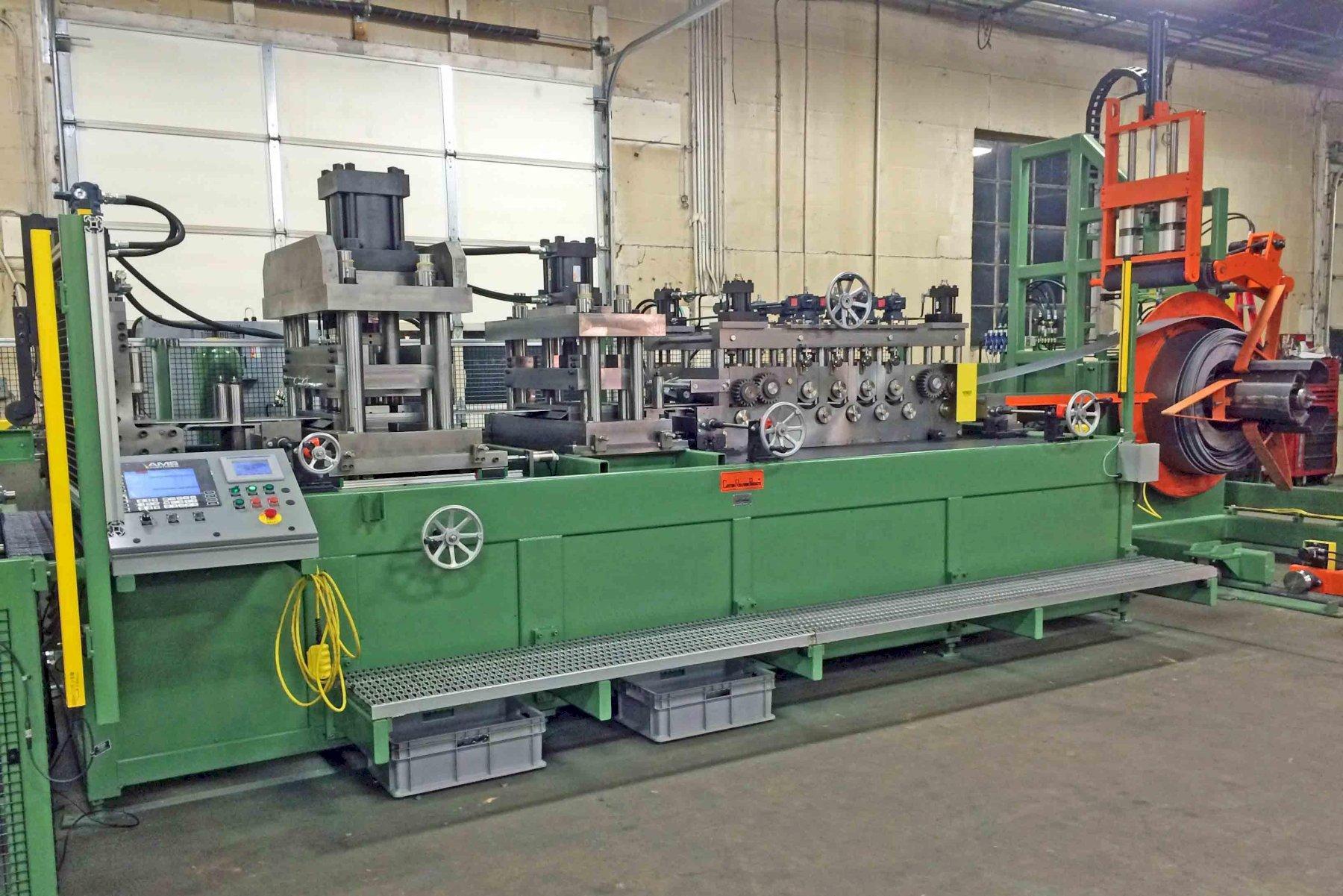

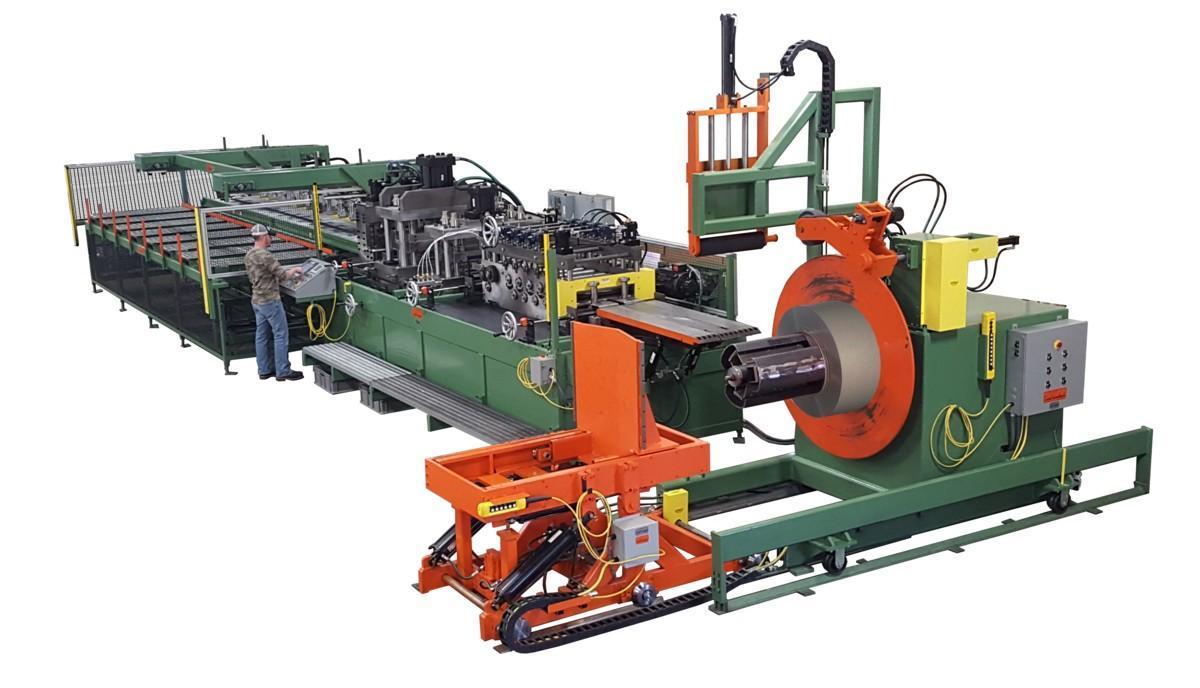

Custom Rollform Products Cut-to-Length Line

-Width: 24"
-Coil Weight: 7,500 lbs.
-Max. Thickness: 0.250"
-Cut Length: 6" Minimum - 240" Maximum
-Line Speed: 50 FPM
-Line Direction: Right to Left

Consisting of the following:

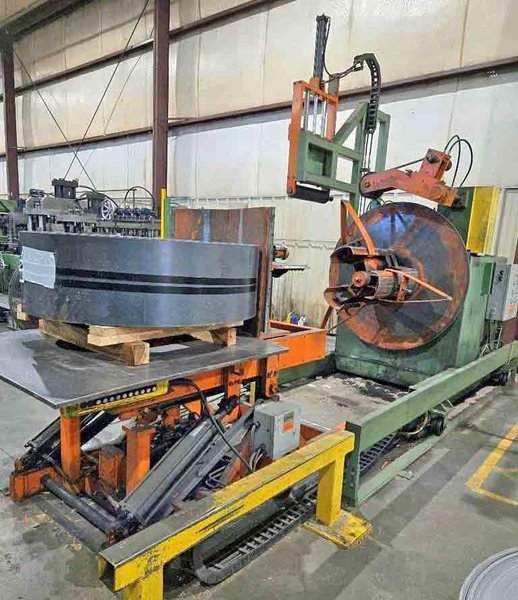

-Entry Coil Car/Upender:
Hydraulic Cylinder Operated

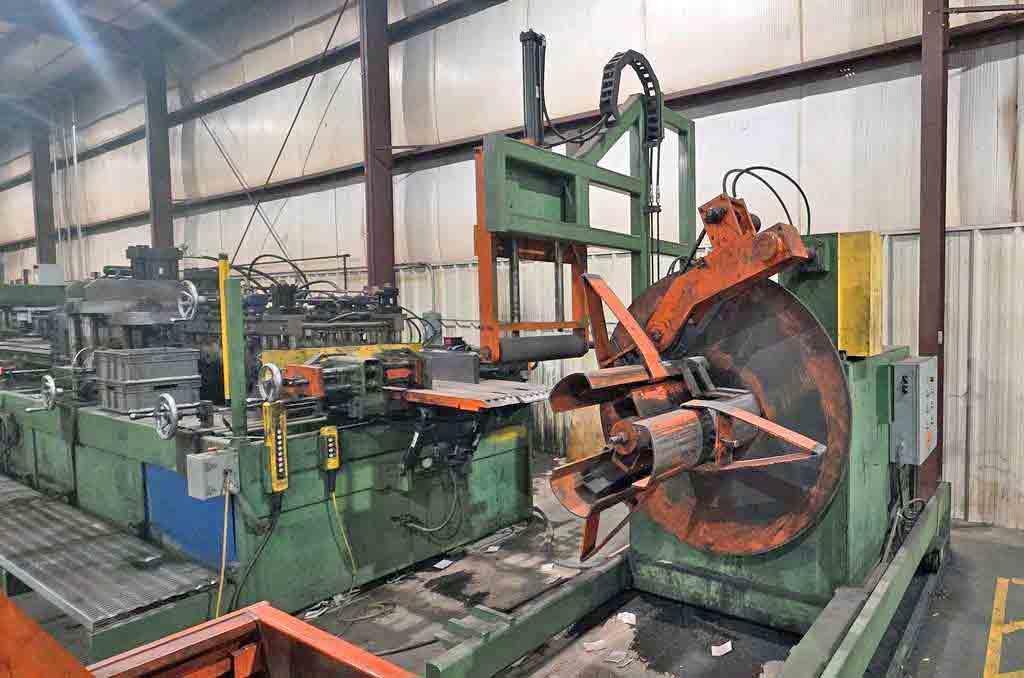

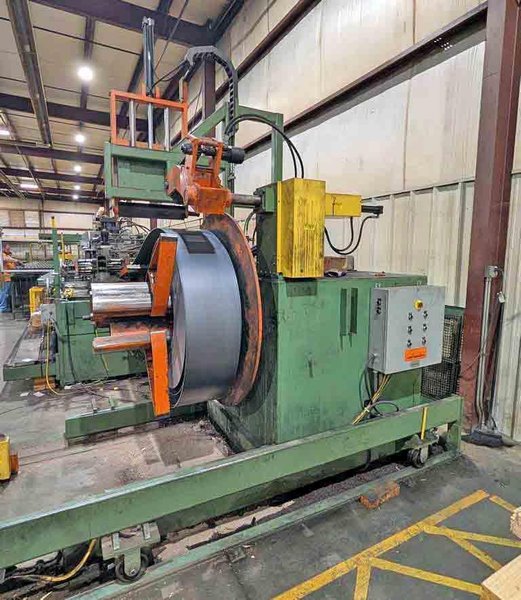

-Mandrel Uncoiler:
Overarm Holddown
Hydraulic Expansion
Driven Mandrel
Coil Keepers
Traveling Base

-Peeler Table:
Hydraulic Cylinder Actuated
Adjustable Side Guides

-Entry Side Guides:
Manual Handwheel Adjustment

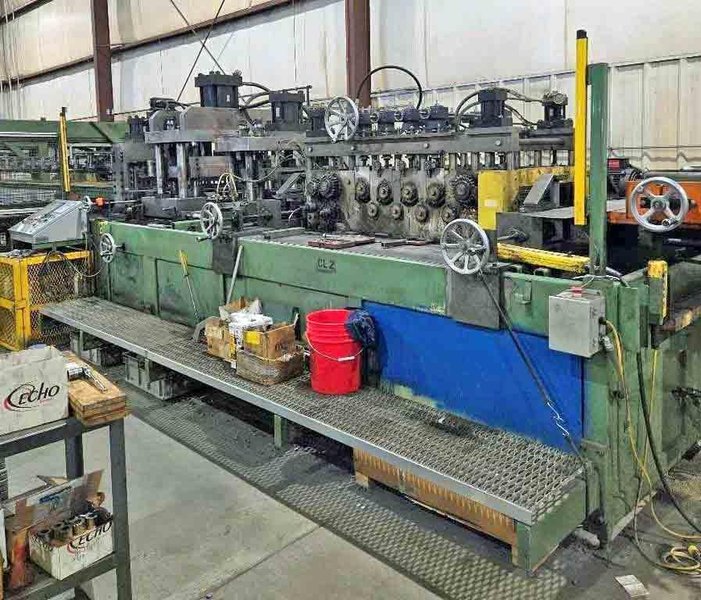

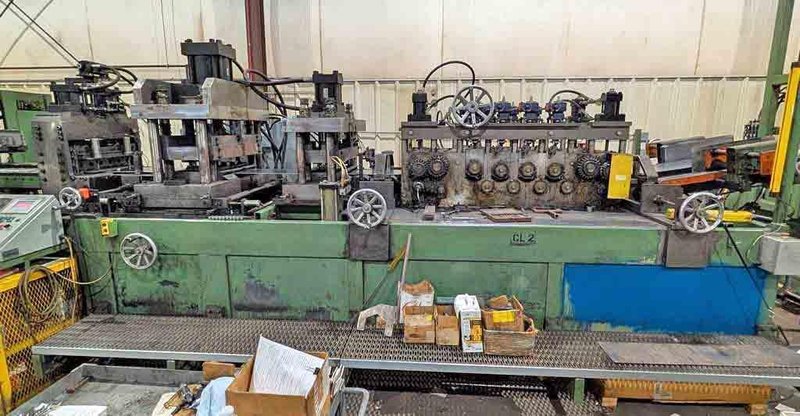

-9 Roll Straightener:
5 over 4 Rolls
Drive Motor thru Reducer

-Entry and Exit Driven Pinch Rolls:
Hydraulic Cylinder Loaded

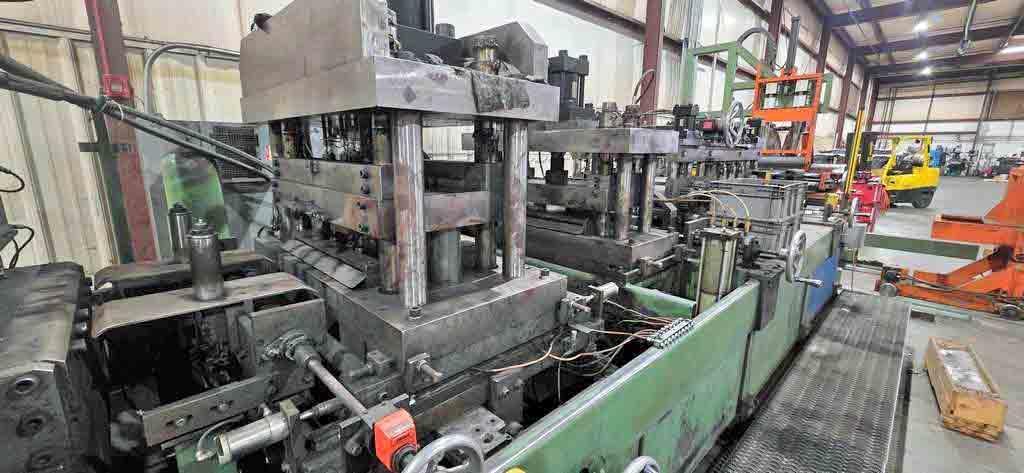

-(2) Hydraulic Punching Stations:
Exit Side Guides

-Hydraulic Shear:

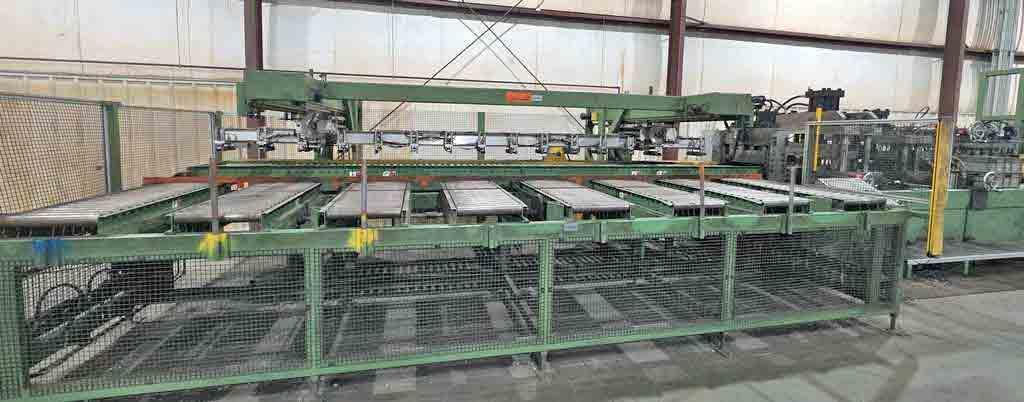

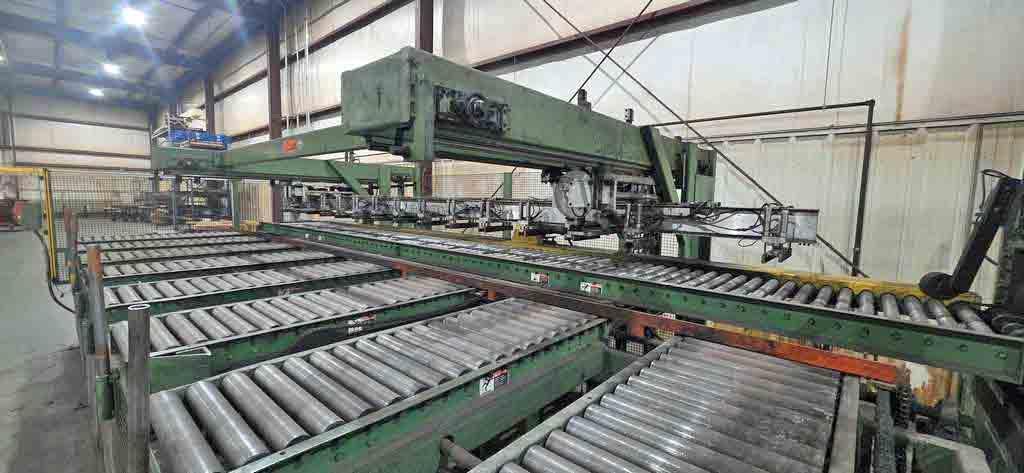

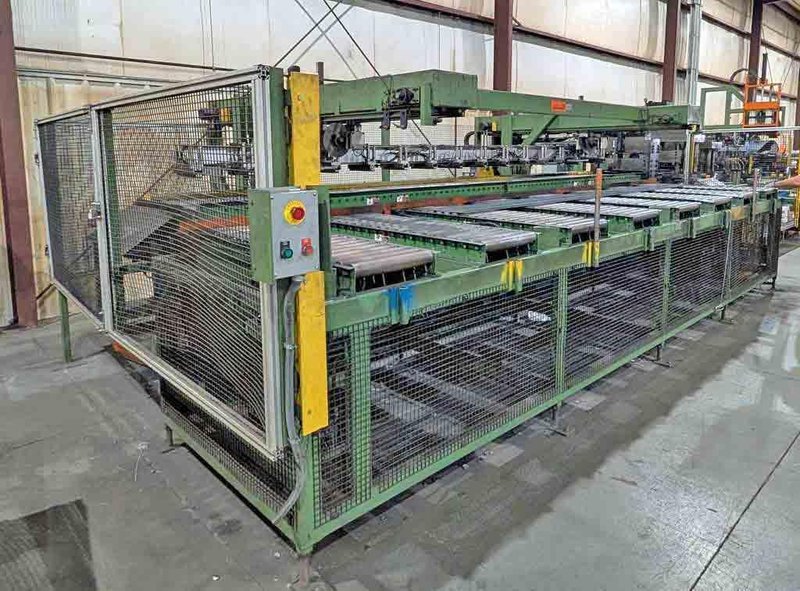

-Magnetic Automatic Stacker:

-Side Discharge Conveyor:

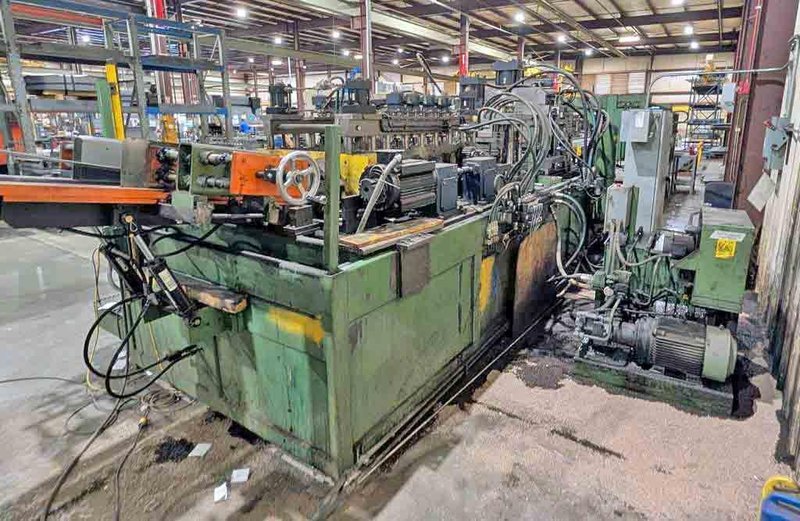

-Main Hydraulic Power Unit:

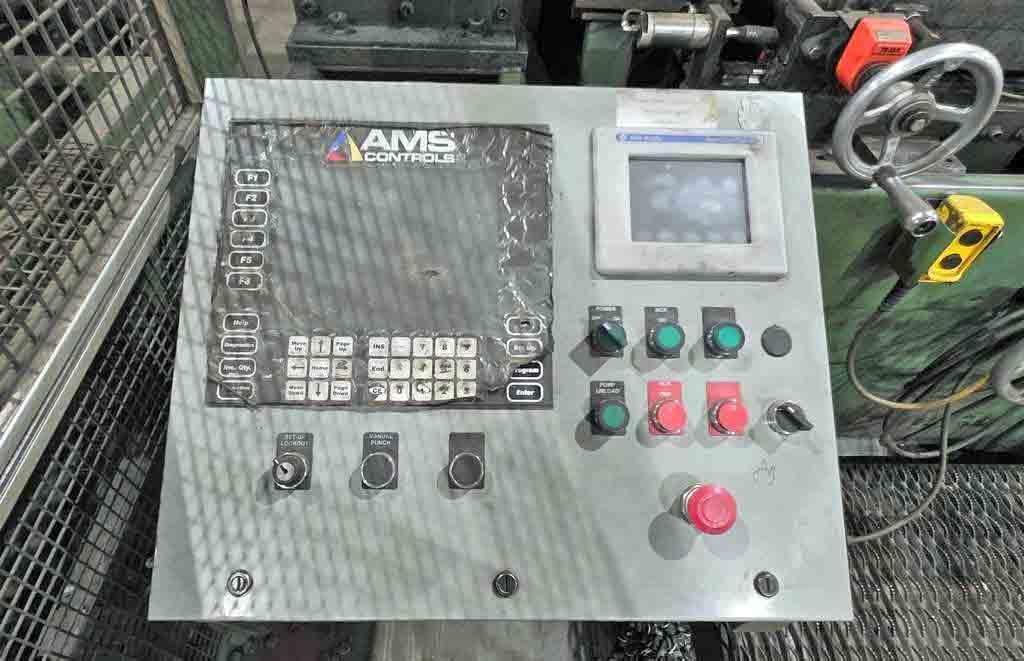

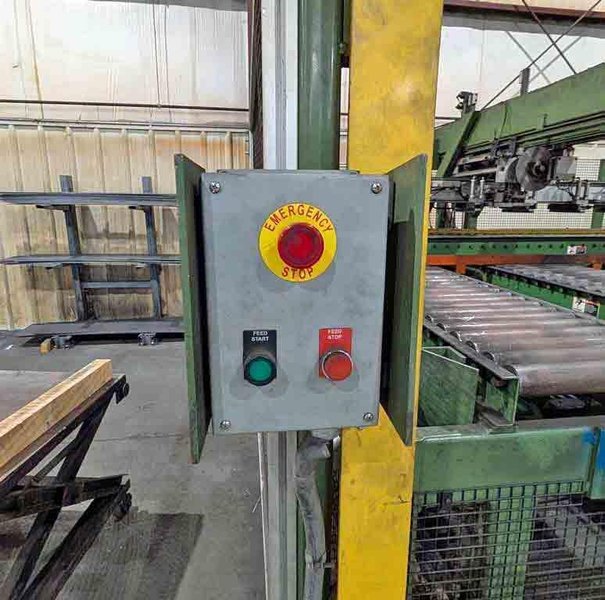

-Operators Control Panel with AMS Controls

-Videos of Line running available

-Line is installed and running
