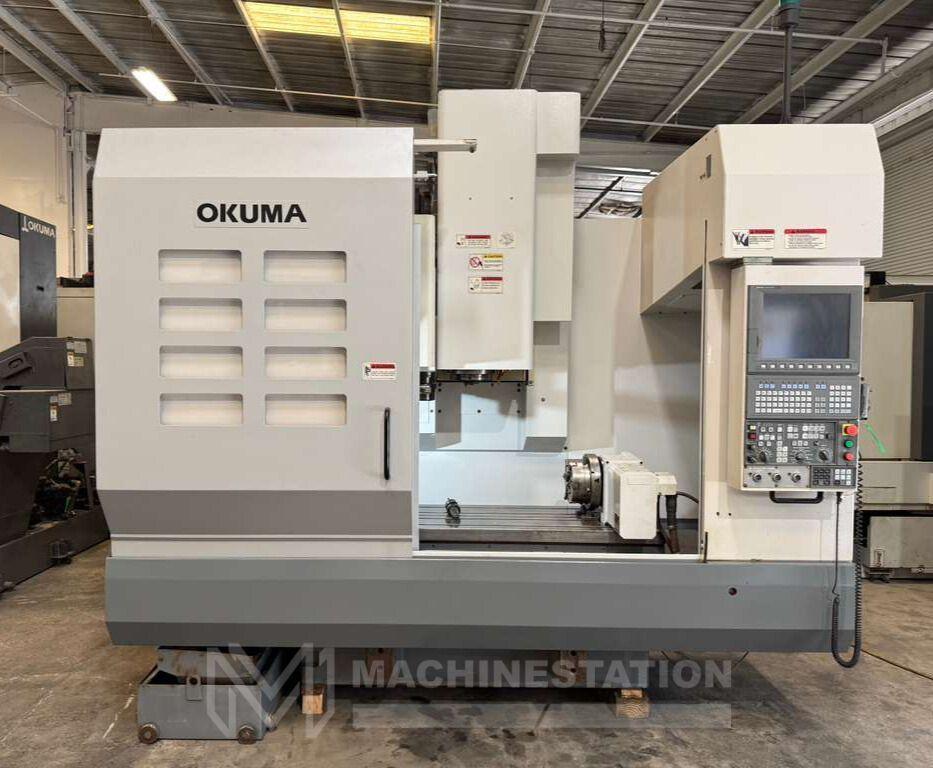

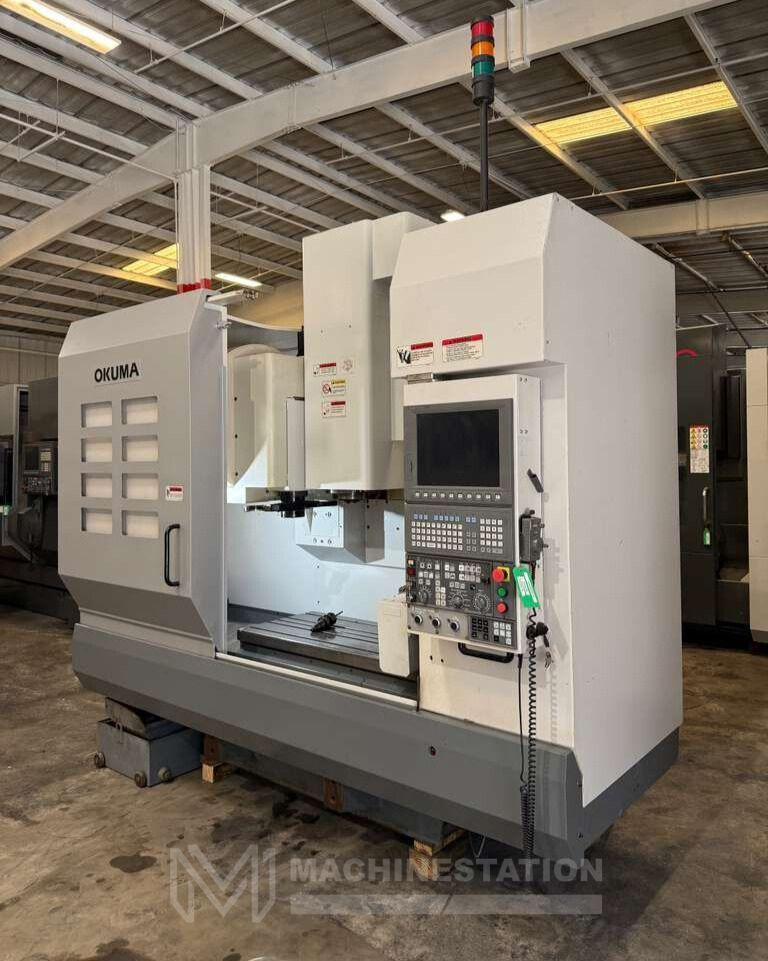

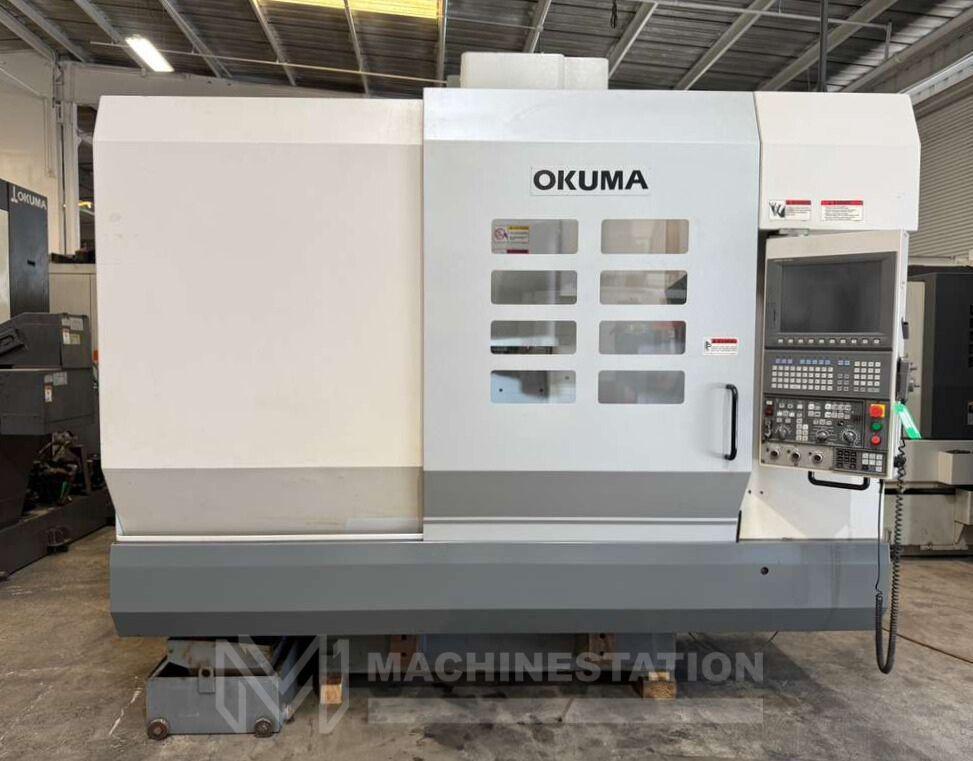

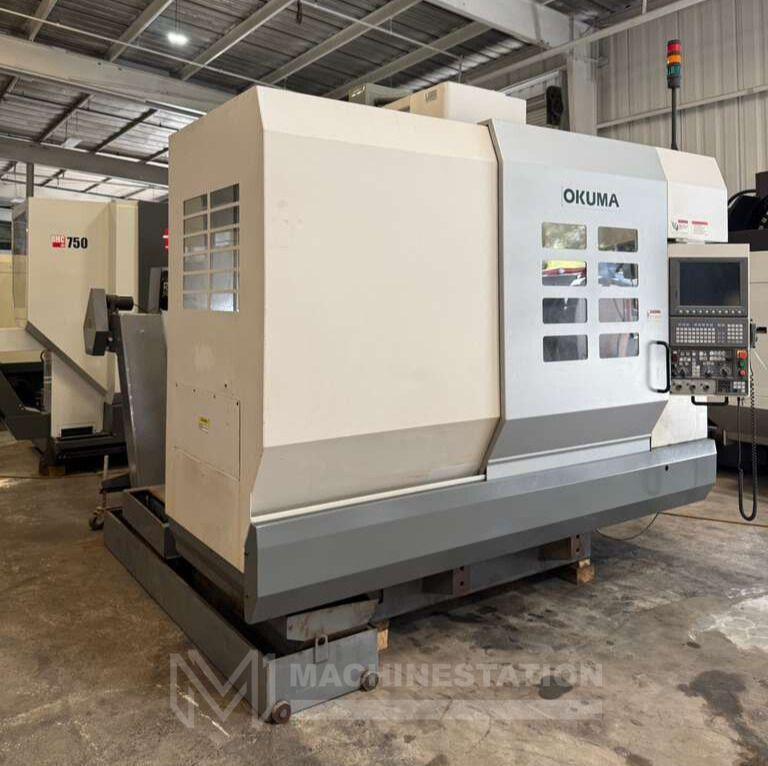

Okuma MC-V4020 CNC Vertical Machining Center – 4th Axis Mill

Okuma MC-V4020 CNC Vertical Machining Center – 4th Axis Mill

Name: Okuma MC-V4020 CNC Vertical Machining Center – 4th Axis Mill
Brand: OKUMA
SKU: 112974
Availability: InStock

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	Okuma
Model:	MC-V4020

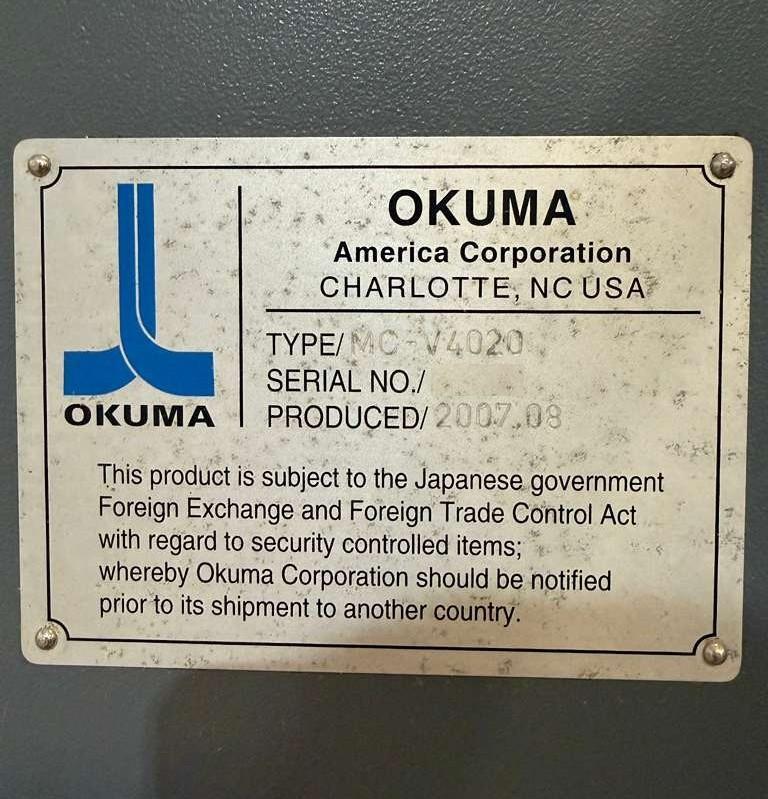

Year:	2007
Condition:	Used – Good

Features:

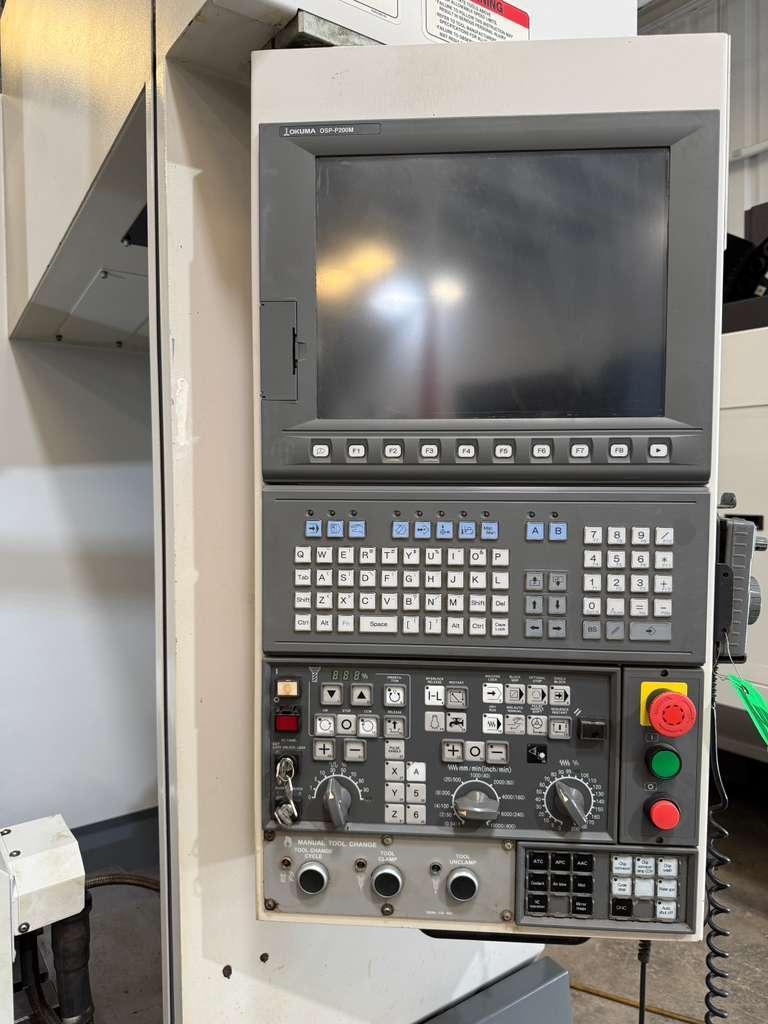

Okuma OSP-P200M CNC Control

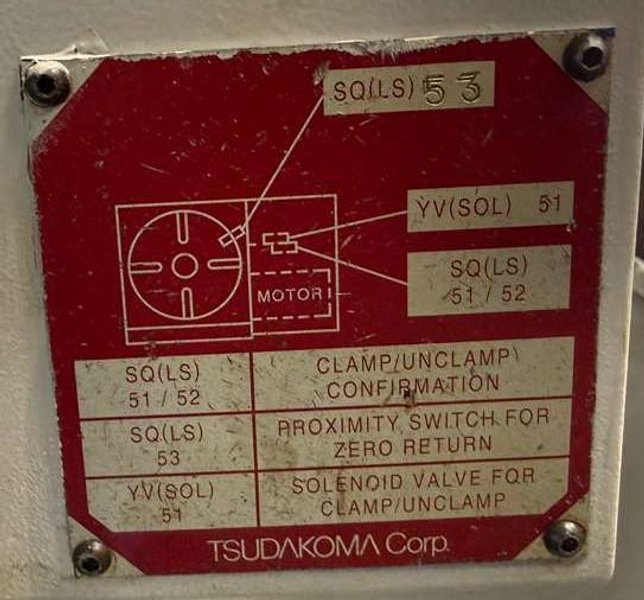

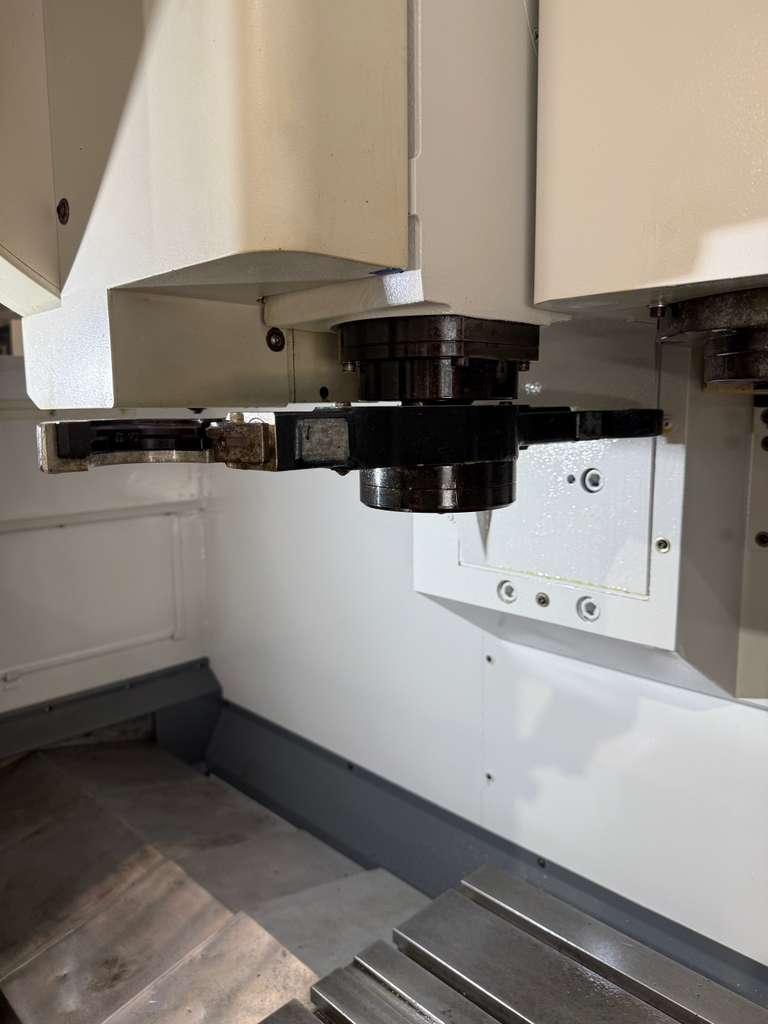

Tsudakoma 4th Axis Rotary Table
8,000 RPM Precision Spindle

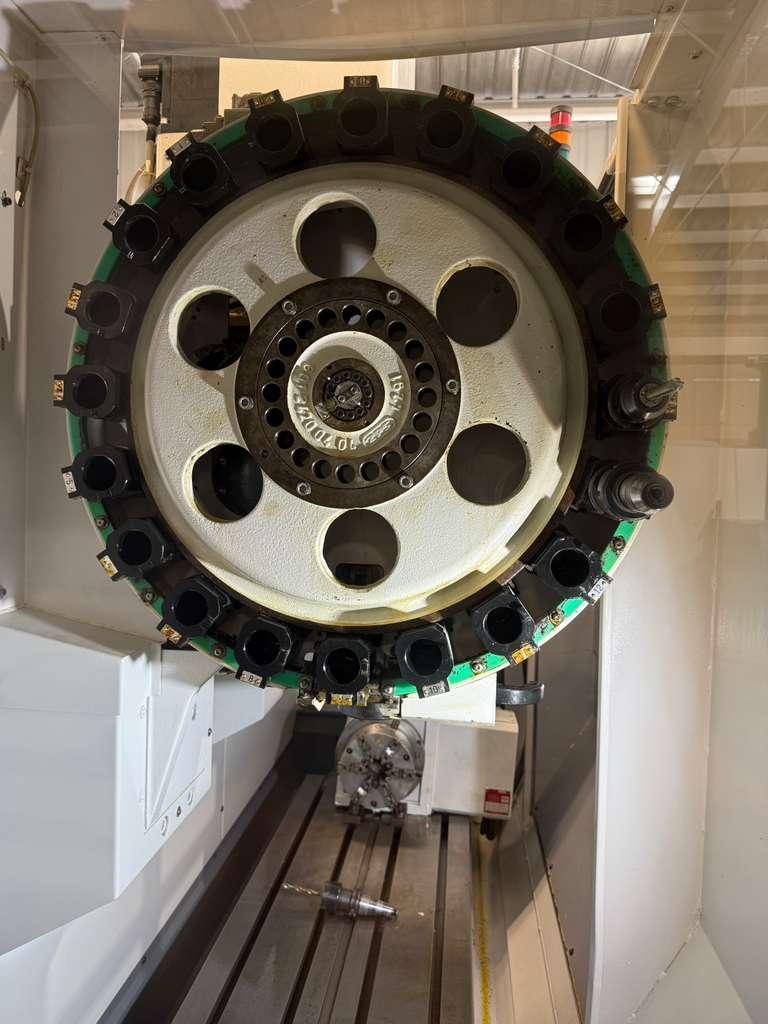

20 Station Automatic Tool Changer

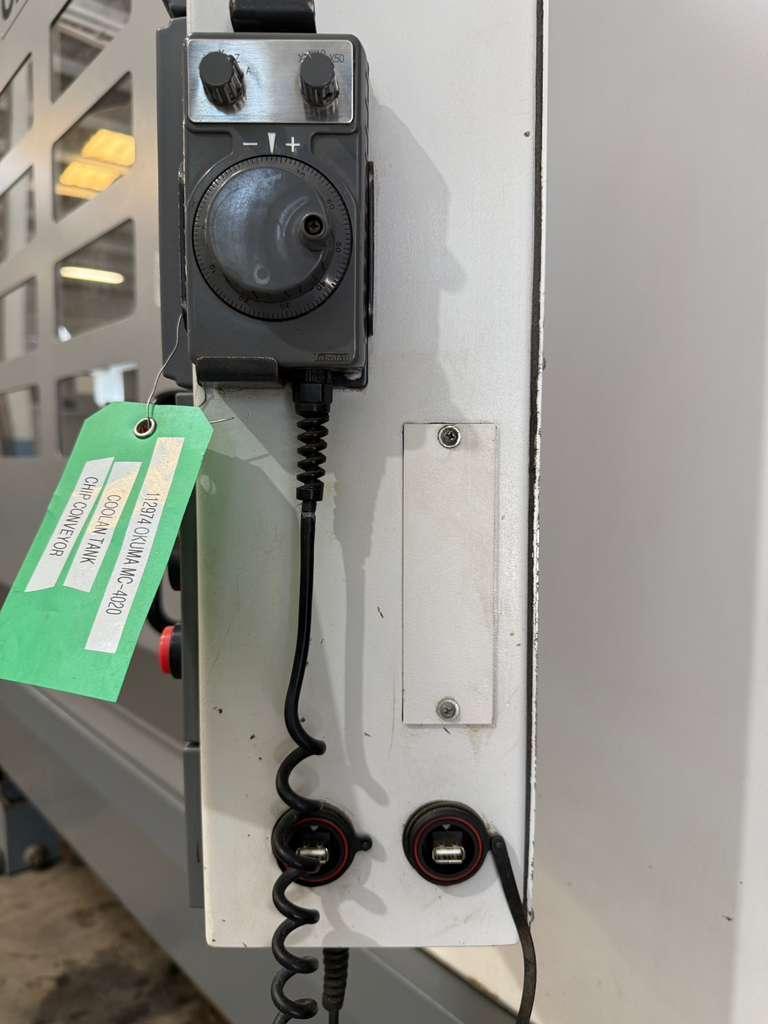

MPG Handwheel Control
20 HP High Torque Spindle
Rigid Tapping
Coolant System

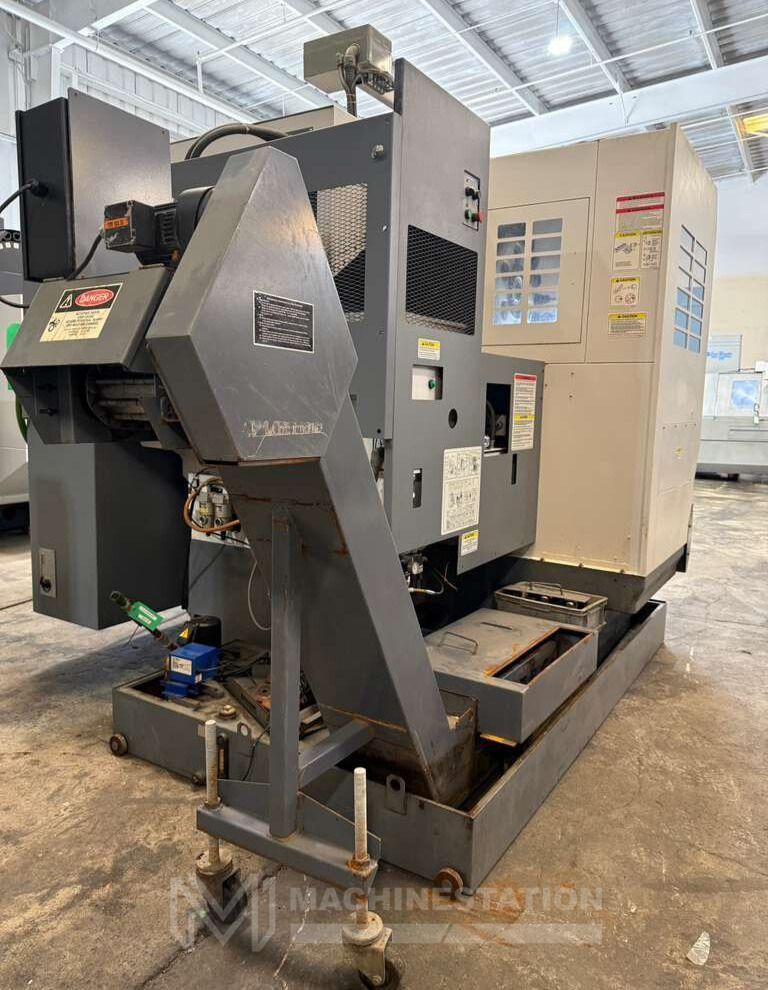

Chip Conveyor
Levelling Pads

Travel:
X-Axis: 40.0″
Y-Axis: 20.0″
Z-Axis: 17.7″
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.3″ – 24″

Table:
Length: 48″
Width: 20″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Spindle:

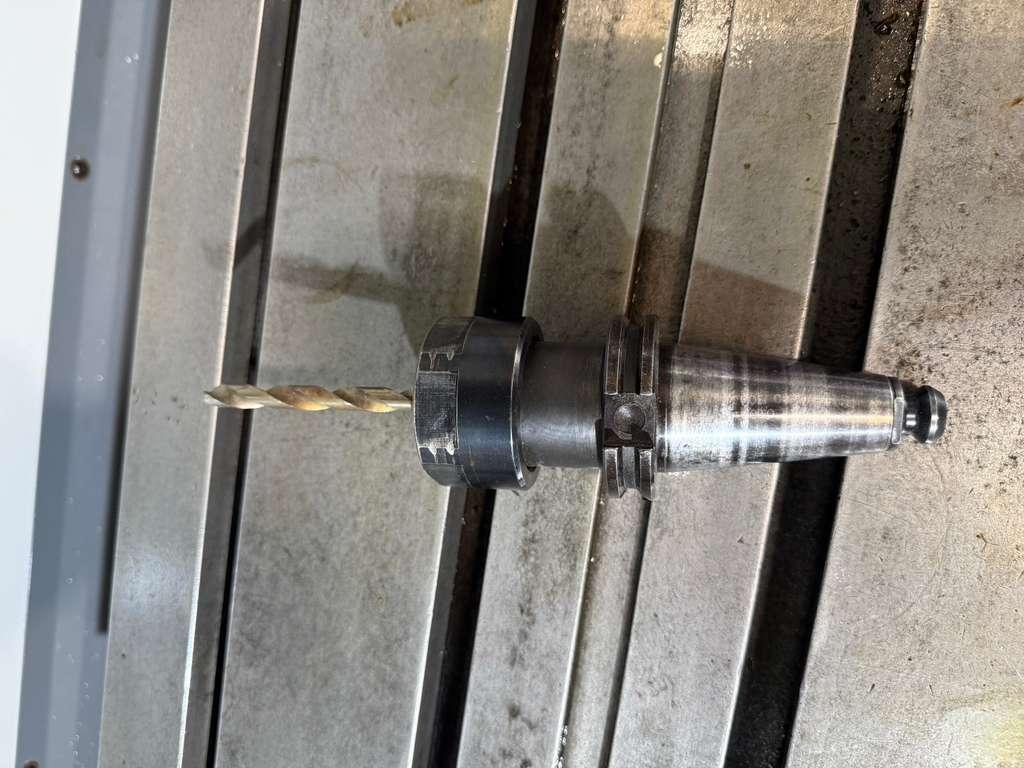

Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″ – 4.92
Max Tool Length: 15.75″
Tool Changing Time (Tool to Tool): 1.5 Seconds

General:
Air Required: 100 psi 4 scfm

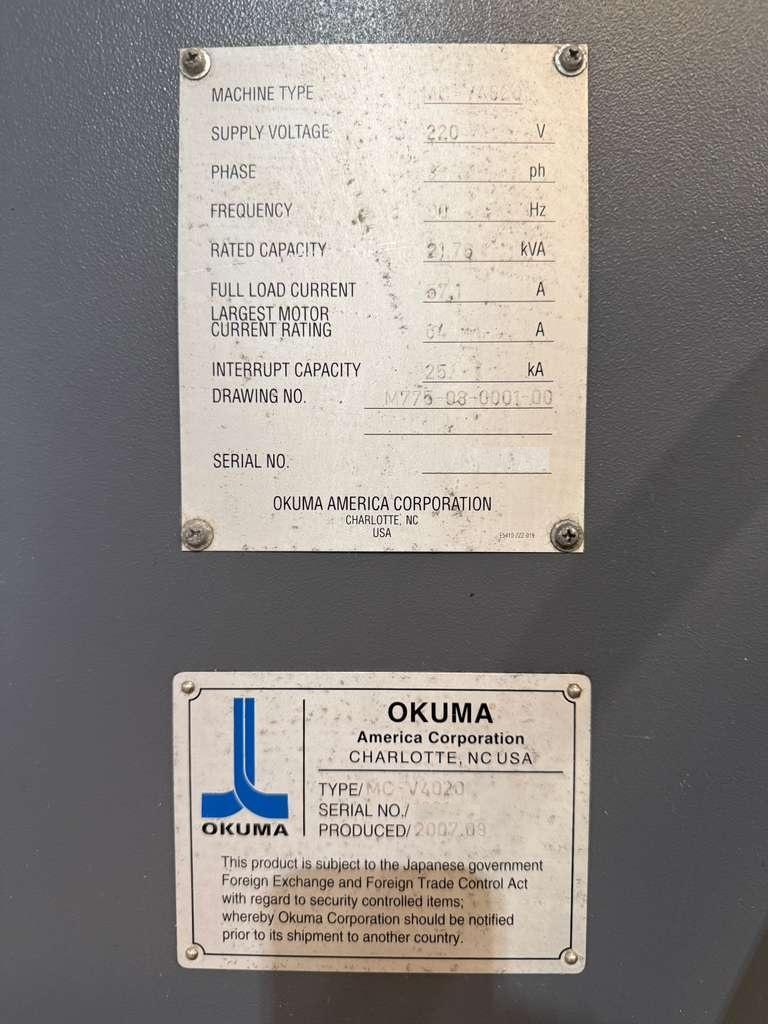

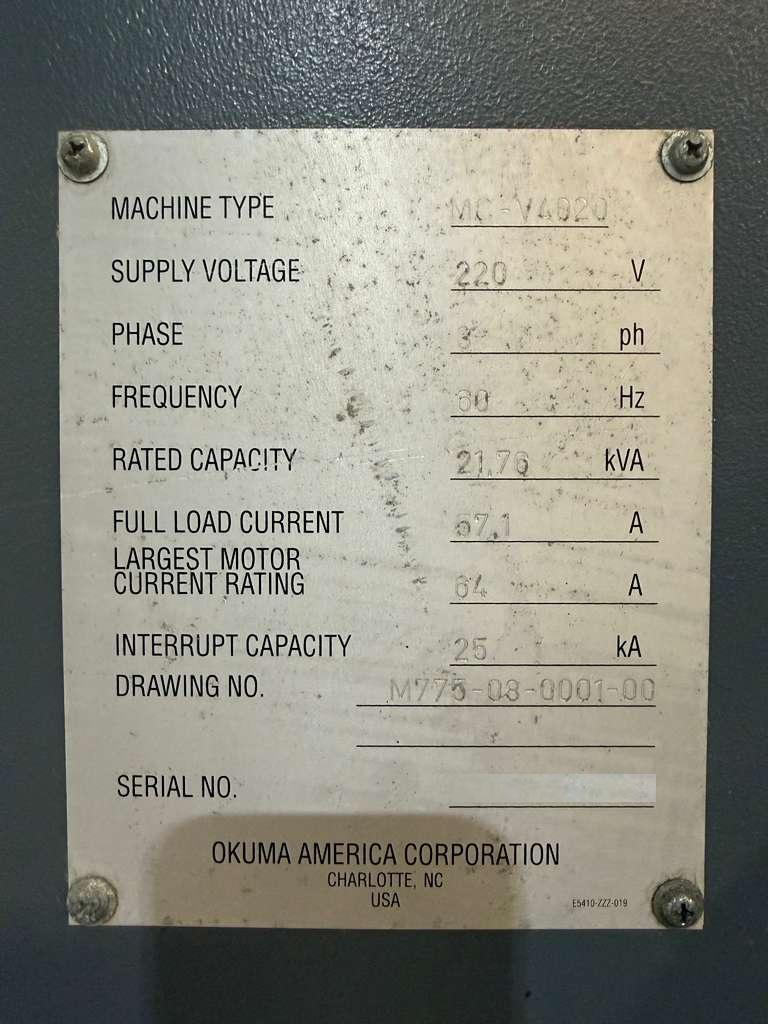

Power: 220v / 3-Phase / 60 Hz / 21.76 kva
Overall Dimensions: 114″ x 111″ x 104″ High Approx.
Weight: 16,000 lbs Approx.
