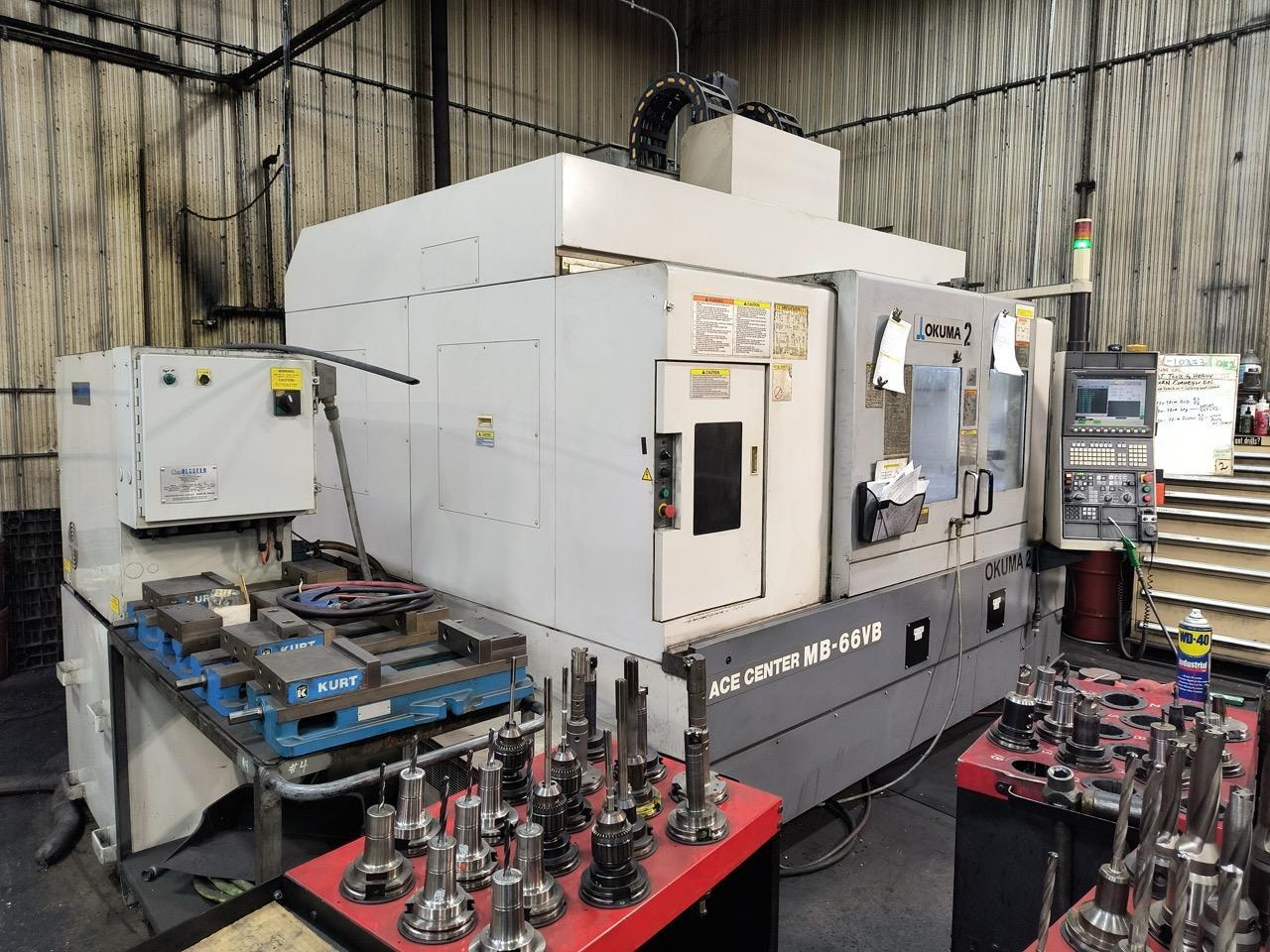

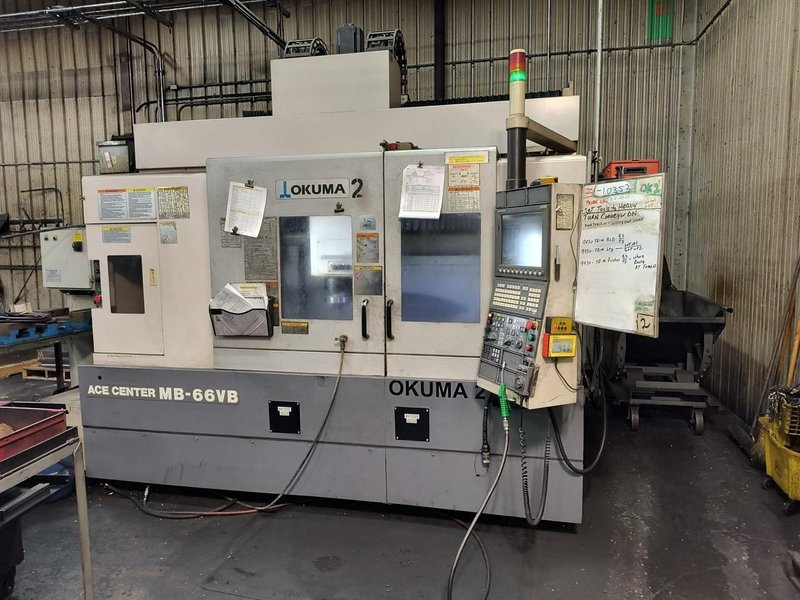

Okuma MB-66VB VMC, 2012 – Through Spindle Coolant, Probing

X-Axis Travels: 59.06″ Y-Axis Travels: 26.38″ Z-Axis Travels: 24.02″ Table Size: 66.14″ x 25.98″ Max Table Load: 3,306lbs Spindle Taper: CAT-50 Spindle Speed: 10,000 RPM Spindle Motor: 40 HP Cutting Feed Rate: 0.04 – 787 IPM ATC: 20 Positions Max Tool Length: 15.7″ Max Tool Weight: 44lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Approximate Machine Dimensions: 168″ x 122″ x 118″ Approximate Machine Weight: 31,000lbs Electrical: 220V/480V, 3-Phase

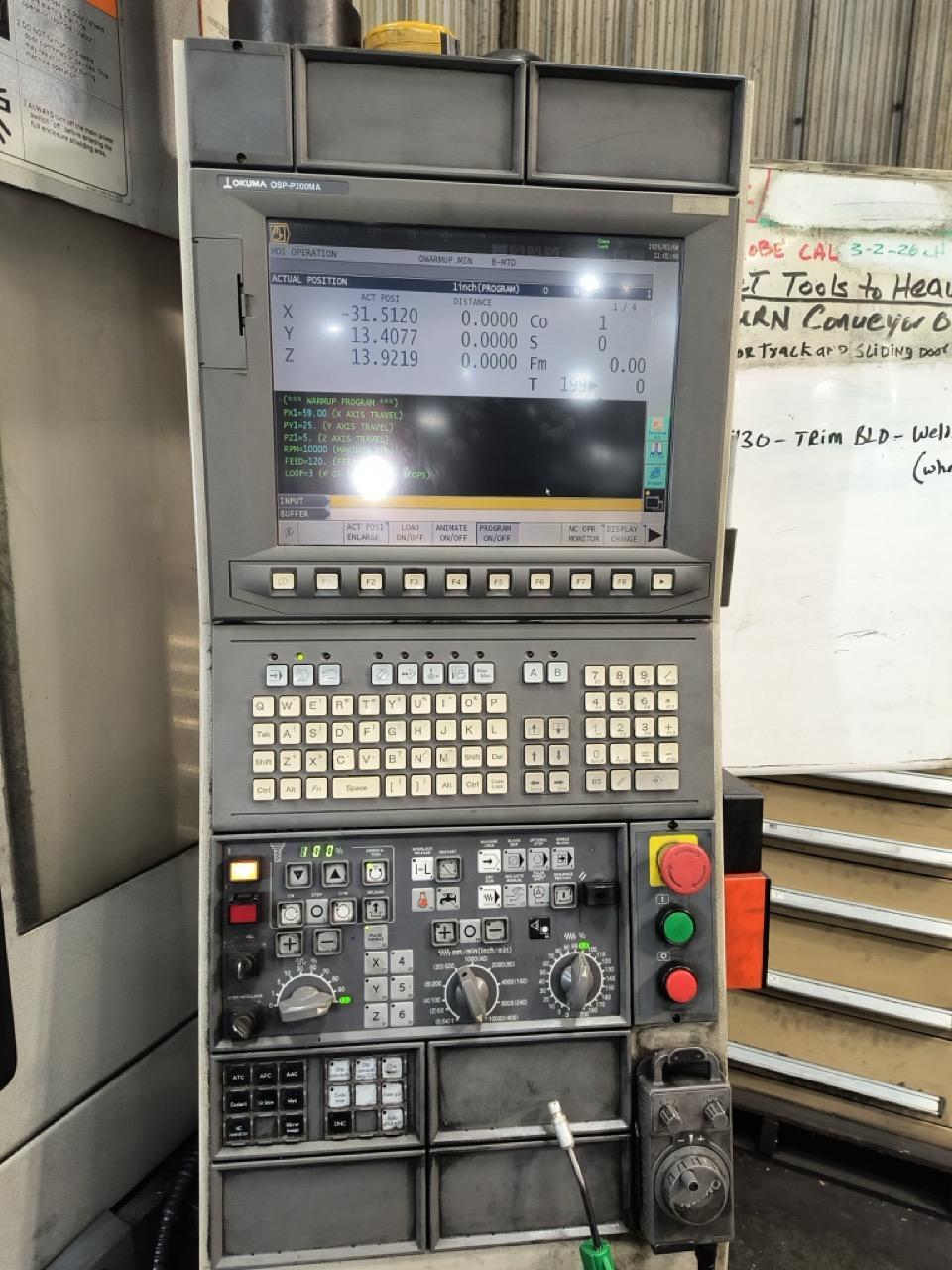

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With Okuma OSP-P200MA CNC Control Probing Through Spindle Coolant ChipBlaster D-30 High Pressure Coolant System 10K Spindle 20 Position Auto Tool Changer

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Replaced X-Axis Ballscrew in 2022. Replaced Spindle & ATC Gearbox in 2023.
