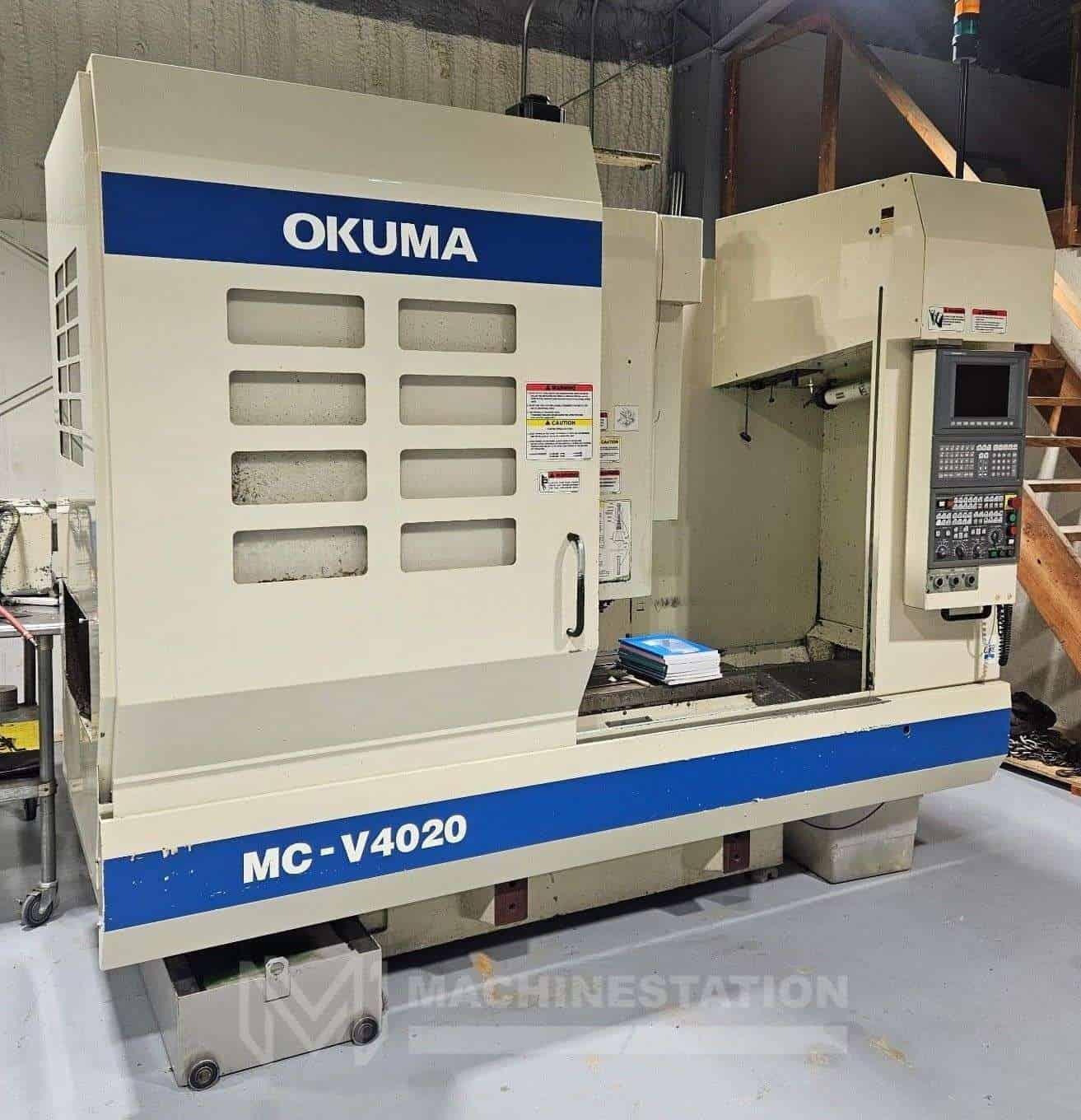

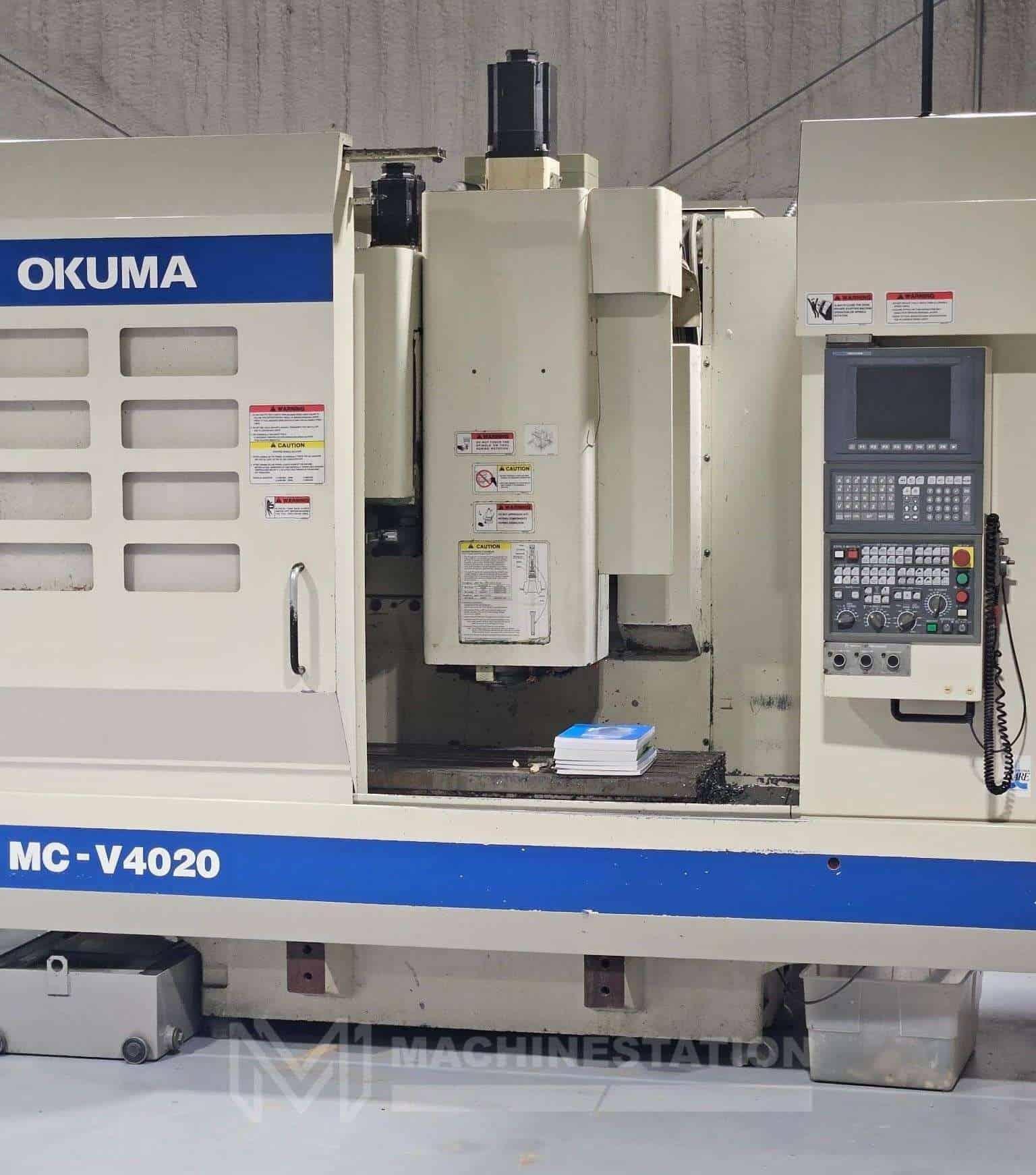

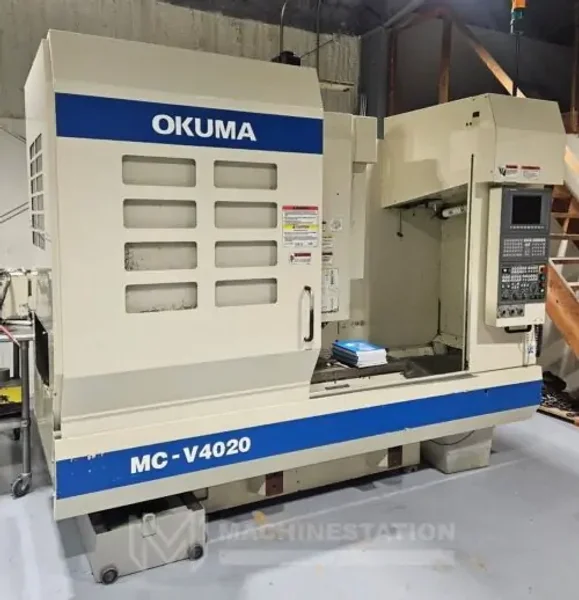

Okuma MC-V4020 CNC Vertical Machining Center – 4th Axis Mill

Okuma MC-V4020 CNC Vertical Machining Center – 4th Axis Mill

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Okuma
Model:	MC-V4020
Year:	2005
Condition:	Used – Good

Features:

Okuma CNC Control

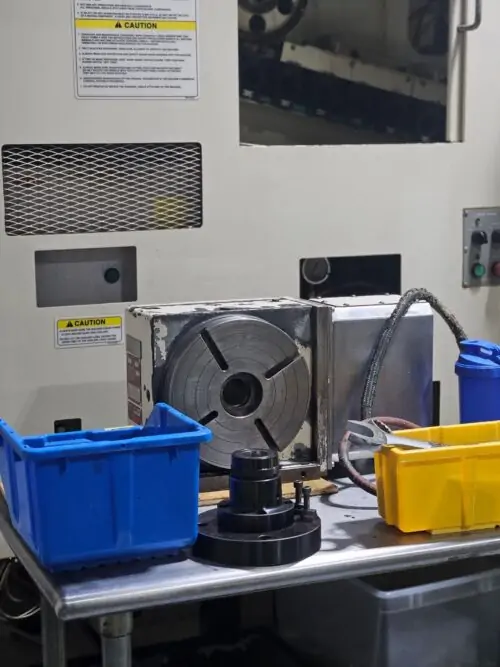

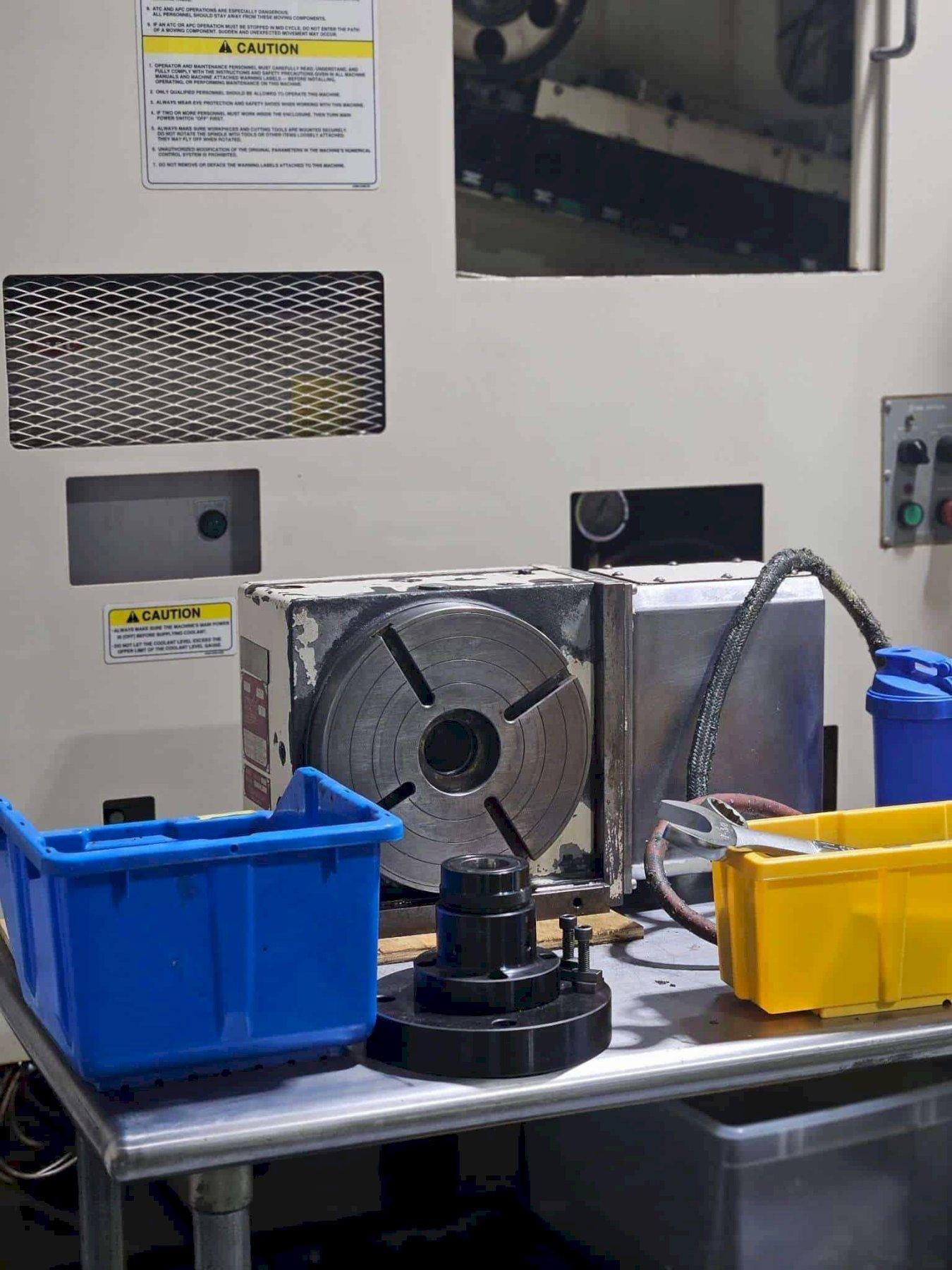

4th Axis Rotary Table
8,000 RPM Precision Spindle
20 Station Automatic Tool Changer
20 HP High Torque Spindle
Rigid Tapping
Coolant System
Chip Tray

Travel:

X-Axis: 40.0″
Y-Axis: 20.0″
Z-Axis: 17.7″
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 6.3″ – 24″

Table:

Length: 48″
Width: 20″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1500 lbs

Spindle:

Taper Size: CAT-40
Speed Range: 8,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:

Capacity: 20 Tools
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.54″ – 4.92
Max Tool Length: 15.75″
Tool Changing Time (Tool to Tool): 1.5 Seconds

General:

Air Required: 100 psi 4 scfm
Power: 3-Phase / 60 Hz
Overall Dimensions: 114″ x 111″ x 104″ High Approx.
Weight: 16,000 lbs Approx.
