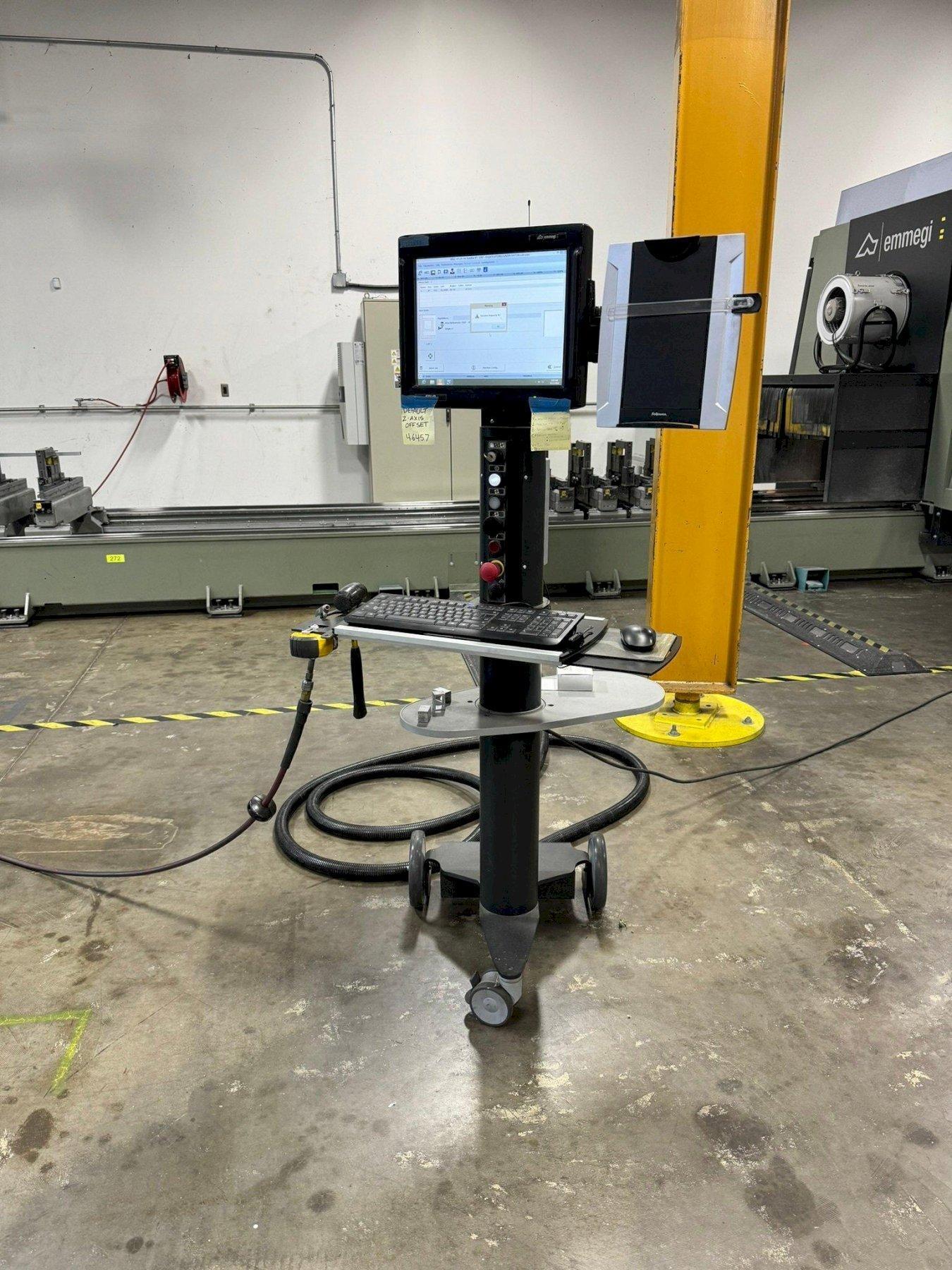

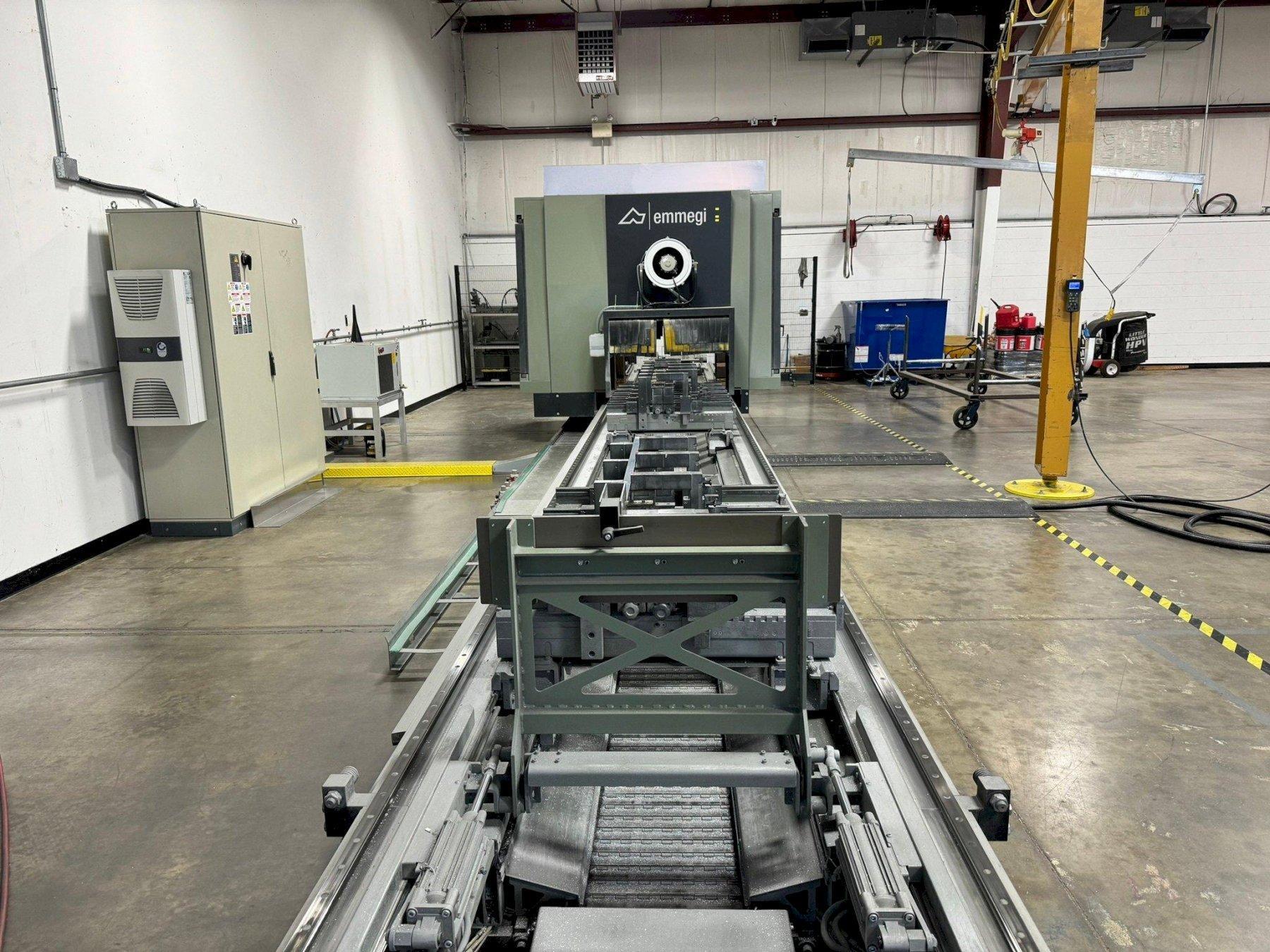

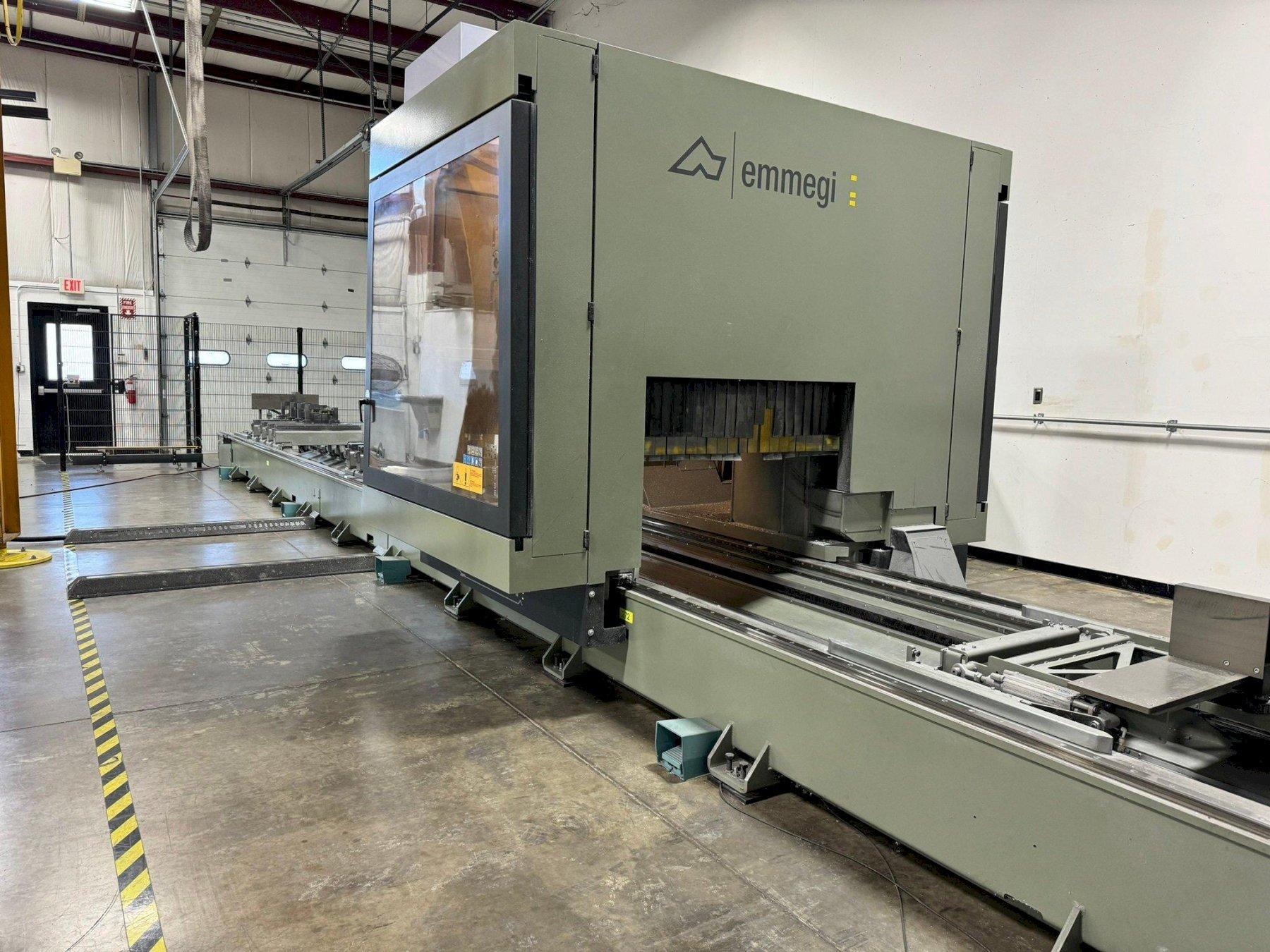

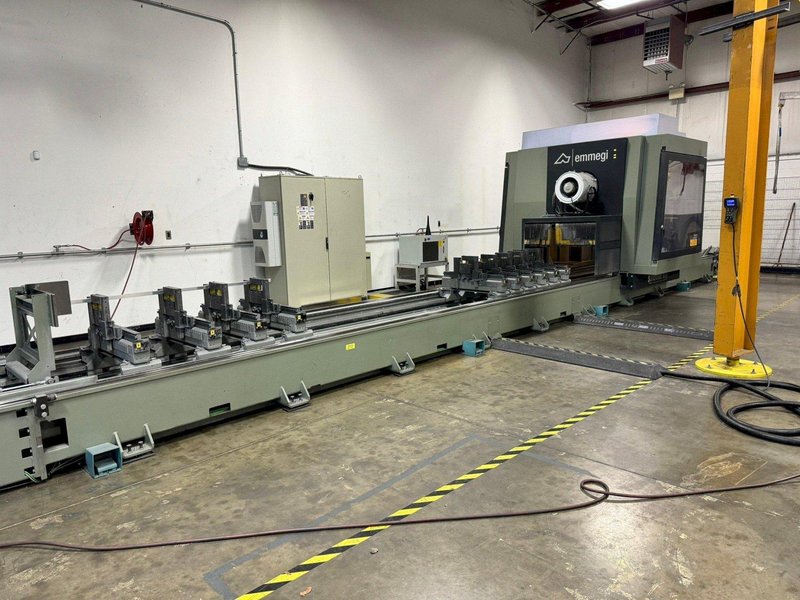

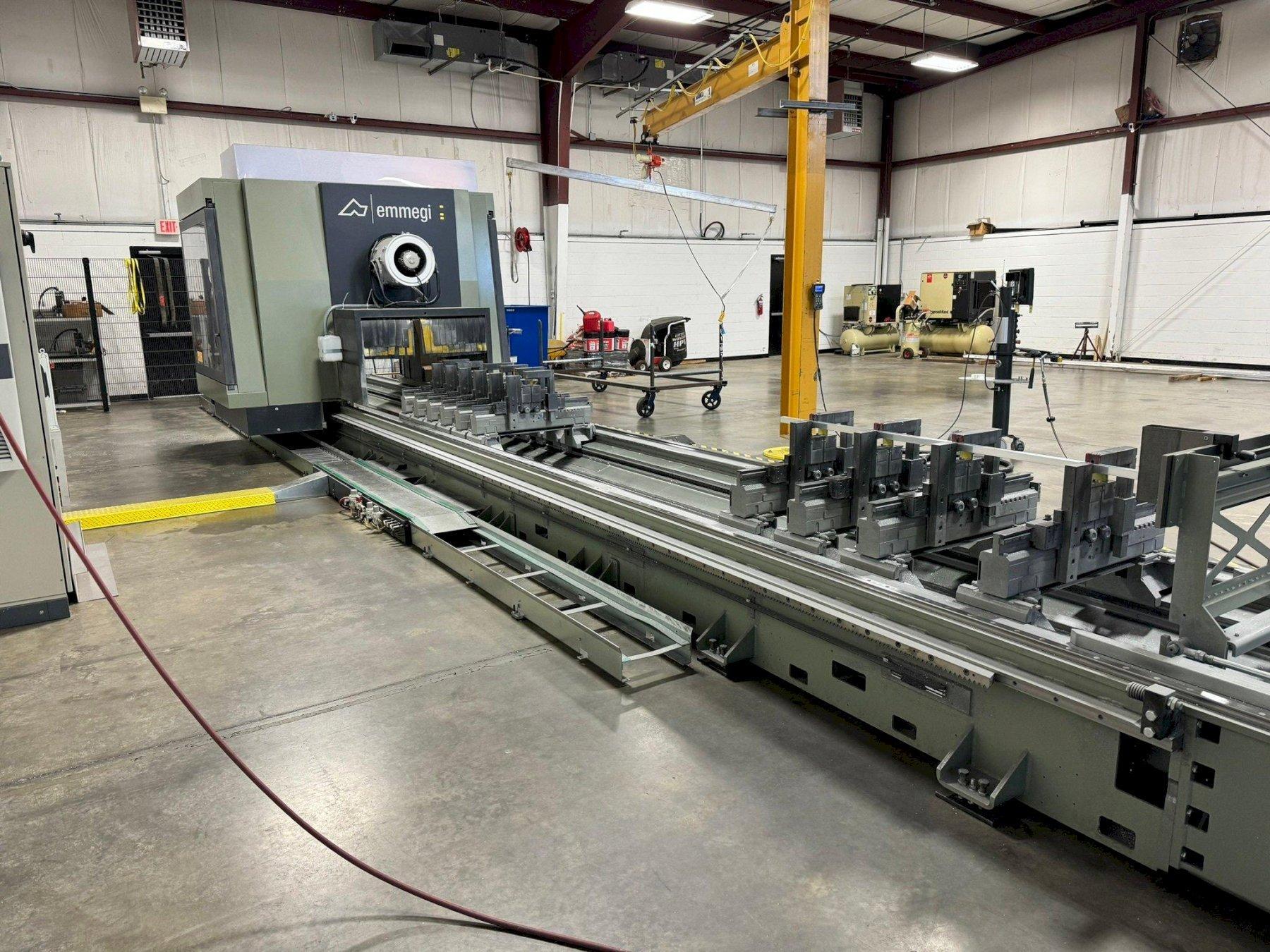

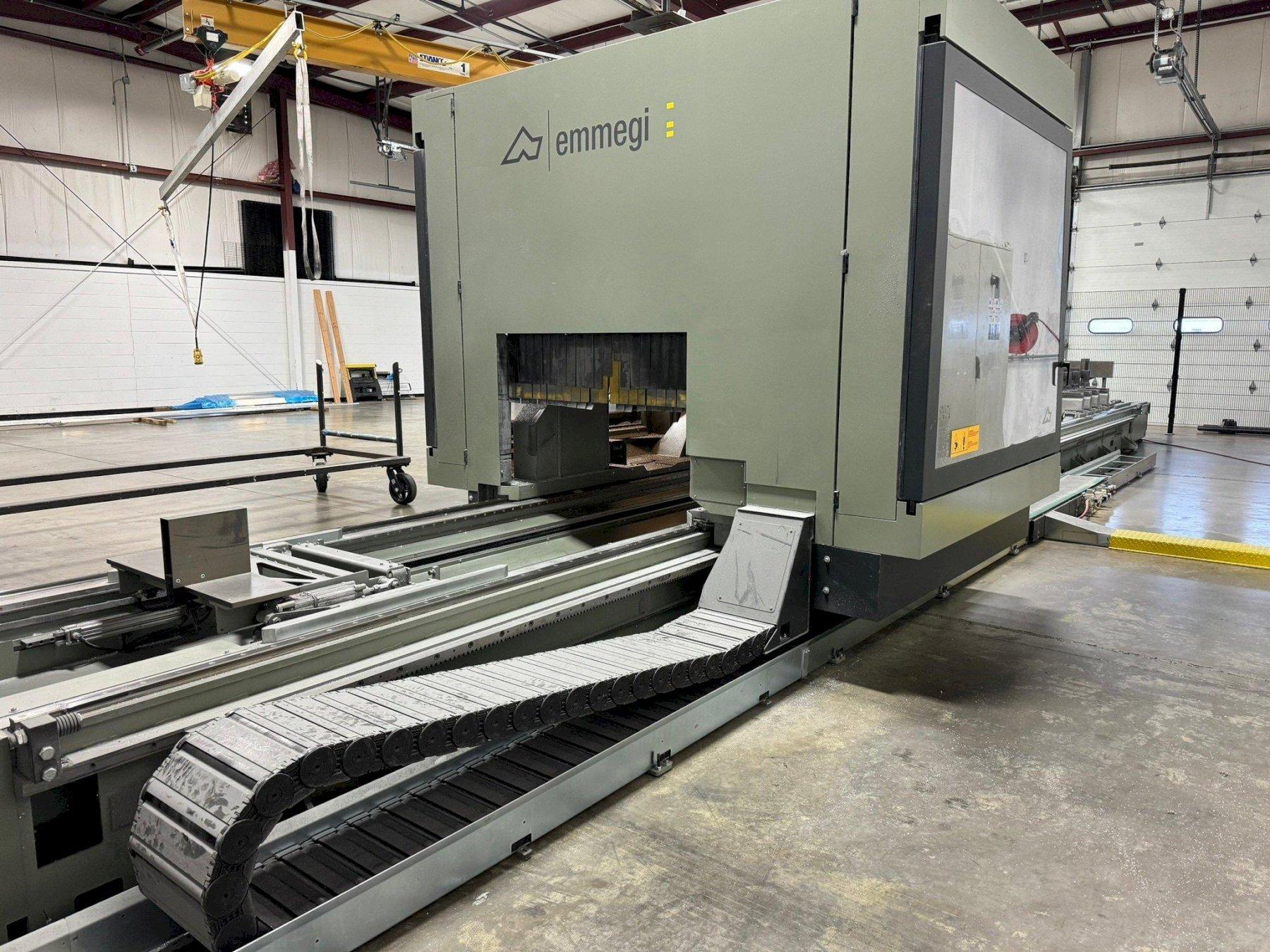

10,500mm X 1,100mm X 655mm CNC Machining Center with Emmegi ISO Programming Control Panel, Static Pendular Mode, Dynamic Pendular Mode, 5 - Controlled Axes, Cut & Separation Function,  16 - Place Tool Magazine, Automatic Swarf Evacuation and Fume Extraction System.

GENERAL SPECIFICATIONS
X1 - Axis (Single Mode):                    10,500 mm
Double Mode:                    4,815 mm
X2 - Axis (Single Mode):                    10,000 mm
Double Mode:                    4,565 mm
Y1 - Axis:                            1,000 mm
Y2 - Axis:                            450 mm
Z1 - Axis:                            400 mm
Z2 - Axis                            400 mm
B - Axis:                            0° - 90°
C - Axis:                            0° - 360°
X -  Axis Positioning Speed:                75 M/min
Y - Axis Positioning Speed:                    60 M/min
Z - Axis Positioning Speed:                    40 M/min
B - Axis Positioning Speed:                    3240° /min
C - Axis Positioning Speed:                    3600° /min

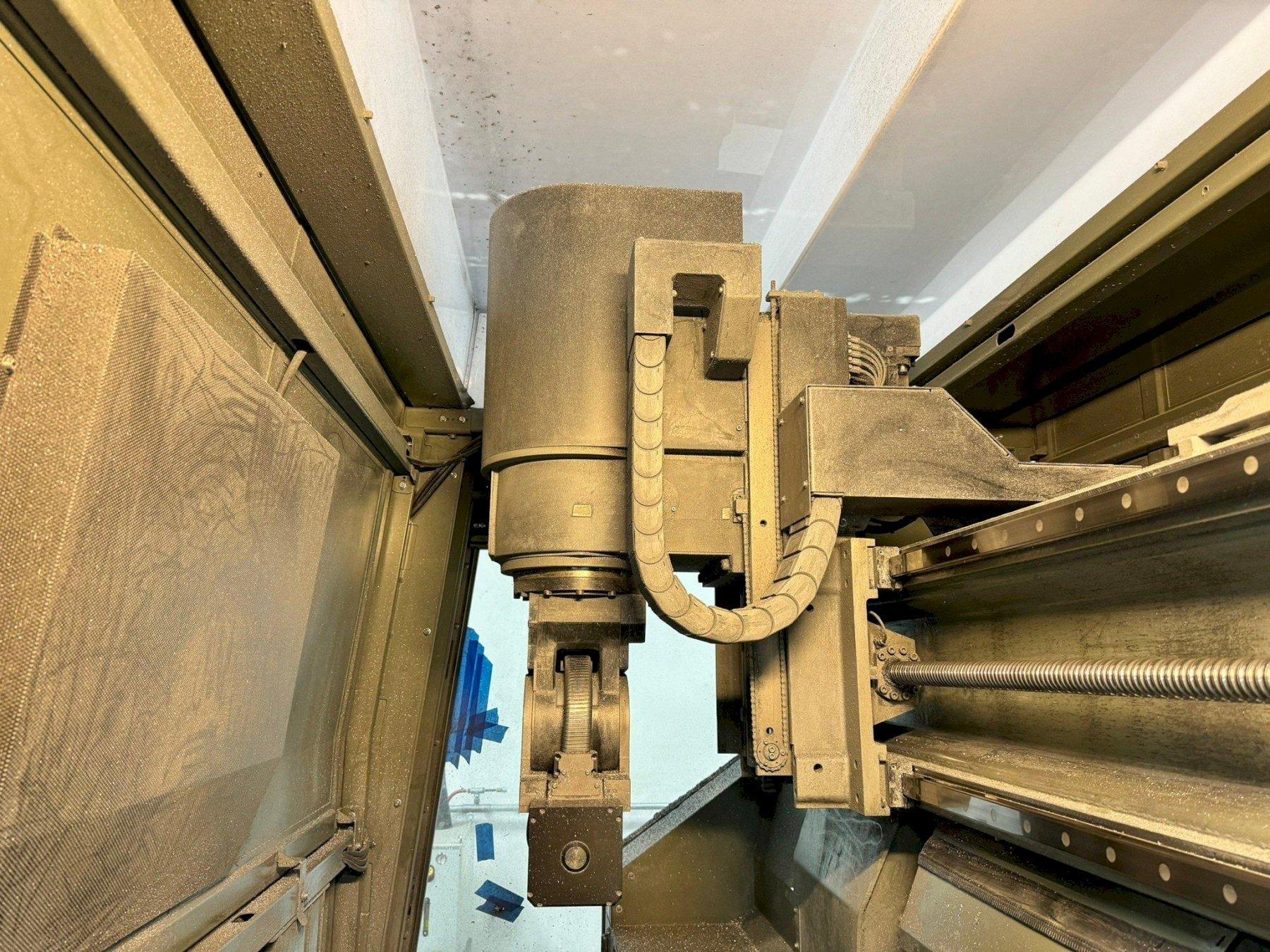

Electrospindle
Max. Power in S1:                        15 kW
Max. Speed:                            24,000 RPM
Max. Torque:                            12 Nm
Tool Attachment Cone:                    HSK - 63F

Max Blade Diameter:                    500 mm Ø
Max Size of Tools:                        80 mm Ø / 300 mm L
Workable Sides w/ Direct Tool:                5
Workable Sides with 500mm Blade:            1 + 2 +2
Rigid Tapping:                        M12
Workpiece Reference Stops:                2

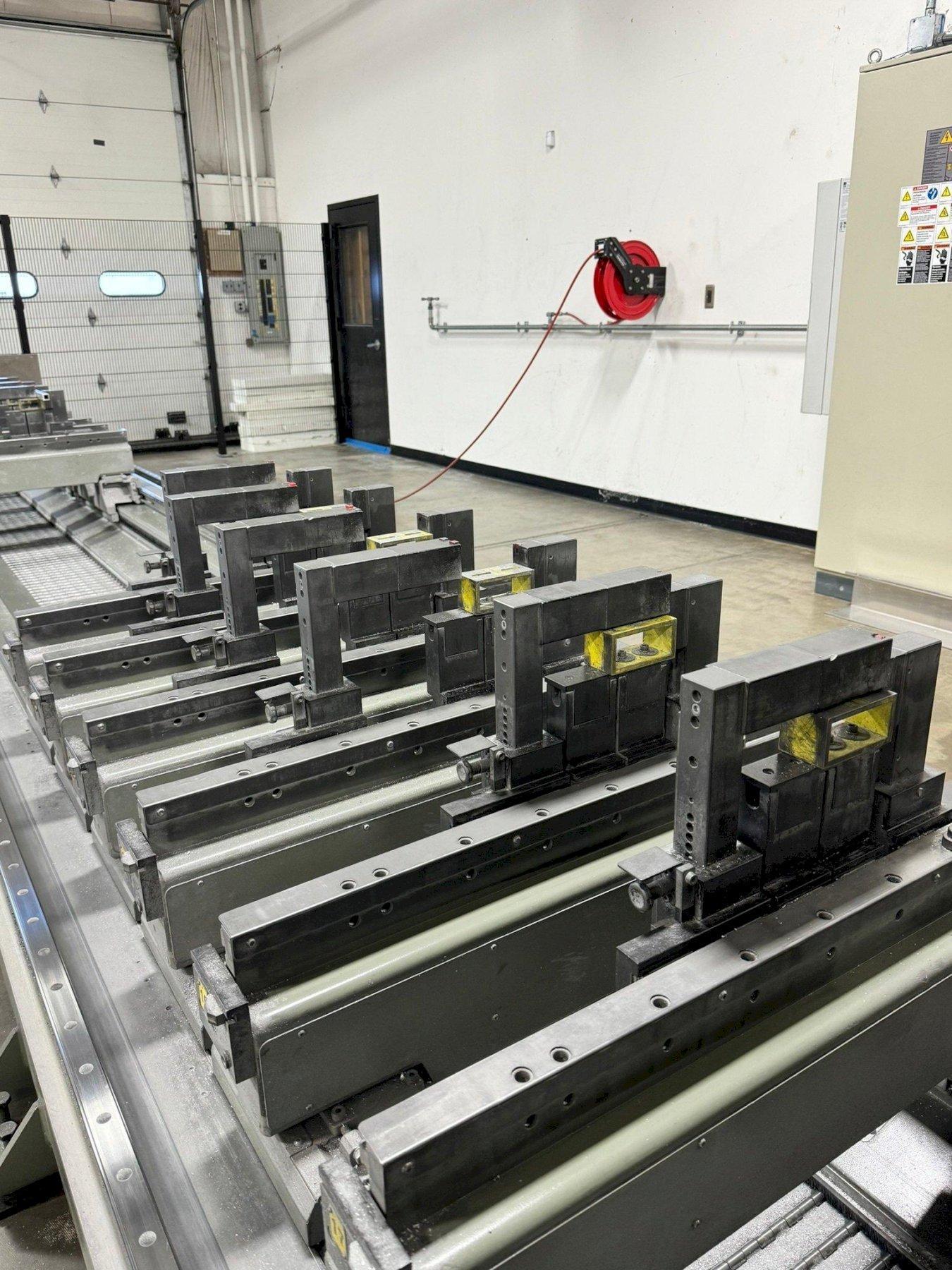

Pneumatic Clamps:                        6 - 8 - 12
Max Size of Workpiece:                    550 mm

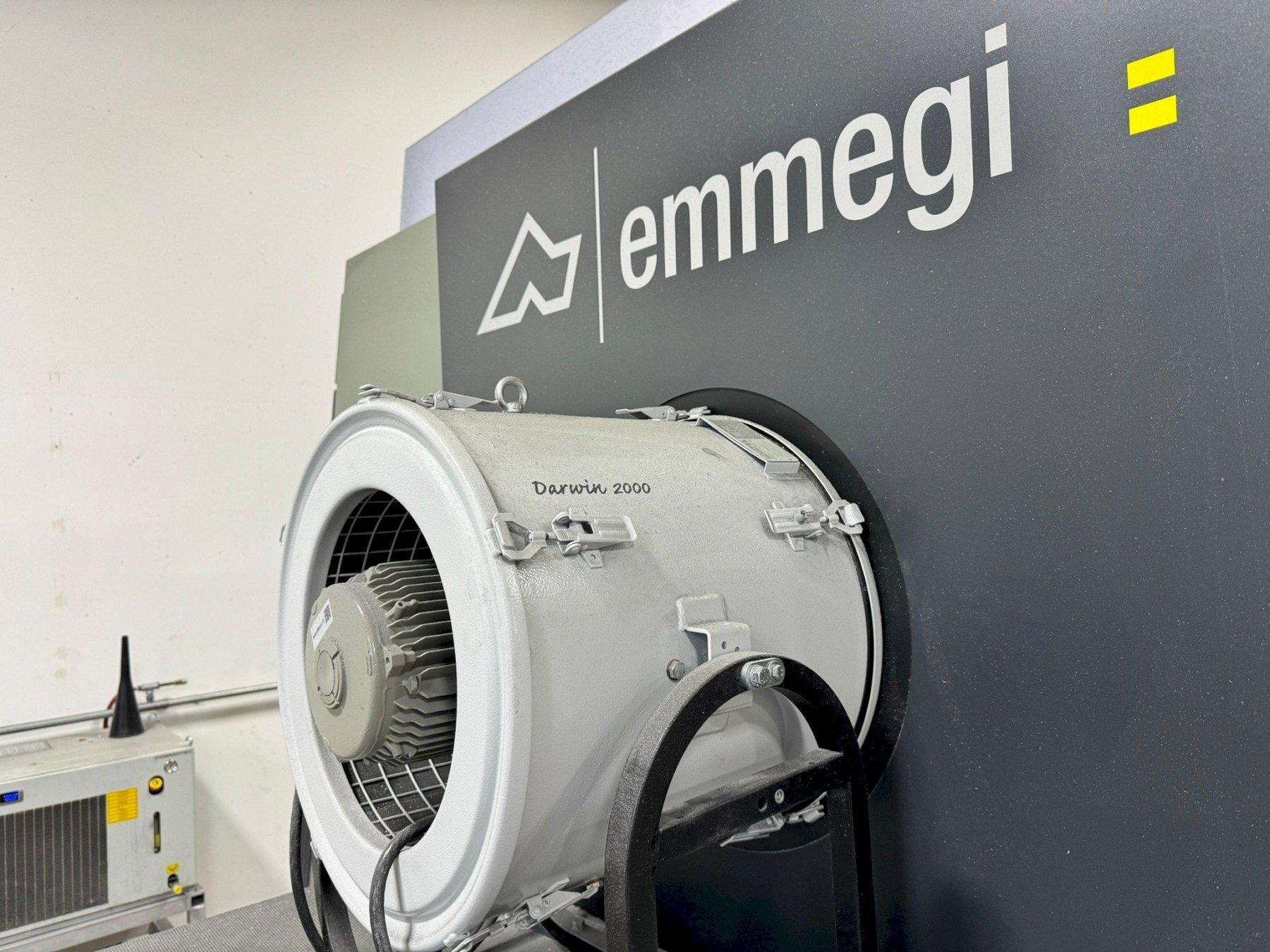

INCLUDES: Emmegi ISO Programming Control Panel, Static Pendular Mode, Dynamic Pendular Mode, 5 - Controlled Axes, Cut & Separation Function,  16 - Place Tool Magazine, Automatic Swarf Evacuation and Fume Extraction System.
