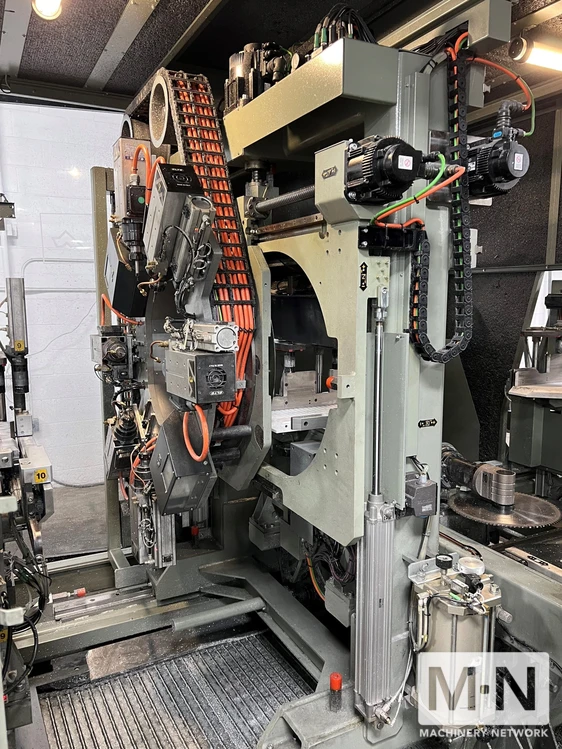

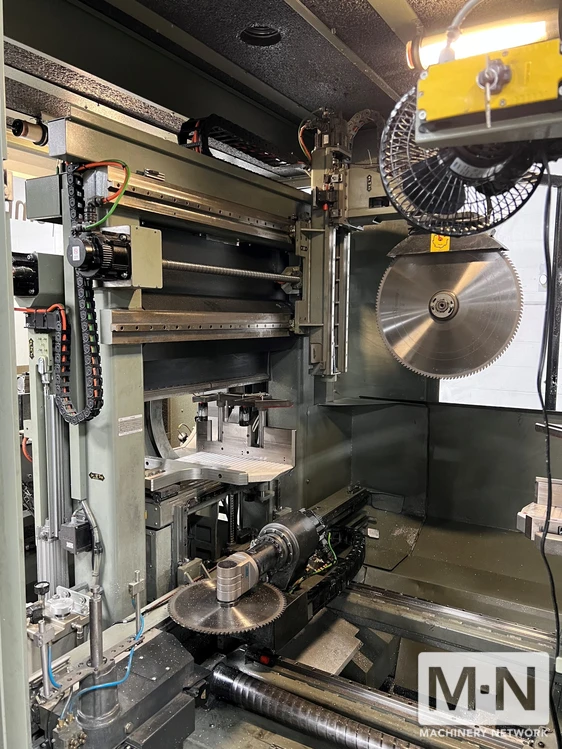

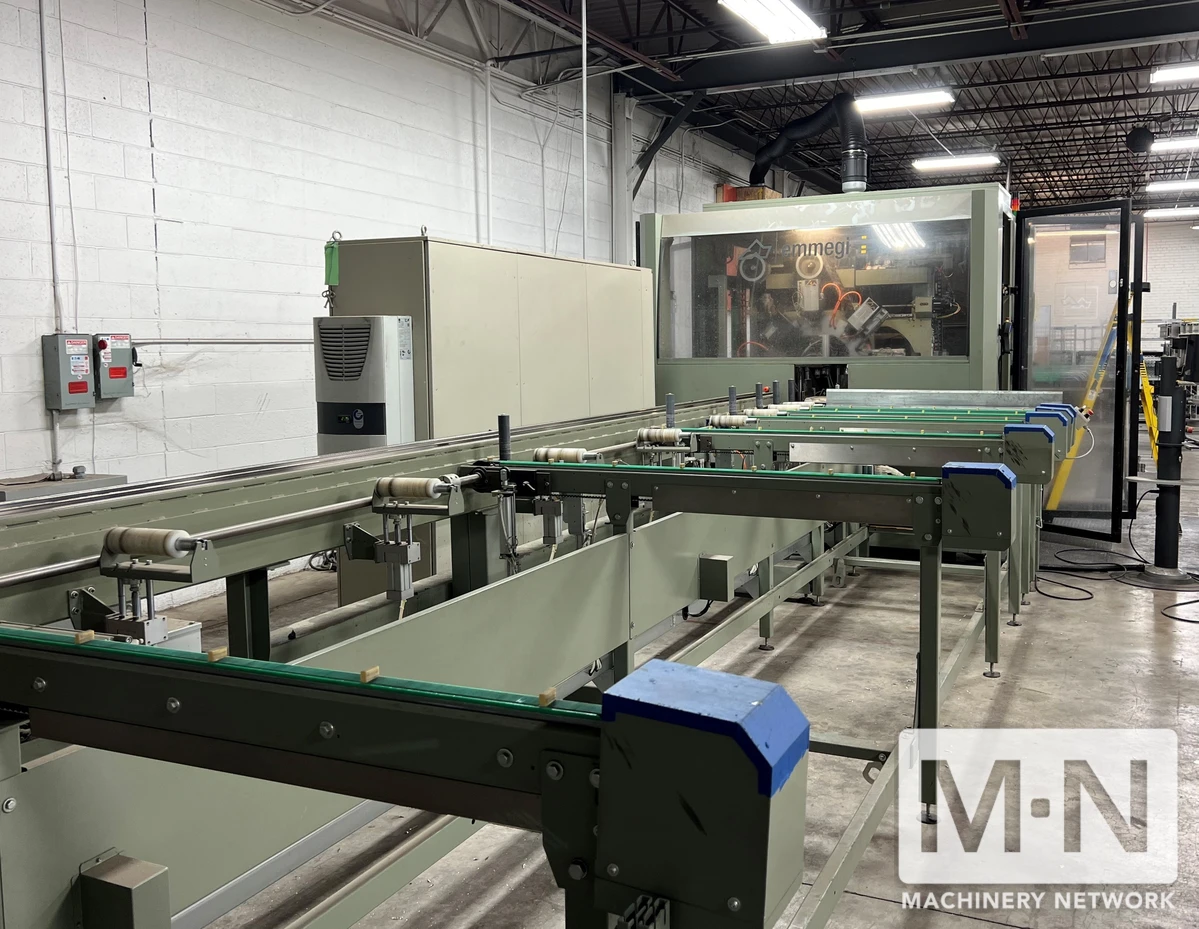

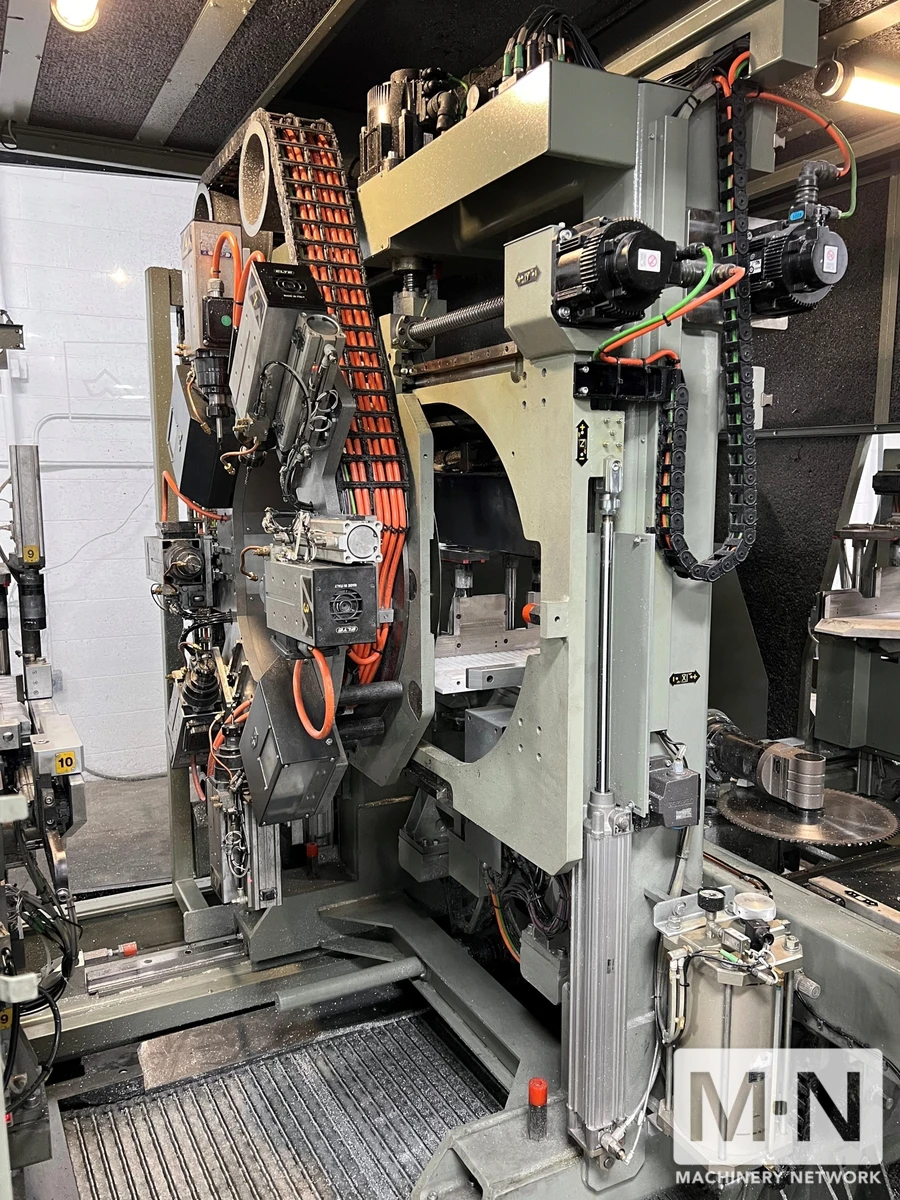

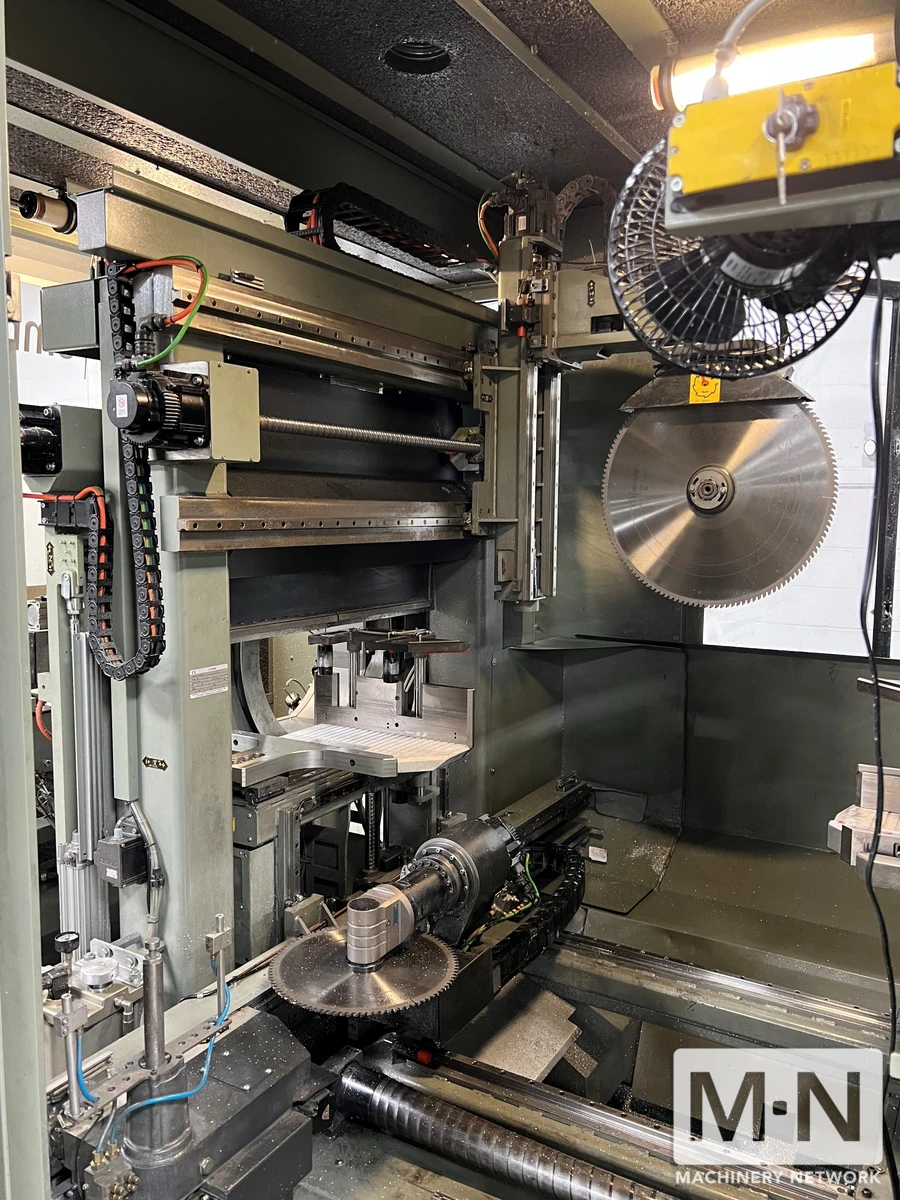

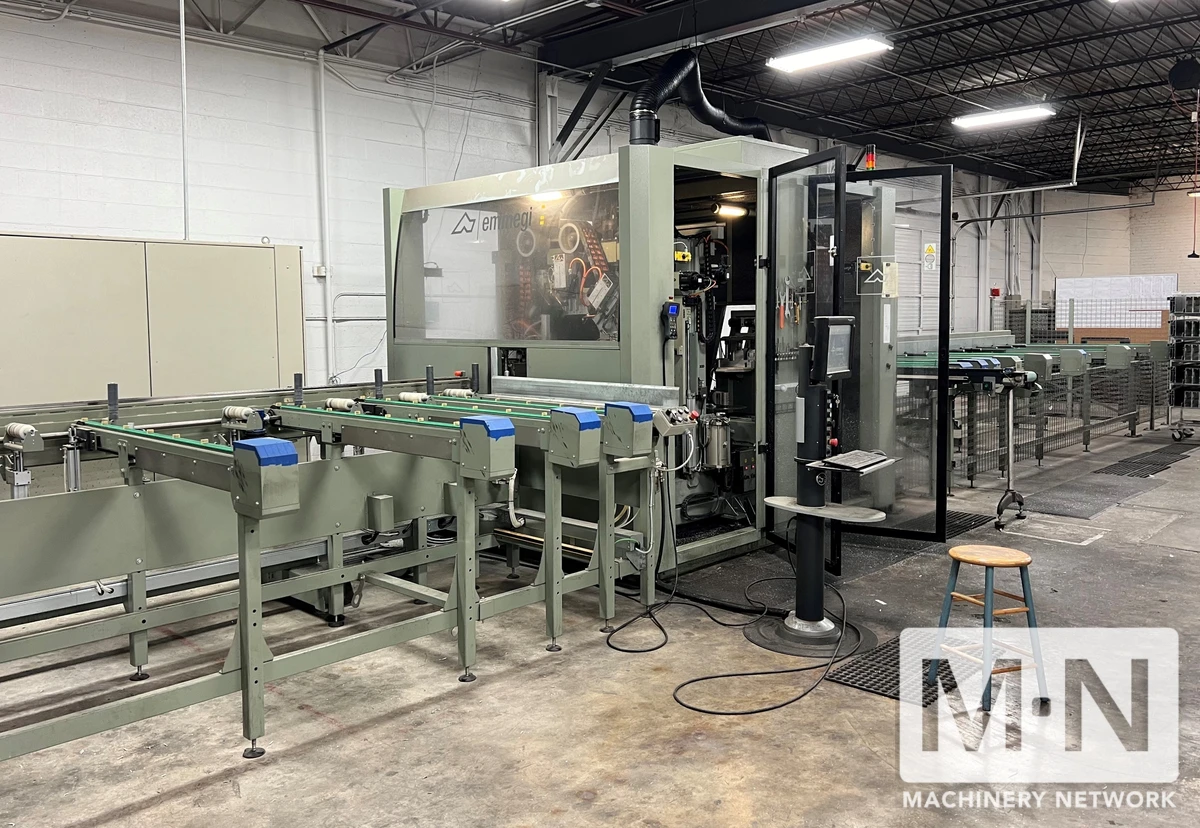

Emmegi QUADRAL2 CNC Vertical Machining Center, 2018

AXIS STROKES
X AXIS (longitudinal) 12.6"
Y AXIS (transversal) 15.83"
Z AXIS (vertical) 15.55"
A AXIS (rotary base rotation) 0° ÷ 360°
U AXIS (bar positioning) 0.38"
H AXIS (cutting unit vertical movement) 24.69"
P AXIS (cutting unit transversal movement) 34.65"
B AXIS (motorised vice movement) 31.1"
ZG AXIS (horizontal cutting unit vertical movement) 7.48"
YL AXIS (horizontal cutting unit transversal movement) 0.05"
YF AXIS (end milling unit transverse travel) (optional)0.05"

MILLING UNIT
Electrospindles with air cooling4
Electrospindle rotary unit on rotary base0° ÷ 360°
Maximum power in S1 7.51 Hp
Maximum speed 24.000 RPM
Toolholder ER 32
Maximum number of machining units 6
Disengagement from machining unit work area by means of recirculating ball slides (4.33" stroke)

VERTICAL CUTTING UNIT
Blade diameter at carbide-tipped 23.62"
NC blade positioning-48° ÷ 245°
Blade motor power 4.2 Hp

HORIZONTAL CUTTING UNIT
Blade diameter at carbide-tipped 13.78"
NC blade positioning -45° ÷ +45°
Blade motor power 1.14 Hp

END MILLING UNIT
Maximum mill diameter 7.78"
Maximum mill pack height 7.87"
Maximum rotation speed 8.000 RPM
Cutting head sleeve diameter 1.26"
