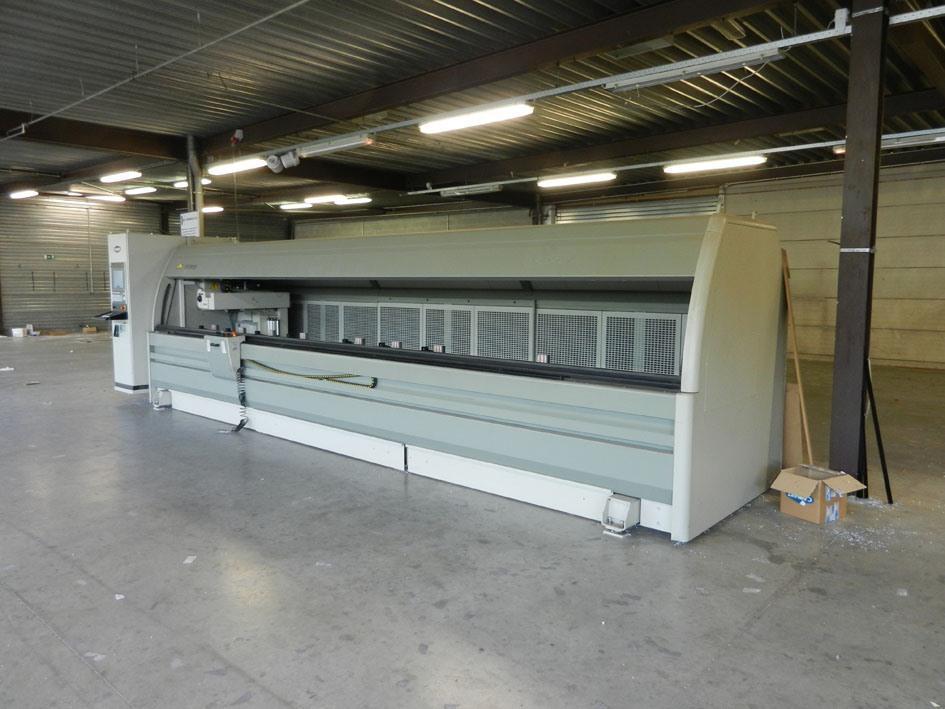

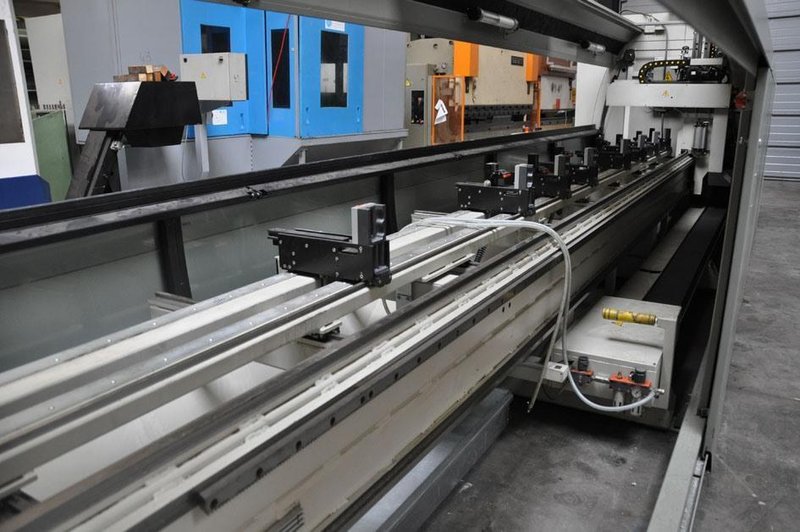

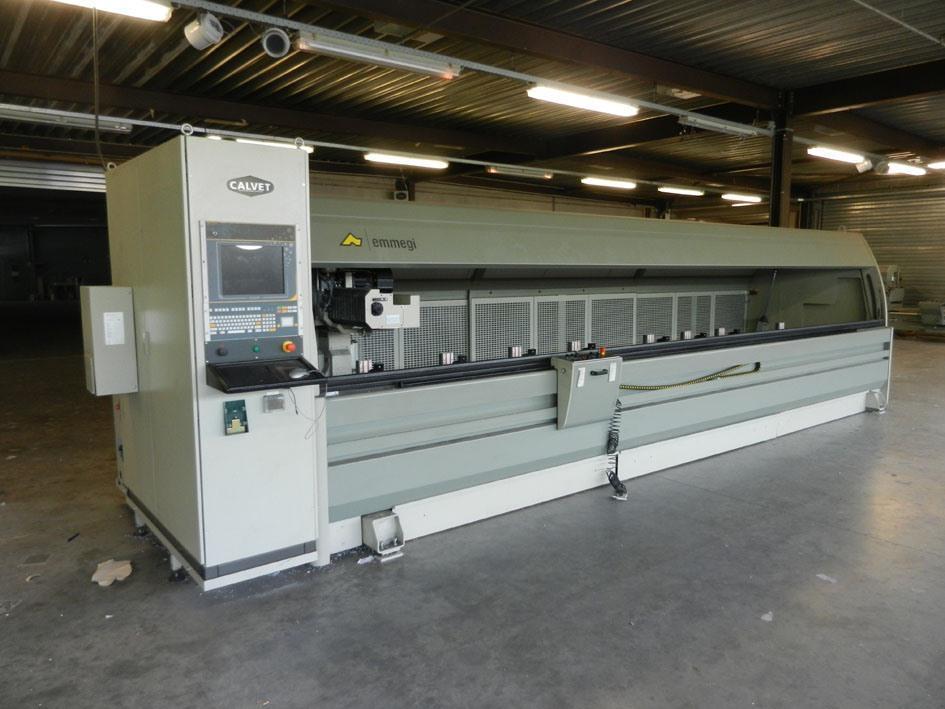

Emmegi Comet Isola

Name: Used EMMEGI Comet Isola For Sale D.01 7087
Brand: EMMEGI
SKU: D.01 7087
Availability: PreOrder

Brand

EMMEGI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

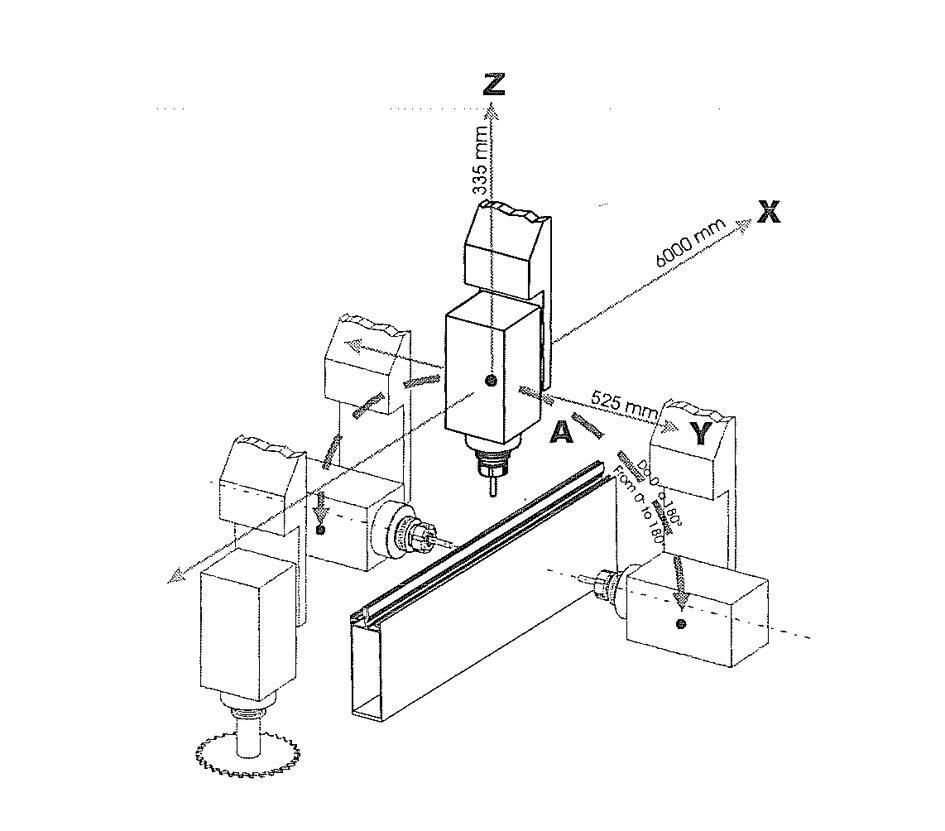

Technical information

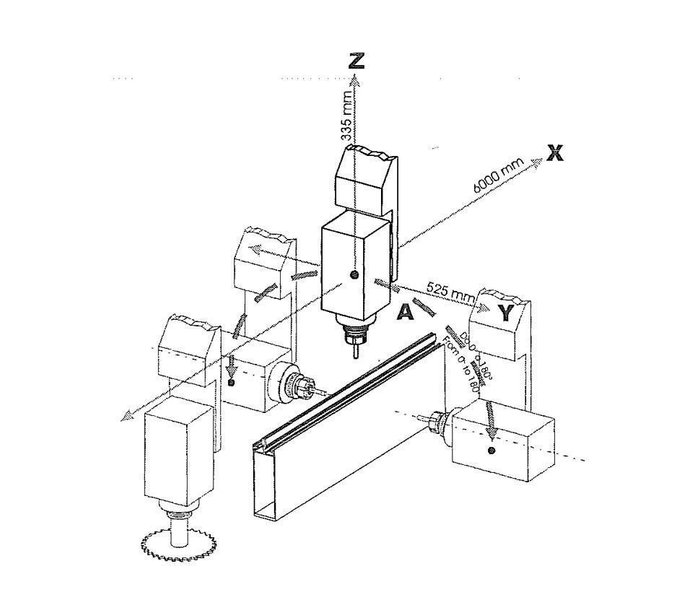

X-axis 6300 mm
Y-axis 525 mm
Z-axis 335 mm

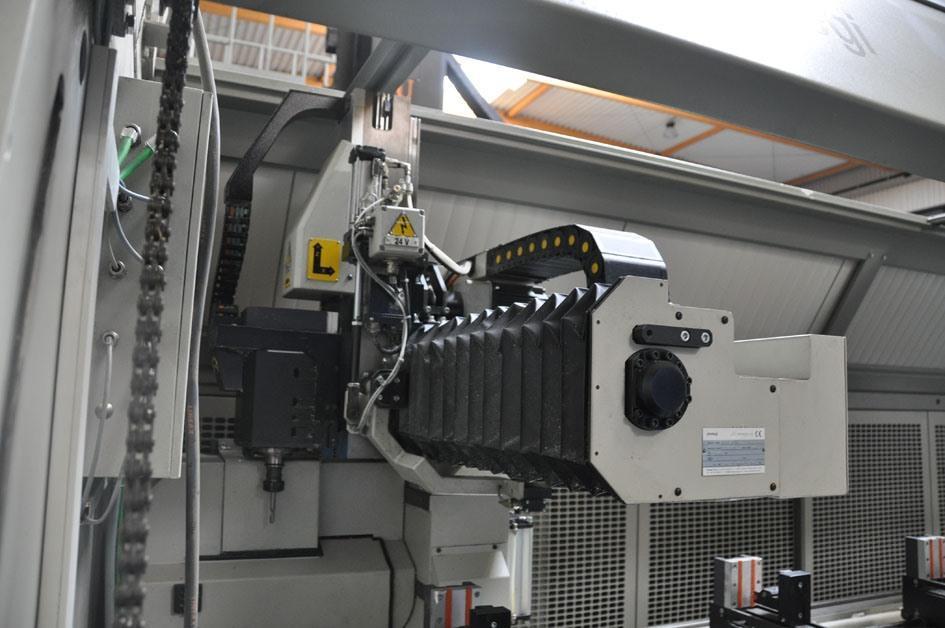

Admission in spindle (ISO) HSK-40E
Power on the spindle 5,5 kW

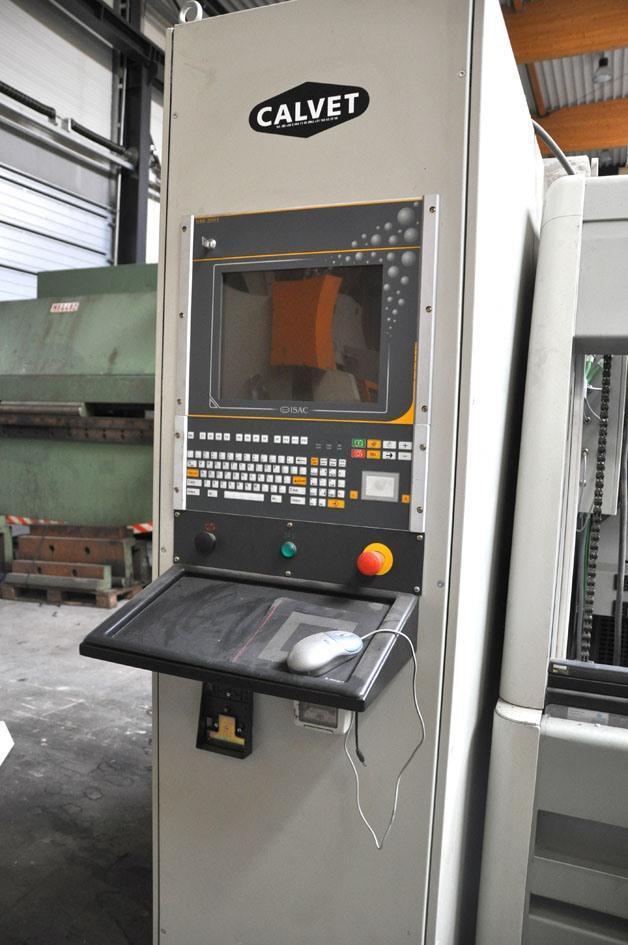

Control CNC-PC
Number of toolholders 8 + 1 tools
Number of rotations 24 000 rpm
Power principal motor 23 kW
Length 8210 mm
Depth 2065 mm
Height 2120 mm
Weight 4800 kg

Additional info

4 axes - suitable for alu/pvc/steel
Cam editor version 3.63 / Drill version 3.9

max workpiece size machinable on 1 face, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 240 x 170 x 7500 mm

max workpiece size machinable on 3 faces, gripped in standard vice with tool length 35 mm + toolholder length 105 mm >> 195 x 170 x 6300 mm

tapping capacity: M10
manual positioning/unloading
workpiece reference stop with N/C positioning

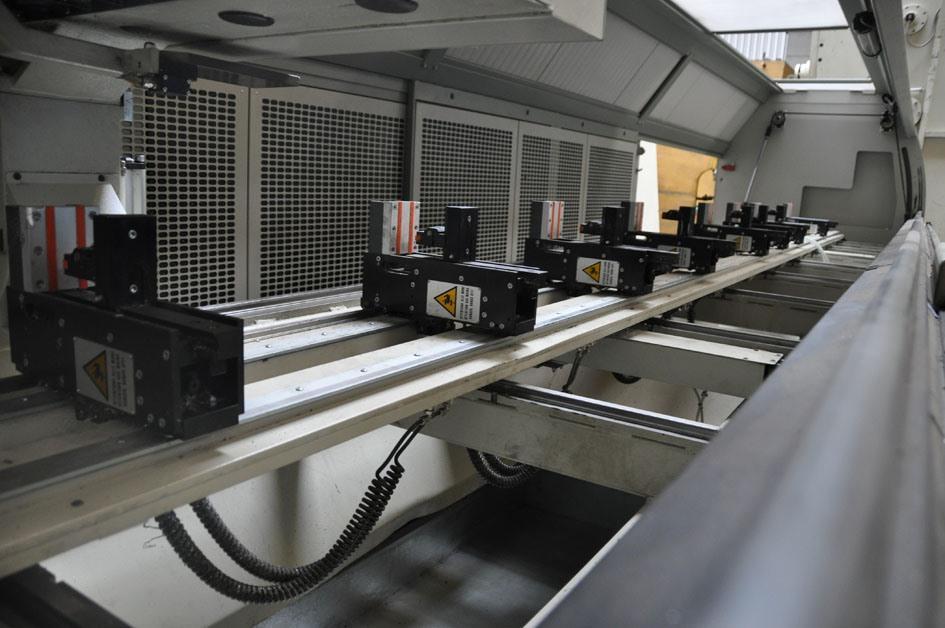

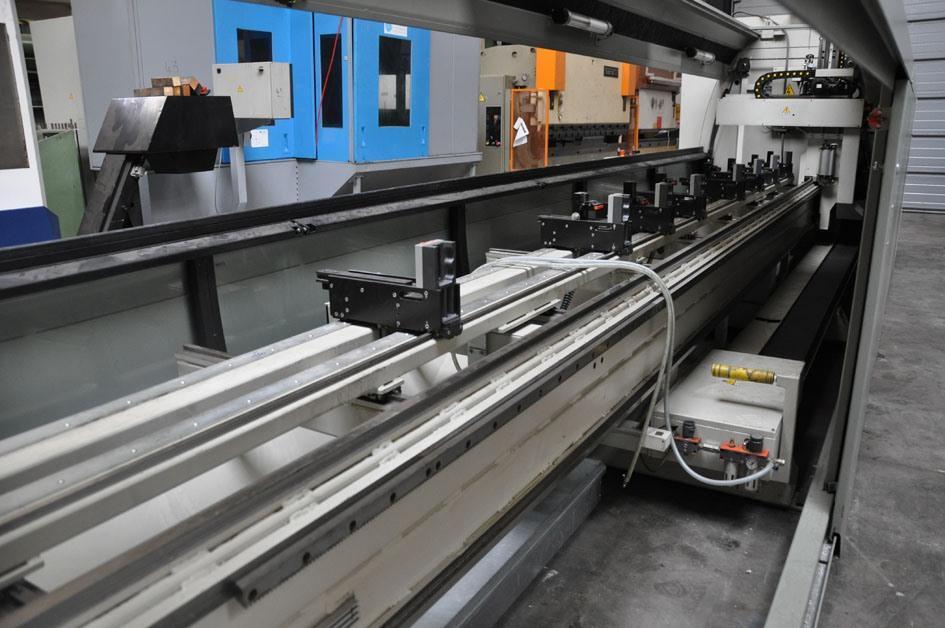

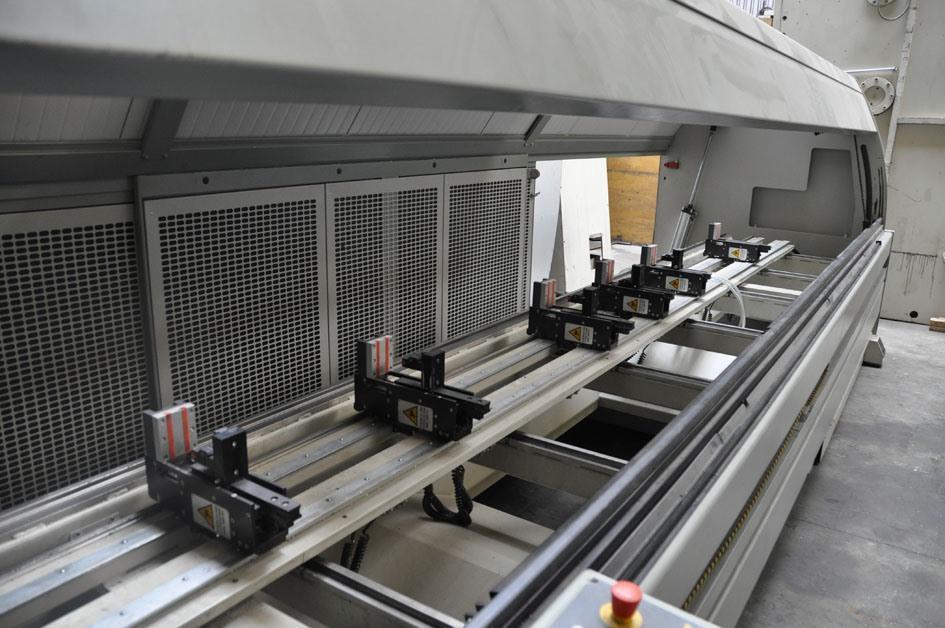

8 pneumatic vices
automatic vice positioning through X-axis

No files or videos to display
