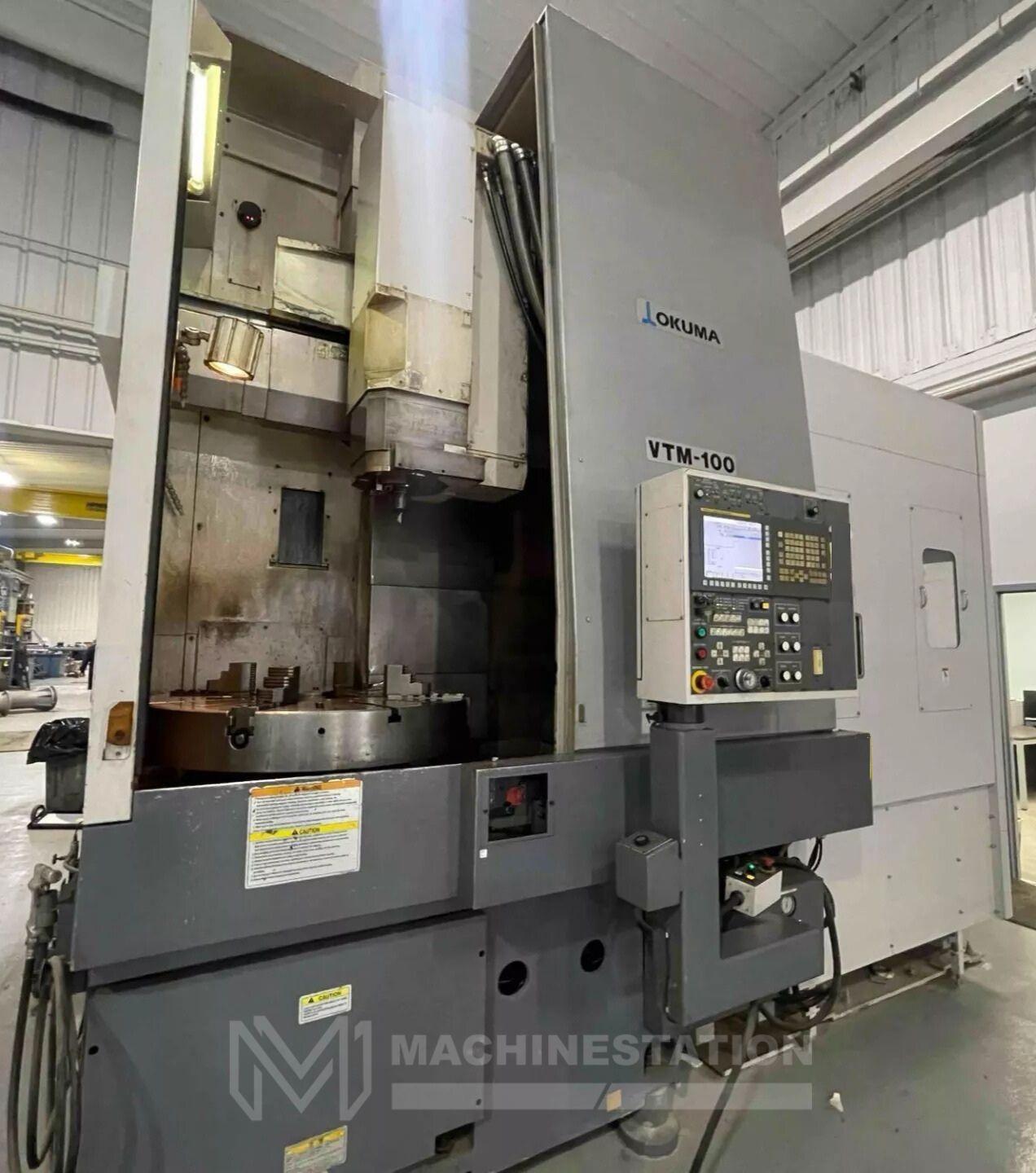

Okuma VTM-100 CNC Vertical Turning Center – Live Tool C Axis VTL

Okuma VTM-100 CNC Vertical Turning Center – Live Tool C Axis VTL

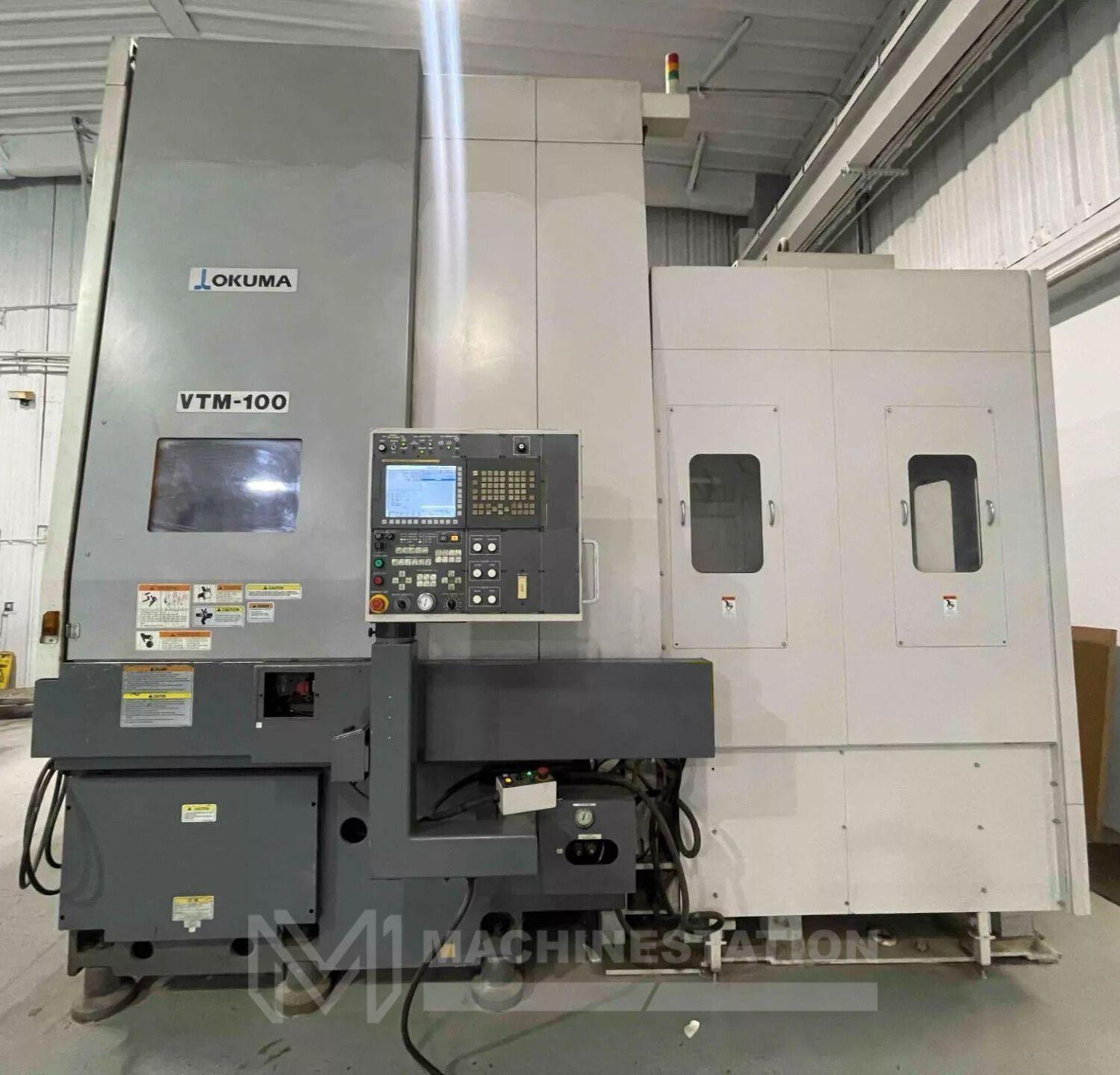

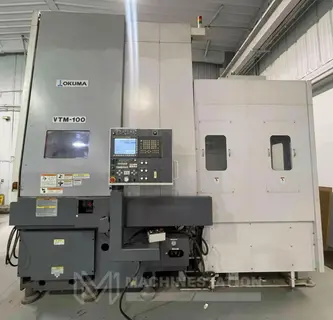

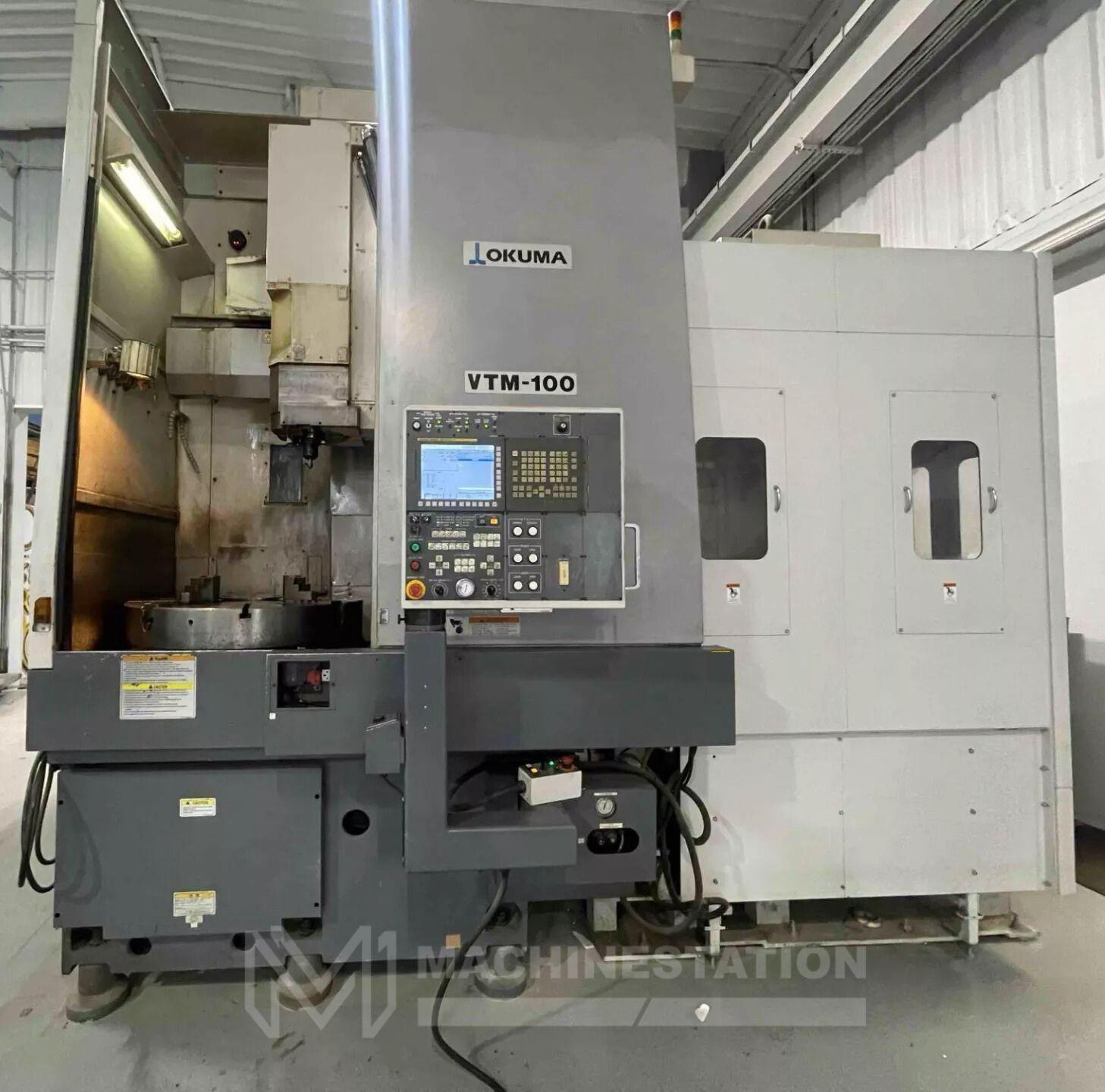

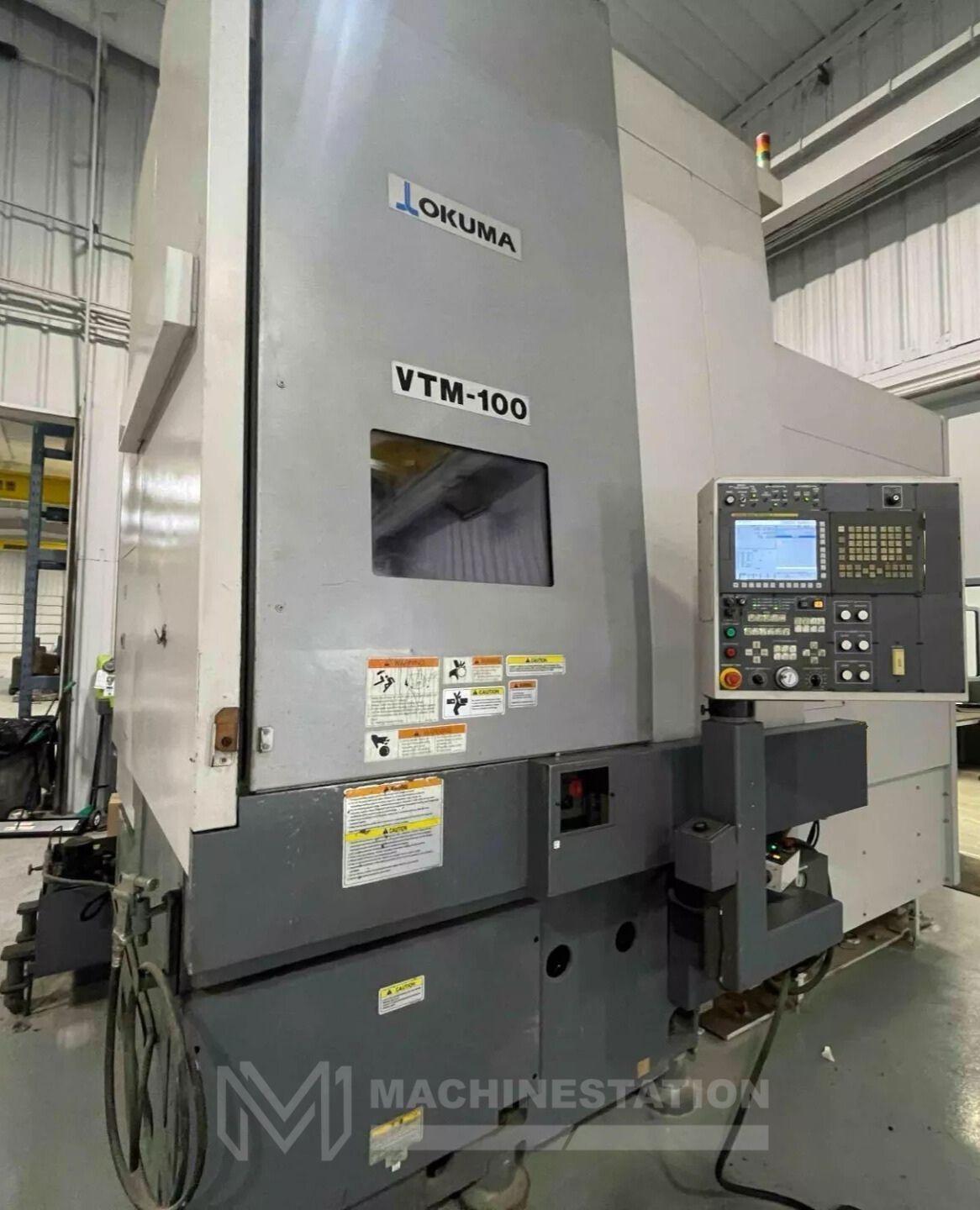

Name: Okuma VTM-100 CNC Vertical Turning Center – Live Tool C Axis VTL
Brand: OKUMA
SKU: 113565
Availability: PreOrder

Brand

OKUMA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

SKU	113565
Make	Okuma
Model No.	VTM-100
Year	2011
Condition	Used – Good

Equipped With:

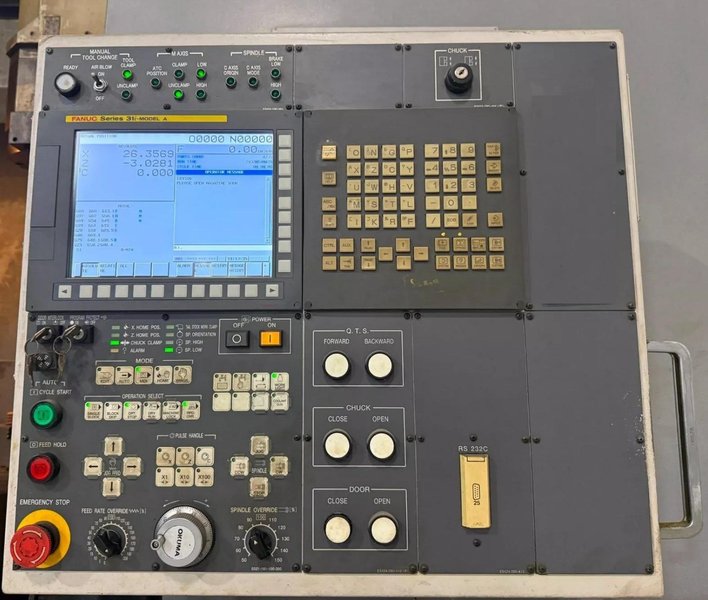

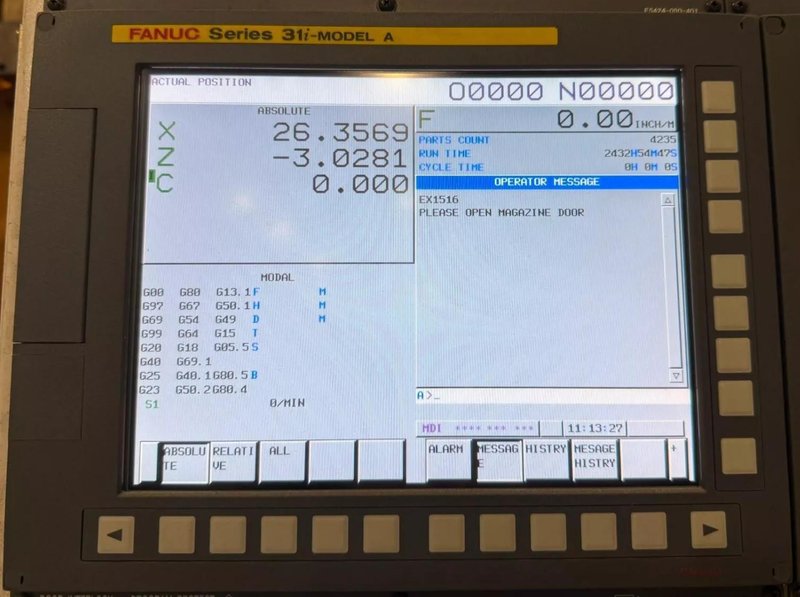

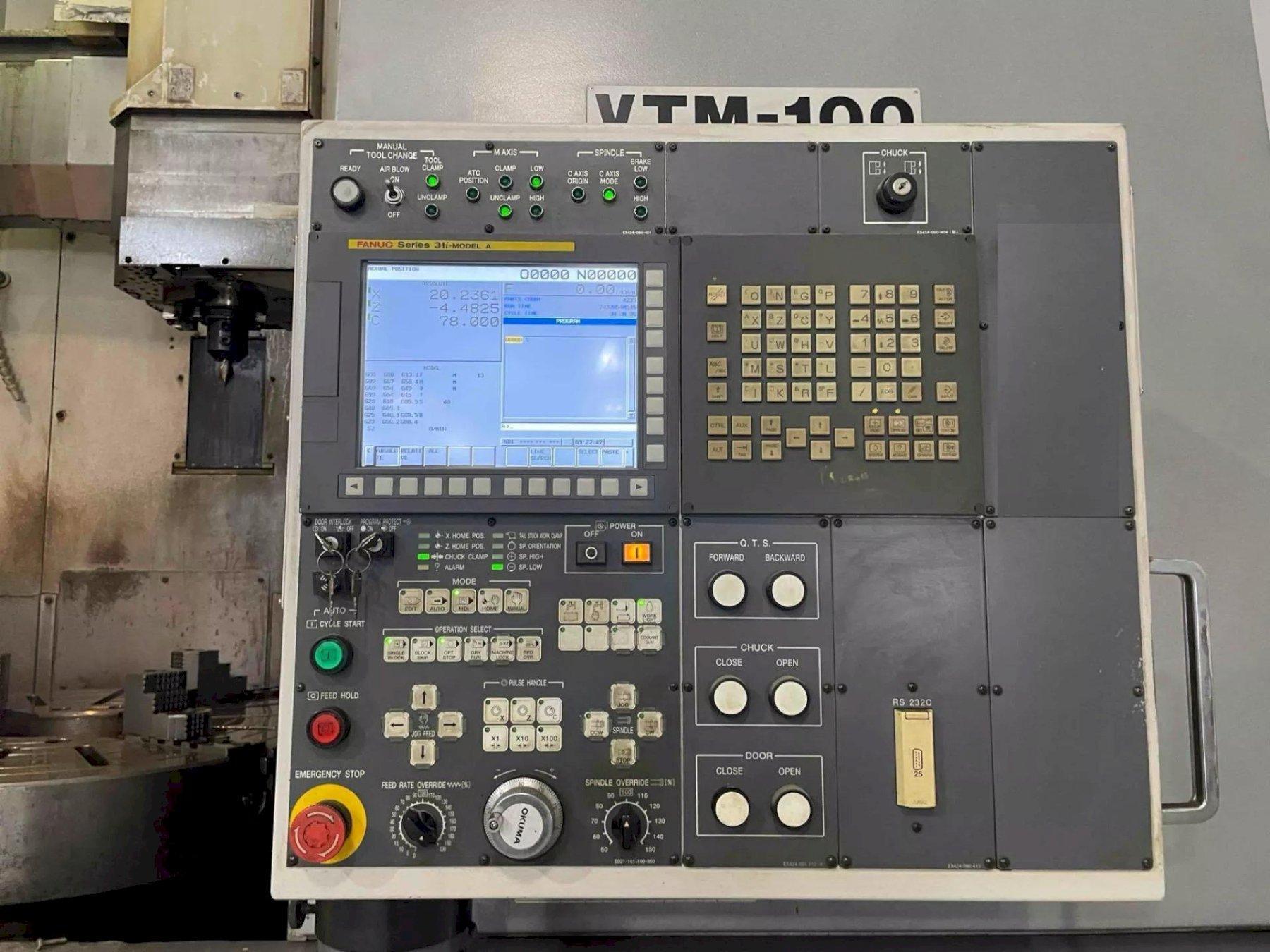

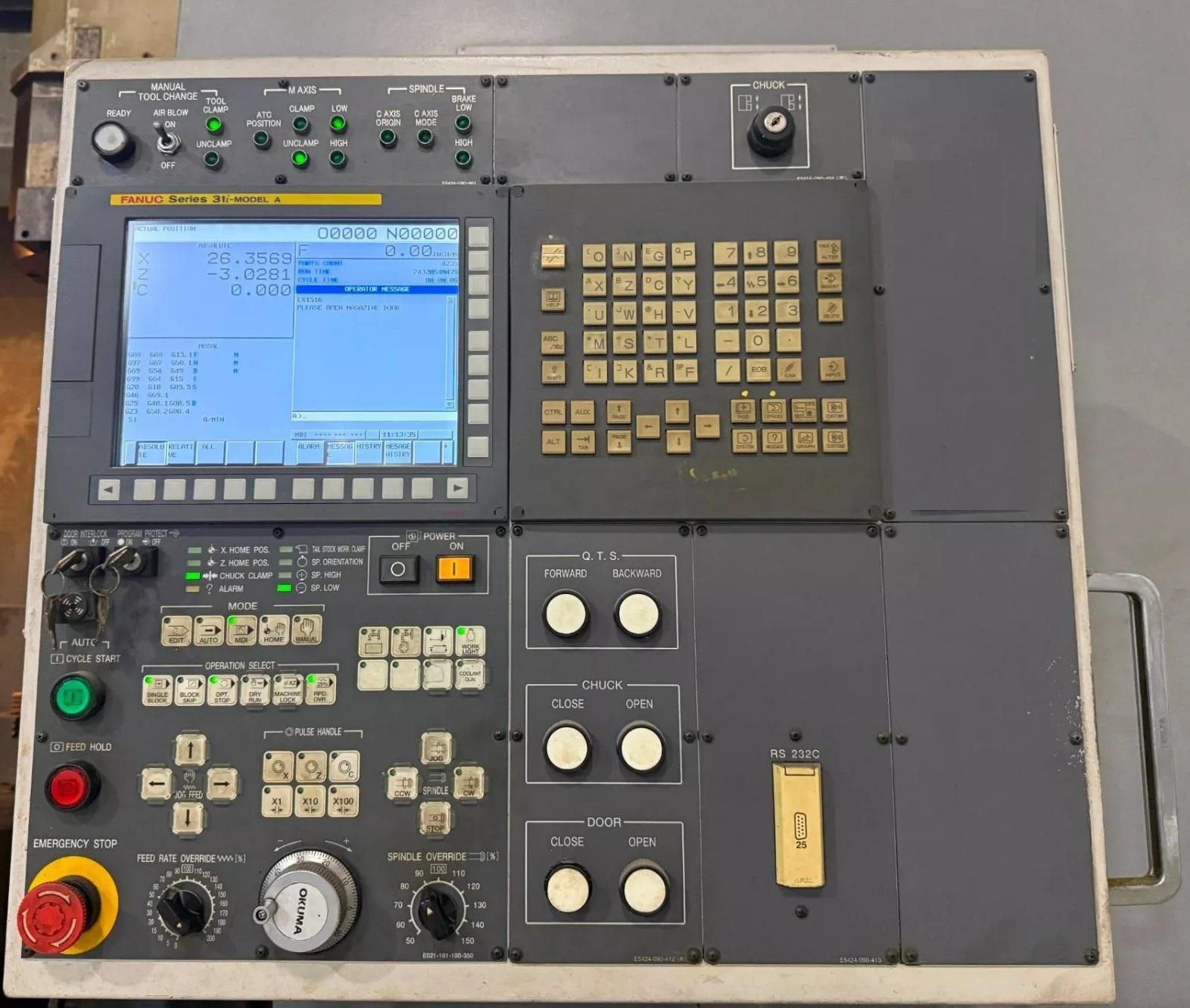

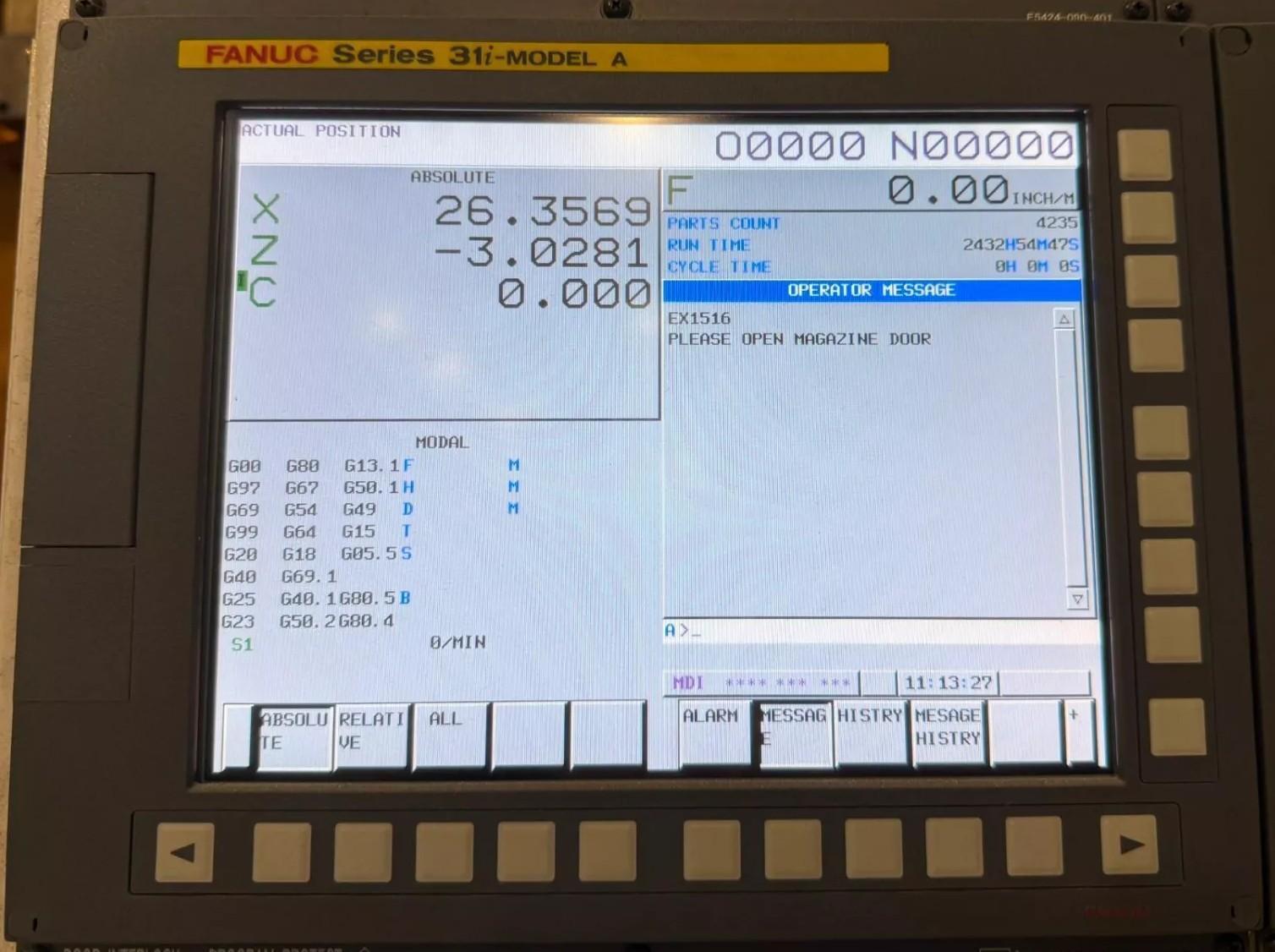

Fanuc 31i-MA Series CNC Control

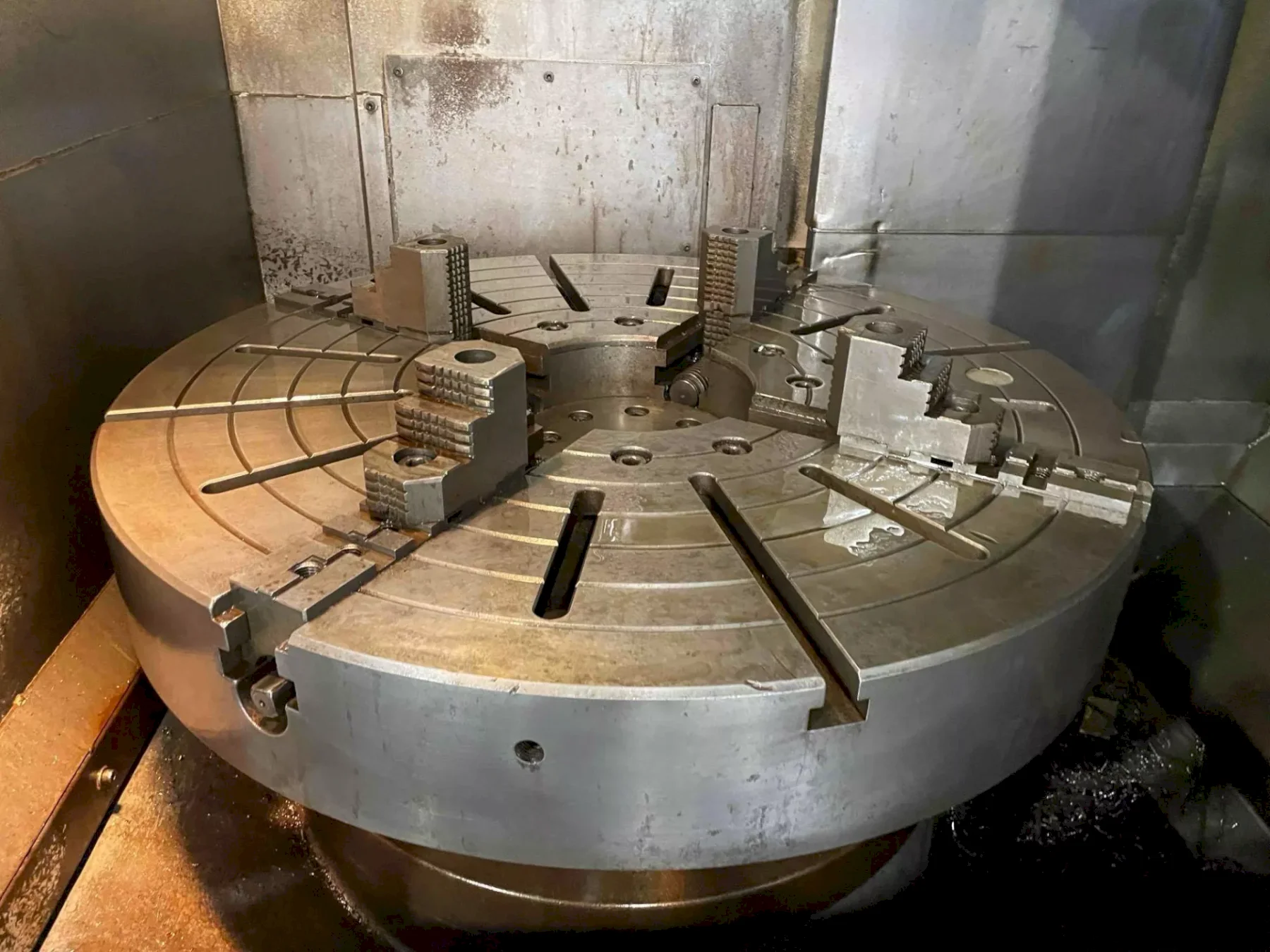

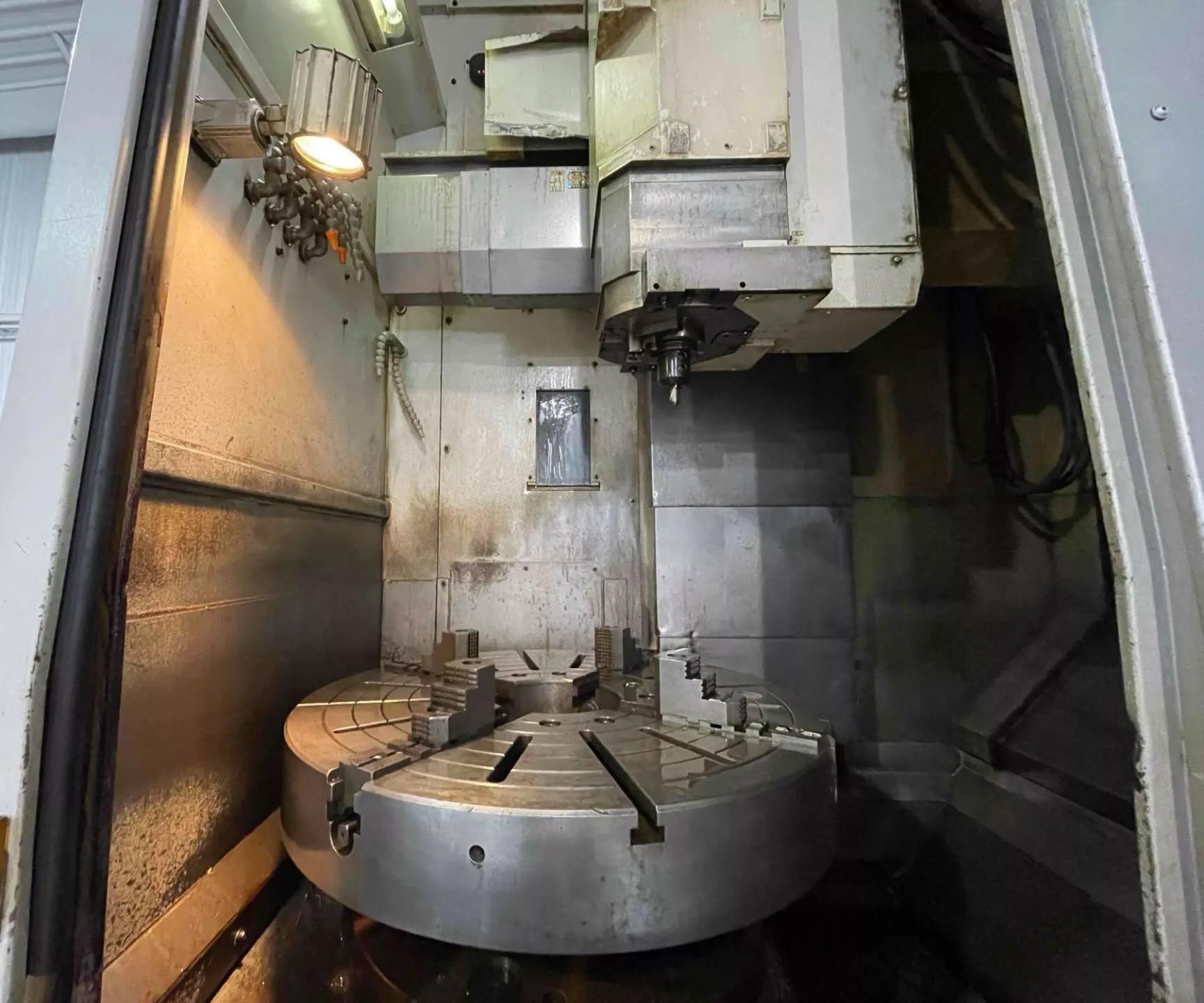

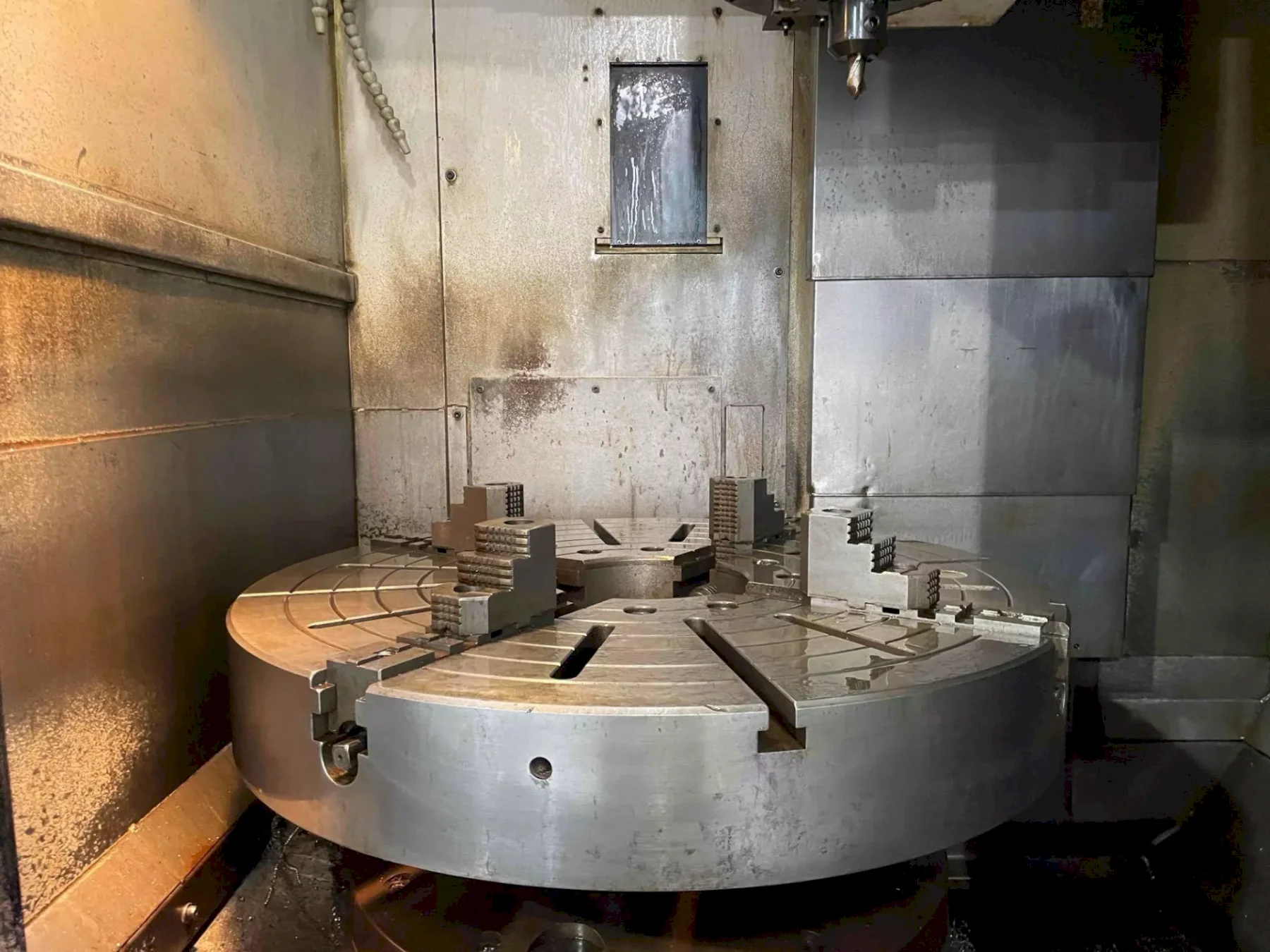

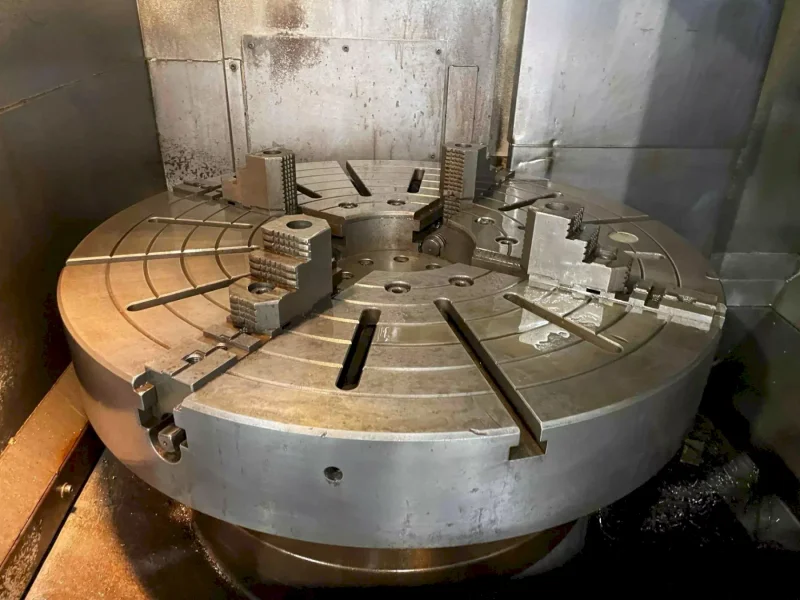

39.37″ 4-Jaw Chuck
C Axis Live Tool
50 Taper Milling Spindle
60 Station Automatic Tool Changer
A2-11 Spindle Nose
4.33″ Spindle Bore

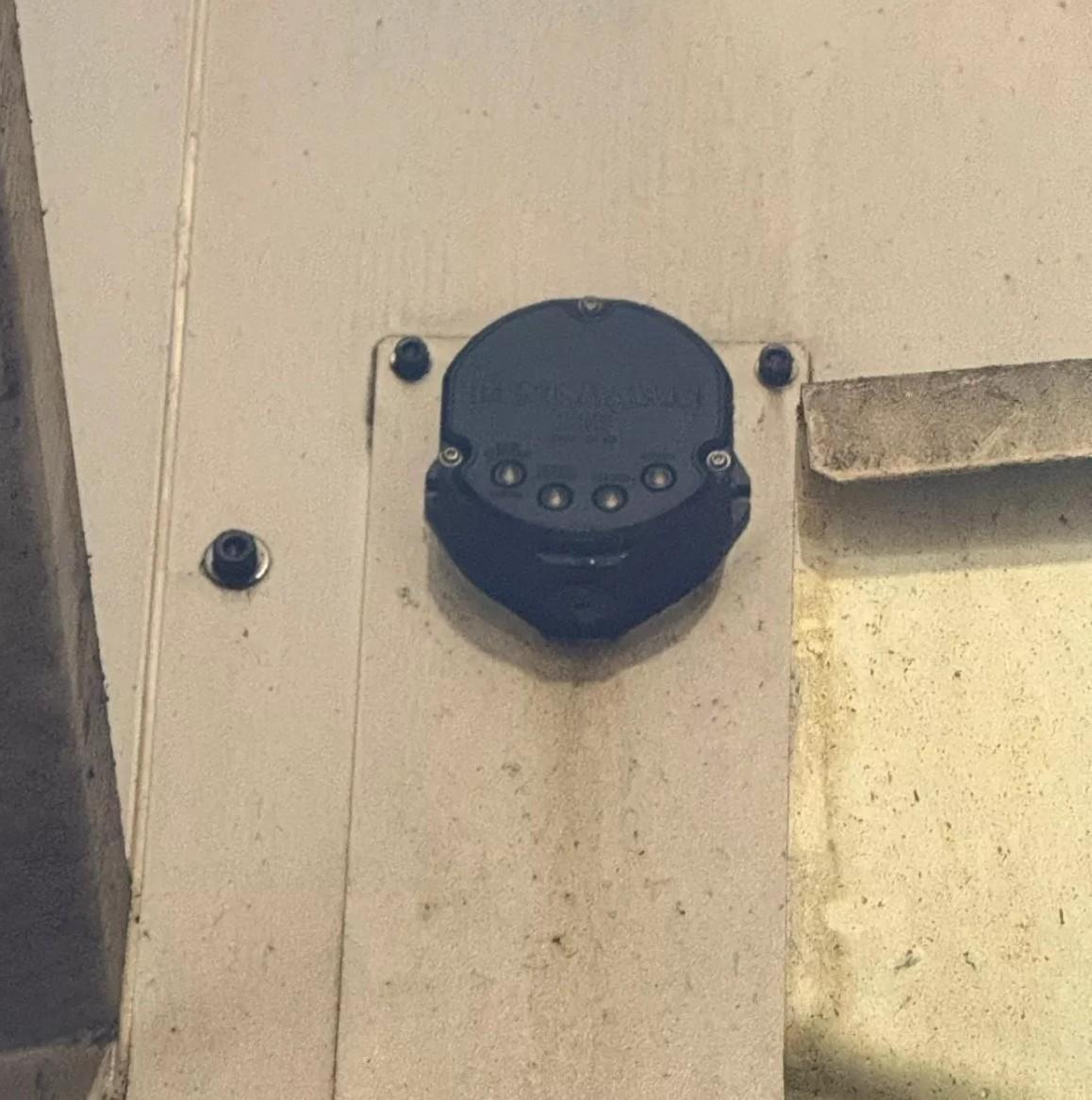

Probing System (Tool Probe Included)

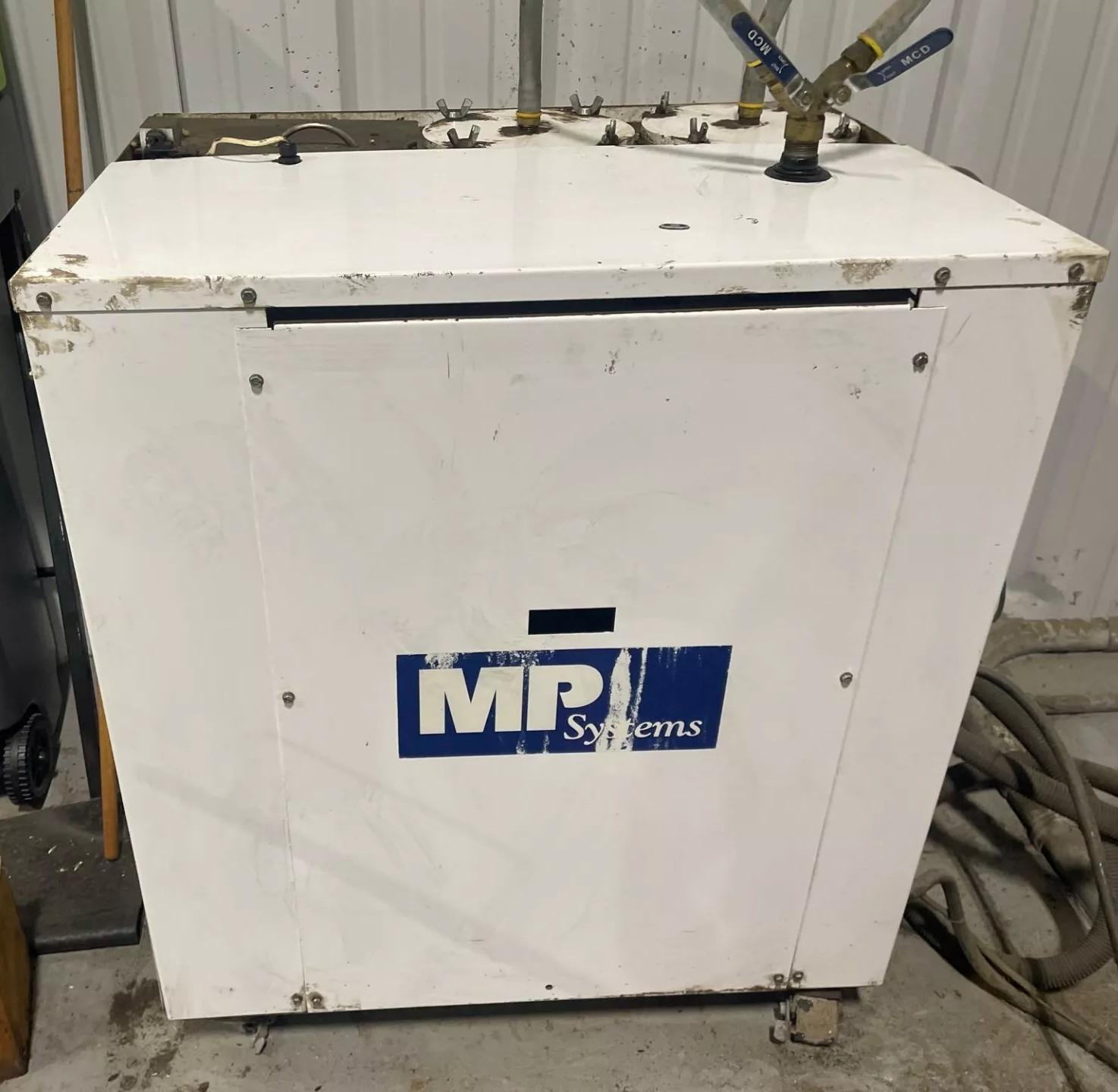

Through Spindle Coolant
PCMCIA Card Slot
RS232 Port
Coolant System
Chip Conveyor
Foot Swiches

Capacity:
Max Machining Diameter: 39.37″
Max Machining Height: 33.07″
Max Swing Diameter: 39.37″
Max Workpiece Load: 2,640 lbs

Travel:
X Axis Travel: 25.59″
Z Axis Travel: 30.07″
C Axis: 360° (0.001°)
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 630 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 4.33″
Spindle Speed: 10 – 1,250 RPM
Spindle Motor: 40 HP

Turret (Tool Spindle):
Turret Type: ATC Single Tool
Tool Size: 1.0″, 1.25″
Boring Bar Diameter: ø1.5″, ø2.0″

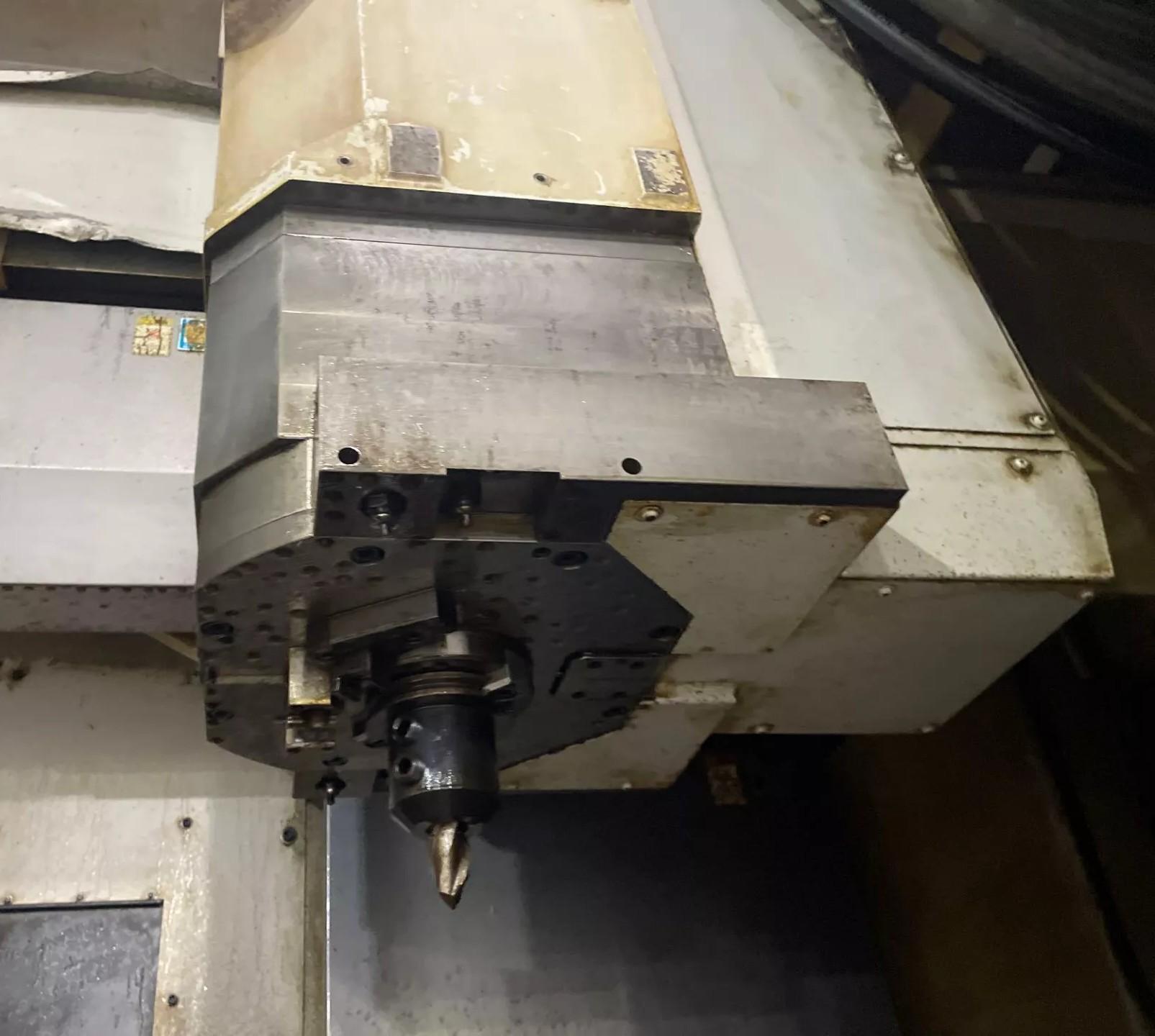

Milling Tool Spindle:
Max Spindle Speed: 10 – 4,500 RPM
Speed Ranges: 2 Auto Ranges
Taper: 50

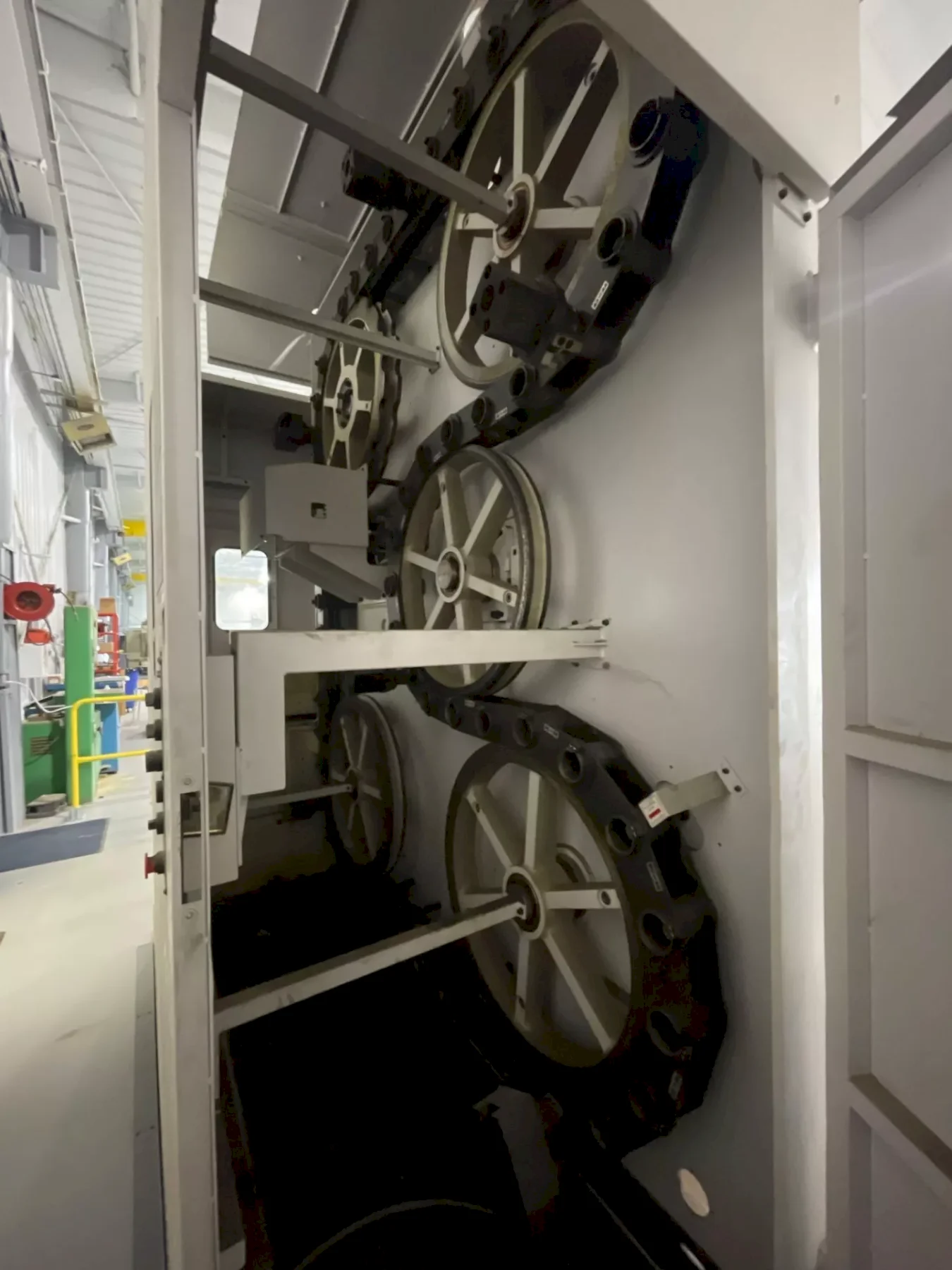

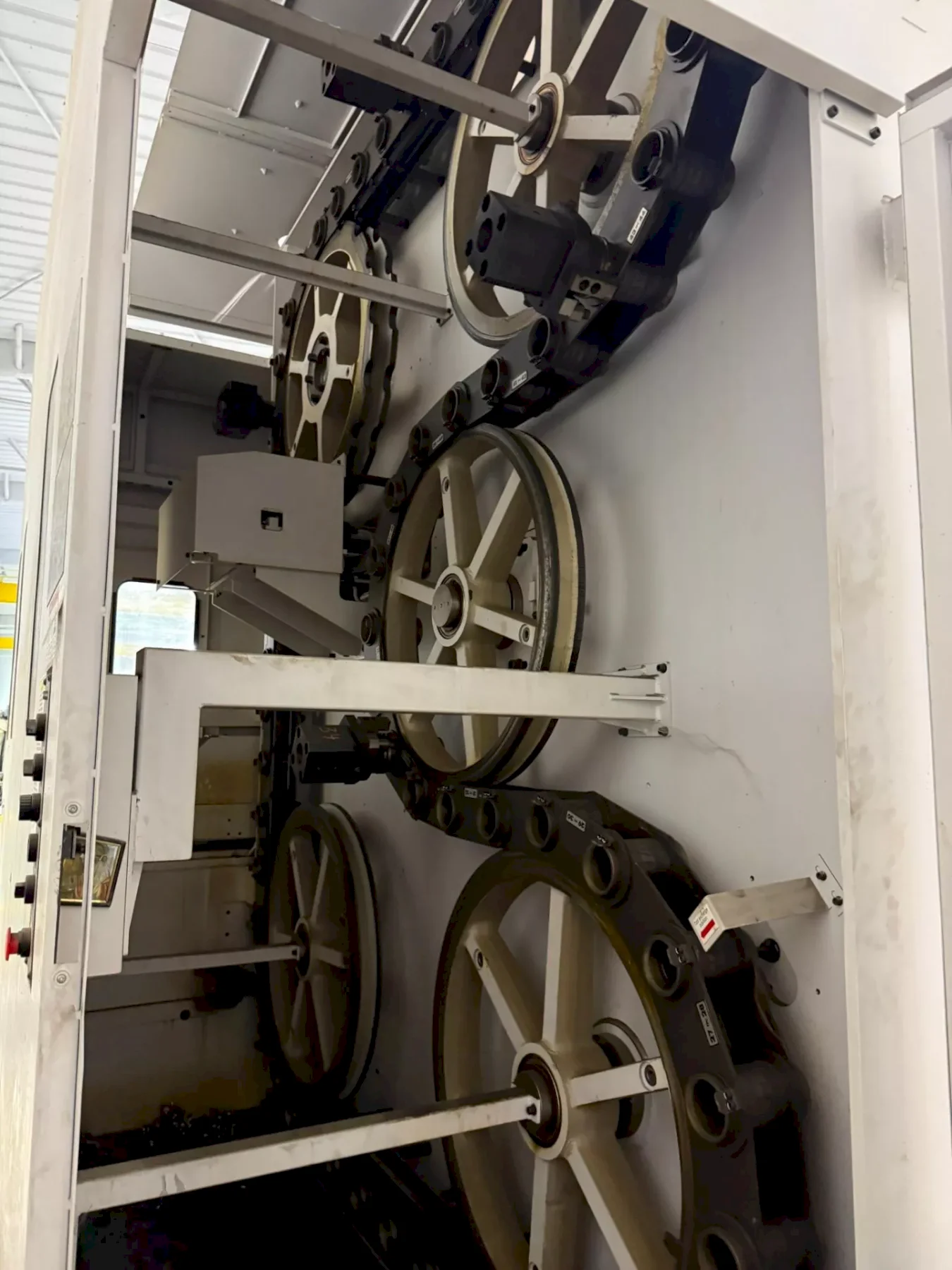

Auotmatic Tool Changer:
Capacity: 60 Tools
Max Tool Diameter: 6.70″ – 9.84″
Max Tool Length: 19.69″
Max Tool Weight: 66 lbs

General:
Power Source: AC 220/480 V, Three Phase, 60 Hz
Overall Diemensions: 169″ x 126″ x 169″ High
Weight : 29,700 lbs Approx.
