Nakamura Tome SC-250MSC CNC Turning Center, Live Milling, Sub-Spindle, Parts Catcher, 2.5" Bar Cap

Nakamura Tome SC-250MSC CNC Turning Center, Live Milling, Sub-Spindle, Parts Catcher, 2.5" Bar Cap

Name: Nakamura Tome SC-250MSC CNC Turning Center, Live Milling, Sub-Spindle, Parts Catcher, 2.5" Bar Cap
Brand: NAKAMURA-TOME
SKU: 7290
Availability: PreOrder

Brand

NAKAMURA-TOME

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

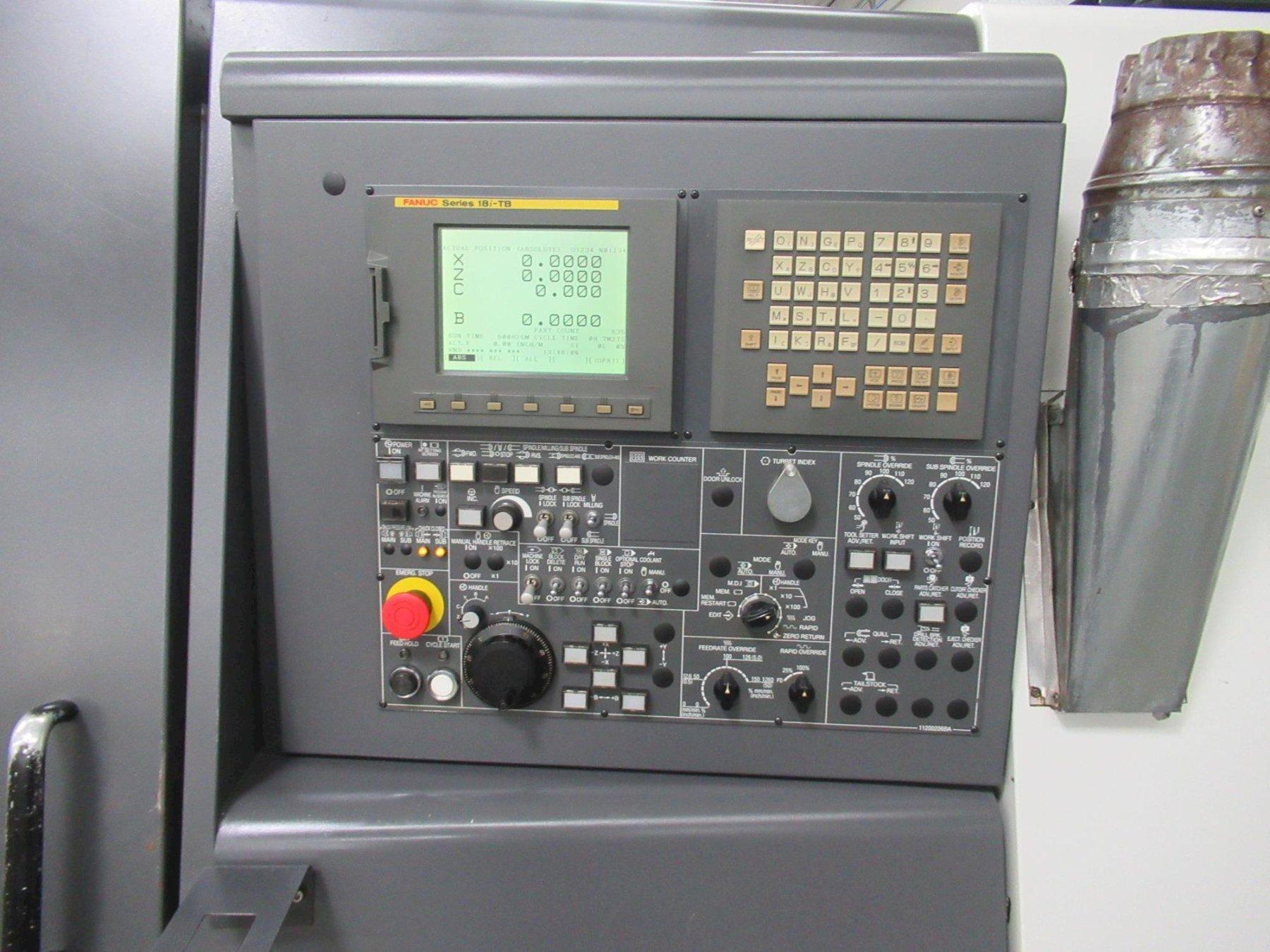

Control: Fanuc 18iTB CNC Control

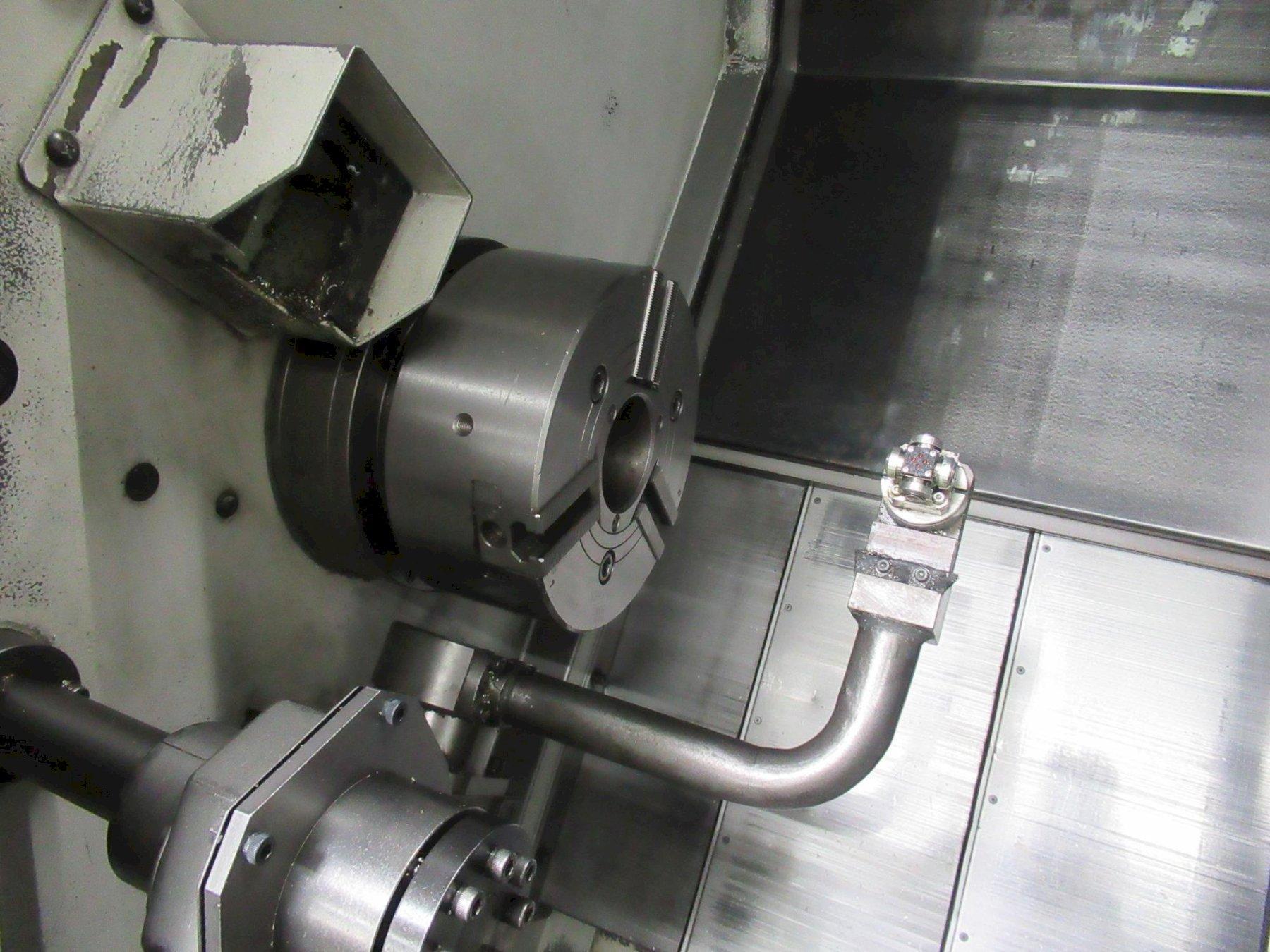

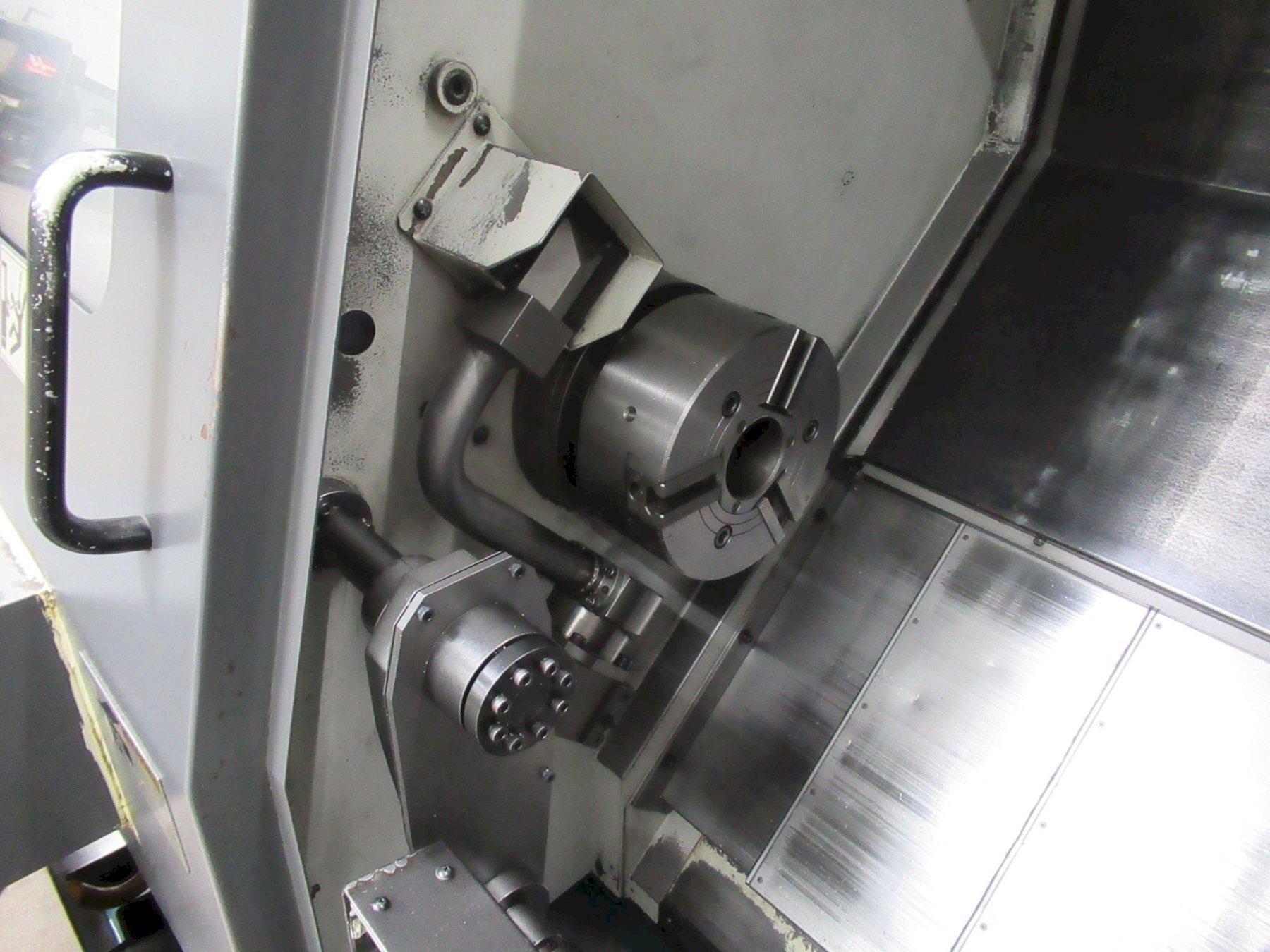

Main Spindle Chuck Size: 8" 3-Jaw Chuck

Sub-SpindleChuck Size: 16C Collet Closer

Max Swing Over Bed: 17.72"

Max Turning Diameter: 11.81"

Max Turning Length: 19.69"

Main Bar Capacity: 65mm (2.56")

Spindle Nose: A2-6

Max Distance Between Spindles: 30.71"

Main Spindle Speeds : 4,500 RPM

Sub-Spindle Speeds : 5,000 RPM

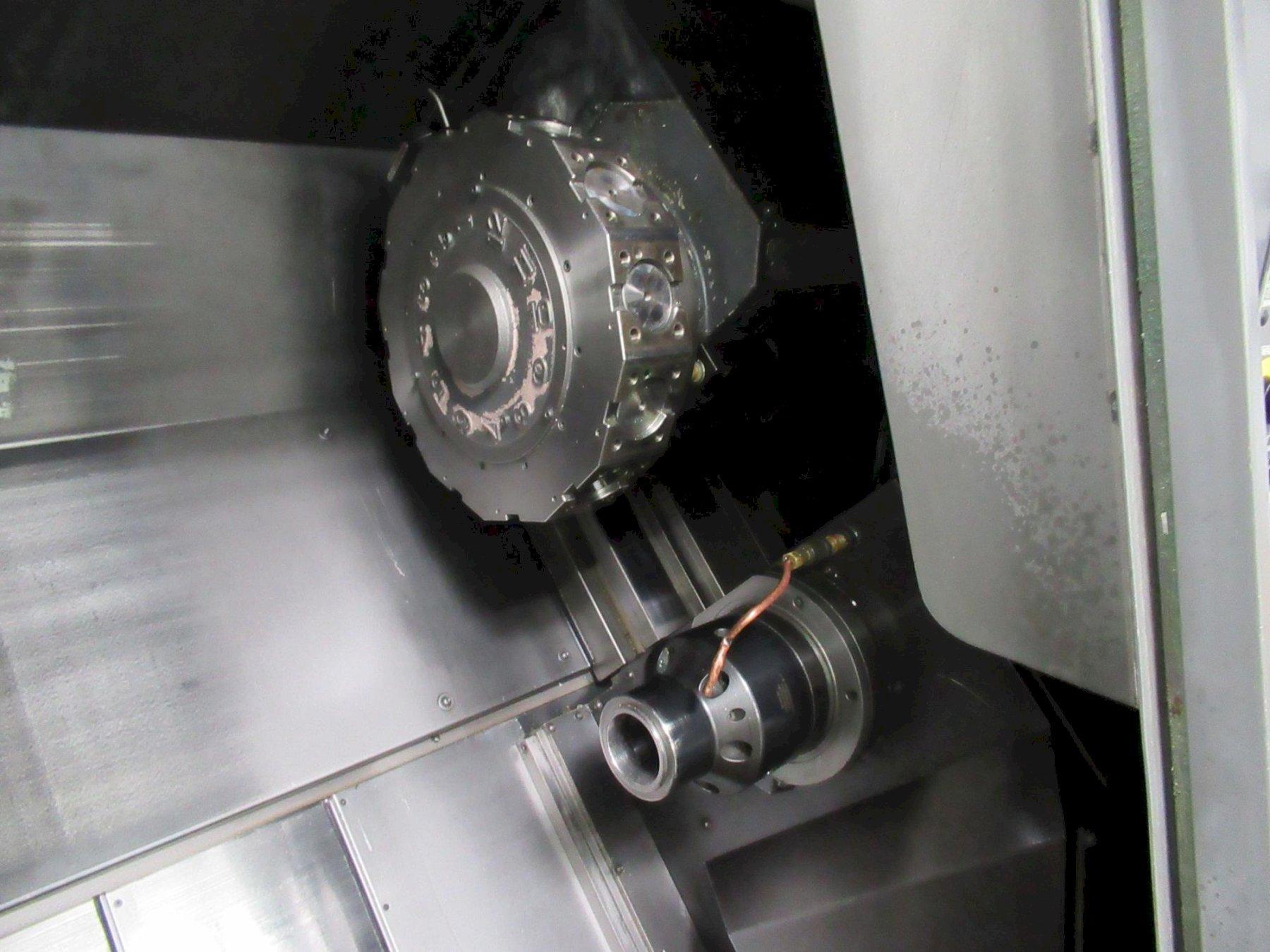

Turret Capacity: 12 Stations All Live Milling Capable

Turret Travels (X/Z): 6.99" x 21.65"

Rapids: X: 629 IPM / Z: 1,181 IPM / B: 1,181 IPM

Sub-Spindle Bar Capacity: 2.05"

Live Tool Speeds: Max 3,600 RPM

Main Spindle Orientation: C-Axis PRogrammable (.001 Degree)

Sub-Spindle Orientation: C-Axis PRogrammable (.001 Degree)

Sub-Spindle Travel: 19.69"

Main Spindle Drive: 15 kW / 11 KW 20/15 HP

Sub-Spindle Drive : 11 kW / 15 HP

Live Tool Drive Motor: 5.5/3.7 kW (7.5/ 5HP)

Description:

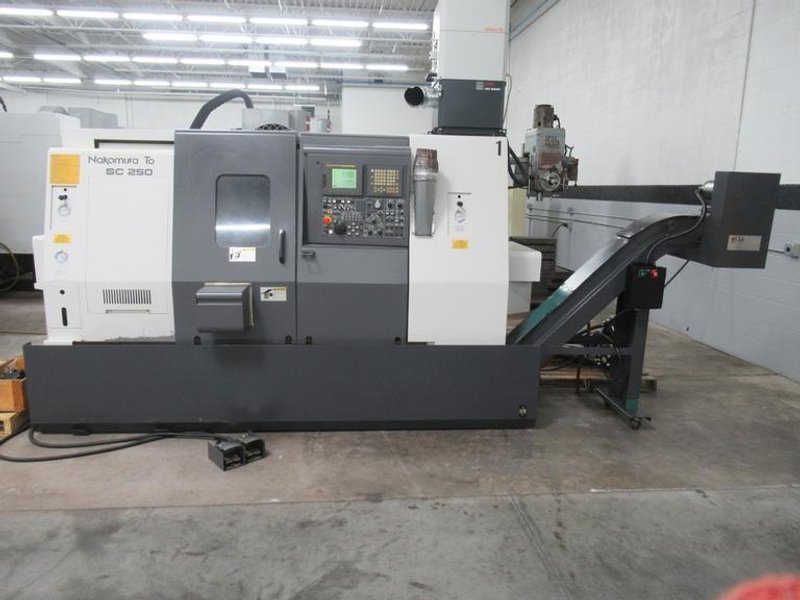

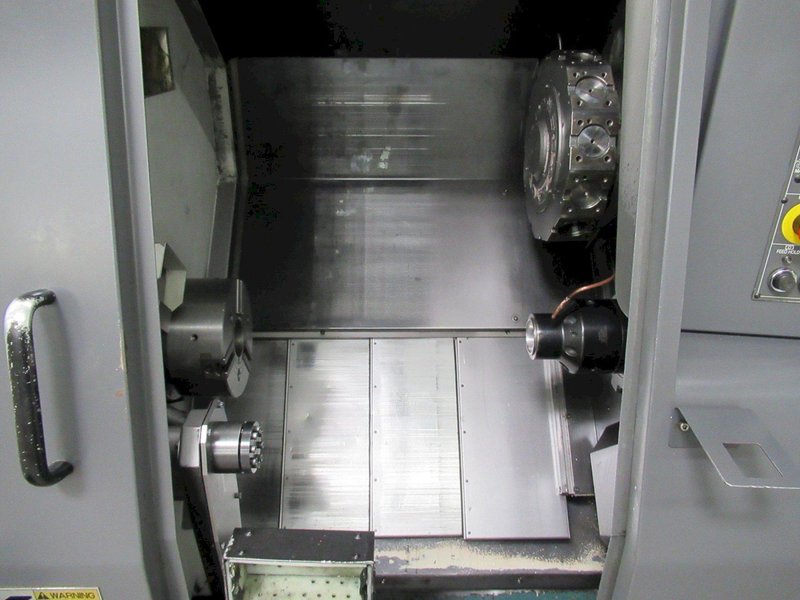

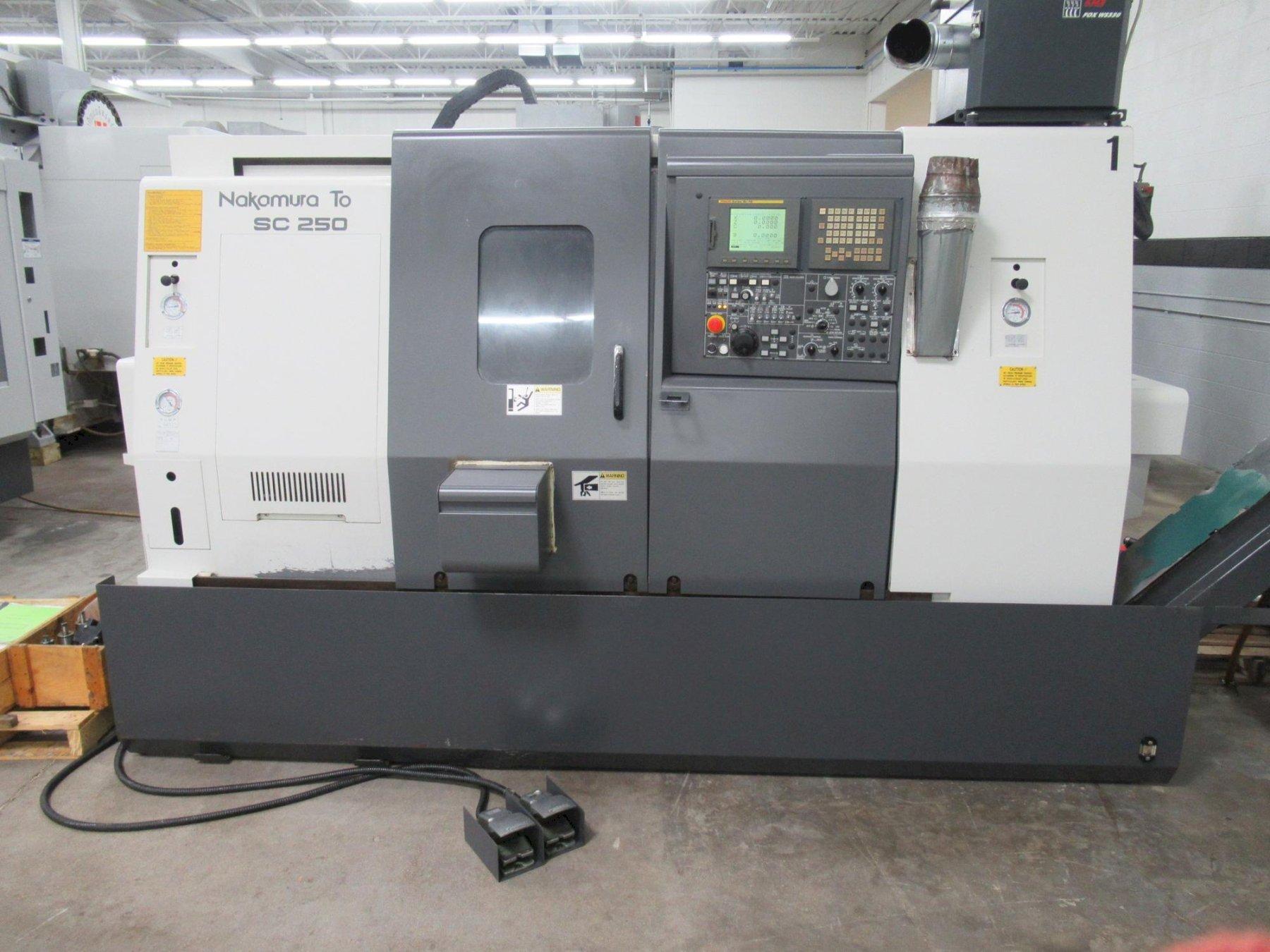

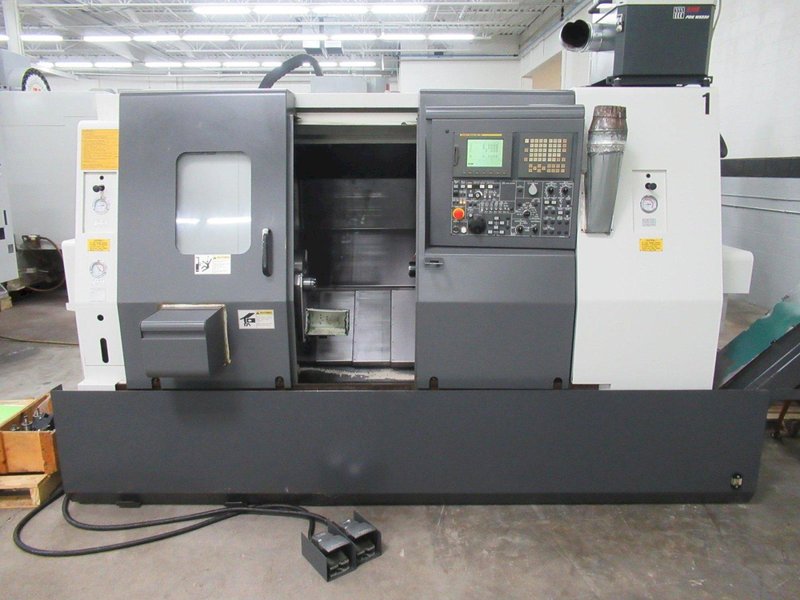

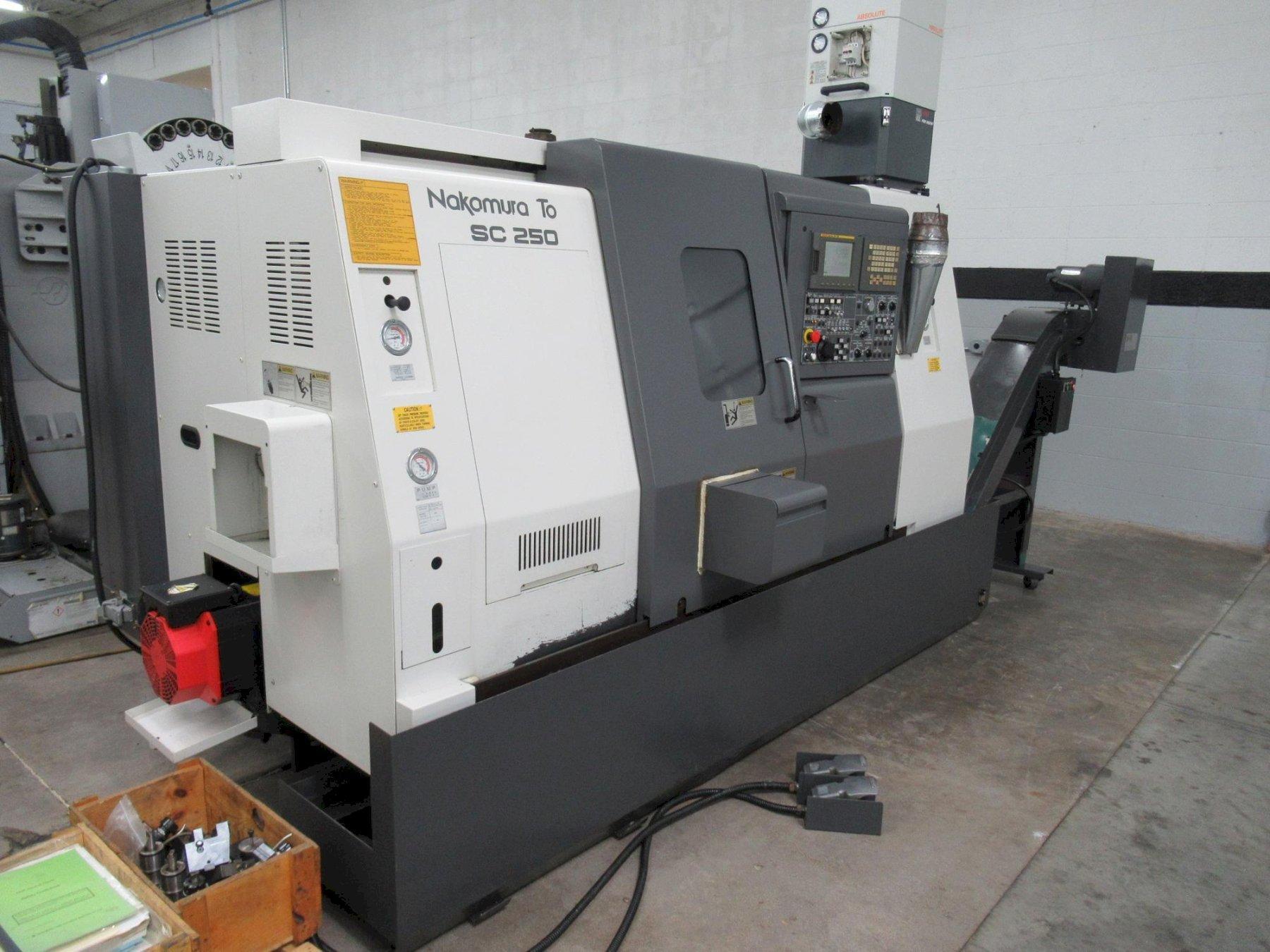

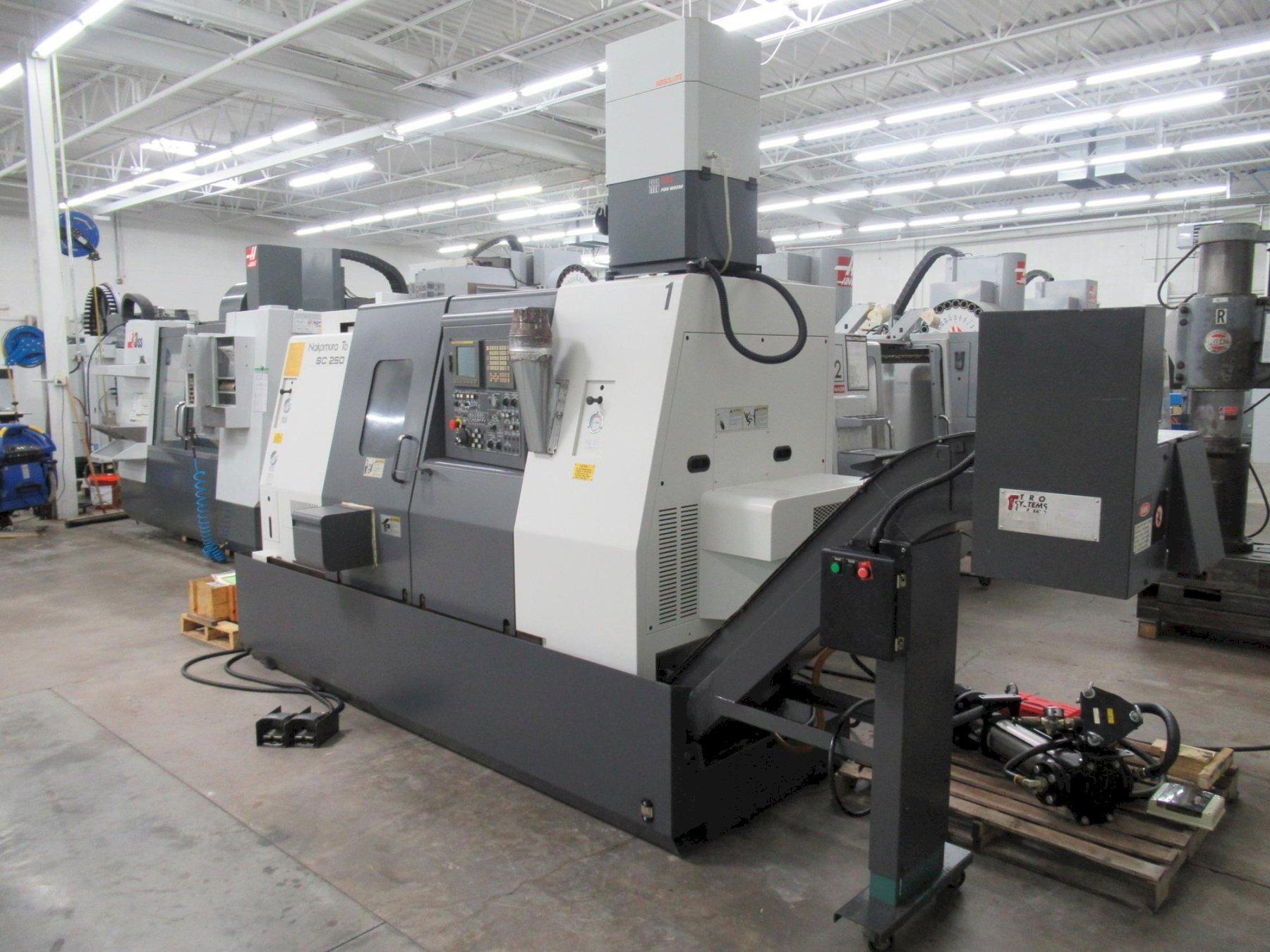

Used Nakamura SC-250 MSC CNC Turning Center featuring sub-spindle, live tooling, and high-precision multitasking performance. Ideal for complex, high-accuracy turning applications.

Equipped With:

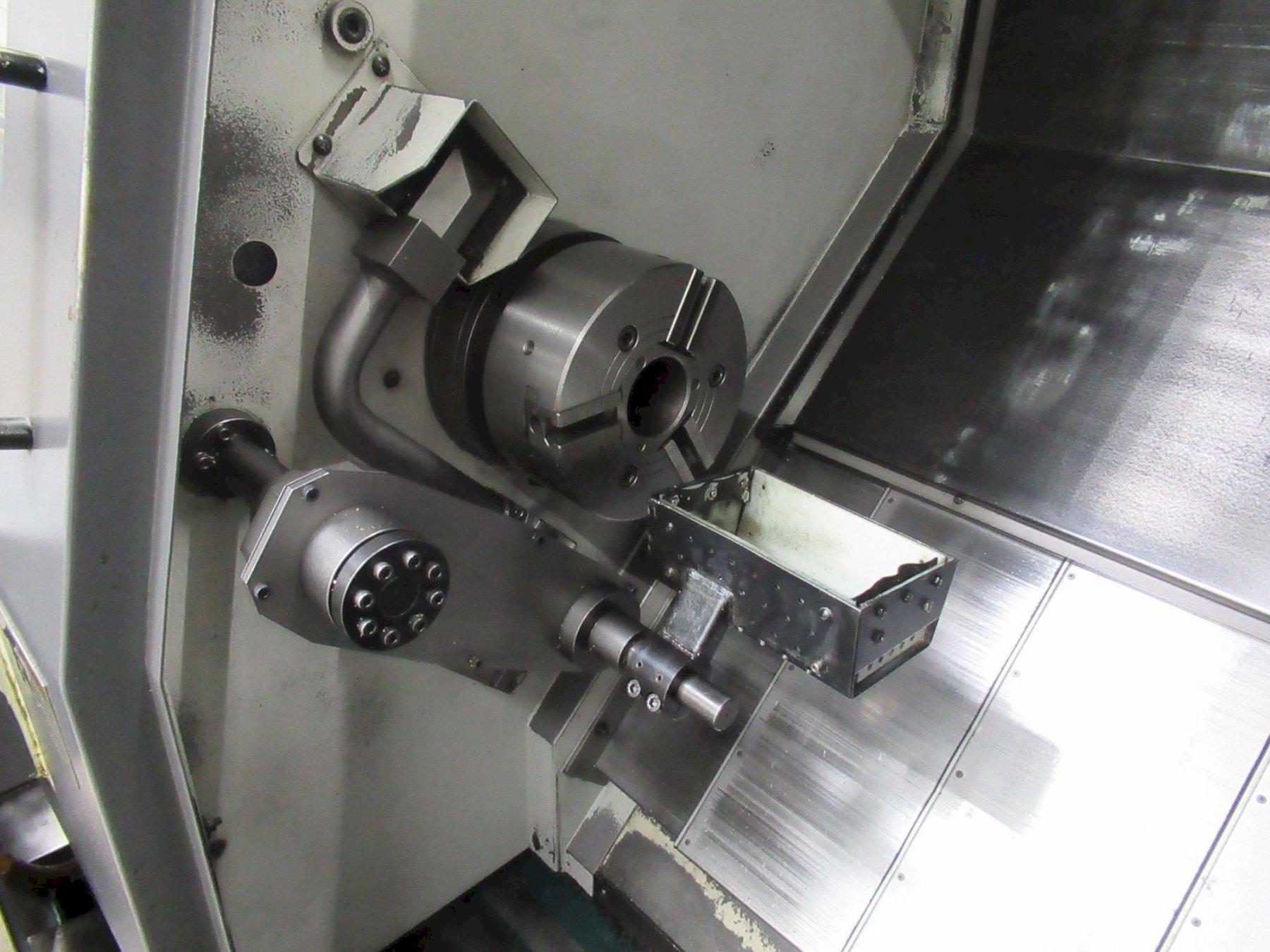

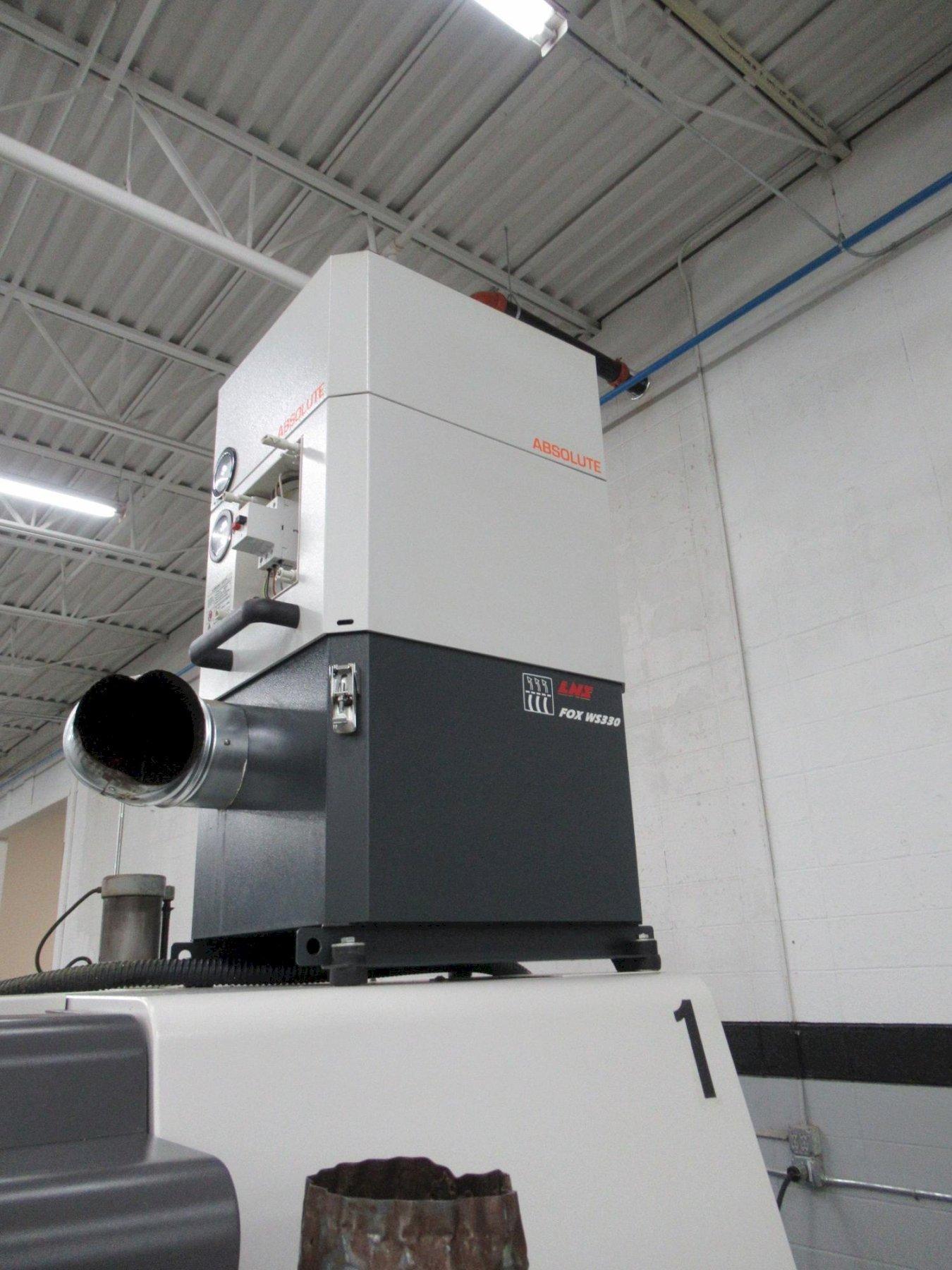

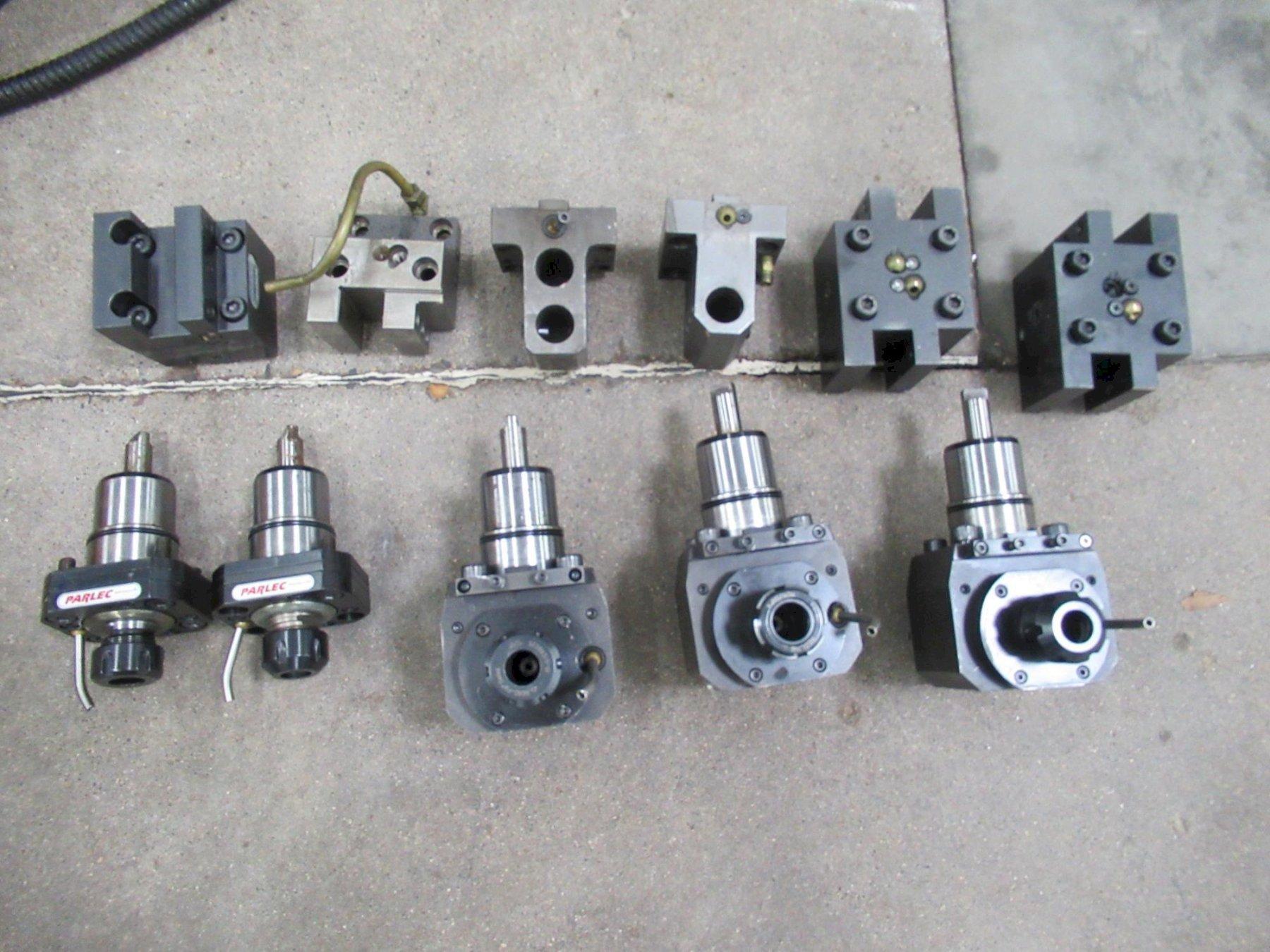

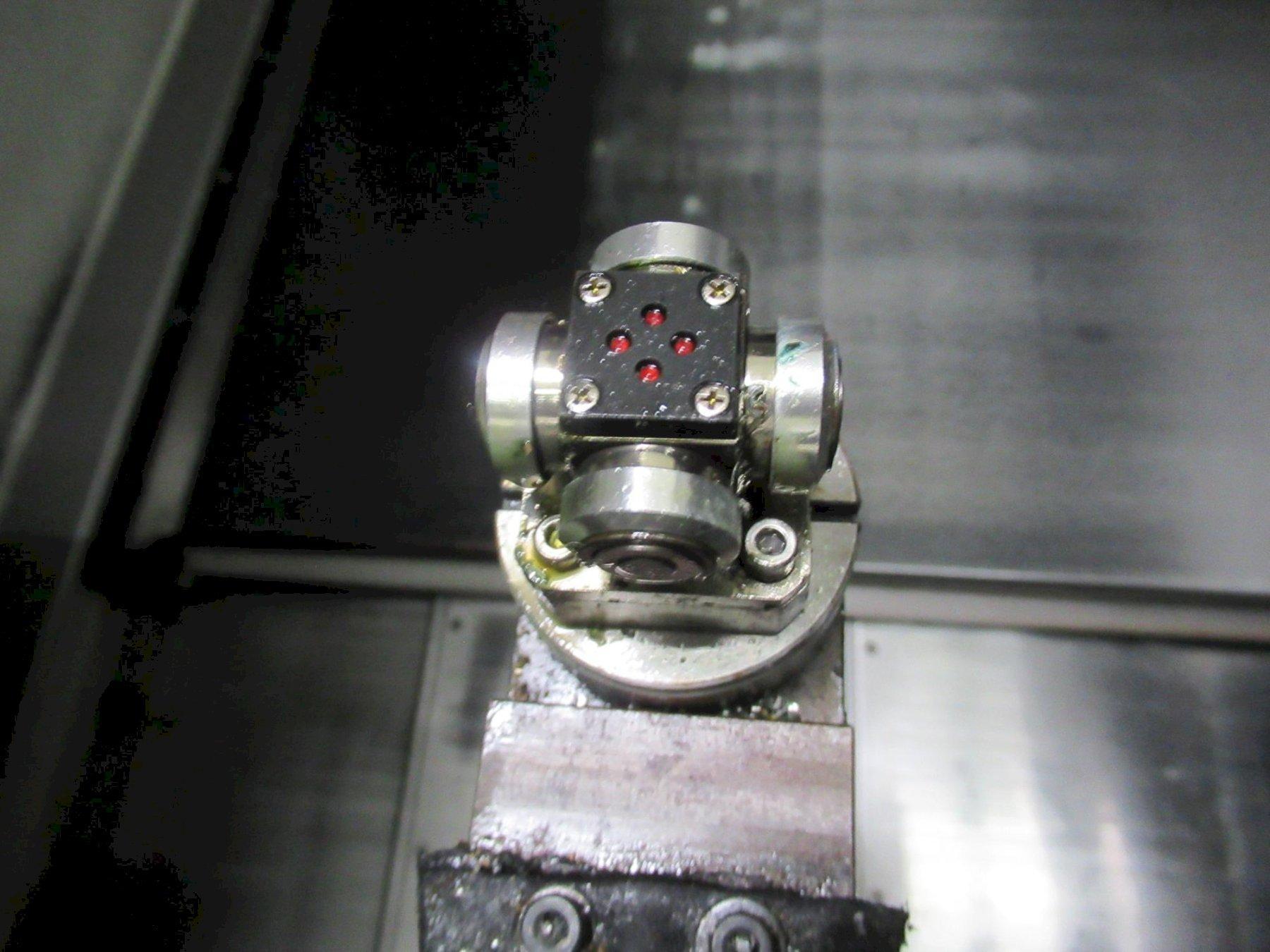

Fanuc 18iTB CNC Control,4,500 RPM Main Spindle, 2.56" Bar Capacity, 5,000 RPM Sub-Spindle, 12 Station Turret with 12 Live Stations, C-Axis Programmable Main and Sub-Spindles, 8" 3-Jaw Chuck on Main, ATS 16C Collet Closer on Sub-Spindle, Turbo Systems Chip Conveyor, Parts Catcher, Tool Presetter, LNS WS330 Mist Collector, Coolant Pump and Tank, HP Coolant Pumpw Auxiliary Filter, Static Turning Holders, Static Boring Holders, (3) ER-25 Axial Live Holders, (3) ER-25 Radial Live Holders, Remote Foot Trips, RS232 Port, Ethernet, Compact Flash, Programming Manual, Parts List, Ladder Diagrams

Electrics:

200/220 Volt, 3 Phase
