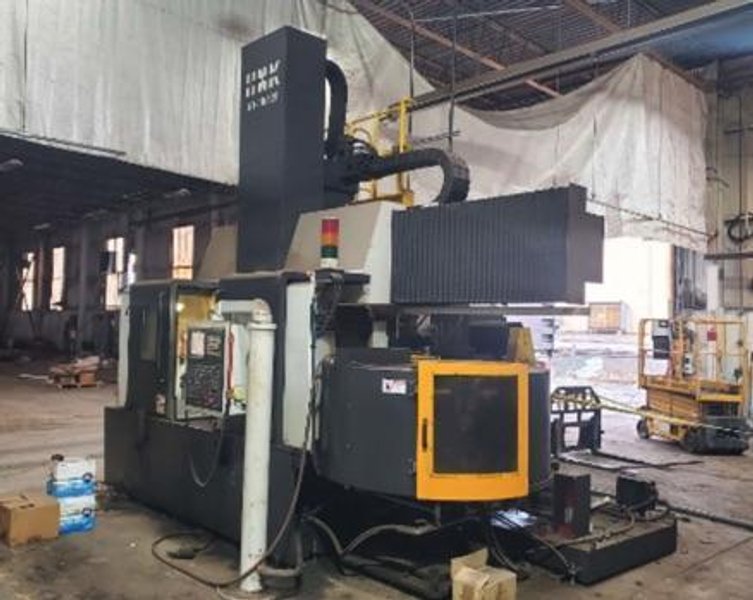

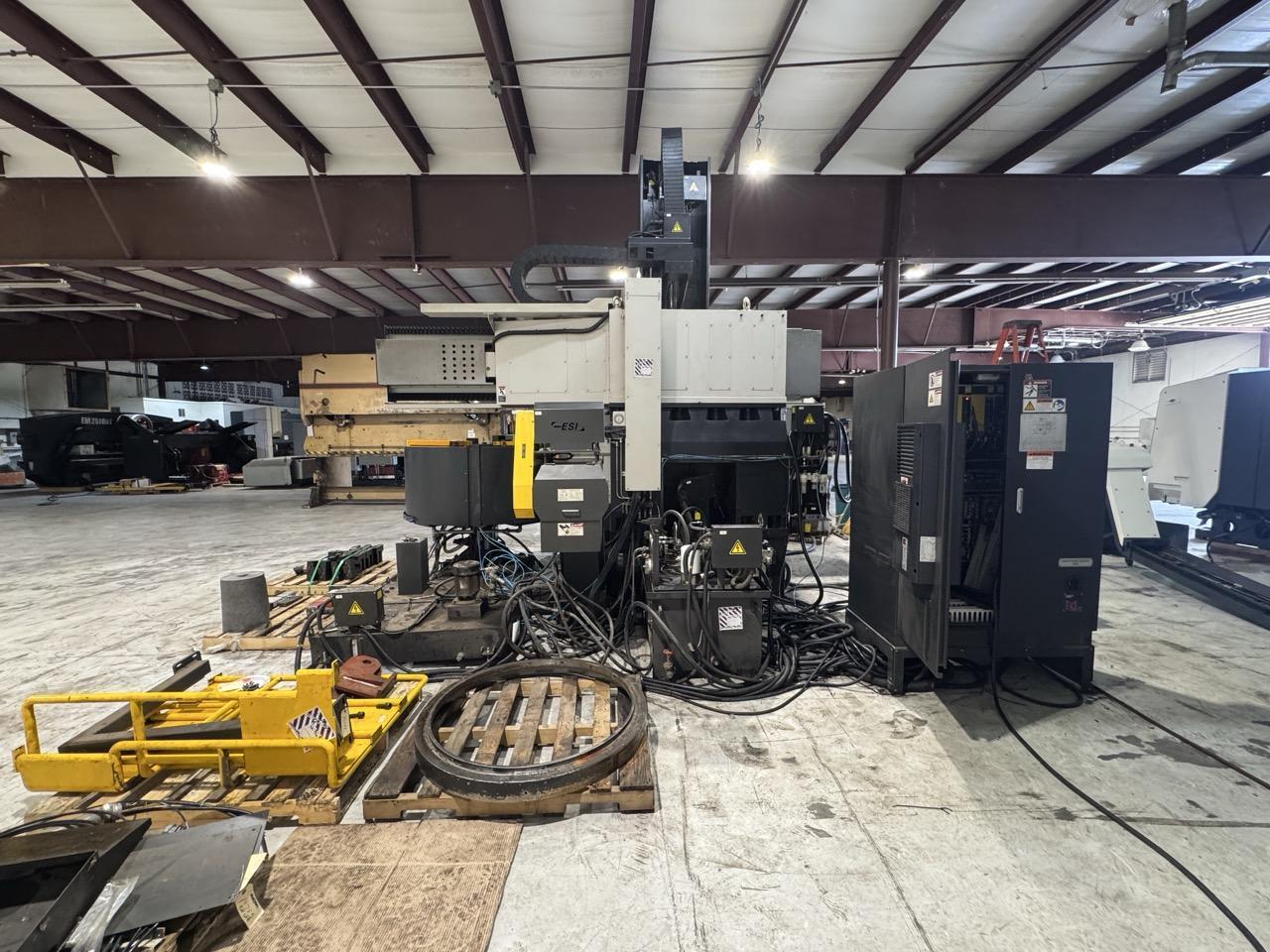

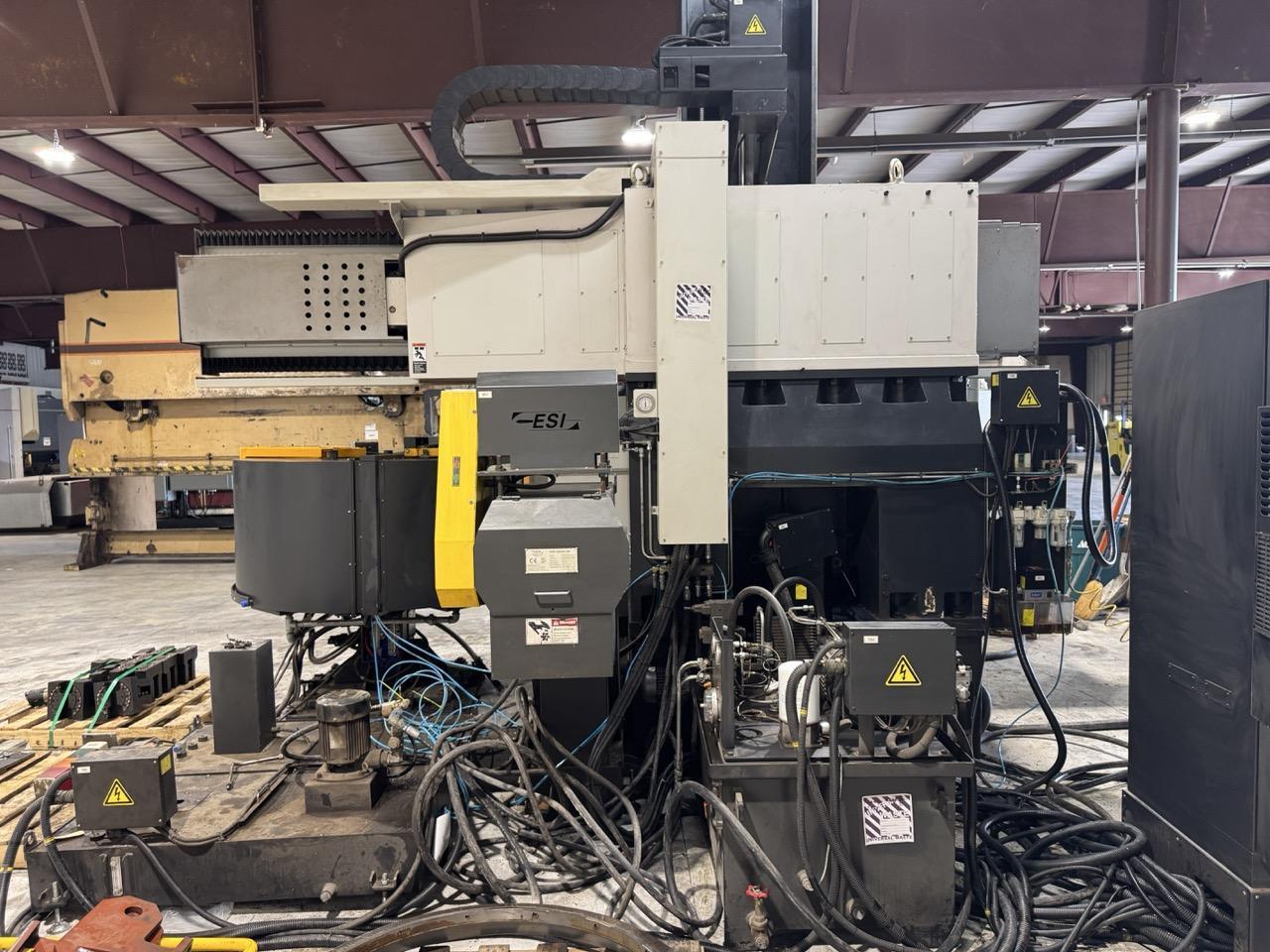

HNK NT-10/12F CNC Vertical Turret Lathe, 2019 – 39.4″ Table, 49.2″ Swing, Fanuc Control, 12 ATC

High-rigidity 2019 HNK NT-10/12F CNC vertical turret lathe built for accurate, high-speed turning of large-diameter parts, with a compact footprint and strong specs for heavy industrial machining.

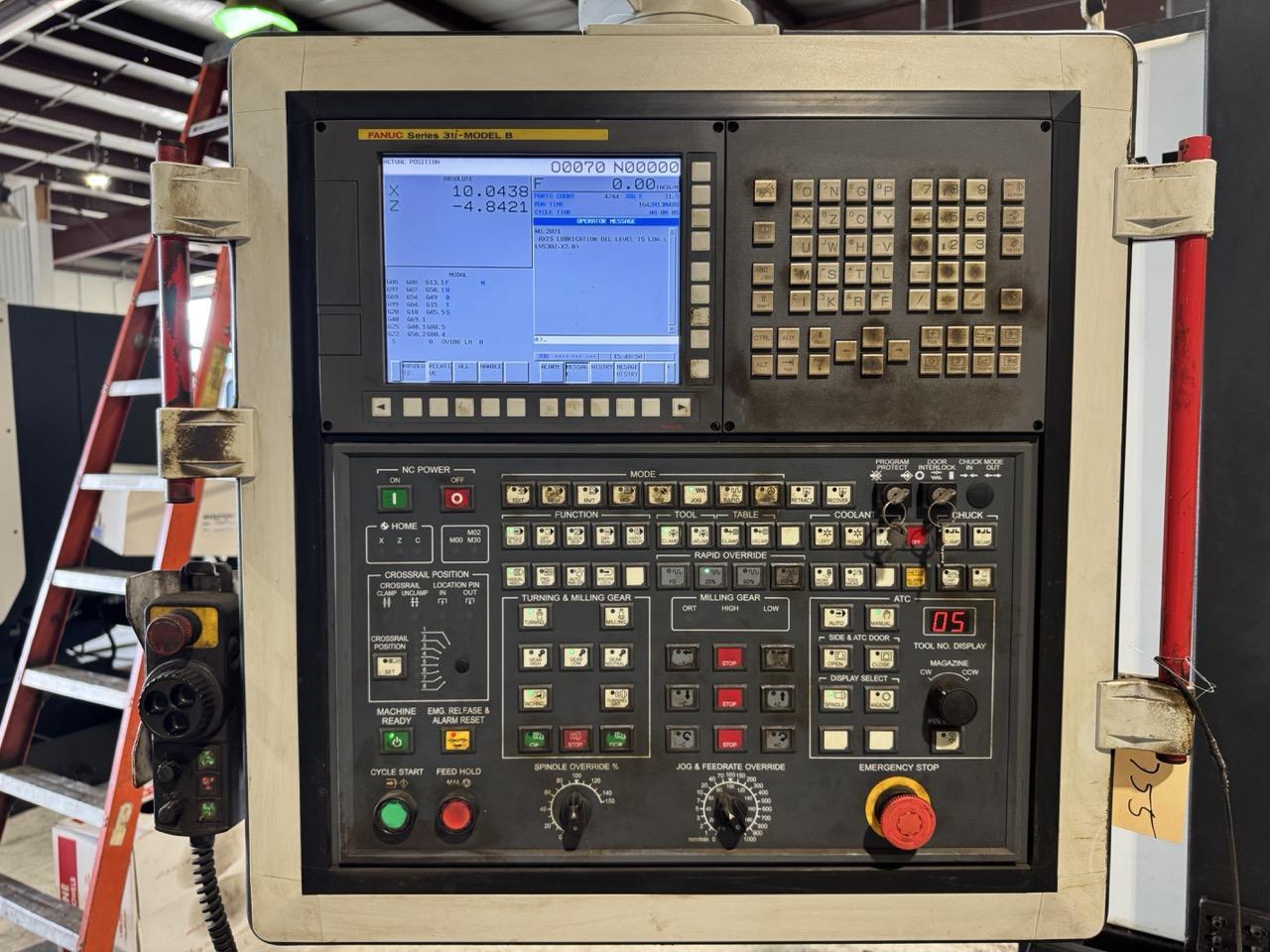

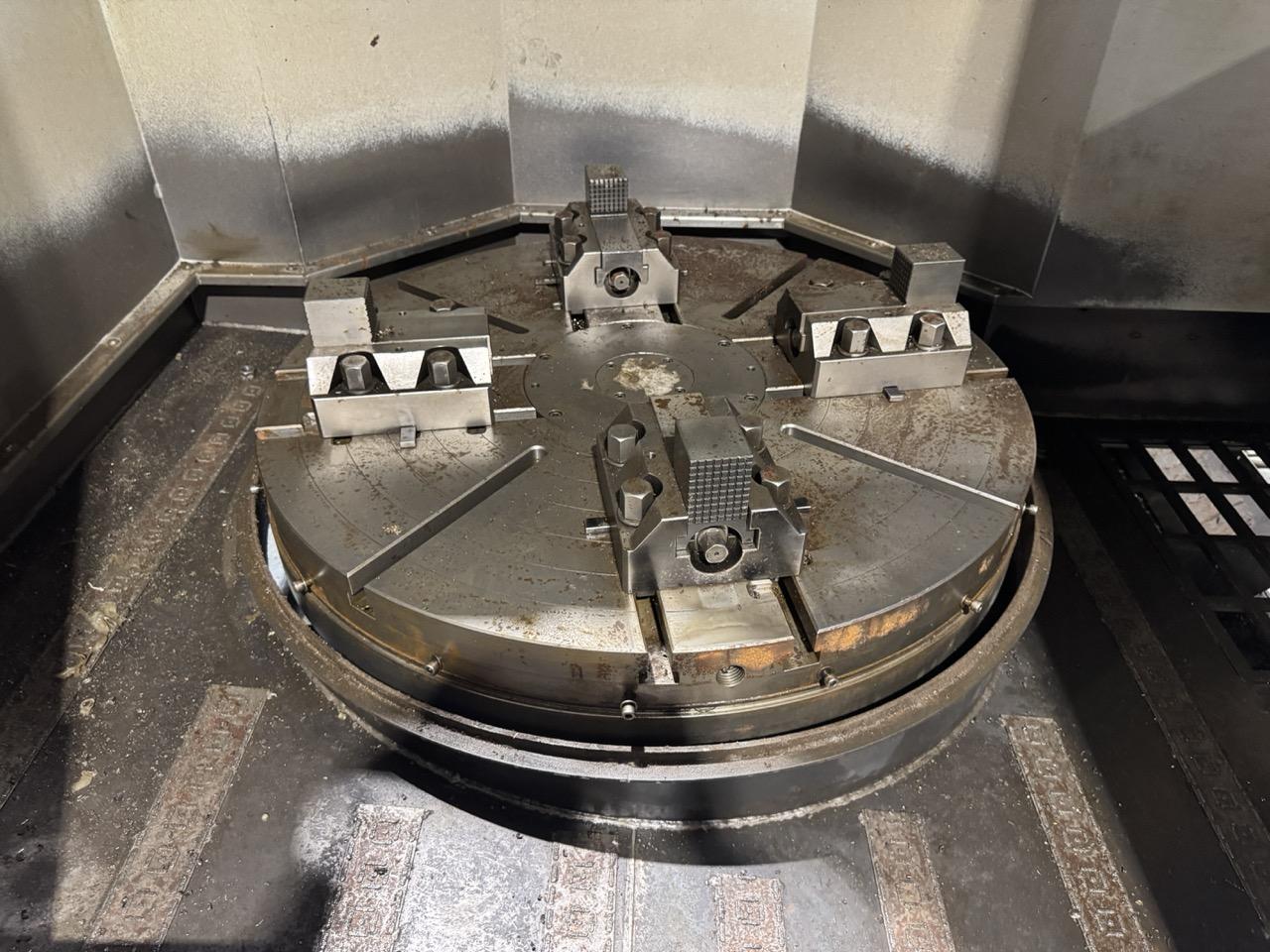

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Year: 2019 Make: HNK Machine Tool Model: NT-10/12F Type: CNC Vertical Turret Lathe / Vertical Boring Mill (VTL) Control: Fanuc 31i-B Table size: 39.4″ (1,000 mm) Max swing / max turning diameter: 49.2″ (1,250 mm) Max turning height: 31.5″ (800 mm) Max load: 9,920 lbs (4,500 kg) X/Z travel: approximately -200 to 795 mm / 750 mm on comparable NT-10/12F configuration Table speed: up to 450 RPM Table motor: 40/50 HP class; comparable used listing shows 30/37 kW table motor Machine weight: 37,478 lbs Tool changer: 12-station ATC commonly found on listed machines Chuck / table size: 39.4″ Max spindle / table speed: 450 RPM Z travel: 29.5″ Spindle / main motor horsepower: 50 HP X travel: 39.1″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
