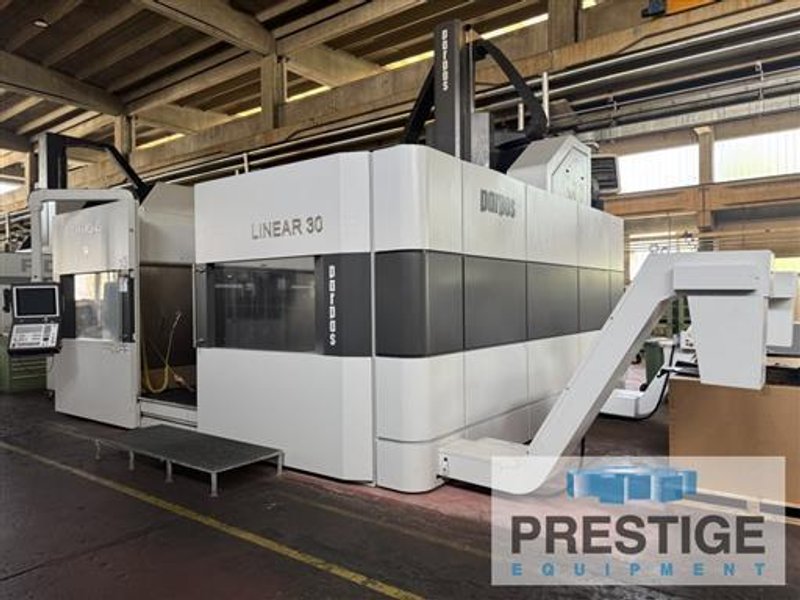

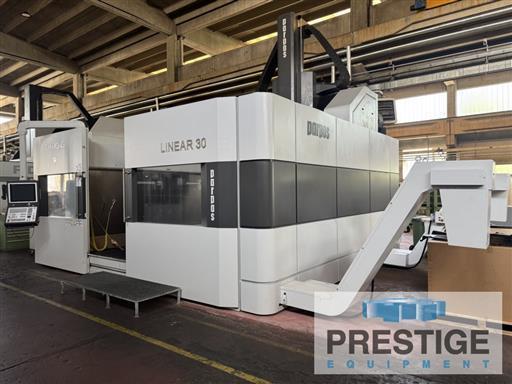

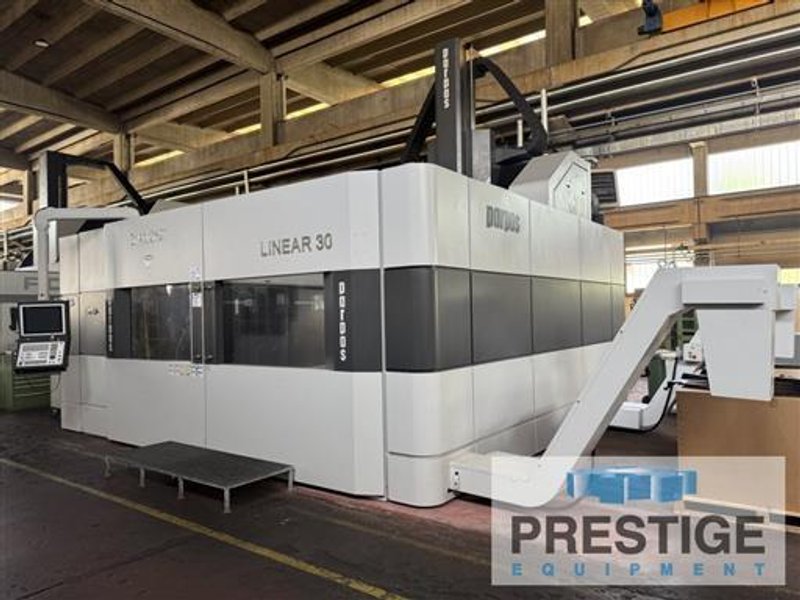

Machining Centers Vertical Bridge Type CNC
Brand
Not specified
Category
Model
Diamond Linear 30 5-Axis
Stock #
44700
Year
2021
Condition
Not specified
Location
New York
|
CAPACITY:

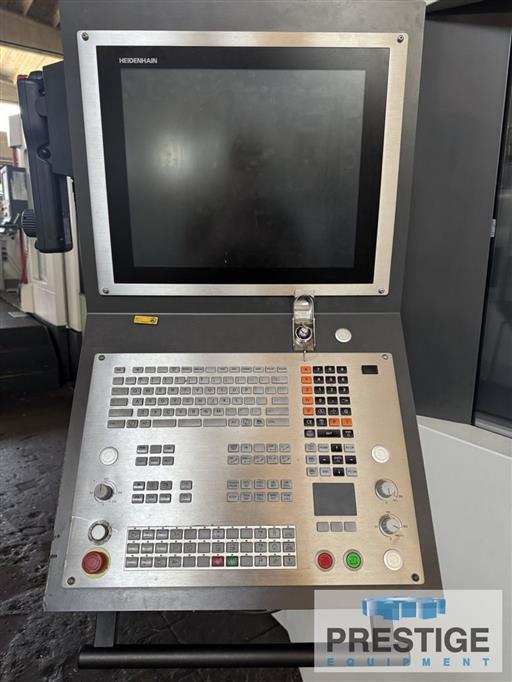

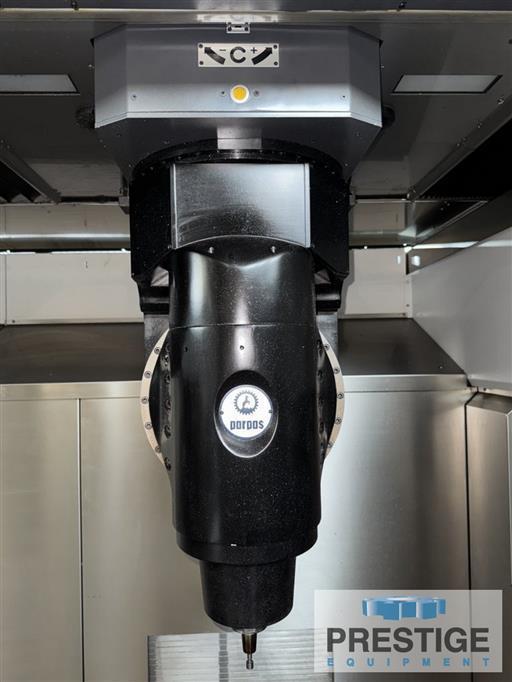

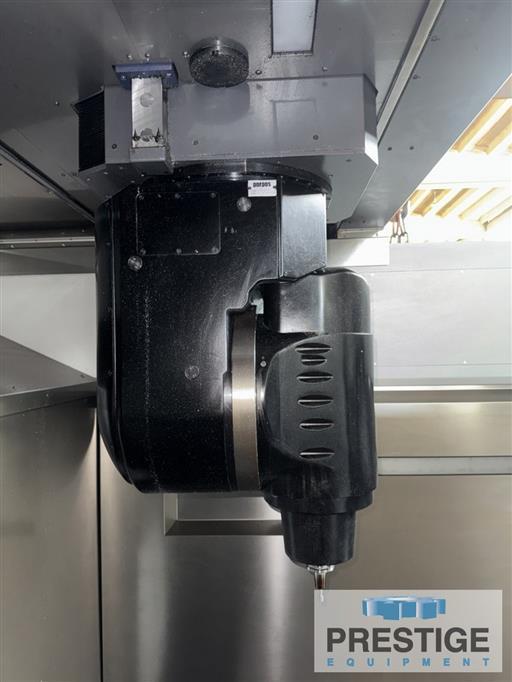

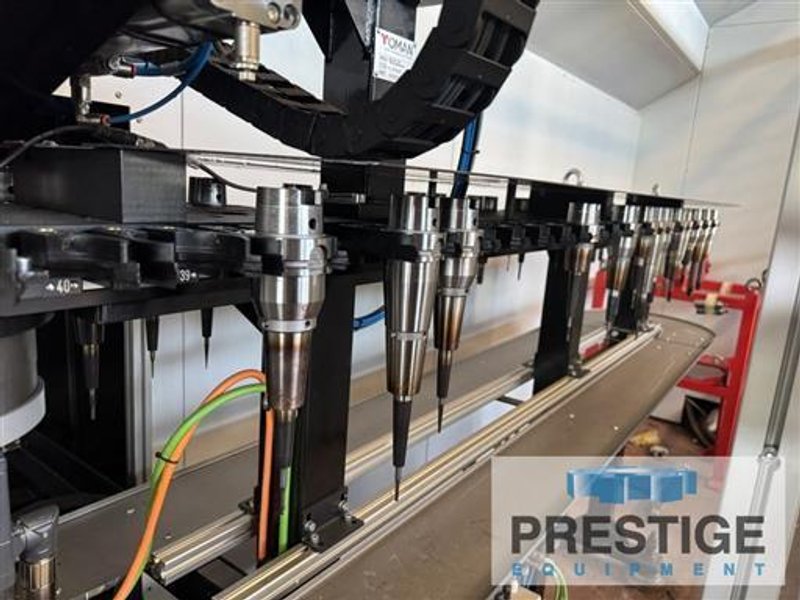

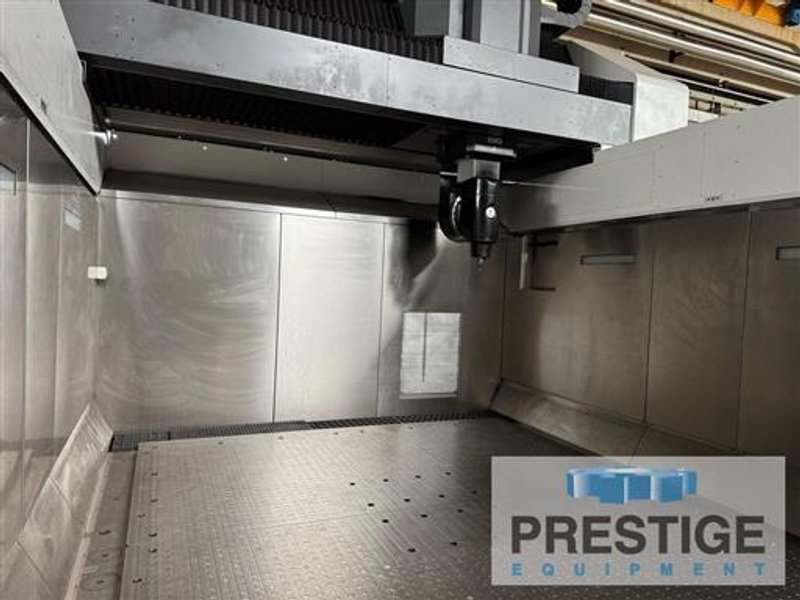

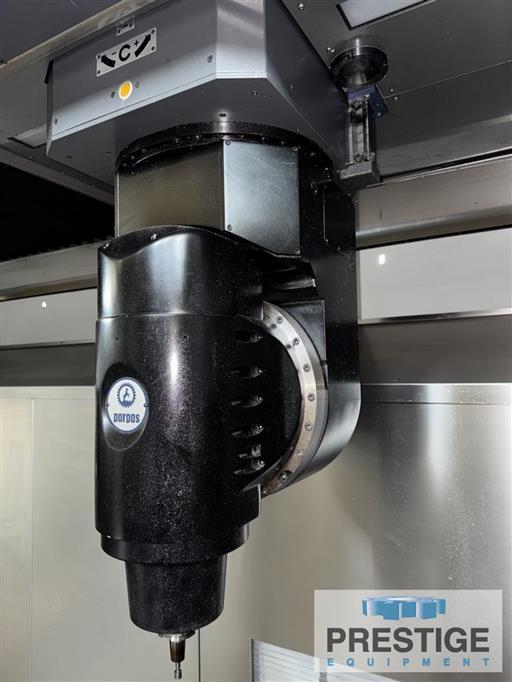

X-Axis, Longitudinal 118.11” Y-Axis, Transversal Travel 102.36” Z-Axis, Vertical Travel 55.11" C-Axis, Ram Rotation .001 Degrees C-Axis, Ram Range +/- 370 Degree A-Axis, Head Sweep +/- 110 Degrees Work Table 122.04" x 110.23" Spindle Speeds 20,000 RPM Spindle taper HSK-63-A Spindle Motor 52 HP Feed Rates 236.232" Approximate Machine Dimensions 296.4" x 259.84" x 226.9" Equipped With: Heidenhain TNC 640 CNC Control 60 Station Automatic Tool Changer 5-Axis Continuous Orthogonal Head Dual Chip Conveyors |
