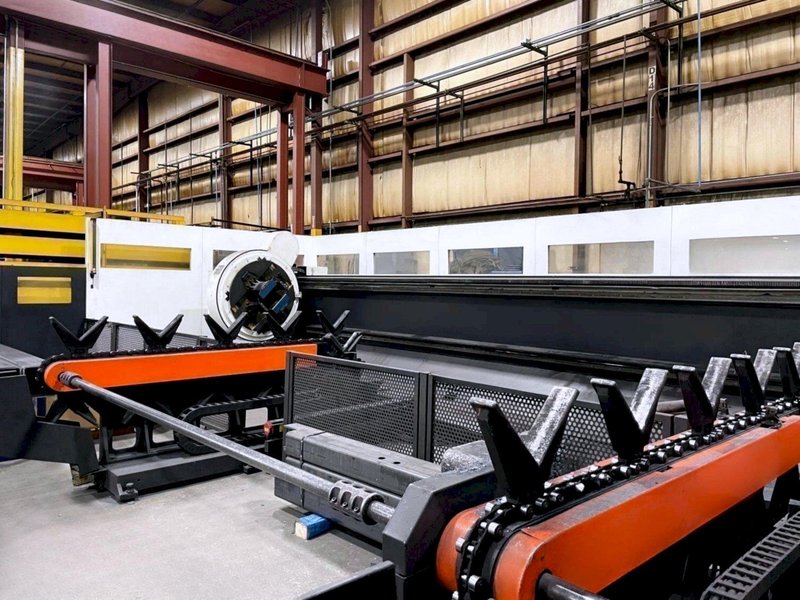

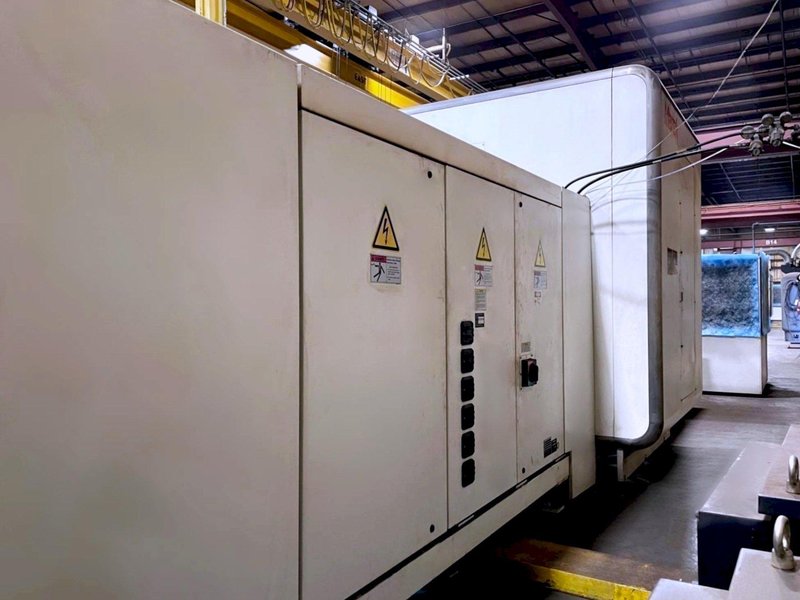

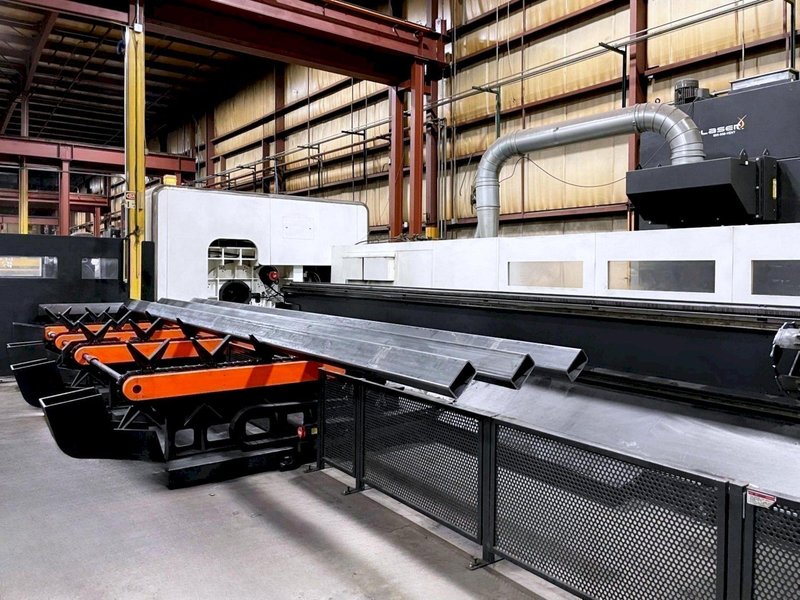

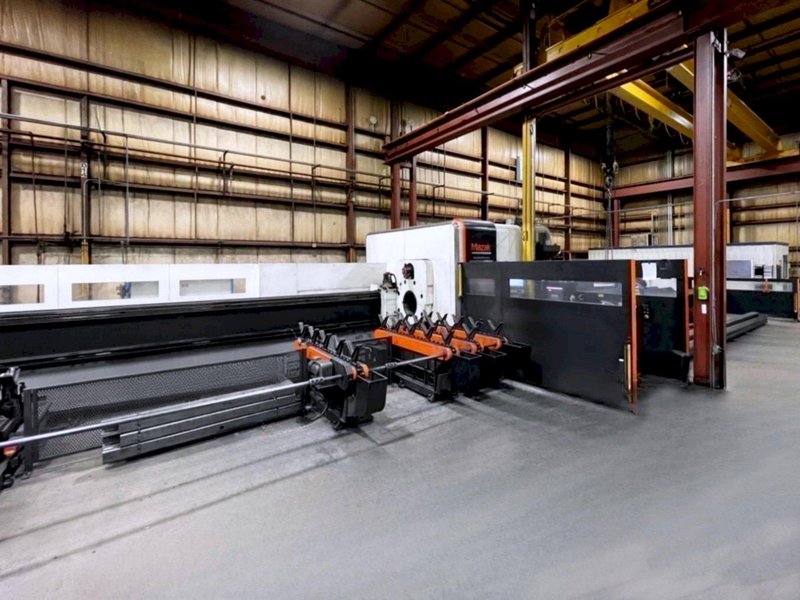

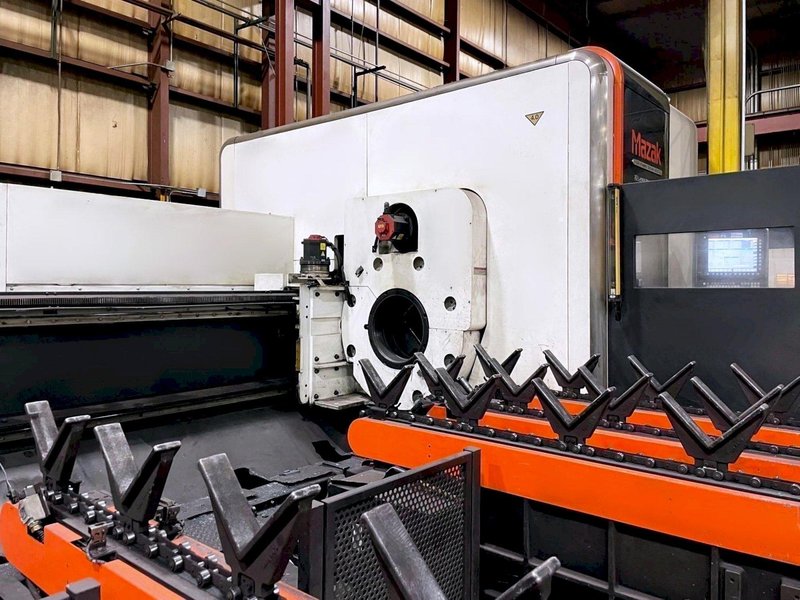

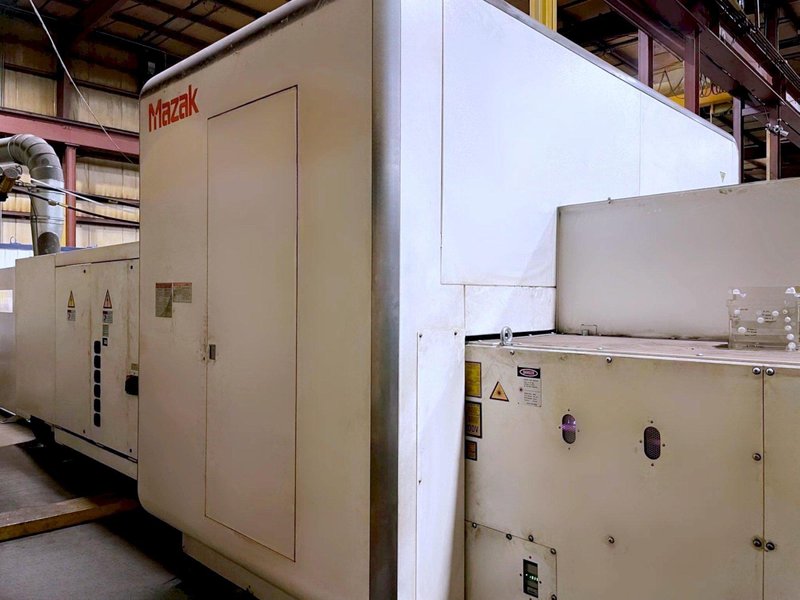

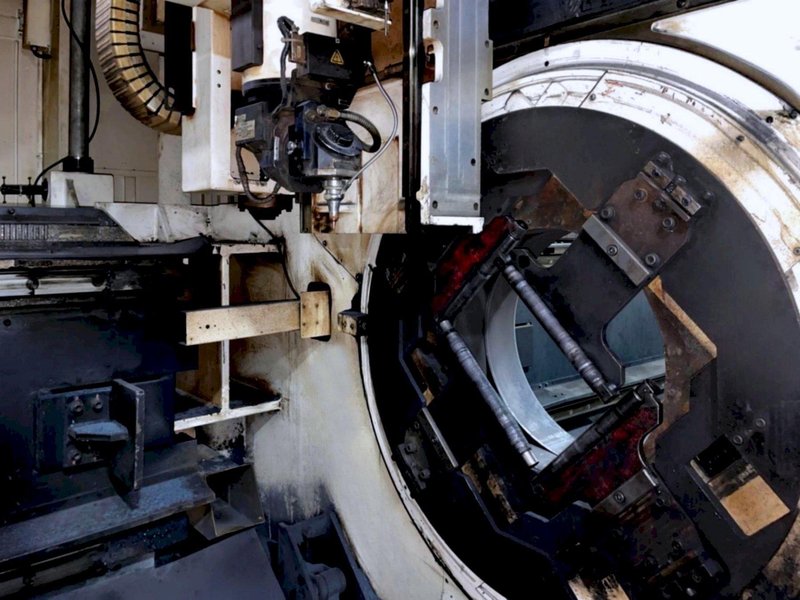

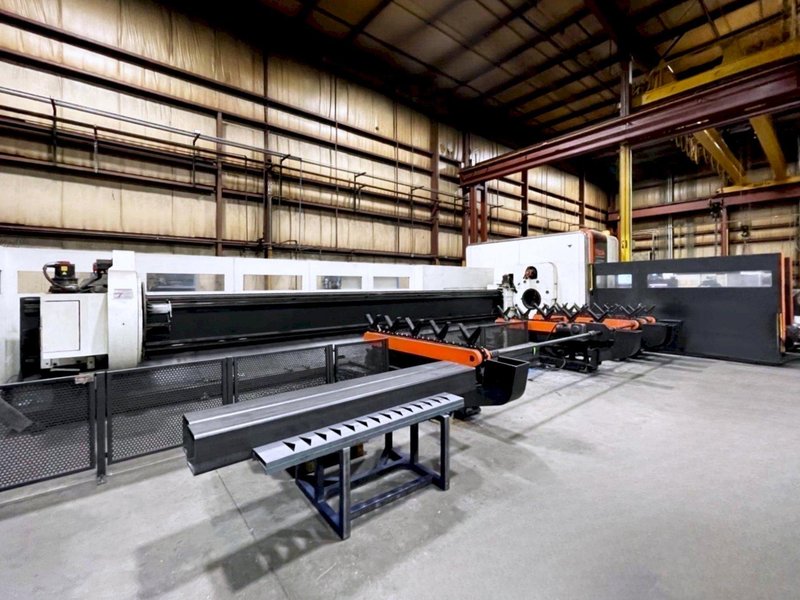

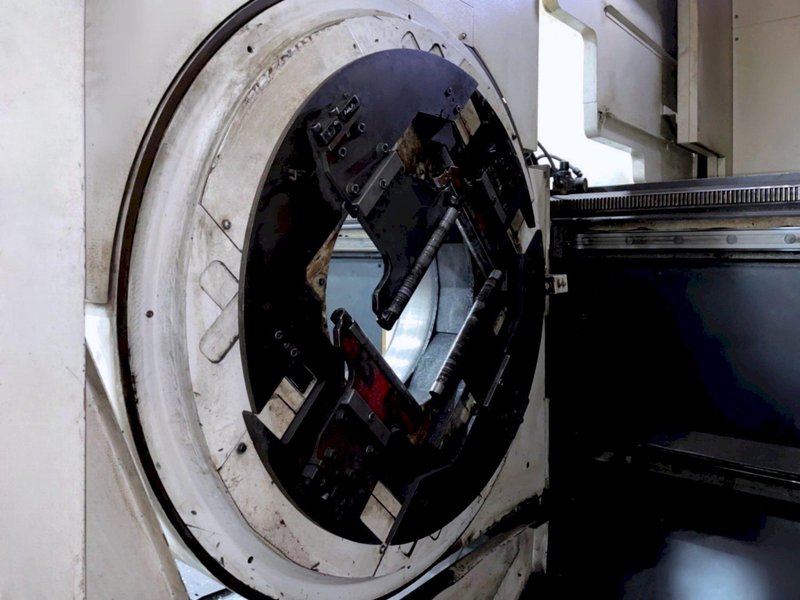

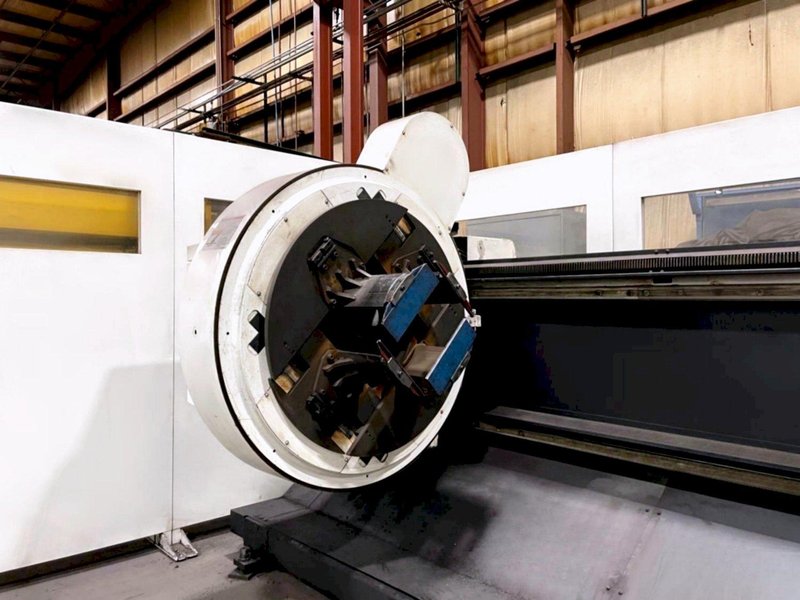

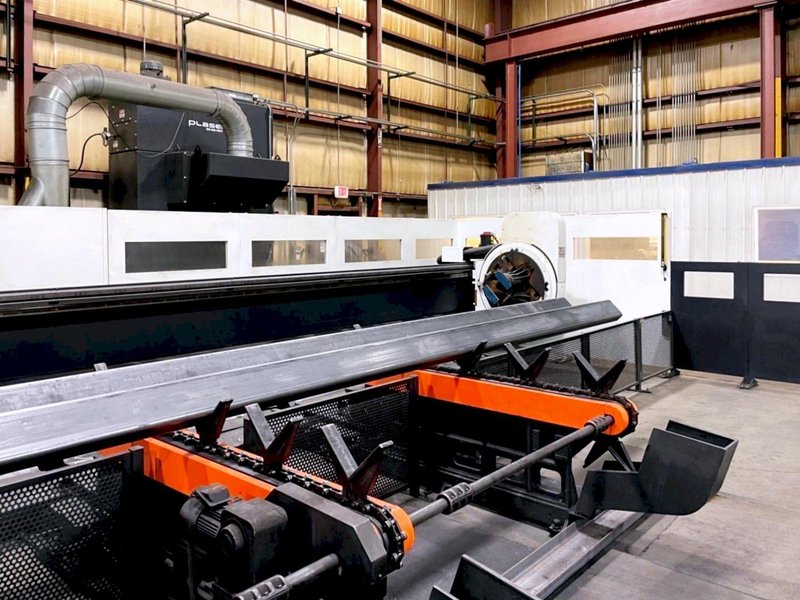

Mazak Fabri Gear 400 II Tube Laser
Brand
Category
Type
Model
Fabri Gear 400 II
Stock #
100455
Year
2014
Condition
Very Good
Location
Not specified

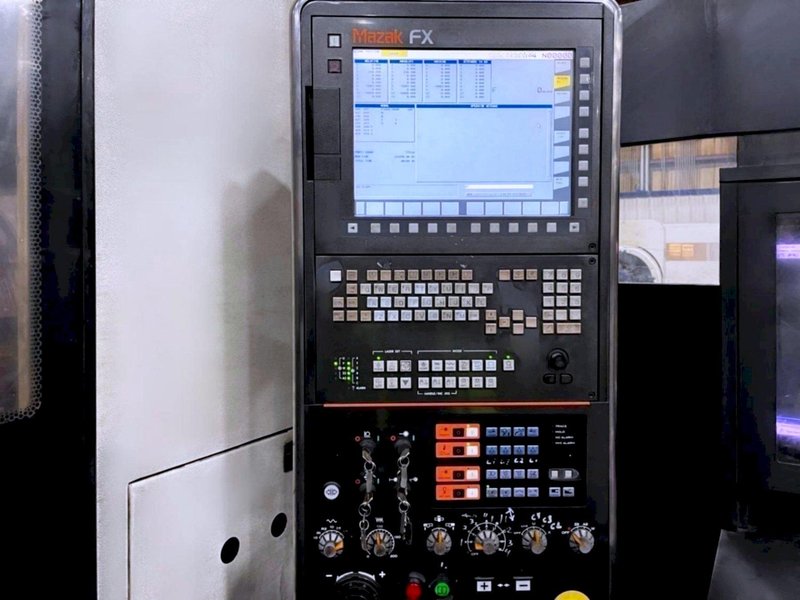

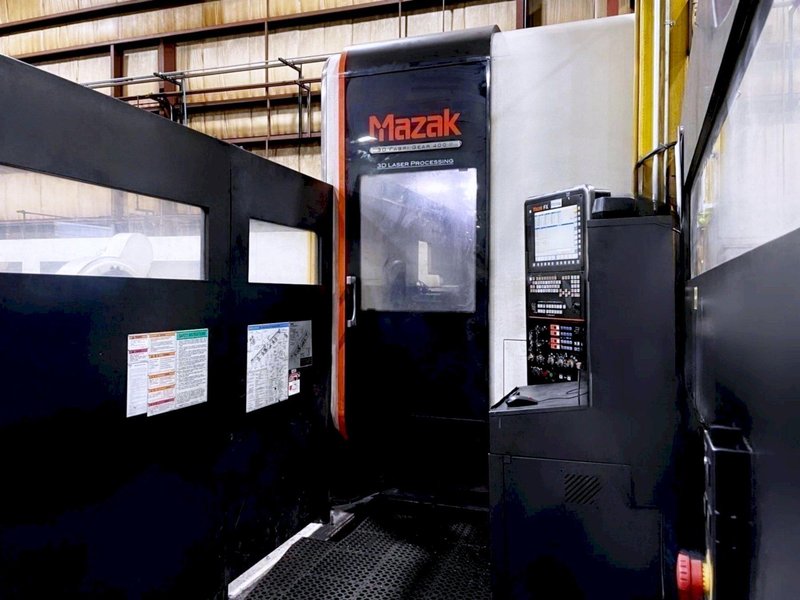

| Control | Mazak FX Control Unit |
| Resonator Type | CO2 |
| Resonator Make | Panasonic |
| Laser Output | 4.0 KW |
| Laser Gas | He, N2, Co2 |
| Tube Capacity | 26.25' Infeed / 26.25' Outfeed |
| Max Material Thickness (Mild Steel) | 0.866” |
| Max Material Thickness (Stainless) | 0.393” |
| Max Material Thickness (Aluminum) | 0.314” |
| Max. Workpiece Length Load/Unload | 315” |
| Max. Material Diameter Round | 16” |
| Max. Material Diameter Square | 11.8” |
| Max. Workpiece Weight/Piece | 1,058 Lbs. |
| Stroke X Chuck Left/Right | 344.49” |
| Stroke U Chuck Left/Right | 366.14” |
| Stroke V Chuck Left/Right | 99.2” |
| Stroke Y Head Back/Forth | 50.0” |
| Stroke Z Head Up/Down | 14.57” |
| Stroke A Head Rotation | ±99,999.999 Deg. |
| Stroke B Head Swing | ±135 Deg. |
| Rapid Travel Speed (X,U,V) | 1,181 IPM |
| Rapid Table Speed (Y) | 945 IPM |
| Rapid Table Speed (Z) | 945 IPM |
| Rapid Table Speed (A,B) | 9,600 Deg/Min |
| Rapid Table Speed (C) | 6,000 Deg/Min |
| Total Electrical Requirement | 64 kVA |
| Machine Footprint | 880" x 320" |
|
Equipped With:

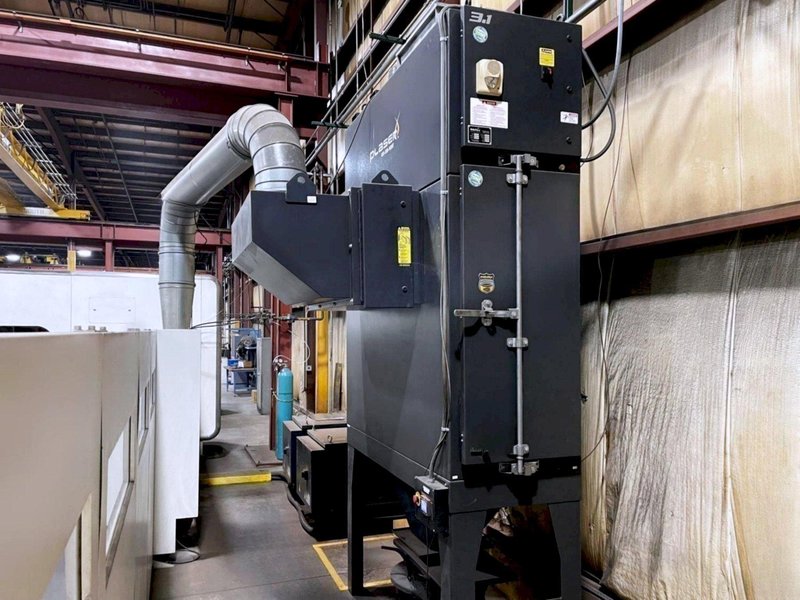

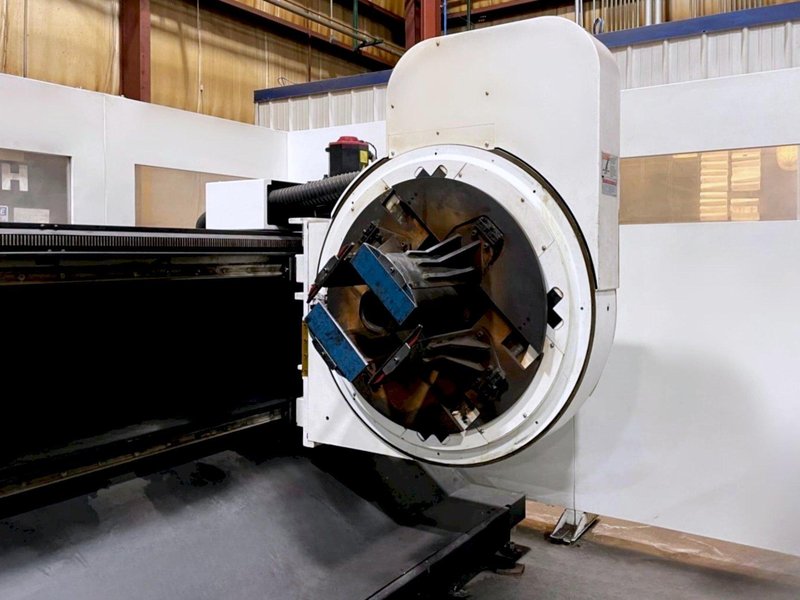

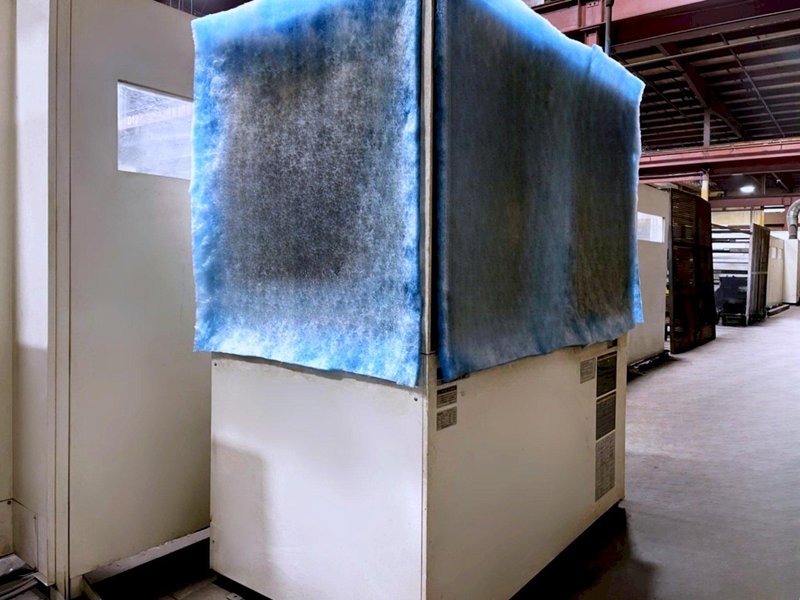

Mazak FX Control Unit 4.0 KW Panasonic Resonator 3D Laser Rotary Head Auto Focus Positioning 7.5’ Lens Automatic Material Measurement Function Weld Seam DetectorFour Clamping Chick System 8M Loading/Unloading System Hopper, Long Legs & 55 Gallon Drum Super Seal Hopper Gate Programmable Assist Gas Pressure USB Port For Personal Computer LAN Connection Function Automatic Power Cutoff AC Digital Servo Motor Drive System Ball Screws For Y,Z-Axis Rack And Pinion For X-Axis Multi-Tap Transformer (208v To 480v) Chiller Unit RoboVent Dust Collector
|
|
