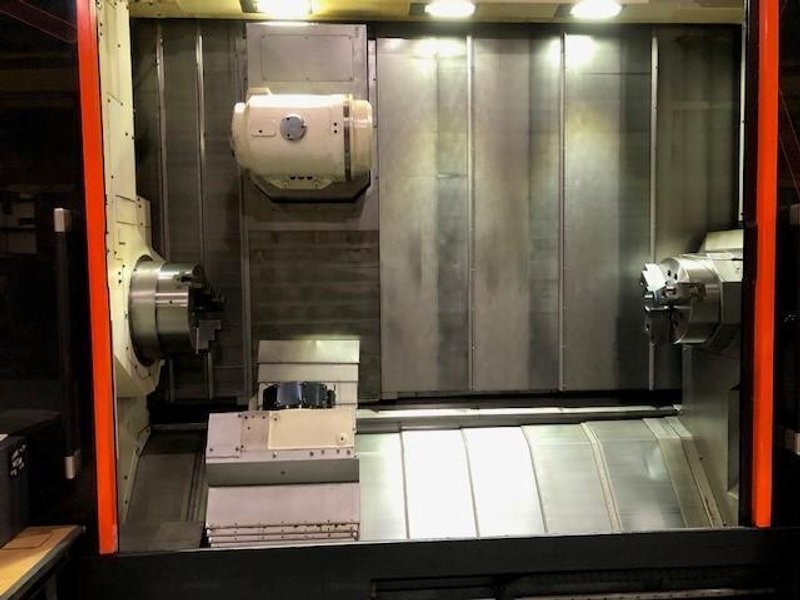

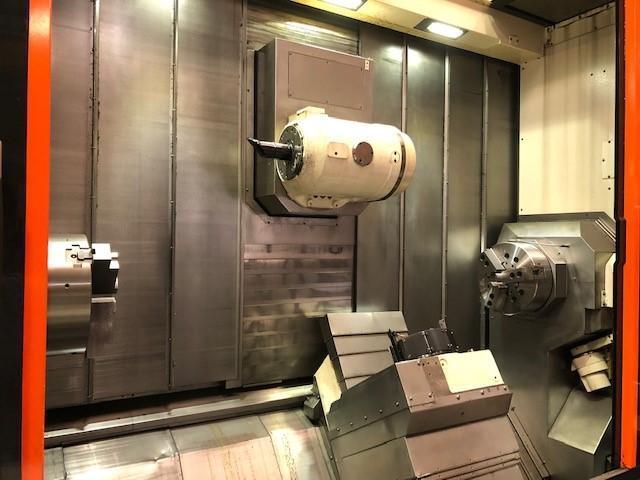

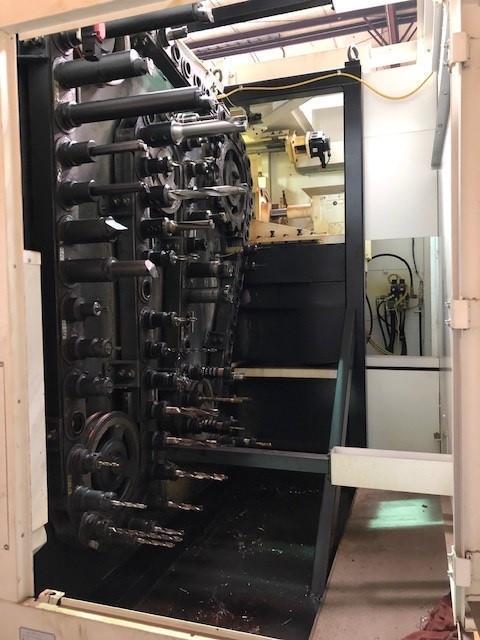

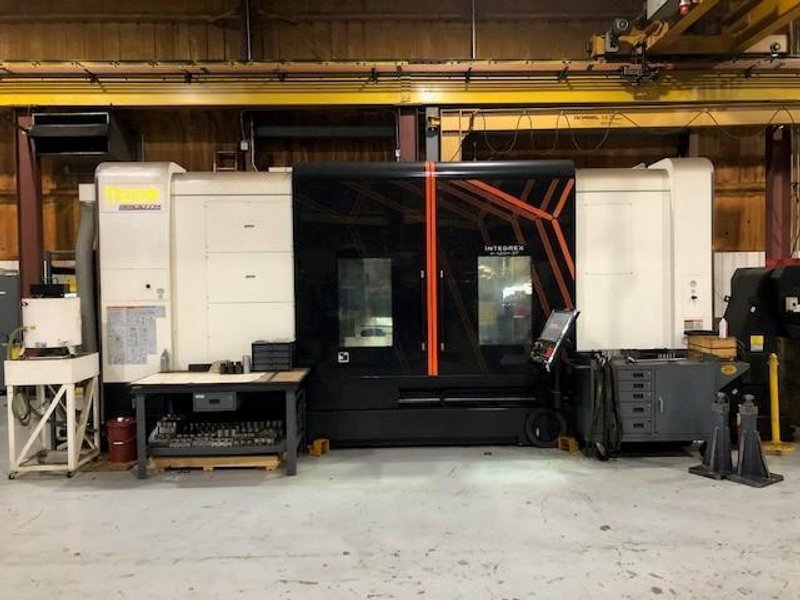

Mazak Integrex e-420H-ST, Multi Axis Lathe, 2016 – 15″ Kitagawa Chucks, 5.19″ Bore, Lower Turret, Chip Conveyor, Mist Collector, Through-Spindle Coolant, Renishaw Probe, 80 ATC

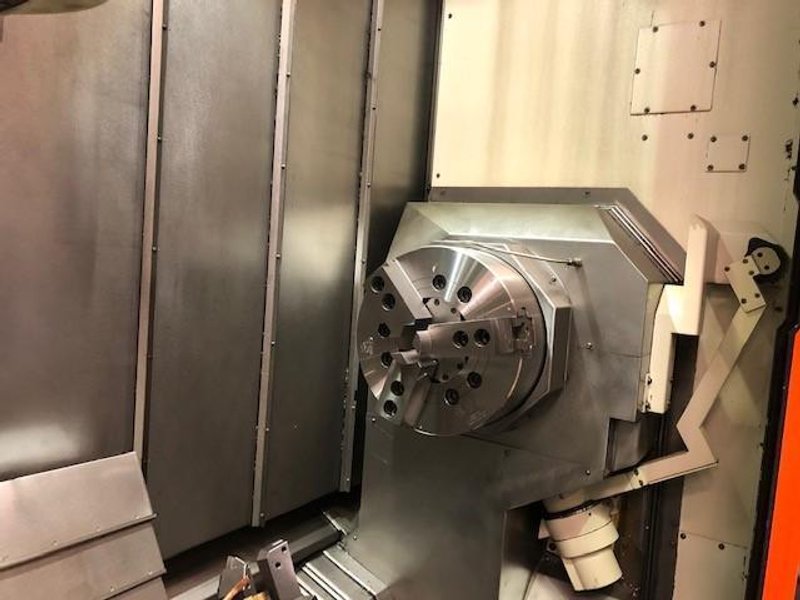

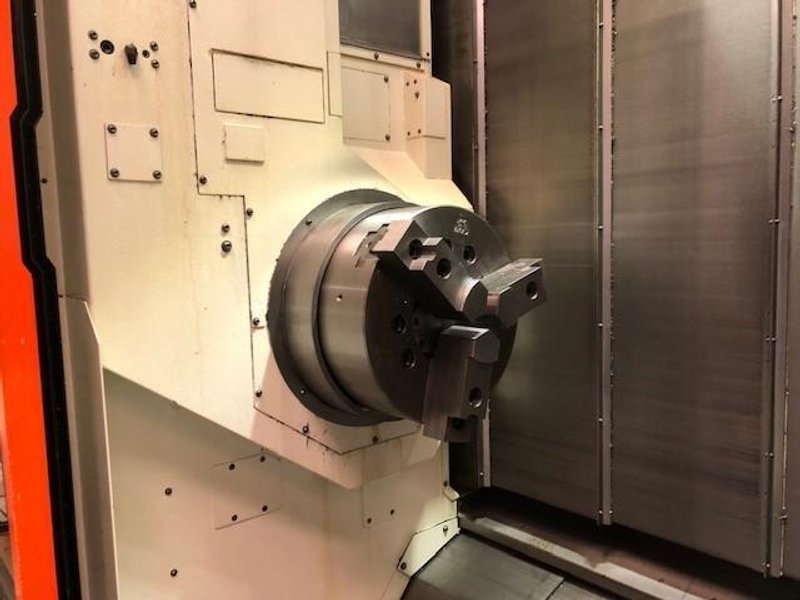

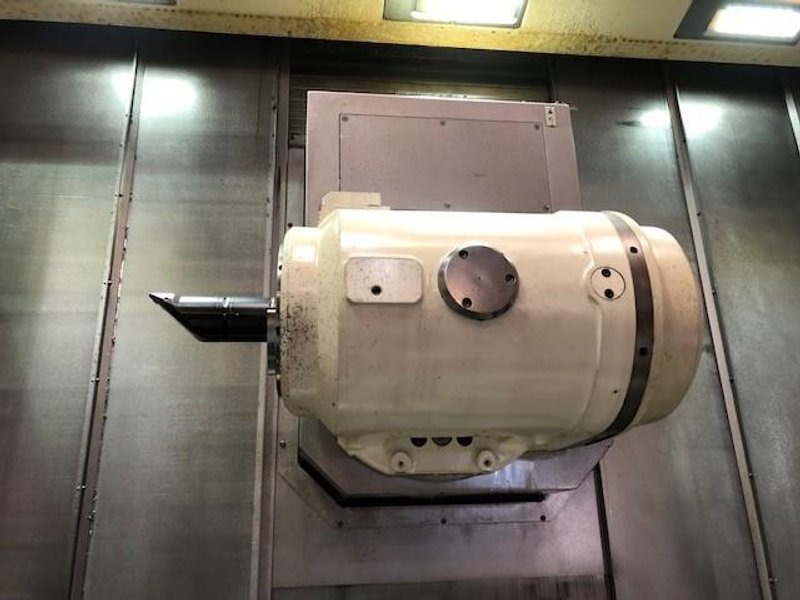

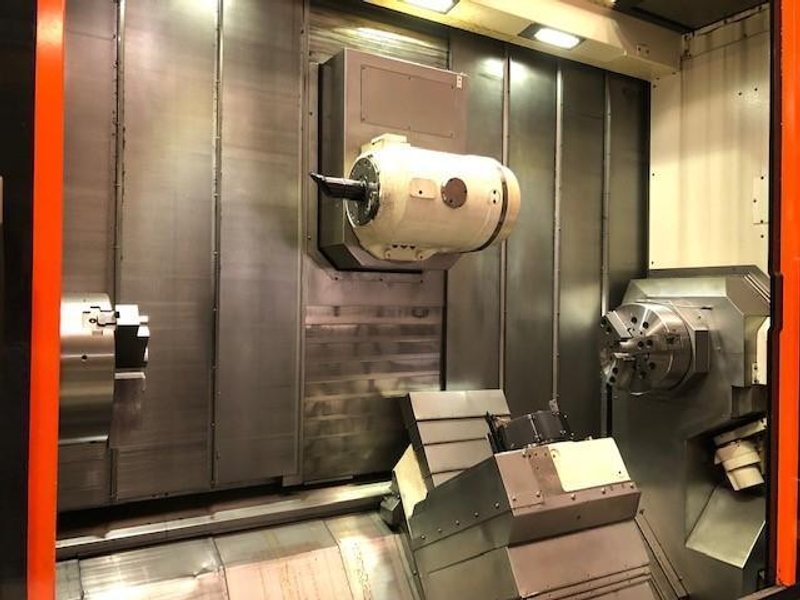

Max Turning Length: 80″ Max Turning Diameter: 26.3″ Main Spindle Bore: 5.19″ Sub Spindle Bore: 5.19″ Travels: X-Axis: 33.27 inches (Upper) / 14.25 inches (Lower) Y-Axis: 16.54 inches Z-Axis: 82.2 inches (Upper) / 74.53 inches (Lower) Tooling: 80 ATC Capto C6 Main Spindle: Chuck: 15″ (Kitagawa B-15A11) Speed: 2,500 RPM Power: 40HP Nose: A2-11 Sub Spindle: Chuck: 15″ (B15) Speed: 2,500 RPM Power: 40HP Nose: A2-11 Milling Spindle: B-Axis: 240º programmable Speed: 12,000 RPM Power: 30HP Approx Footprint: 210″ x 115″ x 115″ Approx Weight: 48,000 lbs

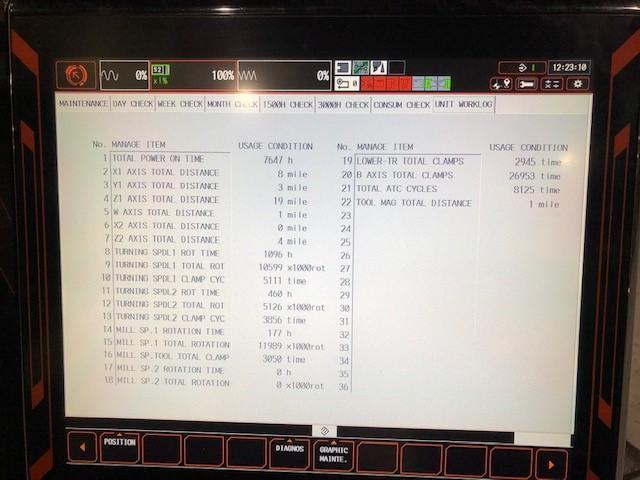

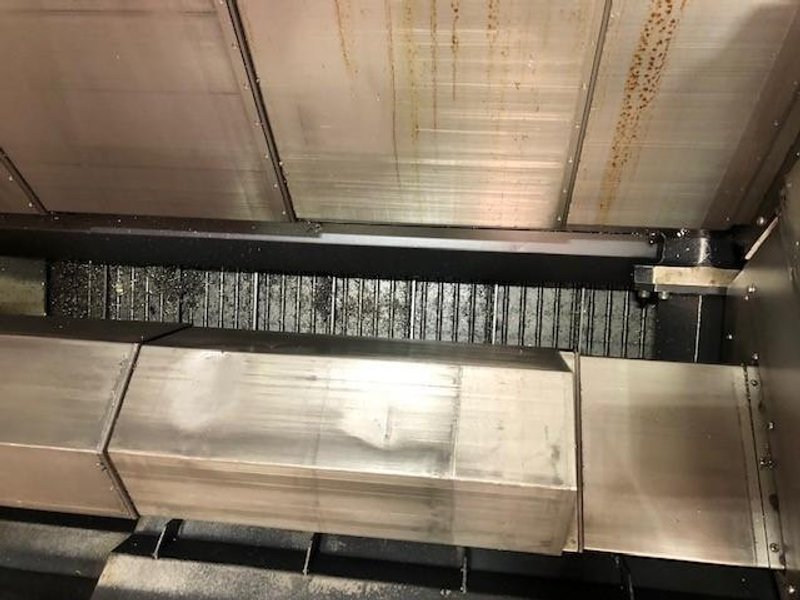

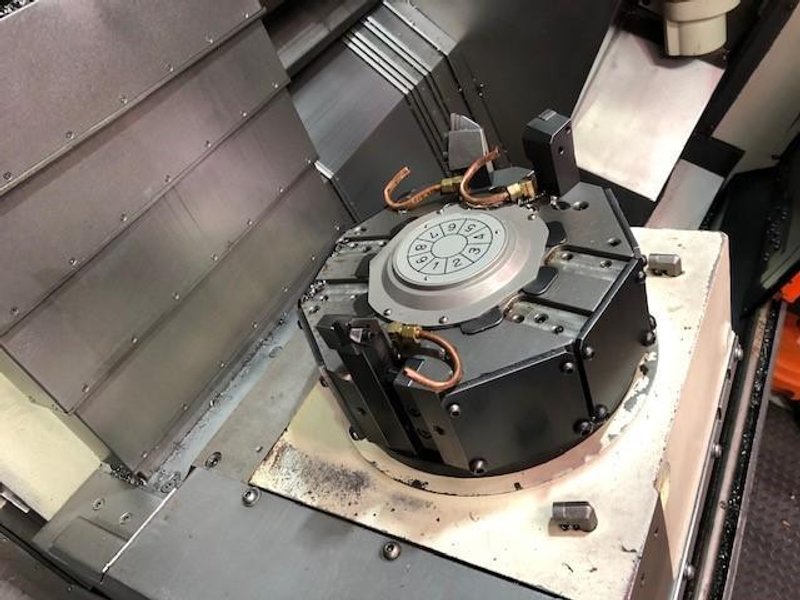

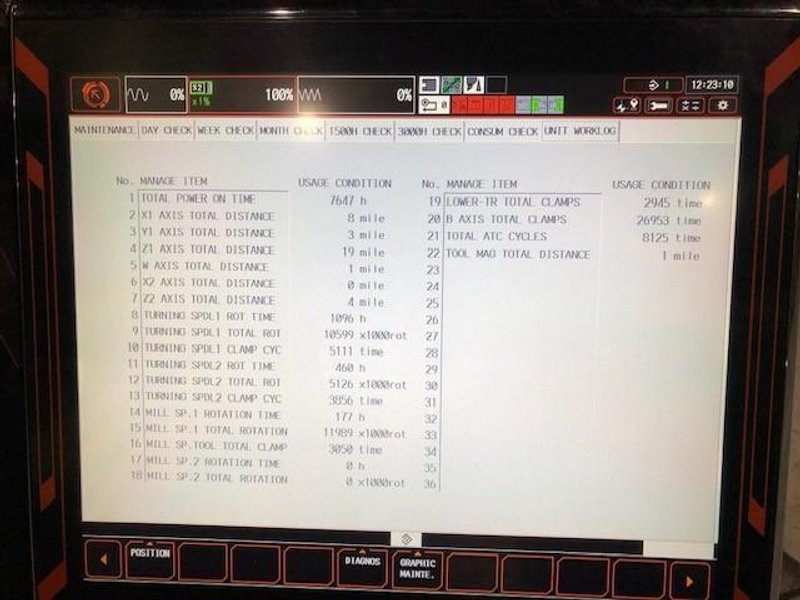

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Mazatrol SmoothX Control B-Axis Milling Spindle 9-Station Lower Turret Mazak Super Flow V8M Variable 1,000 PSI TSC C1/C2 Spindle Sync Renishaw RMP600 Tool Setter Chip Conveyor Mist Collector All Available Manuals

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
