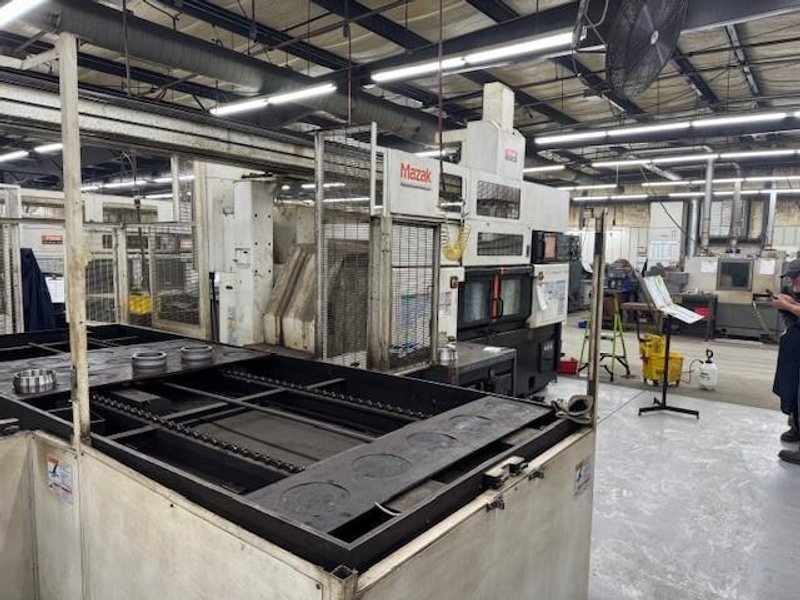

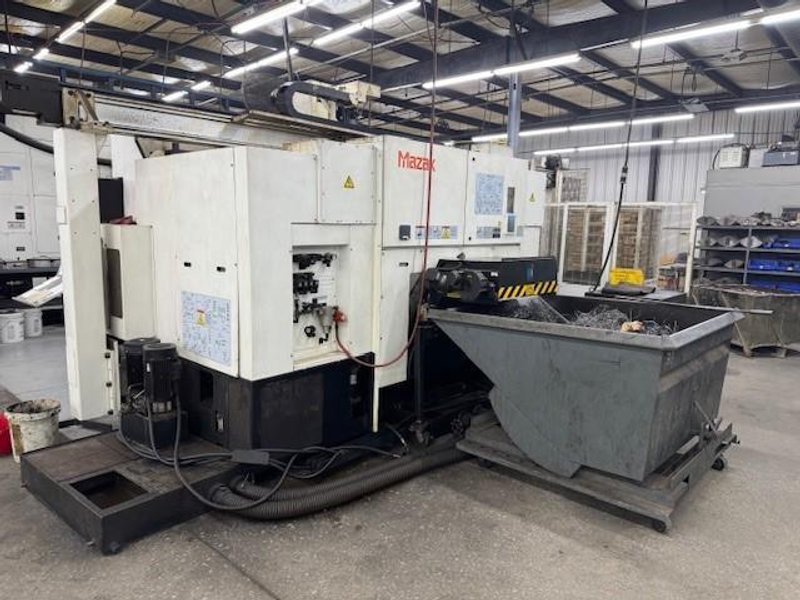

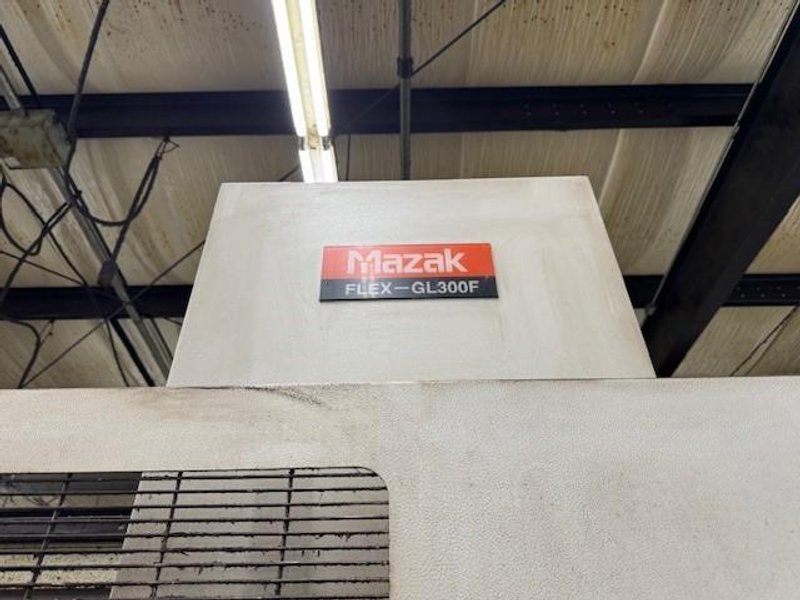

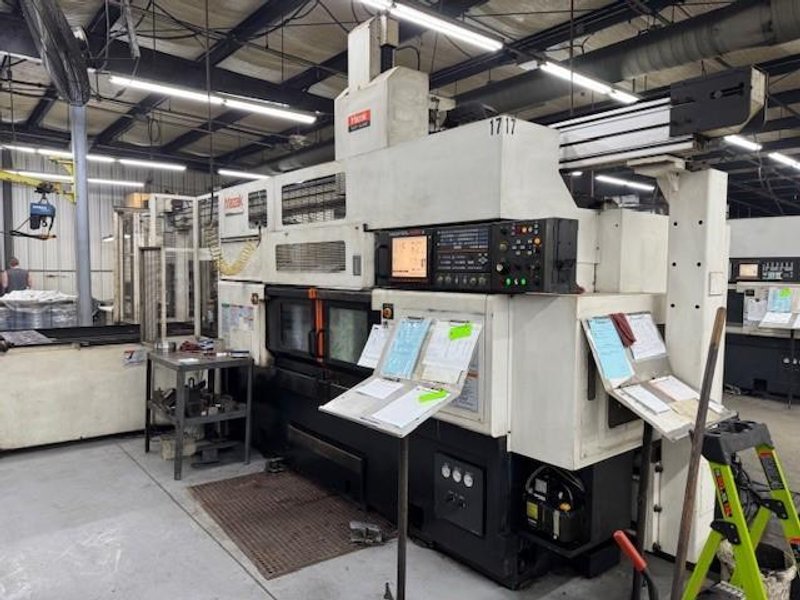

Mazak Multiplex 6300Y-II with GL300F – 2012, Multi-Axis CNC Turning Center

Standard Chuck Diameter (L&R) 10″ Maximum Swing: 16.93″ Standard Cutting Diameter: 13.0″ Maximum Cutting Diameter: 16.93″ Maximum Cutting Length Chuckwork: 8.86″ Maximum Cutting Length Shaftwork: 25.59″ MAIN SPINDLE (L&R) Distance Between Spindle Faces: Max.(Both Heads @ Home Position): 57.09″ Min: 9.82″ Spindle Nose: A2-8 Spindle Bore: 3.46″ Maximum Bar Diameter: 3.0″ Spindle Speed/Ranges: 4,000 RPM/1 Spindle Indexing (C-Axis): .001 deg./360,000 Positions Spindle Horsepower (30 min.): 30 HP (AC) Spindle Torque: 441.34 ft.-lbs. TURRET (L&R) Type of Turrets: Dodecagonal/Drum Non-Lift Tool Holder Shanks: Modified VDI Turret Index Time (1 Step): 0.3 Sec. Total Number of Tools: (Rotary Avail./All Positions): 24 (12×2) Tool Size: Turning & Facing: 1″ x 1″ Boring Bar Maximum Diameter: 2″ MILL SPINDLE (L&R) Spindle Speed: 4,000 RPM Spindle Horsepower (10 Min): 10 HP (A.C.) Spindle Torque (4000 RPM): 57.88 ft.-lbs. Spindle Torque (2000 RPM Option): 72.34 ft.-lbs. Maximum Drill: 7/8″ Maximum End Mill: 13/16″ Maximum Tap: 8-5/8 UNC AXIS Travel: Y-Axis (L&R)……………………………………. +/- 3.0″ X-Axis (L&R)……………………………………. 12.2″ Z-Axis (L&R)……………………………………. 23.82″ Rapid Traverse: Y-Axis………………………………………….. 393 IPM X-Axis………………………………………….. 945 IPM Z-Axis………………………………………….. 945 IPM C-Axis………………………………………….. 400 RPM MACHINE Machine Floor Space (W x L): W/O Automation or Bar Feeder, etc………. 95.3″ x 167.7″ Machine Height…………………………………….. 85.44″ Total Power Required (Machine Only)………….. 76 KVA NOTE: Actual Machine Main Transformer KVA Rating Will be Greater Air Requirements………………………………….. 71 psi / 14 CFM Total Weight (For Machine Only)……………….. 26,400 lbs. Equipped With (subject to buyer verification): Mazatrol Matrix 2 CNC Control Flex GL-300F Gantry Load/Unloader Chip Conveyor Mazak Multiplex 6300Y-II with GL300F – 2012 quantity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
