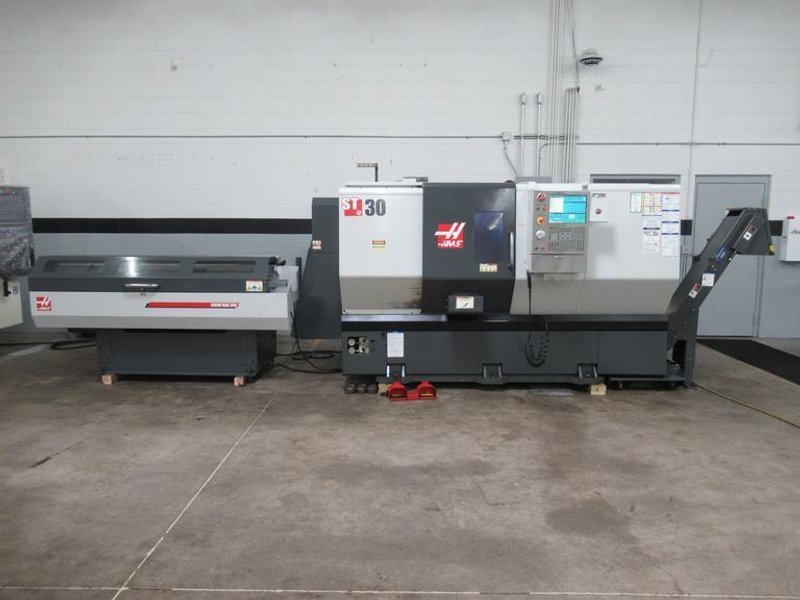

Haas ST-30 CNC Turning Center, Live Milling, 12 Station Turret, 3400 RPM Spindle, Tailstock, Chip Conveyor, Tool Presetter, Bar Feed

Haas ST-30 CNC Turning Center, Live Milling, 12 Station Turret, 3400 RPM Spindle, Tailstock, Chip Conveyor, Tool Presetter, Bar Feed

Name: Haas ST-30 CNC Turning Center, Live Milling, 12 Station Turret, 3400 RPM Spindle, Tailstock, Chip Conveyor, Tool Presetter, Bar Feed
Brand: HAAS
SKU: 7308
Availability: PreOrder

Brand

HAAS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

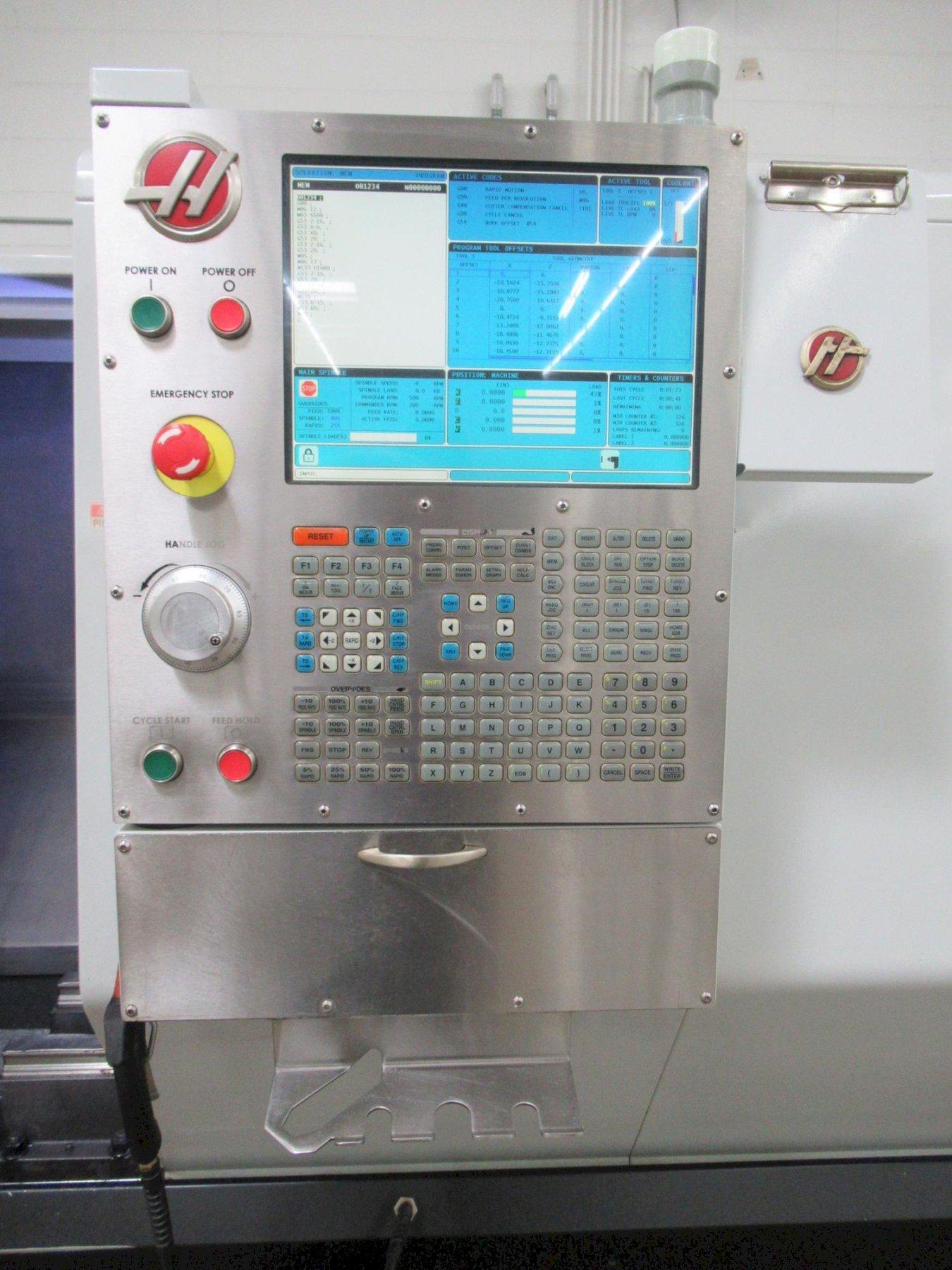

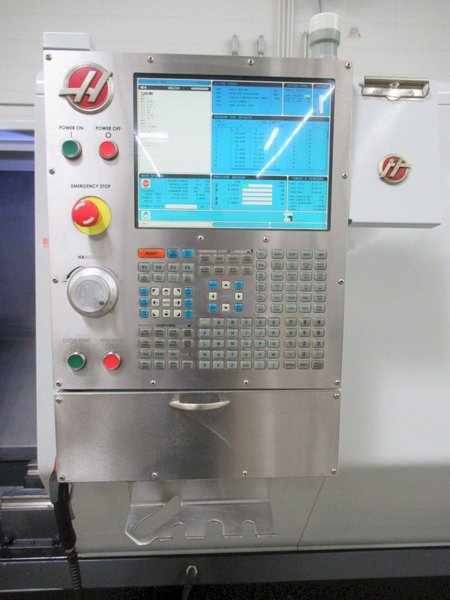

Control: Haas CNC Control w/ Coldfire Processor

Chuck Size: 10"

Swing Over Bed: 31.75"

Swing Over Saddle: 20.75"

Max Turning Diameter: 21"

Max Turning Length: 26"

Rapid Traverse Rates: 945/945 ipm (X/Z)

Max Bar Diameter: 3.0"

Spindle Speeds: 3400 RPM

Spindle Nose: A2-6

Hole Thru-Spindle: 3.5"

Spindle Orientation: Full C-Axis (.001 Degree)

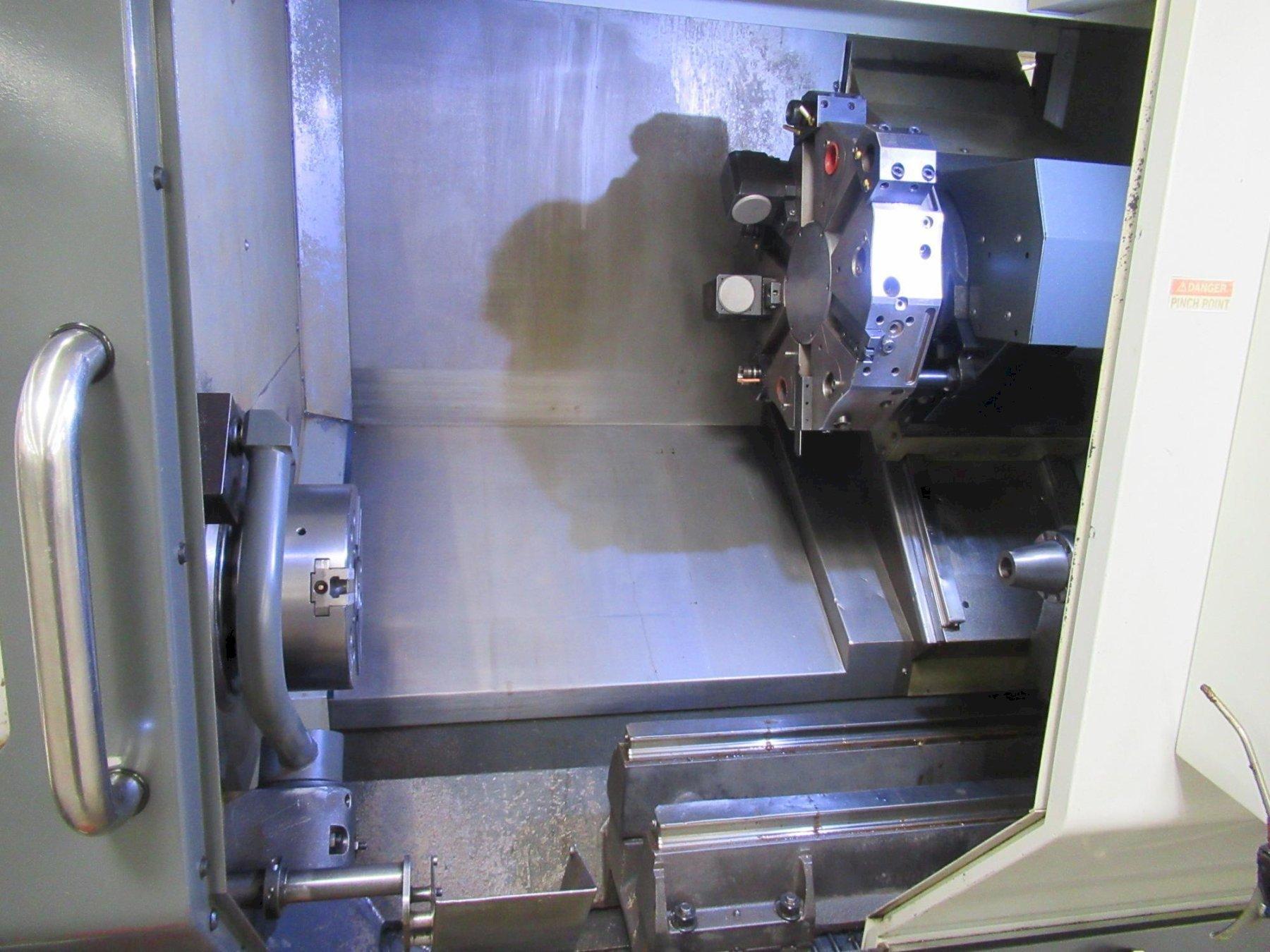

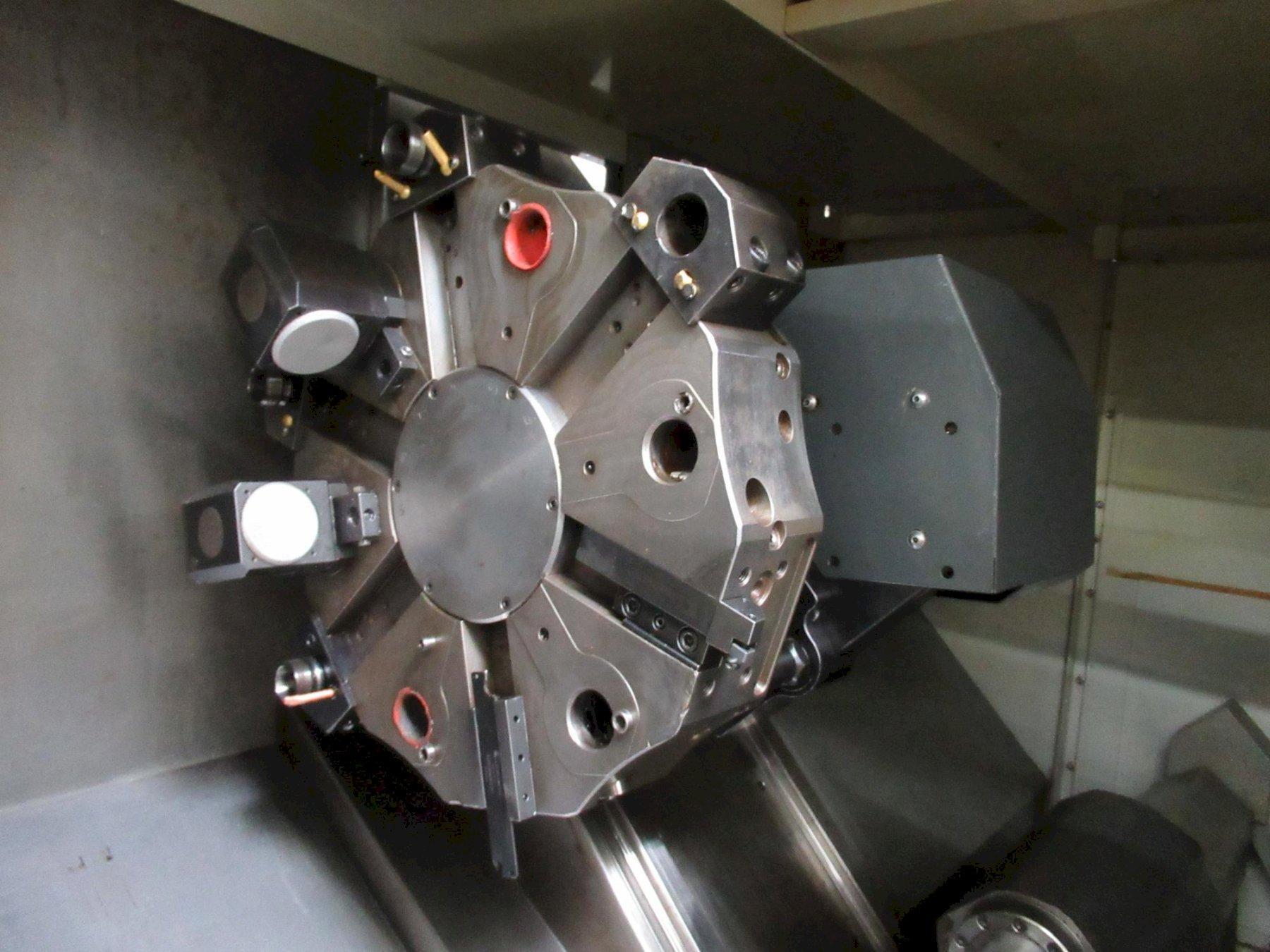

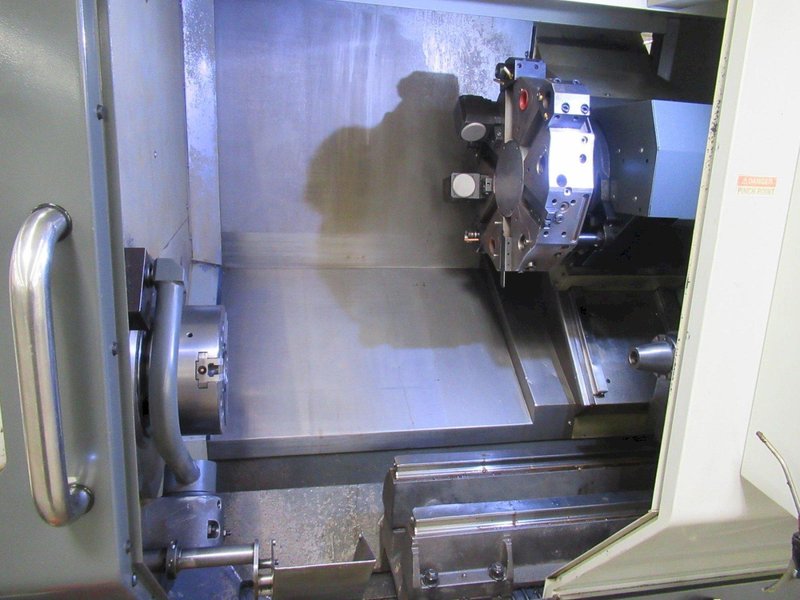

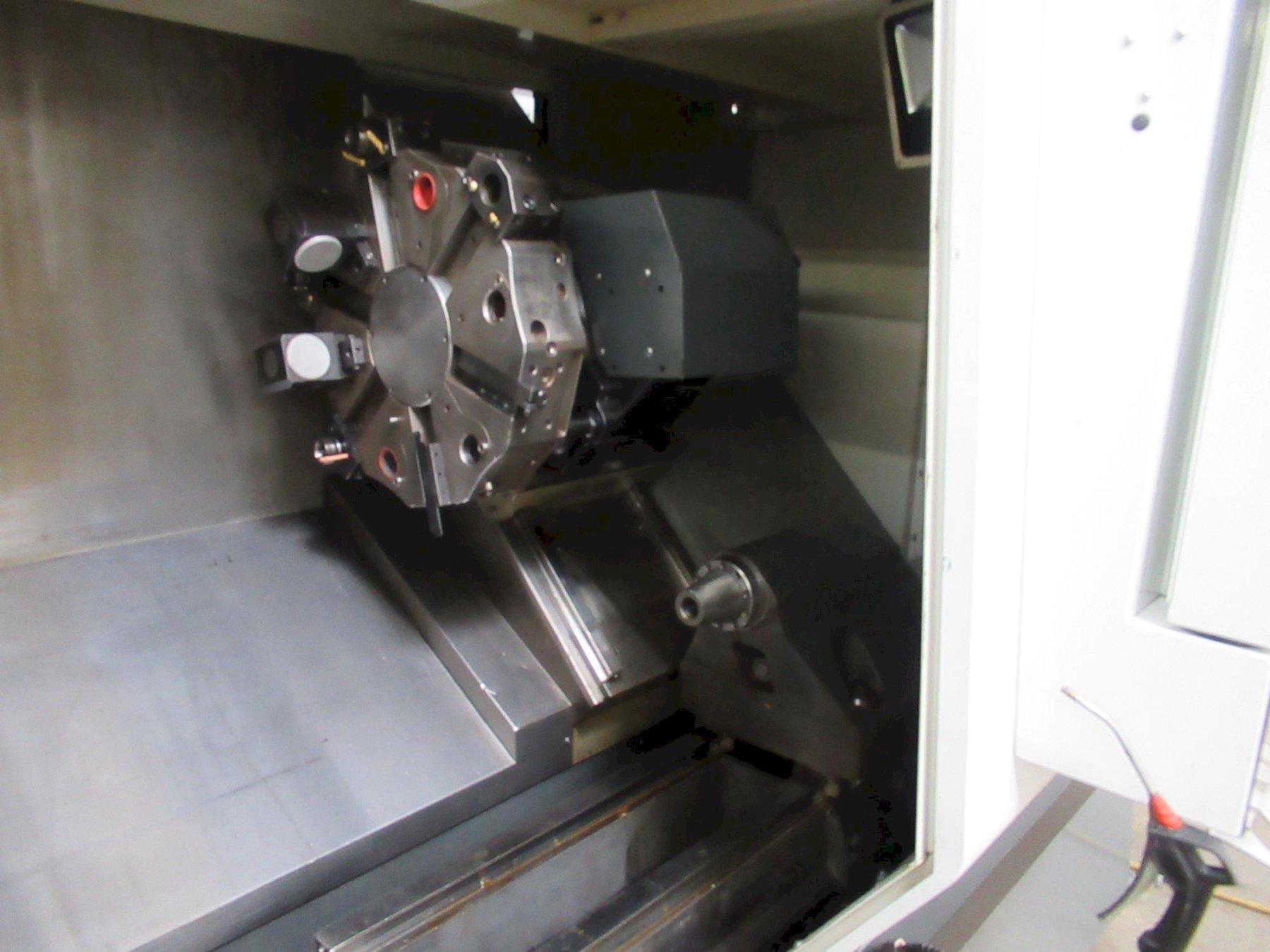

Turret Capacity: 12 Stations (Hybrid VDI) 6- Station with Live Milling

Turret Travles, (X/Z): 12.5"/26"

Turret Travel (Y-Axis): NA

Live Tool Speed: 4,000 Max RPM

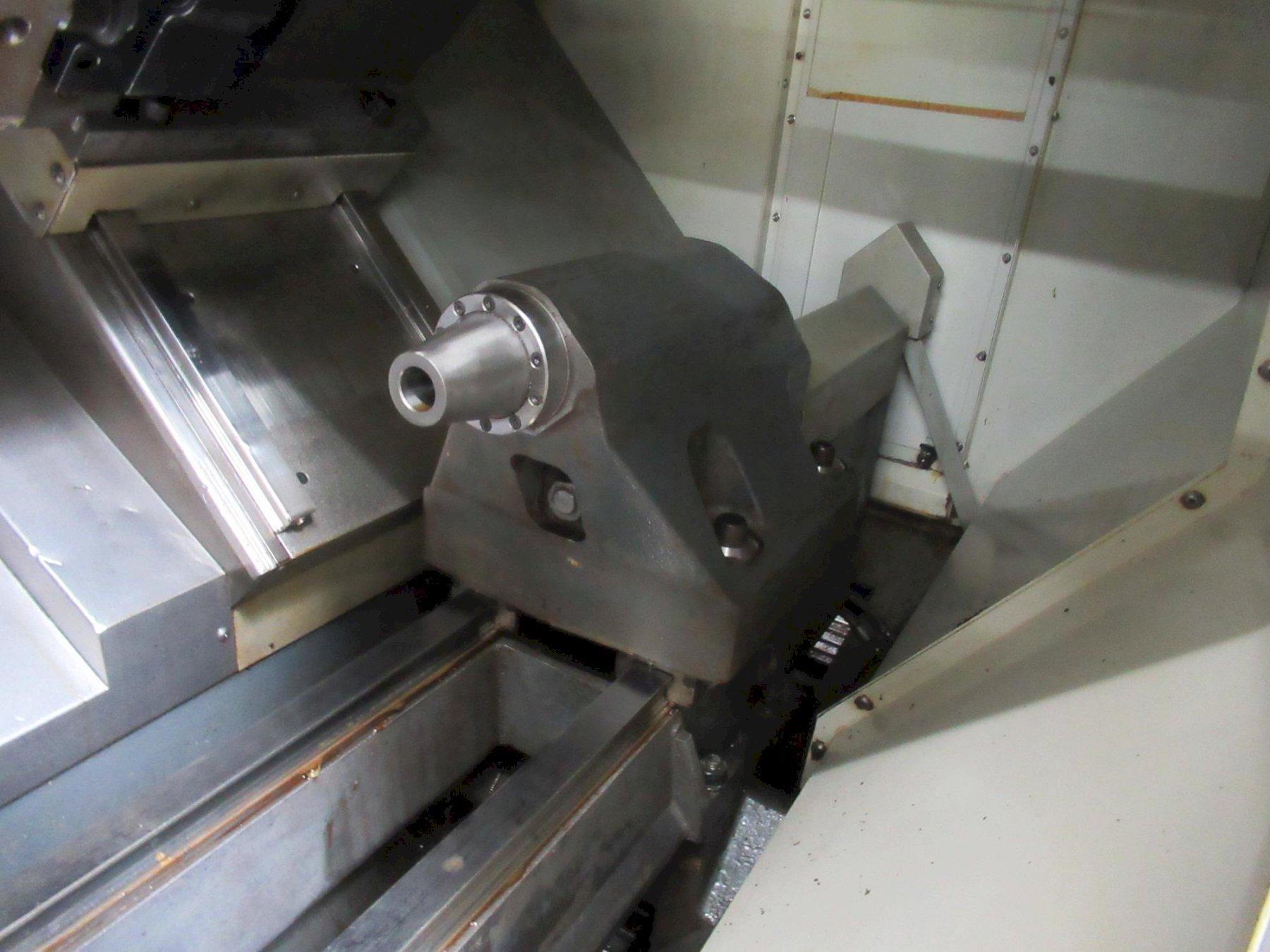

Tailstock Quill Taper: #4MT

Tailstock Quill Travel: 28.5" Tailstock Travel 13"- 41.5" Distance from Headstock OR 32.5" Max Centers

Spindle Drive: 30 HP

Rotary Tool Drive: 5 HP

Description:

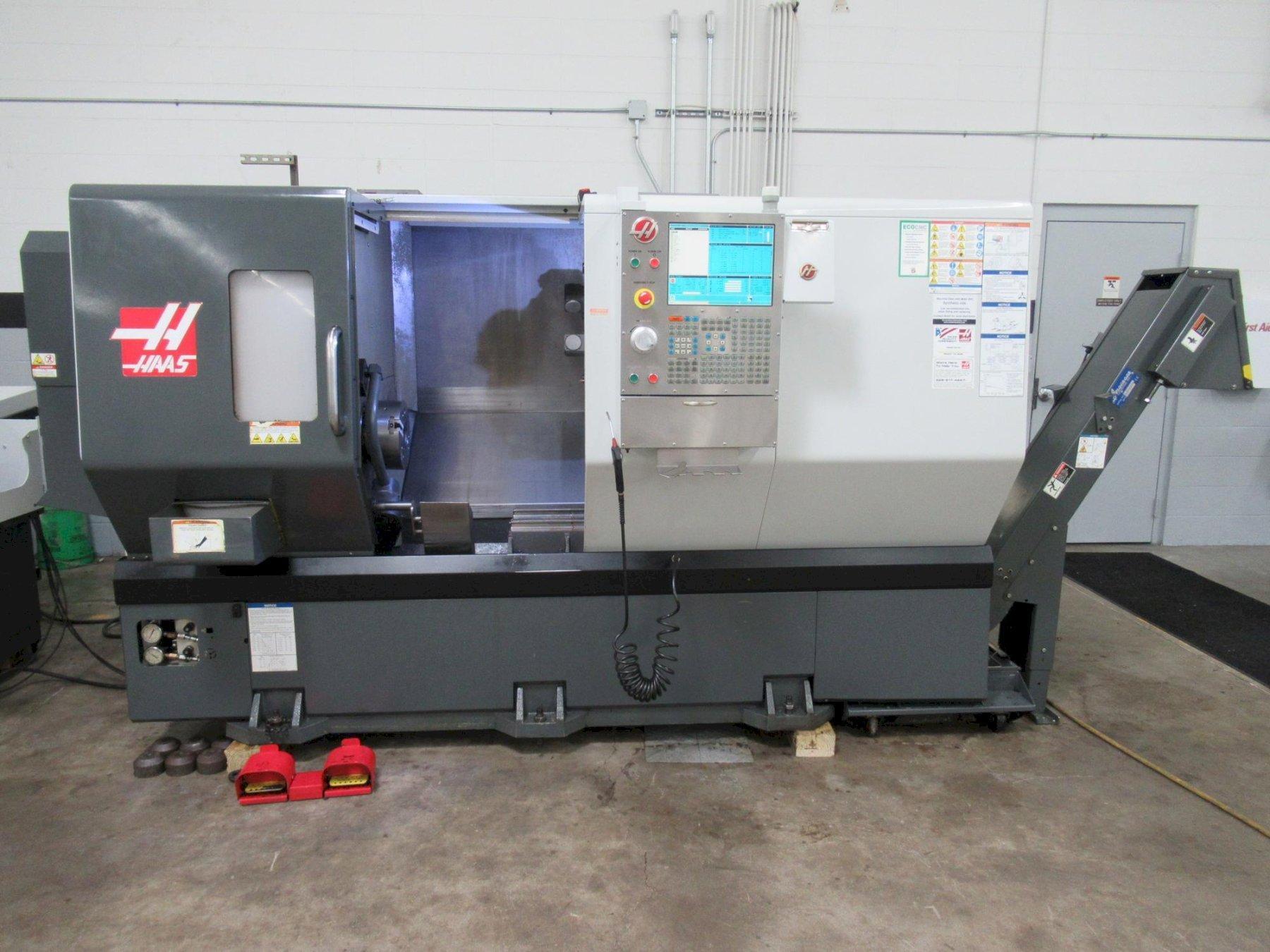

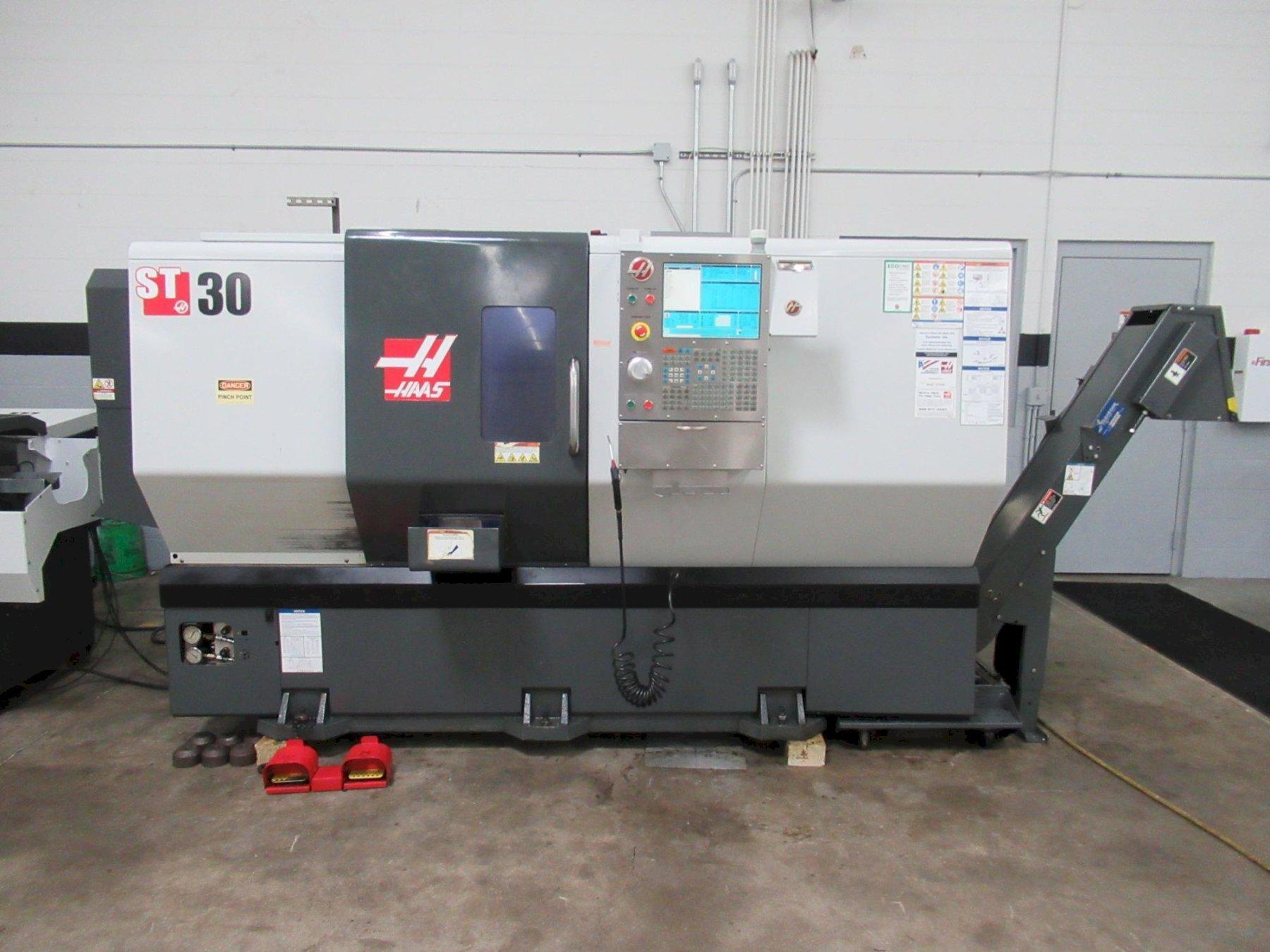

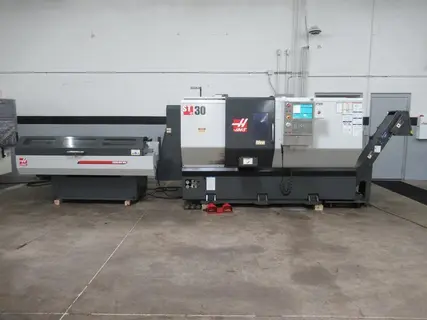

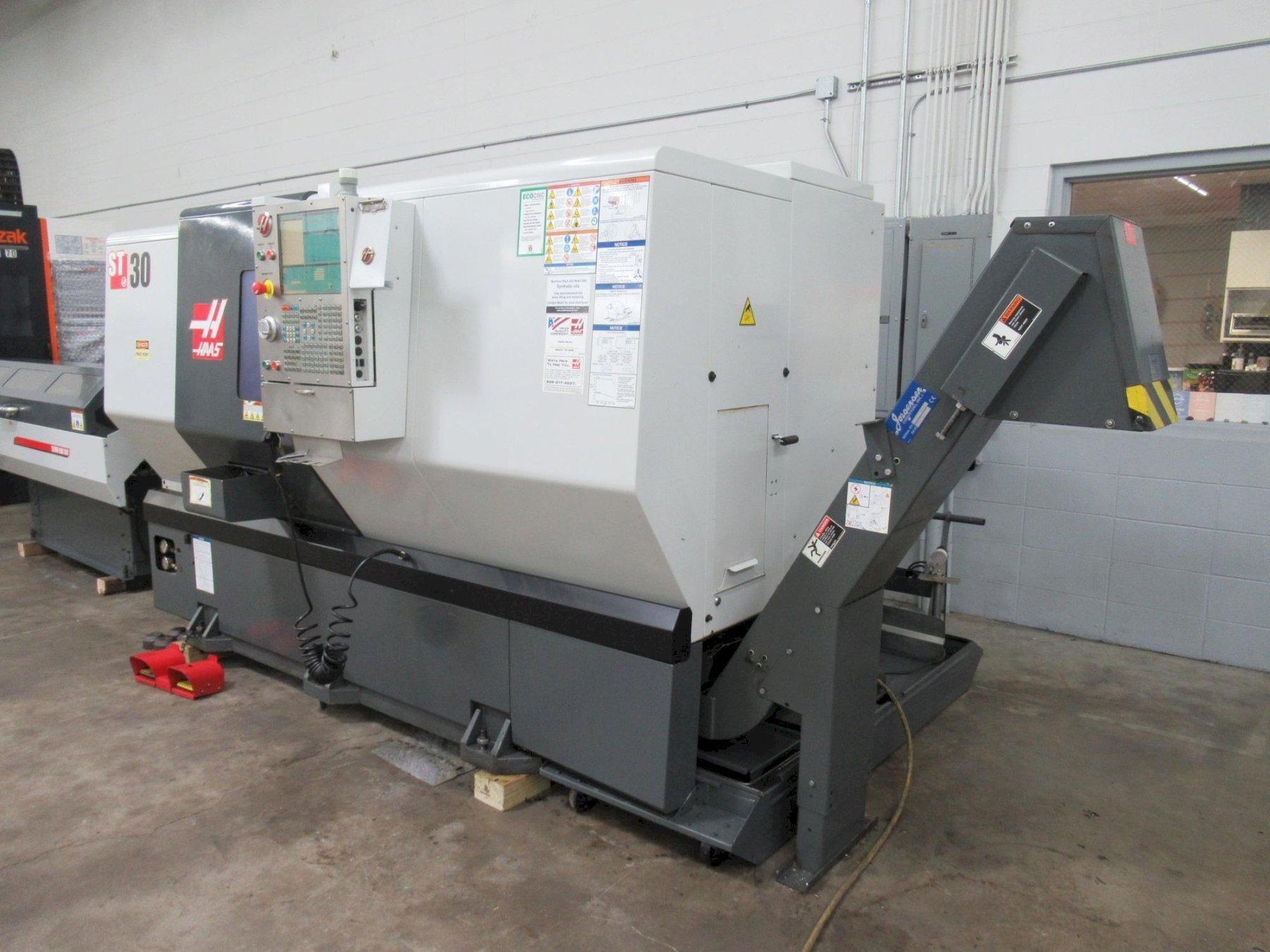

Used Haas ST-30 CNC lathe with live milling and bar feed. High-torque turning, multitasking capability, and proven reliability for production machining environments.

Equipped With:

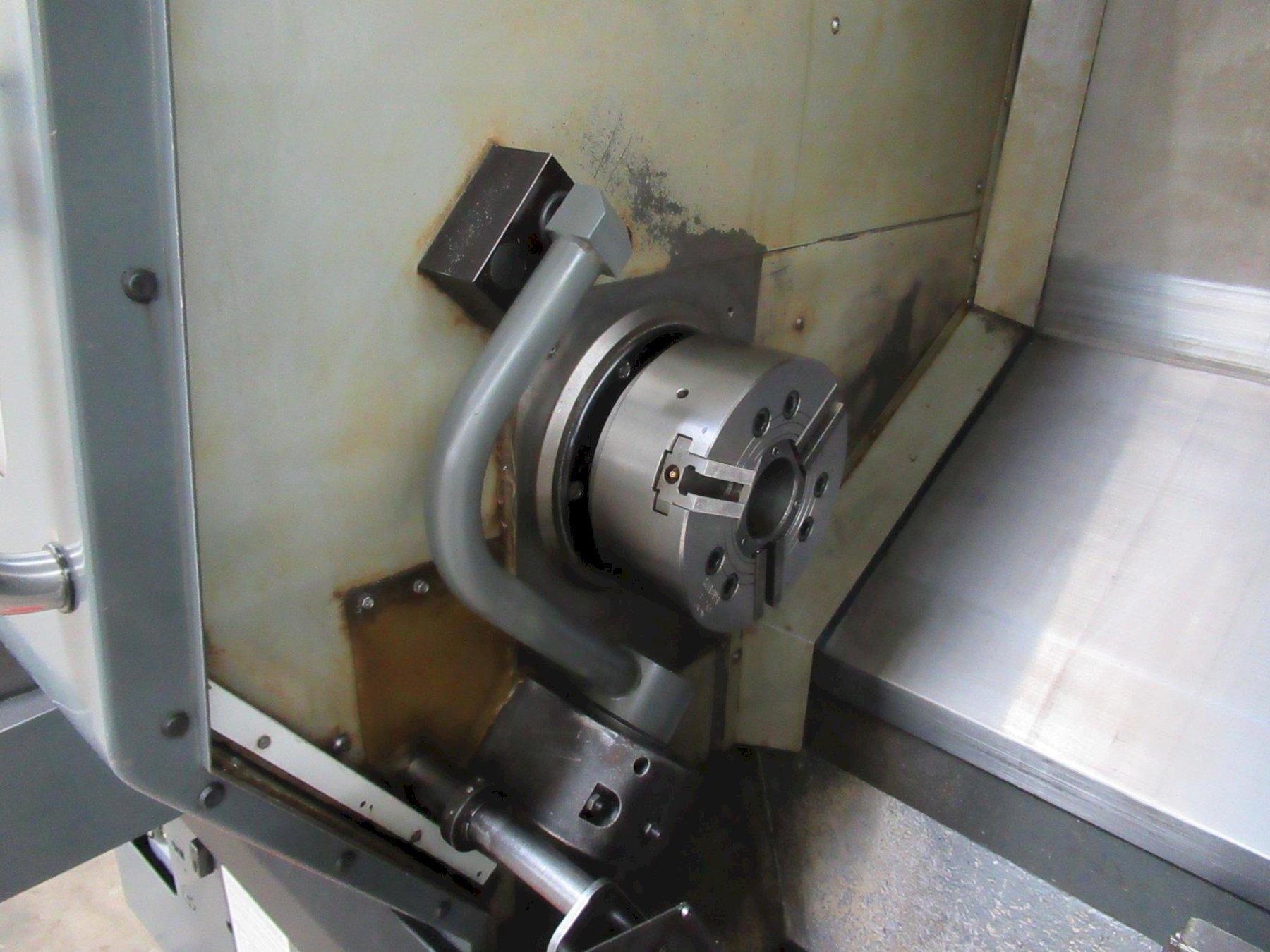

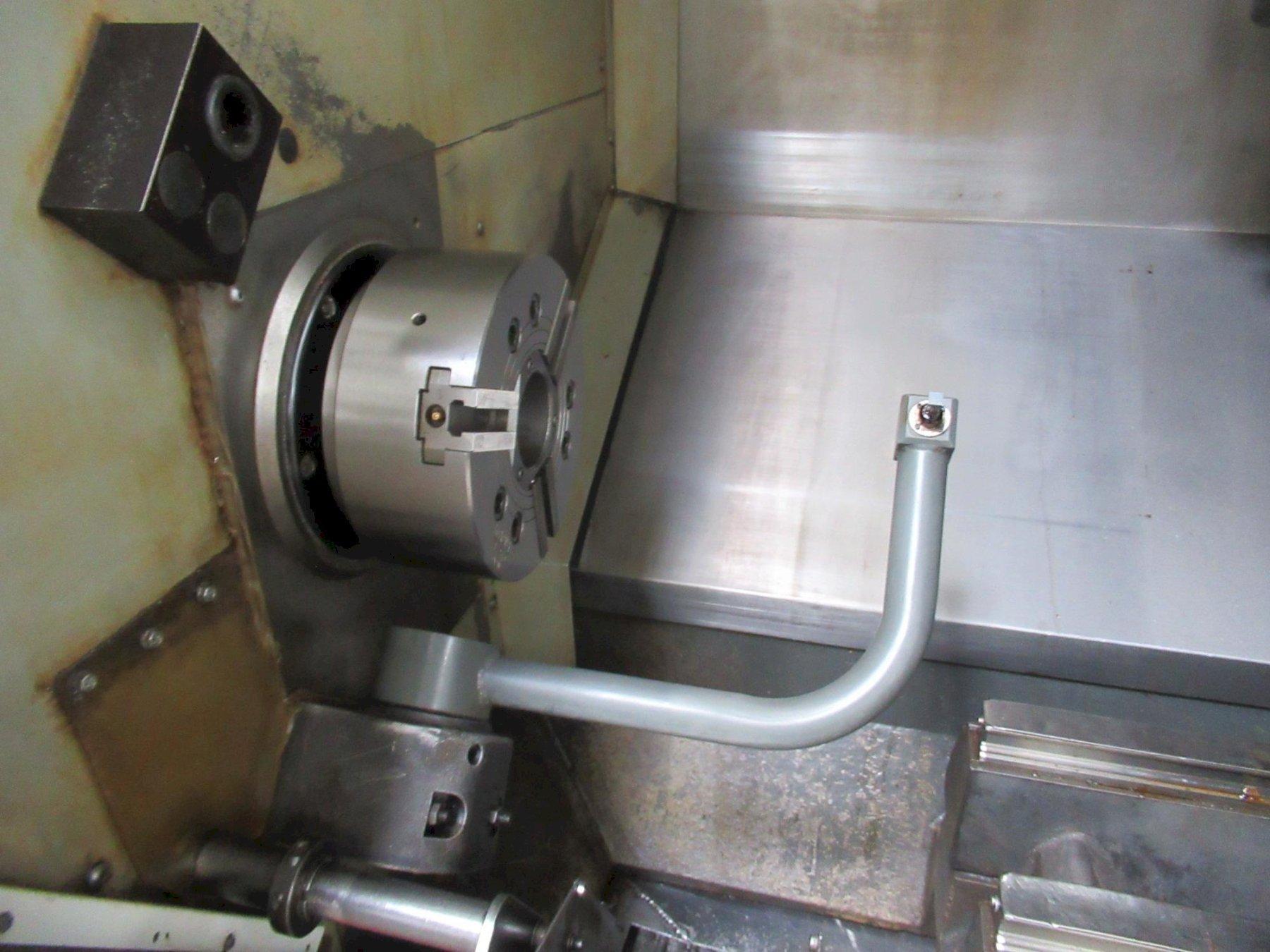

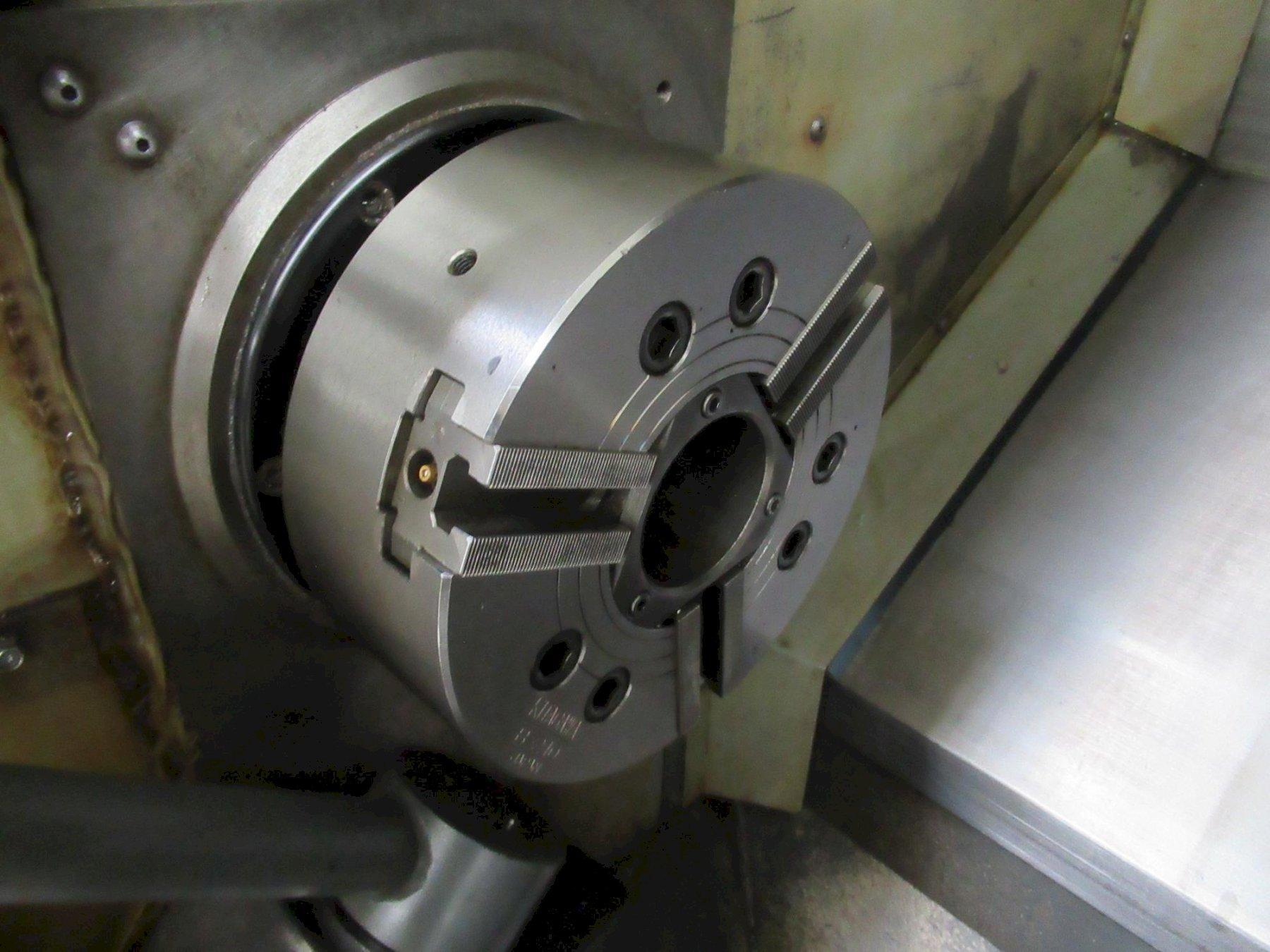

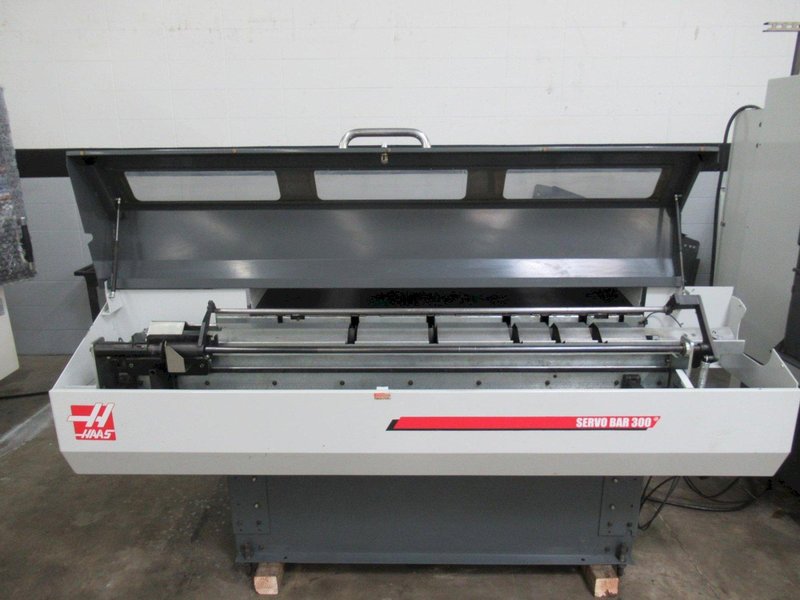

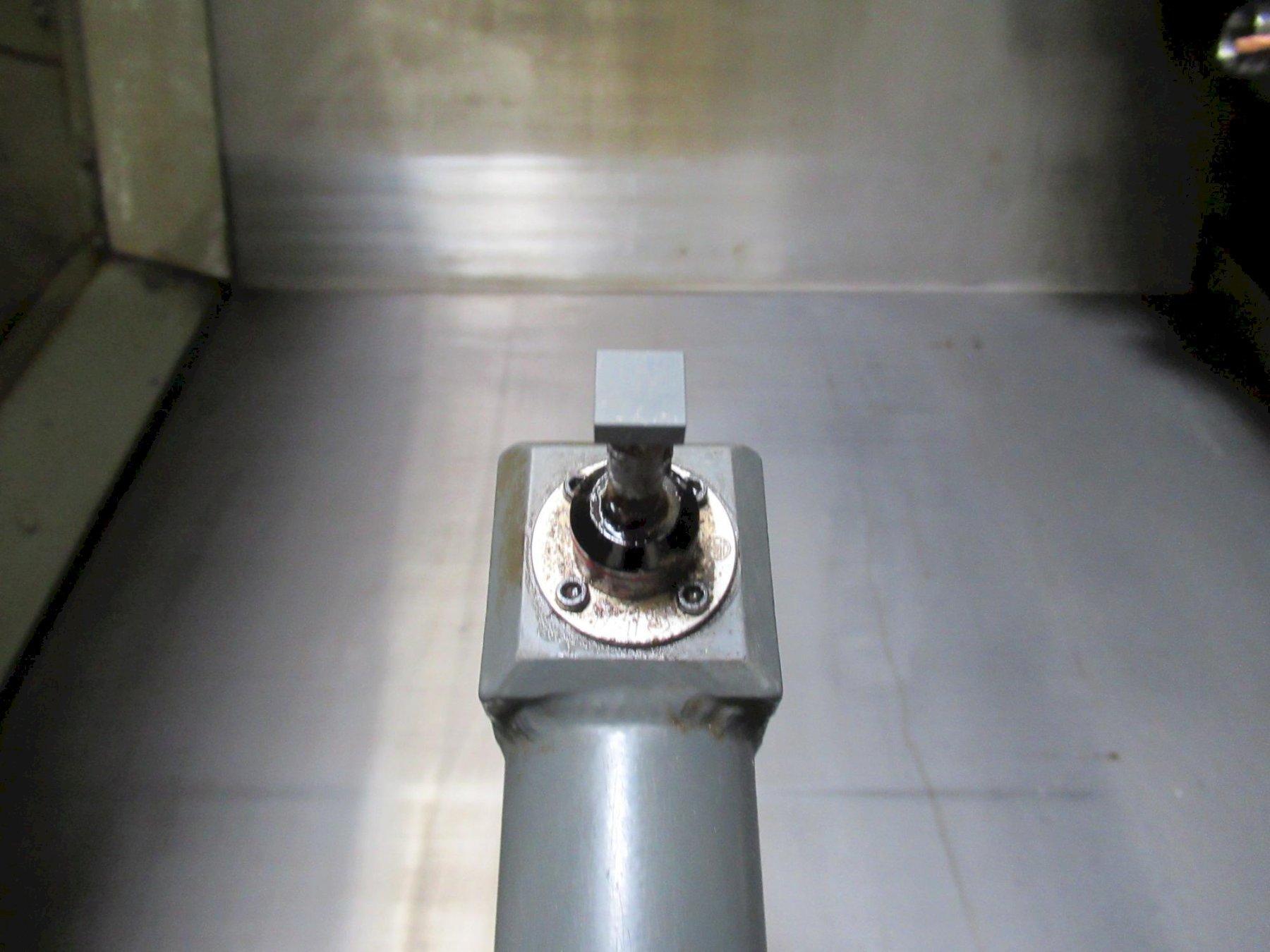

Haas MainCon CNC Control, 3400 RPM Spindle, 12 Station Hybrid Turret with 6 Live Milling Stations, Kitagawa B-210 10" 3-Jaw Chuck, Full C-Axis (.001 Degree) Spindle, Programmable Tailstock, Jorgensen Chip Conveyor, Automatic Tool Presetter, Parts Catcher, (2) ER32 Radial Live Tools, Assorted Static Boring Bar holders and Turning Tool Holders, Wedge Clamps, Remote Foot Trip, Haas Servo 300 Magazine Bar Feed, Coolant Tank and Pump System, Berfeed Alighment Plate, Machine Pads, USB with Parameters, Rigid Tapping

Electrics:

195-260 Volt, 3 Phase
