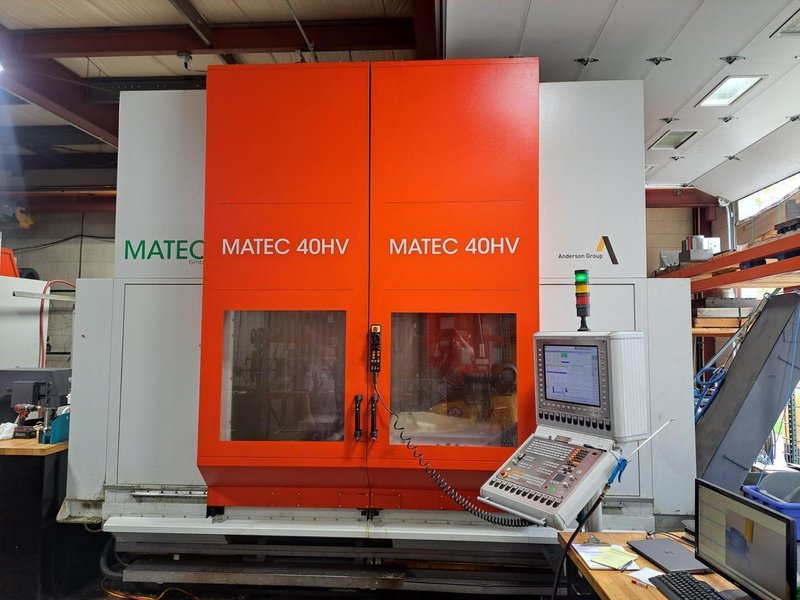

Matec 40HV Universal Machining Center, 2017 – Probe, 12K RPM Spindle, Simultaneous 5 Axis

Machine Table: 32.8″ x 100″ X Axis Travel: 78.7″ Y Axis Travel: 31.5″ Z Axis Travel (Horizontal): 43.3″ Z Axis Travel (Vertical): 38.9″ NC Swivel Head: infinitely adjustable ±105° Swivel Radius: 14.1″ Spindle Taper: HSK 100 Spindle Speed: 12,000 RPM Spindle Motor: 59 HP ATC: 40 Positions

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

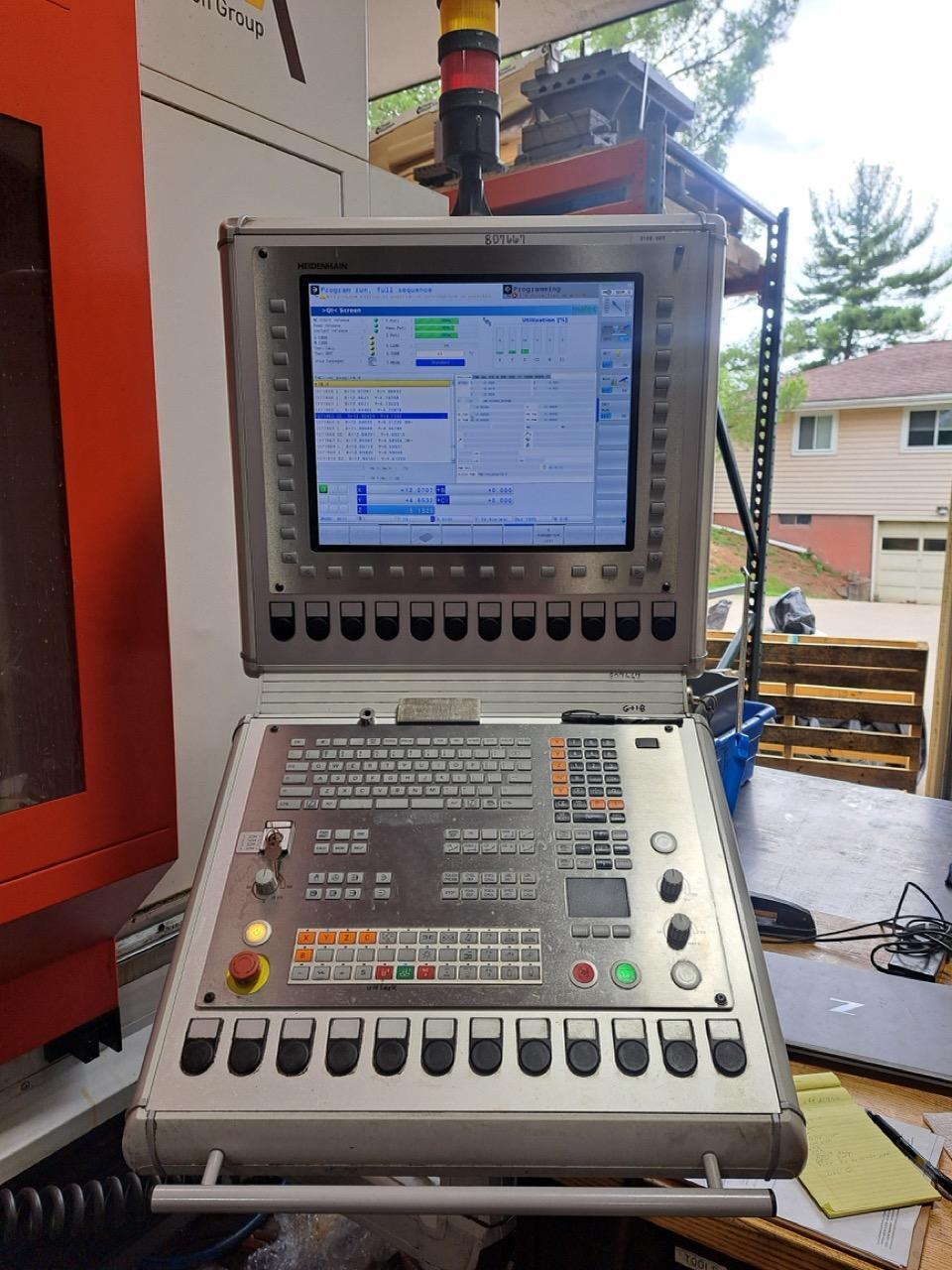

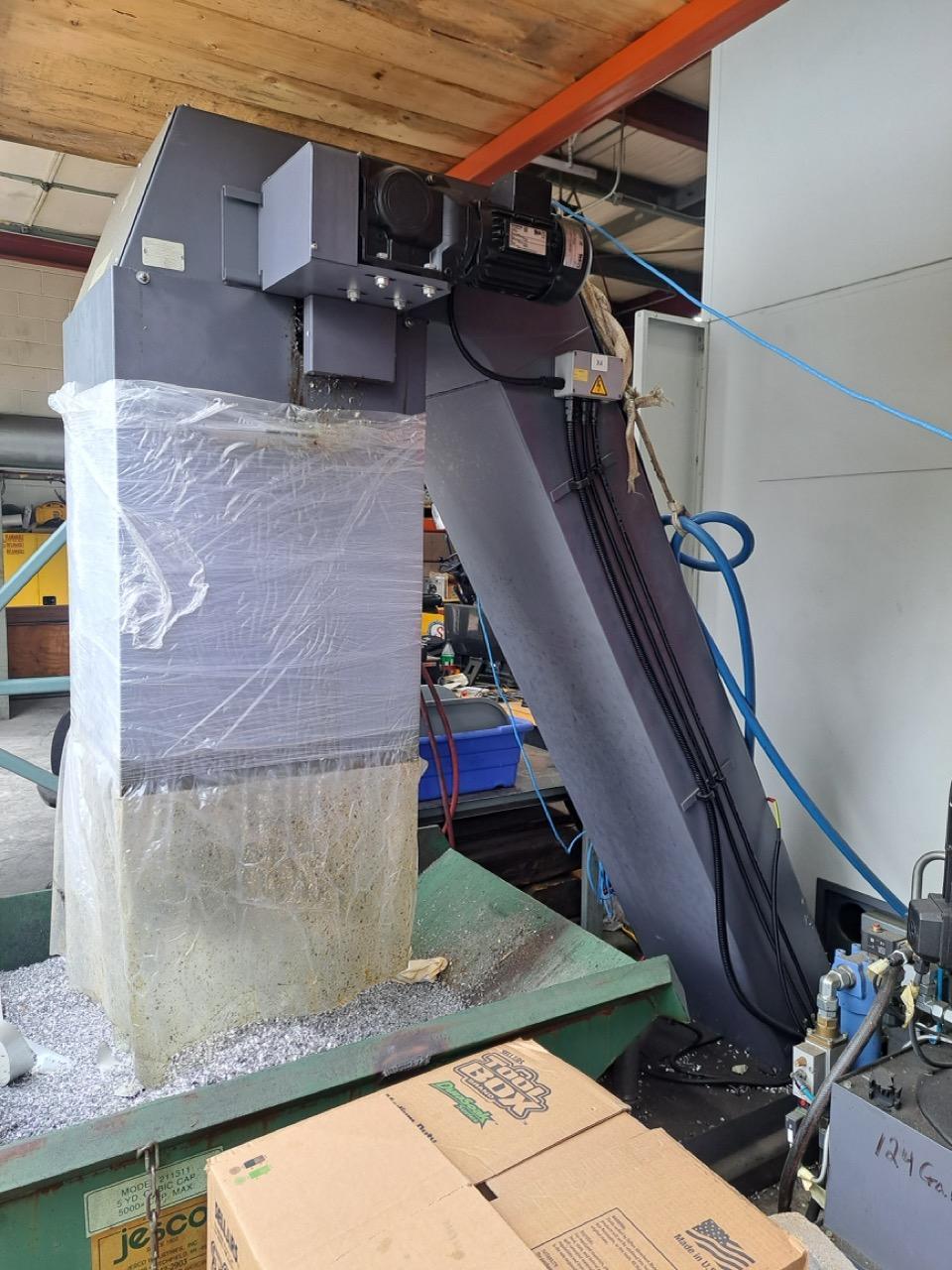

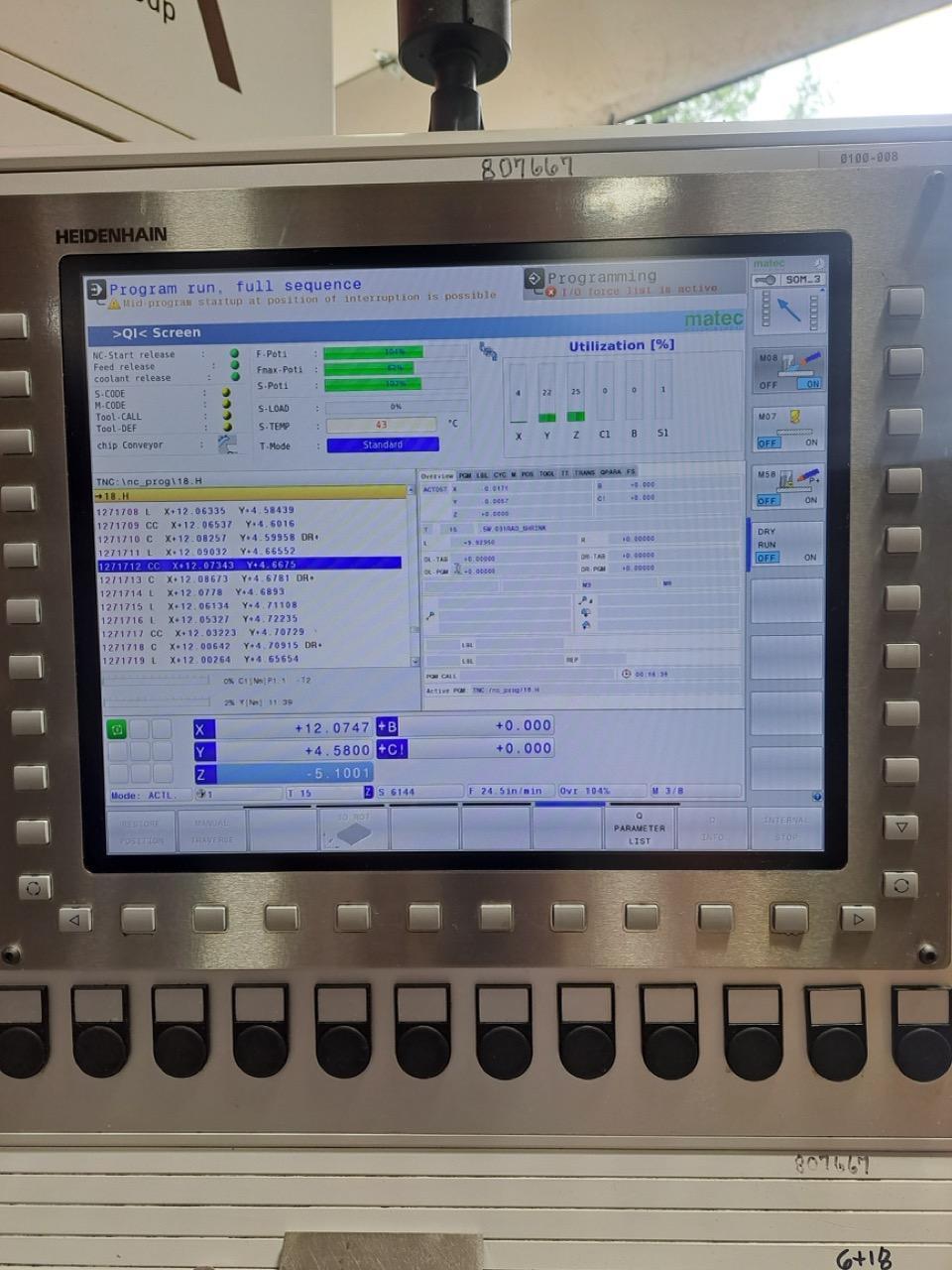

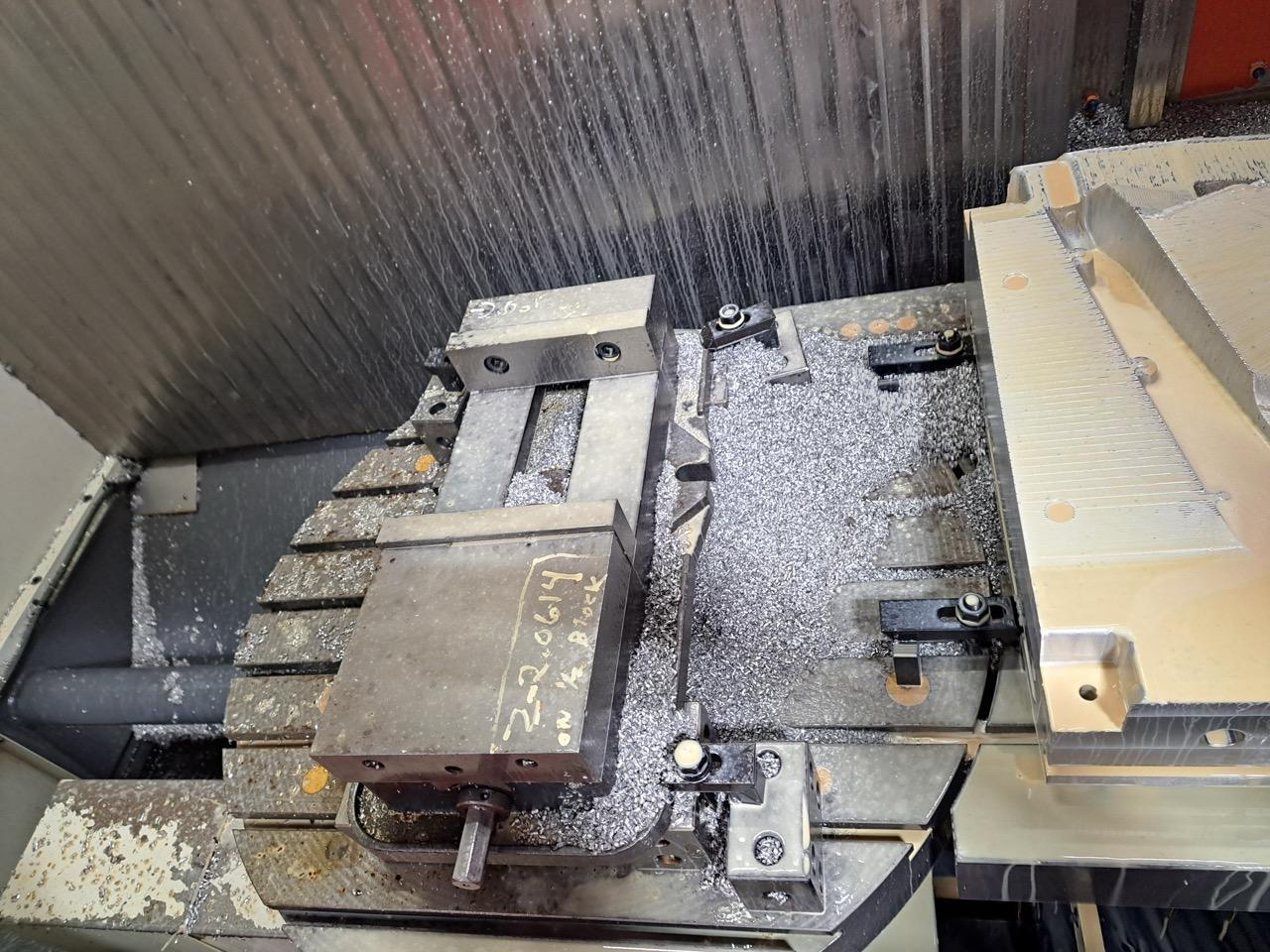

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Heidenhain TNC 640 Control NC swivel head, infinitely adjustable ±105° Continuous or indexed positioning with clamping 12,000 RPM Spindle Machine Spindle with HSK100 Tool Interface High Pressure Coolant Machine Anchoring Additional Support for Machine Bed Chip Conveyor Wash Gun Work area lighting Software Option KinematicsOpt Internal Coolant Supply CNC Rotary Table SKH-NC 8/1000 Direct Measuring System for Rotary Table 3D Wireless Touch Probe Tool Breakage Detection & Length Measurement Collision Monitoring System 3-Color Signal Light

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
